USER MANUAL TX-B7110-55IN Vevor

Technical Support and E-Warranty Certificate www.vevor.com/support

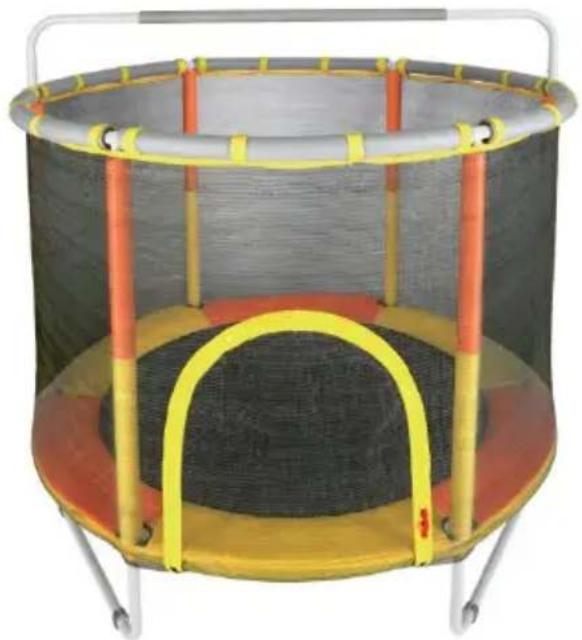

MINI TRAMPOLINE

MODEL: TX-B7110-55IN

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represents an estimate of savings you might benefit from buying certain tools with us compared to the major top brands and does not necessarily mean to co all categories of tools offered by us. You are kindly reminded to verify carefully when you are placing an order with us if you are actually Saving Half in comparison with the top major brands.

MODEL: TX-B7110-55IN

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel free to contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instructions carefully before operating. VEVOR reserves a clear interpretation of o user manual. The appearance of the product shall be subject to the product you received. Please forgive us that we won't inform you ag there are any technology or software updates on our product.

Warning-To reduce the risk of injury, user must read instruct manual carefully.

Not suitable for children under 36 months

Do not use during pregnancy!

Do not use when suffering from high blood pressure!

Only one person on the trampoline!

Use only bare feet!

No somersaults!

No smoking!

Remove all sharp objects from trampoline and jumper!

Do not bring watches, glasses, rings, scissors, phone etc.

SAFETY WARNINGS AND PRECAUTIONS

Thank you for using this product. In order to make sure that you can operate machine correctly, read this instruction carefully before operation and keep it properly for future reference. Please read the precautions and safety rules on page to ensure your safe use. This manual will outline safety warnings and precautions, operating, maintenance and cleaning. The warnings and instructions reviewed in this manual cannot cover all possible conditions and situations that may occur. Caution and common sense are not built into this product, since believe that the uses will comply with these codes. Before starting a training program or engaging in strenuous endurance activity on the device, please call a doctor.

Please read ALL the instructions before using your machine.

1. Assemble needs to follow these instructions. Incorrect assembly can be a hazard. Wear heavy-duty work gloves during assembly.
2. Do not assemble and use when tired or when under the influence of alcohol drugs or medication.
3. Elastic and other product properties only apply to correctly and completely assembled products.
4. Keep the assembly area clean and well-lit.
5. Keep bystanders out of the area during assembly.
6. The trampoline must be set up by an adult following the instructions. Do allow children and pets to play alone or approach this item. Don't Climb Pro
7. Use as intended only. Always zip up the net before jumping. Make sure it is securely zipped before bouncing.

8. Inspect before every use. Do not use it if Part are loose or damaged. Be aware of the following potential hazards:

9. Missing, damaged or improperly positioned frame padding.

10. Punctures, tears, frays, or holes in the fabric of the bed. Deterioration of stitching, fabric, or webbing.
11. Bent or broken frame.
12. Loose or missing bolts. Loosened legs.

13. Bumper cotton cracked, damaged, lost

14. People or objects hanging on the product will cause the product to fall.

15. Pay attention to pedestrians and vehicles when using.
16. Do not apply this unit to any other purposes than the indicated usage. If changes to any Part or structure of the product are allowed.
17. The trampoline net cannot place items to avoid damage.
18. Do not use it for commercial purposes.
19. DO NOT CLEAN IT WITH ANY ABRASIVE MATERIAL.
20. Never leave it unattended while in use.
21. Pet urine and feces can damage the product, please keep away.
22. Do not place the product on or near hot air, electric burners or heaters. Fireworks, cigarettes, flares, and other items can ignite the product. Please stay away from them.
23. The product should be placed on a flat surface. And it should be install open and safe place, at least 2m from any structure or obstructions, avoiding places near windows, roads, railways, rivers, fences, garages, houses, overhanging branches, electrical wires, swimming pools, swings, slides, climbing frames, walls, furniture, wires, ceiling fans, etc.
24. The trampoline is intended for outdoor use only. Do not place it in a d. environment.
25. Must use the designed access points to climb in S out of the trampoline
26. Do not eat and drink while jumping. It is advisable not to bounce immediately after a meal.
27. This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience or knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. Not suitable for children under 36 months- small Part, choking hazard.
28. Always jump in the middle of the mat and practice bounce techniques as with adult supervision and guidance.
29. Take your shoes off while jumping. Empty pockets and hands before jump. Don't wear glasses.
30. Do not allow more than one person at a time on the trampoline. Do not multiple people at the same time.

31. Max user weight limit: check size chart.

32. DO NOT bury the trampoline in the ground.

33. Do not install the trampoline over concrete, asphalt, or any other hard surface. Make sure there are no children, pets, animals, obstructions underneath the trampoline.
34. Don't intentionally jump against the protection net as this will weaken it.
35. Artificial illumination may be required for indoor or shady areas.
36. The metal frame of the trampoline can conduct electricity. All lamps, exte cords and similar electronic devices must not come into contact with the fram
37. Check the trampoline before and after each use to make sure that all F properly and securely in place. If necessary, tighten the screws and replace a worn, defective or missing Part.
38. Wear comfortable clothing in which you can move around easily when use the device. Do not wear hooks, snaps, drawstrings or similar items that could caught in the trampoline. Before use, remove all necklaces and earrings.
39. Please only wear suitable trampoline shoes or socks to avoid slipping. Ti or shoes with smooth leather soles are not suitable for trampoline use.
40. The minimum age for using the trampoline is 3 years. Children under the age of 12 should only use the trampoline under the supervision of an adult who has to assess the risks.
41. If you have heart disease, high blood pressure and other physical diseases you should not use this product. We accept no liability for consequential damage caused by non-compliance.

WARNING: 37. This appliance is not intended for use by young or ir persons unless supervised by a responsible person to ensure that they use the appliance safely. Young children should be supervised to ensure that they do not play with the product. Pets should stay away from the product. Do not use outdoors on rainy and cloudy days and strong wind conditions, avoid lightning strikes and falls. People or pets hanging on t product will cause injury or death.

1. The manufacturer strongly recommends assembly the enclosure net before using trampoline, this will reduce the risk of falling off, offer safe children.

2. Do not try to do somersaults on the trampoline. Landing on the head neck, even if it happens in the middle of the trampoline, can result in injuries such as paralysis and, in the worst case, death.

MAX USER WEIGHT

Max user weight limit: Max265 Pound (120Kg)

NOTE: Do not allow more than one person at a time on the trampoline. Do multiple people at the same time.

PRODUCT PART

1. Please dispose of all plastic bags carefully and keep them away from chi and pets.
2. Check all components provided according to the list in this manual.Make sure you have all of the Part listed.
3. Although paying particular attention when manufacturing this product, you may be careful during the assembly process to avoid being scratched by sharp edges
4. Wear protective gloves, during assembly and use.
5. The product should be placed on a flat surface.
6. The product requires two people to assemble.

NOTE:The quantity of Part shown in the manual is the actual usage and the unused Part are spare Part.

Part No.	Picture	Qty	Part No.	Picture	Qty
A	Arc-shape tube	6 PCS	H	Spring	36 PCS
B	U-shape leg	3 PCS	I	Spring TOOL	1 PCS
C	Cross pipe	6 PCS	J	Top frame tube	6 PCS
D	T-Round tube	4 PCS	K	Cross bar	2 PCS
E	Safety net pole	6 PCS	L	Straight bar	1 PCS
F	Safety net	1 PCS	M	Round cross tube	2 PCS
G	Jumping mat	1 PCS

ASSEMBLY STEPS

Attention: One or more strong adults are required to operate this step. All remember to keep your face away from the rails. Failure to do so may I rails to spring back then cause harm.

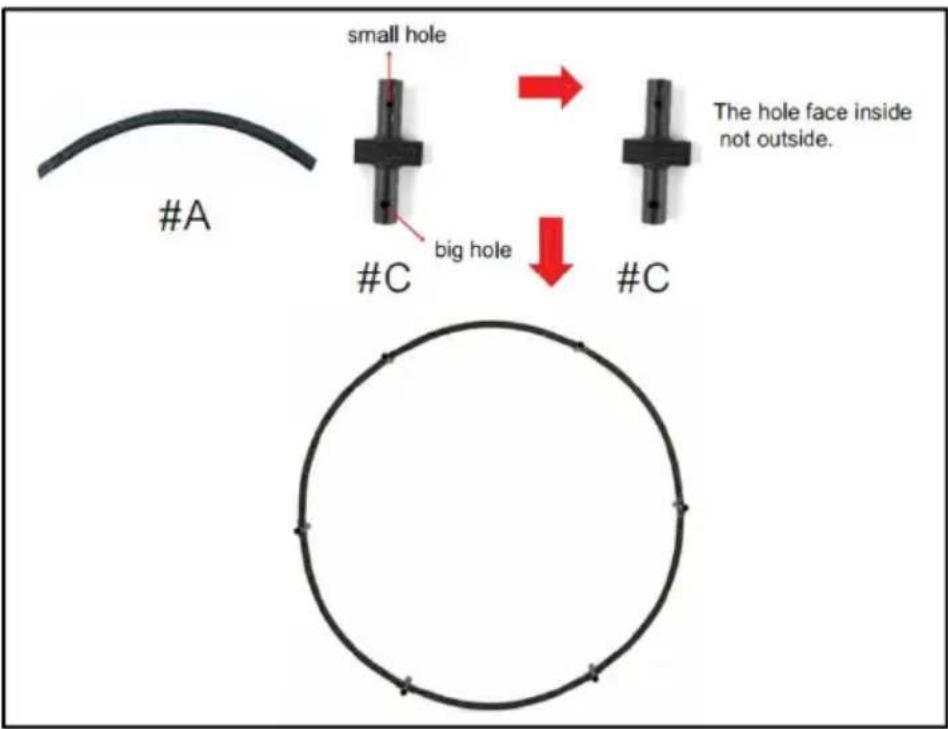

Step 1 - Assemble the Bottom Frame

• Insert #A-Arc-shape tubes fittings into the right end of #C-Cross Pipe comp. Be aware of which side (with hole part) needs to face up.
• Repeat the above steps until inserting the last #A-Arc-shape tubes into the #C-Cross Pipe. You can stand the frame to connect the last Arc-shape tube Cross pipe. Please make sure the frame is completely assembled.

Attention: The closer frame pieces are placed, the easier it is to make connections. Keep fingers away from the end of the rails near the hinged and when installing the frame.

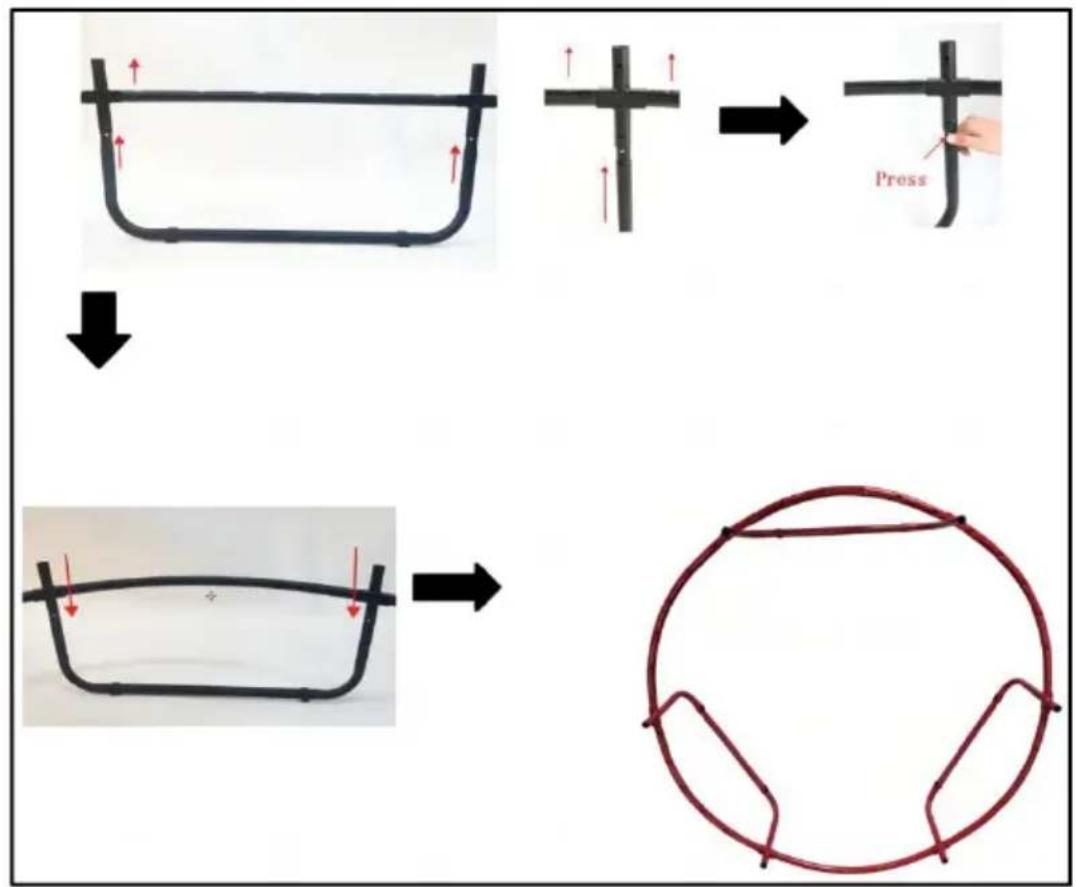

Step 2 - Install the Leg Tubes

• Flip the round frame over, making sure the side with the round hole is fac
• Align both sides of #B-U-shape Legs and two #C-Cross Pipes. Press down the silver snap on both sides of the leg are about to touch the end of the pipes.
• Press the snap and press down the leg tube until the snap fits into the cross pipes.

Attention: Make sure the frame is fully connected before installing the Leg T

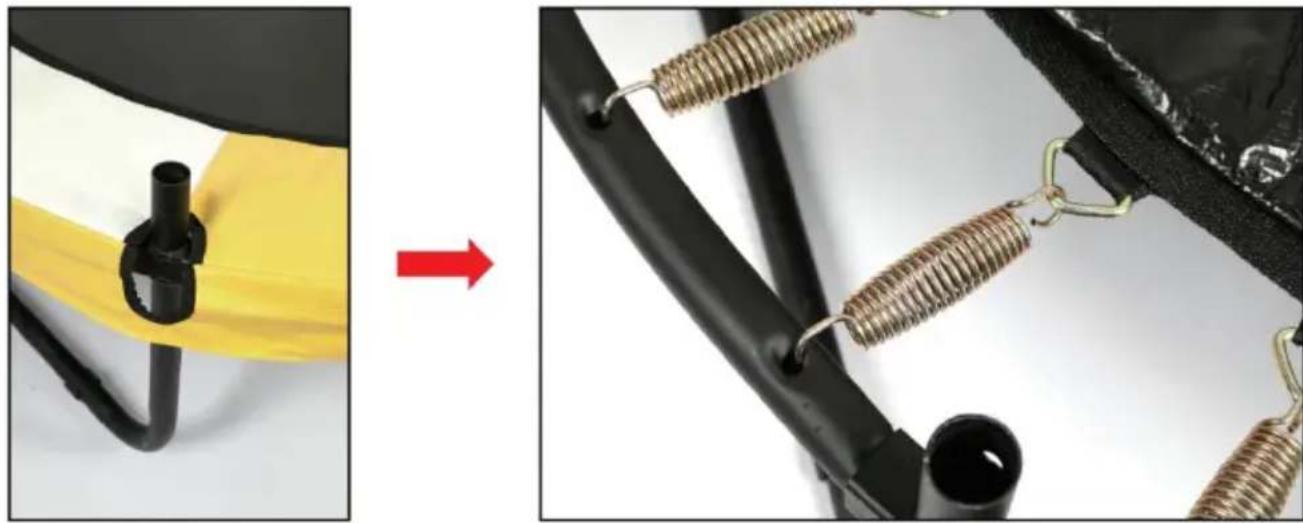

Step 3 - Attach the Springs

• Please place #G-Jumping mat with safety pad on the frame, and the #C-cross pipes should pass through the hole of the safety pad.
• Attach the first six springs at left side of the six cross pipes fitting near,th right side, then attach the other springs.

Attention: Hook one spring(smaller opening side)on the triangle ring of the #G-Jumping Mat.Use the T-hook to hook the spring(larger opening side)or top frame hole.

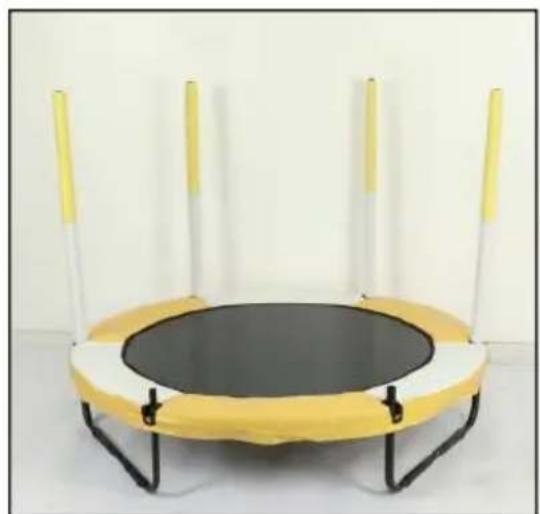

Step 4 - Install Safety net pole

• Insert the end of #E-Safety net pole with the silver buckle down into #C-(Pipes.Please only assemble the continuous 4 pcs of safety net poles.

Attention: lease make sure the snap of the safety net poles fit into the cross pipes.

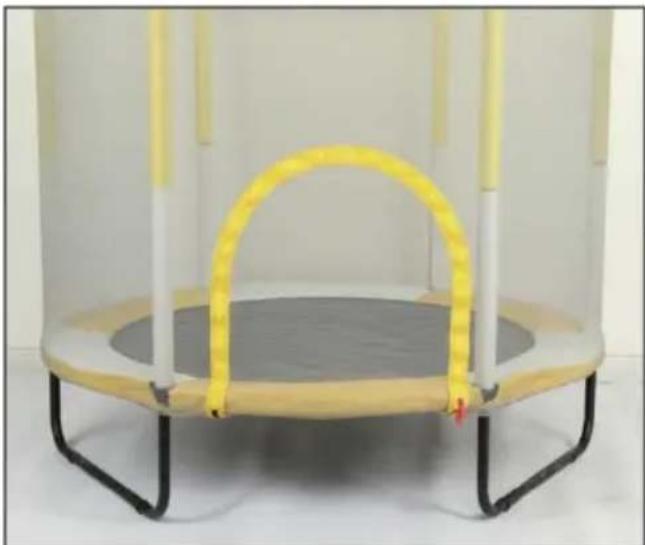

Step 5 - Install the Safety Net

• Slide #F-Safety Net down from the top of safety net pole.
• Then assemble the other left two safety poles.
• Adjust #F-Safety Net to make sure entrance and exit in the middle of two net poles like below picture showing.

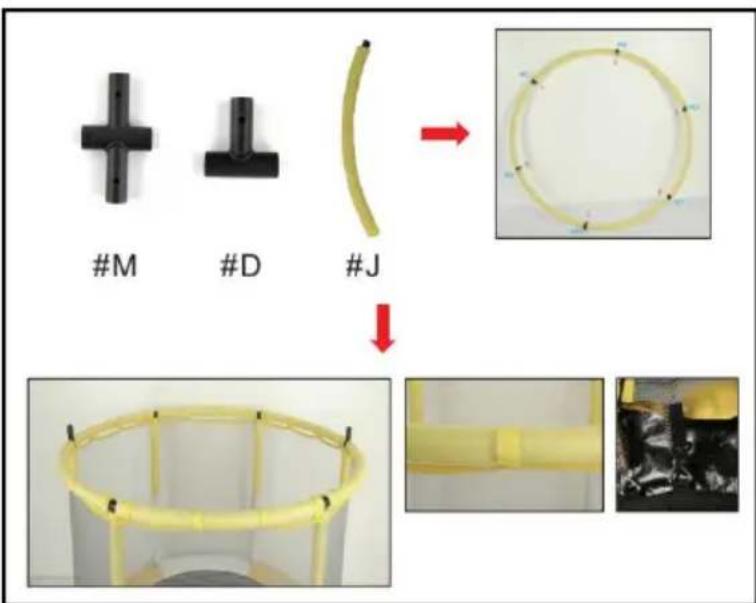

Step 6-Install the Top Frame

• Attach the #D-T-Round Tubes, #M-Round Cross Tube and #J-Top fistube into a circle per below picture showing.
• Please pay attention to the installation location. 2&5 is with #M-roun cross tube.
• Then put the circle frame on the #E-safety net poles.
• Then Attach the top velour to the top circle frame tubes and bottle plastic buckle to the triangle ring of the jumping mat.

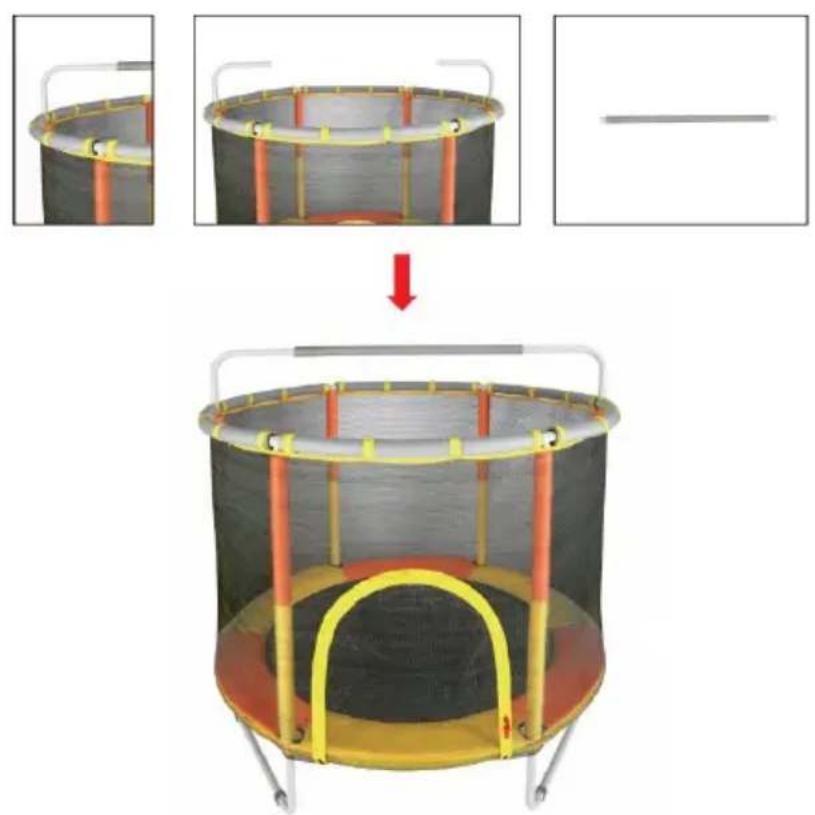

Step 7 -Install the hanging bar

• Attach #K-Cross bar into #M-round cross tube,1 piece to each side
• Then assemble the middle #L-straight bar.

1. Please check whether the product is installed correctly and firmly, and reasafety information in the manual again.
2. The product should be placed on a flat surface. Make sure the net zippe closed before use. Follow the manual safety information and enjoy your trampoline.

CLEANING AND STORAGE

1. Wipe with a soft, dry cloth. Never use an abrasive cleanser or harsh pad
2. Children are not allowed to wipe the product to avoid tipping and falling
3. After disassembling the product, please assemble the parts and accessories. Be sure to keep the product dry.
4. Please clean regularly to avoid dirt.

Notes: Before using it again, reassemble according to the instructions

TIPS

1. Always step on and off the trampoline carefully, do not jump.
2. Stay in the center of the trampoline when jumping. Don't jump on the ed jump on the net.
3. Stop bouncing by flexing your knees as your feet come in contact with the trampoline bed.
4. For safety, it's suggested lessons from a professional should be acquired using this trampoline.

Notice: Before anyone uses this trampoline, it is imperative that you read all instructions carefully and make sure that the assembly went without any error

Manufacturer: Shanghaiuxinmuyeyouxianggsi

Address: Shuangchenglu 803nong11hao1602A-1609shi, baoshanqu, shanghai 200000 CN.

Imported to AUS: SIHAO PTY LTD. 1 ROKEVA STREETEASTWOOD NSW 2122 Australia

Imported to USA: Sanven Technology Ltd. Suite 250, 9166 Anaheim Place, Rancho Cucamonga, CA 91730
