Product Type	Fitness Trampoline
Brand	Vevor
Model	TX-B6389C-48IN+C
Jump Mat Diameter	48 inches (approx. 122 cm)
Maximum User Weight	205 kg (450 lbs)
Number of Springs	40
Frame Material	Steel
Mat Material	Polypropylene
Padding Material	Foam and PVC
Handlebar Height	Adjustable (adjustment knob included)
Number of Legs	6 (including 2 front with handlebar supports)
Usage	Outdoor only
Capacity	1 person at a time
Assembly	2 persons recommended; tools provided
Minimum Recommended Age	3 years
Cleaning	Soft dry cloth; no abrasive cleaners
Warranty	Technical support and electronic warranty certificate at www.vevor.com/support

Frequently Asked Questions - TX-B6389C-48IN+C Vevor

How to assemble the Vevor TX-B6389C-48IN+C trampoline?

Assembly requires two people. Begin by opening the pre-assembled frame with the mat and springs. Attach the six legs (3) by screwing the caps (8). For the handlebar, attach the handrail legs (4) to the front legs, then the brackets (6A/6B) on each side of the handlebar. Adjust the height with the knob (A). Make sure all bolts are tightly fastened and the trampoline rests flat on a level surface. Refer to the manual for detailed steps.

What is the maximum weight capacity of this trampoline?

For the model TX-B6389C-48IN+C, the maximum user weight is 205 kg (450 lbs). Never exceed this limit to avoid any risk of injury or damage.

Can I use this trampoline indoors?

No, this trampoline is designed for outdoor use only. Do not install it in a damp environment. Make sure to place it on a flat, clear surface, at least 2 meters away from any obstacles (walls, furniture, branches, electrical wires, etc.).

Is the Vevor TX-B6389C-48IN+C trampoline delivered with a safety net?

According to the parts list, this model comes with a frame padding but without a separate safety net. However, it is provided with a support handlebar. The manufacturer strongly recommends using a safety net to reduce the risk of falls. Check the packaging or contact customer service to confirm.

How to clean and maintain the trampoline?

Wipe the trampoline with a soft dry cloth. Never use abrasive cleaners or harsh pads. Regularly inspect parts (springs, frame, mat) for any loosening or damage. Store the trampoline dry after use and protect it from weather.

Can I do flips on this trampoline?

No, flips are strictly prohibited. Landing on the head or neck, even in the center of the mat, can cause serious injuries such as paralysis or death. Always follow safety instructions.

What ceiling height is needed if I use the trampoline outdoors under a shelter?

The trampoline must be installed outdoors, in the open air. If you must use it under a shelter, ensure the clearance is sufficient to avoid any head contact. The manufacturer recommends a clearance of at least 2 meters above the trampoline.

Is the handlebar adjustable in height?

Yes, the handlebar is adjustable using an adjustment knob (A). You can adjust the height for optimal comfort. Make sure the knob is tightened before use.

How many springs does the trampoline have?

This model is equipped with 40 springs pre-assembled with the main frame. The springs are designed to provide balanced and durable bounce.

What are the essential safety precautions?

Use the trampoline only barefoot, empty your pockets and remove jewelry, glasses, and sharp objects. Allow only one person at a time. Always jump in the center of the mat. Do not intentionally jump into the net (if present). Check the trampoline's condition before each use. Children under 12 must be supervised by an adult.

USER MANUAL TX-B6389C-48IN+C Vevor

Technical Support and E-Warranty Certificate www.vevor.com/support

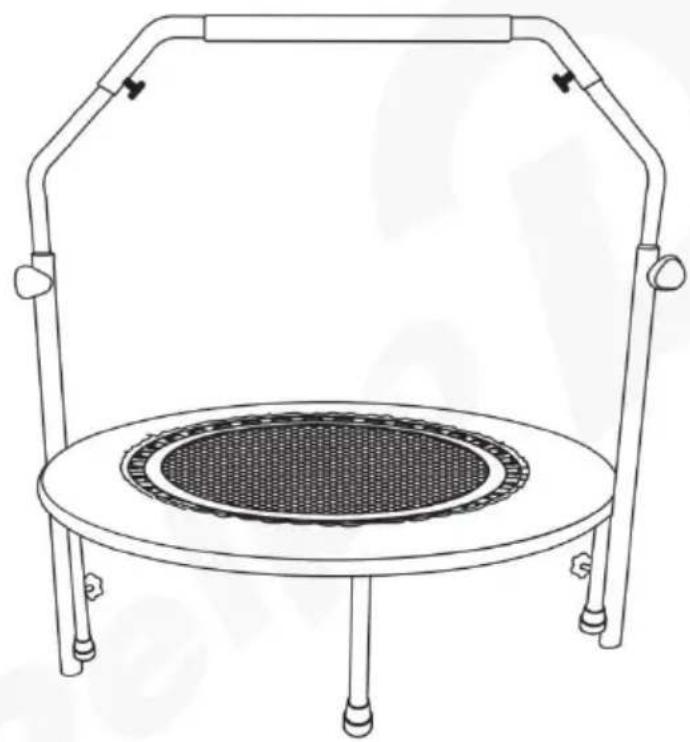

FITNESS TRAMPOLINE

MODEL: TX-B6389C-40IN+C / TX-B6389C-48IN+C

We continue to be committed to providing you with tools at competitive prices. "Save Half", "Half Price", or any other similar expressions used by us only represent an estimate of savings you might benefit from buying certain tools with us compared to the major top brands and does not necessarily mean to cover all categories of tools offered by us. You are kindly reminded to verify carefully when you are placing an order with us if you are actually saving half in comparison with the top major brands.

MODEL: TX-B6389C-40IN+C / TX-B6389C-48IN+C

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel free to contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction. Please read all manual instructions carefully before operating. VEVOR reserves a clear interpretation of the user manual. The appearance of the product shall be subject to the product you received. Please forgive us that we won't inform you again if there are any technology or software updates on our product.

	Warning-To reduce the risk of injury, user must read instructi manual carefully.
	Not suitable for children under 36 months
	Do not use during pregnancy!
	Do not use when suffering from high blood pressure!
	Only one person on the trampoline!
	Use only bare feet!
	No somersaults!
	No smoking!
	Remove all sharp objects from trampoline and jumper!
	Do not bring watches, glasses, rings, scissors, phone etc.

SAFETY WARNINGS AND PRECAUTIONS

Thank you for using this product. In order to make sure that you can operate the machine correctly, read this instruction carefully before operation and keep it properly for future reference. Please read the precautions and safety rules on page to ensure your safe use. This manual will outline safety warnings and precautions, operating, maintenance, and cleaning. The warnings and instructions reviewed in this manual cannot cover all possible conditions and situations that may occur. Caution and common sense are not built into this product, since we believe that the users will comply with these codes. Before starting a training program or engaging in strenuous endurance activity on the device, please call a doctor.

Please read ALL the instructions before using your machine.

1. Assembly needs to follow these instructions. Incorrect assembly can be a hazard. Wear heavy-duty work gloves during assembly.
2. Do not assemble and use when tired or when under the influence of alcohol, drugs, or medication.
3. Elastic and other product properties only apply to correctly and completely assembled products.
4. Keep the assembly area clean and well-lit.
5. Keep bystanders out of the area during assembly.
6. The trampoline must be set up by an adult following the instructions. Do not allow children and pets to play alone or approach this item. Do not climb on the product.
7. Use as intended only. Always zip up the net before jumping. Make sure it is securely zipped before bouncing.
8. Inspect before every use. Do not use it if parts are loose or damaged. Be aware of the following potential hazards:
9. Missing, damaged or improperly positioned frame padding.
10. Punctures, tears, frays, or holes in the fabric of the bed. Deterioration of stitching, fabric, or webbing.
11. Bent or broken frame.
12. Loose or missing bolts. Loosened legs.
13. Bumper cotton cracked, damaged, lost.
14. People or objects hanging on the product will cause the product to fall.
15. Pay attention to pedestrians and vehicles when using.
16. Do not use this unit for any purpose other than the indicated usage. Changes to any part or structure of the product are not allowed.
17. Do not place items on the trampoline net to avoid damage.
18. Do not use it for commercial purposes.
19. DO NOT CLEAN IT WITH ANY ABRASIVE MATERIAL.
20. Never leave it unattended while in use.
21. Pet urine and feces can damage the product, please keep them away.
22. Do not place the product on or near hot air, electric burners, or heaters. Fireworks, cigarettes, flares, and other items can ignite the product. Please stay away from them.
23. The product should be placed on a flat surface. It should be installed in an open and safe place, at least 2m from any structure or obstructions, avoiding places near windows, roads, railways, rivers, fences, garages, houses, overhanging branches, electrical wires, swimming pools, swings, slides, climbing frames, walls, furniture, wires, ceiling fans, etc.
24. The trampoline is intended for outdoor use only. Do not place it in a damp environment.
25. Must use the designed access points to climb in and out of the trampoline.
26. Do not eat and drink while jumping. It is advisable not to bounce immediately after a meal.
27. This appliance is not intended for use by persons (including children) with reduced physical, sensory, or mental capabilities, or lack of experience or knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. Not suitable for children under 36 months - small parts, choking hazard.
28. Always jump in the middle of the mat and practice bounce techniques set with adult supervision and guidance.
29. Take your shoes off while jumping. Empty pockets and hands before jumping. Don't wear glasses.
30. Do not allow more than one person at a time on the trampoline. Do not allow multiple people at the same time.
31. Max user weight limit: check size chart.
32. DO NOT bury the trampoline in the ground.
33. Do not install the trampoline over concrete, asphalt, or any other hard surface. Make sure there are no children, pets, animals, or obstructions underneath the trampoline.
34. Do not intentionally jump against the protection net as this will weaken it.
35. Artificial illumination may be required for indoor or shady areas.
36. The metal frame of the trampoline can conduct electricity. All lamps, extension cords, and similar electronic devices must not come into contact with the frame.
37. Check the trampoline before and after each use to make sure that all parts are properly and securely in place. If necessary, tighten the screws and replace any worn, defective, or missing parts.
38. Wear comfortable clothing in which you can move around easily when using the device. Do not wear hooks, snaps, drawstrings, or similar items that could get caught in the trampoline. Before use, remove all necklaces and earrings.
39. Please only wear suitable trampoline shoes or socks to avoid slipping. Tights or shoes with smooth leather soles are not suitable for trampoline use.
40. The minimum age for using the trampoline is 3 years. Children under the age of 12 should only use the trampoline under the supervision of an adult who is able to assess the risks.
41. If you have heart disease, high blood pressure, or other physical diseases, you should not use this product. We accept no liability for consequential damage caused by non-compliance.

WARNING: This appliance is not intended for use by young or infirm persons.

Persons unless supervised by a responsible person to ensure that they use the appliance safely. Young children should be supervised to ensure that they do not play with the product. Pets should stay away from the product. Do not use outdoors on rainy and cloudy days and in strong wind conditions, to avoid lightning strikes and falls. People or pets hanging on the product will cause injury or death.

1. The manufacturer strongly recommends assembling the enclosure net before using the trampoline. This will reduce the risk of falling off and offer safety for children.
2. Do not attempt somersaults on the trampoline. Landing on the head or neck, even if it happens in the middle of the trampoline, can result in injuries such as paralysis and, in the worst case, death.

MAX USER WEIGHT

Max user weight limit

TX-B6389C-40in+C: Max 330 Pounds (150 kg)

TX-B6389C-48in+C: Max 450 Pounds (205 kg)

NOTE: Do not allow more than one person at a time on the trampoline. Do not allow multiple people at the same time.

PRODUCT PARTS

1. Please dispose of all plastic bags carefully and keep them away from children and pets.
2. Check all components provided according to the list in this manual. Make sure you have all the parts listed.
3. Although particular attention is paid when manufacturing this product, you should be careful during the assembly process to avoid being scratched by sharp edges.
4. Wear protective gloves during assembly and use.
5. The product should be placed on a flat surface.
6. The product requires two people to assemble.

Key Number	Part Picture	Description	Quantity
1		Main Frame with Jump Mat (Pre-assembled with spring and mat)	1
2		Frame Pad (Pre-assembled with #1)	1
3		Leg with Cap	6
4		Handrail Leg	2
5		Handle bar with Foam	1
6a		Handrail Support- Right	1
6b		Handrail Support- Left	1
7		Leg Socket Cap(Pre-assembled with #1)	8
8		Leg Post Cap(Pre-assembled with #3)	8
9		Spring(Pre-assembled with #1)	40
A		Adjustable KnobM8 x35mm	2
B		Triangle AdjustableKnob M6 x 17mm	6
C		Washer	2
D		Secure Pins	1

NOTE: The quantity of parts shown in the manual is the actual usage, and the unused parts are spare parts.

BEFORE ASSEMBLY

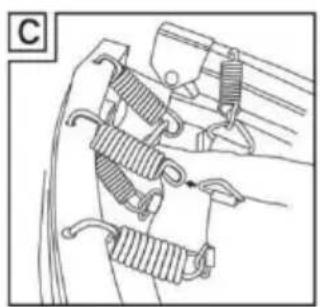

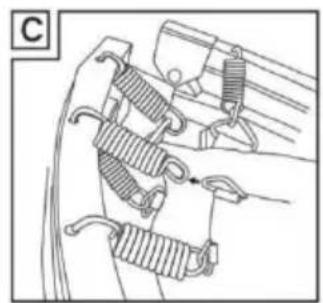

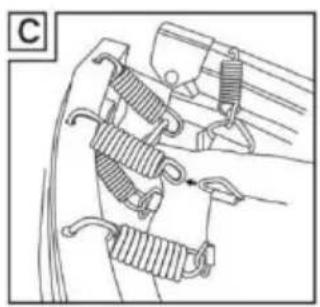

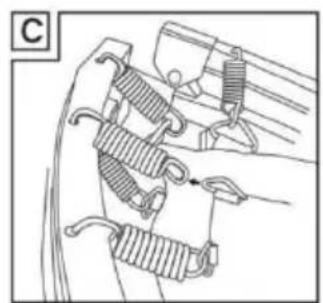

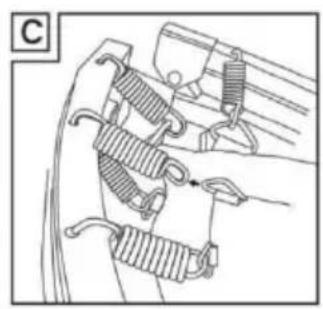

Special notice - Check if the springs are connected

- If the springs are not attached properly, please follow the steps shown in pictures A-B-C.

Attention: The springs can only be linked when the trampoline is folded.

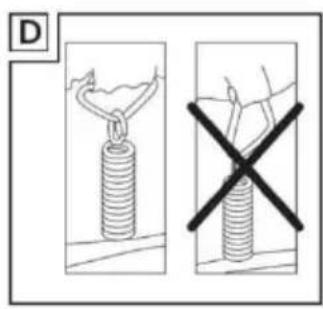

Special notice - Check if the triangle rings are aligned

- Please check and position the triangle rings according to picture D

Attention: The triangle rings can only be adjusted whether the trampoline is folded.

ASSEMBLY STEPS

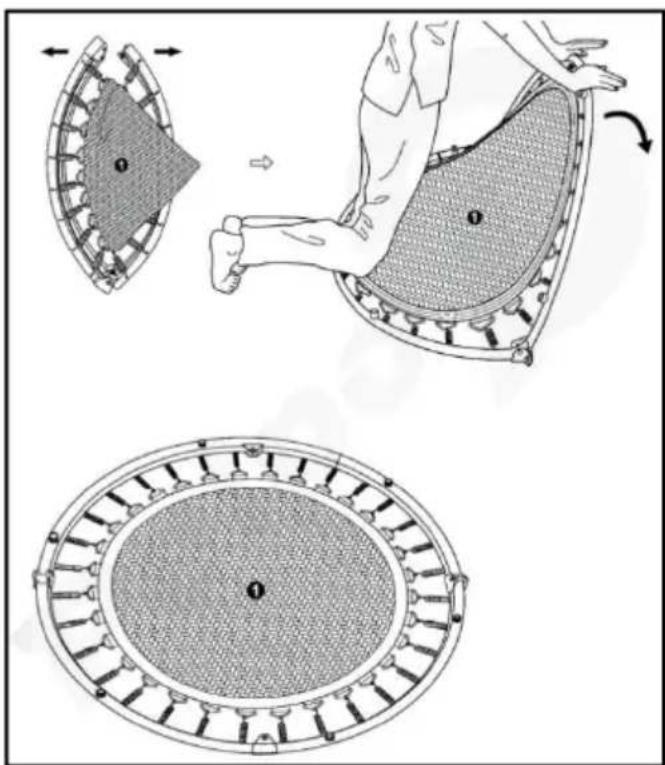

Step 1

Warning: Keep fingers away from the end of the rails near the hinged area.

- Open the frame and jump mat (1), put the trampoline face down on a surface, press hard on the frame until flatness.

Note: If one person cannot push it open, ask 2 people to help push it to avoid bullet injuries.

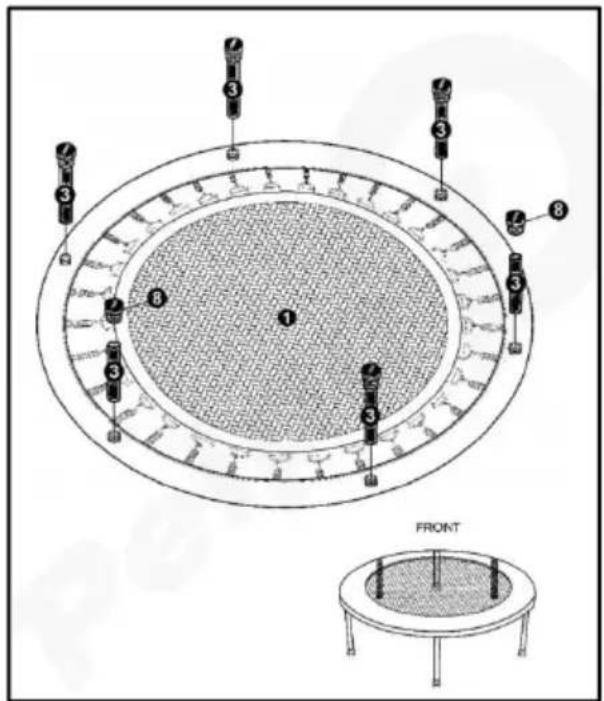

Step 2 - Attach Leg to the Trampoline

Tightly screw the Leg onto the leg sockets (3) of the trampoline frame. Remove the Caps (8) at the front of the trampoline; these will be needed for the next step.

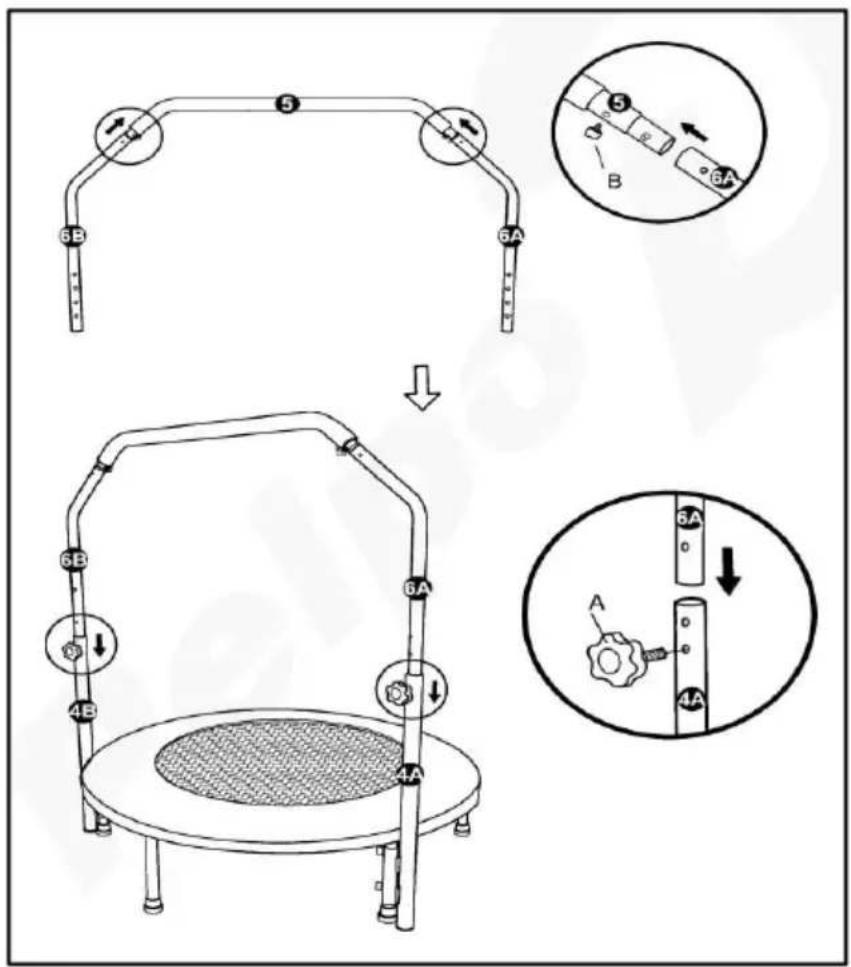

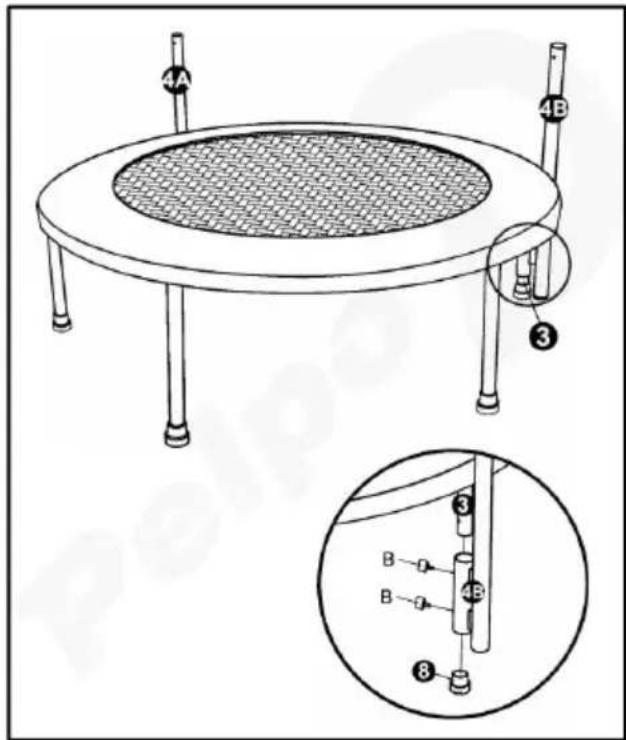

Step 3 - Assemble Handle Bar

Lift the trampoline to a standing position. Attach the Handrail Legs (4A) and (4E) to the two front legs without the caps, screw a little with the Triangle Adjustment Knob (B), then place the Leg Cap (8) onto the handrail legs.

• Attach the Handrail supports (6A) and (6B) to each side of the handle bar (5). The Triangle Adjustment Knobs (B) are secured tightly on each side.
• Connect the assembled handle bar to the handrail leg supports (4A) and (4B), and secure tightly with the Adjustment Knob (A) at the appropriate height level.

Attention: All the Legs (3), Leg caps (8), and Knobs must be screwed tightly, and the Legs (3) must be flat on the ground to avoid wobbling when in use.

1. Please check whether the product is installed correctly and firmly, and read the safety information in the manual again.
2. The product should be placed on a flat surface. Make sure the net zipper is closed before use. Follow the manual's safety information and enjoy your trampoline.

CLEANING AND STORAGE

1. Wipe with a soft, dry cloth. Never use an abrasive cleanser or harsh pad.
2. Children are not allowed to wipe the product to avoid tipping and falling.
3. After disassembling the product, please assemble the parts and accessories. Be sure to keep the product dry.
4. Please clean regularly to avoid dirt.

Notes: Before using it again, reassemble according to the instructions.

TIPS

1. Always step on and off the trampoline carefully, do not jump.
2. Stay in the center of the trampoline when jumping. Don't jump on the edge or on the net.
3. Stop bouncing by flexing your knees as your feet come in contact with the trampoline bed.
4. For safety, it's suggested that lessons from a professional should be acquired when using this trampoline.

Notice: Before anyone uses this trampoline, it is imperative that you read all instructions carefully and make sure that the assembly went without any error.

Manufacturer: Shanghaimuxinmuyeyouxiangongsi

Address: Shuangchenglu 803nong11hao1602A-1609shi, baoshanqu, shanghai 200000 CN.

Imported to AUS: SIHAO PTY LTD. 1 ROKEVA STREETEASTWOOD NSW 2 Australia

Imported to USA: Sanven Technology Ltd. Suite 250, 9166 Anaheim Place, Rancho Cucamonga, CA 91730
