USER MANUAL TX-B6232B-36IN+I Vevor

Technical Support and E-Warranty Certificate www.vevor.com/support

MINI TRAMPOLINE

MODEL: TX-B6232B-36IN+I

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represents an estimate of savings you might benefit from buying certain tools with us compared to the major top brands and does not necessarily mean to co all categories of tools offered by us. You are kindly reminded to verify carefully when you are placing an order with us if you are actually Saving Half in comparison with the top major brands.

MODEL: TX-B6232B-36IN+I

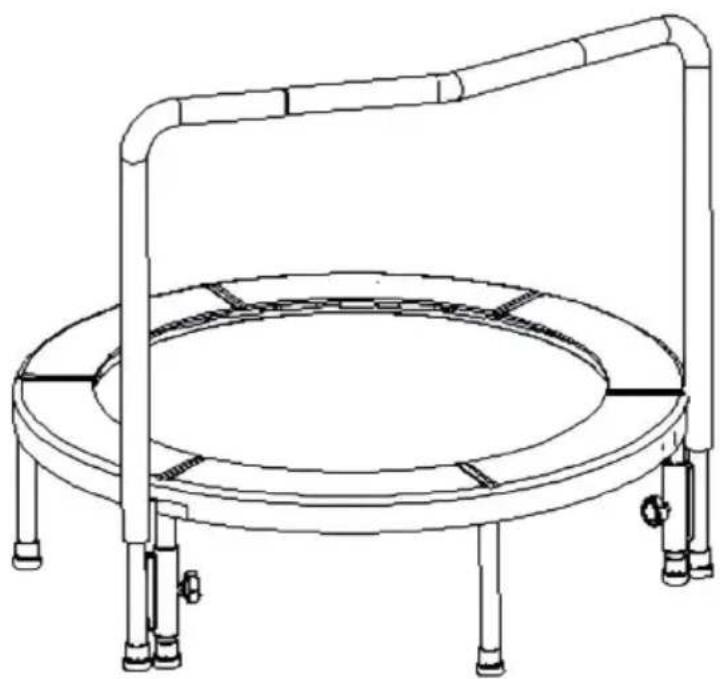

Line drawing of a circular trampoline with metal legs and support structure (no text or symbols)

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel free to contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instructions carefully before operating. VEVOR reserves a clear interpretation of o user manual. The appearance of the product shall be subject to the product you received. Please forgive us that we won't inform you ag there are any technology or software updates on our product.

	Warning-To reduce the risk of injury, user must read instructi manual carefully.
	Not suitable for children under 36 months
	Do not use during pregnancy!
	Do not use when suffering from high blood pressure!
	Only one person on the trampoline!
	Use only bare feet!
	No somersaults!
	No smoking!
	Remove all sharp objects from trampoline and jumper!
	Do not bring watches, glasses, rings, scissors, phone etc.

SAFETY WARNINGS AND PRECAUTIONS

Thank you for using this product. In order to make sure that you can operate machine correctly, read this instruction carefully before operation and keep it properly for future reference. Please read the precautions and safety rules on page to ensure your safe use. This manual will outline safety warnings and precautions, operating, maintenance and cleaning. The warnings and instructions reviewed in this manual cannot cover all possible conditions and situations that may occur. Caution and common sense are not built into this product, since believe that the uses will comply with these codes. Before starting a training program or engaging in strenuous endurance activity on the device, please call a doctor.

Please read ALL the instructions before using your machine.

1. Assemble needs to follow these instructions. Incorrect assembly can be a hazard. Wear heavy-duty work gloves during assembly.
2. Do not assemble and use when tired or when under the influence of alcohol drugs or medication.
3. Elastic and other product properties only apply to correctly and completely assembled products.
4. Keep the assembly area clean and well-lit.
5. Keep bystanders out of the area during assembly.
6. The trampoline must be set up by an adult following the instructions. Do allow children and pets to play alone or approach this item. Don't Climb Pro
7. Use as intended only. Always zip up the net before jumping. Make sure is securely zipped before bouncing.

8. Inspect before every use. Do not use it if Part are loose or damaged. Be aware of the following potential hazards:

9. Missing, damaged or improperly positioned frame padding.

10. Punctures, tears, frays, or holes in the fabric of the bed. Deterioration of stitching, fabric, or webbing.
11. Bent or broken frame.
12. Loose or missing bolts. Loosened legs.

13. Bumper cotton cracked, damaged, lost

14. People or objects hanging on the product will cause the product to fall.

15. Pay attention to pedestrians and vehicles when using.
16. Do not apply this unit to any other purposes than the indicated usage. Changes to any Part or structure of the product are allowed.
17. The trampoline net cannot place items to avoid damage.
18. Do not use it for commercial purposes.
19. DO NOT CLEAN IT WITH ANY ABRASIVE MATERIAL.
20. Never leave it unattended while in use.
21. Pet urine and feces can damage the product, please keep away.
22. Do not place the product on or near hot air, electric burners or heaters. Fireworks, cigarettes, flares, and other items can ignite the product. Please st away from them.
23. The product should be placed on a flat surface. And it should be install open and safe place, at least 2m from any structure or obstructions, avoiding places near windows, roads, railways, rivers, fences, garages, houses, overhanging branches, electrical wires, swimming pools, swings, slides, climbing frames, walls, furniture, wires, ceiling fans, etc.
24. The trampoline is intended for outdoor use only. Do not place it in a d-environment.
25. Must use the designed access points to climb in S out of the trampoline
26. Do not eat and drink while jumping. It is advisable not to bounce immediately after a meal.
27. This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience or knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. Not suitable for children under 36 months- small Part, choking hazard.
28. Always jump in the middle of the mat and practice bounce techniques set with adult supervision and guidance.
29. Take your shoes off while jumping. Empty pockets and hands before jump. Don't wear glasses.
30. Do not allow more than one person at a time on the trampoline. Do no multiple people at the same time.

31. Max user weight limit: check size chart.

32. DO NOT bury the trampoline in the ground.

33. Do not install the trampoline over concrete, asphalt, or any other hard suit. Make sure there are no children, pets, animals, obstructions underneath the trampoline.
34. Don't intentionally jump against the protection net as this will weaken it.
35. Artificial illumination may be required for indoor or shady areas.
36. The metal frame of the trampoline can conduct electricity. All lamps, exte cords and similar electronic devices must not come into contact with the fram
37. Check the trampoline before and after each use to make sure that all F properly and securely in place. If necessary, tighten the screws and replace a worn, defective or missing Part.
38. Wear comfortable clothing in which you can move around easily when use the device. Do not wear hooks, snaps, drawstrings or similar items that could caught in the trampoline. Before use, remove all necklaces and earrings.
39. Please only wear suitable trampoline shoes or socks to avoid slipping. Ti or shoes with smooth leather soles are not suitable for trampoline use.
40. The minimum age for using the trampoline is 3 years. Children under the of 12 should only use the trampoline under the supervision of an adult who to assess the risks.
41. If you have heart disease, high blood pressure and other physical diseases you should not use this product. We accept no liability for consequential damage caused by non-compliance.

WARNING: 37. This appliance is not intended for use by young or ir

persons unless supervised by a responsible person to ensure that they use the appliance safely. Young children should be supervised to ensure that they do not play with the product. Pets should stay away from the product. Do not use outdoors on rainy and cloudy days and strong wind conditions, avoid lightning strikes and falls. People or pets hanging on t product will cause injury or death.

1. The manufacturer strongly recommends assembly the enclosure net before using trampoline, this will reduce the risk of falling off, offer safe children.

2. Do not try to do somersaults on the trampoline. Landing on the heart, neck, even if it happens in the middle of the trampoline, can result in injuries such as paralysis and, in the worst case, death.

MAX USER WEIGHT

Max user weight limit: Max220 Pound (100Kg)

NOTE: Do not allow more than one person at a time on the trampoline. Do multiple people at the same time.

PRODUCT PART

1. Please dispose of all plastic bags carefully and keep them away from chi and pets.
2. Check all components provided according to the list in this manual.Make s you have all of the Part listed.
3. Although paying particular attention when manufacturing this product, you may be careful during the assembly process to avoid being scratched by sharp ed
4. Wear protective gloves, during assembly and use.
5. The product should be placed on a flat surface.
6. The product requires two people to assemble.

Key Number	Part Picture	Description	Quantity
1		Main Frame with Jump Mat	1
2		Frame Pad	1
3		Leg with Cap	6
4		Handle Bar—Left	1
5		Handle Bar—Right	1
6		Handle Bar with Foam	1
7		Hold-Down Nut	2
8		Washer	2
9		Secure Pins	1

NOTE: The quantity of Part shown in the manual is the actual usage and the unused Part are spare Part.

ASSEMBLY STEPS

Step 1

• Lay the folding trampoline on the floor, in its still folded position put the trampoline face down on surface, press hard on the frame until flatness.
• Firmly grasp both halves of the frame at the midpoint of each half-circle.

Note: Frame will snap open so please read step no.3 carefully.

Warning: Please keep all fingers away from the hinge area when opening

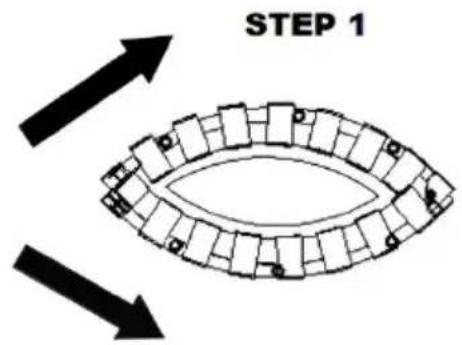

STEP 1

Diagram of a circular mechanical component with segmented edges, labeled 'STEP 2' (no other text or symbols)

Step 2 - Install the SECURE PINS

Make sure the SECURE PINS(#A) are inserted into the ends of RAILS and properly secured by the Wire Ring. Refer to the illustration ①-②-③-④.

Attention: Make sure the trampoline is fully extended before installing the sec pins.

① INSERT

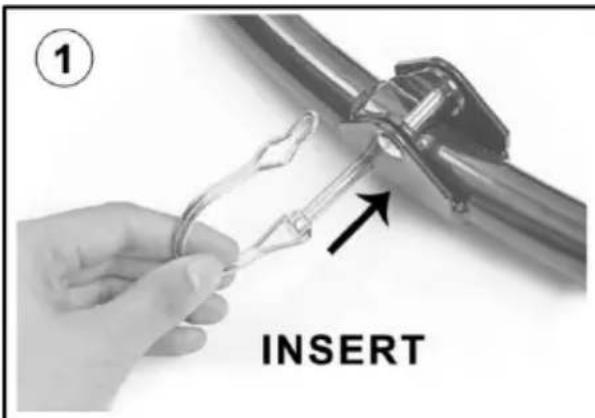

1. Open the metal lock on the SECUREPINS. Insert the pin through the hinge.

Close-up of a hand holding a metal clamp or clip, with an arrow pointing to a small component (no text or symbols visible)

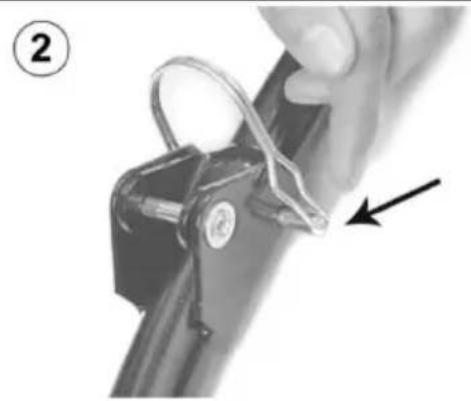

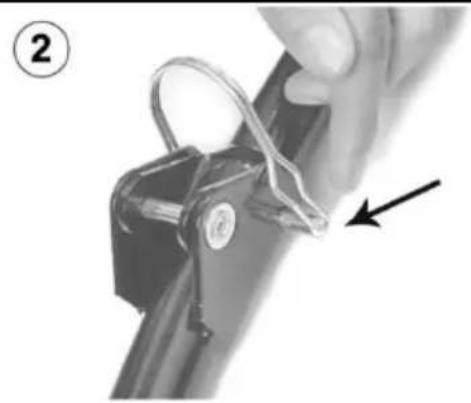

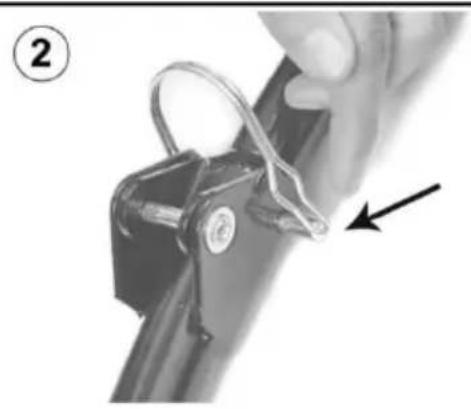

1. Place the metal lock onto the pin.

Close-up of hands adjusting a small object with a black arrow indicating downward motion (no text or symbols)

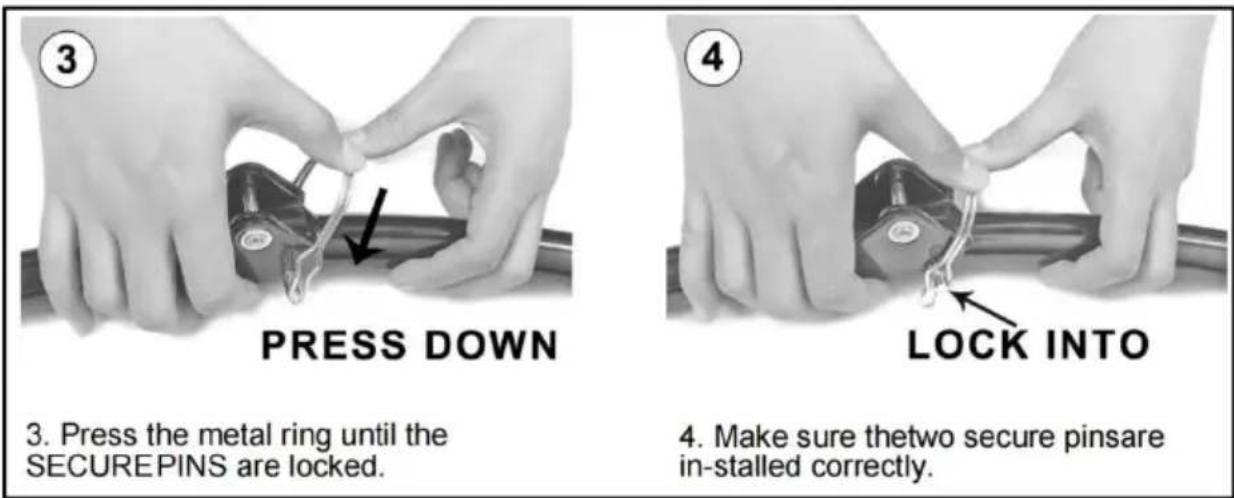

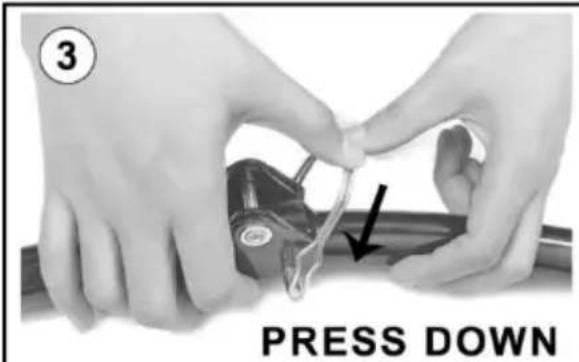

PRESS DOWN

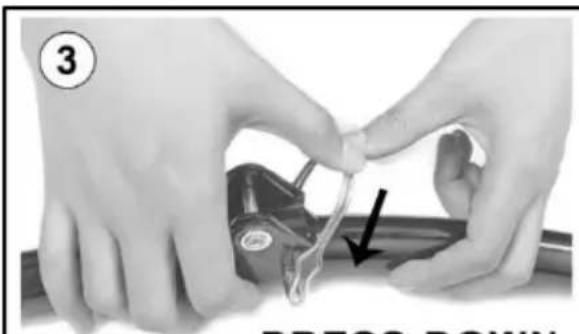

3. Press the metal ring until the SECUREPINS are locked.

Close-up of hands adjusting a mechanical component with a hook, no visible text or symbols

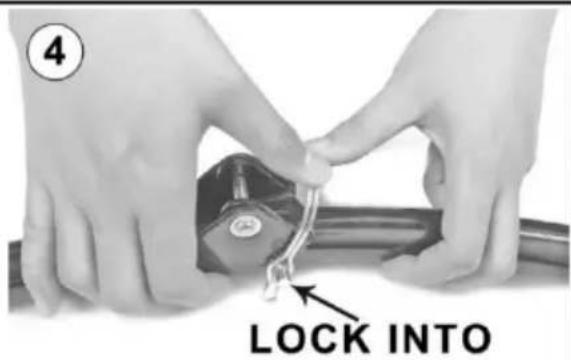

LOCK INTO

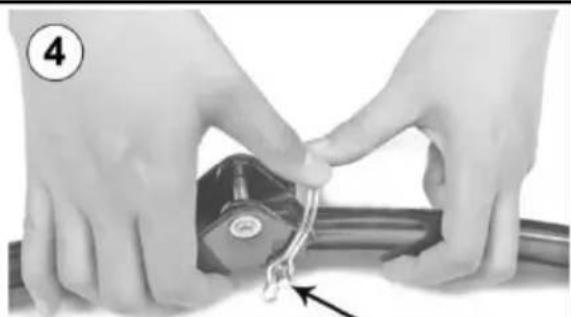

4. Make sure the two secure pins are in-stalled correctly.

WARNING: Never use the trampoline without the frame pad. The frame p reduces the risk of getting injured from hitting the metal frame or spring. Inspect before using to ensure all exposed metal parts are fully covered the frame pad!

Step 3

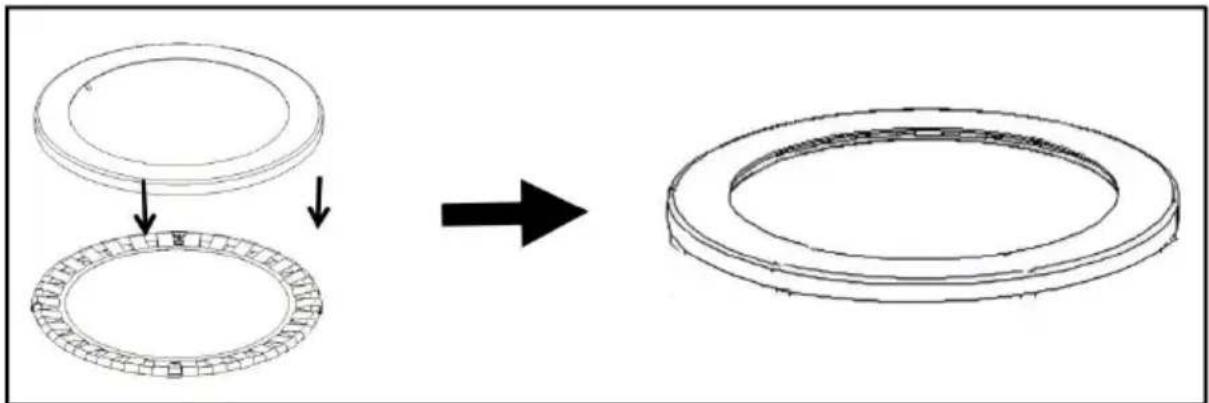

- Attach Frame Pad to the trampoline.

- Remove all rubber caps on the leg sockets and wrap Frame Pad around trampoline frame(# 2).


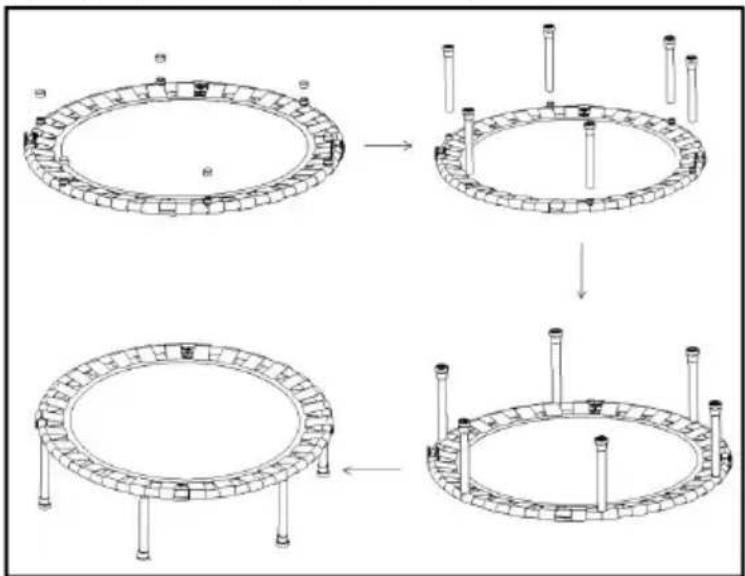

Step 4 - Attach Leg to the Trampoline

• Tightly screw Leg onto the leg sockets (#3) of the trampoline frame.
• Insert the washers (#8) into the legs IN CASE if the floor is not flat.

Attention: All the Legs (#3), Leg Caps must be screwed tightly, and Legs (a flat on the ground to avoid wobbling when use.


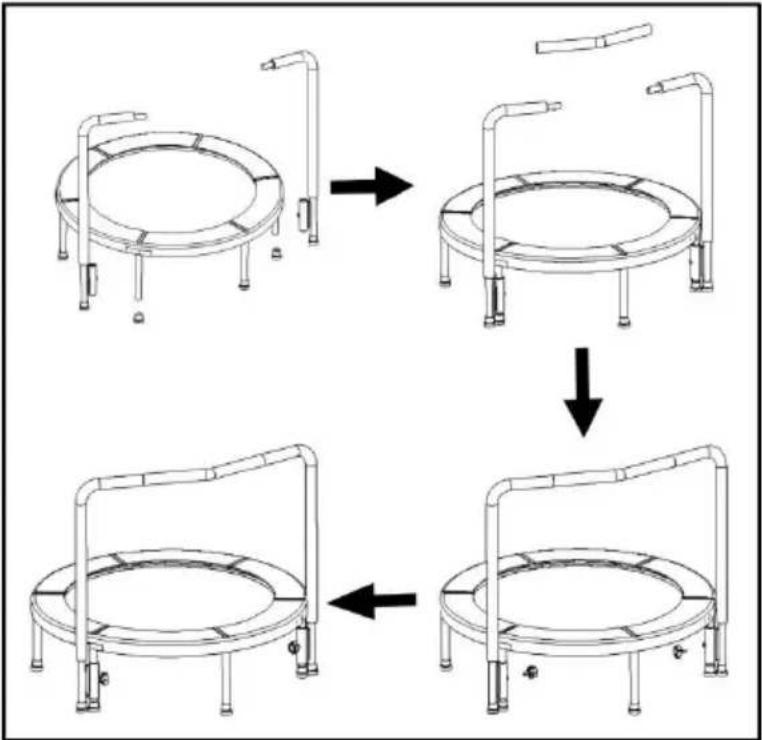

Step 5 - Assemble Handle Bar

- Lift the trampoline to a standing position, Attach Handrail Legs to the two

legs without the caps, screw a little with Hold-Down Nut (#7), then place Leg onto the handrail legs.

Attention: All Leg with Caps (#3), and Nut(#7) must be screwed tightly, and (#3) are flat on the ground to avoid wobbling when use.

1. Please check whether the product is installed correctly and firmly, and rea safety information in the manual again.
2. The product should be placed on a flat surface. Make sure the net zipper closed before use. Follow the manual safety information and enjoy your trampoline.

CLOSE TRAMPOLINE

Important Safety Note: Always close your folding trampoline with 2 people

Warning: Keep fingers away from the of the rails near the hinged area.

1 .Please first remove the handle bar, and then to operate the following matte
2. Turn the unit upside down and lay
3. Turn off each leg.

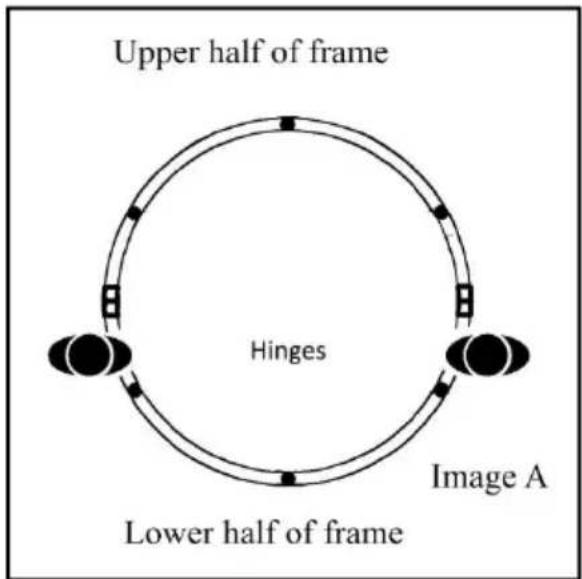

Upper half of frame Hinges Image A Lower half of frame

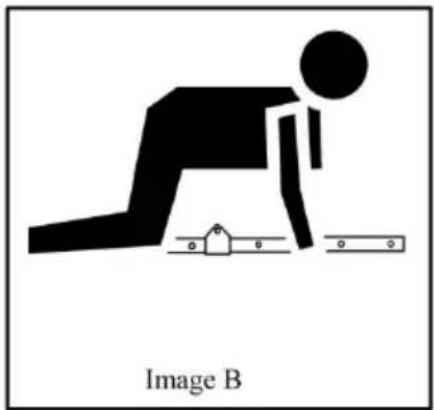

1. Locate the larger hinges on each side of the trampoline. Stand near the on opposite sides of the folding trampoline facing the upper half of the frame (Image A).

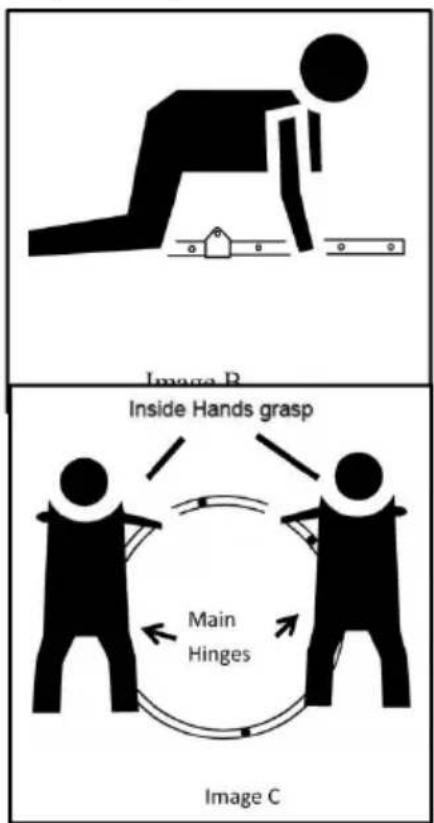

2. Both persons kneel facing the "top half" of folding trampoline and place their knee closest folding trampoline on the "bottom half" of the approximately 2 inches below(not on)the hinge (Image B).

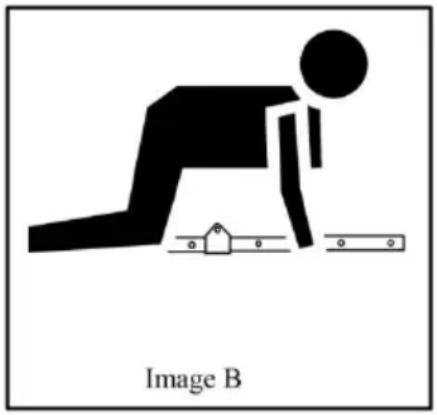

Silhouette of a person in a prone position with a small house and ruler nearby, labeled 'Image B' (no text or symbols on the diagram itself)

1. Both persons lean forward placing their out hand on the ground and use their inside hand grasp one of the bend near the top of the fo trampoline (Image C)

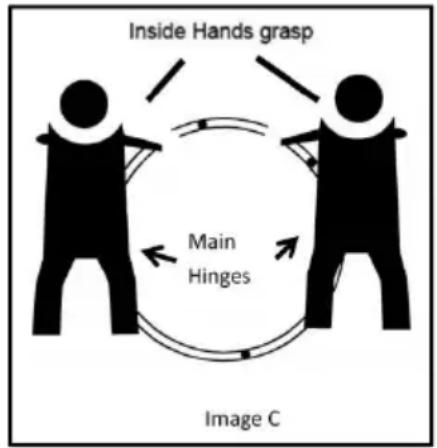

Inside Hands grasp Main Hinges Image C

CLEANING AND STORAGE

1. Wipe with a soft, dry cloth. Never use an abrasive cleanser or harsh pad
2. Children are not allowed to wipe the product to avoid tipping and falling
3. After disassembling the product, please assemble the parts and accessories. Be sure to keep the product dry.
4. Please clean regularly to avoid dirt.

Notes: Before using it again, reassemble according to the instructions

TIPS

1. Always step on and off the trampoline carefully, do not jump.
2. Stay in the center of the trampoline when jumping. Don't jump on the ed jump on the net.
3. Stop bouncing by flexing your knees as your feet come in contact with the trampoline bed.
4. For safety, it's suggested lessons from a professional should be acquired using this trampoline.

Notice: Before anyone uses this trampoline, it is imperative that you read all instructions carefully and make sure that the assembly went without any error

Manufacturer: Shanghaimuxinmuyeyouxiangongsi

Address: Shuangchenglu 803nong11hao1602A-1609shi, baoshanqu, shanghai 200000 CN.

Imported to AUS: SIHAO PTY LTD. 1 ROKEVA STREETEASTWOOD NSW 2 Australia

Imported to USA: Sanven Technology Ltd. Suite 250, 9166 Anaheim Place, Rancho Cucamonga, CA 91730

UK

REP

YH CONSULTING LIMITED.

C/O YH Consulting Limited Office 147,

Centurion House, London Road,

Staines-upon-Thames, Surrey, TW18 4AX

EC

REP

E-CrossStu GmbH

Mainzer Landstr.69,

60329 Frankfurt am Main.
