TRAMPOLINE MAT ASSEMBLY

MODEL: SDKC20240628CGQ \ SDKC2024Q40628CGQ \

SDKC202406YY28CGQ \ SDKC2024XT0626QGQ \ SDKC2024Y06U58CGQ \

SDKC0628QYL42PO \ SDKC202369CCZECGG

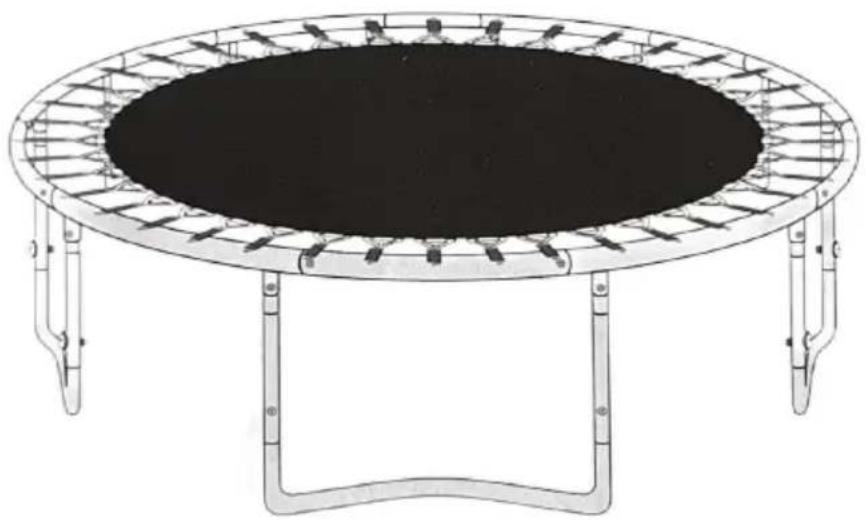

Technical line drawing of a trampoline with metal frame and support legs (no text or symbols)

TYPES-ROUND

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel free to contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instructions carefully before operating. VEVOR reserves a clear interpretation of o user manual. The appearance of the product shall be subject to the product you received. Please forgive us that we won't inform you ag there are any technology or software updates on our product.

Thank you for choosing Our TRAMPOLINE MAT ASSEMBLY for all yo trampoline and trampoline replacement needs!

Simply follow the assembly and safety instructions in this manual and you soon be starting your exercise program for a happier,healthier and more 1 lifestyle!

Before you Begin to install your new Jumping Mat,please verify that the you purchased is the correct size for your trampoline.To ensure that the trampoline mat you bought is the right size,Please follow the steps below:

Measuring Tips for Jumping Mat

Step1. FRAME SIZE

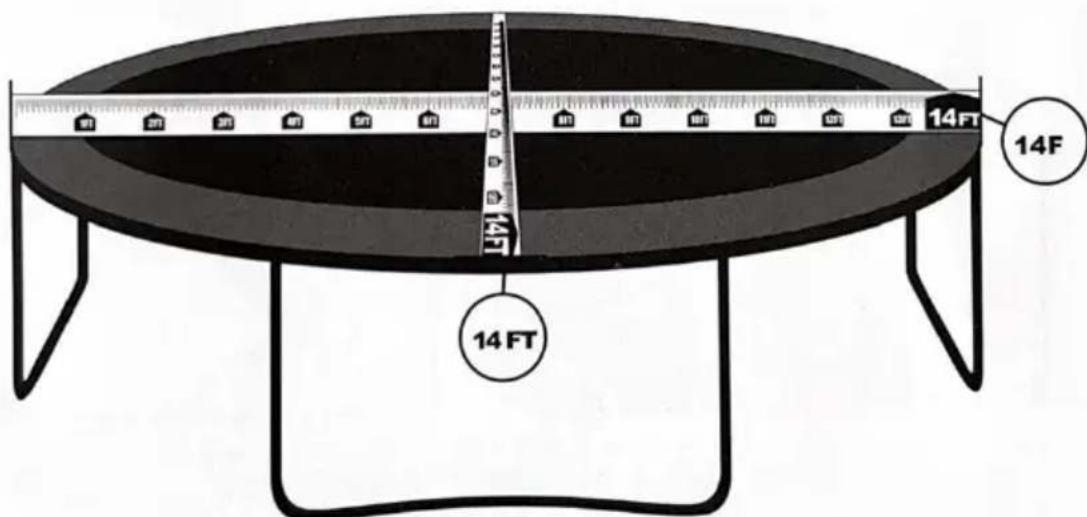

Measure your frame from one outer edge to the other with a measuring tape. Do this Both vertically and horizontally across the center of the trampoline. Make sure it is From the outer edge so that you get the correct measurements.

14FT 14F 14FT

Step2. AMOUNT OF SPRING HOLES

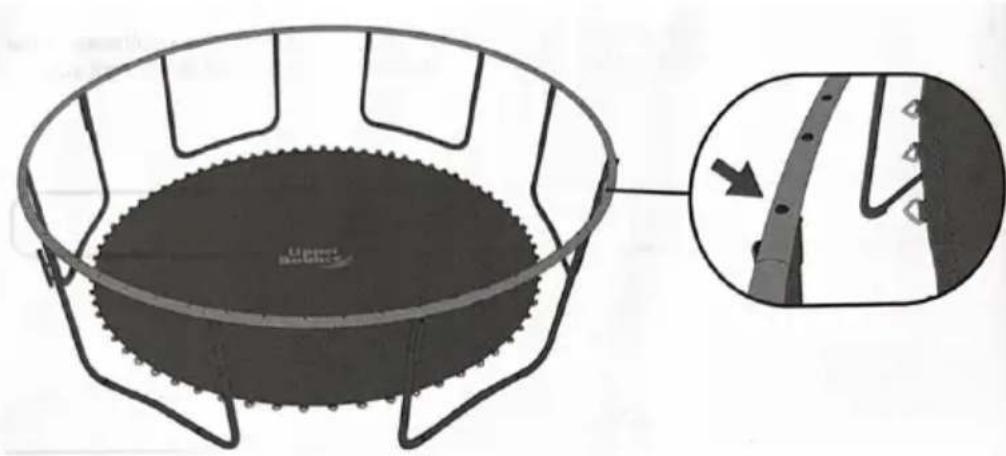

Count the amount of spring holes on your trampoline frame.

Diagram of a trampoline with mesh frame and circular base, showing structural details (no text or symbols)

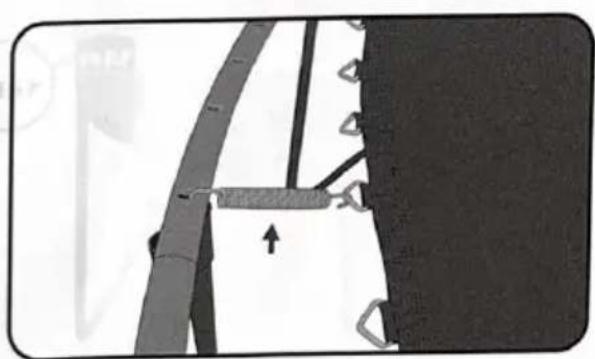

Step3. SIZE OF THE SPRINGS

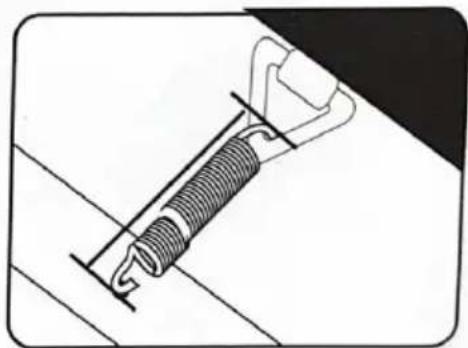

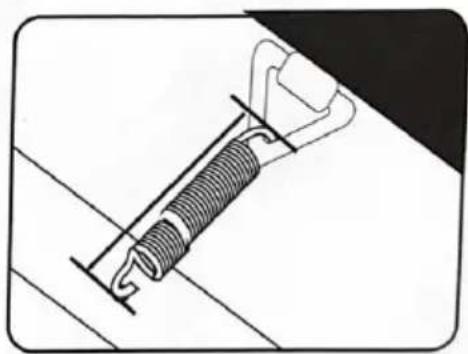

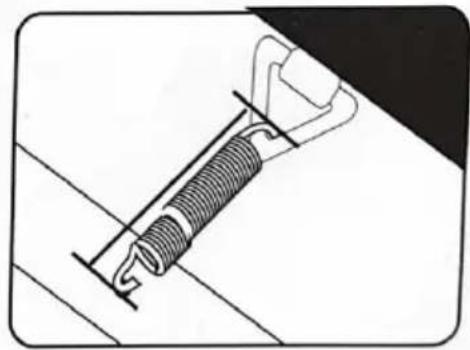

Measure the spring size from hook to hook unstretched.

Close-up of a fabric or mechanical component with a curved band and attached clamps, showing no visible text or symbols.

Technical line drawing of a mechanical spring or screw assembly (no text or symbols)

Based on the

1) Frame Size 2) Spring Amount 3) Spring Size

Determine if you bought the correct jumping mat.

IMPORTANT NOTICE

WARNING!

1. Be careful where you place your hands during spring spring assembly as connector points can pinch!

2. We recommend at least 2 people participate in assembling the Jumping Mat.

NOTE:

You will need to have a Spring tool To help you install the springs Fo to the frame (Included in the package).

How to use the spring pulling tool

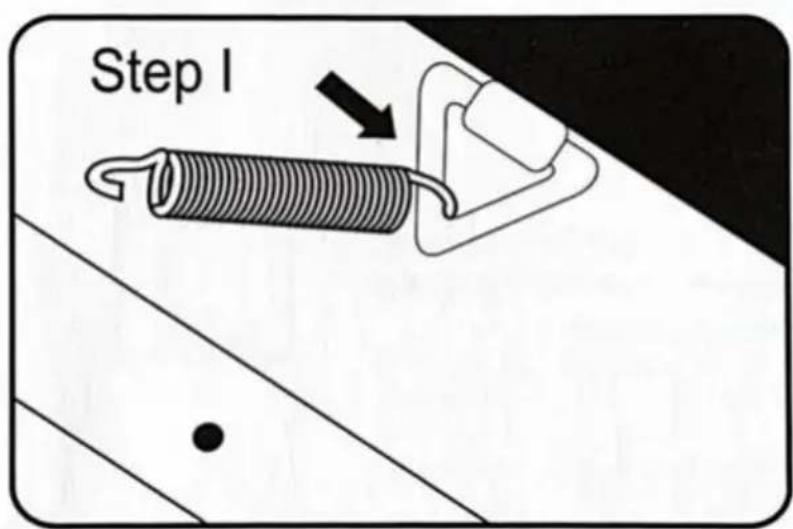

Step1: Hook the more rounded end of the spring onto the trampoline mat's triangular rings.

Step I

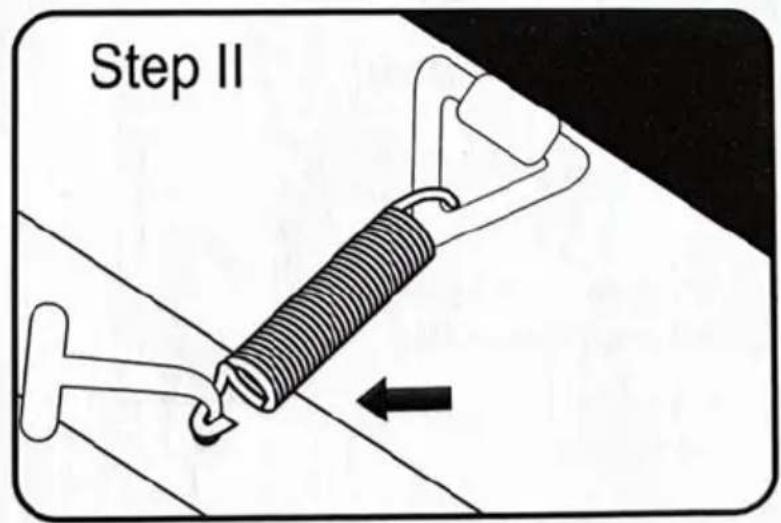

Step2: Extend the spring pull tool and link it up with the other end of spring. Pull the tool In the direction of the trampoline frame until the spring is lined up with the hole in.

The trampoline frame.Slide the spring end into the hole as you remove the tool.

Step II

See below the Pattern of the springs assembly according your frame style

SPRING ASSEMBLY PATTERN

ROUND/OVAL

Note: Make sure the v-rings between the springs matches the number of in the frame between the springs.

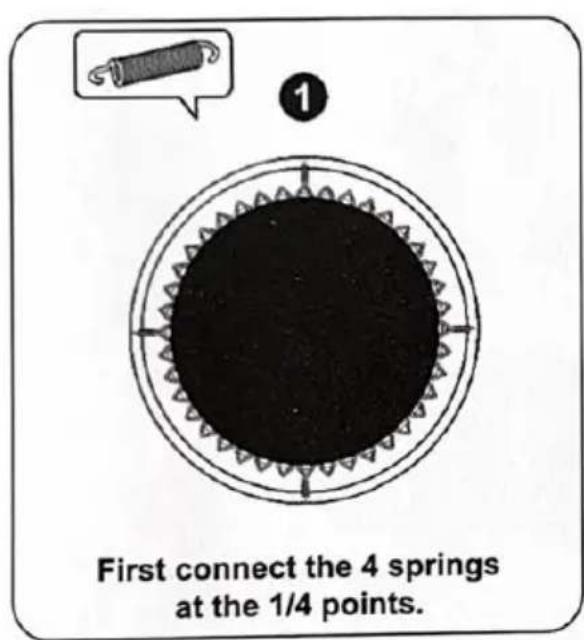

First connect the 4 springs at the 1/4 points.

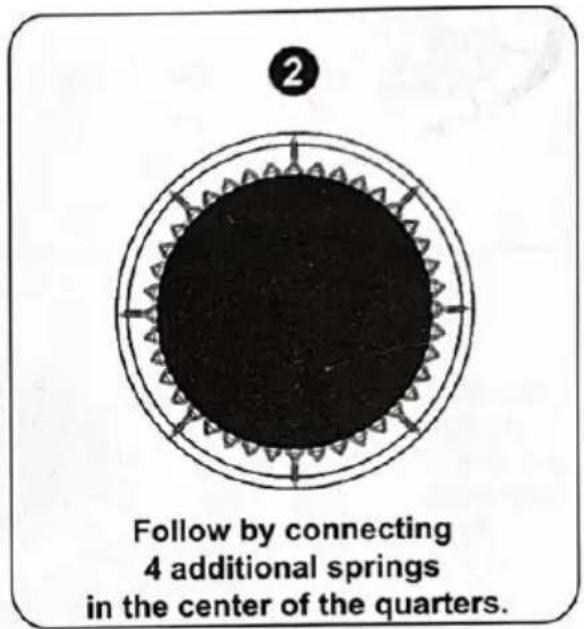

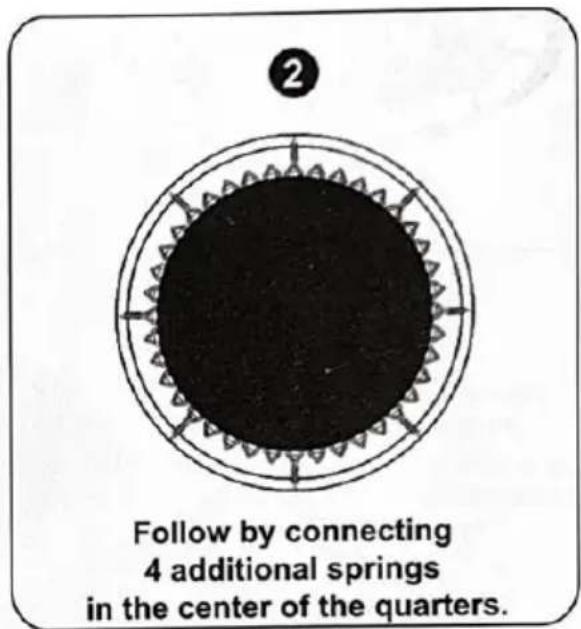

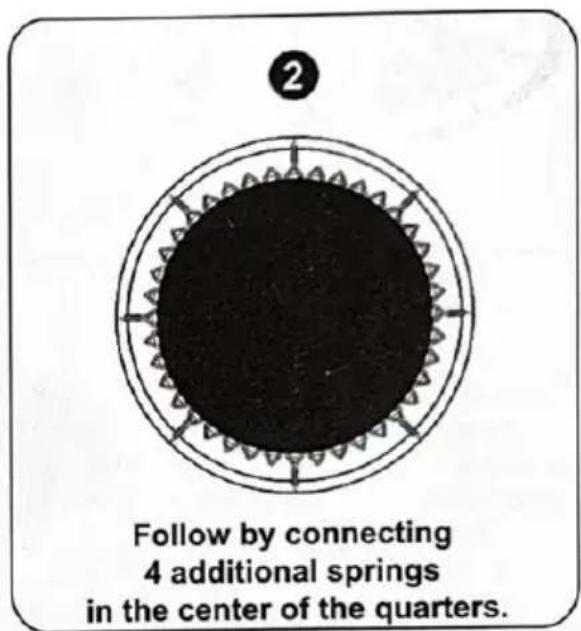

Follow by connecting 4 additional springs in the center of the quarters.

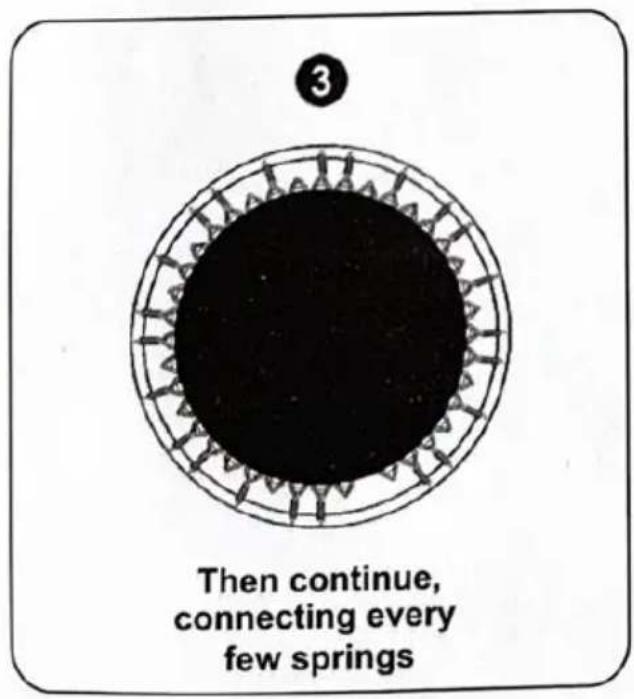

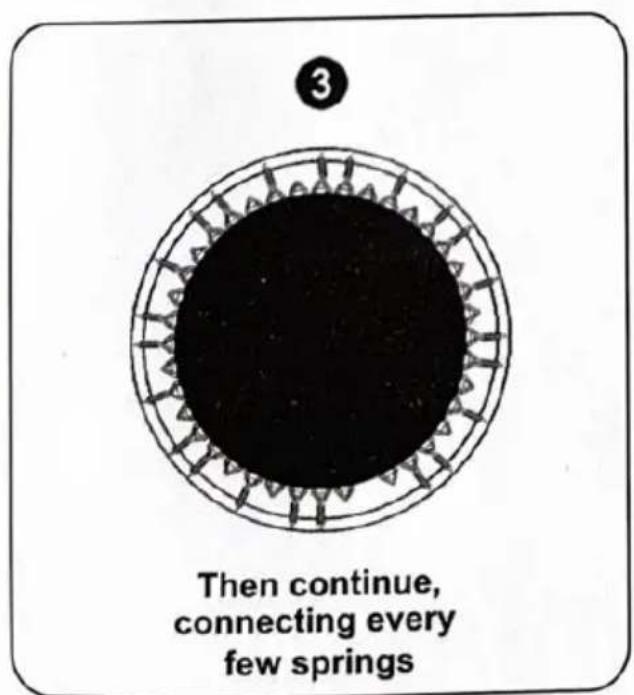

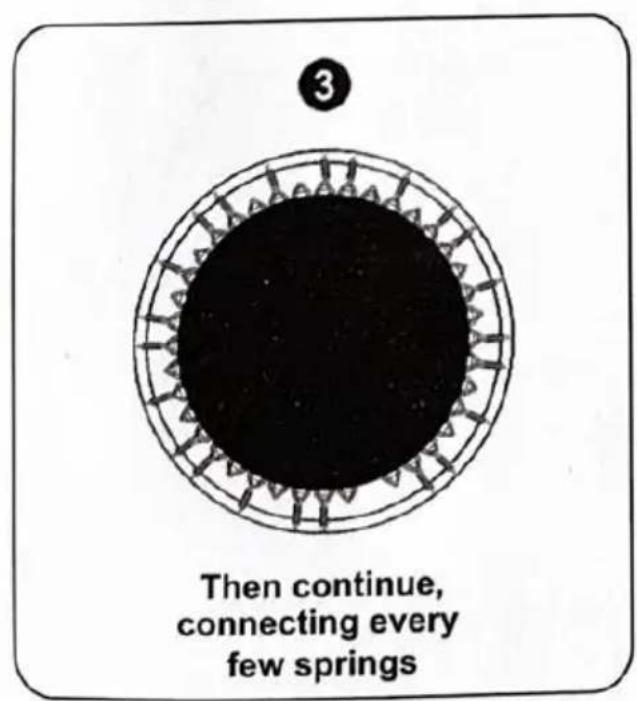

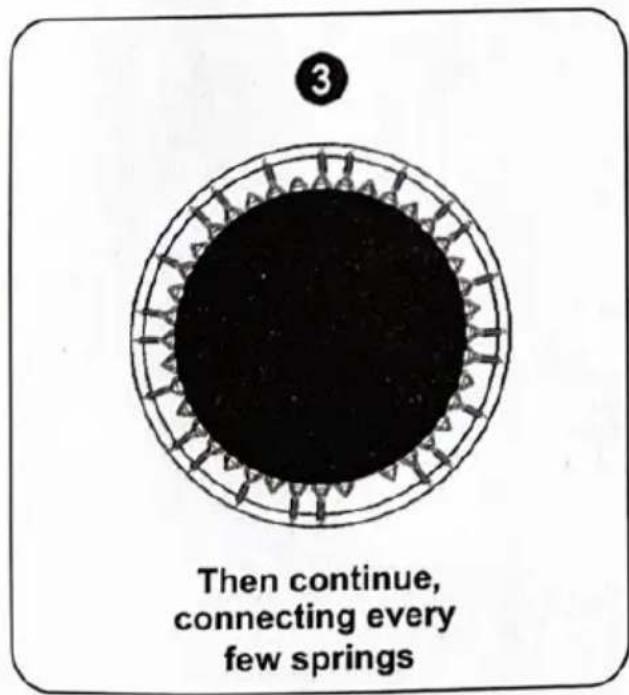

3 Then continue, connecting every few springs

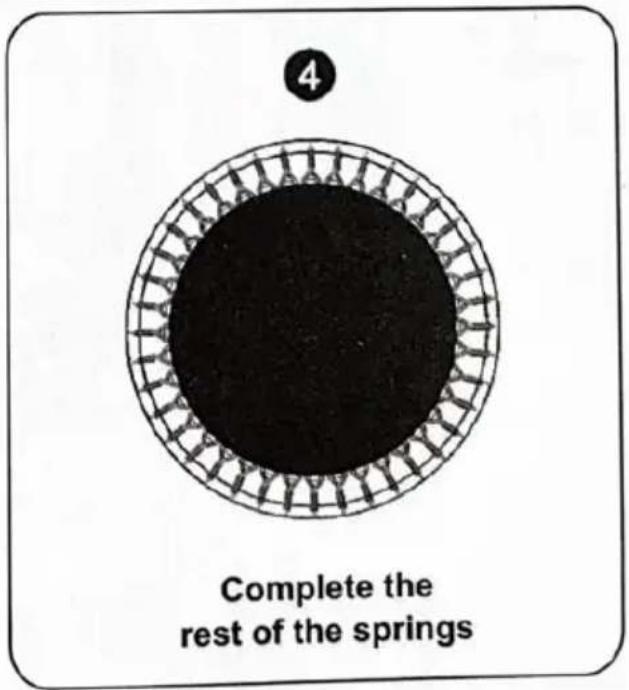

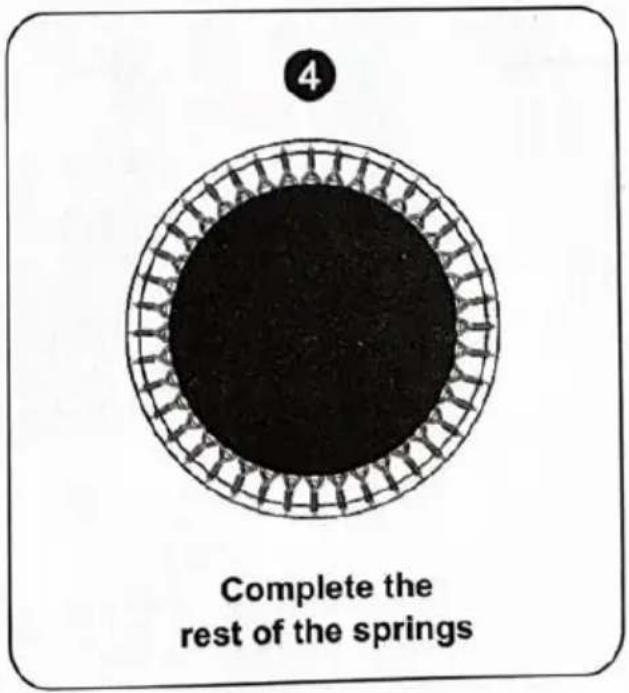

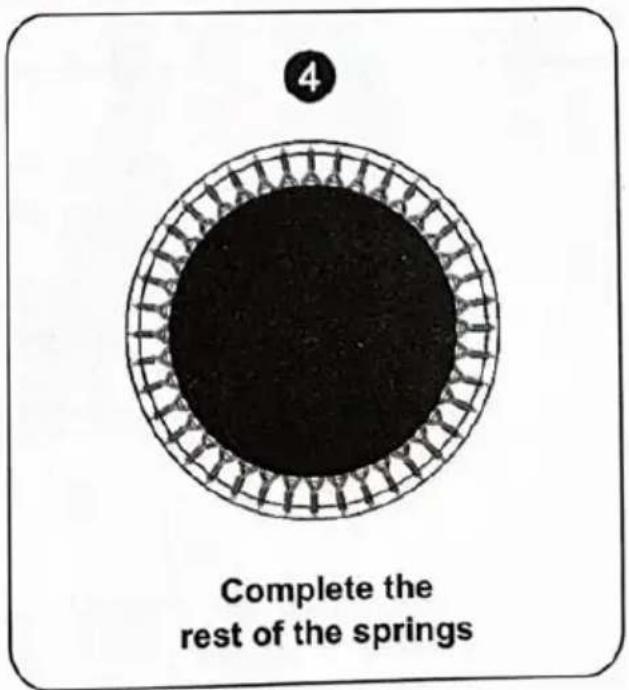

Complete the rest of the springs

Parameters

	padded jumping diameter (inch)	Adapted to the outer diameter of the trampoline frame (ft)	Adapted spring length (inch)	V-Ring Material	Number of V-rings (pcs)
SDKC20240628CGQ	127	12	5.5	mild steel	72
SDKC2024Q40628CGQ	136	13	7	mild steel	80
SDKC202406YY28CGQ	150	14	5.5	mild steel	72
SDKC2024XT0626QGQ	147	14	6.5-7	mild steel	72
SDKC2024Y06U58CGQ	147	14	7	mild steel	96
SDKC0628QYL42PO	161	15	6.5	mild steel	96
SDKC202369CCZECGG	159	15	7	mild steel	96

Our Customer Service Department staff are trained in the details of all trampolines and will help you find the right part to get you bouncing again. We never forget our goal... Get the Upper Bounce!

Manufacturer: Shandong Kaicheng's Sport Goods Co., Ltd

Address: Town of Sishili, Yishui County, Linyi City, Shandong Province, China

Imported to AUS: SIHAO PTY LTD. 1 ROKEVA STREETEASTWOOD NSW 2122 Australia

Imported to USA: Sanven Technology Ltd. Suite 250, 9166 Anaheim Place, Rancho Cucamonga, CA 91730

UK

REP

YH CONSULTING LIMITED. C/O YH Consultin Limited Office 147, Centurion House, London Road, Staines-upon-Thames, Surrey, TW18 4A>

EC

REP

Technical Support and E-Warranty Certificate

www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

Technical line drawing of a trampoline with metal frame and support legs (no text or symbols)

TYPES-RONDS

BESOIN D'AIDE? CONTACTEZ-NOUS!

Diagram of a circular container with a mesh pattern, showing internal structure and an inset detail (no text or symbols)

Close-up of a fabric or garment with a zipper and stitching detail, no visible text or symbols

Technical line drawing of a mechanical clamp or spring assembly (no text or symbols)

Basé sur le

First connect the 4 springs at the 1/4 points.

Follow by connecting 4 additional springs in the center of the quarters.

3 Then continue, connecting every few springs

4 Complete the rest of the springs

Paramètres

Fabricant : Shandong Kaicheng's Sport Goods Co., Ltd

Lieu, Rancho Cucamonga, CA 91730

UK

REP

YH CONSULTING LIMITED. C/O YH Consultin

Limited Office 147, Centurion House, London

Road, Staines-upon-Thames, Surrey, TW18 4A>

EC

REP

E-CrossStu GmbH

Mainzer Landstr.69,

60329 Frankfurt am Main.

VEVOR®

TOUGH TOOLS, HALF PRICE

www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

www.vevor.com/support

Technical line drawing of a trampoline with metal frame and support legs (no text or symbols)

TYPEN-RUND

Diagram of a circular container with a mesh pattern, showing an inset close-up of a pipe or pipe fitting (no text or symbols present)

Close-up of a fabric or garment with a zipper and clasp, showing no visible text or symbols.

Technical line drawing of a mechanical spring or clamp assembly (no text or symbols)

Basierend auf dem

First connect the 4 springs at the 1/4 points.

Follow by connecting 4 additional springs in the center of the quarters.

3 Then continue, connecting every few springs

Complete the rest of the springs

Parameter

YH CONSULTING LIMITED. C/O YH Consultin Limited Office 147, Centurion House, London Road, Staines-upon-Thames, Surrey, TW18 4A>

EC

REP

www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

Technical line drawing of a trampoline with metal frame and support legs (no text or symbols)

TIPI-ROTONDO

Upper Balance

Fase 3. DIMENSIONE DELLE MOLLE

Close-up of a mechanical component with a bracket and mounting holes, showing no visible text or symbols.

Technical line drawing of a mechanical spring or clamp assembly (no text or symbols)

Sulla base del

First connect the 4 springs at the 1/4 points.

Follow by connecting 4 additional springs in the center of the quarters.

3 Then continue, connecting every few springs

4 Complete the rest of the springs

Parametri

YH CONSULTING LIMITED. C/O YH Consultin Limited Office 147, Centurion House, London Road, Staines-upon-Thames, Surrey, TW18 4A>

EC

REP

Technical line drawing of a trampoline with metal frame and support legs (no text or symbols)

TIPOS-REDONDOS

Upper Balance

Close-up of a mechanical component with a bracket and mounting holes, showing no visible text or symbols.

Technical line drawing of a mechanical spring or clamp assembly (no text or symbols)

Basado en el

First connect the 4 springs at the 1/4 points.

Follow by connecting 4 additional springs in the center of the quarters.

3 Then continue, connecting every few springs

4 Complete the rest of the springs

Parámetros

YH CONSULTING LIMITED. C/O YH Consultin Limited Office 147, Centurion House, London Road, Staines-upon-Thames, Surrey, TW18 4A>

EC

REP

www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

www.vevor.com/support

MONTAŻ MAT DO TRAMPOLINY

MODEL: SDKC20240628CGQ \ SDKC2024Q40628CGQ \

SDKC202406YY28CGQ \ SDKC2024XT0626QGQ \

SDKC2024Y06U58CGQ \ SDKC0628QYL42P0 \

SDKC202369CCZECGG

Technical line drawing of a trampoline with metal frame and support legs (no text or symbols)

TYPY-OKRAGLE

POTRZEBUJESZ POMOCY? SKONTAKTUJ SIĘ Z NAMI!

Upper Balance

Krok 3. ROZMIAR SPREŻYN

Diagram of a mechanical assembly with a bracket and mounting bracket, showing no text or symbols

Technical line drawing of a mechanical spring assembly with threaded end (no text or symbols)

Na podstawie

First connect the 4 springs at the 1/4 points.

Follow by connecting 4 additional springs in the center of the quarters.

3 Then continue, connecting every few springs

4 Complete the rest of the springs

Parametry

Producent: Shandong Kaicheng's Sport Goods Co., Ltd

YH CONSULTING LIMITED. C/O YH Consultin Limited Office 147, Centurion House, London Road, Staines-upon-Thames, Surrey, TW18 4A>

EC

REP

www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

www.vevor.com/support

MONTAGE VAN DE TRAMPOLINEMAT

MODEL: SDKC20240628CGQ \SDKC2024Q40628CGQ\

SDKC202406YY28CGQ \ SDKC2024XT0626QGQ \

SDKC2024Y06U58CGQ \ SDKC0628QYL42P0 \

SDKC202369CCZECGG

Technical line drawing of a trampoline with metal frame and support legs (no text or symbols)

TYPES-RONDE

HULP NODIG? NEEM CONTACT MET ONS OP!

Upper Borehole

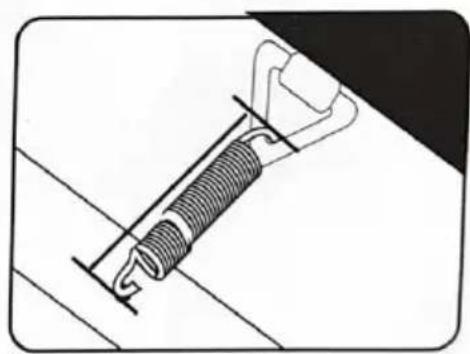

Stap 3. MAAT VAN DE VEREN

Close-up of a fabric or garment with a zipper and zipper mechanism, no visible text or symbols

Technical line drawing of a mechanical spring or clamp assembly (no text or symbols)

Gebaseerd op de

First connect the 4 springs at the 1/4 points.

Follow by connecting 4 additional springs in the center of the quarters.

3 Then continue, connecting every few springs

Complete the rest of the springs

Parameters

Fabrikant: Shandong Kaicheng's Sport Goods Co., Ltd

Adres: Stad Sishili, Yishui County, Linyi City, provincie Shandong, Chi

YH CONSULTING LIMITED. C/O YH Consultin Limited Office 147, Centurion House, London Road, Staines-upon-Thames, Surrey, TW18 4A>

EC

REP

www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

www.vevor.com/support

MONTERING AV STRAMPOLINEMATTA

MODELL: SDKC20240628CGQ \ SDKC2024Q40628CGQ \

SDKC202406YY28CGQ \ SDKC2024XT0626QGQ \

SDKC2024Y06U58CGQ \ SDKC0628QYL42P0 \

SDKC202369CCZECGG

Technical line drawing of a trampoline with metal frame and support legs (no text or symbols)

TYPER-RUND

BEHÖVER HJÄLP? KONTAKTA OSS!

Diagram of a circular container with a mesh pattern, showing an inset close-up of a pipe or pipe fitting (no text or symbols present)

Steg 3. STORLEK PÅ FJÄDRAR

Close-up of a garment collar with a zipper and arrow indicator (no text or symbols)

Technical line drawing of a mechanical spring or clamp assembly (no text or symbols)

Baserat på

First connect the 4 springs at the 1/4 points.

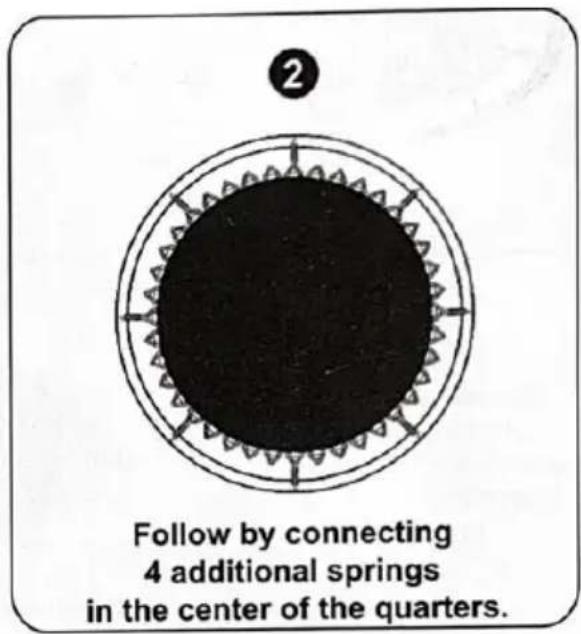

Follow by connecting 4 additional springs in the center of the quarters.
