USER MANUAL XJC-081 Vevor

Technical Support and E-Warranty Certificate www.vevor.com/support

WHEEL DOLLIES

MODEL: XJC-081

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represent the estimate of savings you might benefit from buying certain tools with us compared to top brands and does not necessarily mean to cover all categories of tools offered. Are kindly reminded to verify carefully when you are placing an order with us actually saving half in comparison with the top major brands.

MODEL: XJC-081

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel fr contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instruction carefully before operating. VEVOR reserves a clear interpretation user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform you there are any technology or software updates on our product.

IMPORTANT SAFETY INSTRUCTIONS

WARNING

Read and understand this entire manual before assembling, installing, operating, or servicing this product. Failure to follow these warnings and instructions can cause death, personal inj

or damage to valuable property.

WARNING

Overload is strictly prohibited Use only on hard level surface. Adjust the direction of the universal wheel before pushing the vehicle

• Study, understand and follow all instruction before operating this device.

• Do not exceed rated capacity.

• Use only on hard level surface.

• Before moving a load, assure that the load is centered and secure with a load restraint device.

• No alterations shall be made to this product.

• Keep clear of load's path while placing on and removing from doll and while moving.

• Use as intended only. Do not use for aircraft purposes, use only in pairs.

• Inspect before every use, do not use if parts loose or damaged.

• Be aware of dynamic loading! Sudden load movement may briefly create excess load causing product failure.

• Use two vehicle dollies to support the front or rear end of the vehicle.Use four dollies (two pairs) to support entire vehicle.

• Position carrying handles to outer side of car; do not work under vehicle while on dollies.

• If use for extended storage under vehicle tires, periodically lift vehicle to rotate tires.

• Keep lifting area free of spectator sand do not allow anyone into vehicle while on dollies.

• Use wheel chocks when raising front of vehicle for placement onto dollies.

• Assemble only according to instructions. Improper assemble can create hazards.
• This product is not a toy. Do not allow children to play with or not this item.
• While assembling and using this product, keep work area clean and well lighted, and keep spectators and children out of the work area
• Support load by appropriate means after lifting.
• Before moving the vehicle, ensure that the vehicle wheels are centered and secure.
• Activate the wheel- and/or caster-locking devices after moving a vehicle.
• Never work on, around, or under a vehicle supported by vehicle-moving dollies.

• Wear ANSI-approved safety goggles and heavy-duty work gloves during use.
• Keep clear of load's path while placing on and removing from dolli and while moving.
• Be aware of dynamic loading! Sudden load movement may briefly create excess load causing product failure.
• Do not work under vehicle while on Dollies.
• Do not use damaged equipment. If abnormal noise or vibration occurs have the problem corrected before further use.
• Before each use, inspect the general condition of the wheel dolly. Check for: broken, cracked, or bent parts, lose or missing parts, any condition that may affect the proper operation of the product.
• After every use, wipe with a clean cloth. Then, store the wheel do a safe, dry location out of reach of children and other non-author people.

SAVE THESE INSTRUCTIONS

SPECIFICATIONS

Model	XJC-081
Maximum Load Capacity	2200lbs
Color	Silver
Platform Size	11.8" ×15.2" / 300x385mm
Castor Diameter	3" / 76.2 mm

There are 4 flexible wheels on each wheel transportation platform, and wheels can rotate 360 degrees smoothly. As a result, you can quickly the car wheel tire in all directions and keep it locked when you read destination.

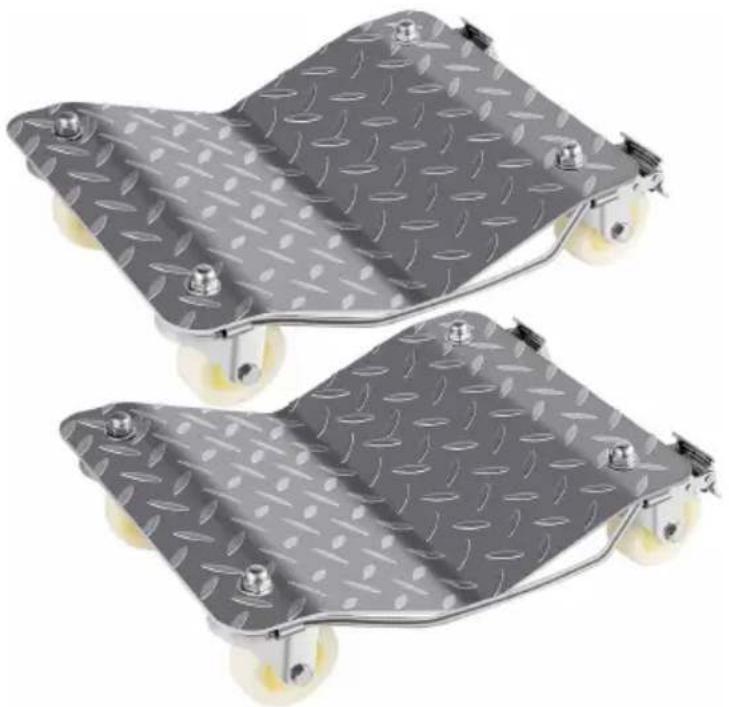

FIGURE OF THE PRODUCT

Part No.	PICTURE	Description	QTY
01		Steel main body	2
02		Swivel Caster B	4
03		Swivel Caster A	4
04		Washer A	8
05		Nut	9
06		Washer B	8
07		Wrench	1

ASSEMBLY STEPS

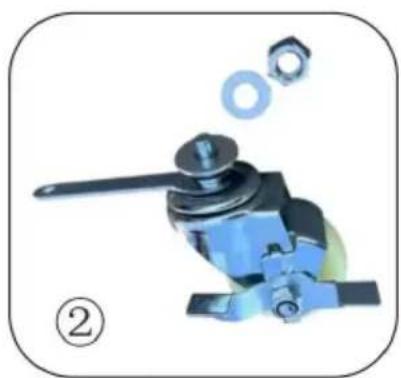

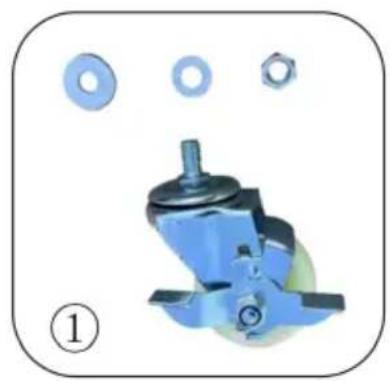

First, install the washer into the screw of the swivel caster, and install swivel Caster from the bottom of the steel main body. Install the wash nut, and tighten them.

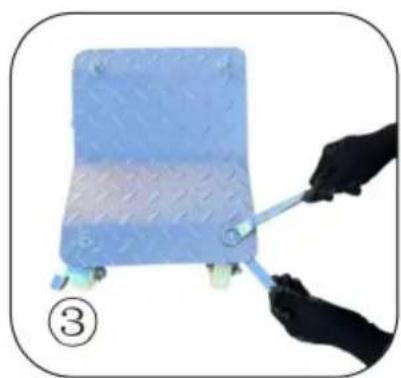

Must tighten the nut

INSTRUCTIONS

Adjust the caster orientation before pushing the cart.

A. Assemble on a flat, level, hard and smooth surface.
B. Once dollies are assembled, roll dollies along surface to verify all connections are secure and dollies roll freely.
C. Chock opposite end wheels to keep vehicle from rolling.

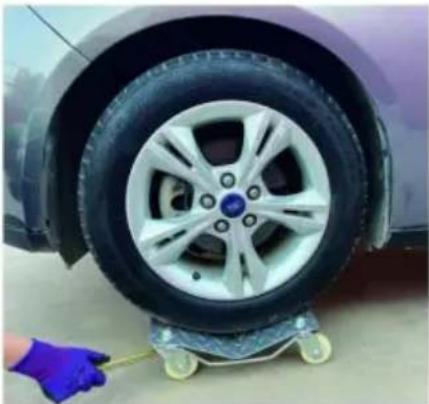

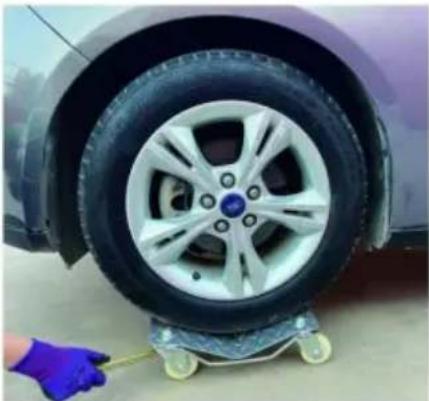

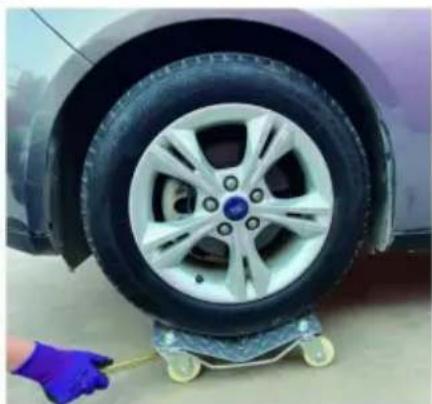

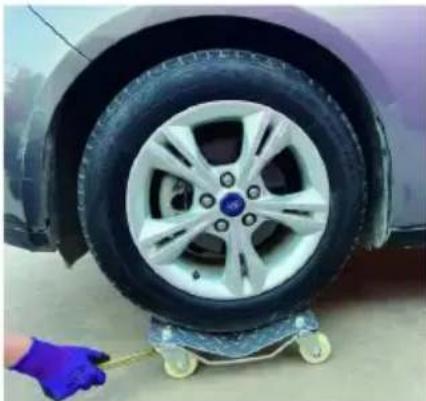

D. Place dolly in position under raised front or rear wheels and lowe vehicle slowly onto dollies.

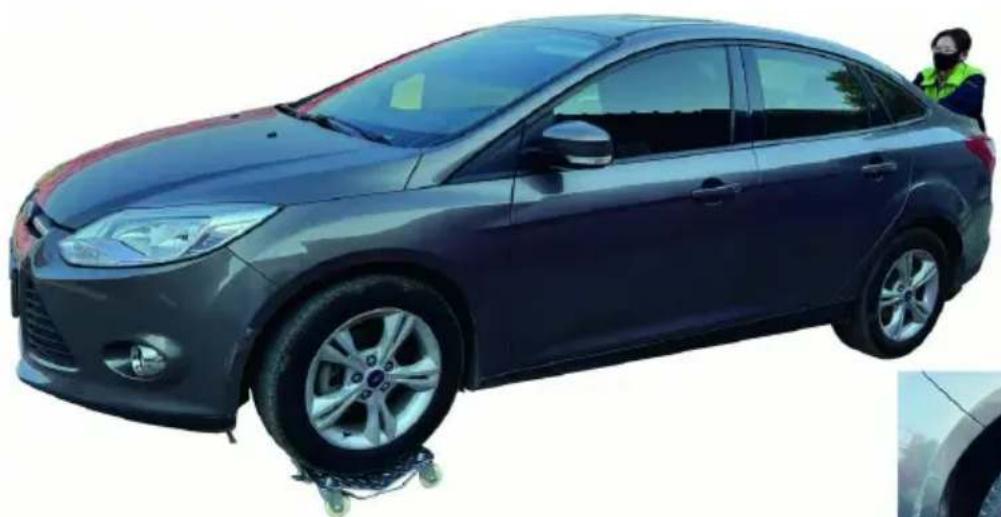

E. To move a vehicle supported by four dollies; remove wheel chocks, unlock casters, and use handles to guide vehicle to location.
F. Lock casters once vehicle is in location.
