USER MANUAL MR8019 Vevor

Technical Support and E-Warranty Certificate

www.vevor.com/support

WHEEL DOLLIES STAND

MODEL:MR8019

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represent of savings you might benefit from buying certain tools with us compared top brands and does not necessarily mean to cover all categories of tools offered are kindly reminded to verify carefully when you are placing an order with us actually saving half in comparison with the top major brands.

VEVOR®

WHEEL DOLLIES STAND

MODEL:MR8019

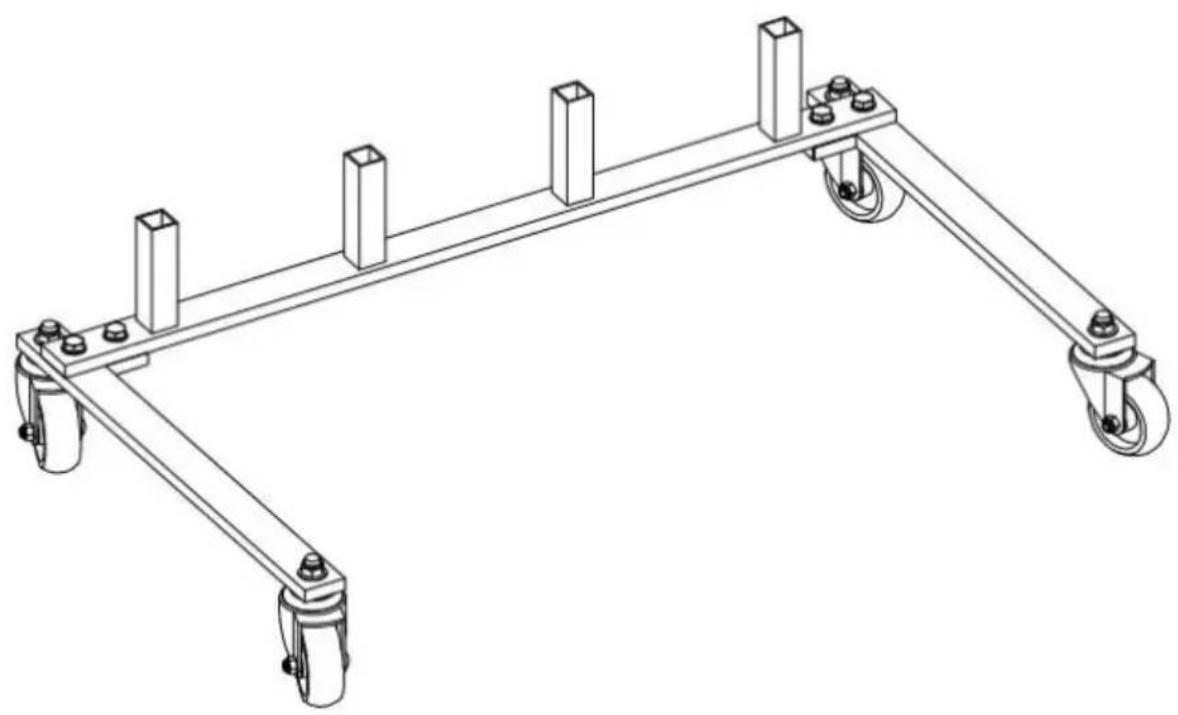

Technical line drawing of a mechanical support frame with wheels and mounting feet (no text or symbols)

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel from contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instruction carefully before operating. VEVOR reserves a clear interpretation user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform you there are any technology or software updates on our product.

SECURITY & WARNINGS

1. Before use, read manufacturer's instruction manual for the vehicle you will li
2. Before moving a load, assure that the load is centered and secured with a restraint device
3. No alterations shall be made to this product.
4. Use as intended only. Do not use for aircraft purposes. Use only in pairs
5. Inspect before every use; do not use if parts are loose or damaged.
6. Assemble only according to these instructions. Improper assembly can create hazards.
7. Keep your work area clean and well lit. Cluttered work areas invite accide
8. Keep bystanders, children, and visitors away while operating Wheel Dolly.
   Distractions can cause you to lose control.
9. Store idle Wheel Dollies out of reach of children and other untrained pers wheel dollies are dangerous in the hands of untrained users.
10. This product is not a toy. Do not allow children to play with or near the Maintain product labels and nameplates. These carry important safety information. If unreadable or missing, contact for a replacement.
11. The warnings, precautions, and instructions discussed in this manual cannot cover all possible conditions and situations that may occur. The operator must understand that common sense and caution are factors, which cannot be built this product, but must be supplied by operator.

SAVE THESE INSTRUCTIONS

PARAMETER LIST

Model	MR8019
Color	Black
Storage Quantity	4pcs
Castor Diameter	2.8" / 72 mm

PART LIST

When unpacking this product, ensure the parts listed below are included and carefully inspect for any damage that may have occurred during transit. Do not attempt to assemble or use the product if any part is missing or damaged.

NO	PICTURE	NAME	QTY
1		Long board with uprig pole	1
2		Wheel mounting plate with screws	2
3		Wheel with nut	4

ASSEMBLY STEPS

Technical line drawing of a mechanical assembly with mounting brackets and mounting holes (no text or symbols)

Isometric line drawing of a structural support frame with four vertical posts and mounting holes (no text or symbols)

1. Tighten and fix the Wheel mounting ② plate the Long board with up pole ① with screw and washer As shown in the figure.

Technical line drawing of a mechanical support frame with mounting holes and a separate wheel component (no text or symbols)

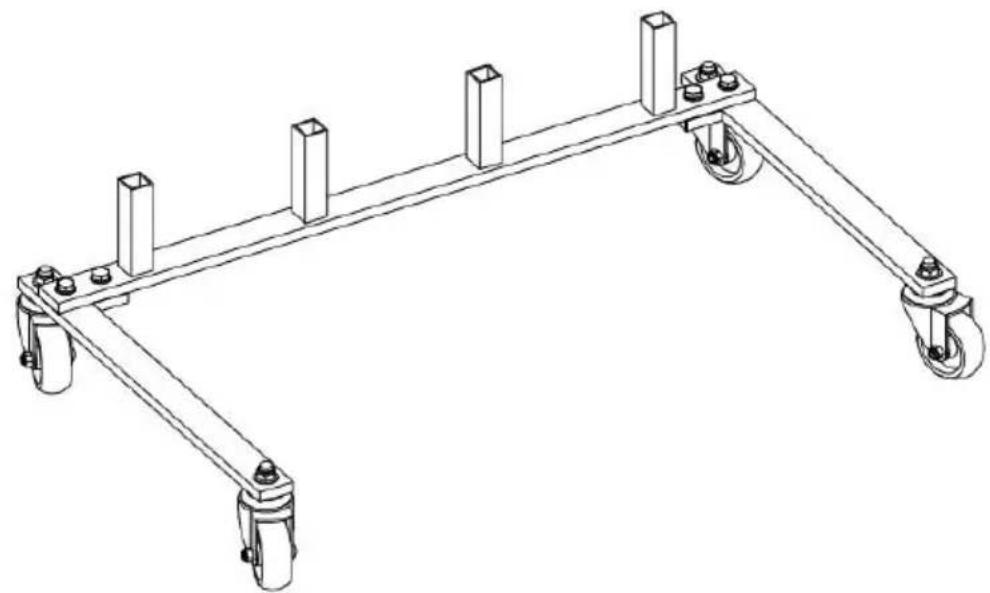

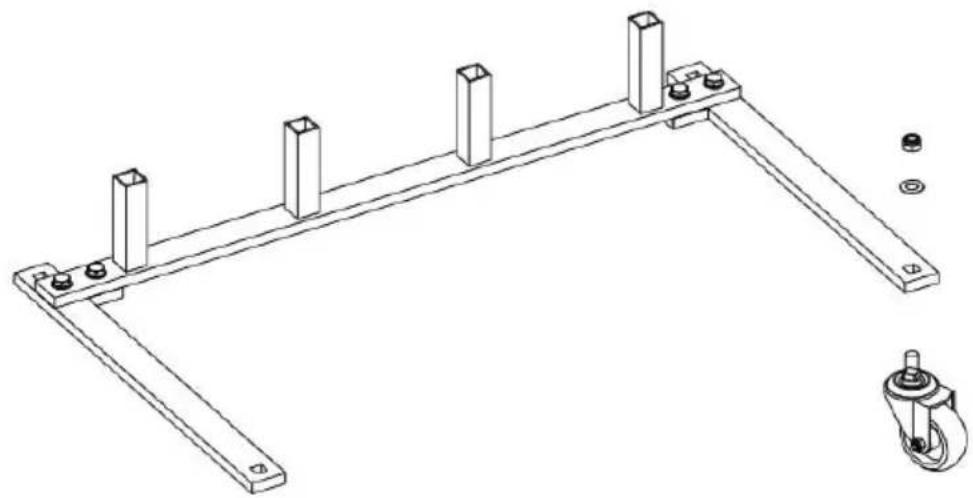

1. Fix the wheels③ to the body with nut M12 and washer as shown figure.

Line drawing of a mechanical support structure with wheels and supports (no text or symbols)

INSTRUCTIONS

Technical line drawing of a mechanical device with two views: top shows a vertical cylindrical assembly, bottom shows a horizontal rail support frame (no text or symbols)

Technical line drawing of a mechanical lifting device with wheels and attached components (no text or symbols)

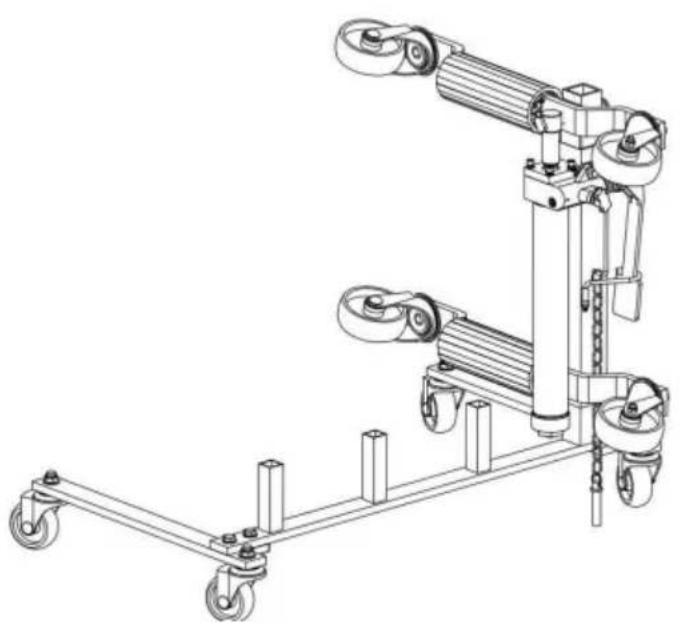

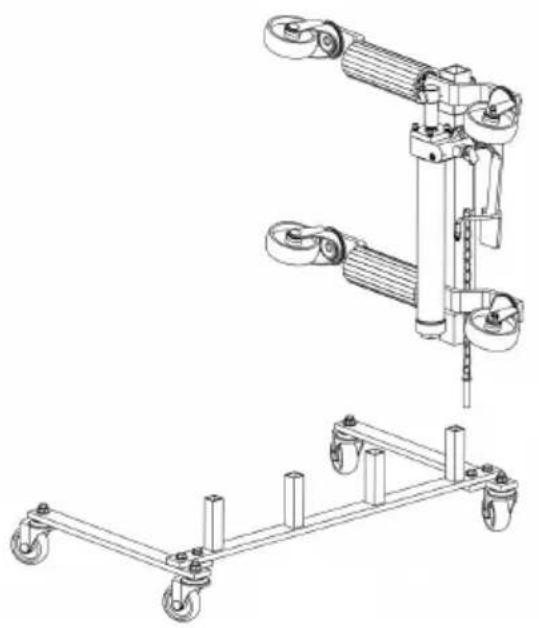

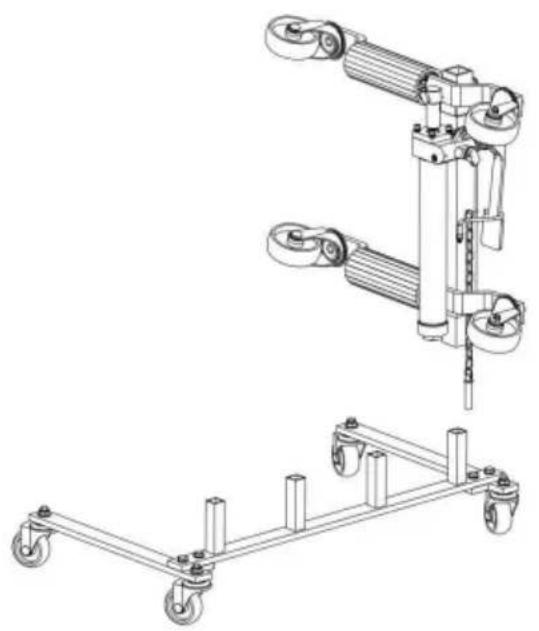

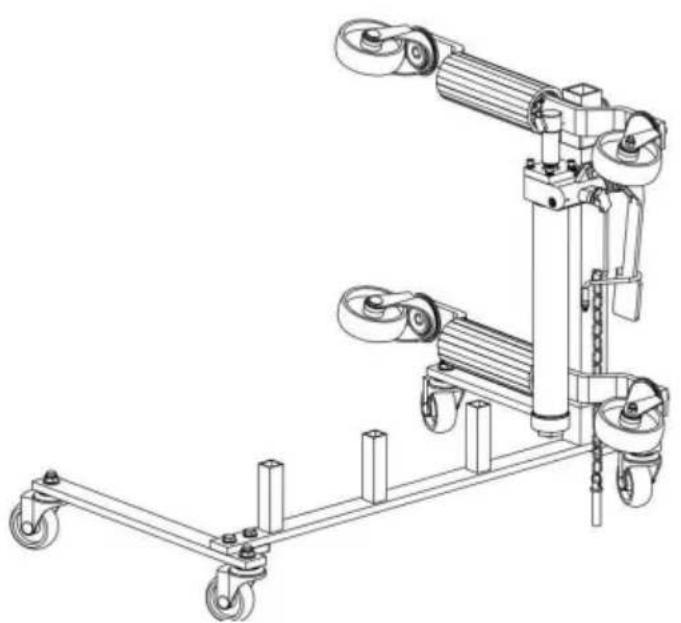

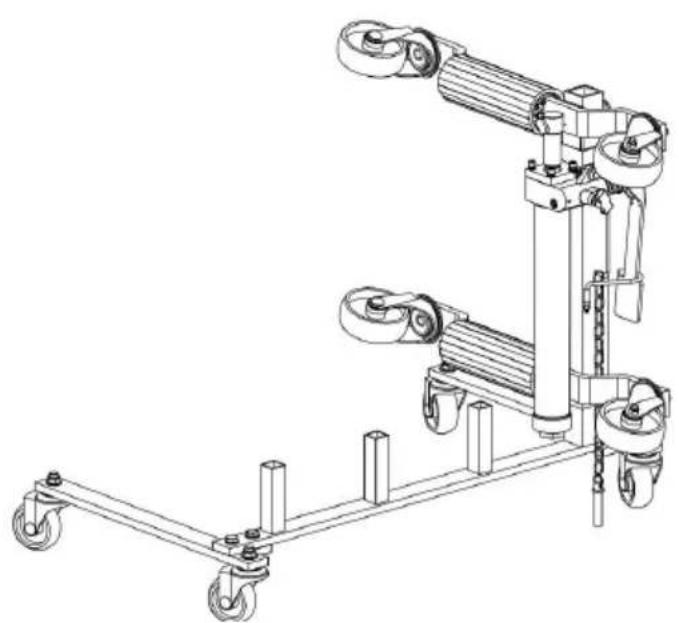

1. Place the vehicle positioning jack on the bracket square.

Technical line drawing of a multi-tiered mechanical assembly with pulleys and wheels (no text or symbols)

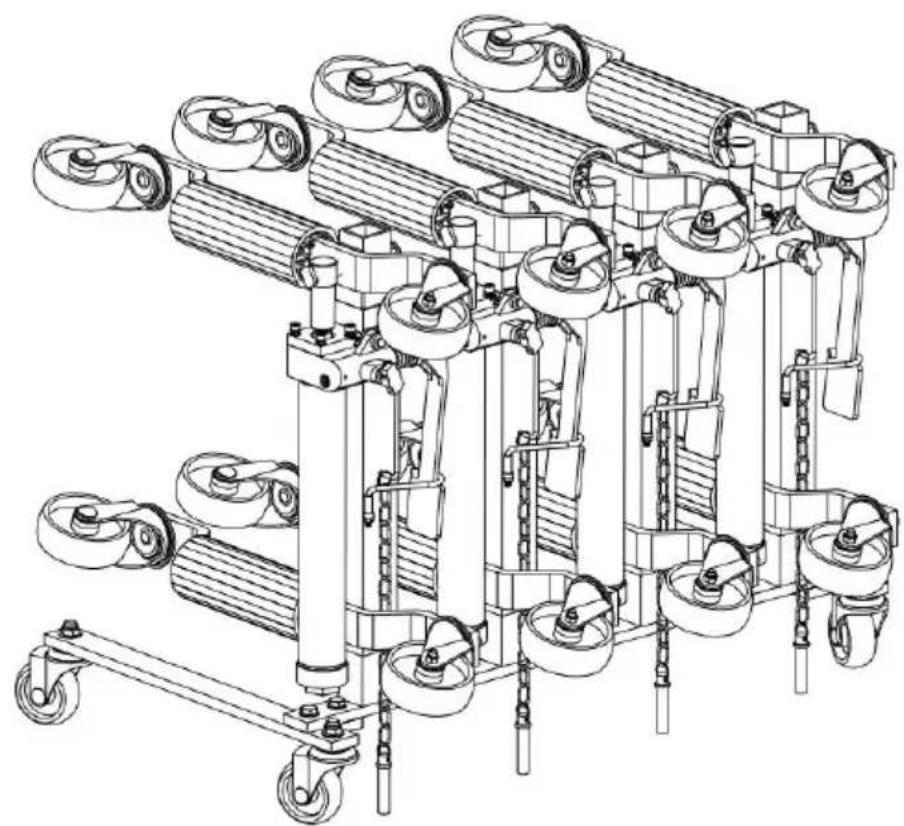

1. Place 4 vehicle positioning jacks on the bracket square tube.

Manufacturer: Shanghaimuxinmuyeyouxiangongsi

Address: Shuangchenglu 803nong11hao1602A-1609shi, baoshanqu, shanghai 200000 CN.

Imported to AUS: SIHAO PTY LTD. 1 ROKEVA STREETEASTWOOD NSW 2 Australia

Imported to USA: Sanven Technology Ltd. Suite 250, 9166 Anaheim Place, Rancho Cucamonga, CA 91730

UK

REP

YH CONSULTING LIMITED.

C/O YH Consulting Limited Office 147,

Centurion House, London Road,

Staines-upon-Thames, Surrey, TW18 4AX

EC

REP

E-CrossStu GmbH

Mainzer Landstr.69,

60329 Frankfurt am Main.
