USER MANUAL LYC-55L-EU Vevor

Technical Support and E-Warranty Certificate www.vevor.com/support

OIL FRYER FILTER

MODEL: LYC-18L, LYC-18L-EU, LYC-38L, LYC-38L-EU, LYC-55L, LYC-55L-EU

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represent savings you might benefit from buying certain tools with us compared to top brands and does not necessarily mean to cover all categories of tools offered. We kindly remind you to verify carefully when placing an order with us to ensure you are actually saving half in comparison with the top major brands.

VEVOR®

TOUGH TOOLS, HALF PRICE

OIL FRYER FILTER

LYC-18L, LYC-18L-EU

LYC-38L, LYC-38L-EU

LYC-55L, LYC-55L-EU

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel free to contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction. Please read all manual instructions carefully before operating. VEVOR reserves a clear interpretation of the user manual. The appearance of the product shall be subject to the product you received. Please forgive us that we won't inform you if there are any technology or software updates on our product.

	Warning-To reduce the risk of injury, user must read instruct manual carefully.
CE	Compliance is a EC security certification.
	CORRECT DISPOSALThis product is subject to the provision of European Directive 2012/19/EC. The symbol showing a wheelie bin crossed through indicates that the product requires separate refuse collection European Union. This applies to the product and all access marked with this symbol. Products marked as such may not discarded with normal domestic waste, but must be taken to collection point for recycling electrical and electronic devices

IMPORTANT SAFEGUARDS

WARNING

CAN CAUSE SERIOUS INJURY OR DEATH.

DO NOT ATTEMPT TO SERVICE THIS EQUIPMENT UNLESS YOU ARE A LICENSED ELECTRICIAN OR TRAINED SERVICER.

• Because this equipment utilizes high voltage, it should only be installed and serviced by a licensed electrician or trained servicer. Attempting to install or service the equipment yourself could result in serious, potentially fatal injuries.
• If an electrical shock is felt when touching equipment, shut off power immediately (pull cord or turn off circuit breaker) and call a trained servicer to repair. Failure to do so could result in serious, potentially fatal injuries. Always turn the power switch off whenever the equipment is not used.
• If the supply cord is damaged, it must be replaced by a special cord or one available from the manufacturer or its service agent.

WARNING

Improper installation, adjustment, alteration, service or maintenance can cause property damage, injury, or death. Read the installation, operating, and maintenance instructions thoroughly before installing or servicing this equipment.

CAUTION: This equipment is not intended for use by persons (including

children) with reduced physical, sensory, or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the equipment by a person responsible for their safety.

CAUTION: Children should be supervised to avoid playing with the equipment.

CAUTION: This equipment is intended to be used for commercial

applications, for example in kitchens of restaurants, canteens, hospitals in commercial enterprises such as bakeries, butcheries, etc., but not for continuous mass production of food.

CAUTION: These models are designed, built, and sold for

commercial use only. If these models are positioned so the general public can use the equipment, make sure that cautions, warnings, and operating instructions are clearly posted near each unit so that anyone using the equipment will use it correctly and not injure themselves or harm the equipment.

CAUTION: This appliance is intended for professional use only and should be

operated by fully trained and qualified personnel.

This appliance is intended for indoor use only.

WARNING

SERIOUS INJURY OR PROPERTY DAMAGE CAN OCCUR IF PROPER PRECAUTIONS ARE NOT FOLLOWED

• DO NOT USE if the filter pan is not completely dry and free of droplets. • DO NOT overfill the filter pan.
• DO NOT use water jets to clean this equipment. Doing so will damage the unit and void the warranty.
• DO NOT use the electrical cord as a leash to move the appliance
• DO NOT attempt to move this appliance or transfer hot liquids from one container to another when the unit is at operating temperature filled with hot liquids.
• DO NOT leave appliance unattended while draining or refilling with oil/ shortening.

VEVOR will not accept liability for product failures in event that:

• The instructions in this manual have not been followed correctly.
• Unqualified personnel have adjusted the Fryer Frame. • Non-original spare parts are used.

SAVE THESE INSTRUCTIONS

PRODUCT PARAMETERS

MODEL	Voltage	PLUG	Tank filling capacity (MAX.)
LYC-18L	AC120V 60Hz	US	16L
LYC-18L-EU	AC220-240V 50Hz	EU	16L
LYC-38L	AC120V 60Hz	US	38L
LYC-38L-EU	AC220-240V 50Hz	EU	38L
LYC-55L	AC120V 60Hz	US	52L
LYC-55L-EU	AC220-240V 50Hz	EU	52L

Optional Equipment

A. LYC-18L LYC-18L-EU:

power cord*1, filter*1, pressure screen frame*1, oil transfer top*1, mesh hook*1, filter chamber reinforcement*4, silicone pad*1, filter paper*2, primary filter*1, faucet*1, water tape*2, power switch*1, red channel*1, green channel*1, protector*1, fuse*1

B. LYC-38L, LYC-38L-EU, LYC-55L, LYC-55L-EU:

power cord*1, filter*1, pressure screen frame*1, oil transfer top*1, mesh hook*1, filter chamber reinforcement*4, silicone pad*1, filter paper*2, primary filter*1, faucet*1, valve*1, water tape*2, power switch*1, red channel*1, green channel*1, protector*1, fuse*1

SETUP

Remove the Oil Filter from the packaging, ensuring that all protective packaging, plastic and residues are cleaned from its surfaces. Lay out all components of the Oil Filter on the floor to ready for assembly. You will need an Allen key to assist in the assembly process.

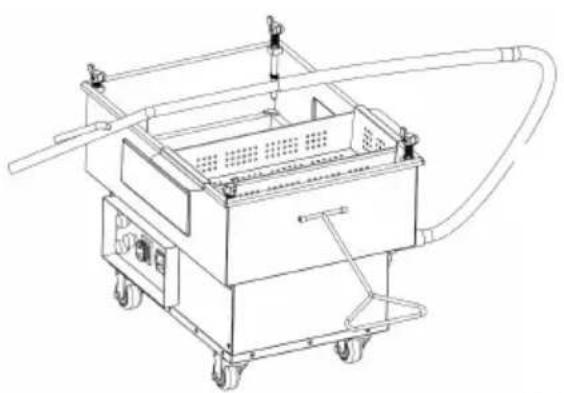

For Model LYC-18L, LYC-18L-EU:

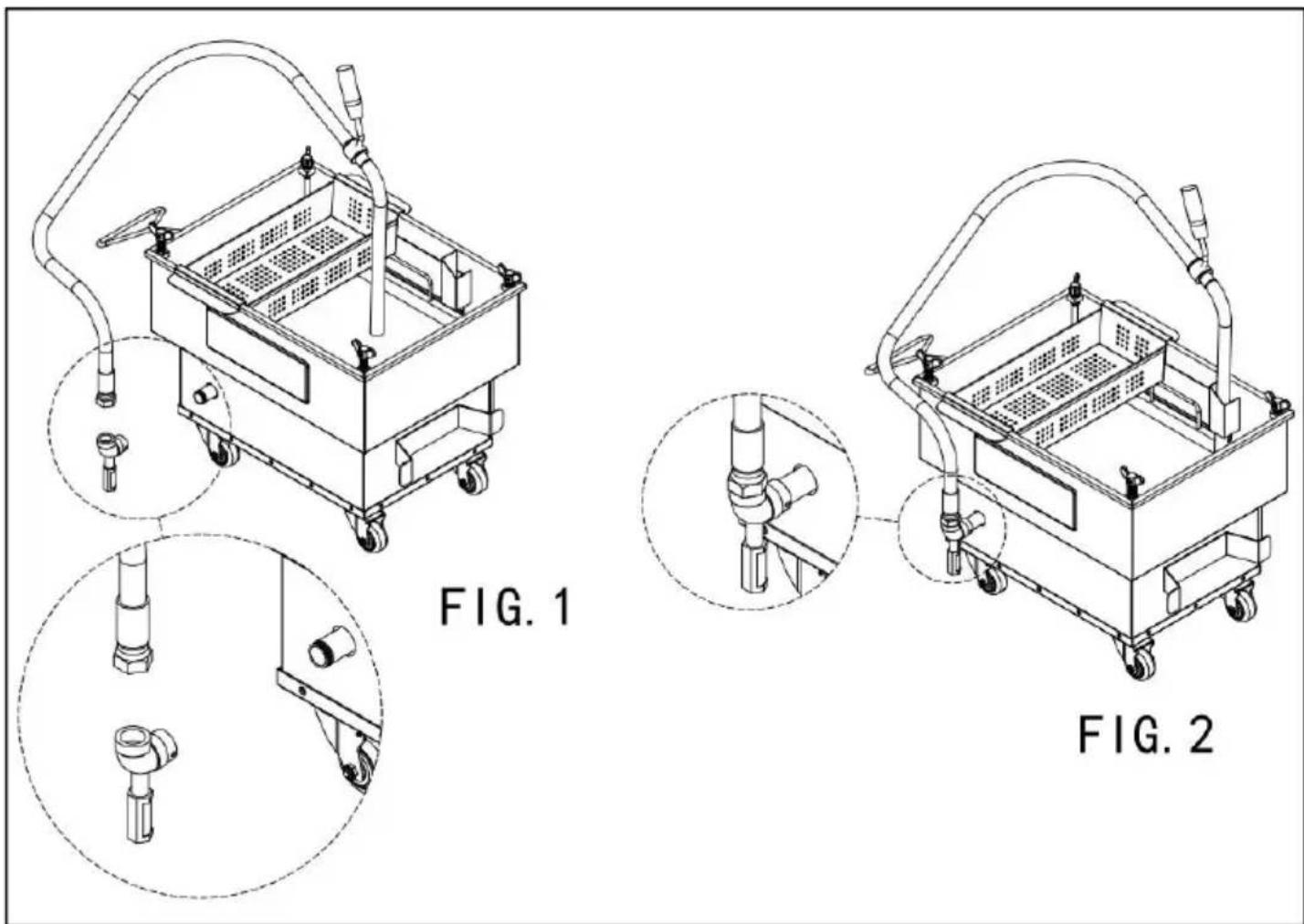

STEP 1: Assemble the oil gun to the main housing correctly as shown in the picture.

STEP 2: Put the filter paper and silicone seal ring into the pan, then the rectangular stainless steel frame to cover the silicone seal ring, then filter net and tighten the screws.

Caution: It must be installed in the order shown in the figure, and the paper (A-2) must be installed on top of the filter (A-1), otherwise the machine may not work and be empty.

A-1: filter, A-2: filter paper, A-3: silicone pad, A-4: pressure screen frame, A-5: filter chamber reinforcement, A-6: primary filter

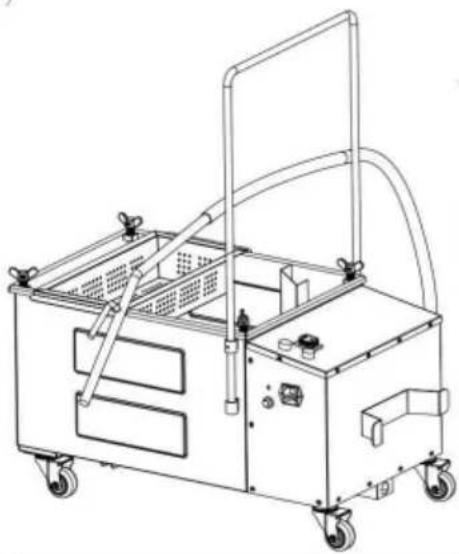

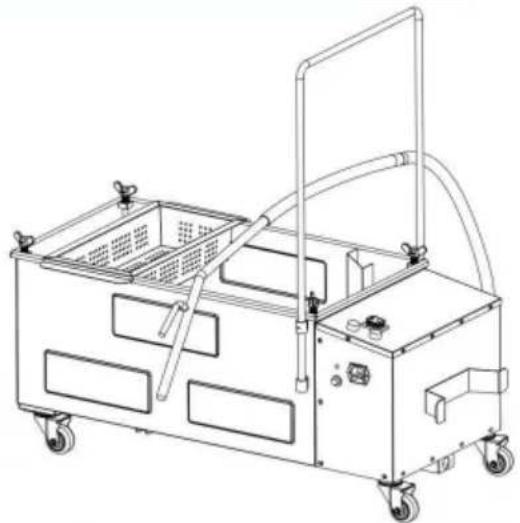

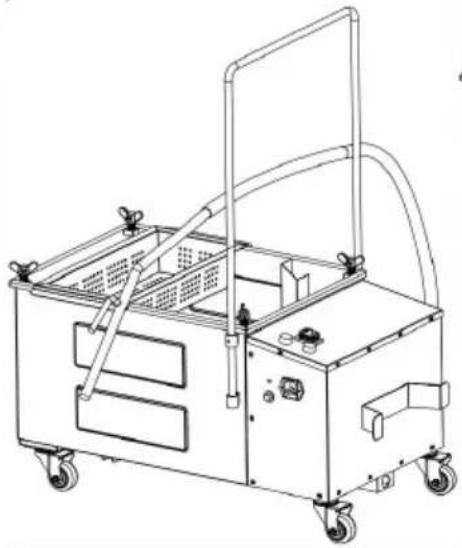

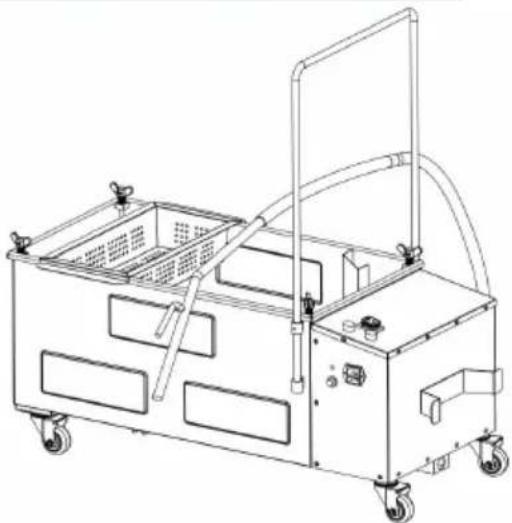

For Model LYC-38L, LYC-38L-EU, LYC-55L, LYC-55L-EU:

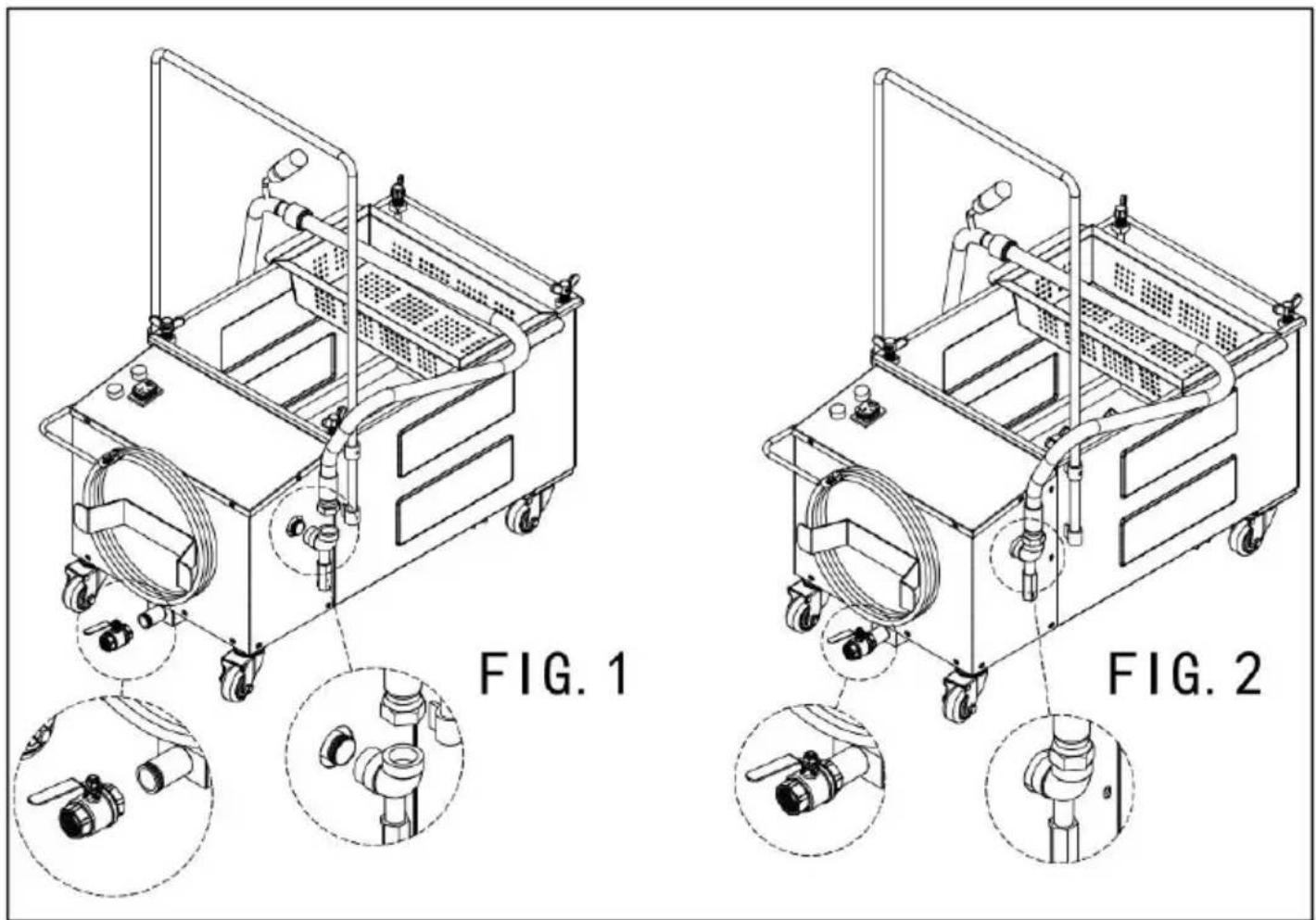

STEP 1: Assemble the oil gun to the main housing correctly, as shown in the picture above.

STEP 2: Put the filter paper and silicone seal ring into the pan, then the rectangular stainless steel frame to cover the silicone seal ring, then filter net and tighten the screws.

Caution: It must be installed in the order shown in the figure, and the paper (A-2) must be installed on top of the filter (A-1), otherwise the machine may not work and be empty.

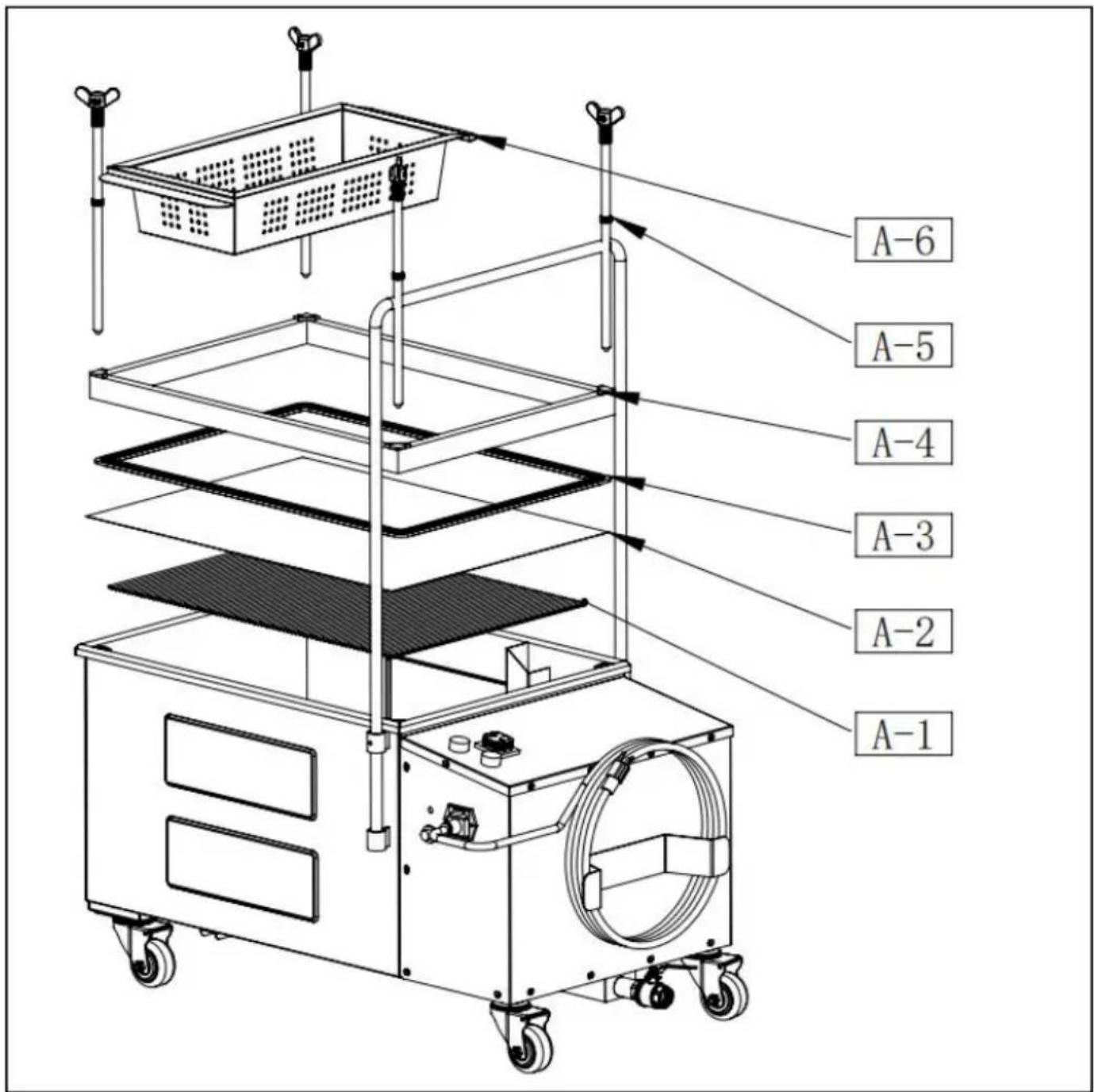

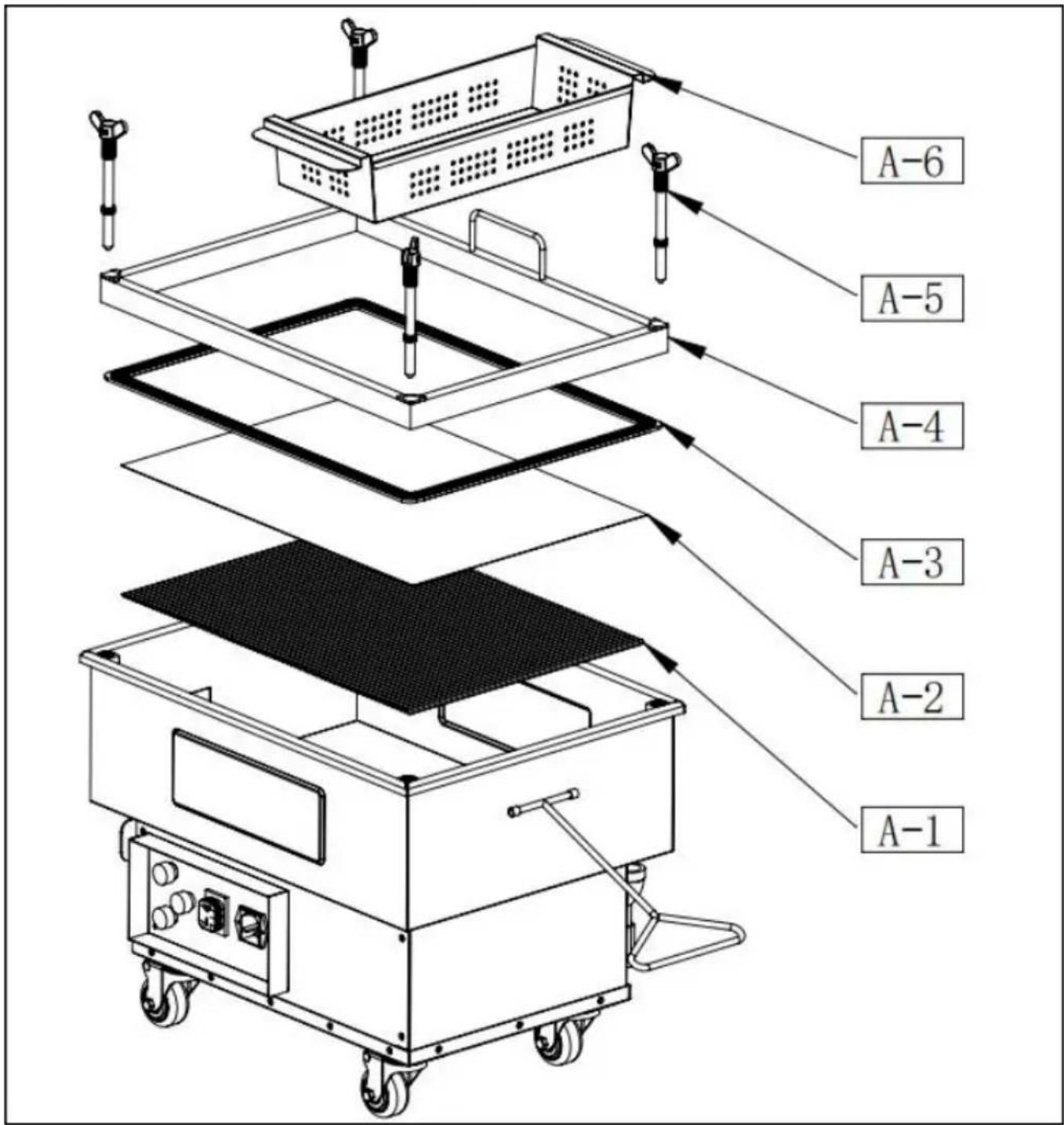

A-1: filter A-2: filter paper A-3: silicone pad A-4: pressure screen frame A-5: filter chamber reinforcement A-6: primary filter

USE CAUTION:

1. Ensure that the filter paper is fresh and in place properly. Refer to instructions if you need to replace or install the filter paper.
2. Ensure that the filter machine is plugged in and turned OFF, and the oil drain valve on the oil gun and main housing (Model LYC-38L, LYC-38L-EU, LYC-55L, LYC-55L-EU) is in the "OFF" position.
3. Open your fryer and attach the drain valve extension.
4. Position the front of the filter machine under the fryer drain valve extension.
5. Turn the fryer power switch OFF.
6. Open the drain valve on the fryer and allow the frypot oil to drain into the machine.
7. With the filter machine hose positioned in its holster on the machine, turn the filter machine ON as the oil drains into the machine.
8. Allow the machine to pump the oil through the paper and cycle it back into the machine until the oil has been filtered.
9. Once all of the oil has drained from the fryer and has been filtered through the machine, turn the machine OFF and close the drain valve on the fryer.
10. Move the filter machine hose from the machine and into the frypot, and turn the machine back on.
11. Return the oil to the fryer and allow the filter machine to run for 10-15 minutes after no more oil comes through the hose.
12. For added safety of the filter pipe, please lift the pipe to a vertical position and open the draining valve on the bottom of the pipe to filter thoroughly the remaining oil, or it will become solid and block the pipe.

WARNING: DO NOT OVERFILL THE OIL FRYER FILTER.

CLEANING & MAINTENANCE

WARNING: SERIOUS INJURY OR PROPERTY DAMAGE CAN OCCUR IF

PROPER PRECAUTIONS ARE NOT FOLLOWED

• The power supply must be disconnected before servicing, maintaining, or cleaning this machine.
• DO NOT pump water through the filter pump system. The pump functions on oil lubrication, and water will damage the pump.
• DO NOT attempt to lift the filter machine off the floor for cleaning. Bodily injury may occur.
• DO NOT attempt to circulate water through the pump. Internal rusting in the pump may occur.
• DO NOT use the appliance as a step for cleaning or accessing the ventilation hood. Serious injury could result from slips, trips, or contact with hot liquids.
• If the supplied power cord or receptacle is damaged, it MUST be replaced by an authorized service and parts company technician in order to avoid a hazard.

NOTE: Follow these cleaning instructions before using the machine for the first time. NOTE: Shortening Filter must be cleaned DAILY. Failure to do so will void the warranty.

NOTE: The contents of the crumb catch and filter pan of any filter system must be emptied into a fireproof container at the end of each day. Some food particles spontaneously combust if left soaking in certain types of oil or shortening.

NOTE: It is recommended that this appliance be inspected by a qualified service technician for proper performance and operation on a yearly basis.

DAILY CLEANING

1. Disconnect filter hose wand and drain.
2. Disconnect the filter tube and turn the pump on for 3-5 seconds to force out the shortening. Failure to do this will cause the pump or hose to clog with shortening.
3. Unplug the shortening filter.
4. Remove the filter tube and clamp assembly.
5. Unscrew the wing nuts on the filter clamp assembly to remove the filter paper from the filter plate.
6. Discard the used paper; wash the filter plate and thoroughly rinse with hot water.
7. Remove and wash the tank. Rinse and dry thoroughly.
8. Replace the tank onto the filter.
9. Wash the clamp assembly, rinse with hot water, and dry well. For Model LYC-38L-EU, LYC-55L, LYC-55L-EU, there is a draining valve on the bottom of the main housing to release the residue. Close the drain valve while filtering and open it after rinsing with hot water.
10. Replace the filter paper on the tube and clamp assembly and install in the tank.

REPLACING FILTER PAPER

1. Ensure that the machine is OFF and oil has been returned to the Fryer.
2. Unscrew the 4 clamps pressing the filter paper frame down.
3. Remove the metal frame and, if necessary, the used filter paper.
4. Place a new sheet of filter paper into the filter pan.
5. Measure 8 ounces of filter powder and distribute evenly over the paper.
6. Place the metal frame over the gasket and filter paper.
7. Reinstall the 4 clamps and ensure the filter paper is securely in place.

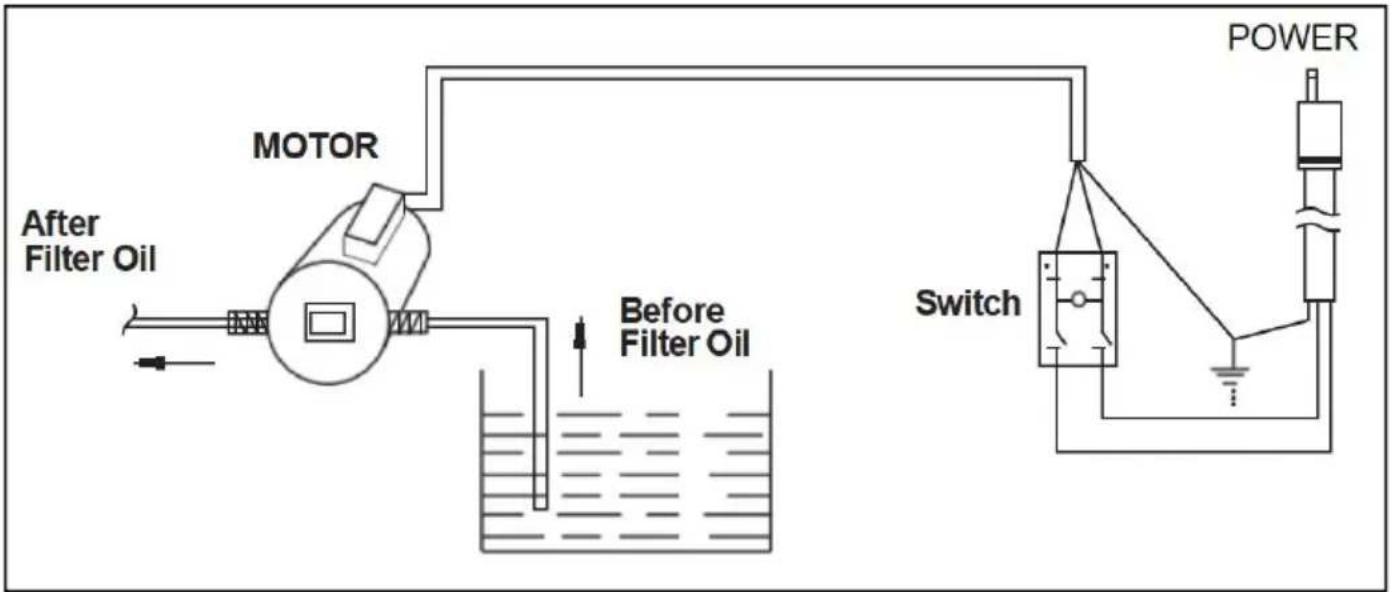

ELECTRICAL DIAGRAM

TROUBLESHOOTING

WARNING: SERIOUS INJURY OR PROPERTY DAMAGE CAN OCCUR IF

PROPER PRECAUTIONS ARE NOT FOLLOWED

• The power supply must be disconnected before servicing, maintaining, or cleaning this machine.
• If the supplied power cord or receptacle is damaged, it MUST be replaced by an authorized service and parts company technician in order to avoid a hazard.

PROBLEM	CAUSE	REMEDY
Pump won't start	Insufficient power supplied	Check that main power supply is plugged in supplying required current
	Power switch has not been turned on	Check that the unit is plugged in and turne
	Plug and/or lead and damaged	Call service agent or qualified technician to replace
	On/Off switch is faulty	Call service agent or qualified technician to replace
	Faulty internal wiring	Call service agent or qualified technician to replace
	Tripped thermal overload switch	Allow filter unit to cool for at least 45 minu then reset the thermal overload switch
Pump stops during filtering process	Tripped thermal overload switch	Allow filter unit to cool for at least 45 minu then reset the thermal overload switch
	Filter paper is dirty or incorrectly installed	Turn filter pump off. Allow oil to cool, then pan. Verify filter paper is clean and properly installed. Refill pan and restart process.
Pump starts and abruptly stops	Tripped thermal overload switch	Allow filter unit to cool for at least 45 minu then reset the thermal overload switch
	Pump is blocked or wiring is loose	Call service agent or qualified technician to replace
	Motor has failed	Call service agent or qualified technician to replace
Pumping is erratic	Filter paper is incorrectly installed	Confirm whether the filter paper is installed correctly, in the order described in the draw
	Filter hose connection is incorrectly installed	Verify that the filter hose connection is tight secure
Oil is not being returned to fry pot	The filter hose is clogged with debris	Clear hose
	Clogged filter paper	Scrape off excess sediment or replace filter
	Filter pan suction tube is blocked	Use a thin, flexible wire to unclog

Address: Baoshanqu Shuangchenglu 803long 11hao 1602A-1609shi Shanghai

Imported to USA: Sanven Technology Ltd. Suite 250, 9166 Anaheim Place, Rancho Cucamonga, CA 91730

UK

REP

Pooledas Group Ltd

Unit 5 Albert Edward House, The Pavilion

Preston, United Kingdom

EC

REP

SHUNSHUN GmbH

Römeräcker 9 Z2021, 76351
