Product Type	Dual-tank electric deep fryer
Brand	Vevor
Model	SC-83
Number of tanks	2
Total power (Europe)	2500 W + 2500 W
Total power (America)	1500 W + 1500 W
Voltage (Europe)	AC 220-240 V, 50 Hz
Voltage (America)	AC 110-120 V, 60 Hz
Temperature range	50–200 °C
Oil capacity per tank	About 6 liters (estimated)
Dimensions (L x W x H)	About 60 x 40 x 30 cm (estimated)
Weight	About 12 kg (estimated)
Tank material	Stainless steel
Included components	2 baskets, 2 back plates, 2 lids, 2 control boxes
Control type	Adjustable thermostat with green/red indicator lights
Safety function	Overheat protection with reset button
Drainage	No (SC-102V models only)
Timer	No (SC-101V/102V models only)
Intended use	Household use only
Maintenance	Regular cleaning of oil residues and dirt on heating tubes
Cleaning	Wipe the exterior with a soft, dry cloth; do not immerse
Certifications	CE (Europe), UKCA (United Kingdom)

Frequently Asked Questions - SC-83 Vevor

How to use the Vevor SC-83 deep fryer for the first time?

Remove all packaging and labels. Wipe the tanks with a damp cloth. Fill each tank with oil up to halfway (do not exceed the max line). Plug in, turn on the switch, set the thermostat to the desired temperature. The green light turns on. Wait for the red light to go out (temperature reached). Place food in the basket and fry.

What is the electrical power of the SC-83?

The power depends on the version: 2500 W + 2500 W for the European version (220-240 V) and 1500 W + 1500 W for the American version (110-120 V).

Can I use the fryer without oil?

No, this fryer is designed for oil frying. Never use without oil, as this could damage the heating elements and pose a fire risk.

How to clean the SC-83 deep fryer?

Unplug it and let it cool completely. Remove the basket and back plate. Wipe the exterior with a soft, dry cloth. Regularly clean oil residues on the heating tubes with a non-abrasive cloth. Never immerse the cord, plug, or appliance in water.

What to do if the fryer stops heating?

Check the overheat protection button on the back of the device. If the temperature has exceeded the set value, the protection triggers. Wait for cooling, then press the reset button to restart.

What oil to use in the fryer?

Use a frying oil suitable for high temperature, such as peanut, sunflower, or canola oil. Avoid oils with a low smoke point like extra virgin olive oil.

Can I fry frozen foods?

Yes, but dry them well before immersing in oil to avoid splashes. Never throw frozen foods directly into hot oil without draining.

Does the SC-83 have a timer?

No, the SC-83 model is not equipped with a timer. Only models SC-101V and SC-102V have one. Monitor cooking manually or use an external timer.

How to drain the oil from the fryer?

The SC-83 model does not have a drain valve (only the SC-102V has one). To drain, wait for the oil to cool, remove the basket and back plate, then carefully tilt the tank to pour the oil into a suitable container.

Where to find technical support for the SC-83?

Visit the website www.vevor.com/support for technical support, to download the manual, or to request an electronic warranty certificate.

USER MANUAL SC-83 Vevor

Technical Support and E-Warranty Certificate

www.vevor.com/support

DUAL TANK ELECTRIC

DEEP FRYER

MODEL: SC-82 / SC-83 / SC-101V / SC-102V

We continue to be committed to providing you tools with competitive prices. "Save Half", "Half Price", or any other similar expressions used by us only represent an estimate of savings you might benefit from buying certain tools with us compared to the major top brands and does not necessarily mean to cover all categories of tools offered by us. You are kindly reminded to verify carefully when you are placing an order with us if you are actually saving half in comparison with the top major brands.

VEVOR®

TOUGH TOOLS, HALF PRICE

DUAL TANK ELECTRIC

DEEP FRYER

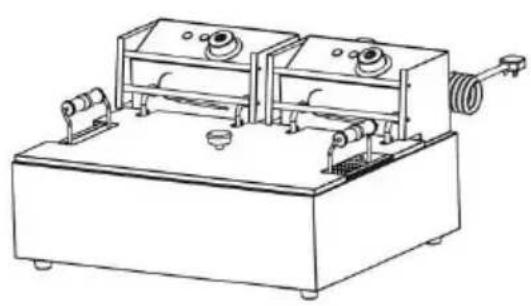

MODEL: SC-82 MODEL: SC-101V

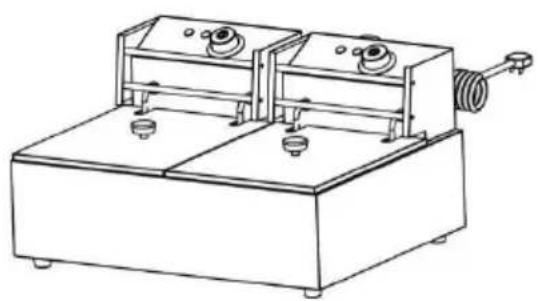

MODEL: SC-83 MODEL: SC-102V

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel free to contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction. Please read all manual instructions carefully before operating. VEVOR reserves a clear interpretation of the user manual. The appearance of the product shall be subject to the product you received. Please forgive us that we won't inform you again if there are any technology or software updates on our product.

	Warning-To reduce the risk of injury, user must rea instructions manual carefully.
	Pay attention to high temperatures to prevent burns
	CORRECT DISPOSALThis product is subject to the provision of Europea Directive 2012/19/EC. The symbol showing a wheeli crossed through indicates that the product requires separate refuse collection in the European Union. T applies to the product and all accessories marked this symbol. Products marked as such may not be discarded with normal domestic waste, but must be to a collection point for recycling electrical and ele devices
	Compliance is a EC & UK security certification.
	HOUSE HOLD USE ONLY.
	WARNING! The water in the oil tank must be wipe and the oil residue must be cleaned before use. It prohibited to add water or frozen objects to the oil during use, otherwise the oil will splash.

IMPORTANT SAFEGUARD

Thank you for using this product. In order to make sure that you operate the machine correctly, read this instruction carefully before operating it and keep it properly for future reference. Please read

the precautions and safety rules on this page to ensure your safe use. The manual will outline safety warnings, precautions, and operating, maintenance, and cleaning procedures. The warnings and instructions reviewed in this manual cannot cover all possible conditions and situations that may occur. Caution and common sense are not built into the product since the users will comply with these codes. Please consider a doctor before starting a training program or engaging in strong endurance activity on the device.

Please read ALL the instructions before using your machine.

Please read ALL the instructions before using your machine.

1. Make sure the voltage in your outlet is the same as the voltage indicated on the appliance's rating label.
2. Do not let children, minors, and pets get close to or touch the machine.
3. Do not touch the hot surface directly with your hands. Always use the handle or knob for operation.
4. To prevent electrical shock, do not immerse the cord or plug in water or other liquids.
5. Do not immerse the appliance in water or any other liquid.
6. Unplug the machine from the outlet when not in use and before cleaning. Cool the appliance before installing or removing parts and before cleaning.
7. Cool down the HOT parts before operation and cleaning.
8. Do not operate the device with a damaged cord or plug, malfunction, or with any mechanical damage. Send it to your nearest authorized service center for examination and repair (ONLY technicians should open up the unit).
9. Using any accessories or attachments that are not provided or recommended by the manufacturer may cause injury.
10. If the machine is not to be used for a long period of time, clean it, cover it, and store it in a dry and safe place.
11. Do not leave the power cord hanging over the edge of the counter or let it come into contact with any hot surfaces.
12. Do not place the unit on or near hot air, electric burners, or heaters.
13. Always switch off the power to the socket before plugging in or unplugging. Hold the plug instead of pulling on the cord.
14. Do not apply this unit to any other purposes than the indicated usage. Do not use it outdoors.
15. KEEP IT OUT OF CHILDREN'S REACH. Never leave it unattended while in use.
16. DO NOT CLEAN IT WITH ANY ABRASIVE MATERIAL.
17. Always check that this machine is plugged into a grounded outlet with the appropriate electrical supply. Ensure that the wall outlet being used is properly grounded. If not, you must install a grounded outlet. Have the work performed only by a certified electrician who is properly qualified to meet local safety and electrical codes.
18. Ensure that the power outlet, plug, and cord being used are in good working condition. Damaged components should be repaired by a certified electrician who is qualified to meet local safety and electrical codes. Even if your power cord is functioning properly, keep it away from water and avoid letting it run over carpets or heating devices.
19. Avoid using it in the presence of flammable liquids, gases, or other explosive situations.
20. Do not move the machine before cooling and during heating.
21. Do not operate the machine in an appliance garage or under a wall cabinet. Always unplug the unit from the electrical outlet when storing in an appliance garage. Otherwise, it would cause a risk of fire, especially if the machine touches the garage wall or the door touches it as it closes.
22. Type Y attachment: If the supply cord is damaged, it must be replaced by the manufacturer, its service agent, or similarly qualified persons in order to avoid a hazard.
23. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.
24. When using the appliance, keep the oil level above the half-full mark.

Do not let the oil exceed the highest line. Be careful of oil splashing during operation.

1. This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the machine alone. Cleaning and user maintenance should not be made by children without supervision. Pets should stay away from the product.

IMPORTANT SAFEGUARD

MODEL	Region	Voltage	Input Power	Plug Type
SC-82	American	1500W+1500W	AC110-120V 60Hz	American PLUG
	European	2500W+2500W	AC220-240V 50Hz	European PLUG
SC-83	American	1500W+1500W	AC110-120V 60Hz	American PLUG
	European	2500W+2500W	AC220-240V 50Hz	European PLUG
SC-101V	American	1500W	AC110-120V 60Hz	American PLUG
	European	3000W	AC220-240V 50Hz	European PLUG
SC-102V	American	1500W+1500W	AC110-120V 60Hz	American PLUG
	European	3000W+3000W	AC220-240V 50Hz	European PLUG

Attention:

1. The voltage used for this device must be the same as the supply voltage.
2. Users need to install it near the power switch and fuse.
3. The equipment grounding bolt must be connected with a copper wire of not less than 2.5 mm² and meet safety requirements and reliable grounding.
4. If the product is not powered on, please unplug the power cord and wait for the machine to cool down before checking the Reset protecting button!

PRODUCT COMPONENTS

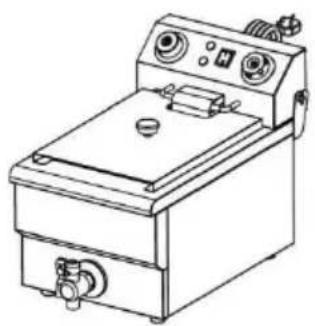

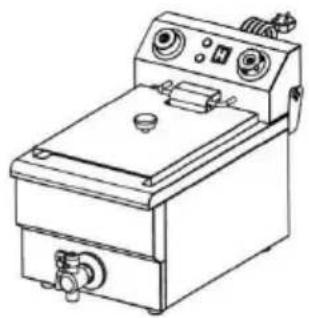

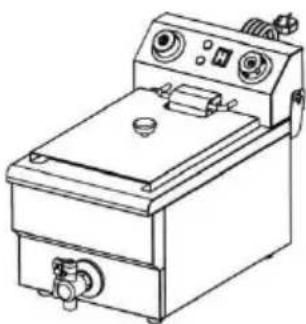

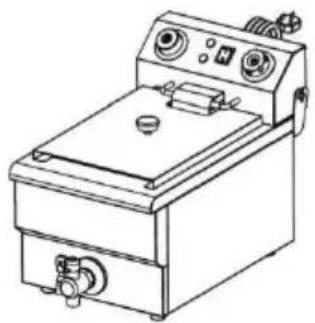

MODEL: SC-101V

Attention:

If the product is not powered on, please unplug the power cord and wait for the machine to cool down before checking the Reset protecting button.

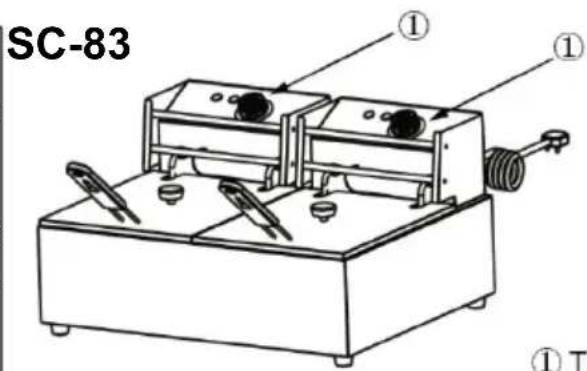

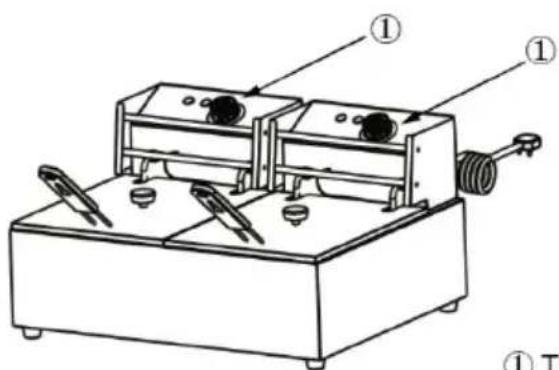

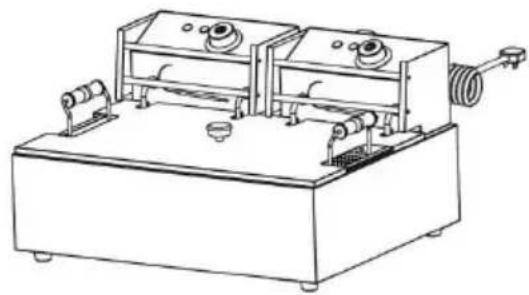

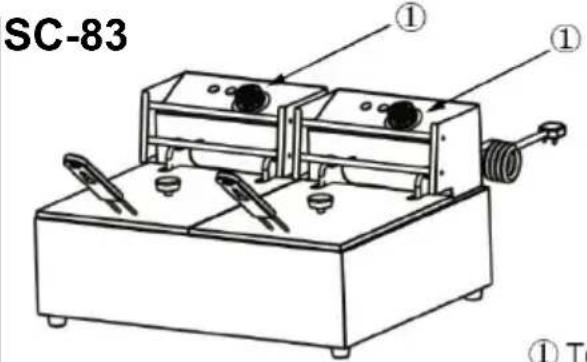

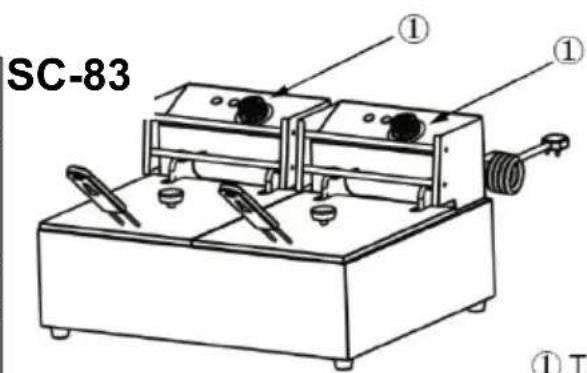

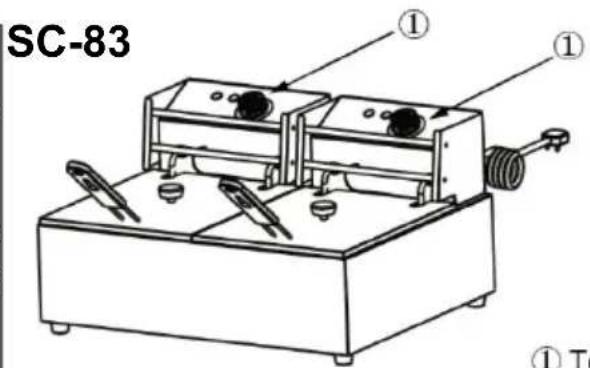

MODEL: SC-82 / Attention: If the product is not powered on, please unplug the power cord and wait for the machine to cool down before checking the Reset protecting button!

① Temperature knob

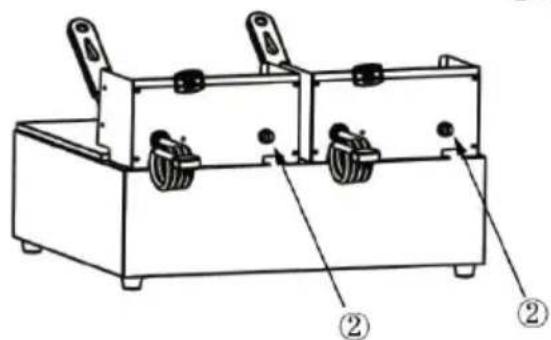

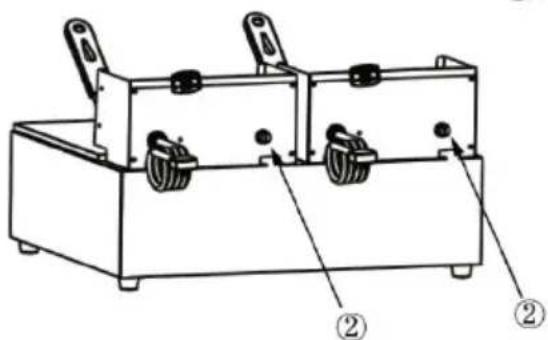

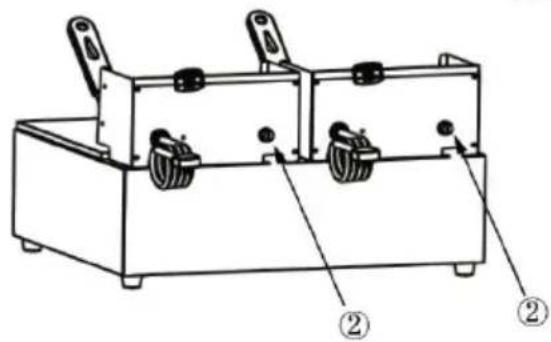

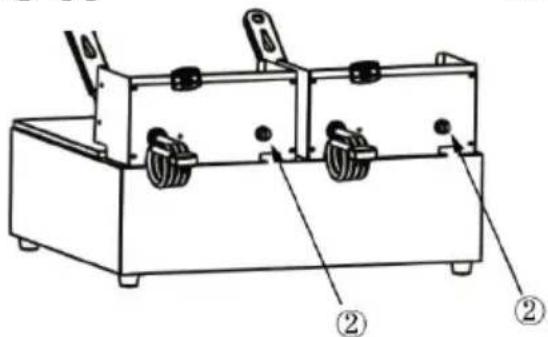

② Reset protecting button

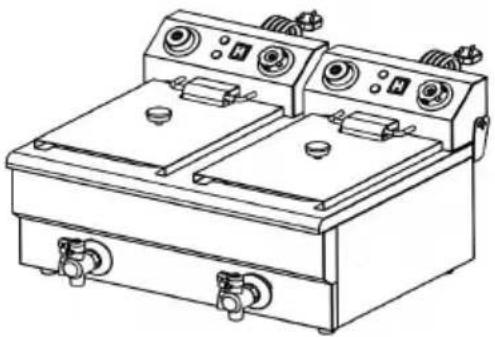

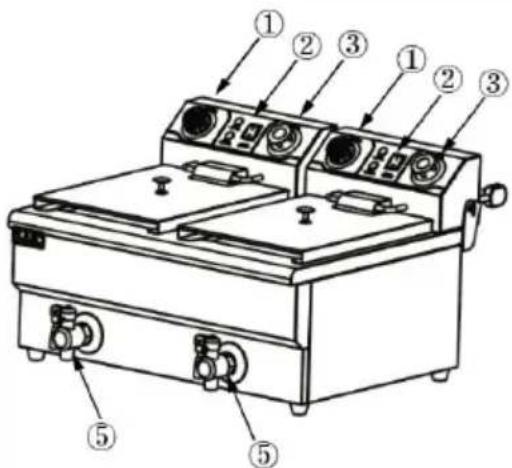

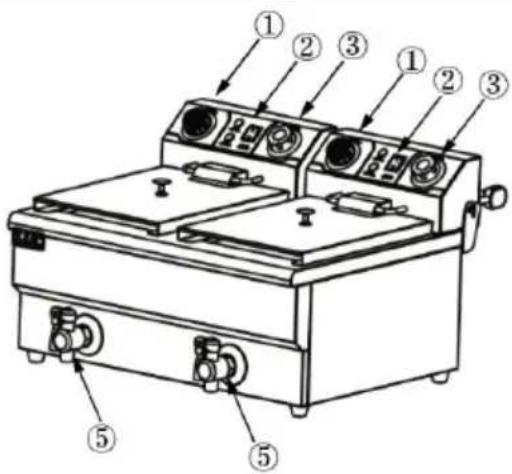

MODEL: SC-102V

Attention:

If the product is not powered on, please unplug the power cord and wait for the machine to cool down before checking the Reset protecting button and timer set.

① Temperature knob

② Power switch

③ Time knob

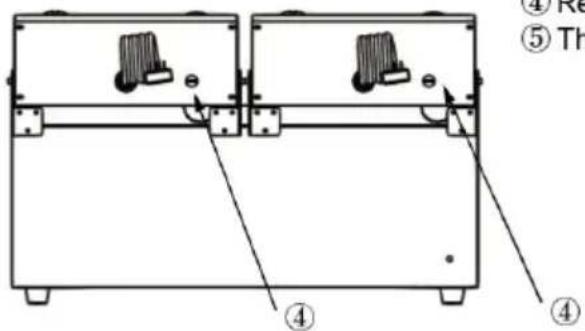

④ Reset protecting button

⑤ The tap

OPERATING INSTRUCTIONS

Before using the appliance for the first time, peel off any promotional materials and packaging materials, and check that the cooking plates are clean and free of dust. If necessary, wipe them with a damp cloth. Spread over with an absorbent kitchen towel and wipe off any excess oil. When your appliance is heated for the first time, it may emit slight smoke or odor, which is normal for many heating appliances, and will not affect the safety of your appliance.

Please dispose of all plastic bags carefully and keep them away from children and pets.

1. Place the machine on a clean, dry, level surface near a power outlet.
2. Plug the cord into the wall outlet.
3. The user should place the oil in the half fryer when in use.
4. Turn on the power switch (SC-82 has no power switch), and the green indicator light will be on while power is supplied. Then turn the temperature knob clockwise to adjust the temperature to the desired level. At the same time, the red indicator light turns on, indicating that the electric heater begins to heat up and the temperature of the oil starts to rise.
5. When the temperature rises to the desired level, the heat controller will automatically cut off, while the red indicator light goes out and the electric heater stops heating.
6. When the temperature drops slightly, the heat controller will automatically energize, the red indicator light and the green indicator light will be on, the electric heater will work again and the temperature will rise.
7. After finishing, for safety, please turn the temperature knob counterclockwise to the limit position and cut off the power. NOTE: It works in this way repeatedly in order to make sure the temperature is maintained within a certain range.

Only SC-101V/SC-102V requires setting a timer; SC-82/SC-83 does not require it.

1. If you turn the time knob to the "ON" position, the machine will remain powered.
2. If you adjust the time knob to the "0-60 minute" range, the timer will start counting down and the power will be cut off after the time is completed.

Attention:

Never leave it unattended while the "0-60min" countdown function is in use, as it may cause cooking failures.

to avoid safety accidents and

TIPS & HINTS

1. The cover is designed for keeping warm and clean. When using the cover, make sure there is no water on it to prevent water from dripping into the pot and causing hot oil splashes.
2. The enclosed special basket is used for frying small pieces of food. There is a hanger and a handle on the basket. Put the basket in while producing. After finishing, hang up the basket and filter out the excess oil.
3. The back plate is designed to protect the electric heating tube. When frying food, the back plate must be placed in the oil pan.
4. When using, keep the oil level between the HALF OIL line and the HIGHEST line, and do not exceed the highest line.
5. Be careful of oil splashing during operation.
6. The tap can be used to drain the cooling oil, but please ensure that the tap is TURNED OFF when the power is turned on. (For SC-102V)

NOTE: Each fryer with a temperature range of 50-200°C

(122°F-392°F) has an "overheat reset protection button" which will function to protect the machine when the temperature is higher than the set value. When used again, the user should press the protection button to reset it and then the user can use it normally.

CLEANING AND MAINTENANCE

1. Once you have finished using, remove the plug from the electrical outlet. Leave the top lid open and allow the grids to cool down completely before cleaning.
2. If the user wants to pour oil out of the pot, they should do it after the temperature of the oil lowers to normal. First, the user takes out the basket and back plate, then cuts off electricity and turns over the control box (at this moment electric heating tubes in the pot are erect) or the user takes out the control box and puts it on a dry place so that the user can take out the oil pot and clean it.
3. The user should clean residue in the oil and filth on the electric heating tubes at regular intervals.
4. For the exterior, wipe with a soft, dry cloth. Never use abrasive cleanser or harsh pad.
5. Any other servicing should be provided by an Authorized Service Representative.

CAUTION:

1. Never immerse cord, plug or unit in water or other liquid.
2. In order to avoid a hazard due to inadvertent resetting of thermal cutout, this appliance must not be supplied through an external switching device, such as a timer, or connected to a circuit that is regularly switched on and off by the utility.

STORAGE

1. Always unplug the machine before storage.
2. Always make sure the machine is clean, cool, and dry before storing.
