USER MANUAL JY-DI-02EU3 Vevor

Technical Support and E-Warranty Certificate www.vevor.com/support

DEIONIZED WATER SYSTEM FOR CAR WASH

MODEL: JY-DI-02EU3/JY-DI-02US4

/JY-DI-02US6JY-DI-02EU7

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represent of savings you might benefit from buying certain tools with us compared top brands and does not necessarily mean to cover all categories of tools offered are kindly reminded to verify carefully when you are placing an order with us actually saving half in comparison with the top major brands.

VEVOR®

TOUGH TOOLS, HALF PRICE

DEIONIZED WATER SYSTEM

FOR CAR WASH

MODEL: JY-DI-02EU3/JY-DI-02US4/JY-DI-02US6JY-DI-02EU7

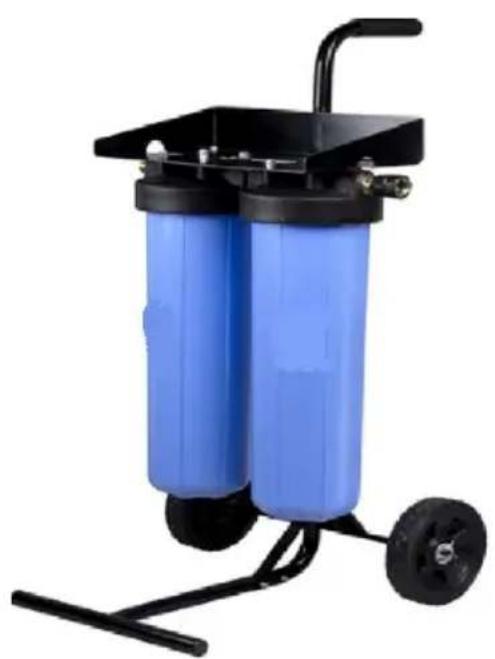

Blue and black portable water push cart with wheels (no text or symbols visible)

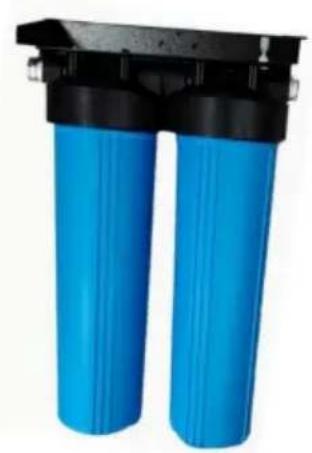

Two blue cylindrical objects with black connectors, possibly industrial tanks or pumps (no visible text or symbols)

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel fr contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instruction carefully before operating. VEVOR reserves a clear interpretation user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform you there are any technology or software updates on our product.

Symbol	Symbol Description
	Warning-To reduce the risk of injury, the user must read the instructions manual carefully.

WARNING

● Performance data was tested under standard laboratory conditions; actual performance may vary.
- This system is designed to be used on a cold supply ONLY and away from freezing environments.
- The installation must comply with all applicable local plumbing code and/or regulations.
- This system is NOT designed for drinking purposes. Do NOT use system for any other uses except car washing.
- Choking hazard. Small parts are included in the package. Please always keep the package out of the reach of small children.
- Please do not drink the water produced by this system. While small amounts are not harmful, this water is too pure and can rob a human of vital minerals and nutrients with extended use
- Do not plumb directly into household or RV potable water supply.
- Prior to opening cartridge housings turn off water and relieve pres in hose.
- Stop use when TDS Output Meter reads 25-30 ppm. It's time to the resin
- Do not exceed 75 psi inlet water pressure.
- Use only the FAN or FLAT spray pattern on a typical nozzle or 3-way valve half open for 2 gpm flow rate.

MAINTENANCE

The Total Dissolved Solids (TDS) of water from this car wash system should be tested regularly to verify that the system is performing prop you notice a dramatic increase (—30 ppm) in the TDS value, it would time to get your filter replaced. When the rinsing is finished, leave the remaining water in the filter housings to keep the deionization filters for drying out.

SPECIFICATION PARAMETERS

Model	JY-DI-02EU3	JY-DI-02US4	JY-DI-02US6	JY-DI-02EU7
Rated net water volume (ga	320
Inlet diameter (in)	NPT3/4	GHT3/4	GHT3/4	NPT3/4
Outlet diameter (in)	NPT3/4	GHT3/4	GHT3/4	NPT3/4
Inlet working pressure (MPa)	0.4-0.6
Working temperature (°C)	4-45
Cart	Yes	Yes	No	No

PARTS LIST

ITEM	Name	PICTURE	JY-DI-02EU3	JY-DI-02US4	JY-DI-02US6	JY-DI-02EU7
1	Body of the bottle		1PCS	1PCS	1PCS	1PCS
2	Inlet hose		1PCS	1PCS	1PCS	1PCS
3	three-way valve		1PCS	1PCS	1PCS	1PCS
4	Overcurrent pipe		1PCS	1PCS	1PCS	1PCS
5	TDS detection box		1PCS	1PCS	1PCS	1PCS
6	Cart main po		1PCS	1PCS	-	-
7	Hexagonal screw M6		8PCS	8PCS	-	-
8	M6 nut		8PCS	8PCS	-	-
9	Caster wheels		2PCS	2PCS	-	-
10	Buckle		1PCS	1PCS	-	-
11	Hexagonal screw M8		2PCS	2PCS	-	-
12	Hexagon nut M8		2PCS	2PCS	-	-
13	T-bar		1PCS	1PCS	-	-
14	L-bar		1PCS	1PCS	-	-
15	Wrench		1PCS	1PCS	-	-
16	European standard pacifier		2PCS	-	-	2PCS
17	Filter wrench		1PCS	1PCS	1PCS	1PCS
18	Shell ring		2PCS	2PCS	2PCS	2PCS
19	Waterproof tape		1PCS	1PCS	1PCS	1PCS
20	manual		1PCS	1PCS	1PCS	1PCS

INSTALLATION INSTRUCTIONS

Pipeline installation

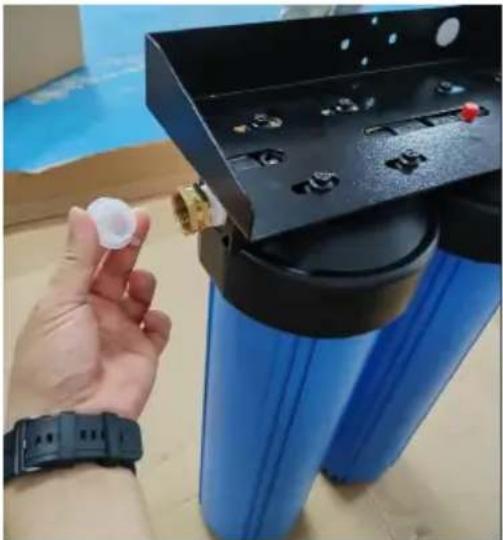

1. Remove the inlet and outlet protective covers.

Hand holding a small white plastic component attached to a blue cylindrical device with control buttons (no visible text or symbols)

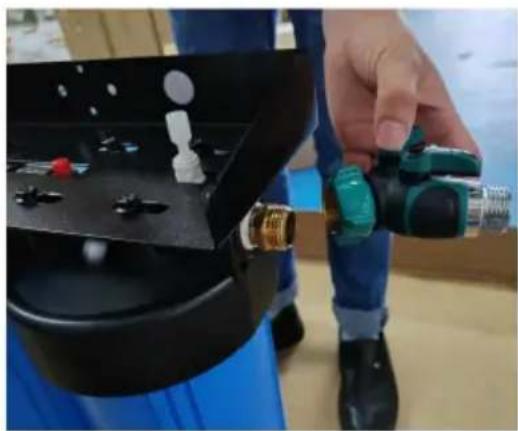

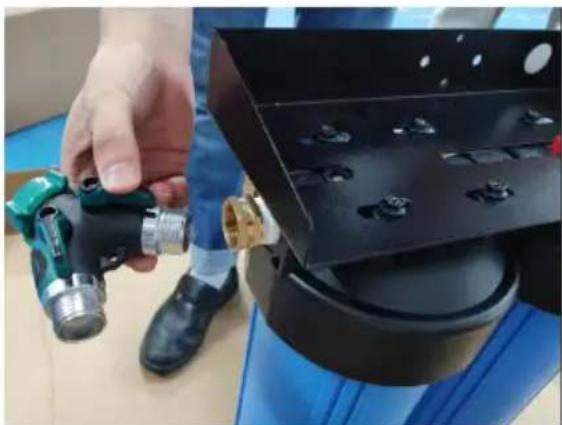

1. Install the three-way valve, wrap the Waterproof tape around the external thread, and tighten it.

Person holding a green and black connector next to a black industrial machine component (no visible text or symbols)

Person holding a green and teal connector next to a black mechanical device with small components (no visible text or symbols)

1. Install Overcurrent pipe, wrap Waterproof tape around the external thread, and tighten.

Person holding a black flexible hose and connector box with multiple small components, placed on cardboard box (no visible text or symbols)

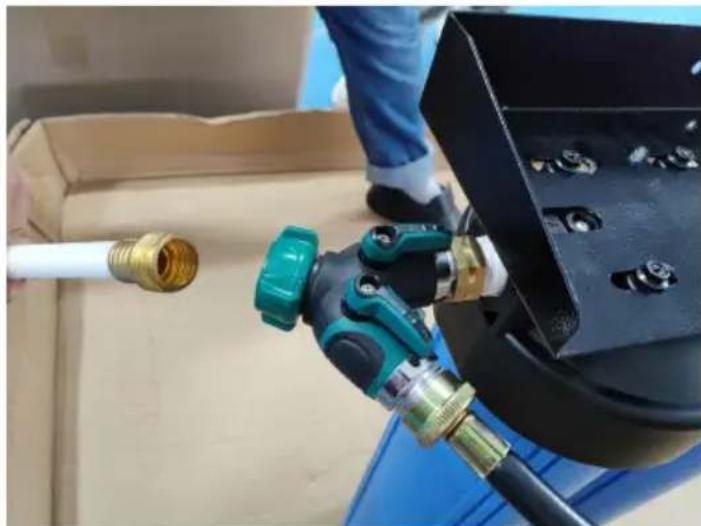

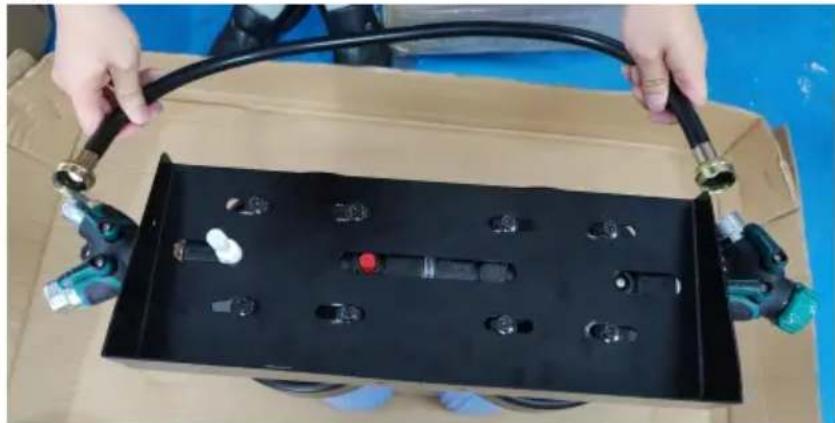

1. Install Inlet hose, wrap Waterproof tape around the external thread, and tie

Close-up of a gas pipeline being inserted into a black industrial machine, with a blue box in the background (no visible text or symbols)

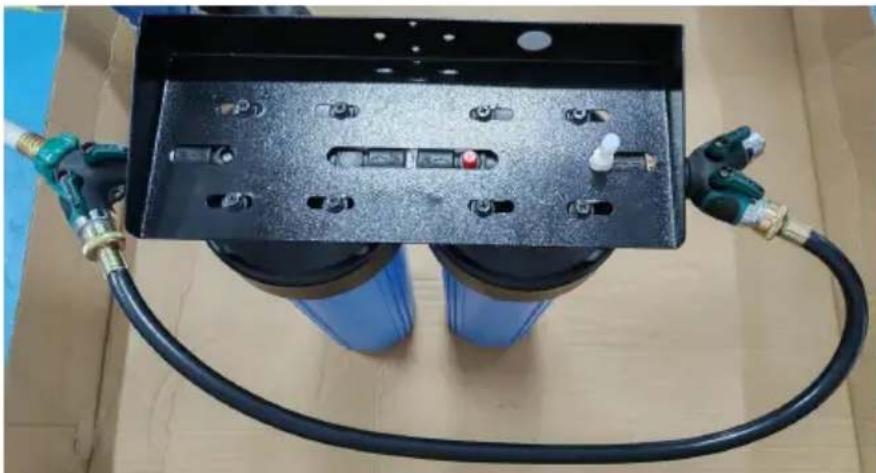

5. Complete pipeline installation.

Slowly turn on the cold-water supply and check for leaks.

Flush the system into a bucket or drain, don't link to sprayer before to use.

Wait for the outlet water flow rate to become stable, and then shut cold-water supply. The system is now ready for use.

Top-down view of a black industrial air purifier with blue cylinders and hoses, no visible text or symbols

1. JY-DI-02EU3/JY-DI-02EU72 models are equipped with two European standard pacifiers, which can be selected according to on-site needs.

TDS detection box installation

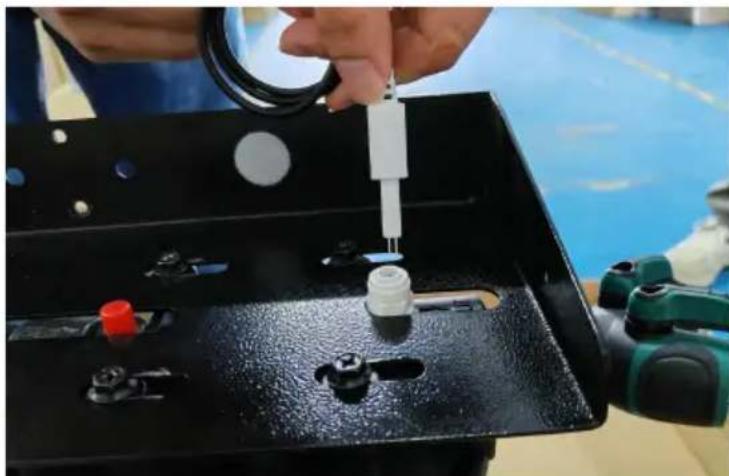

1. Insert the TDS detection box connector into the body of the bottle connector.

Close-up of a hand adjusting a small white plastic component into a black electronic device casing, with no visible text or symbols.

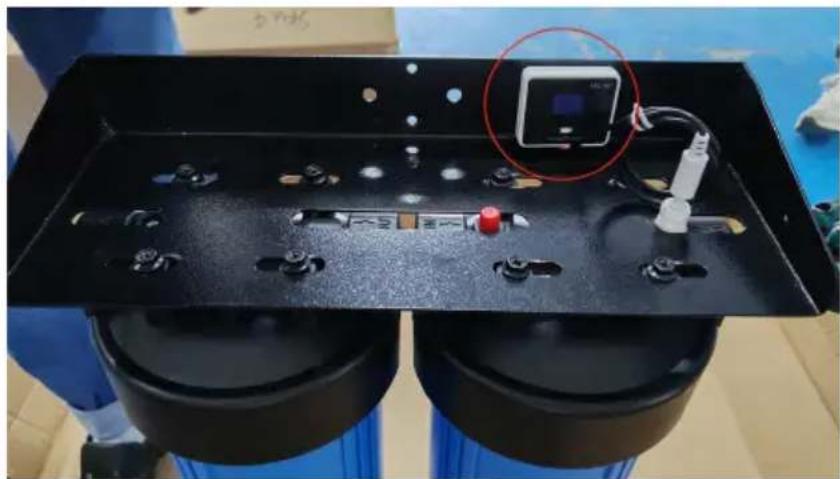

1. Tear off the adhesive tape on the back of the TDS detection box stick it in the appropriate position.

Interior view of a black electronic device with labeled ports and a small display unit (no readable text or symbols)

Cart installation

1. Assemble the Cart main pole and Caster wheels as shown in the diagram, using M8 hex screws and nuts.

Mechanical clamp tool with black and gray components (no text or symbols)

1. Install the T-bar as shown in the diagram and use M8 hexagon s screws and nuts.

Simple black-and-white diagram of a directional control system with two wheels and a central axis (no text or labels)

1. Install the L-bar as shown in the diagram and use M8 hexagon s screws and nuts.

Mechanical tool with a long black rod and two metal clamps, no visible text or symbols

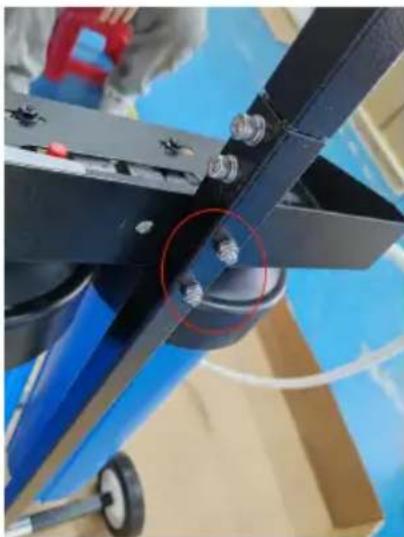

1. Install the Body of the bottle onto the cart as shown in the diagram M8 hex screws and nuts.

Close-up of a mechanical assembly with blue components and a red circular annotation highlighting a specific feature (no text or symbols visible)

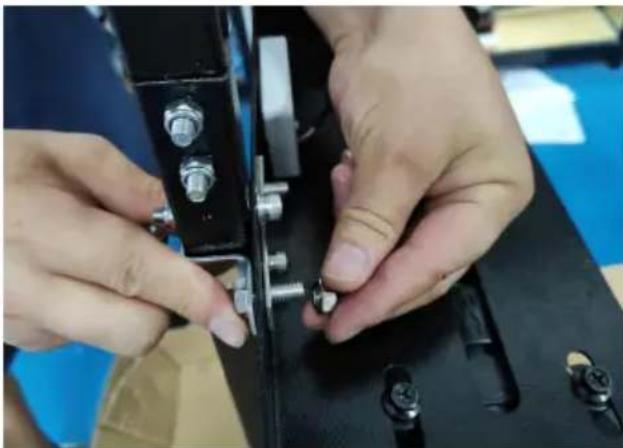

1. Install the Buckle as shown in the diagram, securing the Body of bottle onto the cart.

Close-up of hands assembling a mechanical component with screws and bolts (no visible text or symbols)

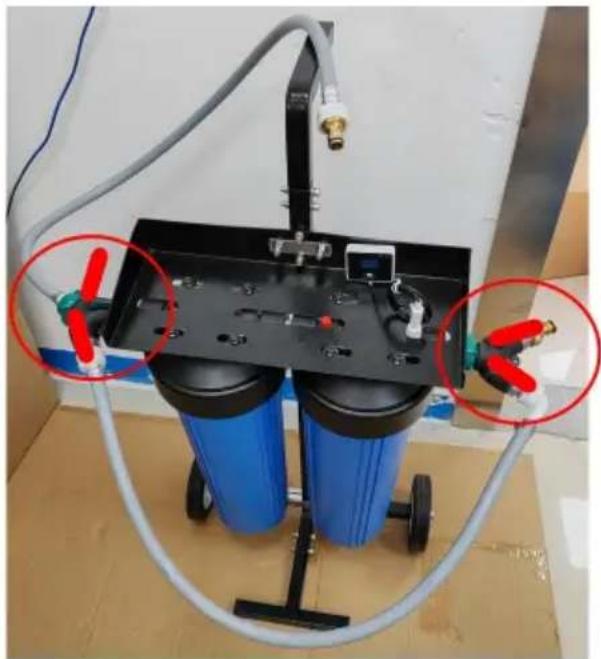

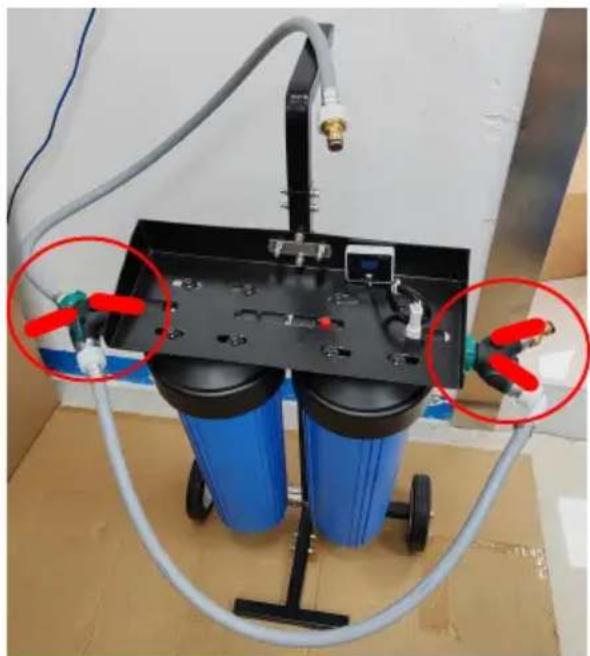

DUAL OUTLET MODE ADJUSTMENT INSTRUCTIONS

The product can be set to purification mode and straight through mode (non purification), and the direction of the corresponding three-way val switch is shown in the following diagram:

Close-up of a blue cylindrical water filter device with red and green connectors, mounted on a black base with hoses and tubing (no visible text or symbols)

Industrial water filtration device with blue cylinders and red valves, connected by tubing (no visible text or symbols)

Purification mode Direct mode (non purified)

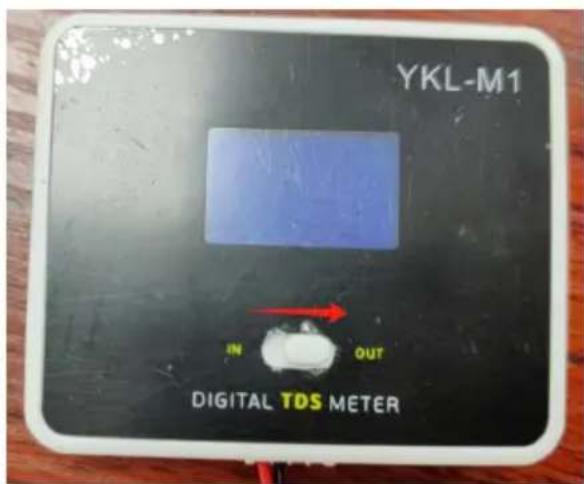

TDS DETECTION BOX USAGE INSTRUCTIONS

As shown in the icon, after installing the TDS detection box, turn the to "OUT", and if there is water in the pipeline, it will be displayed i time.

YKL-M1 IN OUT DIGITAL TDS METER

MIXED BED RESIN REPLACEMENT

1. Shut off the cold-water supply, relieve pressure by turning the water and squeezing your sprayer trigger until water stops flowing. Place a bucket or towel under the system to catch any water spills. Use hot and scent-free dish soap (optional) to clean the filter housing if needed. Rinse thoroughly.

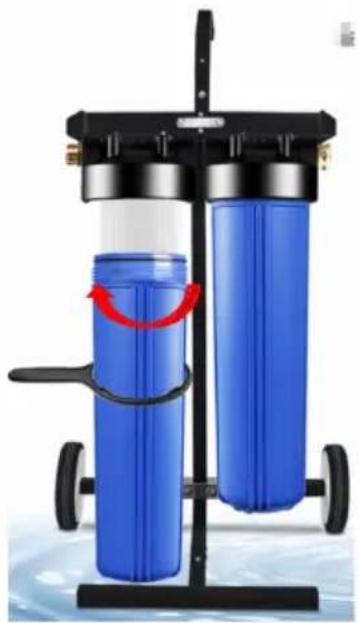

Use the Filter wrench to unscrew the filter housing in the direction s the diagram.

Two blue cylindrical containers with a red arrow indicating rotation, mounted on a black stand (no text or symbols visible)

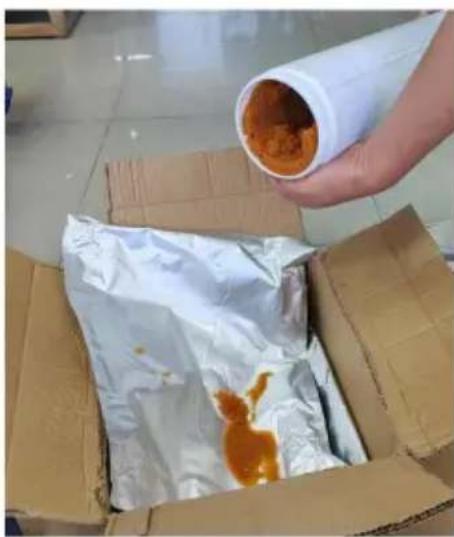

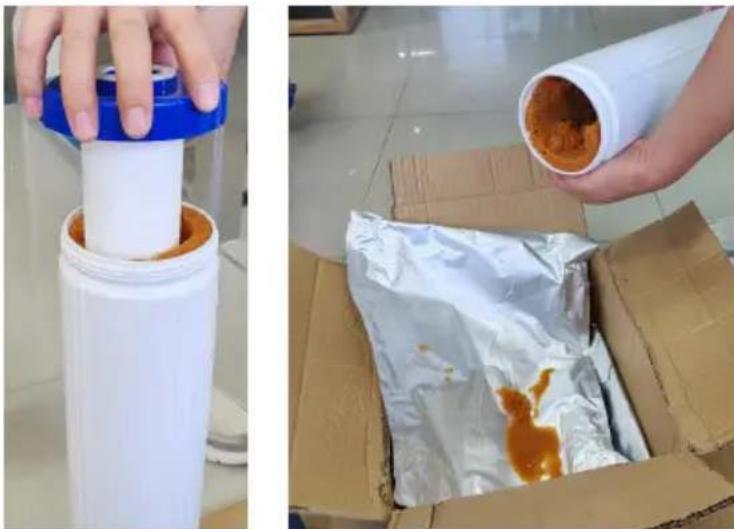

1. Remove the filter element, unscrew the filter element cover, and p the mixed bed resin.

Two-panel image showing a hand holding a white PVC filter can and a hand pouring brown granular substance into a cardboard box (no text or symbols visible)

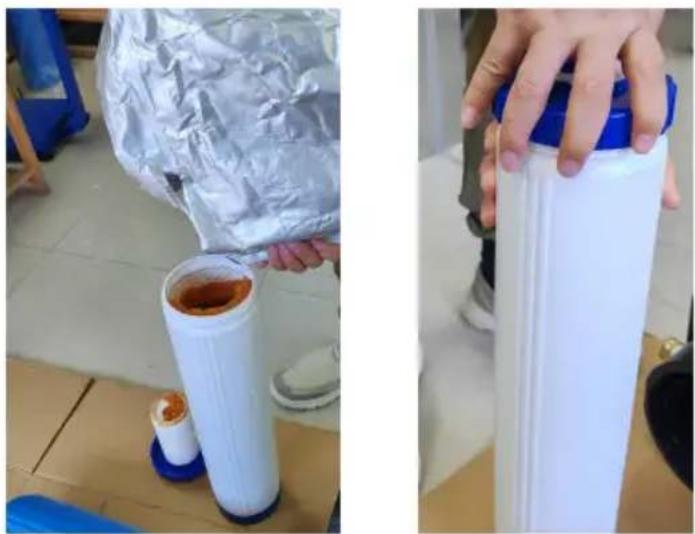

1. Load a new mixed bed resin with a capacity of 4L per bottle.

Two-panel photo showing a hand pouring liquid onto a white plastic cylindrical container, with another device partially visible (no text or symbols)

1. Place the filter cartridges into the housings (pre-installed). Ensure that are centered and the knob protruding from the bottom of the housing the central hole of the filter.

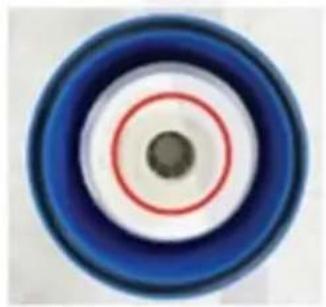

Make sure the O-ring is seated inside the groove on top of the filter housing.

The filter housings, with the filter inside, onto the housing caps (caps pre-assembled on the machine stand) in a counterclockwise direction (shown in the following diagram). The housing cap has a center knob should be inserted into the center hole of the filter cartridge. Twist the housing on by hand, then use the housing wrench to tighten it another 1/4-1/2 of a turn. Do not over tighten.

Blue plastic water pump component with black housing and blue insulation cover, shown in close-up (no text or symbols visible)

Circular object with concentric rings and a central dark spot, no visible text or symbols

Close-up of a black mechanical fan or impeller with a red circular highlight on the rim (no text or symbols visible)

Close-up of a blue cylindrical object being adjusted by a black wheeled cart, with a red curved line indicating motion (no text or symbols visible)

Close-up of a hand pressing down on blue cylindrical objects with a red curved arrow indicating rotation (no text or symbols visible)

1. Turn on the cold-water supply. Flush the system into a bucket.
2. Wait for the outlet water flow rate to become stable, and then shut off the cold-water supply. The replacement is now complete.

Disposal information:This product is subject to the provision of European Directive 2012/19/EC. The symbol showing a wheelie bin crossed through indicates that the product requires separate refuse collection European Union. This applies to the product and all access marked with this symbol. Products marked as such may not discarded with normal domestic waste, but must be taken to collection point for recycling electrical and electronic devices.

Manufacturer: Shanghaimuxinmuyeyouxiangongsi

Address: Shuangchenglu 803nong11hao1602A-1609shi, baoshanqu, shanghai 200000 CN.

Imported to AUS: SIHAO PTY LTD.

1 ROKEVA STREETEASTWOOD NSW 2122 Australia

Imported to USA: Sanven Technology Ltd.

Suite 250, 9166 Anaheim Place, Rancho Cucamonga, CA 91730

UK

REP

YH CONSULTING LIMITED.

C/O YH Consulting Limited Office 147,

Centurion House, London Road,

Staines-upon-Thames, Surrey, TW18 4AX

EC

REP

E-CrossStu GmbH

Mainzer Landstr.69,

60329 Frankfurt am Main.
