JY-DI-02EU7 - Water Treatment System Vevor - Free user manual and instructions

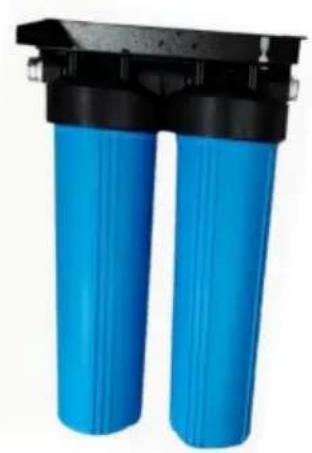

Product type	Water deionization system for car washing
Brand	Vevor
Model	JY-DI-02EU7
Nominal capacity	320 gallons (approx. 1210 liters)
Recommended inlet pressure	0.4 - 0.6 MPa (4 - 6 bar)
Maximum pressure	75 psi (5.2 bar)
Operating temperature	4 - 45 °C
Inlet/outlet connection diameter	NPT 3/4 inch
Resin type	Mixed bed, 4 L per bottle
TDS meter	Built-in, real-time OUT display
Three-way valve	Yes, select purification or direct mode
Transport cart	Not included
Number of bottles	1
Recommended flow rate	2 GPM (approx. 7.6 L/min) with FAN or FLAT spray
Use	Cold water only, not potable
Maintenance	Replace resin when TDS exceeds 25-30 ppm
Included accessories	Inlet and overflow hoses, 3-way valve, TDS housing, filter wrench, sealing tape, connection nipples (x2)
Warranty	Electronic warranty certificate at www.vevor.com/support
Manufacturer	Shanghai Muxin Muye Youxiangongsi, Shanghai, China
Safety	Do not drink water, avoid freezing, max pressure 75 psi, cold water only

Frequently Asked Questions - JY-DI-02EU7 Vevor

What is the capacity of this system?

The nominal capacity is 320 gallons (approx. 1210 liters) per resin cartridge. This value may vary depending on the inlet water quality.

How do I know when to replace the resin?

Use the built-in TDS meter. When the output value reaches 25-30 ppm, it is time to replace the resin.

Can I drink the produced water?

No, this water is deionized and not potable. Prolonged consumption can deprive the body of essential minerals. Use it only for car washing.

What water pressure is required?

The recommended inlet pressure is 0.4 to 0.6 MPa (4 to 6 bar), with a maximum of 75 psi (5.2 bar). Do not exceed this limit.

How to install the TDS detection housing?

Insert the connector of the housing into the connector on the bottle body, then remove the adhesive tape on the back and stick the housing in a suitable location.

How to purge the system before first use?

Slowly open the cold water supply and let the water flow into a bucket or drain until the flow stabilizes. Do not connect the sprayer before this step.

Can I use hot water?

No, the system is designed only for cold water. The operating temperature is 4 to 45 °C. Using hot water will damage the resin.

Is the cart included with this model?

No, the JY-DI-02EU7 model is not supplied with a cart. Only the JY-DI-02EU3 and JY-DI-02US4 models include a cart.

How to replace the resin?

Turn off the water, release the pressure, unscrew the housing with the filter wrench, remove the old resin (4 L), clean the housing, then load the new mixed bed resin. Replace the housing and tighten.

What to do in case of a leak?

Check that the O-rings are properly placed and that the connections are tight. Use the supplied sealing tape on the threads. Ensure the pressure does not exceed 75 psi.

USER MANUAL JY-DI-02EU7 Vevor

Technical Support and E-Warranty Certificate www.vevor.com/support

DEIONIZED WATER SYSTEM FOR CAR WASH

MODEL: JY-DI-02EU3/JY-DI-02US4

/JY-DI-02US6JY-DI-02EU7

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represent of savings you might benefit from buying certain tools with us compared top brands and does not necessarily mean to cover all categories of tools offered are kindly reminded to verify carefully when you are placing an order with us actually saving half in comparison with the top major brands.

VEVOR®

TOUGH TOOLS, HALF PRICE

DEIONIZED WATER SYSTEM

FOR CAR WASH

MODEL: JY-DI-02EU3/JY-DI-02US4/JY-DI-02US6JY-DI-02EU7

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel free to contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instruction carefully before operating. VEVOR reserves a clear interpretation user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform you there are any technology or software updates on our product.

Symbol	Symbol Description
	Warning-To reduce the risk of injury, the user must read the instructions manual carefully.

WARNING

● Performance data was tested under standard laboratory conditions; actual performance may vary. - This system is designed to be used on a cold supply ONLY and away from freezing environments. - The installation must comply with all applicable local plumbing code and/or regulations. - This system is NOT designed for drinking purposes. Do NOT use system for any other uses except car washing. - Choking hazard. Small parts are included in the package. Please always keep the package out of the reach of small children. - Please do not drink the water produced by this system. While small amounts are not harmful, this water is too pure and can rob a human of vital minerals and nutrients with extended use. - Do not plumb directly into household or RV potable water supply. - Prior to opening cartridge housings, turn off water and relieve pressure in hose. - Stop use when TDS Output Meter reads 25-30 ppm. It's time to replace the resin. - Do not exceed 75 psi inlet water pressure. - Use only the FAN or FLAT spray pattern on a typical nozzle or 3-way valve half open for 2 gpm flow rate.

MAINTENANCE

The Total Dissolved Solids (TDS) of water from this car wash system should be tested regularly to verify that the system is performing properly. If you notice a dramatic increase (—30 ppm) in the TDS value, it would be time to get your filter replaced. When the rinsing is finished, leave the remaining water in the filter housings to keep the deionization filters from drying out.

SPECIFICATION PARAMETERS

Model	JY-DI-02EU3	JY-DI-02US4	JY-DI-02US6	JY-DI-02EU7
Rated net water volume (ga	320
Inlet diameter (in)	NPT3/4	GHT3/4	GHT3/4	NPT3/4
Outlet diameter (in)	NPT3/4	GHT3/4	GHT3/4	NPT3/4
Inlet working pressure (MPa)	0.4-0.6
Working temperature (°C)	4-45
Cart	Yes	Yes	No	No

PARTS LIST

ITEM	Name	PICTURE	JY-DI-02EU3	JY-DI-02US4	JY-DI-02US6	JY-DI-02EU7
1	Body of the bottle		1PCS	1PCS	1PCS	1PCS
2	Inlet hose		1PCS	1PCS	1PCS	1PCS
3	three-way valve		1PCS	1PCS	1PCS	1PCS
4	Overcurrent pipe		1PCS	1PCS	1PCS	1PCS
5	TDS detection box		1PCS	1PCS	1PCS	1PCS
6	Cart main po		1PCS	1PCS	-	-
7	Hexagonal screw M6		8PCS	8PCS	-	-
8	M6 nut		8PCS	8PCS	-	-
9	Caster wheels		2PCS	2PCS	-	-
10	Buckle		1PCS	1PCS	-	-
11	Hexagonal screw M8		2PCS	2PCS	-	-
12	Hexagon nut M8		2PCS	2PCS	-	-
13	T-bar		1PCS	1PCS	-	-
14	L-bar		1PCS	1PCS	-	-
15	Wrench		1PCS	1PCS	-	-
16	European standard pacifier		2PCS	-	-	2PCS
17	Filter wrench		1PCS	1PCS	1PCS	1PCS
18	Shell ring		2PCS	2PCS	2PCS	2PCS
19	Waterproof tape		1PCS	1PCS	1PCS	1PCS
20	manual		1PCS	1PCS	1PCS	1PCS

INSTALLATION INSTRUCTIONS

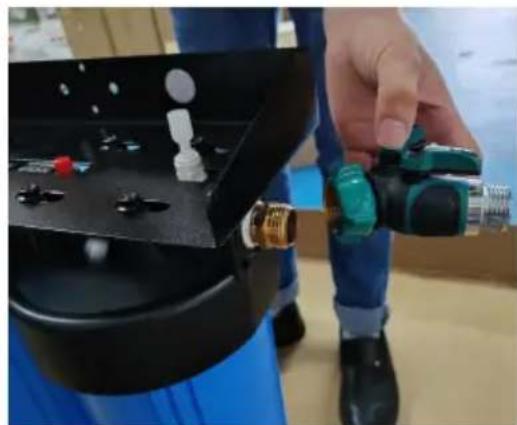

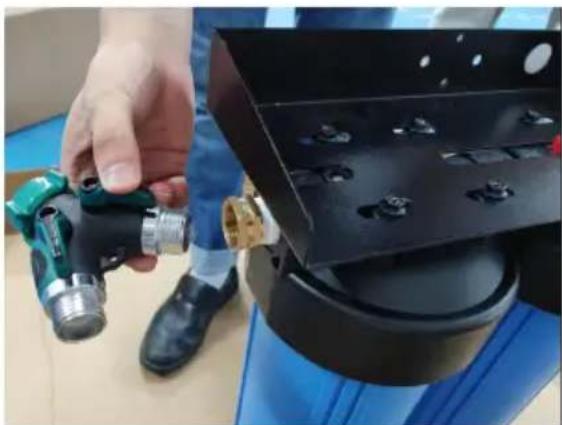

Pipeline installation

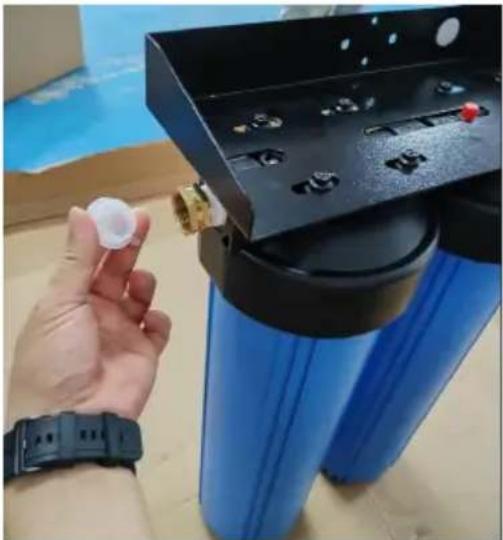

1. Remove the inlet and outlet protective covers.

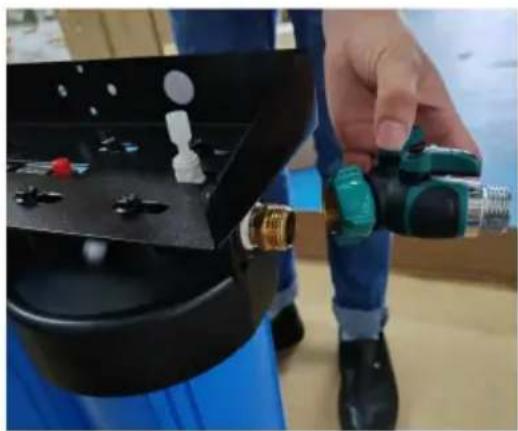

1. Install the three-way valve, wrap the Waterproof tape around the external thread, and tighten it.

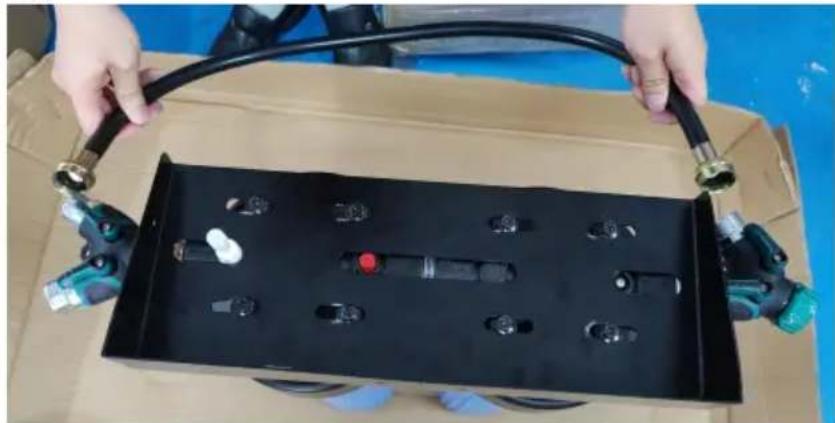

1. Install Overcurrent pipe, wrap Waterproof tape around the external thread, and tighten.

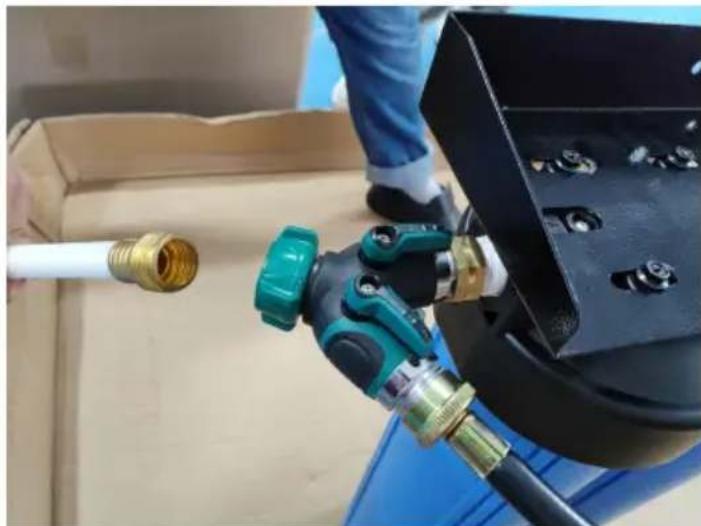

1. Install Inlet hose, wrap Waterproof tape around the external thread, and tighten.

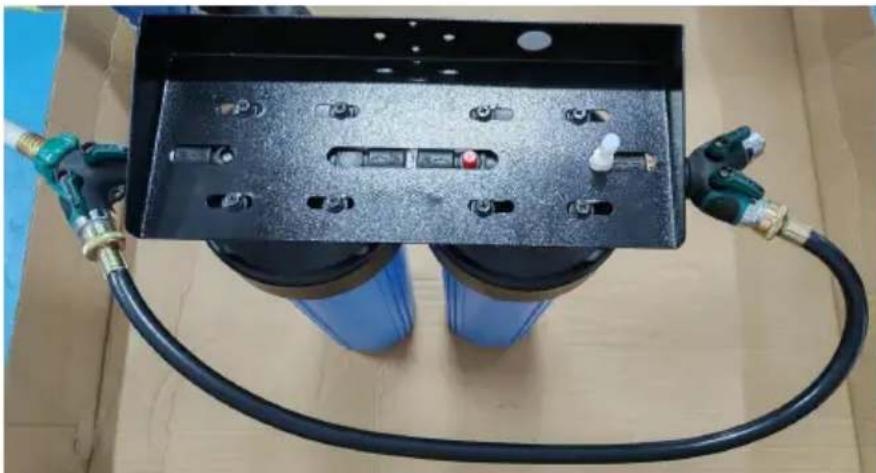

5. Complete pipeline installation.

Slowly turn on the cold-water supply and check for leaks.

Flush the system into a bucket or drain, don't link to sprayer before use.

Wait for the outlet water flow rate to become stable, and then shut cold-water supply. The system is now ready for use.

1. JY-DI-02EU3/JY-DI-02EU72 models are equipped with two European standard pacifiers, which can be selected according to on-site needs.

TDS detection box installation

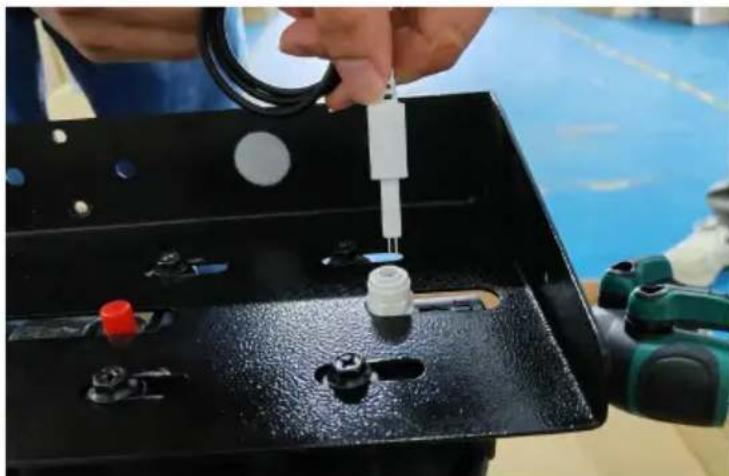

1. Insert the TDS detection box connector into the body of the bottle connector.

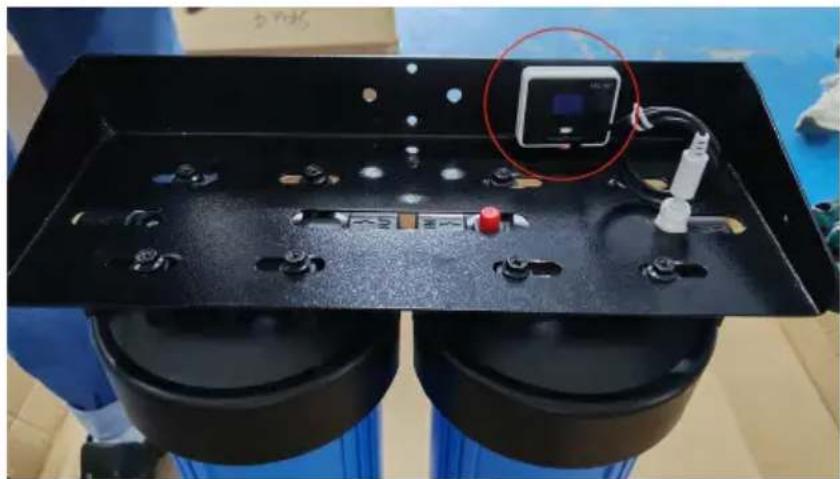

1. Tear off the adhesive tape on the back of the TDS detection box and stick it in the appropriate position.

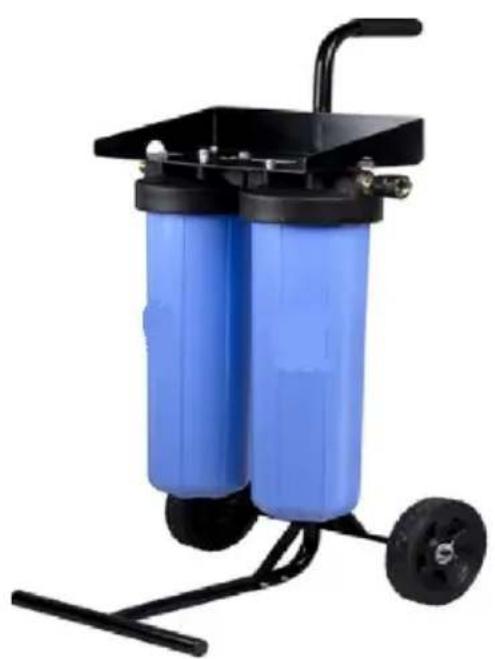

Cart installation

1. Assemble the Cart main pole and Caster wheels as shown in the diagram, using M8 hex screws and nuts.

1. Install the T-bar as shown in the diagram and use M8 hexagon screws and nuts.

1. Install the L-bar as shown in the diagram and use M8 hexagon screws and nuts.

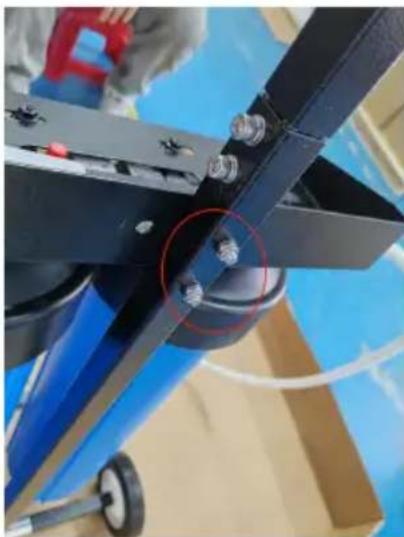

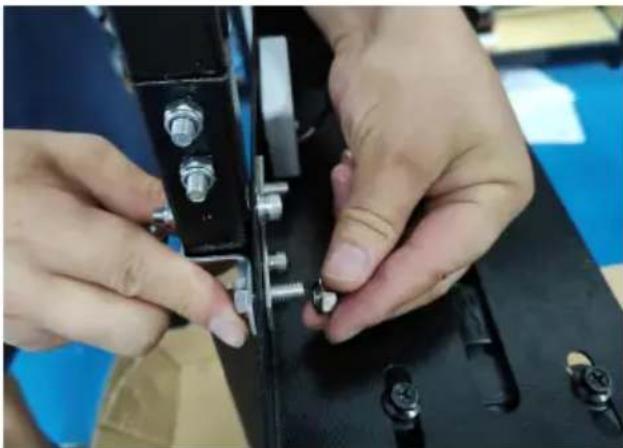

1. Install the Body of the bottle onto the cart as shown in the diagram, using M8 hex screws and nuts.

1. Install the Buckle as shown in the diagram, securing the Body of bottle onto the cart.

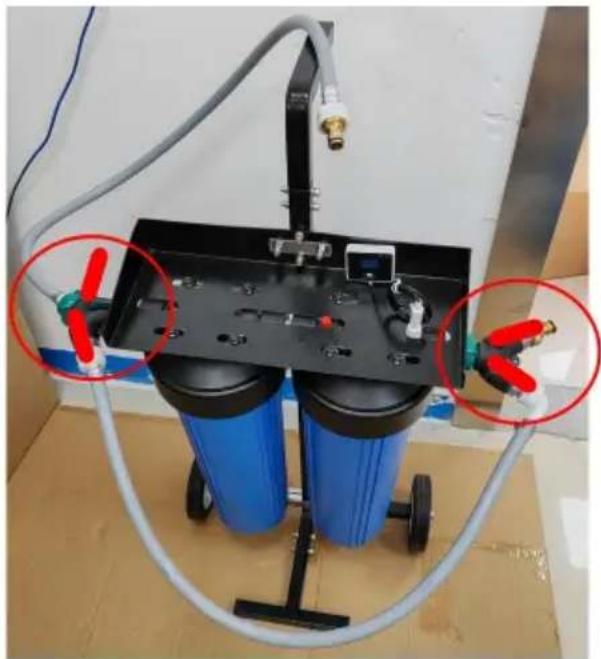

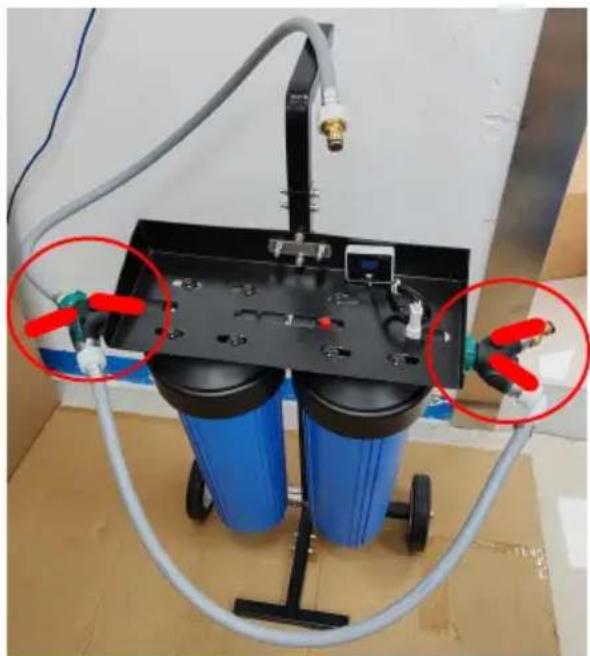

DUAL OUTLET MODE ADJUSTMENT INSTRUCTIONS

The product can be set to purification mode and straight through mode (non purification), and the direction of the corresponding three-way valve switch is shown in the following diagram:

Purification mode Direct mode (non purified)

TDS DETECTION BOX USAGE INSTRUCTIONS

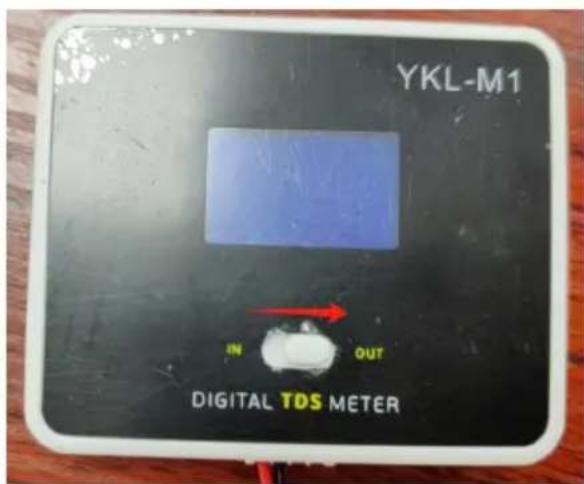

As shown in the icon, after installing the TDS detection box, turn the switch to "OUT", and if there is water in the pipeline, it will be displayed in time.

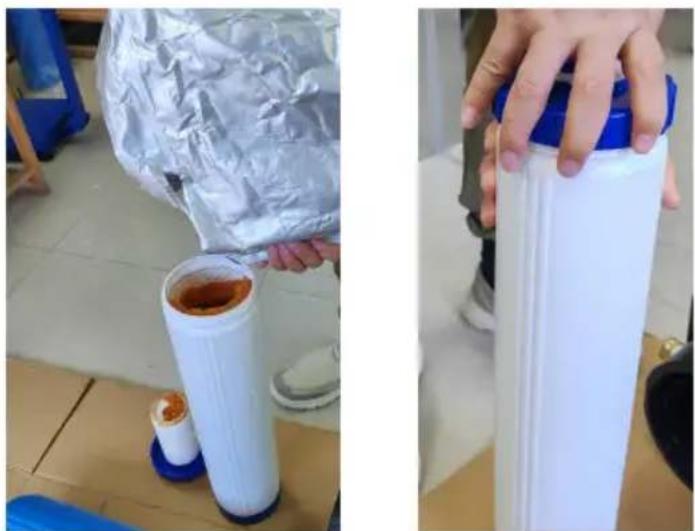

MIXED BED RESIN REPLACEMENT

1. Shut off the cold-water supply, relieve pressure by turning on the water and squeezing your sprayer trigger until water stops flowing. Place a bucket or towel under the system to catch any water spills. Use hot and scent-free dish soap (optional) to clean the filter housing if needed. Rinse thoroughly.

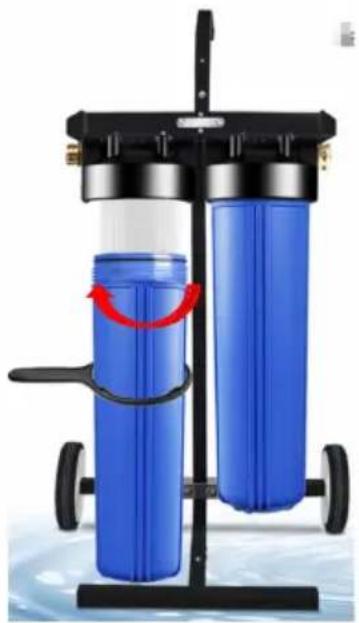

Use the filter wrench to unscrew the filter housing in the direction shown in the diagram.

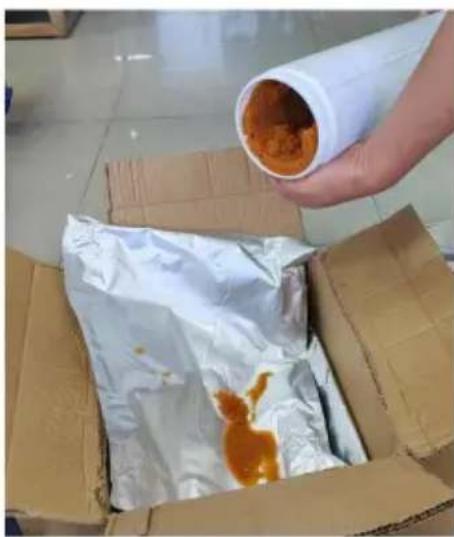

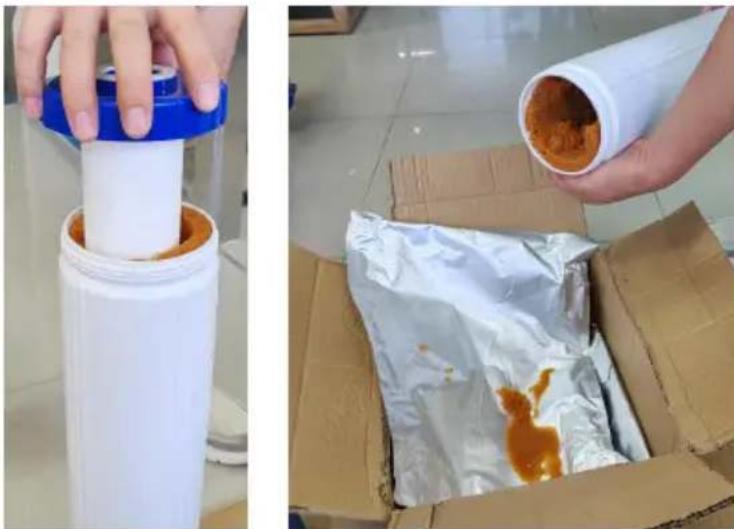

1. Remove the filter element, unscrew the filter element cover, and remove the mixed bed resin.

1. Load a new mixed bed resin with a capacity of 4L per bottle.

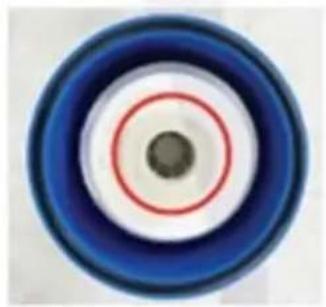

1. Place the filter cartridges into the housings (pre-installed). Ensure that they are centered and the knob protruding from the bottom of the housing fits into the central hole of the filter.

Make sure the O-ring is seated inside the groove on top of the filter housing.

Screw the filter housings, with the filter inside, onto the housing caps (caps pre-assembled on the machine stand) in a counterclockwise direction (shown in the following diagram). The housing cap has a center knob that should be inserted into the center hole of the filter cartridge. Twist the housing on by hand, then use the housing wrench to tighten it another 1/4-1/2 of a turn. Do not over tighten.

1. Turn on the cold-water supply. Flush the system into a bucket.
2. Wait for the outlet water flow rate to become stable, and then shut off the cold-water supply. The replacement is now complete.
