Product Type	Catalytic Converter
Brand	Vevor
Model	YB06-11
Body Material	Stainless Steel
Substrate Material	Ceramic (honeycomb) with precious metal catalysts (Pt, Rh, Pd)
Emission Standard	Compliant OBD III (not CARB compatible, not legal in California)
Main Functions	Exhaust gas purification (conversion of CO, HC, NOx into CO2, H2O, N2) and improved exhaust flow
Vehicle Compatibility	Subaru Forester, Impreza, Outback H4 2.5L (2005-2010, except Turbo models); Saab 9-2X front H4 2.5L (2006, except Turbo models)
Supplied Parts	1 catalytic converter, 2 sealing gaskets (shipping rings?), 1 nut, 1 spacer
Installation	Standard flange installation; professional installation recommended
Normal Phenomena After Installation	White smoke for about 30 minutes (evaporation of anti-rust oil); burning smell for about 50 km (combustion of insulating tape)
Usage Restrictions	Prohibited for vehicles registered in California (CARB standards)
Maintenance and Cleaning	No specific maintenance required; check joint tightness periodically
Safety	Do not touch during or after operation (high temperatures); have installation done by a professional
Spare Parts and Repairability	The product is not designed to be repaired; replace the entire unit in case of failure
General Information	Technical support and warranty via www.vevor.com/support

Frequently Asked Questions - YB06-11 Vevor

Which vehicles are compatible with the YB06-11 catalytic converter?

This model is designed for Subaru H4 2.5L engines (2005-2010) excluding Turbo models (Forester, Impreza, Outback) and the Saab 9-2X front H4 2.5L (2006) excluding Turbo version. Check inlet and outlet diameters before purchase.

Why is there white smoke after installing the new converter?

This is normal. The converter is coated with anti-rust oil that evaporates when heated. The white smoke disappears after about 30 minutes of operation.

Why is there a burning smell after installation?

The burning smell is due to the combustion of the transparent adhesive tape surrounding the ceramic support inside the converter. It disappears after about 50 km of driving.

Is this catalytic converter legal in California?

No, this converter is not compatible with CARB standards and cannot be used on vehicles registered in California.

Is the converter compliant with OBD standards?

Yes, it is compliant with OBD III (OBD IV according to the manual) for federal emission standards. However, it is not CARB certified.

How to install the catalytic converter?

It is strongly recommended to have the installation done by a professional. The converter mounts on the vehicle's original flanges. Use the provided gaskets and hardware.

What materials are used in this converter?

The body is made of stainless steel and the internal substrate is ceramic (honeycomb structure) containing precious metal catalysts such as platinum, rhodium, and palladium.

Does the converter come with all necessary accessories?

Yes, the kit includes the converter, two sealing gaskets (rings), one nut, and one spacer. Check the parts list upon receipt.

Can I drive immediately after installation?

Yes, after tightening the bolts and checking for leaks, you can drive normally. Abnormal smoke and smells will disappear on their own.

How to contact Vevor technical support?

You can get help and the electronic warranty certificate on the website www.vevor.com/support.

USER MANUAL YB06-11 Vevor

Technical Support and E-Warranty Certificate www.vevor.com/support

CATALYTIC CONVERTER

MODEL: YB06-11

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represent of savings you might benefit from buying certain tools with us compared top brands and does not necessarily mean to cover all categories of tools offered are kindly reminded to verify carefully when you are placing an order with us actually saving half in comparison with the top major brands.

VEVOR®

TOUGH TOOLS, HALF PRICE

CATALYTIC

CONVERTER

MODEL: YB06-11

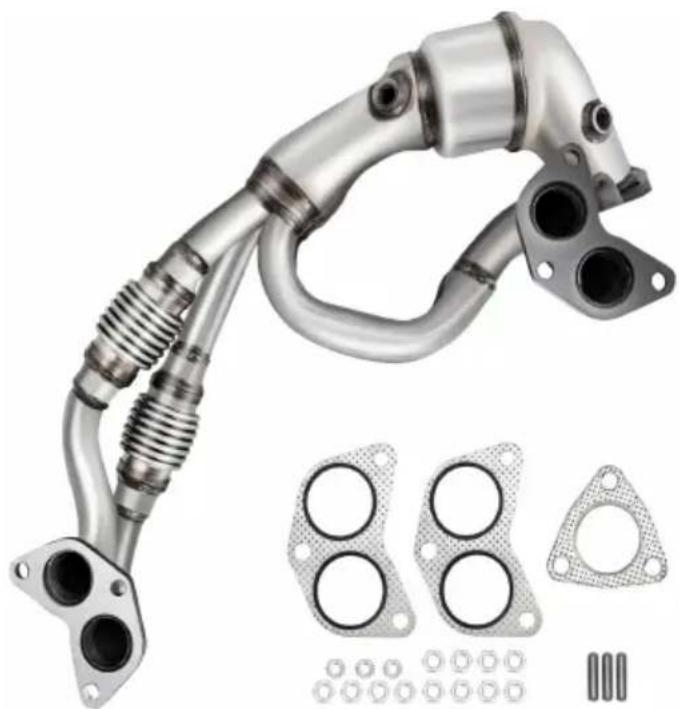

Mechanical assembly with attached valve and multiple flange components (no text or symbols visible)

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel from contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instruction carefully before operating. VEVOR reserves a clear interpretation user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform you there are any technology or software updates on our product.

WARNING:

After receiving our product, you need to find a repair shop to put the car shelf, then remove the old catalytic converter, install the new catalytic convert its original position, and install the gasket and washer, tighten the screws! You now drive and use it normally!

After installing the catalyst, the following two situations will occur, both of which normal phenomena!

Firstly, the surface of the catalytic converter is coated with rust proof oil. After car starts and the catalytic converter is at high temperature, the rust proof of the surface will evaporate due to heat, and white smoke will emerge. After a 30 minutes of use, it will disappear on its own. This is a normal phenomenon please do not worry!

Secondly, after the installation of the new catalyst, when the car starts to us burnt odor will be emitted from the exhaust gas. This is because the cerami carrier part of the catalyst's internal structure is wrapped in a fireproof cotton with transparent tape, also known as an insulation cotton pad. It wraps arour ceramic carrier, and the transparent gelatin belt will burn when exposed to hi temperatures. At this time, the exhaust pipe will discharge this odor, so you smell a burnt odor! It will disappear on its own after using about 50 kilometer is a normal phenomenon! Don't worry!

Friendly Note: This part cannot be used for California-registered vehicles. (Due to the increased emissions standards, this converter is NOT legal f use in CA.)

SAVE THESE INSTRUCTION

PRODUCT PAREMETERS

Model	YB06-11
Body Material	Stainless Steel
Substrate Material	Ceramic
Standard	OBD IV Compliant, no compatible con CARB
Restricted States	California
Vehicle Fitment	2006 applicable for Saab 9-2X front H4 2.5L (excl Turbo models)2005-2010 Subaru Forester H4 2.5L engine (exclud Turbo models)2005-2010 Subaru Impreza H4 2.5L engine (exclud California emission model)2005-2010 applicable to Subaru's traditional H4 2.5L engine (excluding Turbo models)2005-2010 applicable to Subaru H4 Outback 2.5L e (excluding Turbo models)

PART LIST

When unpacking this product, check to make sure the parts listed be are included and carefully inspect for any damage that may have occurred during transit. If any part is missing or damaged, do not attempt to assemble or use the product.

NO	PICTURE	NAME	QTY		NO	PICTURE	NAME	QTY
1		Catalytic converter	1		2		Gasket	3
3		Carrier Ring	2		4		Nut	15
5		Shim	1

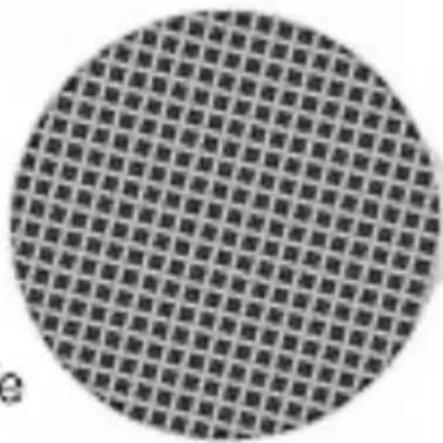

INTERNAL HONEYCOMB STRUCTURE

OEM High Flow Design: This catalytic converter is constructed to meet even exceed OEM quality. Its high flow design provides more oxygen your engine, dramatically improving your exhaust system. Further, an internal honeycomb structure effectively purifies the waste gases, converting CO, HC, and NOx into CO2, H2O, and N2.

VEVOR

Bigger Hole

Higher Flow Rate

Longer Service Life

Circular pattern with repeating grid of squares and dots, no text or symbols present

Close-up of a mechanical flange component (no visible text or symbols)

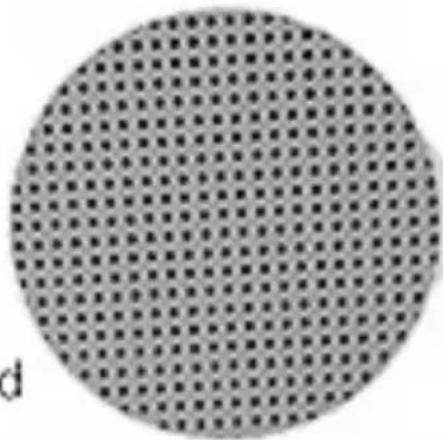

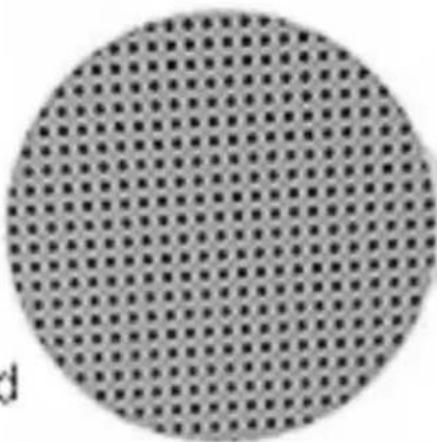

Other Converter

Small Hole

Low Flow Rate

Easy to be Blocked

Circular pattern composed of evenly spaced black dots on a light gray background, no text or symbols present.

Close-up of a metallic mechanical flange component (no text or symbols visible)

Stainless Steel Structure: The high flow catalytic converter is assembled with a stainless steel body for long-term use, capable of enduring high-temper gases from the exhaust. Its internal ceramic substrates contain high-load precious metal catalysts, including Pt, Rh, and Pd, to enhance purification efficiency and intensity.

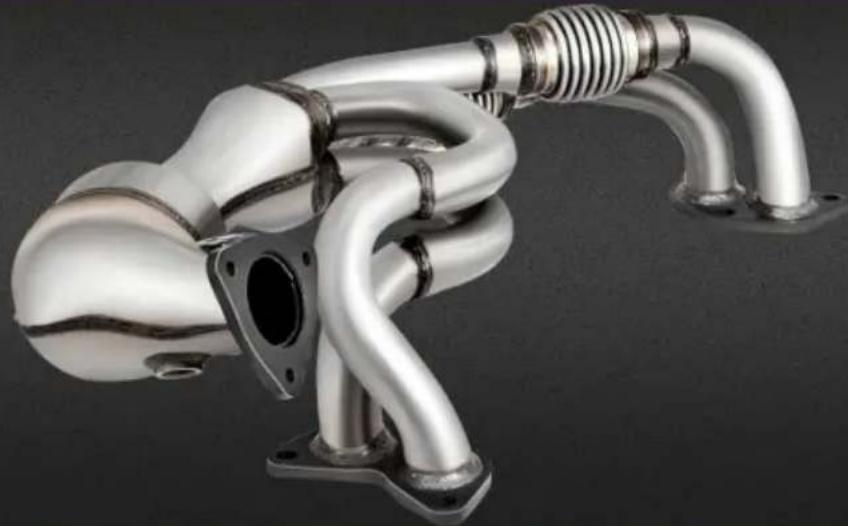

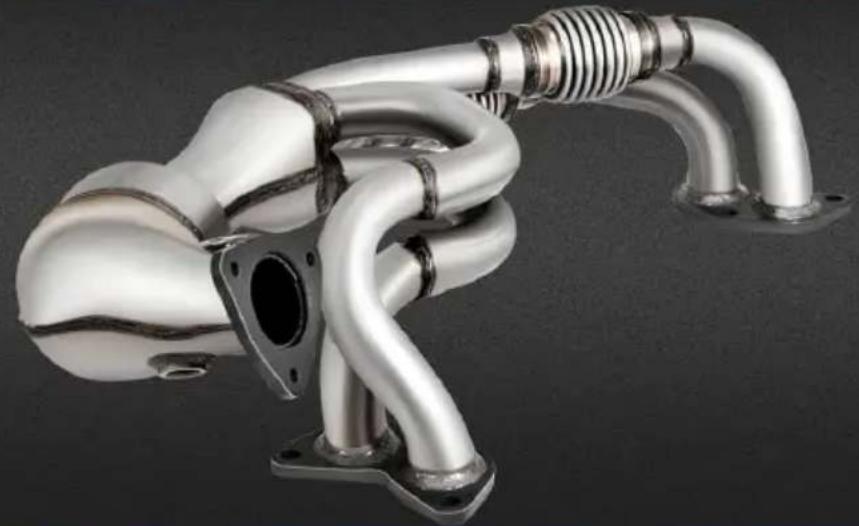

STAINLESS STEEL STRUCTURE

Heavy-duty construction for maximum durability

Metallic turbocharger assembly with coiled tubing and flanged connectors (no text or symbols visible)

Close-up of a metallic automotive exhaust pipe fitting with mounting holes (no text or symbols visible)

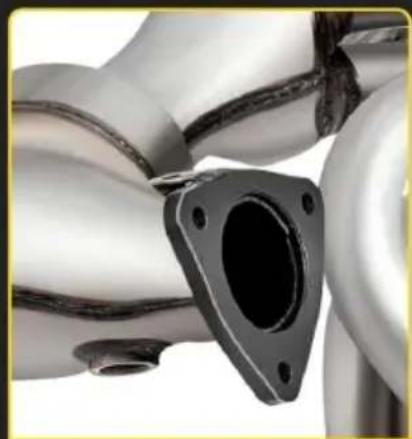

Firmly Welded Connections

Close-up of a metallic automotive exhaust pipe fitting with two black circular openings and mounting holes (no text or symbols visible)

No Oxide Scale Falling

Close-up of a beige cylindrical object with a textured brown surface, no visible text or symbols.

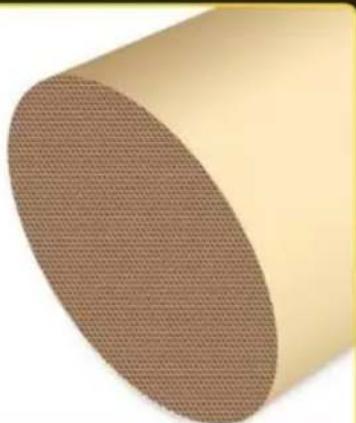

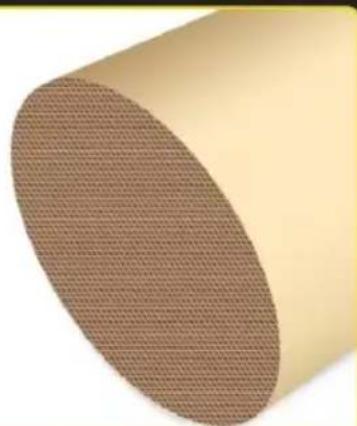

Internal Ceramic Substrates

Hassle-Free Installation: Our free-flow catalytic converter has standard specification flanges designed for easy installation. Direct bolts exist in exhaust system without extra modification. The kit also comes with ga and hardware for replacement. Professional installation is highly recommended for exerting its max capability.

Standard OBD III Compliant: This high flow converter complies with O

III Standards, ensuring the exhaust emissions meet the Federal Emissi Standards. However, it is illegal to be used in California as the NON compliant. With this high-quality converter, you have no worry about M code issues in your driving.

FOR Nissan/Suzuki Equator

Impreza/Legacy/Back H4 2.5L 2005-2010 and Saab 9-2x Front H4 2.5l 2006. Measure the input and output diameters of the original converter ensure that the project is suitable for your vehicle.
