FTJM02-06 - Car part Vevor - Free user manual and instructions
Find the device manual for free FTJM02-06 Vevor in PDF.
| Product type | Catalytic converter |
| Brand | Vevor |
| Model | FTJM02-06 |
| Body material | Stainless steel |
| Substrate material | Ceramic with Pt, Rh, Pd catalysts |
| Emission standard | OBD III compliant, not CARB compliant |
| Restricted states | California (use prohibited) |
| Vehicle compatibility | Nissan Pathfinder 4.0L 2005-2010, Frontier/Xterra 4.0L 2005-2014, Suzuki Equator 4.0L 2009-2012, NV2500/NV3500 4.0L 2012-2016, NV1500 4.0L |
| Kit contents | 4 converters (front left/right, rear left/right), 4 gaskets, 4 washers, nuts |
| Installation | Professional recommended, direct bolt-on mounting |
| Normal phenomena after installation | White smoke (evaporation of rust preventive oil) for 30 min, burning smell (combustion of fireproof cotton) for 50 km |
| Warranty | Electronic warranty certificate at www.vevor.com/support |
| Main functions | Exhaust gas purification: conversion of CO, HC and NOx into CO2, H2O and N2 |
| Design | High-flow honeycomb internal structure, improved OEM quality |
| Maintenance | No specific maintenance; periodically check fastenings |
| Safety | Installation by a qualified professional; do not use in California |
| Spare parts and repairability | Complete kit with gaskets and washers; the converter itself is not repairable |
| General information | Designed to exceed OEM quality; do not use on vehicles registered in California |
| Customer service | Technical support and warranty: www.vevor.com/support |
Frequently Asked Questions - FTJM02-06 Vevor
User questions about FTJM02-06 Vevor
0 question about this device. Answer the ones you know or ask your own.
Ask a new question about this device
Download the instructions for your Car part in PDF format for free! Find your manual FTJM02-06 - Vevor and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. FTJM02-06 by Vevor.
USER MANUAL FTJM02-06 Vevor
Technical Support and E-Warranty Certificate www.vevor.com/support
CATALYTIC CONVERTER
MODEL: FTJM02-06
We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represent savings you might benefit from buying certain tools with us compared to top brands and does not necessarily mean to cover all categories of tools offered. We kindly remind you to verify carefully when placing an order with us that you are actually saving half in comparison with the top major brands.
VEVOR®
TOUGH TOOLS, HALF PRICE
CATALYTIC
CONVERTER
MODEL: FTJM02-06
NEED HELP? CONTACT US!
Have product questions? Need technical support? Please feel free to contact us:
Technical Support and E-Warranty Certificate www.vevor.com/support
This is the original instruction. Please read all manual instructions carefully before operating. VEVOR reserves a clear interpretation of the user manual. The appearance of the product shall be subject to the product you received. Please forgive us that we won't inform you if there are any technology or software updates on our product.
WARNING:
After receiving our product, you need to find a repair shop to put the car on a shelf, then remove the old catalytic converter, install the new catalytic converter in its original position, and install the gasket and washer, tighten the screws! You can now drive and use it normally!
After installing the catalyst, the following two situations will occur, both of which are normal phenomena!
Firstly, the surface of the catalytic converter is coated with rust-proof oil. After the car starts and the catalytic converter reaches high temperature, the rust-proof oil on the surface will evaporate due to heat, and white smoke will emerge. After 30 minutes of use, it will disappear on its own. This is a normal phenomenon, please do not worry!
Secondly, after the installation of the new catalyst, when the car starts, a burnt odor will be emitted from the exhaust gas. This is because the ceramic carrier part of the catalyst's internal structure is wrapped in a fireproof cotton with transparent tape, also known as an insulation cotton pad. It wraps around the ceramic carrier, and the transparent gelatin belt will burn when exposed to high temperatures. At this time, the exhaust pipe will discharge this odor, so you smell a burnt odor! It will disappear on its own after using about 50 kilometers; this is a normal phenomenon! Don't worry!
Friendly Note: This part cannot be used for California-registered vehicles. (Due to the increased emissions standards, this converter is NOT legal for use in CA.)
SAVE THESE INSTRUCTIONS
PRODUCT PARAMETERS
| Model | FTJM02-06 |
| Body Material | Stainless Steel |
| Substrate Material | Ceramic |
| Standard | OBD III Compliant, Non-CARB Compliant |
| Restricted States | California |
| Vehicle Fitment | 2005-2010 Nissan Pathfinder 4.0L 2005-2014 Niss Frontier/Xterra 4.0L 2009-2012 Suzuki Equator 4.02012 Nissan NV2500/NV3500 4.0L 2012-2016 NisNV1500 4.0L |
PART LIST
When unpacking this product, check to make sure the parts listed below are included and carefully inspect for any damage that may have occurred during transit. If any part is missing or damaged, do not attempt to assemble or use the product.
| NO | PICTURE | NAME | QTY | NO | PICTURE | NAME | QTY | |

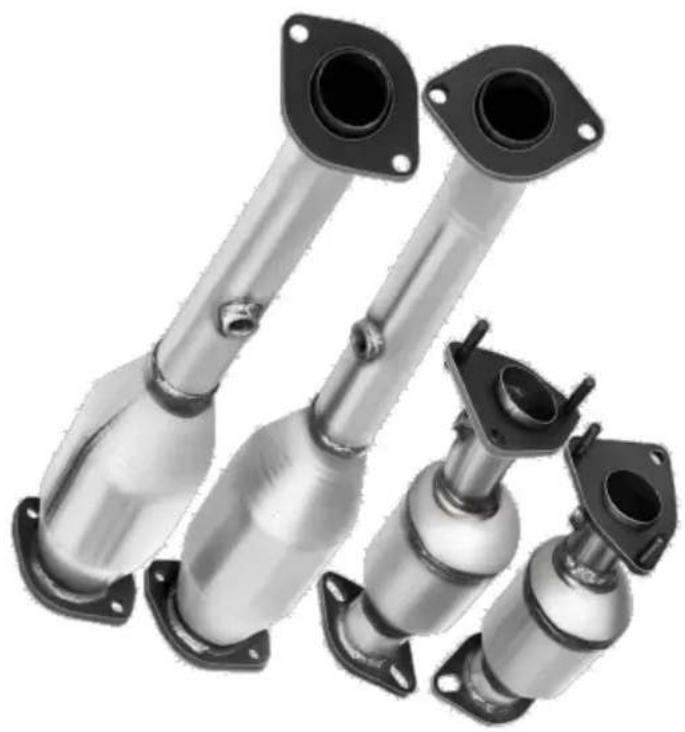

| 1 |  | Rear Left Catalytic Converter | 1 | 2 |  | Carrier Ring | 4 | |
| 3 |  | Rear Right Catalytic Converter | 1 | 4 |  | Shim | 2 | |
| 5 |  | Front Left Catalytic Converter | 1 | 6 |  | Gasket | 14 | |
| 7 |  | Front Right Catalytic Converter | 1 | 8 |  | Washer | 14 | |
| 9 |  | Nut | 18 |

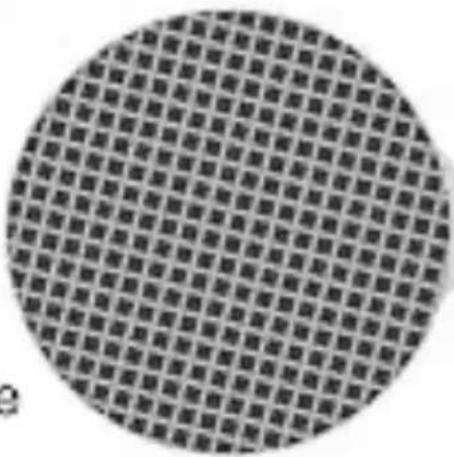

INTERNAL HONEYCOMB STRUCTURE
OEM High Flow Design: This catalytic converter is constructed to meet or even exceed OEM quality. Its high flow design provides more oxygen to your engine, dramatically improving your exhaust system. Further, an internal honeycomb structure effectively purifies the waste gases, converting CO, HC, and NOx into CO2, H2O, and N2.
VEVOR
Bigger Hole
Higher Flow Rate
Longer Service Life

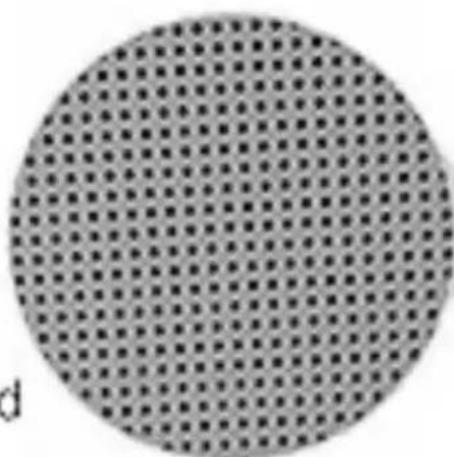

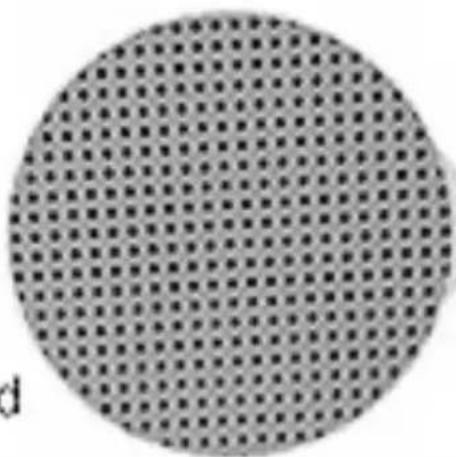

Other Converter
Small Hole
Low Flow Rate
Easy to be Blocked
Stainless Steel Structure: The high flow catalytic converter is assembled with a stainless steel body for long-term use, capable of enduring high-temperature gases from the exhaust. Its internal ceramic substrates contain high-load precious metal catalysts, including Pt, Rh, and Pd, to enhance purification efficiency and intensity.
Hassle-Free Installation: Our free-flow catalytic converter has standard specification flanges designed for easy installation. Direct bolts exist in exhaust system without extra modification. The kit also comes with gaskets and hardware for replacement. Professional installation is highly recommended for exerting its max capability.
Standard OBD III Compliant: This high flow converter complies with OBD III Standards, ensuring the exhaust emissions meet the Federal Emission Standards. However, it is illegal to be used in California as the NON compliant. With this high-quality converter, you have no worry about M code issues in your driving.

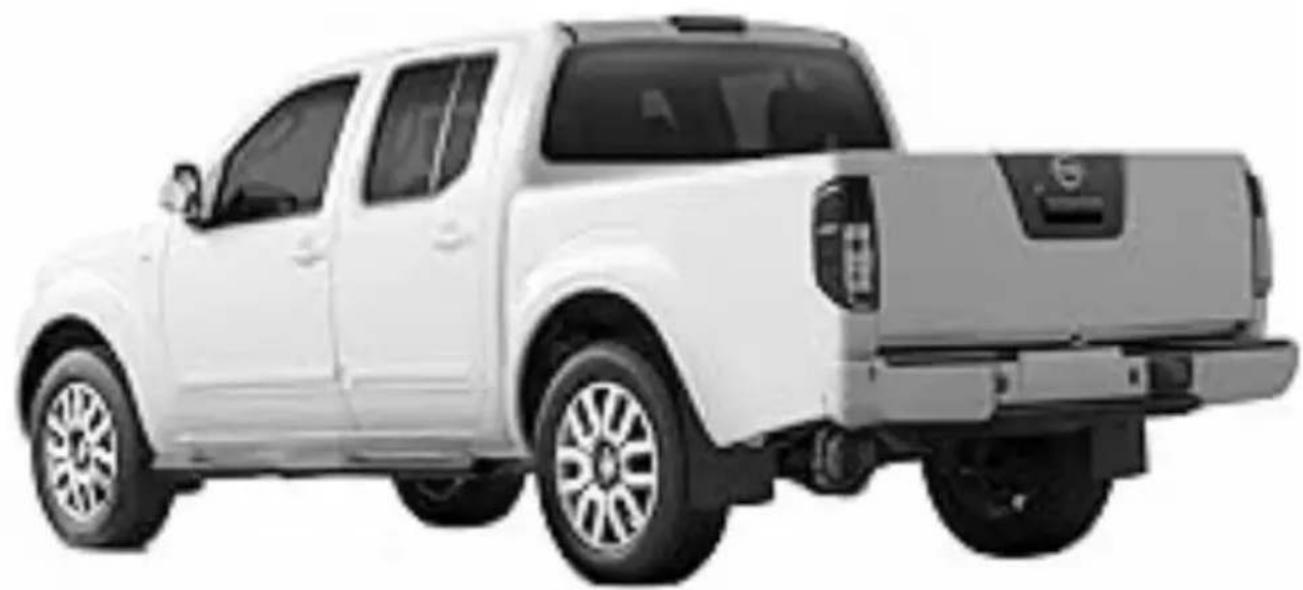

For Nissan/Suzuki Equator
| 2005-2010 | Nissan Pathfinder 4.0L | |
| 2005-2014 | Nissan Frontier 4.0L | Nissan Xterra 4.0L |
| 2009-2012 | Suzuki Equator 4.0L | |
| 2012 | Nissan NV2500 4.0L | Nissan NV3500 4.0L |
| 2012-2016 | Nissan NV1500 4.0L |
Compatible with the Nissan Pathfinder/Frontier/Xterra and Suzuki Equator, these vibrant catalytic converters perfectly match your vehicle. Please measure the diameter of the exhaust pipes to ensure compatibility.
