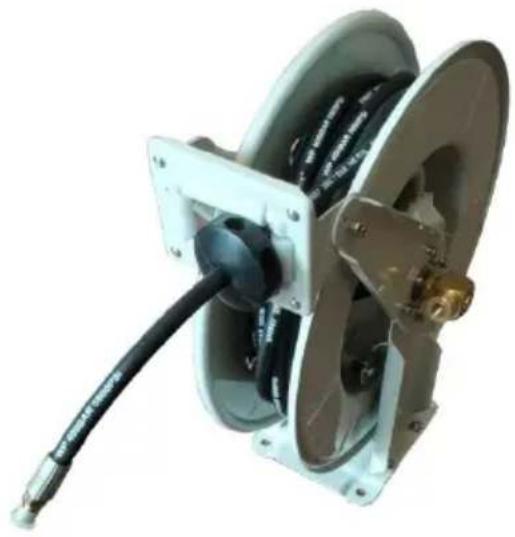

HOSE REEL USER MANUAL
Model:1224BT-100-5, 1224BT-100-4, 1224BT-100-3, 1224BT-100-2, 1224BT-100-1, 1224BT-100
We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represent the estimate of savings you might benefit from buying certain tools with us compared to top brands and does not necessarily mean to cover all categories of tools offered. Are kindly reminded to verify carefully when you are placing an order with us actually saving half in comparison with the top major brands.


NEED HELP? CONTACT US!
Have product questions? Need technical support? Please feel fr contact us:
Technical Support and E-Warranty Certificate www.vevor.com/support
This is the original instruction, please read all manual instruction carefully before operating. VEVOR reserves a clear interpretation user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform you there are any technology or software updates on our product.
WARNING
- Read carefully and understand all ASSEMBLY AND OPERATION INSTRUCTIONS before operating.
- Failure to follow the safety rules and other basic safety precautions result in serious personal injury.
GENERAL SAFETY RULES

FIRE AND EXPLOSION
When flammable fluids are present in the work area, such as gasolin aware that flammable fumes can ignite or explode. To help prevent fire explosion:
- Use equipment only in a well-ventilated area.
- Eliminate all ignition sources, such as cigarettes and portable electric lamps.
- Keep a working fire extinguisher in the work area.
Make sure the line pressure does not exceed the rated operating pre of your model hose reel.
Before carrying out any maintenance turn off and disconnect the suppl line to the reel and carefully release the hose line pressure.


SKIN TOUCH
The fluid from dispensing device, hose leaks, or ruptured components be harmful to the skin. Clean with water immediately.
- Do not point the dispensing device at anyone or at any part of the
- Do not put your hand over the fluid outlet.
- Do not stop or deflect leaks with your hand, body, glove, or rag.
· Tighten all fluid connections before operating the equipment . - Check hoses and couplings daily. Replace worn or damaged parts immediately.

EQUIPMENT MISUSE
Misuse can cause serious injury.
- Pull the hose from the reel by grasping the hose itself, not the coil valve.
- Hose reel should be used according to the required type of oil
- Route hoses and cables away from traffic areas, sharp edges, mov parts, and hot surfaces.
· Do not kink or over bend hoses or use hoses to pull equipment . - Keep children and animals away from the work area.
SAVE THESE INSTRUCTIONS
MODEL AND PARAMETERS
| Model | 1224BT-100-5 | 1224BT-100-4 | 1224BT-100-3 | 1224BT-100-2 | 1224BT-100-1 | 1224BT-100 |
| Application | Diesel,Kerosene | Diesel,Kerosene | Diesel,Kerosene | Diesel,Kerosene | Machine Oil | Grease |
| Hose(I.D*Length) | 1"x33' | 3/4"x66' | 1"x50' | 3/4"x50' | 1/2"x50' | 1/2"x50' |
| Hose TempRating | -20~70°C | -20~70°C | -20~70°C | -20~70°C | -20~100°C | -20~100°C |
| Inlet | NPT1" | NPT3/4" | NPT1" | NPT3/4" | NPT 1/2" | NPT 1/4" |
| Outlet | NPT1" | NPT3/4" | NPT1" | NPT3/4" | NPT 1/2" | NPT 1/4" |
| HoseWorkingPressure | 300psi | 300psi | 300psi | 300psi | 2300psi | 5800psi |
STRUCTURE DIAGRAM

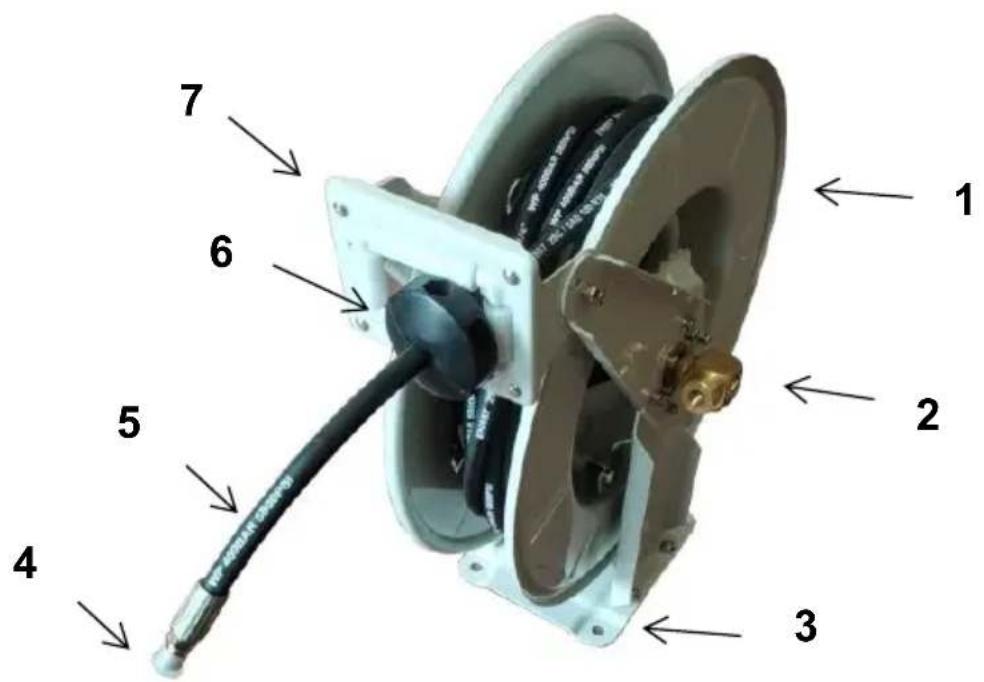

- Steel Reel 2.Inlet Connector 3.Base Plate 4.Outlet
- Hose 6. Hose Stopper 7. Adjustable Guide Arm
COMPONENTS
| Model | 1224BT-100-5 | 1224BT-100-4 | 1224BT-100-3 | 1224BT-100-2 | 1224BT-100-1 | 1224BT-100 |
| Hose Reel | 1 | 1 | 1 | 1 | 1 | 1 |
| Fuel Gun | 1 | 1 | 1 | 1 | / | / |
| Hose Clamp | 2 | 2 | 2 | 2 | / | / |
| Hose Stopper | 1 | 1 | 1 | 1 | 1 | 1 |
| PTFE tape | 1 | 1 | 1 | 1 | 1 | 1 |
| User Manual | 1 | 1 | 1 | 1 | 1 | 1 |
INSTALLATION
Installation preparation:
- Please prepare gloves to avoid being scratched by sharp parts that occur during installation.
- Please open all the boxes to check that the accessories are comp and in good condition.
Installation:
Step 1 Secure the hose reel to a wall or truck deck. Be sure to use appropriate hardware and tighten securely.

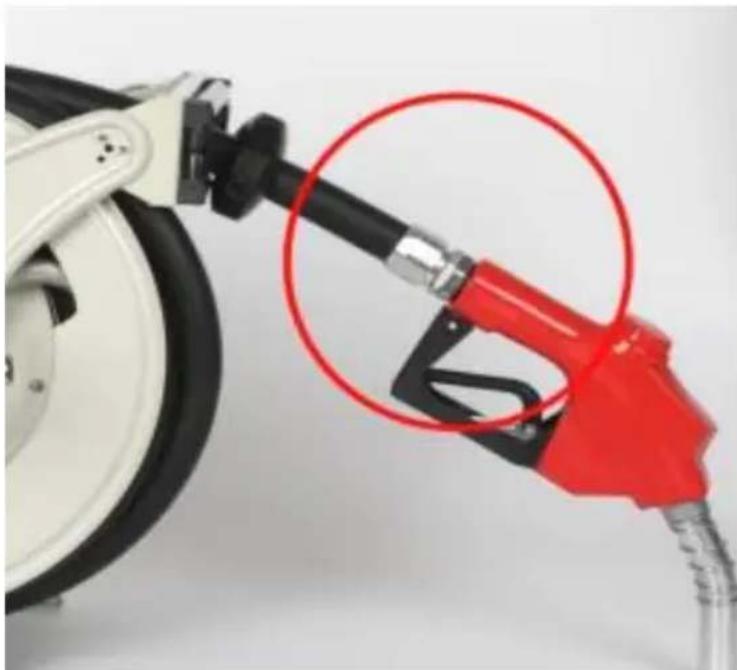

Step 2 Connect the fuel gun.
Note:It is recommended to wrap 3~5 loops of PTFE tape around the Only Model 1224BT-100-51224BT-100-4, 1224BT-100-3, 1224BT-100-2 has an fuel gun.

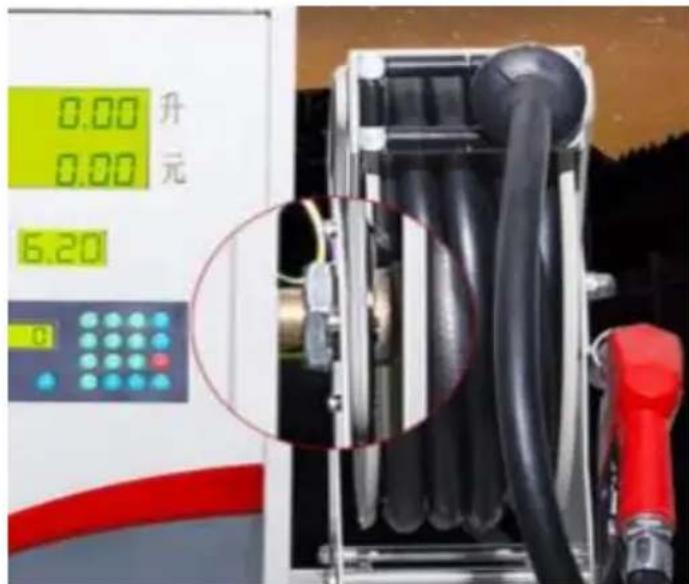

Step 3 Connect the reel inlet to the oil supply tank or mobile oil sc Note:It is recommended to wrap 3 5 loops of PTFE tape around the (Tip:you could choose TNP connector or extended fuel inlet connector.

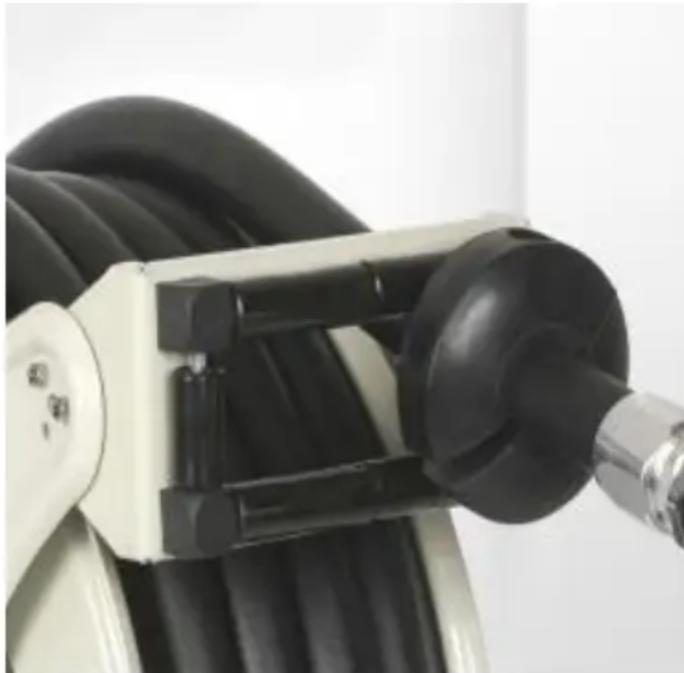

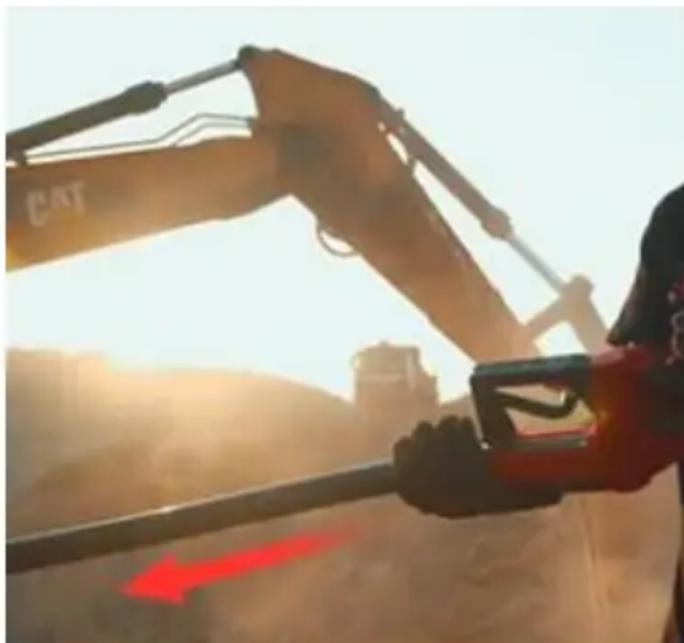

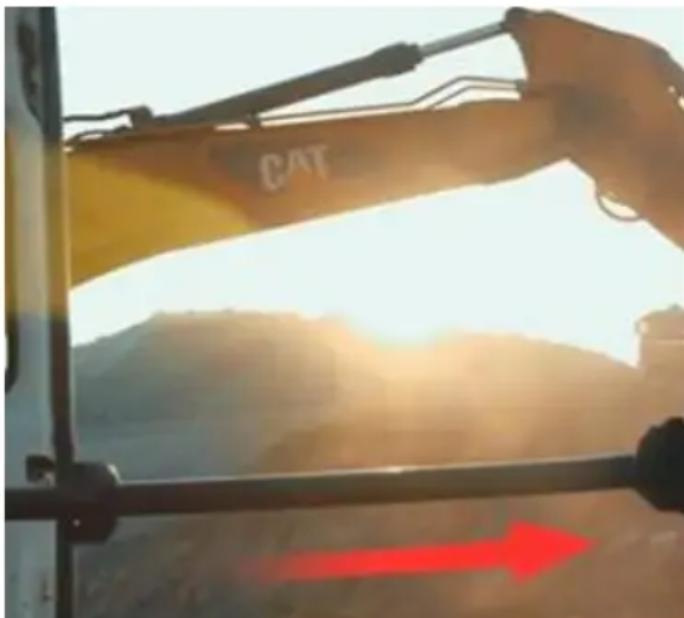

Step 4 Grasp the hose and slowly pull it out to the required length Ratchet teeth for position will hold the hose in the place, there a cli sound is heard to ensure locking. or use Hose Stopper locator to fix then can it be used.
Note: This product has an integrated locking ratchet system that keeps hose where you want during use and quickly stored when finished.
During the process of slowly pulling out the hose, you will hear consecutive "clicking" Reminder sounds; This is when the ratchet is in action. The first to third sounds can lock the reel, and the fourth so pass the lock (can't locked) and need to be pulled to the next cycle

Step 5 To retract the reel after fueling, holding the hose, slowly pull little, and then slowly put it back.
Noted: When rewinding the hose, make sure that the hose is evenly v around the reel.


NOTE:
- To avoid damage to the reel, always hold on to the hose while it rewinding.
- Please use this product according to the normal oil supply pressure do not use over pressure.
- The maximum working pressure of the product is lower than the working pressure of the hose.
MAINTENANCE
Maintain your reel. Do not force the hose reel. Products are safer and better job when used in the manner for which they are designed. Play work, and use the correct product for the job.
- If the rewind spring fails, for safety reasons, it is strongly recommend the replacement of the spring canister should be performed by an authorized service technician. The spring can be under high tension a accidental release can cause severe personal injury.
- Check for damaged parts before each use. Carefully check that the product will operate properly and perform its intended function. Replace damaged or worn parts immediately. Never operate the product with a damaged part.
- Wet work areas can cause damage to the reel, recommended that reel be placed indoors when not in use to avoid getting wet from the
- Periodically check the hose condition for wear or damage, and chew swivel fitting for leakage. Replace any worn, damaged, or leaking parts
Troubleshooting
Before calling service team for support, please check the following troubleshooting tips:
| Stoppage | Cause | Solution |
| Hose does not fully retract | 1. Outlet nozzle, gun, or is too heavy. 2. Spring is fatigued. 3. Replacement hose is too long | 1. Add spring tension 2. Add spring tension 3. Fit correct length hose |
| Hose does not retract at all | Spring has broke or has little tension. | Replace Spring Canister. |
| Reel does not latch | 1. Incorrect operation. 2. Latch assembly is worn. | 1. Reel latches on first, second, third or fourth "click it automatically rewrites. 2. Replace the latch assembly. |
| Fluid leaks from the swive | Swivel seals are damaged worn. | Replace swivel seals. |
Sanven Technology Ltd.
Address: Suite 250, 9166 Anaheim Place, Rancho Cucamonga, CA 91 Made In China
