USER MANUAL 1224BT-100-3 Vevor

Technical Support and E-Warranty Certificate

www.vevor.com/support

HOSE REEL USER MANUAL

Model:1224BT-100-5, 1224BT-100-4, 1224BT-100-3, 1224BT-100-2, 1224BT-100-1, 1224BT-100

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represent of savings you might benefit from buying certain tools with us compared top brands and does not necessarily mean to cover all categories of tools offered are kindly reminded to verify carefully when you are placing an order with us actually saving half in comparison with the top major brands.

VEVOR®

TOUGH TOOLS, HALF PRICE

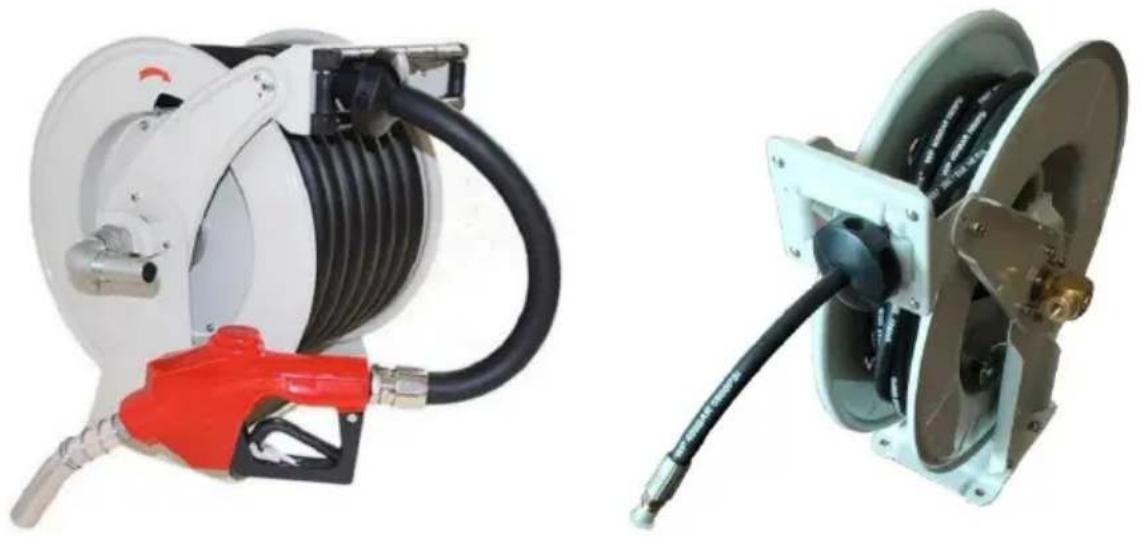

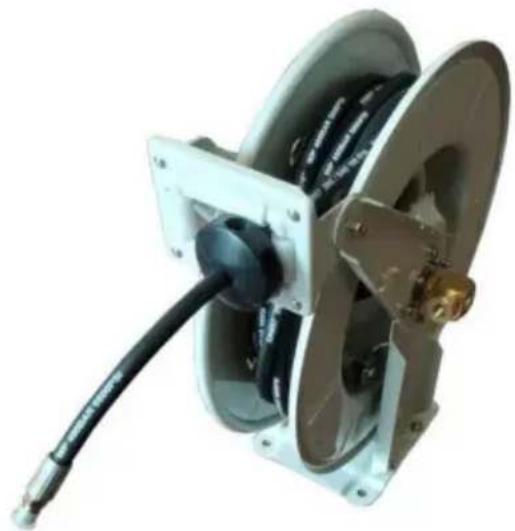

HOSE REEL

Two industrial fuel pumps with black hoses and red connectors, shown from different angles (no text or symbols visible)

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel fr contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instruction carefully before operating. VEVOR reserves a clear interpretation user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform your there are any technology or software updates on our product.

WARNING

1. Read carefully and understand all ASSEMBLY AND OPERATION INSTRUCTIONS before operating.

2. Failure to follow the safety rules and other basic safety precautions result in serious personal injury.

GENERAL SAFETY RULES

FIRE AND EXPLOSION

When flammable fluids are present in the work area, such as gasolin aware that flammable fumes can ignite or explode. To help prevent fi explosion:

• Use equipment only in a well-ventilated area.
• Eliminate all ignition sources, such as cigarettes and portable electric lamps.
• Keep a working fire extinguisher in the work area.

Make sure the line pressure does not exceed the rated operating pre of your model hose reel.

Before carrying out any maintenance turn off and disconnect the supp line to the reel and carefully release the hose line pressure.

SKIN TOUCH

The fluid from dispensing device, hose leaks, or ruptured components be harmful to the skin. Clean with water immediately.

- Do not point the dispensing device at anyone or at any part of th - Do not put your hand over the fluid outlet .

- Do not stop or deflect leaks with your hand, body, glove, or rag. - Tighten all fluid connections before operating the equipment.

- Check hoses and couplings daily. Replace worn or damaged parts immediately.

EQUIPMENT MISUSE

Misuse can cause serious injury.

• Pull the hose from the reel by grasping the hose itself, not the co valve.
• Hose reel should be used according to the required type of oil
• Route hoses and cables away from traffic areas, sharp edges, mov parts, and hot surfaces.
• Do not kink or over bend hoses or use hoses to pull equipment.
• Keep children and animals away from the work area.

SAVE THESE INSTRUCTIONS

MODEL AND PARAMETERS

Model	1224BT-100-5	1224BT-100-4	1224BT-100-3	1224BT-100-2	1224BT-100-1	1224BT-100
Application	Diesel, Kerosene	Diesel, Kerosene	Diesel, Kerosene	Diesel, Kerosene	Machine Oil	Grease
Hose (I.D*Length)	1"x33'	3/4"x66'	1"x50'	3/4"x50'	1/2"x50'	1/2"x50'
Hose Temp Rating	-20~70°C	-20~70°C	-20~70°C	-20~70°C	-20~100°C	-20~100°C
Inlet	NPT1"	NPT3/4"	NPT1"	NPT3/4"	NPT 1/2"	NPT 1/4"
Outlet	NPT1"	NPT3/4"	NPT1"	NPT3/4"	NPT 1/2"	NPT 1/4"
Hose Working Pressure	300psi	300psi	300psi	300psi	2300psi	5800psi

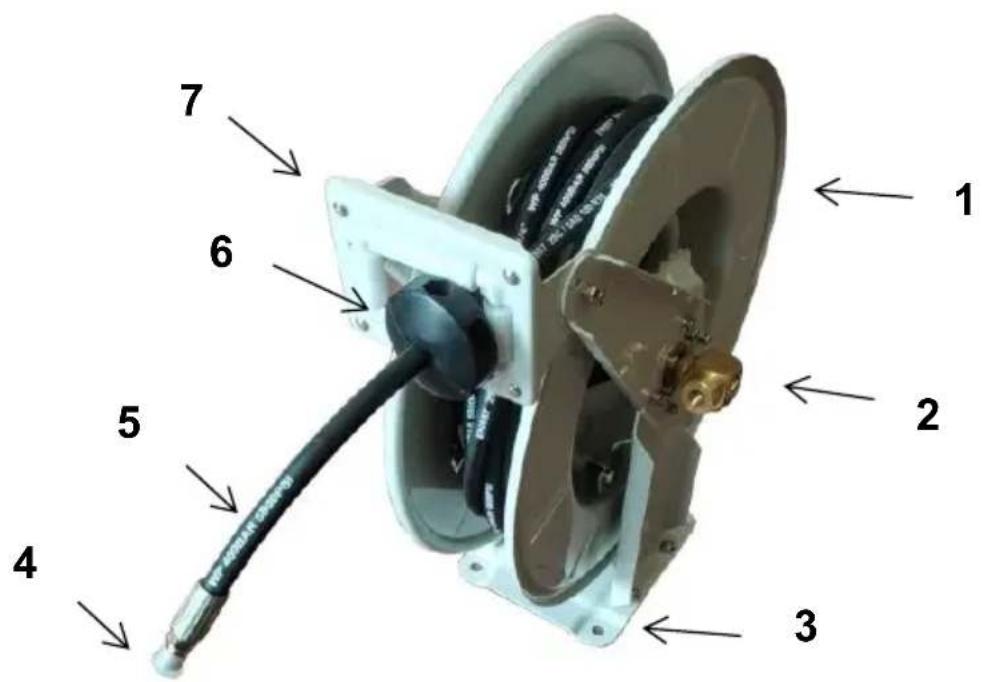

STRUCTURE DIAGRAM

1 2 3 4 5 6 7

1. Steel Reel 2. Inlet Connector 3. Base Plate 4. Outlet
2. Hose 6. Hose Stopper 7. Adjustable Guide Arm

COMPONENTS

Model	1224BT-100-5	1224BT-100-4	1224BT-100-3	1224BT-100-2	1224BT-100-1	1224BT-100
Hose Reel	1	1	1	1	1	1
Fuel Gun	1	1	1	1	/	/
Hose Clamp	2	2	2	2	/	/
Hose Stopper	1	1	1	1	1	1
PTFE tape	1	1	1	1	1	1
User Manual	1	1	1	1	1	1

INSTALLATION

Installation preparation:

1. Please prepare gloves to avoid being scratched by sharp parts that occur during installation.
2. Please open all the boxes to check that the accessories are compared and in good condition.

Installation:

Step 1 Secure the hose reel to a wall or truck deck. Be sure to use appropriate hardware and tighten securely.

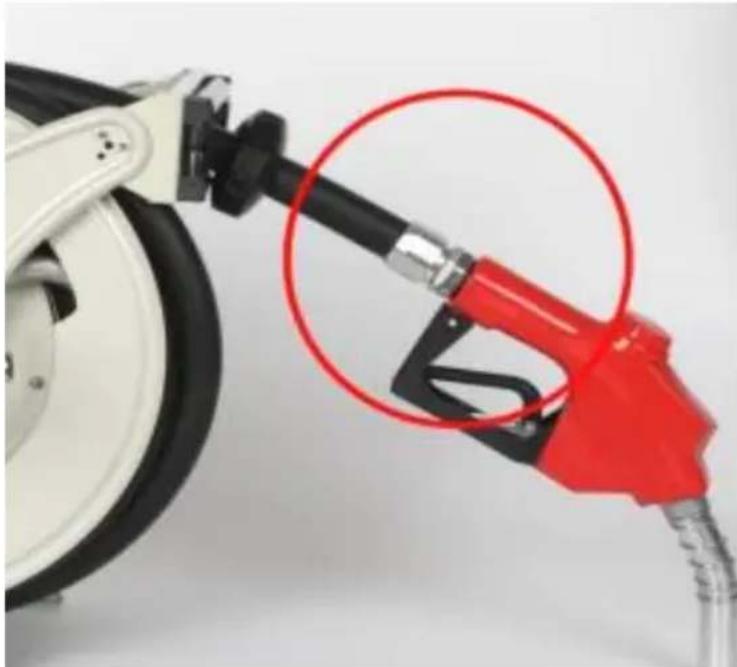

Step 2 Connect the fuel gun.

Note: It is recommended to wrap 3\~5 loops of PTFE tape around the Only Model 1224BT-100-51224BT-100-4, 1224BT-100-3, 1224BT-100-2 has an fuel gun.

Close-up of a red and black fuel pump nozzle attached to a white car wheel (no text or symbols visible)

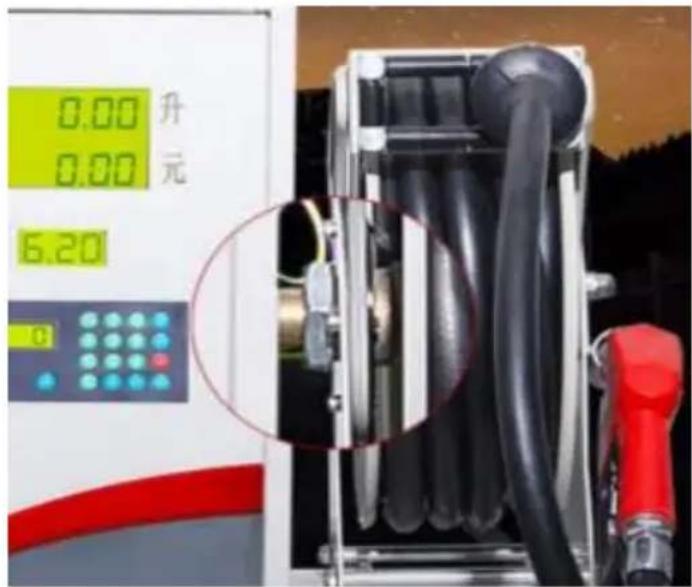

Step 3 Connect the reel inlet to the oil supply tank or mobile oil sc Note:It is recommended to wrap 3\~5 loops of PTFE tape around the (Tip:you could choose TNP connector or extended fuel inlet connector.

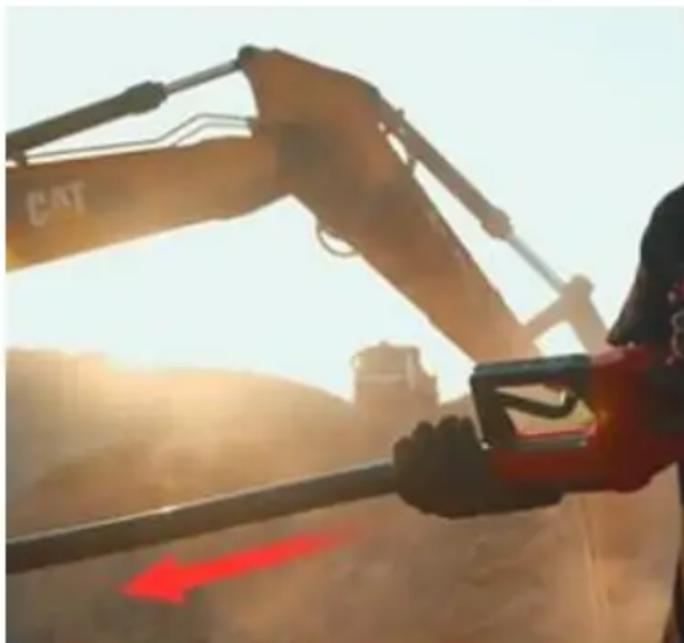

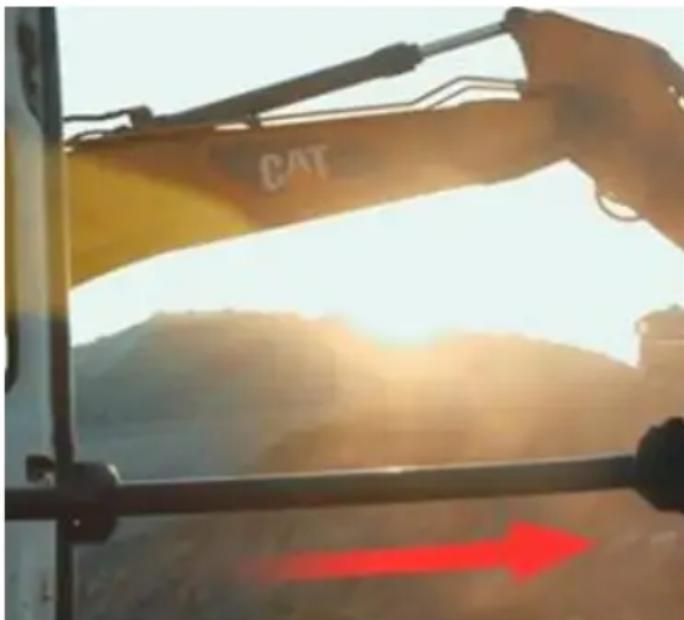

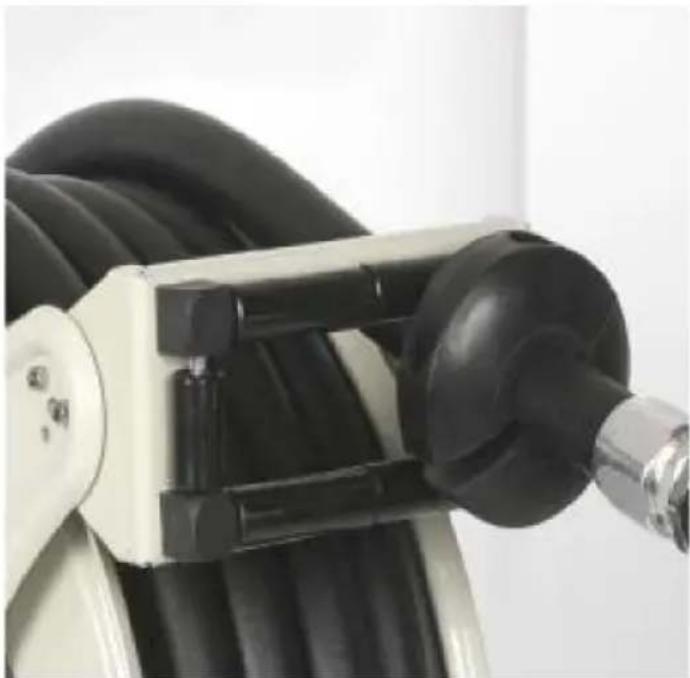

Step 4 Grasp the hose and slowly pull it out to the required length Ratchet teeth for position will hold the hose in the place ,there a cli sound is heard to ensure locking. or use Hose Stopper locator to fix then can it be used.

Note:This product has an integrated locking ratchet system that keeps hose where you want during use and quickly stored when finished.

During the process of slowly pulling out the hose, you will hear consecutive "clicking" Reminder sounds; This is when the ratchet is in action. The first to third sounds can lock the reel, and the fourth so pass the lock (can't locked) and need to be pulled to the next cycle

Silhouette of a yellow excavator with 'CAT' label against a sunset sky, with a red arrow pointing right (no text or symbols on the object itself)

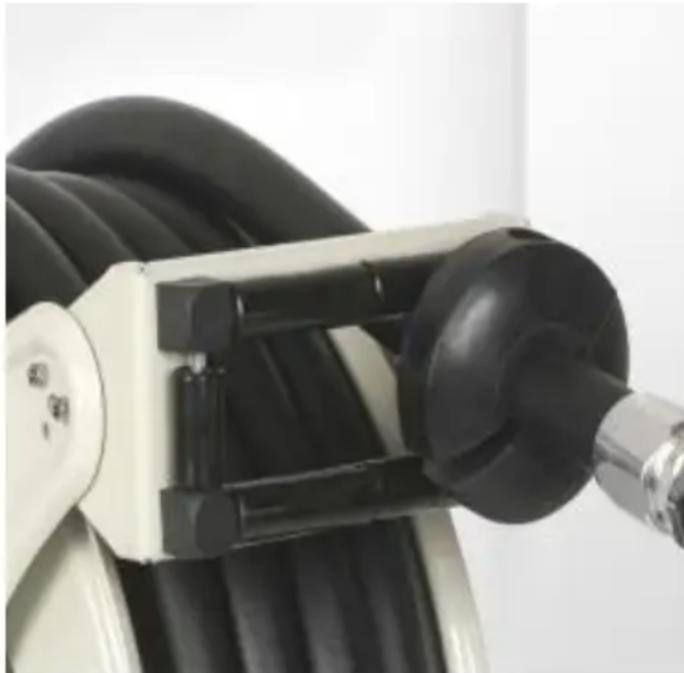

Step 5 To retract the reel after fueling, holding the hose, slowly pull little, and then slowly put it back.

Noted: When rewinding the hose, make sure that the hose is evenly w around the reel.

Silhouette of a person operating a heavy machinery arm at sunset, with a red arrow indicating speed (no text or symbols visible)

Close-up of a mechanical device with black and white components, no visible text or symbols

NOTE:

• To avoid damage to the reel, always hold on to the hose while it rewinding.
• Please use this product according to the normal oil supply pressure do not use over pressure.
• The maximum working pressure of the product is lower than the working pressure of the hose.

MAINTENANCE

Maintain your reel. Do not force the hose reel. Products are safer and better job when used in the manner for which they are designed. Play work, and use the correct product for the job.

• If the rewind spring fails, for safety reasons, it is strongly recommend the replacement of the spring canister should be performed by an authorized service technician. The spring can be under high tension a accidental release can cause severe personal injury.
• Check for damaged parts before each use. Carefully check that the product will operate properly and perform its intended function. Replace damaged or worn parts immediately. Never operate the product with a damaged part.
• Wet work areas can cause damage to the reel, recommended that reel be placed indoors when not in use to avoid getting wet from th
• Periodically check the hose condition for wear or damage, and check swivel fitting for leakage. Replace any worn, damaged, or leaking part

Troubleshooting

Before calling service team for support, please check the following troubleshooting tips:

Stoppage	Cause	Solution
Hose does not fully retract	1. Outlet nozzle, gun, or to is too heavy.2. Spring is fatigued.3. Replacement hose is too long	1. Add spring tension2. Add spring tension3. Fit correct length hose
Hose does not retract at all	Spring has broke or has lo tension.	Replace Spring Canister.
Reel does not latch	1. Incorrect operation.2. Latch assembly is worn.	1. Reel latches on first, second, third or fourth "click it automatically rewinds.2. Replace the latch assembly.
Fluid leaks from the swive	Swivel seals are damaged worn.	Replace swivel seals.

Sanven Technology Ltd.

Address: Suite 250, 9166 Anaheim Place, Rancho Cucamonga, CA 91 Made In China

VEVOR®

TOUGH TOOLS, HALF PRICE

Technical Support and E-Warranty Certificate www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

Close-up of a white industrial fuel pump with black and red hoses, no visible text or symbols

Close-up of a mechanical power shaver with coiled cable and metal housing (no visible text or symbols)

BESOIN D'AIDE? CONTACTEZ-NOUS!

Labeled diagram of a mechanical power switch with numbered parts and directional arrows indicating components.

Close-up of a red and black fuel pump nozzle attached to a white car wheel, with a red circle highlighting the nozzle (no text or symbols visible)

Exterior view of a construction crane with a yellow bucket cover and red arrow indicating direction (no text or symbols)

Silhouette of a person operating a heavy machinery arm at sunset, with a red arrow indicating direction (no text or symbols visible)

Close-up of a mechanical device with black and white components, no visible text or symbols

NOTE:

Close-up of a white industrial fuel pump with black and red hoses, no visible text or symbols

Close-up of a mechanical power shaver with coiled cable and metal housing (no visible text or symbols)

Labeled diagram of a mechanical power spool with numbered parts and directional arrows indicating components.

Close-up of a red and black fuel pump nozzle attached to a white car wheel, with a red circle highlighting the nozzle (no text or symbols visible)

Exterior view of a construction crane with a yellow bucket cover and red arrow indicating direction (no text or symbols)

Silhouette of a person operating a heavy machinery arm at sunset, with a red arrow indicating direction (no text or symbols visible)

Close-up of a black and white mechanical device with coiled cable (no visible text or symbols)

NOTIZ:

elettronica www.vevor.com/support

MANUALE D'USO DELL'AVVOLGITUBO

Modello: 1224BT-100-5, 1224BT-100-4, 1224BT-100-3,

Codice articolo: 1224BT-100-2, 1224BT-100-1, 1224BT-100

Close-up of a white industrial fuel pump with black and red hoses, no visible text or symbols

Close-up of a mechanical power shaver with coiled cable and metal housing (no visible text or symbols)

Labeled diagram of a mechanical power switch with numbered parts and directional arrows indicating components.

Close-up of a red and black fuel pump nozzle attached to a white car wheel, with a red circle highlighting the nozzle (no text or symbols visible)

Exterior view of a construction crane with a yellow bucket cover and red arrow indicating direction (no text or symbols)

Silhouette of a person operating a heavy machinery arm at sunset, with a red arrow indicating direction (no text or symbols visible)

Close-up of a mechanical device with black and white components, no visible text or symbols

NOTA:

Close-up of a white industrial fuel pump with black and red hoses, no visible text or symbols

Close-up of a mechanical power shaver with coiled cable and metal housing (no visible text or symbols)

Labeled diagram of a mechanical power spool with numbered parts and directional arrows indicating components.

1. Carrete de acero 2. Conector de entrada 3. Placa base 4. Salida
2. Manguera 6. Tope de manguera 7. Brazo guía ajustable

COMPONENTES

Modelo	1224BT-100-5	1224BT-100-4	1224BT-100-3	1224BT-100-2	1224BT-100-1	1224BT-100
MangueraCarrete	1	1	1	1	1	1
Pistola de combustible	1	1	1	1	/	/
MangueraAbrazadera	2	2	2	2	/	/
MangueraTapón	1	1	1	1	1	1
Teflóncinta	1	1	1	1	1	1

Close-up of a red and black fuel pump nozzle attached to a white car wheel, with a red circle highlighting the nozzle (no text or symbols visible)

Exterior view of a construction crane hook with a red arrow indicating direction (no text or symbols)

Silhouette of a person operating a heavy machinery arm at sunset, with a red arrow indicating direction (no text or symbols visible)

Close-up of a mechanical device with black and white components, no visible text or symbols

NOTA:

Close-up of a white industrial fuel pump with black and red hoses, no visible text or symbols

Close-up of a mechanical power shaver with coiled cable and metal housing (no visible text or symbols)

POTRZEBUJESZ POMOCY? SKONTAKTUJ SIĘ Z NAMI!

Labeled diagram of a mechanical power spool with numbered parts and cable connection

Close-up of a red and black fuel pump nozzle attached to a white car wheel, with a red circle highlighting the nozzle (no text or symbols visible)

Exterior view of a construction crane hook with a red arrow indicating direction (no text or symbols)

Silhouette of a person operating a heavy machinery arm at sunset, with a red arrow indicating direction (no text or symbols visible)

Close-up of a mechanical device with black and white components, no visible text or symbols

NOTATKA:

Close-up of a white industrial fuel pump with black and red hoses, no visible text or symbols

Close-up of a mechanical power shaver with coiled cable and metal housing (no visible text or symbols)

HULP NODIG? NEEM CONTACT MET ONS OP!

Labeled diagram of a mechanical power spool with numbered parts and directional arrows indicating components.

Close-up of a red and black fuel pump nozzle attached to a white car wheel, with a red circle highlighting the nozzle (no text or symbols visible)

Exterior view of a construction crane with a yellow bucket cover and red arrow indicating direction (no text or symbols)

Silhouette of a person operating a heavy machinery arm at sunset, with a red arrow indicating direction (no text or symbols visible)

Close-up of a mechanical device with black and white components, no visible text or symbols

OPMERKING:

www.vevor.com/support

SLANGRULL ANVÄNDARHANDBOK

Modell: 1224BT-100-5, 1224BT-100-4, 1224BT-100-3, 1224BT-100-2, 1224BT-100-1, 1224BT-100

Close-up of a white industrial fuel pump with black and red hoses, no visible text or symbols

Close-up of a mechanical power shaver with coiled cable and metal housing (no visible text or symbols)

BEHÖVER HJÄLP? KONTAKTA OSS!

Labeled diagram of a mechanical power switch with numbered parts and directional arrows indicating components.

1. Stålrulle 2. Inloppskontakt 3. Basplatta 4. Utlopp
2. Slang 6. Slangstoppare 7. Justerbar styrarm

KOMPONENTER

Modell	1224BT-100-5	1224BT-100-4	1224BT-100-3	1224BT-100-2	1224BT-100-1	1224BT-100
Slang Rulle	1	1	1	1	1	1
Bränslepistol	1	1	1	1	/	/
Slang Klämma	2	2	2	2	/	/
Slang Propp	1	1	1	1	1	1
PTFE tejpa	1	1	1	1	1	1
AnvändareManuell	1	1		11 1 1

INSTALLATION

Close-up of a red and black fuel pump nozzle attached to a white car wheel, with a red circle highlighting the nozzle (no text or symbols visible)

Exterior view of a construction crane hook with a red arrow indicating direction (no text or symbols)

Silhouette of a person operating a heavy machinery arm at sunset, with a red arrow indicating direction (no text or symbols visible)

Close-up of a black and white mechanical device with coiled cable (no visible text or symbols)

NOTERA:
