USER MANUAL QJD-CB080B-00 Vevor

Technical Support and E-Warranty Certificate www.vevor.com/support

LONG RAM JACK

MODEL:QJD-CB040B-00/QJD-CB030A-00/QJD-CB080A-00/QJD-CB080B-00

We continue to be committed to provide you tools with competitive "Save Half", "Half Price" or any other similar expressions used by represents an estimate of savings you might benefit from buying tools with us compared to the major top brands and does not mean to cover all categories of tools offered by us. You are reminded to verify carefully when you are placing an order with are actually saving half in comparison with the top major brand

VEVOR®

TOUGH TOOLS, HALF PRICE

LONG RAM JACK

MODEL:QJD-CB040B-00/QJD-CB030A-00/QJD-CB080A-00/QJD-CB080B-00

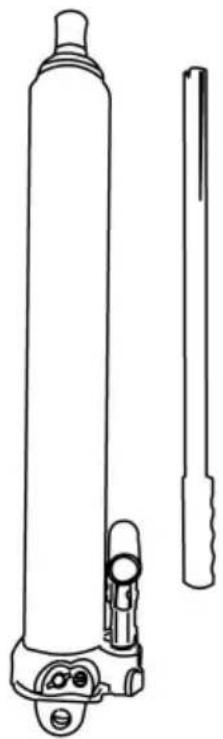

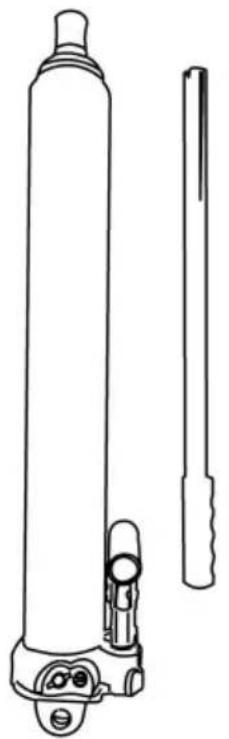

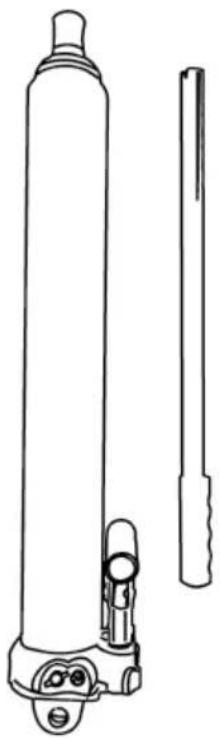

Line drawing of a cylindrical mechanical device with a side view showing a cylindrical shaft (no text or symbols)

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel f contact us: Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instruction carefully before operating. VEVOR reserves a clear interpretation user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform you there are any technology or software updates on our product.

Warming:

For your safety to prevent injury, please read very careful about the following warnings and operating instructions:

- This is just a lift drive, which is designed to be used with cranes heavier loads. Do not use this product for any purpose other than for which it was intended.

- This is a lifting device only, which is designed to be used with cr lift heavier loads. Do not overload, overloading may cause damage or failure of the unit. Do not use this product for any purpose other that for which it was intended.

- Load must be supported immediately by other appropriate means. Never work on, under or around load until it is properly supported to appropriately rated jack stands.

- Do not drop load suddenly. As resulting shock to unit may cause damage. Unit must be fully retracted before adding oil. Fill to lower of filling hole. Use only high quality hydraulic fluid. Do not use by fluid or any other type of improper fluids that may cause damage. Unit.

● All mounting hardware must be tight before using.

- Read, study, understand and follow all instructions before use or maintenance.

- It is owner's responsibility to keep labels and manuals are available from the manufacturer failure to heed these and all other warnings pertaining to this product can result in sudden loss of lifted load resulting in death personal injury or property damage.

Caution:

Use the handle provided for this product or an authorized replacement handle to ensure proper release valve operation.

OPERATION INSTRUCTIONS:

+To raise:

1. Using the slotted opening at the end of the handle, turn the releas clock wise to tighten it.

2. Put the handle in the pressing handle holder and press up the down piston rod will rise slowly till the height you need.then immediately train the load to appropriately-rated support devices such as jack stands.

+To lower:

Remove the pressing handle. Using the slotted opening at the end of handle turn the release-valve slightly counter clock wise to loosen it. then the piston rod will move down slowly. When loaded, the release should not be turned quickly, otherwise too speedy lowering will lead danger.

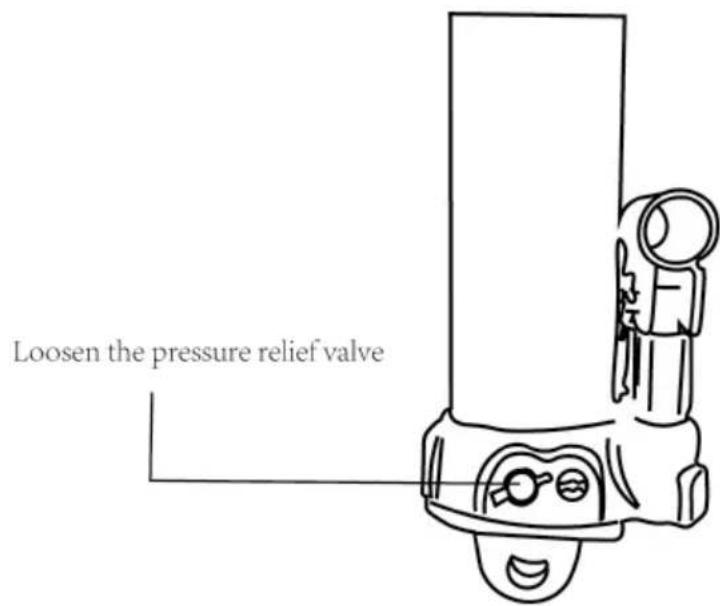

Loosen the pressure relief valve

Warming:

Be sure all tools and personnel are clear before lowering load, danger dynamic shock loads are created by quickly opening and closing the release valve as the load is being lowered the resulting overload may cause hydraulic system failure, which could cause severe personal injury and/or property damage.

FOR SAFETYS SAKE

Lifting weight should not exceeded the specified duty of this jack. Without a supporting rack, it is not allowed to work under the lifted body after it is raised.

ROUTINE MAINTENANCE

Proper quantity of oil should be maintained, otherwise the specified lif height would not be reached.

To avoid damaging, the jack should be kept from shocking while in operation.

The jack is not allowed to stand on one side or upside down.

This product is not suitable to the operation environment full or acid alkaline corrosive air.

Adding oil

1. With saddle fully lowered and pump piston fully depressed, set jack upright, level position. Remove oil filler plug.
2. Fill until oil is level with the filler plug hole, reinstall oil filter plug.

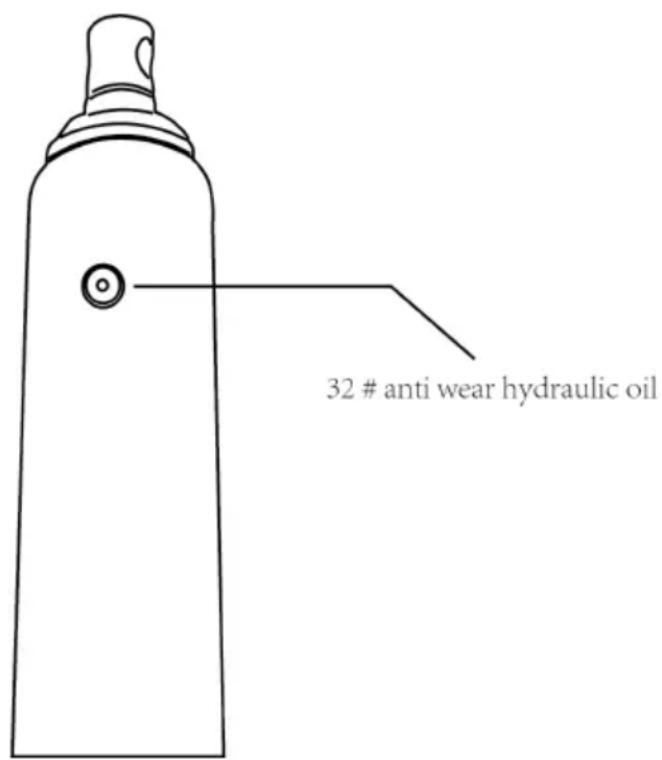

32 # anti wear hydraulic oil

Changing oil

For best performance and longest life, replace the complete fluid suit least once per year.

1. With saddle fully lowered and pump piston fully depressed, remove oil filler plug.
2. Lay the jack, on its side and drain the fluid into a suitable contain

Note: Dispose of hydraulic fluid in accordance with local regulations.

1. Fill with good quality jack oil. Reinstall oil filler Plug. We recommend anti wear hydraulic oil or equivalent.

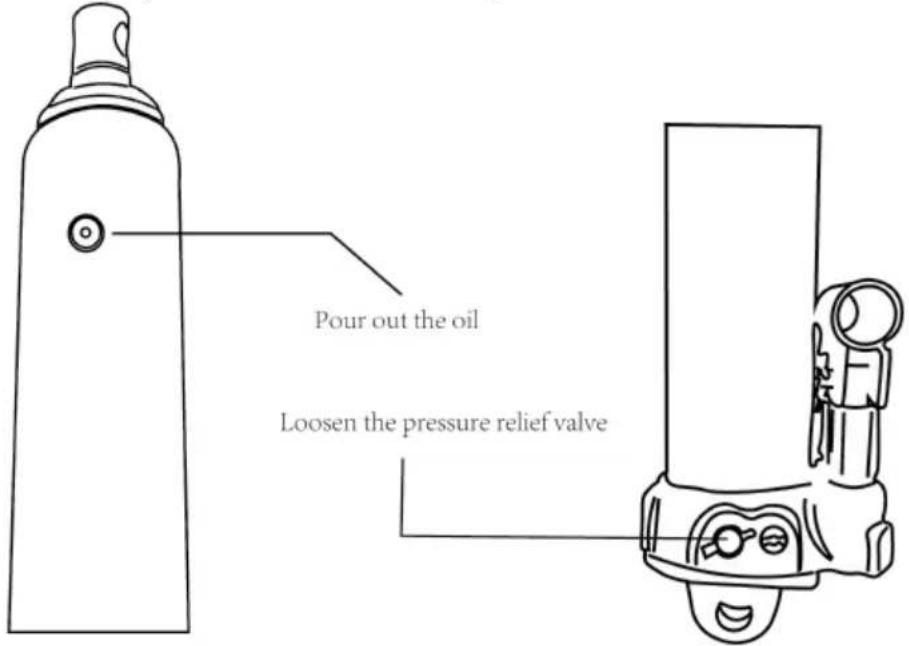

Pour out the oil Loosen the pressure relief valve

Lubrication

1. A coating of light lubricating oil to pivot points axles and hinges to prevent rust and assure that wheels, casters and pump assemblies move freely.

2. Periodically check the pump piston and ram for signs of rust or corrosion. Clean as needed and wipe with an oily cloth.

Caution: Never use sandpaper or abrasive material on these surfaces.

1. When not in use, store the jack with pump piston and ram fully

⚠ Warming: Do not adjust this valve.

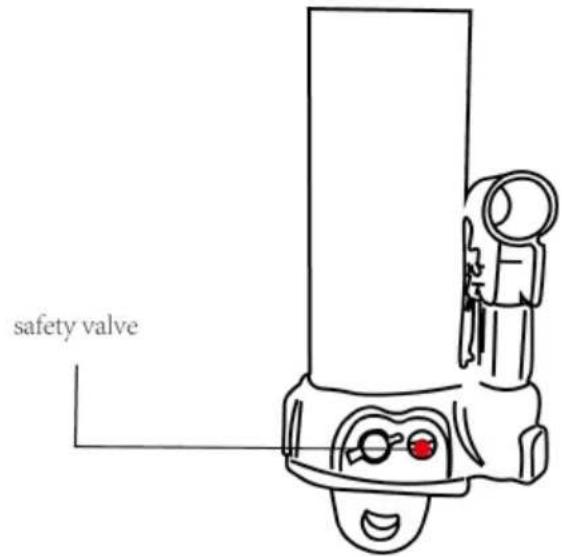

safety valve

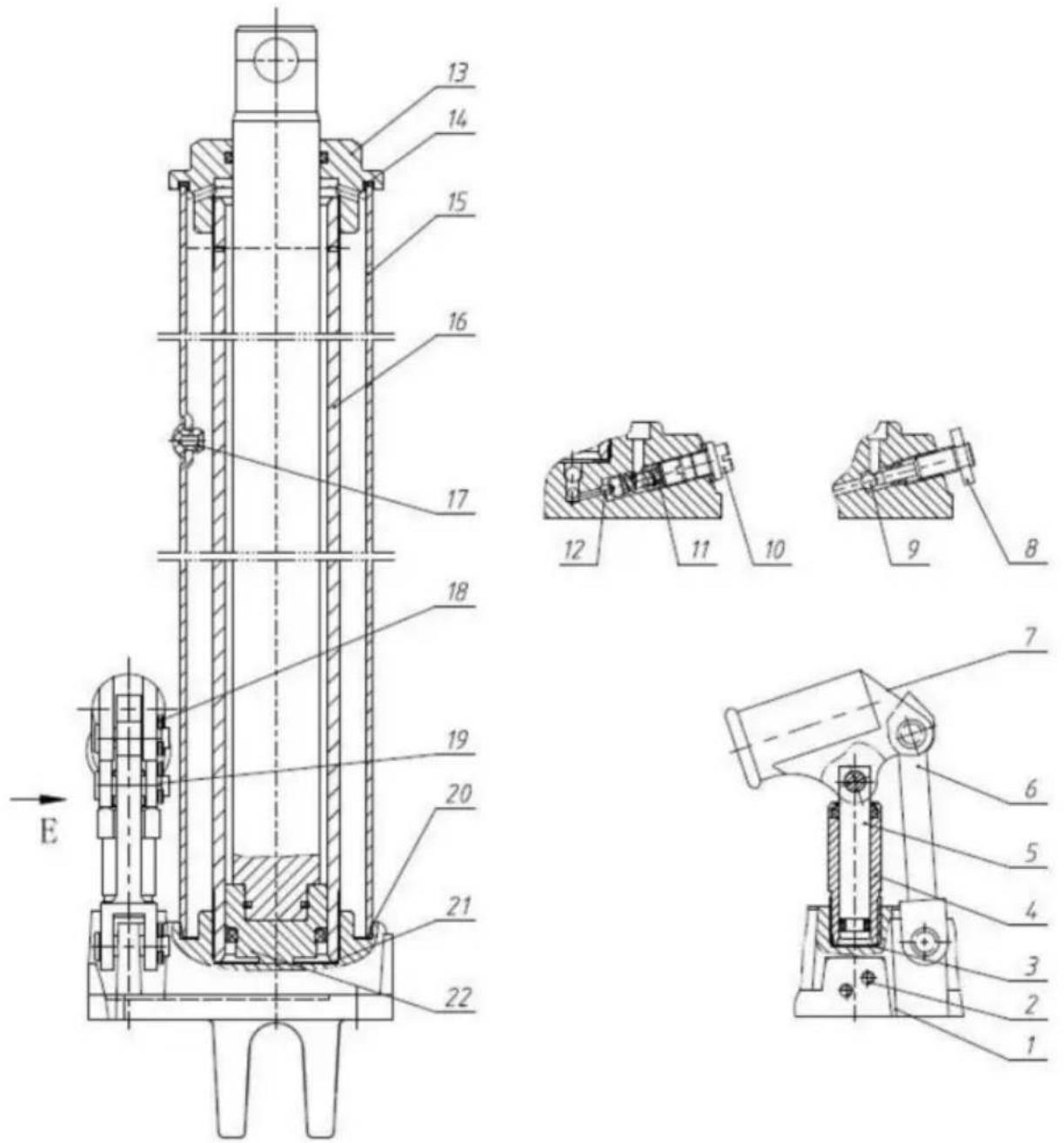

Structural composition

Models: QJD-CB040B-00/QJD-CB030A-00/QJD-CB080A-00/QJD-CB080B-00

PART LIST

ITEM No.	DESCRIPTION	QTY		ITEM No.	DESCRIPTION	QTY
1	Valve body	1		12	4mm steel ball	1
2	Conical screw	2		13	Top cap	1

3	gasket	1		14	Top cover sealing gasket	1
4	Pump body	1		15	Oil storage tank	1
5	Pump core group	1		16	Cylinder barrel	1
6	Connecting rod	1		17	Oil plug	1
7	Jack holder	1		18	Cotter pin	3
8	Pressure relief valve	1		19	Flat shoulder pin	3
9	6mm steel ball	3		20	Trapezoidal sealing ring	1
10	Relief valve	1		21	Cylinder sealing gaske	1
11	Pressure relief valve	1		22	Piston rod group	1

Parameter table

Model	Lifting Capacity (TON)	Lifting Travel (mm)
QJD-CB040B-00	4	500
QJD-CB030A-00	3	505
QJD-CB080A-00	8	500
QJD-CB080B-00	8	500

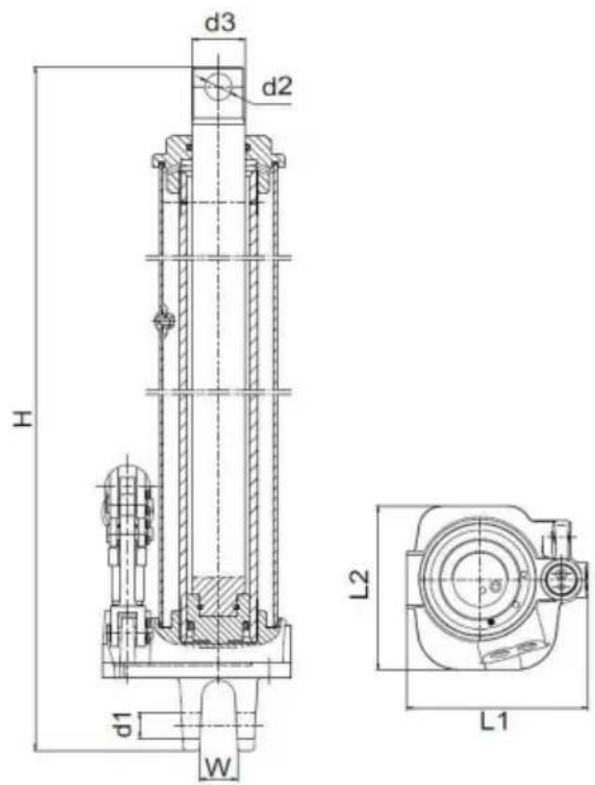

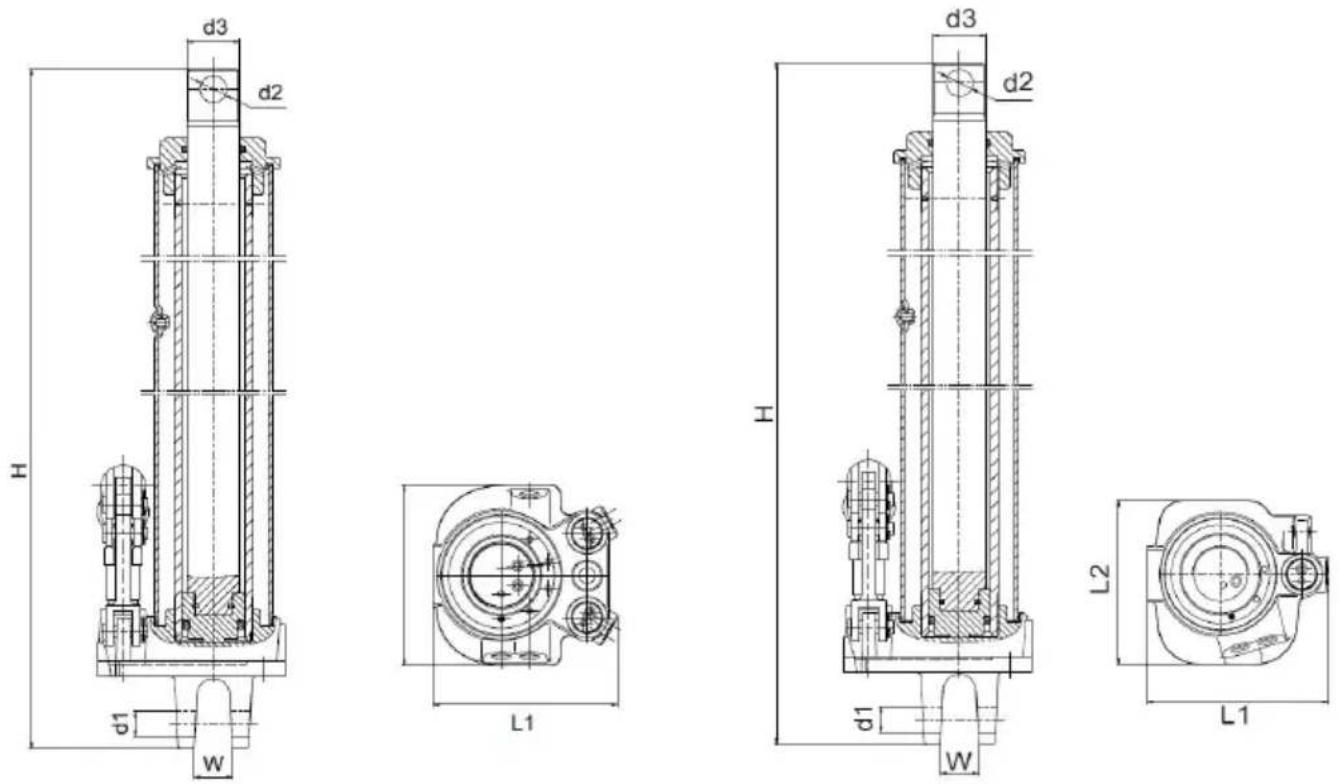

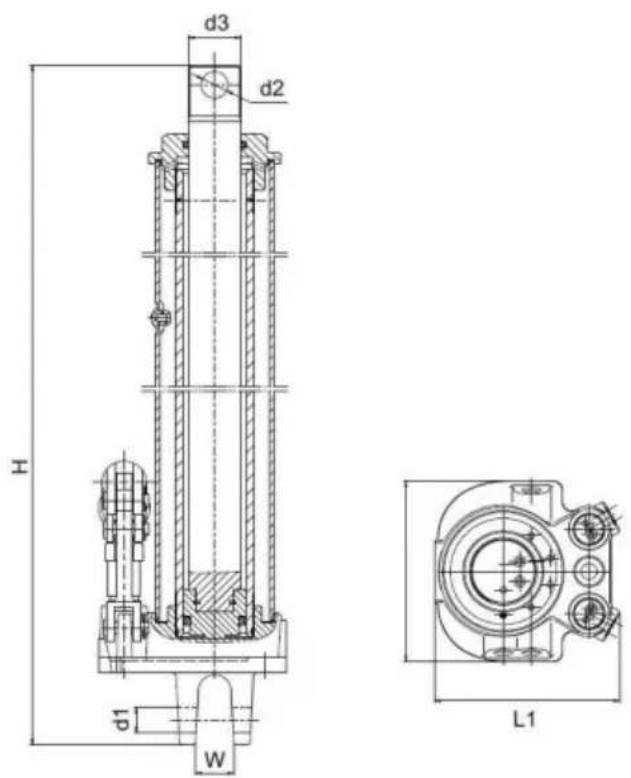

Dimensions

d3 d2 H L2 L1

Model: QJD-CB040B-00

Models: QJD-CB080B-00 Models: QJD-CB030A-00/QJD-CB080A-00

型号	H(mm)	D1(mm)	D2(mm)	D3(mm)	W(mm)	L1(mm)	L2(mm)
QJD-CB040B-00	612	/	φ16.5	φ28	/	117	104
QJD-CB030A-00	655	φ16.5	φ16.5	φ28	22	115	104
QJD-CB080A-00	660	φ16.5	φ16.5	φ30	22	117	109
QJD-CB080B-00	660	φ16.5	φ16.5	φ30	22	125	115

Plunger pump installation instructions

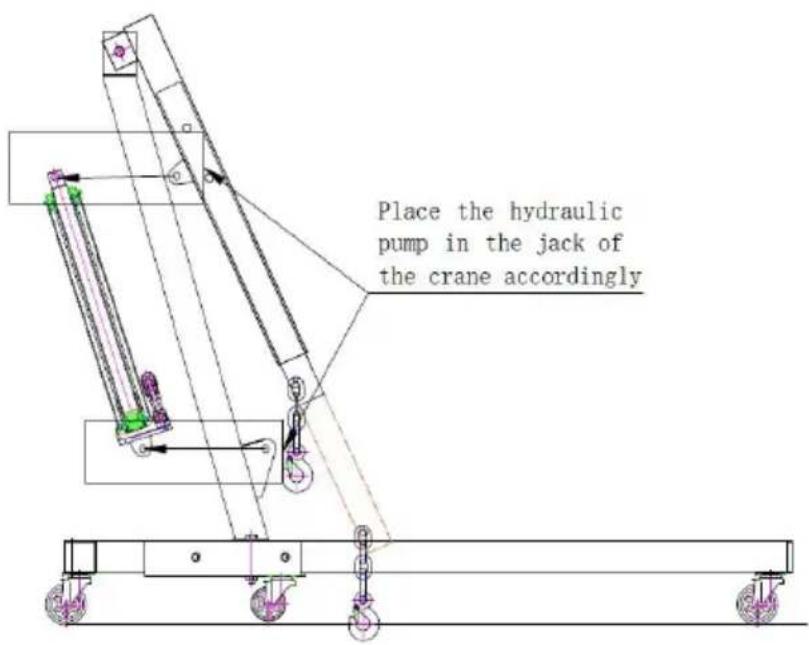

Place the hydraulic pump in the jack of the crane accordingly

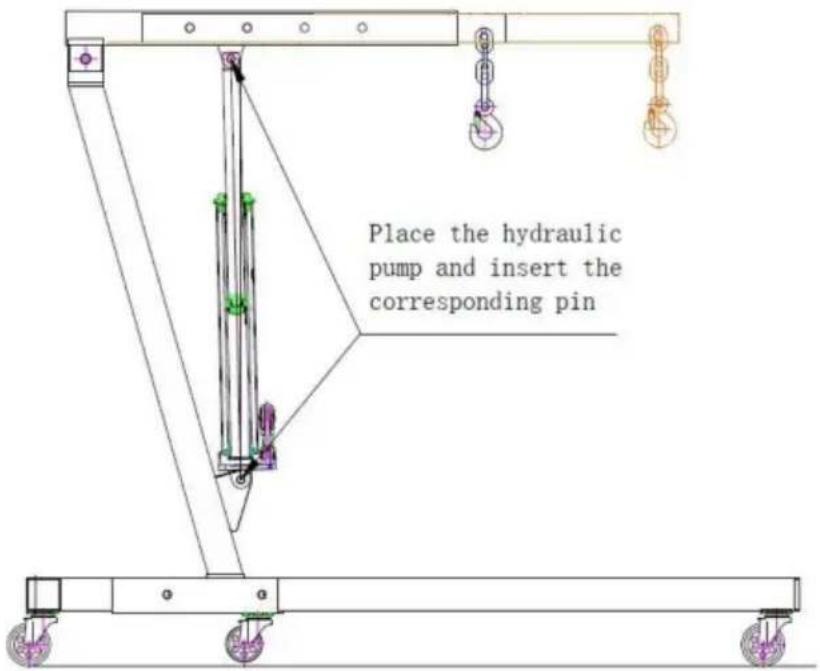

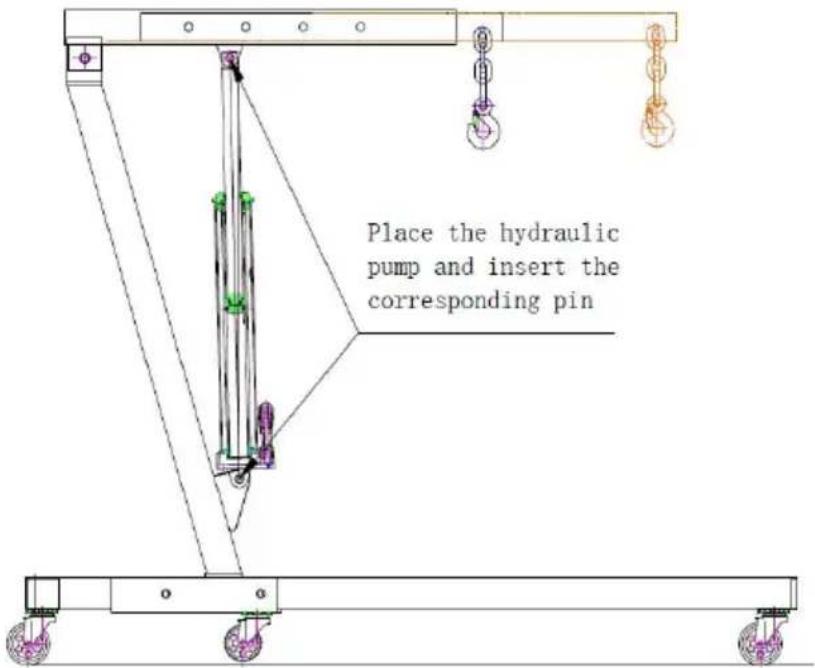

Place the hydraulic pump and insert the corresponding pin

TROUBLE SHOOTING

Symptom	Possible Causes	Corrective Action
Jack will no load	Release valve not tightly closed overload condition Air supply in adequate	Ensure release valve tightly clos Remedy overload condition Ensure adequate air supply
Jack bleeds off after lift	Release valve not tightly closed Overload condition Hydraulic unit malfunction	Ensure release valve tightly clos Remedy overload condition Contact seller
Jack will no lower after unloading	Reservoir overfilled Linkages binding	Drain fluid to proper level Clean and lubricate moving part
Poor lift performance	Fluid level low Air trapped in system	Ensure proper fluid level With ram fully retracted, remove filler plug to let pressurized air escape,reinstall oil filler plug
Will not lift full extension	Fluid level low	Ensure proper fluid level

VEVOR®

TOUGH TOOLS, HALF PRICE

Technical Support and E-Warranty Certificate www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

MODÈLE : QJD-CB040B-00/QJD-CB030A-00/QJD-CB080A-00/QJD-CB080B-00

Modèle : QJD-CB040B-00/QJD-CB030A-00/QJD-CB080A-00/QJD-CB08.0B-00

Technical line drawing of a cylindrical mechanical device with a separate vertical rod (no text or symbols)

Loosen the pressure relief valve

Échauffement:

Machine Translated by Google

32 # anti wear hydraulic oil

Changement d'huile

Pour out the oil Loosen the pressure relief valve

Lubrification

safety valve

Composition structurelle

Modèles : QJD-CB040B-00/QJD-CB030A-00/QJD-CB080A-00/QJD-CB080B-00

LISTE DES PIÈCES

Place the hydraulic pump in the jack of the crane accordingly

Place the hydraulic pump and insert the corresponding pin

DÉPANNAGE

MODELL: QJD-CB040B-00/QJD-CB030A-00/QJD-CB080A-00/QJD-CB080B-00

MODELL: QJD-CB040B-00/QJD-CB030A-00/QJD-CB080A-00/QJD-CB080B-00

Technical line drawing of a cylindrical mechanical device with a separate vertical rod (no text or symbols)

Loosen the pressure relief valve

Erwärmen:

32 # anti wear hydraulic oil

Ölwechsel

Pour out the oil Loosen the pressure relief valve

Schmierung

safety valve

Technical mechanical drawing with numbered components and sectional views, including cross-sectional and top views.

Modelle: QJD-CB040B-00/QJD-CB030A-00/QJD-CB080A-00/QJD-CB080B-00

TEILELISTE

Place the hydraulic pump in the jack of the crane accordingly

Place the hydraulic pump and insert the corresponding pin

FEHLERBEHEBUNG

MODELLO: QJD-CB040B-00/QJD-CB030A-00/QJD-CB080A-00/QJD-CB080B-00

MODELLO:QJD-CB040B-00/QJD-CB030A-00/QJD-CB080A-00/QJD-CB080B-00

Technical line drawing of a cylindrical mechanical device with a separate vertical rod (no text or symbols)

Loosen the pressure relief valve

Riscaldamento:

32 # anti wear hydraulic oil

Cambio dell'olio

Pour out the oil Loosen the pressure relief valve

Lubrificazione

safety valve

Technical mechanical drawing with numbered components and sectional views, including cross-sectional and top views.

Modelli: QJD-CB040B-00/QJD-CB030A-00/QJD-CB080A-00/QJD-CB080B-00

ELENCO DEI PEZZI

Place the hydraulic pump in the jack of the crane accordingly

Place the hydraulic pump and insert the corresponding pin

MODELO: QJD-CB040B-00/QJD-CB030A-00/QJD-CB080A-00/QJD-CB080B-00

MODELO:QJD-CB040B-00/QJD-CB030A-00/QJD-CB080A-00/QJD-CB080B-00

Technical line drawing of a cylindrical mechanical device with a separate vertical rod (no text or symbols)

Loosen the pressure relief valve

Calentamiento:

Machine Translated by Google

32 # anti wear hydraulic oil

Cambio de aceite

Pour out the oil Loosen the pressure relief valve

Lubricación

safety valve

Composición estructural

Modelos: QJD-CB040B-00/QJD-CB030A-00/QJD-CB080A-00/QJD-CB080B-00

LISTA DE PIEZAS

Place the hydraulic pump in the jack of the crane accordingly

Place the hydraulic pump and insert the corresponding pin

MODEL: QJD-CB040B-00/QJD-CB030A-00/QJD-CB080A-00/QJD-CB080B-00

MODEL: QJD-CB040B-00/QJD-CB030A-00/QJD-CB080A-00/QJD-CB080B-00

Technical line drawing of a cylindrical mechanical device with a separate vertical rod (no text or symbols)

POTRZEBUJESZ POMOCY? SKONTAKTUJ SIĘ Z NAMI!

Loosen the pressure relief valve

Ogrzewanie:

Machine Translated by Google

32 # anti wear hydraulic oil

Wymiana oleju

Pour out the oil Loosen the pressure relief valve

Smarowanie

safety valve

Skład strukturalny

Technical mechanical drawing with numbered components and sectional views, including cross-sectional and top views.

Modele: QJD-CB040B-00/QJD-CB030A-00/QJD-CB080A-00/QJD-CB080B-00

LISTA CZĘŚCI

Modele:QJD-CB080B-00

Modele:QJD-CB030A-00/QJD-CB080A-00

model	H(mm)	D1(mm)	D2(mm)	D3(mm)	W(mm)	L1(mm)	L2(mm)
QJD-CB040B-00	612	/	16,5 28	655	/	117	104
QJD-CB030A-00	16,5 16,5 28		660 16,5	16,5	22	115	104
QJD-CB080A-00	30 660 16,5 16,5 30				22	117	109
QJD-CB080B-00					22	125	115

Place the hydraulic pump in the jack of the crane accordingly

Place the hydraulic pump and insert the corresponding pin

ROZWIAZYWANIE PROBLEMÓW

MODEL: QJD-CB040B-00/QJD-CB030A-00/QJD-CB080A-00/QJD-CB080B-00

MODEL: QJD-CB040B-00/QJD-CB030A-00/QJD-CB080A-00/QJD-CB080B-00

Technical line drawing of a cylindrical mechanical device with a separate vertical rod (no text or symbols)

HULP NODIG? NEEM CONTACT MET ONS OP!

Loosen the pressure relief valve

Opwarming:

32 # anti wear hydraulic oil

Olie verversen

Pour out the oil Loosen the pressure relief valve

Smering

safety valve

Structurele samenstelling

Technical mechanical drawing with numbered components and sectional views, including cross-sectional and top views.

Modellen: QJD-CB040B-00/QJD-CB030A-00/QJD-CB080A-00/QJD-CB080B-00

ONDERDELENLIJST

ITEMNee.	OMSCHRIJVING HOEVEELHEID		ITEMNee.	BESCHRIJVING	Hoeveelheid
1	Kleplichaam	1	12	4mm stalen kogel	1
2	Conische schroef	2	13	Bovenste dop	1

Model: QJD-CB040B-00

d3 d2 H W L1

Modellen:QJD-CB080B-00

Place the hydraulic pump in the jack of the crane accordingly

Place the hydraulic pump and insert the corresponding pin

PROBLEMEN OPLOSSEN

MODELL: QJD-CB040B-00/QJD-CB030A-00/QJD-CB080A-00/QJD-CB080B-00

MODELL:QJD-CB040B-00/QJD-CB030A-00/QJD-CB080A-00/QJD-CB080B-00

Technical line drawing of a cylindrical mechanical device with a separate vertical rod (no text or symbols)

BEHÖVER HJÄLP? KONTAKTA OSS!

Loosen the pressure relief valve

Uppvärmning:

32 # anti wear hydraulic oil

Byte av olja

Pour out the oil Loosen the pressure relief valve

Smörjning

safety valve

Technical mechanical drawing with numbered components and sectional views, including cross-sectional and top views.

Modeller: QJD-CB040B-00/QJD-CB030A-00/QJD-CB080A-00/QJD-CB080B-00

DELLISTA

PUNKT Inga.	BESKRIVNING ANTAL		PUNKT Inga.	BESKRIVNING	ANTAL
1	Ventilhus	1	12	4 mm stålkula	1
2	Konisk skruv	2	13	Topplock	1

Place the hydraulic pump in the jack of the crane accordingly

Place the hydraulic pump and insert the corresponding pin

FELSÖKNING
