USER MANUAL D43-F Vevor

Affordable. Reliable. Home Improvement.

AUGER

MODEL:D43-F

D43-F

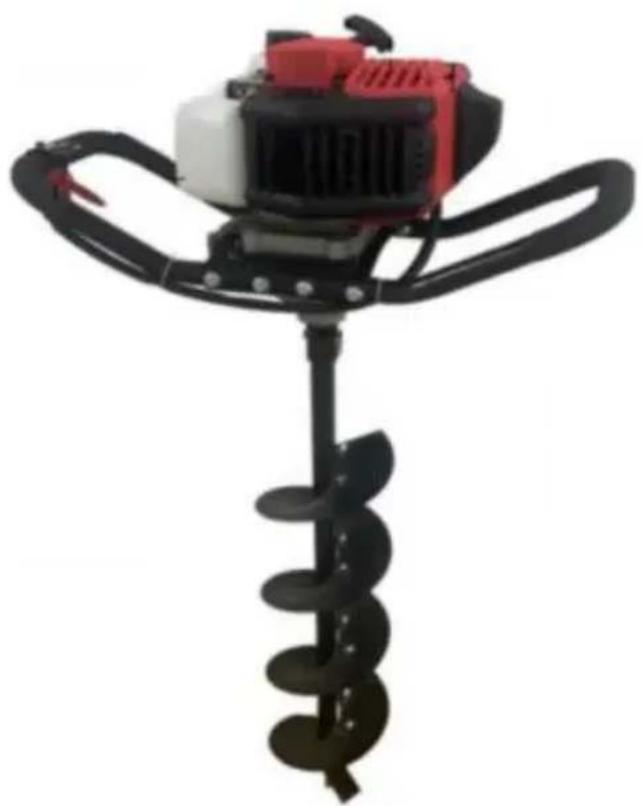

Black-and-white photo of a small electric drill bit with a coiled drill (no text or symbols visible)

This is the original instruction, please read all manual instructions carefully before operating. VEVOR reserves a clear interpretation of o user manual. The appearance of the product shall be subject to the product you received. Please forgive us that we won't inform you ag there are any technology or software updates on our product.

1. SAFETY INSTRUCTIONS

THIS MACHINE MAY CAUSE SERIOUS INJURIES. Read the instructions carefully for handling, preparing, maintaining, starting and stopping the machine. Learn more about all the controls and proper use of the machine.

• WARNING! When using this type of tool, basic precautions should always be followed to reduce the risk of fire, electric shock and injury.
• Read all instructions carefully before attempting to use this product and reta these instructions. Be familiar with all the operations described in these opera instructions. This product must be operated and operated by experienced user - If you are giving this machine to others, please also provide them with this instructions manual.

- Also read all markings on the product. The symbols on the tools are explain the manual.

- Use this machine as described in this instruction manual. It is strictly forbid use this tool for applications other than those described in this manual.

- Failure to follow these instructions can result in serious injuries and, in sor cases, death.

- This product is intended for private domestic use only. Do not use it for commercial purposes.

- Never let people unfamiliar with these instructions or children use this product. - National regulations may limit the use of the machine.

- People under the age of 18 must not use this product

- Keep in mind that the operator or user is responsible for accidents or risk persons or their property.

- Do not use the tool if you are drunk, tired, under the influence of drugs not use the tool if you are not in an adequate physical condition.

- This tool is intended for outdoor use. Never use it indoors.

- Never allow children to use the machine;

- Avoid running it while people, especially children, are around;

- Dress properly! Do not wear loose fitting-clothing or jewelry that can be ca moving parts. Using resistant gloves, non-slip shoes and safety glasses is recommended;

- Stop the engine or disconnect it before:

o cleaning or clearing a blockage;

o checking, maintaining, or working on the machine;

o when adjusting the working position of the cutting device.

- Handle fuel with care; it's highly flammable. Never add fuel to a machine running engine or when it's hot. Do not inhale fuel fumes as they are toxic;

- Do not attempt to repair the machine unless you are qualified to do so;

- Do not use the machine with a damaged or excessively worn cutting device

- To reduce the risk of fire, keep the engine and muffler free from debris, I excessive lubricant;

- Always make sure that all handles and guards are installed when operating machine. Never attempt to use an incomplete machine or a machine equipped with an unauthorized modification

- When transporting or storing the machine, always install the cutting device protection if provided;

- Always be aware of your environment and pay attention to possible danger cannot be heard due to the noise of the machine.

- Keep people and animals away from the work area. Children and people will not know how to use this tool should not touch it and handle it.

- Use the product only under daylight or under good artificial light.

- When using the machine, always wear full protective equipment including a helmet, protective mask, ear protection, gloves, non-slip footwear and protective clothing.

- Wear appropriate clothing. Do not wear loose or unbuttoned shirts. Do not jewelry that may come in contact with moving parts. If you have long hair, it down and wear an appropriate safety helmet.

- Do not operate the product with damaged guards or shields not in place.

- Keep hands and feet away from the unit at all times, especially when turr tool off and on.

- Do not use the tool in an area where ventilation is poor. Gas emissions of injury.

- Do not work when it rains and in bad weather. Do not use the tool in d locations.

- Do not use the tool in the presence of flammable liquids or gases.

- Caution: The machine releases gases when it is used. Avoid coming into contact

with these gases.

- Keep the work area clear. Before working, inspect the work area and remove materials or objects that could cause accidents.

- Do not force the tool.

- Keep the tool and drill clean for better and safer performance. Follow the instructions in this manual to lubricate and change the accessories.

- Always inspect the machine before and after operation. If the tool is damaged, faulty, stop using the tool and bring it to an authorized service for inspection repair.

- Turn off the tool after use, when you leave it unattended, when changing accessories and before servicing.

- Keep handles dry, clean and free from oil and grease.

- Be concentrated when using the tool. Look at what you do, make sense a not use the tool when you are tired.

- Place the equipment in a well-lit area on a flat, stable, dry and well-ventil surface, away from flammable materials and with plenty of space for sparking sharpening waste.

- Do not allow anyone, especially children, to come within a radius of at least meters around the work area when all work is in progress.

- Immediately stop the tool in the event of a malfunction of the motor or the ON/OFF button or in case of unusual noise.

- When not in use, the machine must be stored in a dry, locked place out reach of children.

- Before using the product and after any shock, please check it for signs of damage. Please carry out repairs if necessary.

- Always switch off the machine:

o every time you leave the device unattended;

o before releasing an obstruction;

o before checking, cleaning or working on the product;

o after hitting a foreign object;

o every time the product starts to vibrate abnormally.

- Pay attention to foot and cutting injuries.

- Inspect and regularly service the product. Repairs should be carried out only an authorized service center or a similar qualified specialist.

• When not in use, store the product out of the reach of children.
• Children should not play with plastic bags, sheets and small parts! Keep the of the reach of children. There is a danger of suffocation!
• Always carry the tool while holding the handle, never the drill.
• Do not use the product on a slippery surface.
• Do not use the product on steep, slippery slopes.
• If the machine has struck foreign objects, check if the tool is damaged an to repair if necessary.
• Keep away all body parts from the running machine
• Be careful when using the machine in stormy weather. Do not use the ma during lightning, thunderstorms and bad weather in general.

Fuel Handling

• Be very careful when handling fuels. They are flammable and the vapors explosive.
• Use only an approved container.

• Never remove the fuel cap or add fuel while the machine is on. Turn o and allow the engine and exhaust components to cool before refueling.

• Do not smoke.

• Never refuel inside a room
• Never store the tool and the fuel tray indoors where there is a naked fl as near a water heater.
• If fuel has spilled, do not attempt to start the machine, but rather move from the spill before starting to use it. Clean any spills.

- Replace and tighten the fuel tank cap after refueling.

- Follow the instructions in this manual for filling the tool with fuel.

During maintenance and storage

• Stop the tool and wait until it stops. Make sure all moving parts have c standstill.
• Allow the machine to cool before performing inspection, adjustments, maintenance, servicing and storage.

Residual risks

Even if you use this product in accordance with all safety requirements, the potential risks of injuries and damage remain. The following hazards might happen within the structure and design of this product:

- There are adverse health consequences due to the emission of vibrations if the product is used over long periods of time or not managed properly and maintained in a suitable way.- There are risks of injuries and property damage caused by the attachments or broken attachments or sudden impact of hidden objects when using the cutting function.- Risk of damage to persons and property caused by flying objects.- A prolonged use of this product exposes the operator to vibration and may determine the so-called "white finger" disease. To reduce the risk, please wear gloves and keep your hands warm.- If any of the symptoms of the "white finger" syndrome appear, consult doctor immediately. Symptoms of the "white finger" include: numbness, loss of sensitivity, tickling, tingling, pain, loss of strength, color changes or skin condition. These symptoms usually appear on fingers, hands or wrists. The risk is higher at low temperatures.- Risk of hearing loss if the machine is used for long periods of time without hearing protection.

Symbols

	Warning symbol
	Read the instruction manual
	Wear protective equipment: protective helmet, safety glasses, noise protection helmet
	Wear protective gloves
	Wear protective foot wear.
	CAUTION : Hot surface
	Don't smoke

2. YOUR PRODUCT

a.Description

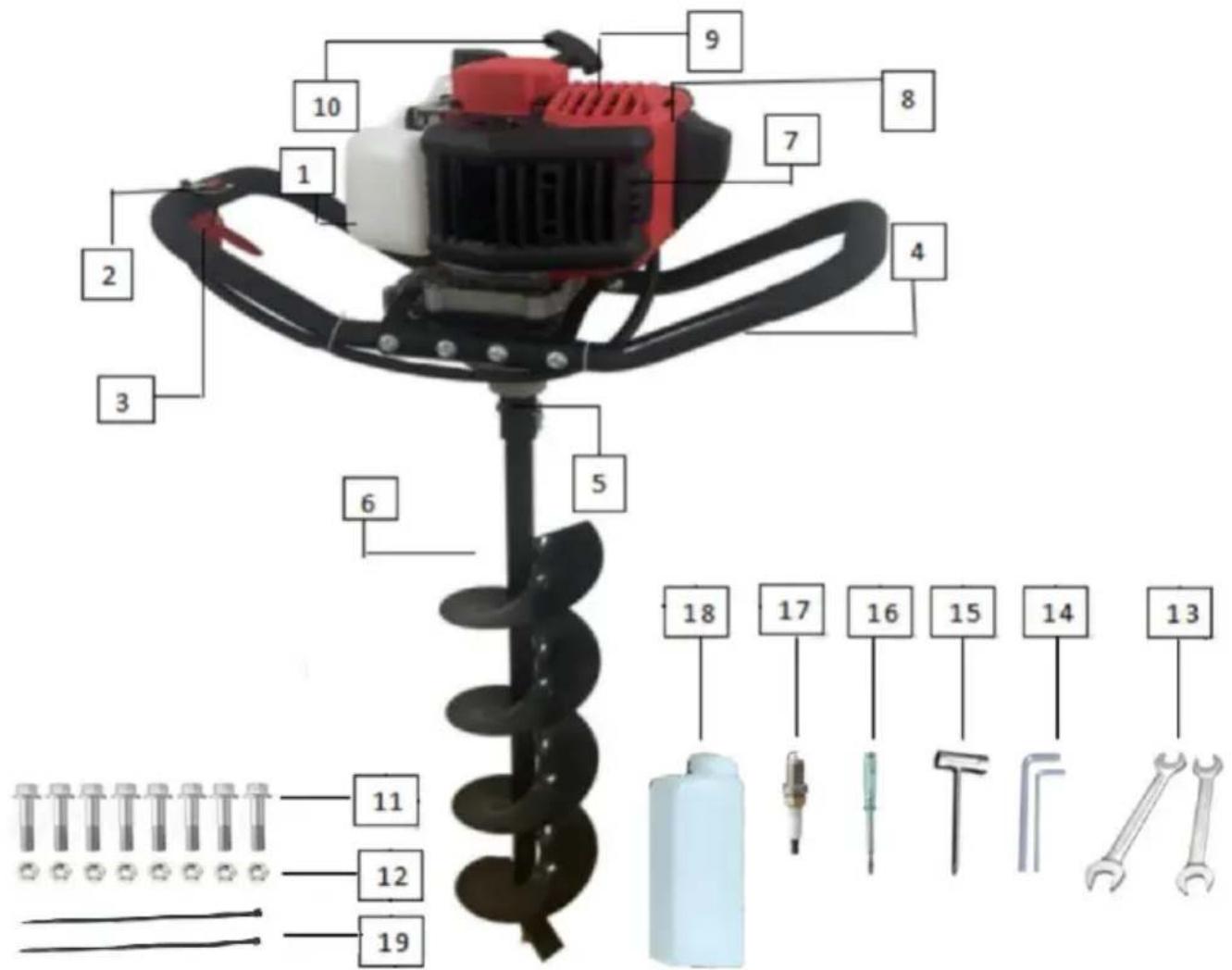

Labeled diagram of a mechanical power drill with numbered components for identification

1 – Fuel cap/tank	2 – ON/OFF Switch	3 - Throttle	4 - Handle
5 – Gear box	6 – Auger/Drill (200*800mm)	7 – Spark plug	8 – Air filter/ Carburetor
9 – Choke leve	10 – Recoil starter handle	11 – Screws(8pcs) Assembled on the machine	12 - Nuts (8pcs) Assembled on the machine
13 - Wrenches (5/8 13/15)	14 - Allen wrench	15 - Socket spanne	16 - Busca-polo
17 - Sparking plug	18 - Oilcan	19 - Nylon ties (2p

b. Technical data

Model	D43-F
Engine capacity	43cm^3
Maximum engine power	1.25kW 7500r/min
Maximum speed of the motor	9500r/min
Engaging speed	4200~4500r/min
Idle speed	3000r/min
Fuel tank volume	1.2L
Drilling specific diameter	200mm
Drilling speed at the maximum spee of the machine	240r/min
Fuel consumption at maximum engine power	≥700kg/h
Fuel oil ratio	40:1
Guaranteed sound power	111dB(A)
Sound pressure	Idling speed 68.4dB(A)K=3dB(A)
	In operation 93.8dB(A)K=3dB(A)
Sound power	Idling speed88.4 dB(A)K= 3dB(A)
	In operation113.8 dB(A)K= 3dB(A)
Vibration	Idling speed Main handle 5.948m/s^2 Auxiliary handle 6.812ms^2 K=1.5m/s2
	In operation Main handle 20.520ms^2 K=1.5m/s2Auxiliary handle 20.984ms^2 K=1.5m/s2

3. FILLING THE FUEL TANK

WARNING: When filling the tank:

• The drill should always be stopped and cooled.
• Never smoke during refueling. It must not have flames or sparks near the
• Do not attempt to refuel when the engine is hot.
• If fuel has been spilled, immediately stop refueling and do not start the er Clean up the spill and fill the machine in another location.
• Never fill the fuel tank to the flange; there is a risk of overflow.
• Do not refuel in a closed and unventilated area.

The fuel used for this tool is a mixture of unleaded gasoline and reg engine lubricant.

When mixing gasoline with oil, use only gasoline that does not contain ethanol or methanol. Unleaded gasoline is a quality gasoline type. This help to avoid damaging the fuel lines of the engine and other engine

The recommended mixing ratio is 40:1 (make sure the mixing ratio is correct before filling the product.

b) Mixing

• Prepare the mixture in a clean and empty container.
• Pour the oil into the container.
• Pour the fuel into the tank. Stir the mixture long enough (more than one minute) to get a proper blending.

c) Filling the fuel tank

• Unscrew the fuel tank cap and remove it.
• Fill the tank slowly with the mixture. Do not exceed the maximum capacity (fill to 80% of its capacity preferably).
• Replace the cap on the fuel tank and tighten it.
• Wipe any spillage around the unit if necessary.

Note: To avoid damage and accidents, DO NOT USE OTHER MIXTURES OTHER TYPES OF OIL / PETROL

d) Storage of fuel

The fuel must be kept in a clean and safe container and always clc

If you do not use the product for a long time, remove the fuel mixt add it to a container.

Do not leave the fuel for a long time in the product. The fuel may carburetor, and the engine will not operate properly.

e) Disposal of fuel

When the fuel is no longer used or worn, please dispose of it in an authorized location. Check local laws regarding the disposal of fuel.

4. ASSEMBLY

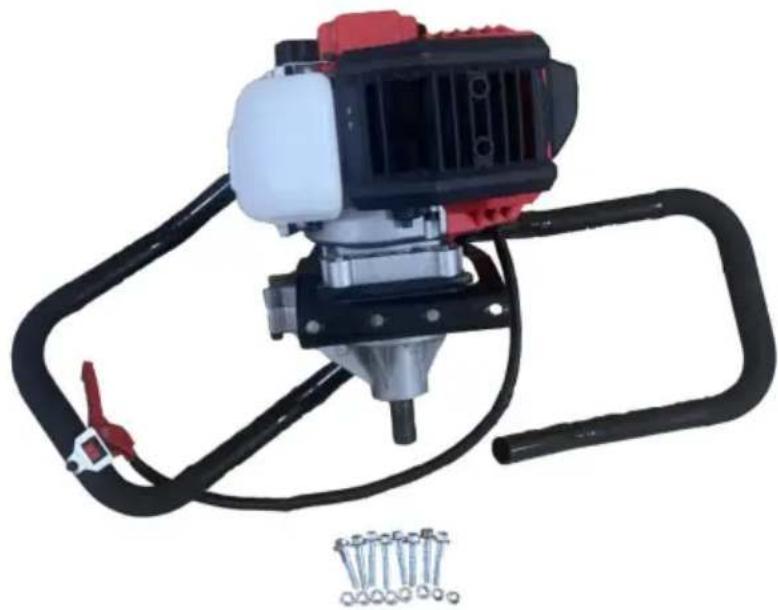

a. The first step is to prepare the 10# and 13# wrenches and remove the of screws(11) and nuts(12) from the machine.

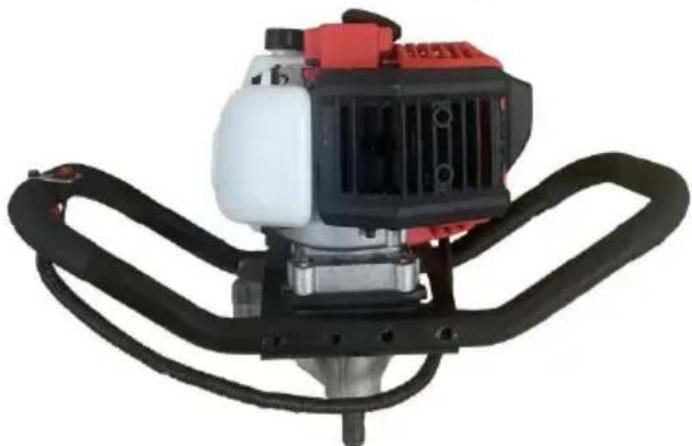

Industrial machine with red and black components, attached to a black handle with screws (no visible text or symbols)

b. Insert both handles into the handle fixing seat.

Industrial machine with black handle and red top, no visible text or symbols

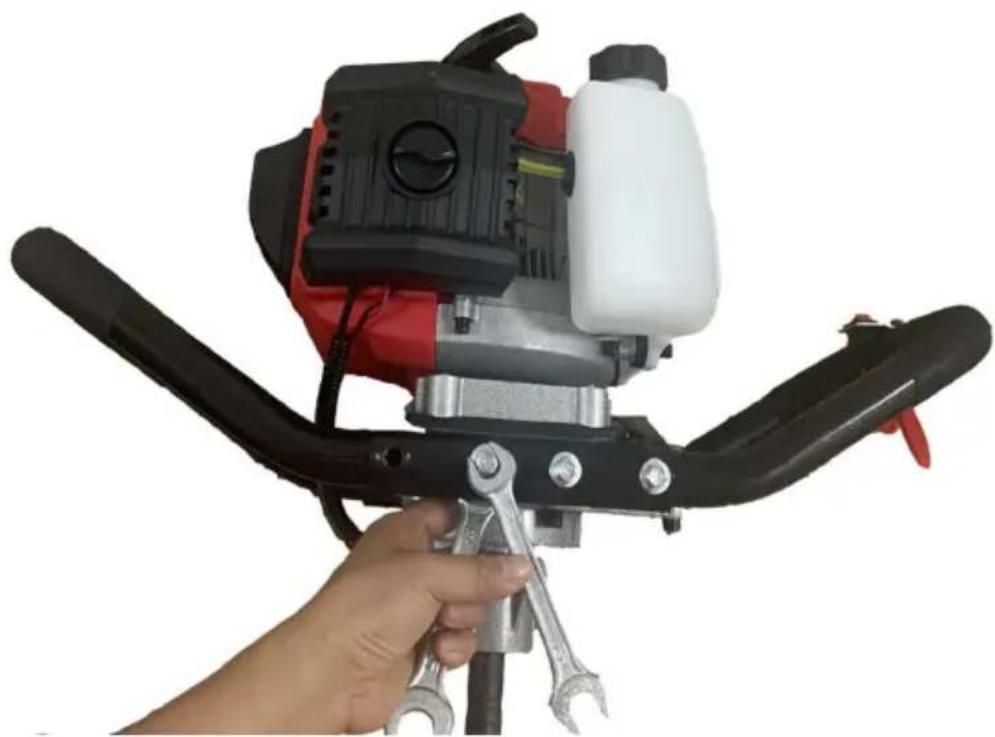

c. Use the 13# helper to secure the nut and the 10# helper to turn the sc

clockwise.

Hand holding a manual tool with a red and black brush, no visible text or symbols

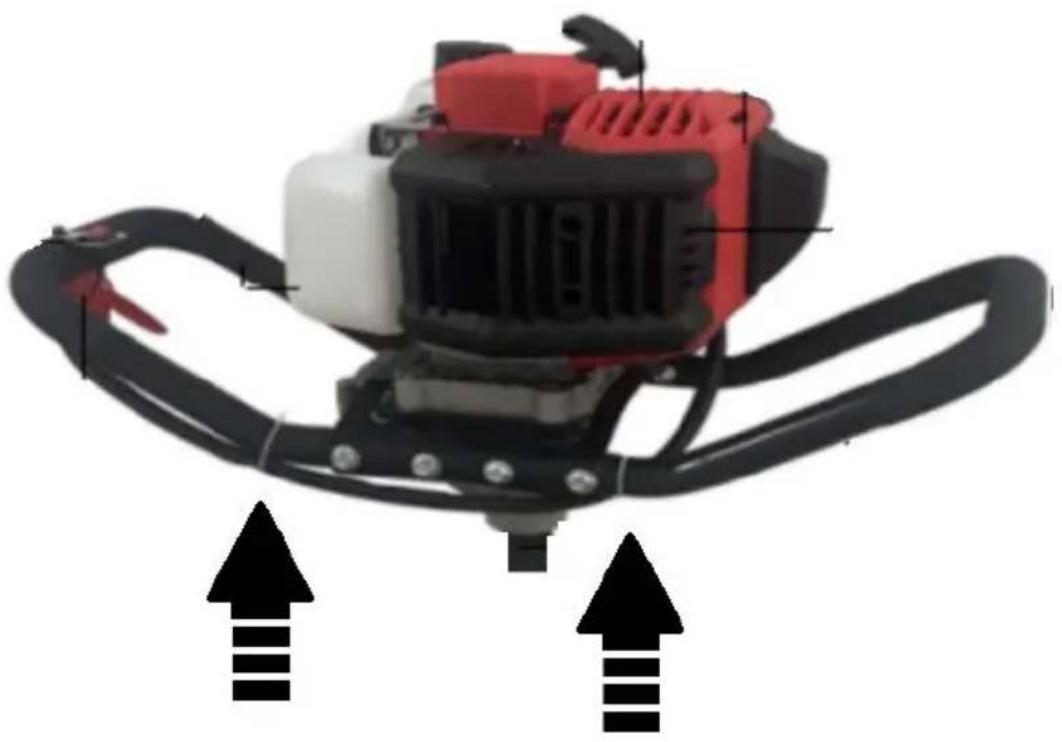

d. Secure the wire and handle with 19# Nylon ties (2pcs).

Close-up of a red and black robotic device with curved arms, showing mechanical components and two upward-pointing arrows (no text or symbols)

5. USE

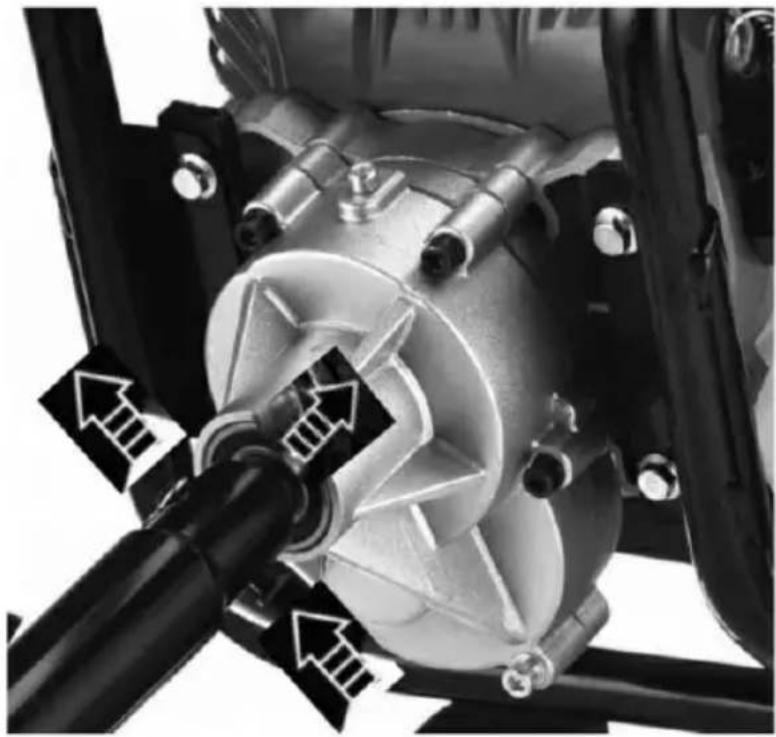

a. Drill rod assembly

- Place the machine body on a flat and stable location

- - Remove the clip and pin on the drill rod

- - Install the rod and align the holes to be able to connect the tv

- - Put the pin back in place by clipping

- - Release the clipping and remove the pin

Close-up of a mechanical pump assembly with directional arrows indicating flow or movement (no text or symbols visible)

b. Before use

- Check the condition of the machine to ensure that there is no damage or malfunction. In case of problems, do not use the machine and inspect it.

- Check that the drill rod is properly assembled.

- Check the fuel volume. Always refuel before operating the machine. Never the machine with little or no fuel.

- Check the workspace; remove all obstacles, materials and objects that could pose a danger and cause an accident.

- Secure the workspace by placing markings to alert spectators of existing potential risks.

c. Use

- Hold the drill vertically. Place the rod against the ground.

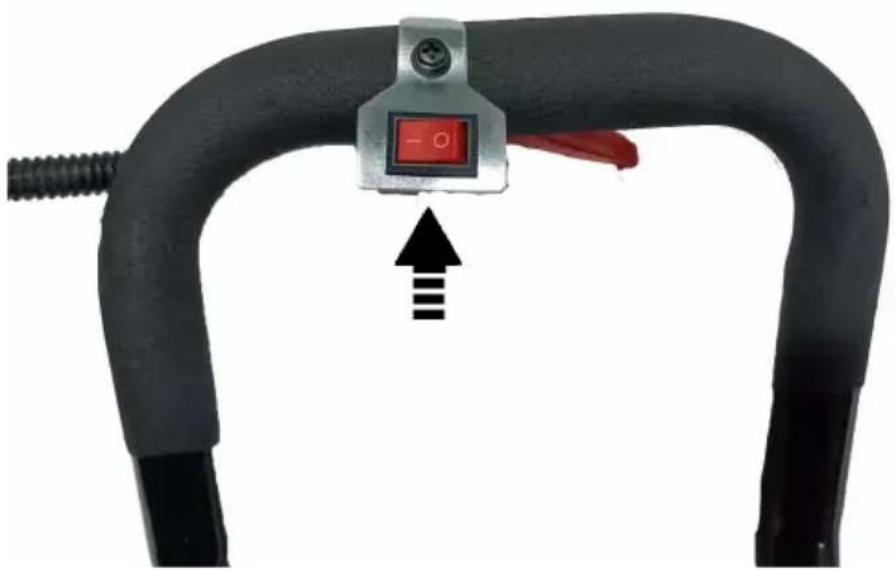

- Switch on the machine by turning the switch to ON.

Close-up of a black rubber roller with a red control switch and black arrow indicating downward motion (no text or symbols)

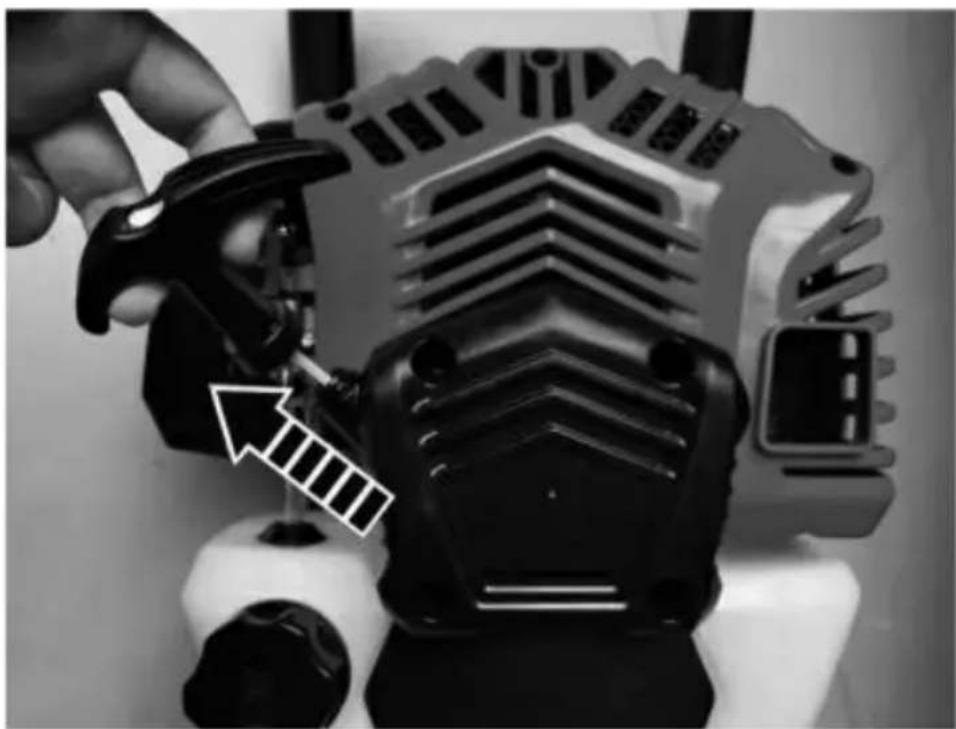

- Pull the launcher cable to start the machine.

Close-up of a robotic device with a hand adjusting its body panel, showing internal components and a white arrow pointing to a specific part (no text or symbols visible)

• Hold the drill by grasping the holding handle and main handle

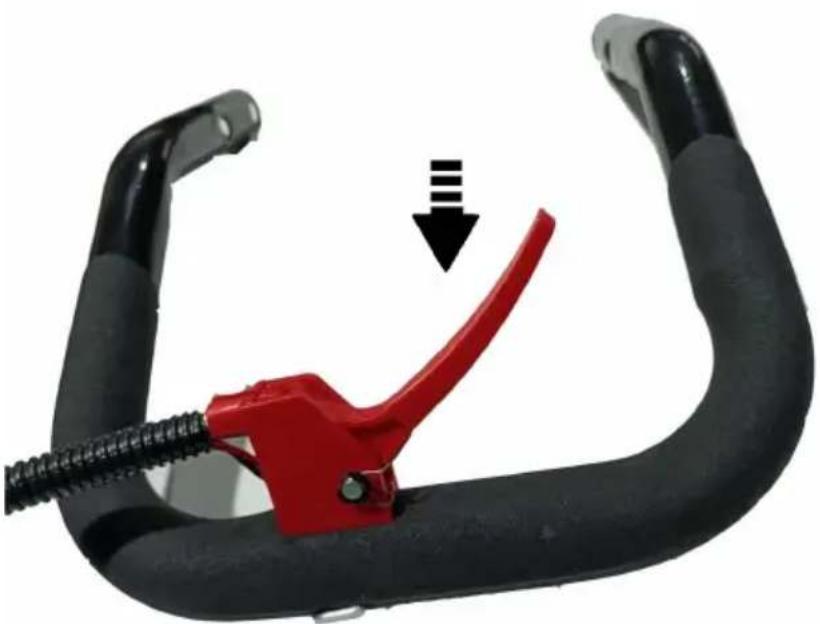

• Gradually increase the speed by pressing and holding the safety switch and pulling the acceleration trigger. Exert some downward force.

Close-up of a black and red flexible hose with a red clip, showing a downward arrow indicating compression or disassembly (no text or symbols present)

• When the drill rod has penetrated 10 cm into the ground, grasp the frame and increase the effort downwards.
• To drill a deep hole, lower the rod gradually.
• When you have dug the required size, decrease the drilling speed.
• Remove the rod, then stop the machine.
• You can start drilling another hole.
• To stop the machine, release the trigger and turn the switch to OFF. Let machine stop completely before placing it on the ground.

d. Precautions during the operation

• Spectators (especially children and animals) should remain at least 5 meters away from the workspace. Stop anyone from entering the workspace during the operation.
• When a person comes close, stop the machine to avoid possible injury.
• Pay attention to your work and the environment where you work. Stop the operation immediately when something unexpected happens.
• Avoid working on slopes. If you absolutely have to work on a slope, pay attention to avoid accidents and injuries.
• Stop the machine when you take a break, change the workplace and leave machine unattended.
• Never touch the drill rod while operating the machine. Any intervention on machine should be done with the machine switched off and cooled.
• During the operation, move all parts of the body away from the rod.

- Wait until the machine has stopped completely before placing it on the gro

e. Jamming and breakdowns

- When the drill gets stuck, release the accelerator to slow down the machir have to release the accelerator and turn it back to idle to loosen it.

- In case of failure, stop the machine completely. Check the machine and has inspected and repaired by a qualified service technician.

6. Spark plug

For effective saw working keep the spark plug clean and free of carbon dep The distance between the electrodes must be correctly adjusted.

1. Make sure that the saw is off.
2. Clean the surface near the spark plug.
3. Disconnect the high voltage cable from spark plug 1 (Fig. 26).
4. Unscrew the spark plug 2 using the special spark plug wrench. DO NOT ANY OTHER TOOL. The electrodes of the spark plug should be light brown.
5. Replace the spark plug if the ceramic insulator is chipped or if the electr burnt or soiled.

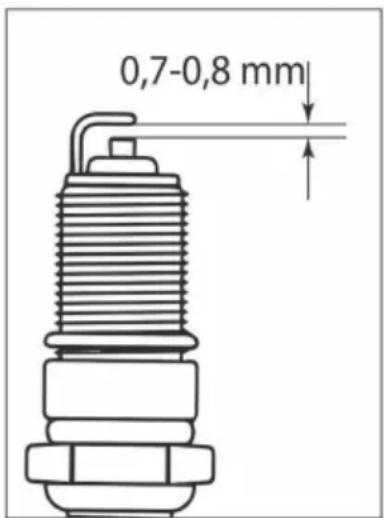

6. Clean the electrodes to metal with fine sandpaper, check and adjust the g
7. Check the gap between the ground electrode and the center electrode, us special probe. If necessary set the gap to 0.7-0.8 mm (Fig. 27).
8. Install the spark plug into the engine and tighten securely. Insufficient tight of the spark plug can cause it to overheat and damage the engine.
9. Connect it to the high-voltage wire.

0,7-0,8 mm

7. MAINTENANCE AND STORAGE

A. Maintenance

Service your tool regularly. This shall keep your tool in good working condition and extend its service life.

Do not use abrasive and corrosive agents to clean the tool. These types of products damage your tool.

Do not repair it yourself. Repairs and inspections should be performed qualified person or an authorized service center (please contact your dealer).

a. After each use

Check the rod and tool body (cleanliness, wear, damage, etc.). If you notice damage, wear or malfunction, do not use the tool and submit qualified service for inspection and repair.

b. Maintenance schedule

The maintenance work described below may be performed by the open. You can also request a qualified technician to perform this maintenance work.

		After each use	1st month or 20 hours	Every season or 50 hours	6 months or 100 hours	12 months or 300 hours
Engine oil	Checking the oil level	√
	Change		√		√
Air filter	Checking	√
	Cleaning change			√
Spark plug	Cleaning or readjusting				√
	Change				√

B. Storage

• Cleaning the machine
• Store the machine in a dry and safe place. It should be out of the reach children. Place the machine in its packaging to avoid contact with the drill ro
• When storing for long periods of time, empty the fuel tank completely.

VEVOR

Affordable. Reliable. Home Improvement.

ŚWIDER

MODEL: D 43-F

D 43-F

Black and red industrial power tool with spiral drill bit (no text or symbols visible)

Labeled diagram of a mechanical power drill with numbered parts for identification

Industrial machine with black handle and red handle, no visible text or symbols

Close-up of a small manual push-button electric motor with black and red buttons, no visible text or symbols.

Hand holding a manual tool with a red and black brush sprayer, no visible text or symbols

Black and white robotic device with red and black components, showing a curved arm and two upward-pointing arrows (no text or symbols)

5. UŻYTKOWANIE

Close-up of a mechanical pump assembly with directional arrows indicating flow or movement (no text or symbols visible)

b. Przed używać

Close-up of a black U-shaped mechanical component with a red control switch and black arrow indicator (no text or symbols)

Close-up of a robotic device with a hand adjusting its body panel, showing internal components and a white arrow pointing to a specific part (no text or symbols visible)

Close-up of a black and red flexible object with a red handle, showing a downward arrow and three vertical lines (no text or symbols)

Affordable. Reliable. Home Improvement.

SCHNECKE

MODELL: D 43-F

D 43-F

Black and red industrial power tool with spiral drill bit (no text or symbols visible)

Labeled diagram of a mechanical power drill with numbered components for identification

Industrial machine with black and red components, attached to a black handle (no visible text or symbols)

Close-up of a small manual push-button electric motor with black and red buttons, no visible text or symbols.

Hand holding a manual tool with a red and black brush sprayer, no visible text or symbols

Black and white robotic device with red and black components, no visible text or symbols

5. VERWENDUNG

Close-up of a mechanical pump assembly with directional arrows indicating flow or movement (no text or symbols visible)

b. Vorher verwenden

Close-up of a black U-shaped mechanical component with a red control switch and black arrow indicator (no text or symbols)

Close-up of a robotic device with a hand adjusting its body panel, showing internal components and a white arrow pointing to a specific part (no text or symbols visible)

Close-up of a black and red flexible object with a red handle, showing a downward arrow and three vertical lines (no text or symbols)

Affordable. Reliable. Home Improvement.

TARIÈRE

MODÈLE : D 43-F

D 43-F

Black and red industrial power tool with spiral drill bit (no text or symbols visible)

Labeled diagram of a mechanical power drill with numbered components for identification

Industrial machine with red and black components, no visible text or symbols

Close-up of a small manual push-button electric motor with black and red buttons, no visible text or symbols.

Hand holding a manual tool with a red and black brush sprayer, no visible text or symbols

Black and white robotic device with red and black components, no visible text or symbols

5. UTILISATION

a. Ensemble de tiges de forage

Close-up of a mechanical pump assembly with directional arrows indicating flow or movement (no text or symbols visible)

b. Avant utiliser

Close-up of a black U-shaped mechanical component with a red control switch and black threaded end, showing an upward arrow and three vertical stripes (no text or symbols)

Close-up of a robotic device with a hand adjusting its gear mechanism, showing internal components and a white arrow pointing to it (no text or symbols visible)

Close-up of a black and red flexible object with a red handle, showing a downward arrow and three vertical lines (no text or symbols)

Affordable. Reliable. Home Improvement.

BOOR

MODEL: D 43-F

D 43-F

Black and red industrial power tool with spiral drill bit (no text or symbols visible)

Labeled diagram of a mechanical power drill with numbered components for identification

1 – Brandstof dop/tank	2 – AAN/UIT Schakelaar	3 - Gashendel	4 - Handvat
5 – Versnellingsbak	6 – Grondboor/boor (200*800mm)	7 – Bougie	8 – Lucht filter/ Carburator
9 – Chokehendel	10 – Terugslagstarter hendel	11 – S -bemanningen (8 stuks)Gemonteerd op de machine	12 - Noten (8 stuks )Gemonteerd op de machine
13 - Sleutels (5/8 13/15)	14 - Inbussleutel	1 5 - dopsleutel	1 6 - Busca -pol
17 - S parkeerplug	18 - Oliekan	1 9 - Nylon stropdassen (2 stuks)

Industrial machine with black handle and red handle, no visible text or symbols

Close-up of a small manual push-button electric motor with black and red buttons, no visible text or symbols.

Hand holding a manual tool with a red and black brush sprayer, no visible text or symbols

Black and white robotic device with red and black components, showing a curved arm and two upward-pointing arrows (no text or symbols)

5. GEBRUIK

a. Boorstangmontage

Close-up of a mechanical pump assembly with directional arrows indicating flow or movement (no text or symbols visible)

b. Voor gebruik

Close-up of a black U-shaped mechanical component with a red control switch and black threaded end, showing a downward arrow and three vertical stripes (no text or symbols)

Close-up of a robotic device with a hand adjusting its body panel, showing internal components and a white arrow pointing to a specific part (no text or symbols visible)

Close-up of a black and red flexible object with a red handle, showing a downward arrow and three vertical lines (no text or symbols)

Affordable. Reliable. Home Improvement.

BORR

MODELL: D 43-F

D 43-F

Black and red industrial power tool with spiral drill bit (no text or symbols visible)

Exploded view diagram of a mechanical device with numbered parts for identification and assembly reference.

Industrial machine with black handle and red valve, no visible text or symbols

Industrial machine with black handle and red top, no visible text or symbols

Hand holding a wrench and a red-and-white manual tool on a tripod (no text or symbols visible)

Drone with red and white components connected by black loops, with two upward-pointing arrows below (no text or symbols)

5. ANVÄNDNING

a. Borrstångsenhet

Close-up of a mechanical pump assembly with directional arrows indicating flow or movement (no text or symbols visible)

b. Före använda

Close-up of a black U-shaped mechanical component with a red control switch and black threaded end, showing a downward arrow and three vertical stripes (no text or symbols)

Close-up of a robotic device with a hand adjusting its body panel, showing internal components and a white arrow pointing to a specific part (no text or symbols visible)

Close-up of a black and red flexible object with a red handle, showing a downward arrow and three vertical lines (no text or symbols)

Affordable. Reliable. Home Improvement.

BARRENA

MODELO: D 43-F

D 43-F

Black and red industrial power tool with spiral drill bit (no text or symbols visible)

Labeled diagram of a mechanical power drill with numbered parts for identification

Industrial machine with black handle and red handle, no visible text or symbols

Close-up of a small manual push-button electric motor with black and red buttons, no visible text or symbols.

Hand holding a manual tool with a red and black brush sprayer, no visible text or symbols

Black and white robotic device with red and black components, showing a curved arm and two upward-pointing arrows (no text or symbols)

5. USO

Close-up of a mechanical pump assembly with directional arrows indicating flow or movement (no text or symbols visible)

b. Antes usar

Close-up of a black U-shaped mechanical component with a red control switch and black threaded end, showing a downward arrow and three vertical stripes (no text or symbols)

Close-up of a robotic device with a hand adjusting its gear and a white arrow pointing to it, no visible text or symbols.

Close-up of a black and red flexible object with a red handle, showing a downward arrow and three vertical lines (no text or symbols)
