USER MANUAL K1E01027-E Vevor

Technical Support and E-Warranty Certificate www.vevor.com/support

DOG GROOMING TUB

MODEL: K1E01027-U/K1E01027-E/K1E01027-A K1E01028-U/K1E01028-E/K1E01028-A

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represent of savings you might benefit from buying certain tools with us compared top brands and does not necessarily mean to cover all categories of tools offered are kindly reminded to verify carefully when you are placing an order with us actually saving half in comparison with the top major brands.

VEVOR®

TOUGH TOOLS, HALF PRICE

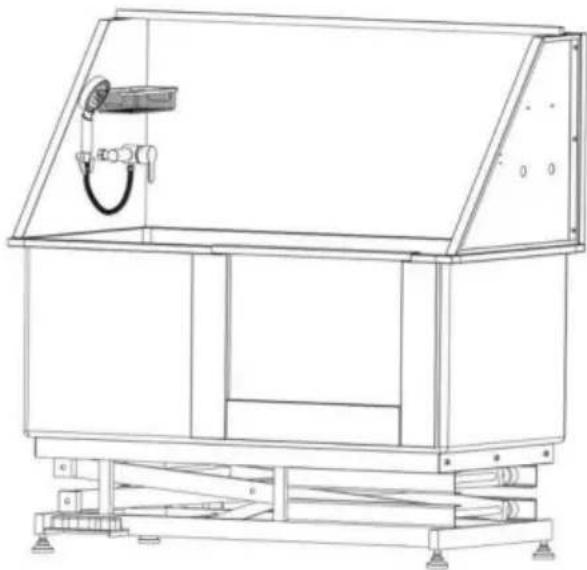

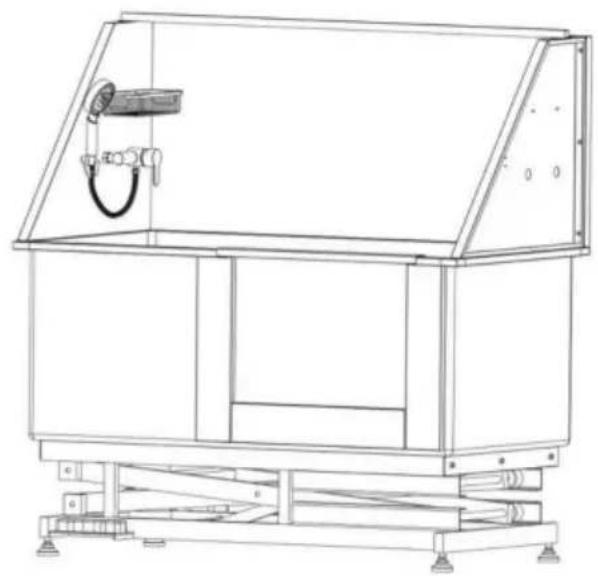

DOG GROOMING TUB

MODEL: K1E01027-U/K1E01027-E/K1E01027-A

K1E01028-U/K1E01028-E/K1E01028-A

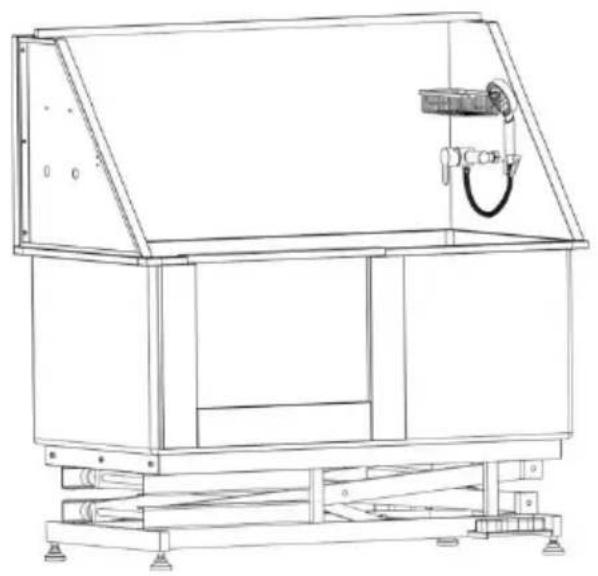

Technical line drawing of a mechanical device with no visible text or symbols

Technical line drawing of a mechanical device with no visible text or symbols

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel fr contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instruction carefully before operating. VEVOR reserves a clear interpretation user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform you there are any technology or software updates on our product.

WARNING: Read and understand this entire manual before operating or servicing this product. Failure to follow these warnings and instructions can cause personal injury or damage to valuable property.

• Avoid children using grooming tub. And this product is not a toy. allow children to play.
• Keep away from sharp points, blades and other items.

• Assembly precautions

• Assemble only according to these instructions. Improper assembly c create hazards.

• Wear ANSI-approved safety goggles and heavy-duty work gloves du assembly.
• Keep assembly area clean and well-lit.
• Keep bystanders out of the area during assembly.
• Do not assemble when tired or when under the influence of alcohol drugs or medication.
• Product capabilities apply to properly and completely assembled pro only.
• For additional information regarding the parts listed in the following pages, please refer to the Assembly Diagram of this manual. Unwrap separate all parts in a clean work area. Please keep small spare pa of children's reach.

	This device complies with Part 15 of the FCC Rules. is subject to the following two conditions:(1)This device not cause harmful interference, and (2)this device must any interference received, including interference that m cause undesired operation.
	This product is subject to the provision of European D 2012/19/EC. The symbol showing a wheelie bin cros through indicates that the product requires separate re collection in the European Union. This applies to the and all accessories marked with this symbol. Productsas such may not be discarded with normal domestic w must be taken to a collection point for recycling electr electronic devices

SAVE THESE INSTRUCTIONS

PREPARATIONS BEFORE INSTALLATION

1. Recommended Tools:

Phillips screwdriver, M4 wrench, Spirit level,

1. Necessary safety equipment:

Gloves, goggles.

Caution: Before installing the product, wear gloves and goggles to avoid possible physical damage during installation.

INSTRUCTIONS

Thank you very much for choosing this pet bathtub. Please read all instructions before using it. The information will help you achieve the possible results.

Parts List

A*1	B*1	C*1	D*1
Bottom bracket	Tub	Right side pane	Left side panel
E*1	F*1	G*1	H*1
Door	Water filter plate	Back panel	Faucet switch
J*1	K*1	L*1	M*1 (600mm)
Storage basket	Shower head	Shower hose	Inlet pipe
N*1	P*4 (M4*15mm)	Qx4	R*2
Strainer	Screw	Hex flange nut	Nut
S*1	T*1	U*4	V*2
Shower bracket	Comb	Adjustable foot	Sling
W*2	Y*20 (M6*15mm)	Z*6 (M12*30mm)	AA*1
Play ball	Screw	Screw	Gloves
AC*2	AB*1		AD*2
Washer	Crossbar		Nut
AE*1	AF*2	AG*1
Sealing tape	Handle	Wrench

Installation Steps

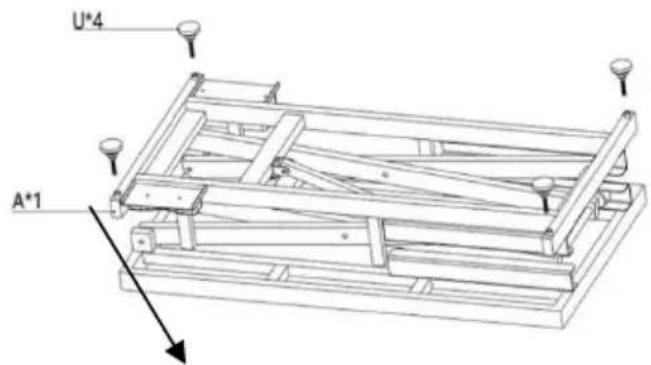

U*4 A*1

Technical line drawing of a mechanical component with a circular knob and mounting bracket (no text or symbols)

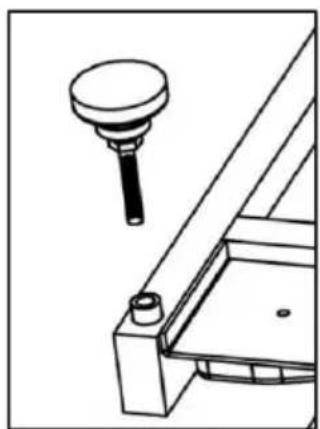

① Install the adjustable feet(U) to the H rack(A).

Caution: Ensure that the depth adjustable feet is not less than 12mm, and try to make the adjustable feet screw in the same depth. Please tighten the spare nut during the installation and adjust it later.

1" 6000 4000 ①

Technical line drawing of a mechanical support structure with no visible text or symbols

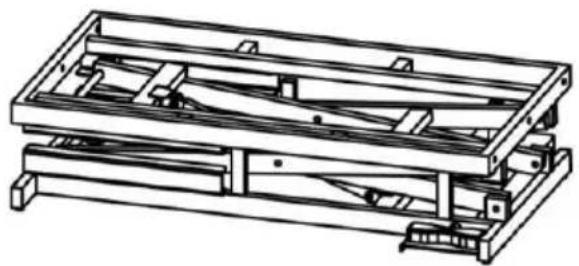

2Flip the bottom bracket, adjust the height of the feet to make height of water outlet side is 1-2 degrees lower than the other spirit level to show)

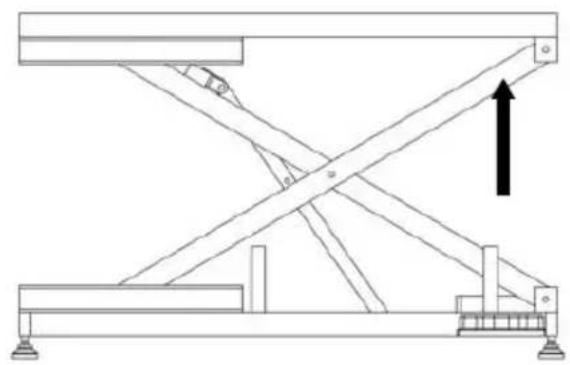

	3Plug in and than press the button of the pedal, and raise stand to a height of 450-500m

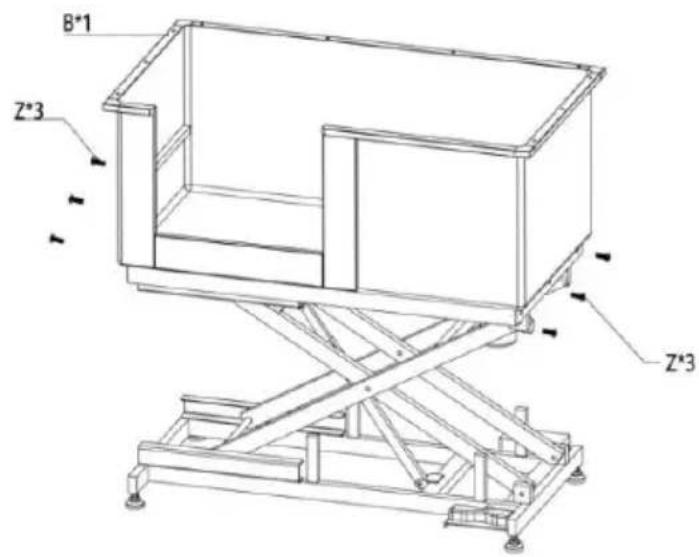

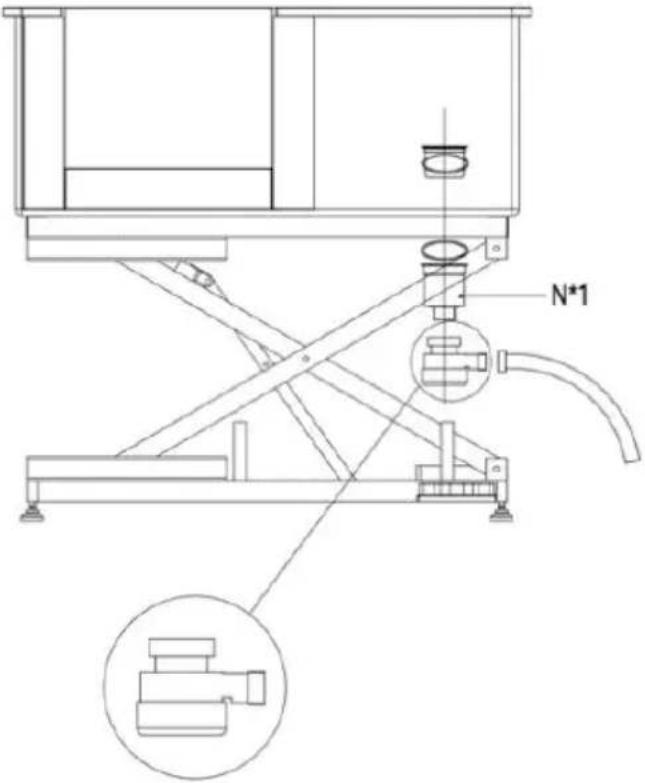

	4 Flip the bottom bracket(Z) and use screw(Z) to fix the bottom bracket and tub(B)5 Install the strainer(N),Make sure the drainpipe is facing outwards so that they are not compressed during lowering of the bottom bracCaution:Ensure that the depth adjustable feet is not less than 12mm, and try to make the adjustable feet screw in the same depth. Please tighten the spare nut during the installation and adjust it later.

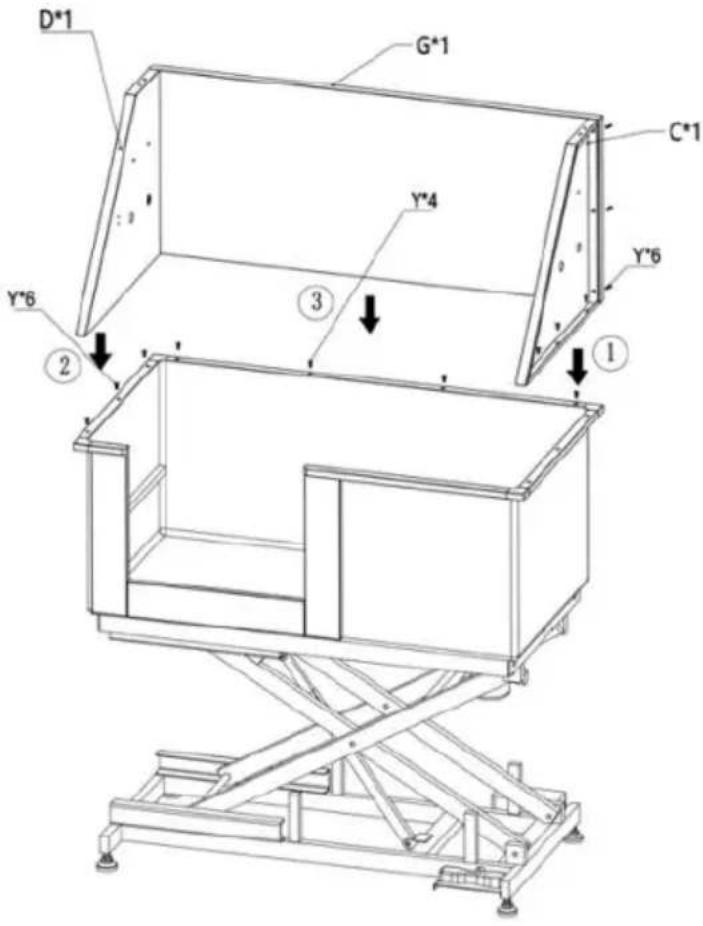

	6 Use screw(Y) to fix the le and right side board(D & C), use screw(Y) to fix the back panel(G), last to use screw(Y) fix side board and back board

Y2 AB*1 Y2 x2

Diagram showing a grid-patterned panel with an arrow pointing to its top edge and a magnified inset of a mechanical assembly with three bolts (no text or symbols)

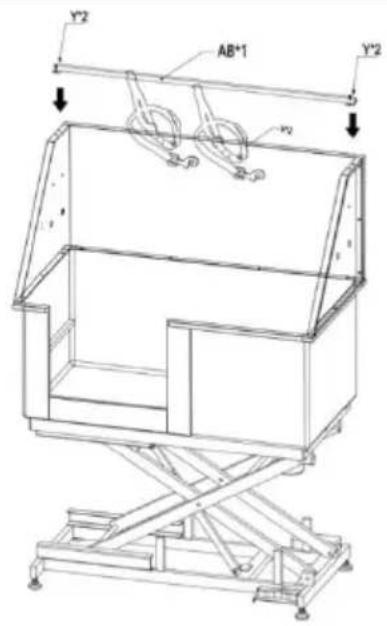

⑦ Use screw(Y) to fix the crossbar (AB) to the left and side panel, then install the sli

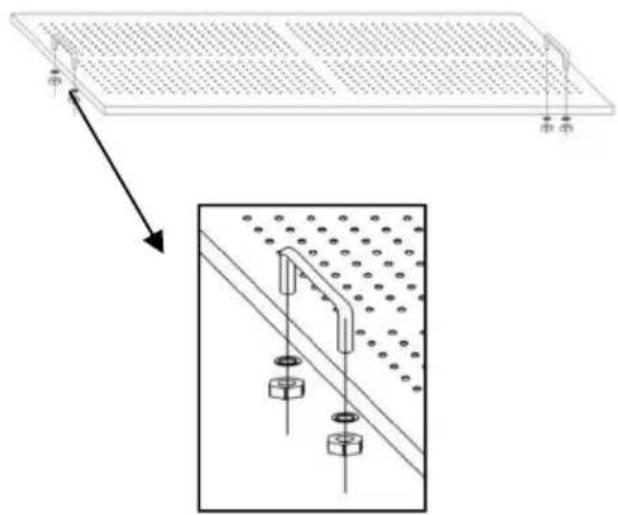

⑧ Install the handle to the filter plate

E*1 F*1

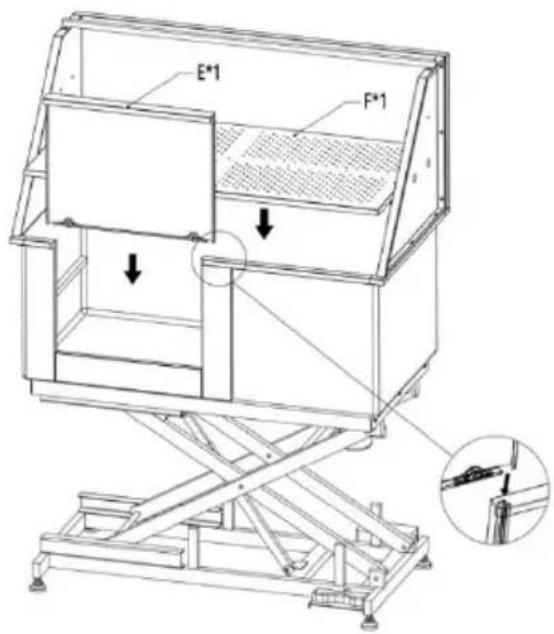

⑨ Install door(E) and water plate (F)

P*2 J*1 P*2 Q*4 0 g g g

⑩ Use screw(P) and hex flat nut(Q) to install the storage basket(J) and shower bracket(S) to the right side panel(C)

AG*1 R*2 H*1 AC*2 C H L*1 AD*2 M*2 K*1

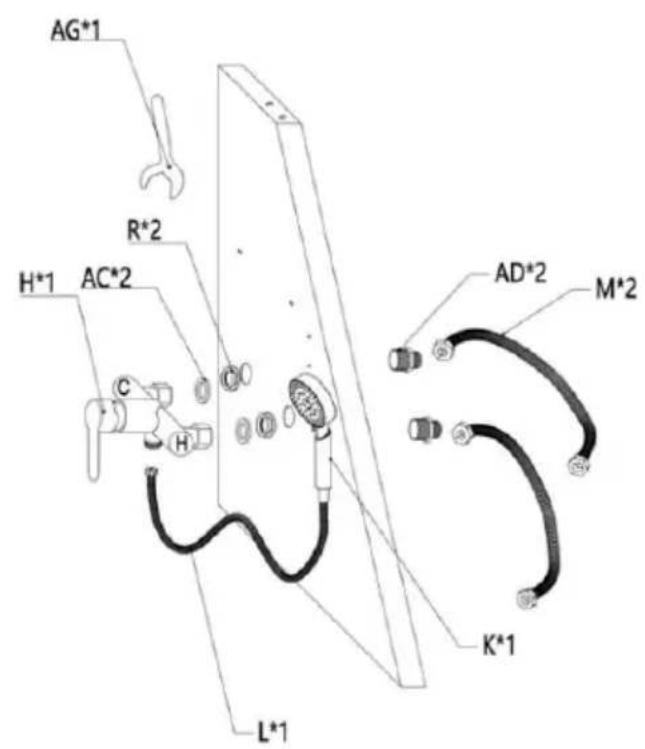

⑪ Install hot and cold shower switch and water inlet.

Caution: Before you do this, make sure that your water source is on the left or rig side of the bathtub, and set the direction of installation of the tap switch.

Step1:Pass straight all-copper connector(AD) through side panel (1/2 “ end facing outside),screw nut R2 into the other end of the connector and use wrench(AG) screw down.

Step2: Align the faucet switch (H) with the connector (AD), then ti two nuts on the switch (H), and note that the sealing ring inside intact.

Step3: Connect the hose (M) at the water inlet end and the shower hose (L) at the faucet outlet. Also, when tightening the nut, pay attention whether the sealing ring inside the nut is intact.

Step4: The other end of the hose (M) is connected to the water source, pay attention to the hot and cold water mark on the faucet switch (H) represents hot water, and connect the hose on this side to the source, while the other side is connected to the cold, also pay a whether the seal ring inside the hose end nut is intact.

Caution: The inlet hose is only 600mm long, if you want to length please purchase it separately (Caliber:20mm)

Caution: Optional use of sealing tape(AE) when installing the nut(A can make the installation more sealed and help prevent water lead the joint.

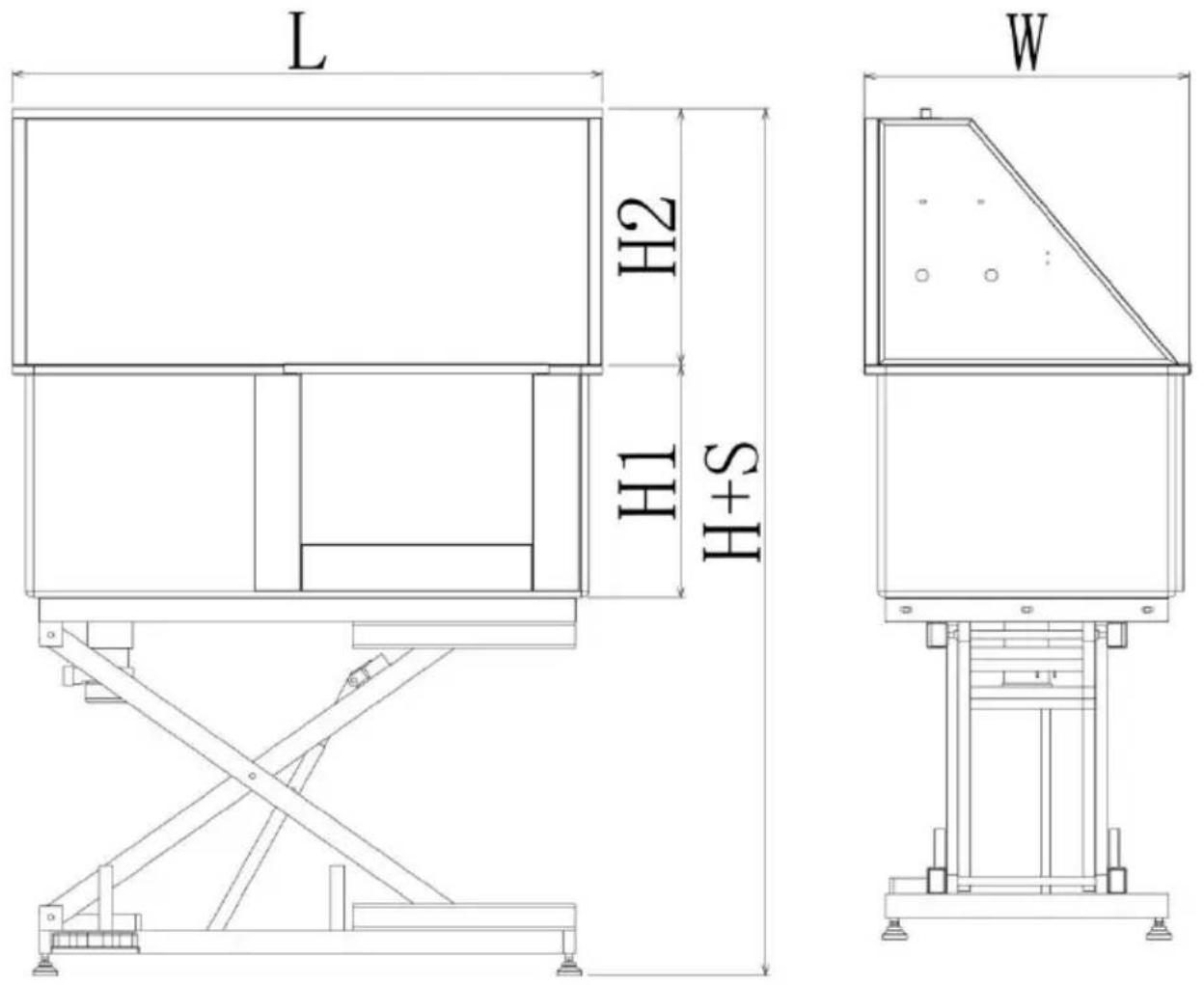

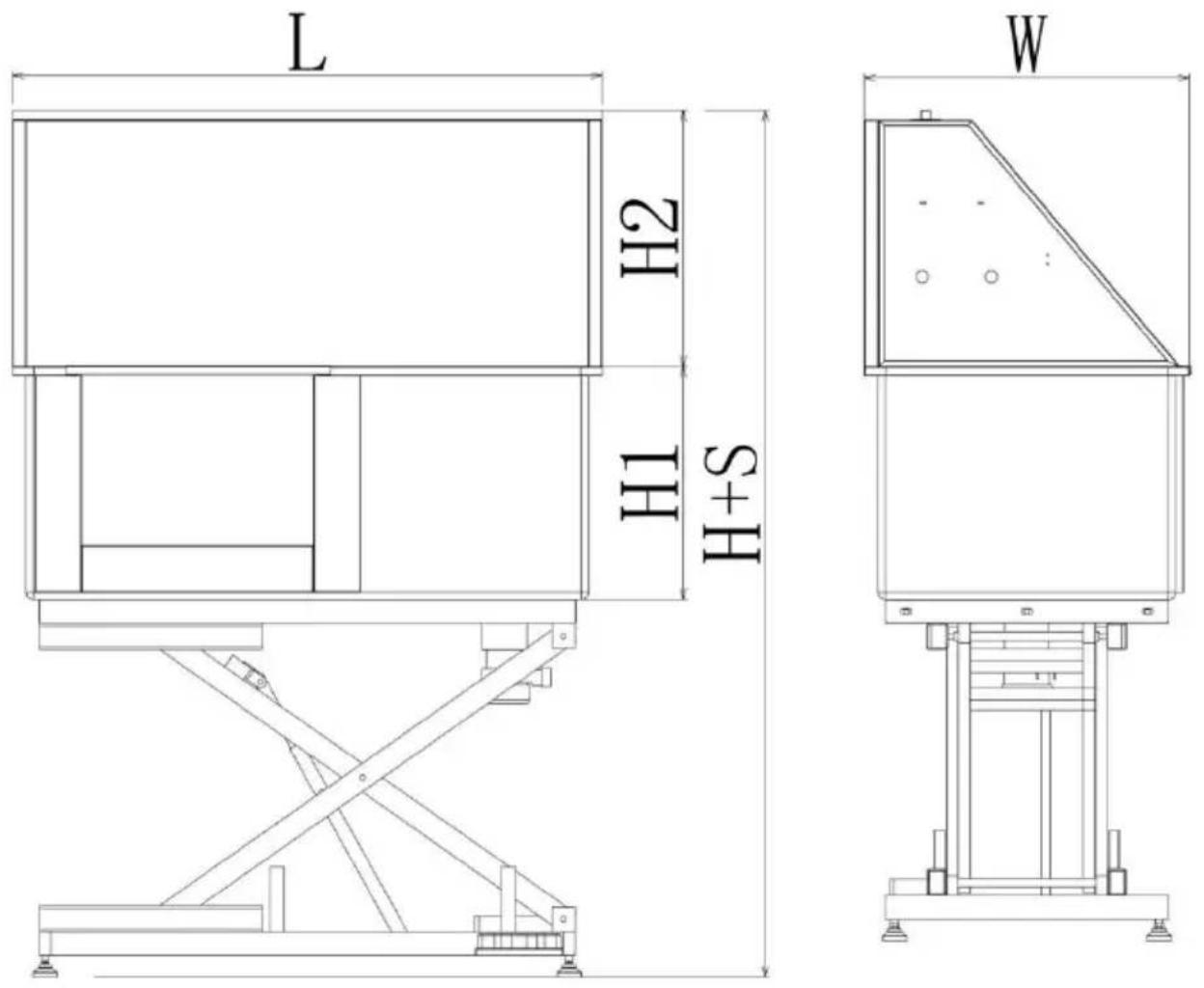

DIMENSIONS AND PARAMETERS

Left Door

Right Door

Model#	L(mm)	H(mm)	S(mm)	H1(mm)	H2(mm)	W(mm)	N.W. (kg)
K1E01027-U	1270	1295	565	500	530	700	82.8
K1E01028-U	1270	1295	565	500	530	700	82.8
K1E01027-E	1270	1295	565	500	530	700	82.8
K1E01028-E	1270	1295	565	500	530	700	82.8
K1E01027-A	1270	1295	565	500	530	700	82.8
K1E01028-A	1270	1295	565	500	530	700	82.8

Model	K1E01027-UK1E01028-U	K1E01027-EK1E01028-E	K1E01027-AK1E01028-A
Dimension:	L1270xW700xH1295-1860(min)
Travel	560mm
Loading Capacity:	150kg/330lb
Plug standard	American plug	europlug	Australian plug
Overload indication	Yes	Yes	Yes
Power:	50W	90W	90W
Voltage:	AC120V	AC220-240V	AC220-240V

OVERLOAD INDICATION

The electric push rod is equipped with over-current and over-heat protection. When the current is too large or the temperature is too high control box will start the protection measures and stop working. After system takes a rest, the control box will automatically return to normal. It is recommended to work for 2 minutes. Take a rest for 18 min which can prevent the system from entering the protection mode affect the normal work.

FOOT BUTTON FUNCTIONS

Button Functions

1. "+" Button: Pressing "+" button will rise the height.
2. "—" Button: Pressing "—" will reduce the height.

OPERATION

1. Make sure the water pipe connection is complete and the water is flowing normally. (Connect the hot and cold water pipes according to the hot and cold water signs of the faucet switch)

C H

"C": Cold water; "H": Hot water

1. Lower the bathtub to the lowest height, open the door, and let the walk into the bathtub by itself or hold the pet inside the tub by then close the door.
2. Start to bath.
3. After the bath, let the water out of the tub and take the animal
4. Clean the tub with a cloth.

MAINTENANCE

1. In between use, the tub should be cleaned with a soft cloth or sponge using a mild cleaning agent.

2. Pay attention to regularly clean the hair of the drain to avoid clogging.

3. Please clean the transparent cover of the drain regularly, After disassembly like a nut, it can be easily cleaned, and be careful not to leave the seal ring when installing it back.

Pure mechanical diagram showing a stepped component with dashed lines indicating hidden edges (no text or symbols)

CARE INSTRUCTIONS

Don't put the bathtub on an uneven surface.

Don't drop or mistreat the bathtub.

Don't overload the scale. This will permanently damage it!

If the machine cannot be lifted normally, please disconnect the power supply and check whether the wiring port is loose.

The faucet is leaking, please check whether the waterproof rubber plug installed, if it is damaged, it needs to be replaced in time.

Manufacturer: Shanghaimuxinmuyeyouxiangongsi

Address: Shuangchenglu 803nong11hao1602A-1609shi, baoshanqu, shanghai 200000 CN.

Imported to AUS: SIHAO PTY LTD. 1 ROKEVA STREETEASTWOOD NSW 2122 Australia

Imported to USA: Sanven Technology Ltd. Suite 250, 9166 Anaheim Place, Rancho Cucamonga, CA 91730

UK

REP

YH CONSULTING LIMITED. C/O YH Consulting

Limited Office 147, Centurion House, London

Road, Staines-upon-Thames, Surrey, TW18 4AX

EC

REP

E-CrossStu GmbH

Mainzer Landstr.69,

60329 Frankfurt am Main.
