DOG GROOMING TUB

MODEL: K2E01003 / K2E01004

MODEL: K2E01003 / K2E01004

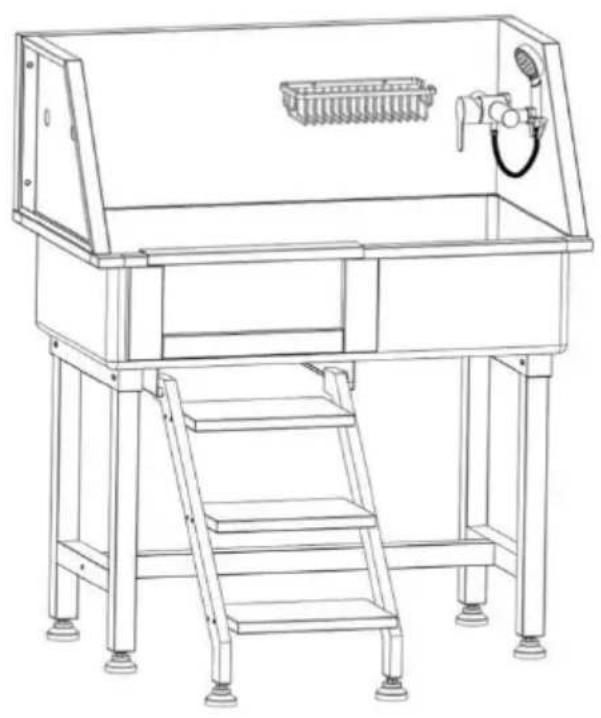

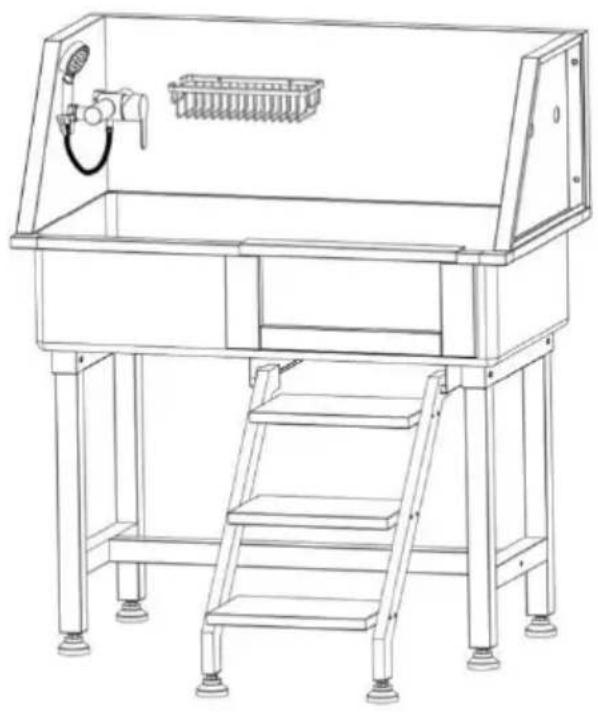

Line drawing of a laboratory apparatus with ladder, support legs, and control panel (no text or symbols)

Line drawing of a laboratory apparatus with ladder, support legs, and control panel (no text or symbols)

This is the original instruction, please read all manual instructions carefully before operating. VEVOR reserves a clear interpretation of o user manual. The appearance of the product shall be subject to the product you received. Please forgive us that we won't inform you ag there are any technology or software updates on our product.

IMPORTANT SAFEGUARDS

WARNING: Read and understand this entire manual before operating or servicing this product. Failure to follow these warnings and instructions can cause personal injury or damage to valuable property.

• Avoid children using grooming tub. And this product is not a toy. allow children to play.
• Keep away from sharp points, blades and other items.

• Please wipe the cylinder dry with a cloth after use to extend the life.
  ● Assembly precautions

• Assemble only according to these instructions. Improper assembly can create hazards.

• Wear ANSI-approved safety goggles and heavy-duty work gloves du assembly.
• Keep assembly area clean and well-lit.
• Keep bystanders out of the area during assembly.
• Do not assemble when tired or when under the influence of alcohol drugs or medication.
• Product capabilities apply to properly and completely assembled pro only.
• For additional information regarding the parts listed in the following pages, please refer to the Assembly Diagram of this manual. Unwrap separate all parts in a clean work area. Please keep small spare pa of children's reach.

SAVE THESE INSTRUCTIONS

Simple line drawing of a standing dog (no text or symbols)

Warning! Products are only used for pet bathing.

PREPARATIONS BEFORE INSTALLATION

1. Recommended Tools:

Phillips screwdriver, M4 wrench, Spirit level,

1. Necessary safety equipment:

Gloves, goggles.

Caution: Before installing the product, wear gloves and goggles to av possible physical damage during installation.

INSTRUCTIONS

Thank you very much for choosing this pet bathtub. Please read all instructions before using it. The information will help you achieve the possible results.

Parts List:

2 pcs	1 pc	1 pc	1 pc
1: H rack	2: Tub	3: Right side panel	4: Left side panel
1 pc	1 pc	1 pc	1 pc
5: Door(Already Installed to the tub)	6: Horizontal tube	7: Back panel	8: Faucet switch
1 pc	1 pc	1 pc	2 pcs (600mm)
9: Storage basket	10: Shower head	11: Shower hos	12: Inlet pipe
13-1
1 pc	4 pcs (M4*16mm)	4 pcs (M4)	2 pcs
13: Strainer13-1: Drain Pipe13-2: Transparent Cover	14: Screw	15: Hex flange nut	16: Nut
1 pc	1 pc	6 pcs	2 pcs
17: Shower bracket	18: Comb	19: Adjustable foot	20: Play ball
			[45°C]
14 pcs (M6*16mm)	12 pcs (M6*35mm)	4 pcs (M8)	6 pcs
21: Screw	22: Screw	23: Flange nut	24: Washer
3 pcs	2 pcs	1 pc	1 pair
25: Stair board	26: Nut	27: Sealing tape	28: Plastic Gloves
1 pc	2 pcs	2 pcs	6 pcs (M8*50mm)
29: Wrench	30-1: Left Ladder Rod30-2:Right Ladder Rod	31: Washer	32: Screw
1 pair	1 pc	1 pc	2 pcs
33: Nylon Glove	34: Wiper	35: Scouring pad	36: Adapter (G1/2 to NPT9/16)

Installation steps

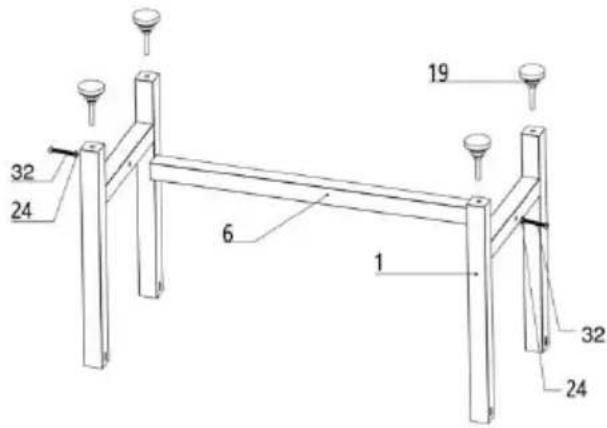

	1 Install the adjustable feet to H rack, and fix the horizontal to the H rackCaution: Ensure that the depth adjustable feet is not less than 12mm and try to make the four adjustable feet screw in the sand depth. Please tighten the spare during the installation and adjust later.

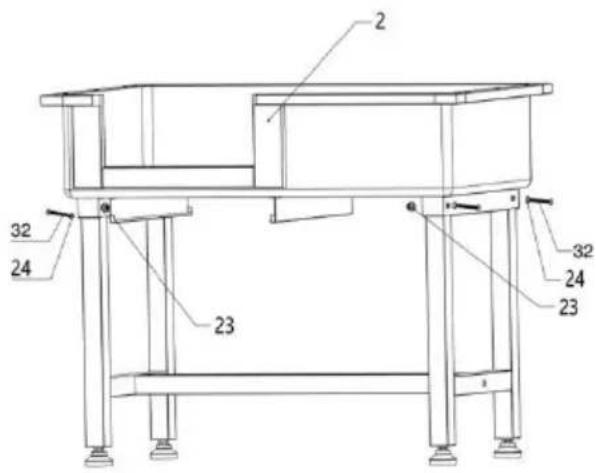

	2 Flip the bottom bracket and u screw, washer, and flange nut to the bottom bracket and tub
Left Door	Right Door

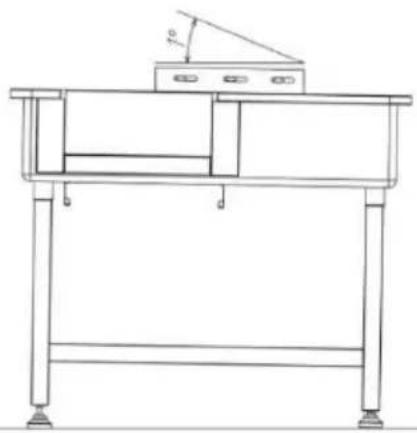

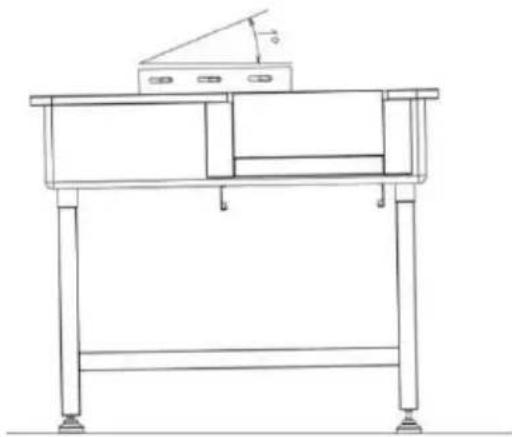

3 Adjust the height of the feet to make sure the height of wa side is 1-2 degrees lower than the other side (use a spirit lev

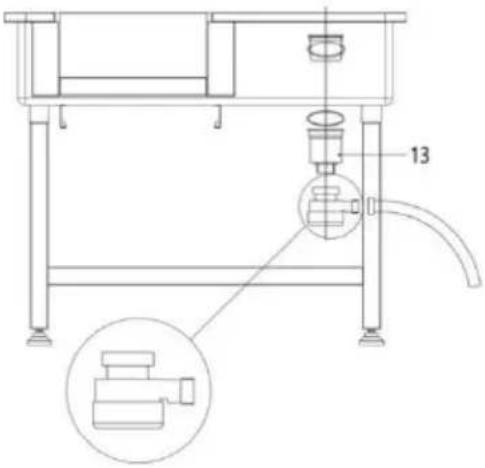

	4 Install the strainer, ensure the sealing ring is free of dislock and wrinkles.Caution: When installing, please pay attention to whether the sealing ring is placed correctly, avoid leakage due to incorrect seal installation. And check whether to transparent cover of the drain is tightened.

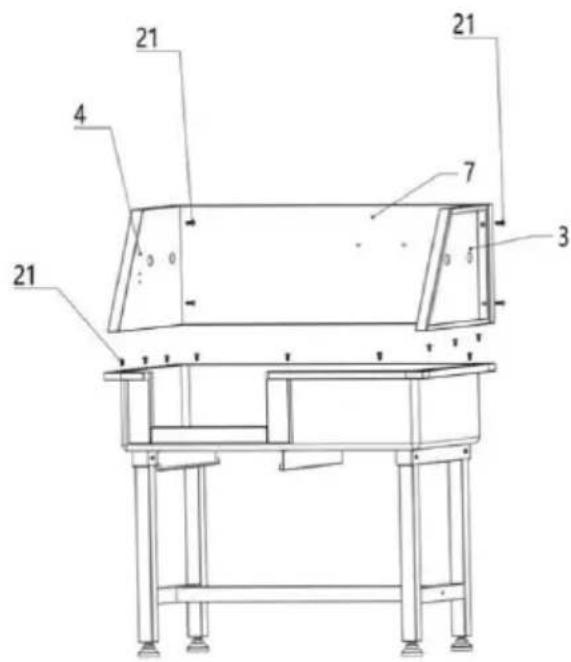

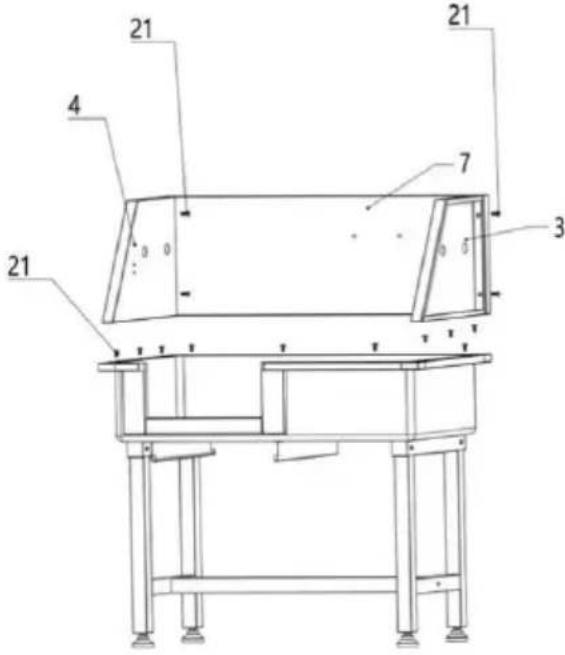

	5 Use screw to fix the left and sideboard, then use screw to fix back panel, last to use screw to sideboard and back board

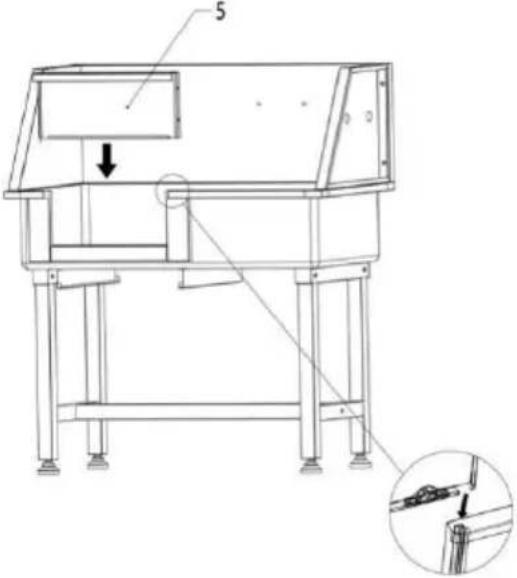

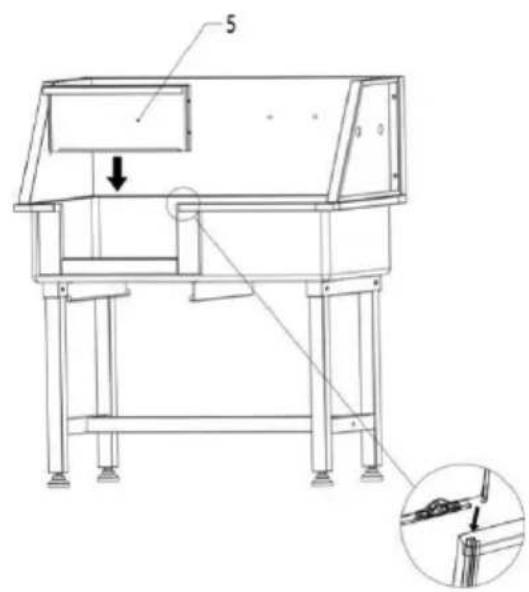

	6 Install door and water filter

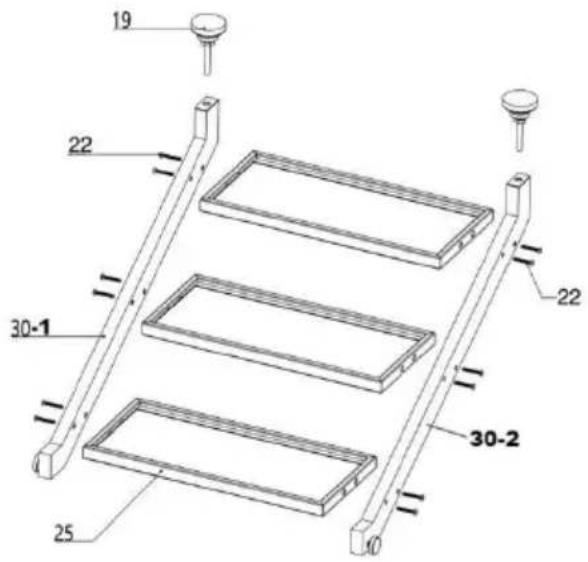

	7 Use screw to fix the stair and ladder rod, then install the adjustable feet on the bottom of ladder rod.Caution: Ensure that the depth adjustable feet is not less than 12mm and try to make the two adjustable feet screw in the sand depth. and tighten the spare nu during the installation.

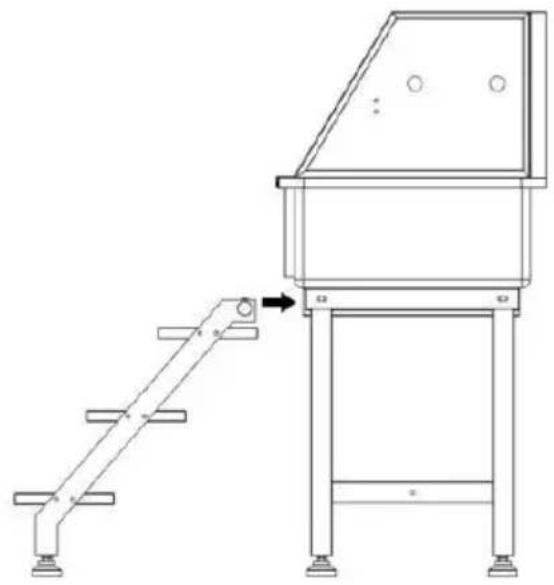

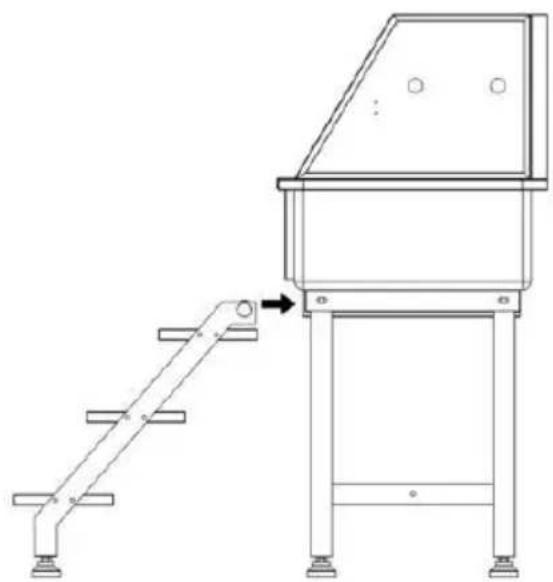

	8 Install the stairs into the ch rails

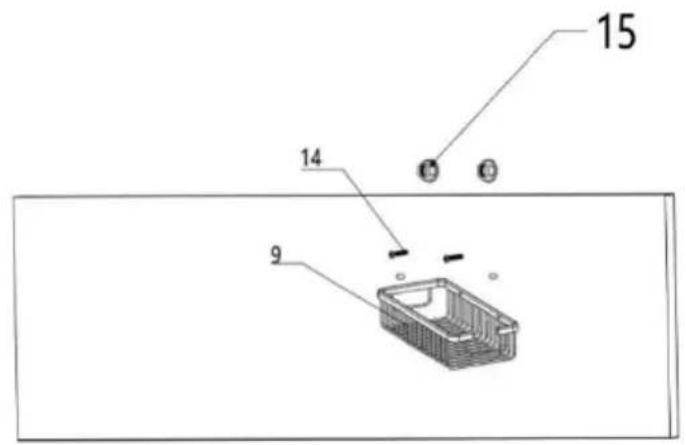

		9 Use screw and hex fl nut to install the storage basket to the back panel

14 17 15

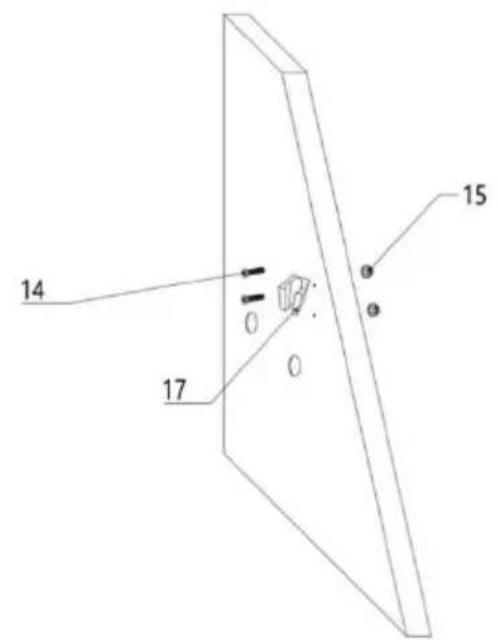

⑩ Use screw and hex flange nu install the shower bracket to the right-side panel

29 16 31 8 C H 11 26 12 10

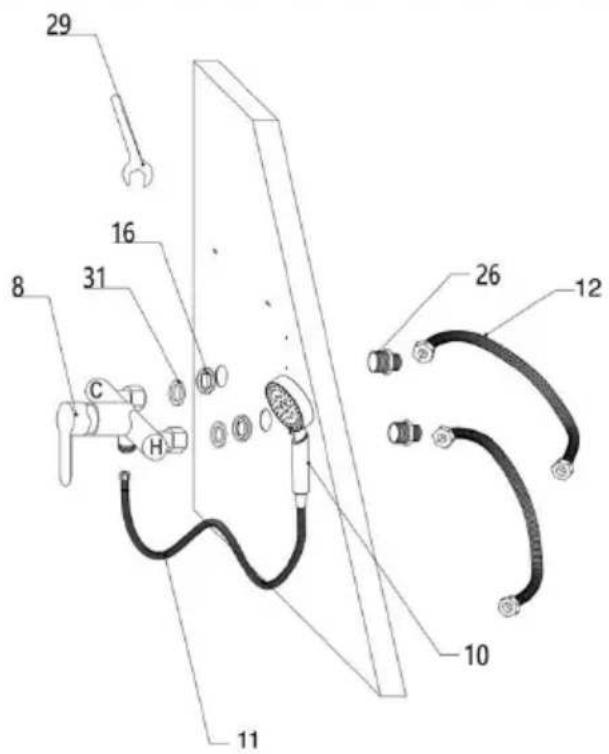

⑪ Install hot and cold shower switch and water inlet.

Caution: Before you do this, make sure that your water so is on the left or right side of bathtub, and select the direction of installation of the tap swit

Step1: Pass straight all-copper connector through side panel (1/2"end facing outside), screw n into the other end of the conne and use wrench screw down.

Step2: Align the faucet switch with the connector, then tighten nuts on the switch, and note that the sealing ring inside the ring

Step3: Connect the hose at the water inlet end and the shower hose at the faucet outlet. Also, when tightening the nut, pay attention to the sealing ring inside the nut is intact.

Step4: The other end of the hose is connected to the water source, pay

attention to the hot and cold water mark on the faucet switch, represents hot water, and connect the hose on this side to the source, while the other side is connected to the cold, also pay to whether the seal ring inside the hose end nut is intact.

Caution: The inlet hose is only 600mm long, if you want to please purchase it separately (Caliber:20mm)

Caution: Optional use of sealing tape when installing the nut. I make the installation more sealed and help prevent water leakajoint.

Caution: Please determine whether to install adapter according actual water pipe specifications.

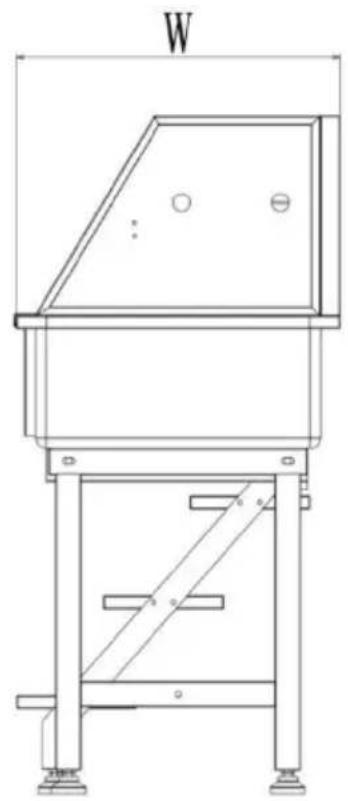

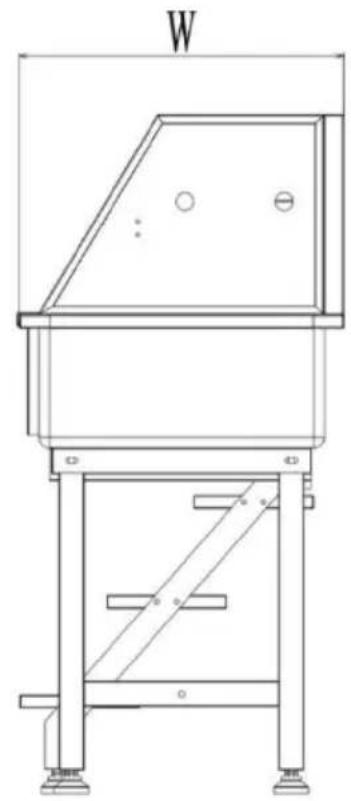

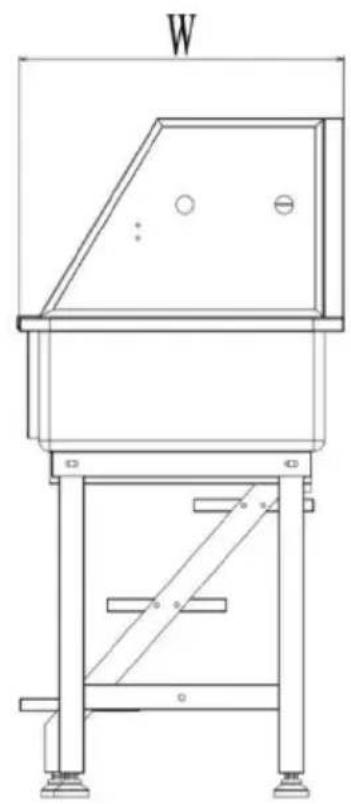

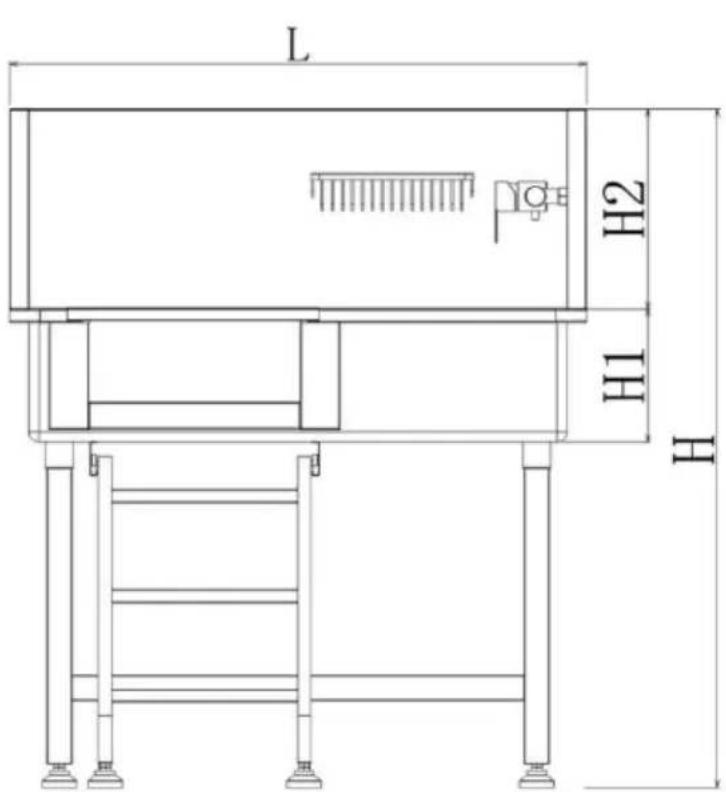

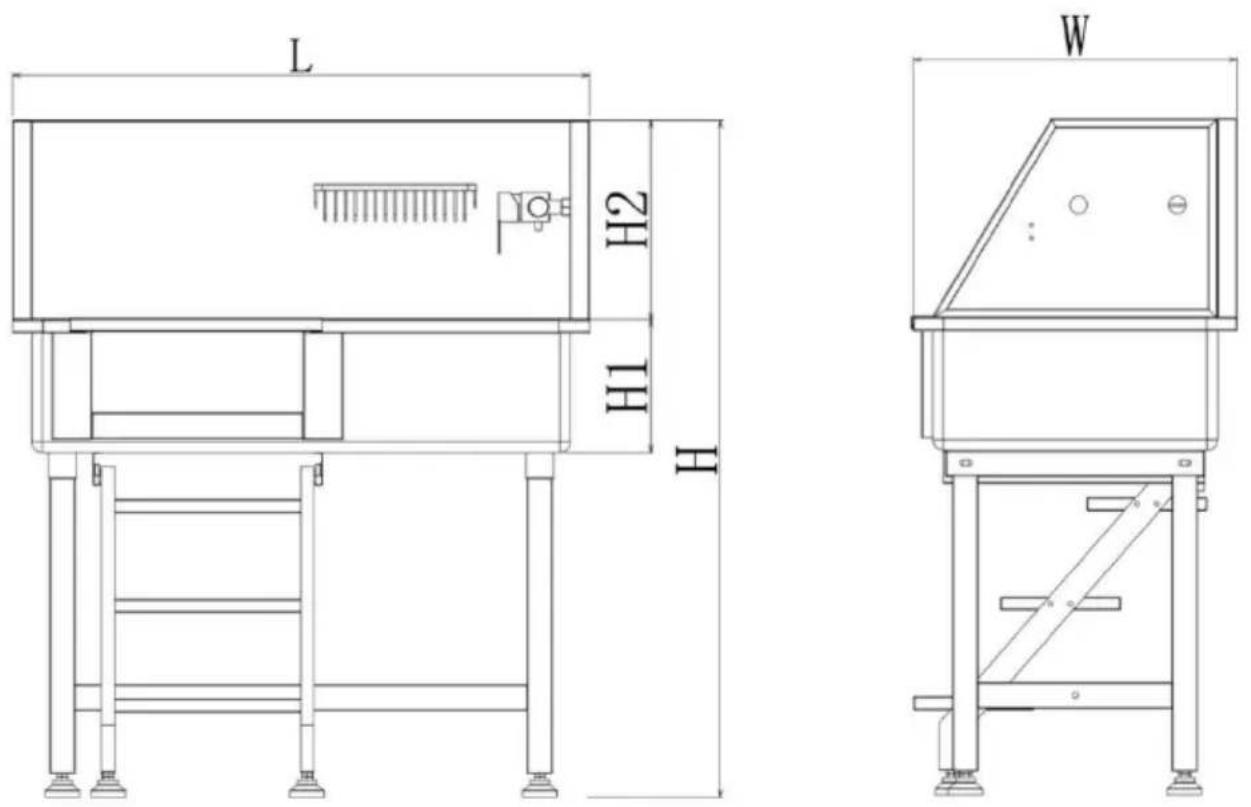

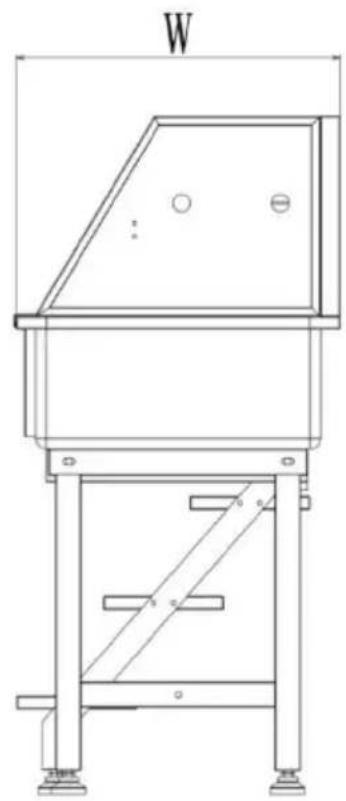

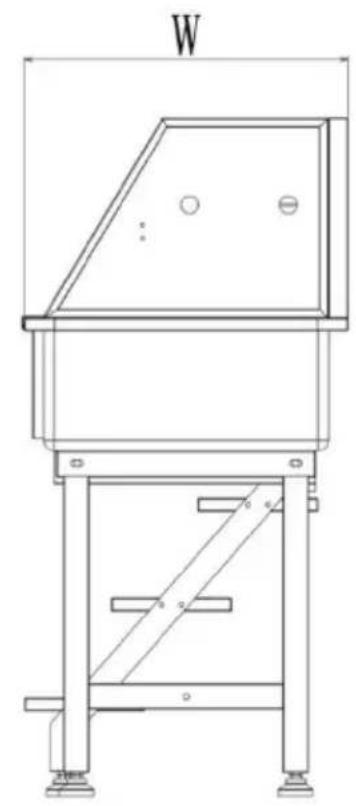

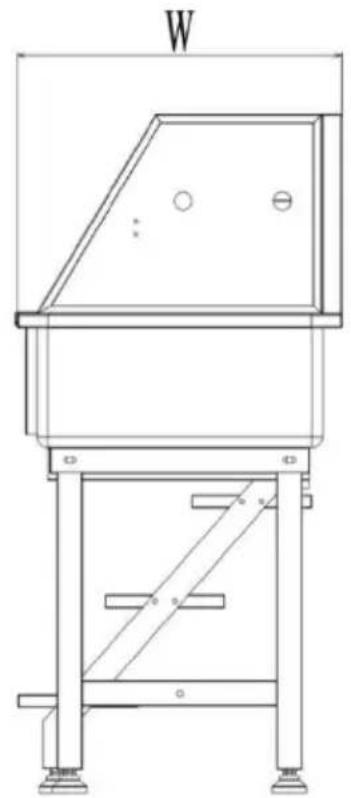

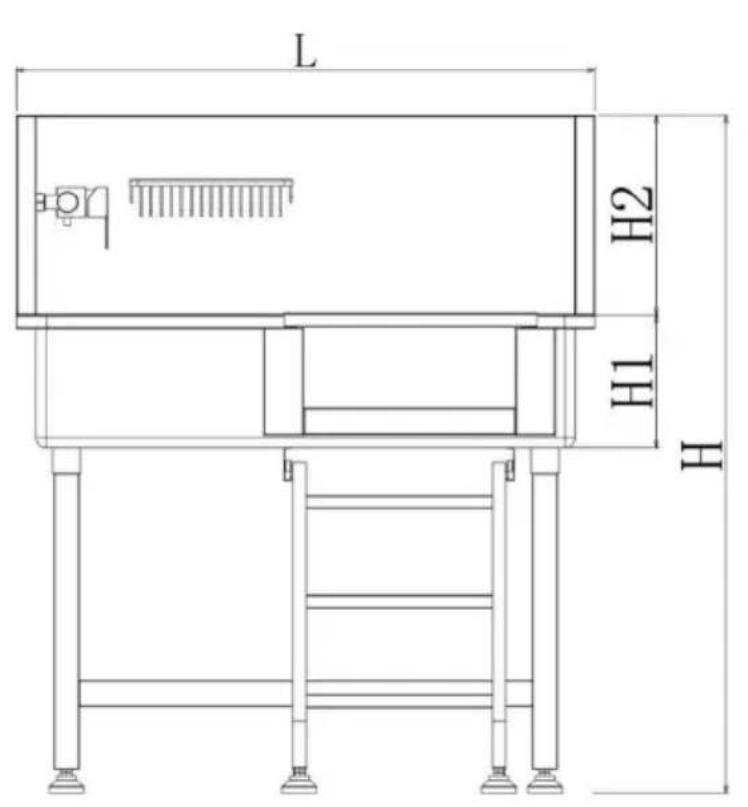

DIMENSIONS AND PARAMETERS

Left Door

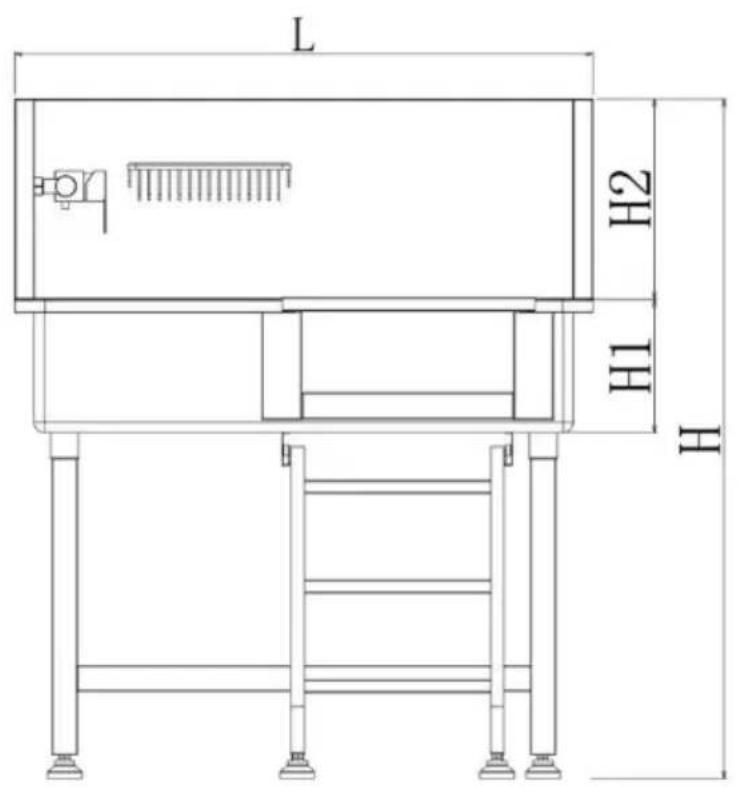

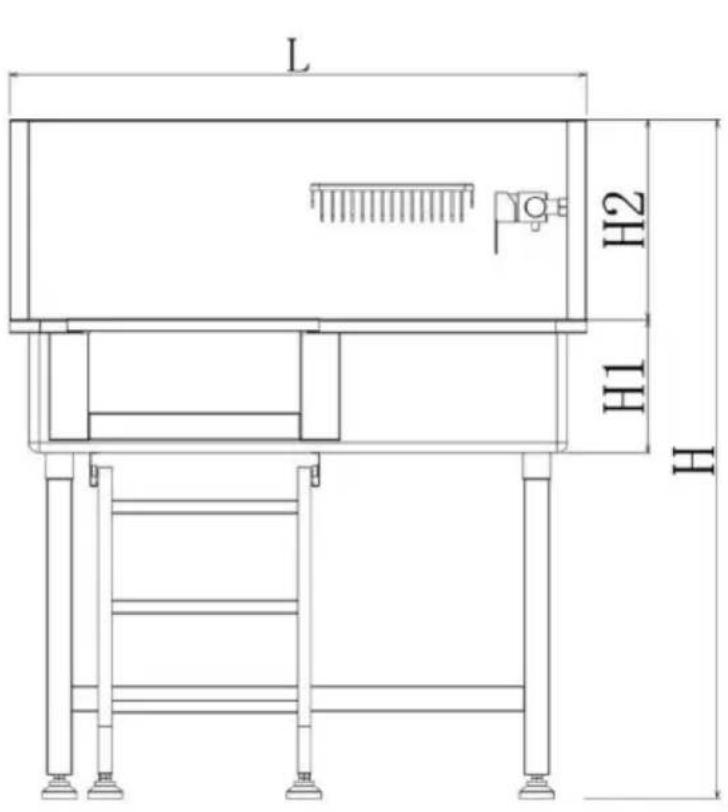

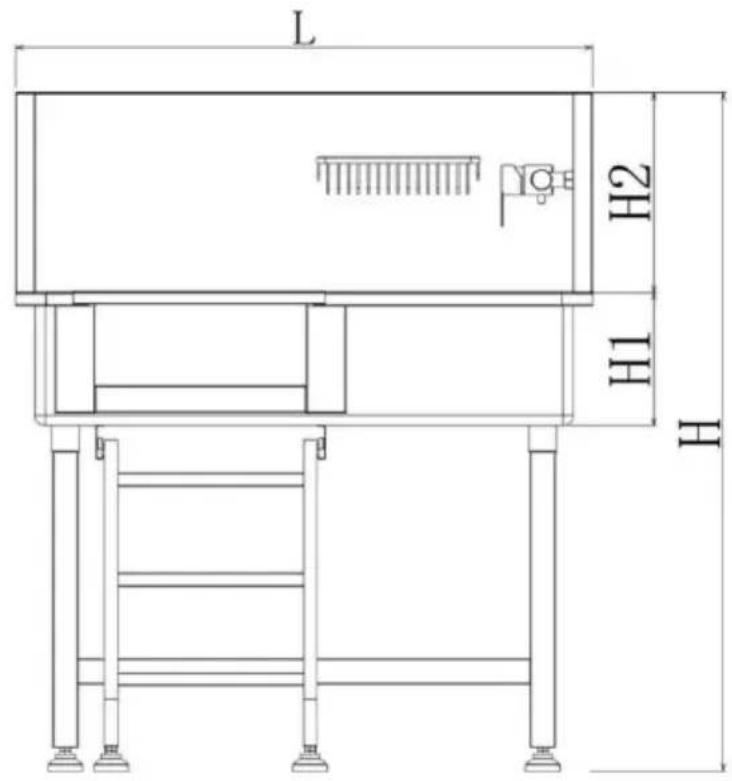

L H2 H1 H

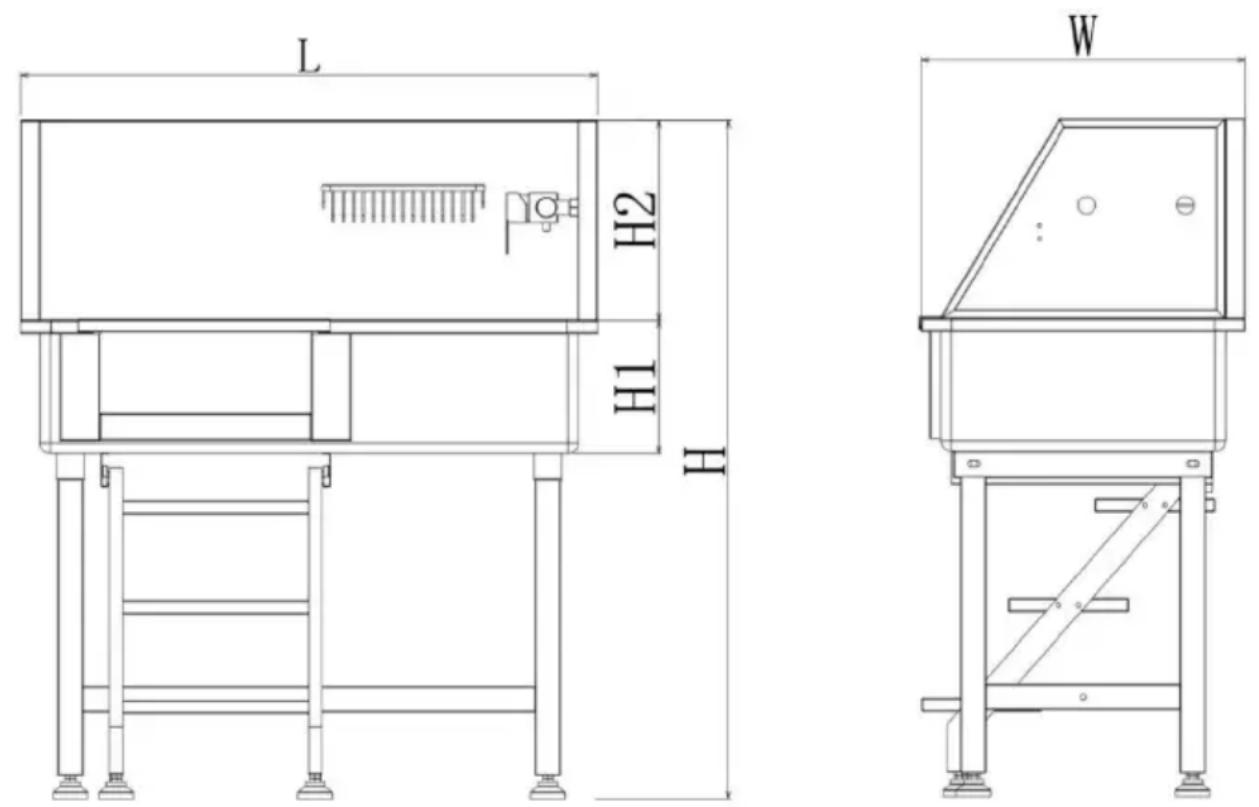

Technical line drawing of a mechanical device with labeled dimension W (no text or symbols on the diagram itself)

Right Door

L H2 H1 H

Technical line drawing of a mechanical device with no visible text or symbols

Model#	L(mm)	H(mm)	H1(mm)	H2(mm)	W(mm)	N.W. (kg)
K2E01003	870	1060	200	300	488	21.4
K2E01004	870	1060	200	300	488	21.4

Model#	Volume (CBM)	Loading Capacity (lbs)	Recommended pet (in)
K2E01003	0.21	220	L×W×H:33×16×18
K2E01004	0.21	220	L×W×H:33×16×18

OPERATION

1. Make sure the water pipe connection is complete and the water is normally. (Connect the hot and cold water pipes according to the hot cold water signs of the faucet switch)

C H

"C": Cold water; "H": Hot water

1. Pull out the stairs and open the door, let the pet walk into the ba itself or hold the pet inside the tub by yourself, then close the door.
2. Start to bath.
3. After the bath, let the water out of the tub and take the animal o
4. Clean the tub with a cloth.

MAINTENANCE

1. In between use, the tub should be cleaned with a soft cloth or sp using a mild cleaning agent.
2. Pay attention to regularly clean the hair of the drain to avoid clogg
3. Please clean the transparent cover of the drain regularly, After disassembly like a nut, it can be easily cleaned, and be careful not the seal ring when installing it back.

Pure mechanical diagram showing a piston-cylinder assembly with no text or symbols

CARE INSTRUCTIONS

Don't put the bathtub on an uneven surface.

Don't drop or mistreat the bathtub.

Don't overload the scale. This will permanently damage it!

COMMON MALFUNCTIONS

If the faucet leaks, please check whether the waterproof rubber plug installed. If it is damaged, it needs to be replaced in time.

Manufacturer: Shanghaimuxinmuyeyouxiangongsi

Address: Shuangchenglu 803nong11hao1602A-1609shi, baoshanqu, shanghai 200000 CN.

Imported to AUS: SIHAO PTY LTD. 1 ROKEVA STREETEASTWOOD NSW 2122 Australia

Imported to USA: Sanven Technology Ltd. Suite 250, 9166 Anaheim Place, Rancho Cucamonga, CA 91730

UK

REP

YH CONSULTING LIMITED. C/O YH Consulting

Limited Office 147, Centurion House, London

Road, Staines-upon-Thames, Surrey, TW18 4AX

EC

REP

E-CrossStu GmbH

Mainzer Landstr.69,

60329 Frankfurt am Main.

VEVOR

Affordable. Reliable. Home Improvement.

BAIGNOIRE DE TOILETTAGE POUR CHIEN

MODÈLE : K 2 E010 03 / K 2 E010 04

MODÈLE : K 2 E010 03 / K 2 E010 04

Line drawing of a laboratory apparatus with ladder, support legs, and control panel (no text or symbols)

Line drawing of a laboratory apparatus with a ladder, support legs, and a control box (no text or symbols)

Simple line drawing of a standing dog (no text or symbols)

PREPARATIONS BEFORE INSTALLATION

Technical line drawing of a mechanical setup with supports and a triangular component (no text or symbols)

Line drawing of a simple outdoor table with legs and a small overhead device (no text or symbols)

Technical diagram of a mechanical device with labeled components and an inset showing a component detail.

DIMENSIONS AND PARAMETERS

Porte de gauche

L H2 H1 H W

Porte droite

L H2 H1 H

Technical line drawing of a mechanical device with no visible text or symbols

Modèle#	L(mm)	Hmm)	H 1 ( mm)	H 2 (mm)	L (mm)	Poids net (kg)
K2E01003	870	1060	2 00	3 00	488	21.4
K2E01004	870	1060	2 00	3 00	488	21.4

Pure mechanical diagram showing a piston-cylinder assembly with no text or symbols

CARE INSTRUCTIONS

Lieu, Rancho Cucamonga, CA 91730

UK

REP

YH CONSULTING LIMITED. C/O YH Consulting

Limited Office 147, Centurion House, London

Road, Staines-upon-Thames, Surrey, TW18 4AX

EC

REP

E-CrossStu GmbH

Mainzer Landstr.69,

60329 Frankfurt am Main.

VEVOR

Affordable. Reliable. Home Improvement.

HUNDEPFLEGEWANNE

MODELL: K 2 E010 03 / K 2 E010 04

MODELL: K 2 E010 03 / K 2 E010 04

Line drawing of a laboratory apparatus with ladder, support legs, and control panel (no text or symbols)

Line drawing of a laboratory apparatus with a ladder, support legs, and a control box (no text or symbols)

Simple line drawing of a standing dog (no text or symbols)

DIMENSIONS AND PARAMETERS

Linke Tür

Rechte Tür

L H2 H1 H

Technical line drawing of a mechanical device with no visible text or symbols

Modell#	L(mm)	Hmm)	H 1(mm)	H 2(mm)	B (mm)	Nettogewicht(kg)
K2E01003	870	1060	2 00	3 00	488	21.4
K2E01004	870	1060	2 00	3 00	488	21.4

Modell#	Volumen (CBM)	Ladekapazität ( Pfund )	Empfohlenes Haustier (In)
K 2E01003	0,21	220	L×B×H:33×16×18
K 2E01004	0,21	220	L×B×H:33×16×18

OPERATION

Pure mechanical diagram showing a piston-cylinder assembly with no text or symbols

CARE INSTRUCTIONS

YH CONSULTING LIMITED. C/O YH Consulting

Limited Office 147, Centurion House, London Road, Staines-upon-Thames, Surrey, TW18 4AX

EC

REP

E-CrossStu GmbH

Mainzer Landstr.69,

60329 Frankfurt am Main.

VEVOR

Affordable. Reliable. Home Improvement.

VASCA PER LA TOELETTATURA DEI CANI

MODELLO: K 2 E010 03 / K 2 E010 04

MODELLO: K 2 E010 03 / K 2 E010 04

Line drawing of a laboratory apparatus with ladder, support legs, and control panel (no text or symbols)

Line drawing of a laboratory apparatus with a ladder, support legs, and a control box (no text or symbols)

Simple line drawing of a dog (no text or symbols)

Technical line drawing of a mechanical setup with supports and a triangular component (no text or symbols)

Technical line drawing of a simple outdoor table with legs and a small overhead device (no text or symbols)

Technical diagram of a mechanical device with labeled components and an inset showing a cylindrical component.

Technical diagram of a mechanical device with numbered components, likely an industrial machine or assembly.

DIMENSIONS AND PARAMETERS

Porta sinistra

L H2 H1 H

Technical line drawing of a mechanical device with labeled dimension W (no text or symbols on the diagram itself)

Porta destra

L H2 H1 H

Technical line drawing of a mechanical device with no visible text or symbols

Pure mechanical diagram showing a piston-cylinder assembly with no text or symbols

CARE INSTRUCTIONS

YH CONSULTING LIMITED. C/O YH Consulting Limited Office 147, Centurion House, London Road, Staines-upon-Thames, Surrey, TW18 4AX

EC

REP

Affordable. Reliable. Home Improvement.

BAÑERA DE ASEO PARA PERROS

MODELO: K 2 E010 03 / K2E01004

MODELO: K 2 E010 03 / K2E01004

Line drawing of a laboratory apparatus with ladder, support legs, and control panel (no text or symbols)

Line drawing of a laboratory apparatus with a ladder, support legs, and a control box (no text or symbols)

Simple line drawing of a standing dog (no text or symbols)

Technical line drawing of a mechanical setup with supports and a triangular component (no text or symbols)

Line drawing of a simple outdoor table with legs and a small overhead device (no text or symbols)

Technical diagram of a mechanical device with labeled components and an inset showing a zoomed-in cylindrical component.

Technical diagram of a mechanical device with numbered components, likely an enclosure or frame structure.

Technical diagram of a mechanical device with labeled components and an inset showing a close-up view of the component.

19 22 30-1 25 30-2 22

Technical line drawing of a mechanical device with a lever and base platform (no text or symbols)

DIMENSIONS AND PARAMETERS

Puerta izquierda

L H2 H1 H

Technical line drawing of a mechanical device with no visible text or symbols

Puerta derecha

L H2 H1 H

Technical line drawing of a mechanical device with no visible text or symbols

Modelo#	Longitud (mm)	Mmm)	Alto 1 ( mm)	Alto 2 (mm)	Ancho (mm)	NO (kg)
K2E01003	870	1060	2 00	3 00	488	21.4
K2E01004	870	1060	2 00	3 00	488	21.4

Modelo#	Volumen (CBM)	Capacidad de carga (libras)	Mascota recomendada (en)
K 2E01003	0,21	220	Largo × Ancho × Alto: 33 × 16 ×
K 2E01004	0,21	220	Largo × Ancho × Alto: 33 × 16 ×

OPERATION

Pure mechanical diagram showing a piston-cylinder assembly with no text or symbols

CARE INSTRUCTIONS

YH CONSULTING LIMITED. C/O YH Consulting

Limited Office 147, Centurion House, London Road, Staines-upon-Thames, Surrey, TW18 4AX

EC

REP

E-CrossStu GmbH

Mainzer Landstr.69,

60329 Frankfurt am Main.

VEVOR

Affordable. Reliable. Home Improvement.

WANNA DO PIELEGNACJI PSÓW

MODEL: K 2 E010 03 / K 2 E010 04

MODEL: K 2 E010 03 / K 2 E010 04

Line drawing of a laboratory apparatus with ladder, support legs, and control panel (no text or symbols)

Line drawing of a laboratory apparatus with a ladder, support legs, and a control box (no text or symbols)

Simple line drawing of a standing dog (no text or symbols)

Technical diagram of a mechanical assembly with numbered components, likely a valve or connector assembly.

DIMENSIONS AND PARAMETERS

Lewe drzwi

Prawe drzwi

L H2 H1 H

Technical line drawing of a mechanical device with no visible text or symbols

Pure mechanical diagram showing a piston-cylinder assembly with no text or symbols

CARE INSTRUCTIONS

YH CONSULTING LIMITED. C/O YH Consulting

Limited Office 147, Centurion House, London

Road, Staines-upon-Thames, Surrey, TW18 4AX

EC

REP

E-CrossStu GmbH

Mainzer Landstr.69,

60329 Frankfurt am Main.

VEVOR

Affordable. Reliable. Home Improvement.

HONDENTRIMBAK

MODEL: K 2 E010 03 / K 2 E010 04

MODEL: K 2 E010 03 / K 2 E010 04

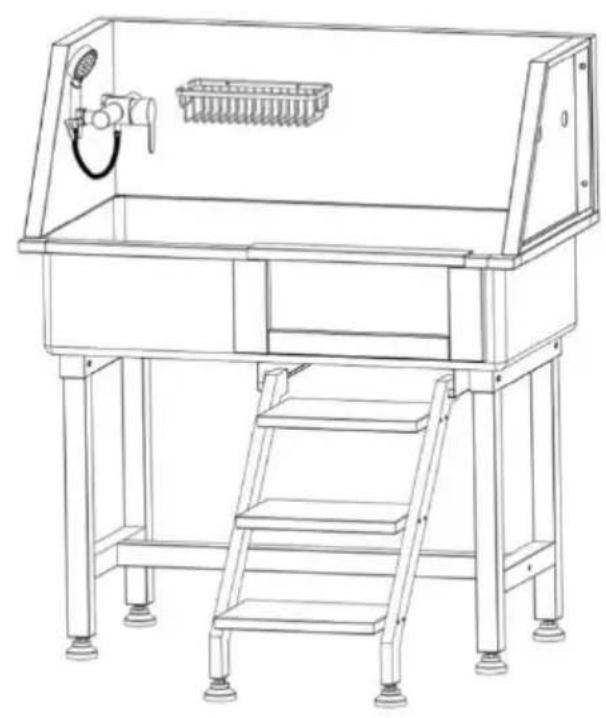

Line drawing of a laboratory apparatus with ladder, support legs, and control panel (no text or symbols)

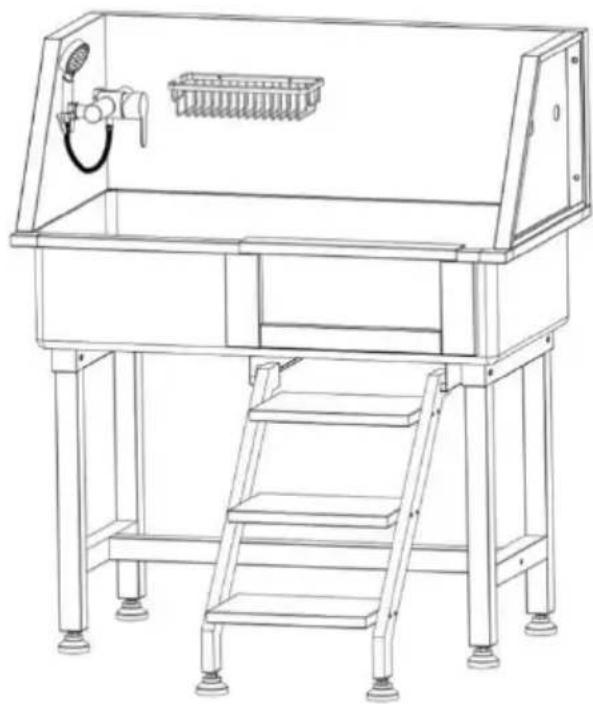

Line drawing of a laboratory apparatus with a ladder, pressure gauge, and control panel (no text or symbols)

Simple line drawing of a standing dog (no text or symbols)

DIMENSIONS AND PARAMETERS

Linkerdeur

L H2 H1 H

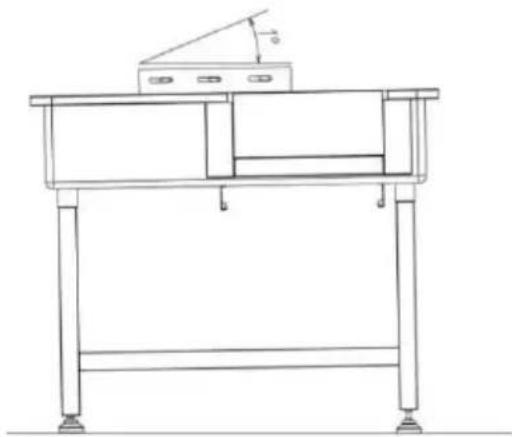

Technical line drawing of a mechanical device with no visible text or symbols

Rechterdeur

L H2 H1 H

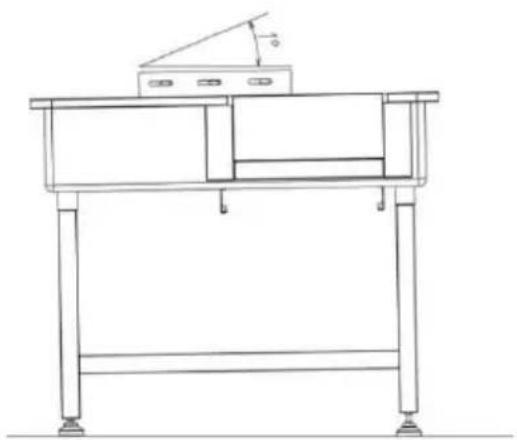

Technical line drawing of a mechanical device with no visible text or symbols

Model#	Lengte (mm)	Hoogte (mm)	Hoogte 1 ( mm)	Hoogte 2(mm)	Breedte (mm)	NW (kg)
K2E01003	870	1060	200	300	488	21.4
K2E01004	870	1060	200	300	488	21.4

Model#	Volume (CBM)	Laadvermogen (pond)	Aanbevolen huisdier (in)
K 2E01003	0,21	220	L×B×H: 33×16×18
K 2E01004	0,21	220	L×B×H: 33×16×18

OPERATION

"C": Koud water; "H": Warm water

Pure mechanical diagram showing a piston-cylinder assembly with no text or symbols

CARE INSTRUCTIONS

YH CONSULTING LIMITED. C/O YH Consulting Limited Office 147, Centurion House, London Road, Staines-upon-Thames, Surrey, TW18 4AX

EC

REP

Affordable. Reliable. Home Improvement.

HUNDTRIMNINGSBADKAR

MODELL: K2 E010 03 / K2 E010 04

MODELL: K2 E010 03 / K2 E010 04

Line drawing of a laboratory apparatus with ladder, support legs, and control panel (no text or symbols)

Line drawing of a laboratory apparatus with a ladder, support legs, and a control box (no text or symbols)

Simple line drawing of a dog silhouette (no text or symbols)

Technical diagram of a mechanical assembly with labeled components and an inset view showing a cylindrical component.

Technical diagram of a mechanical device with numbered components, likely an industrial machine or assembly.

Technical diagram of a mechanical device with labeled components and an inset close-up showing a tool interacting with a bracket.

DIMENSIONS AND PARAMETERS

Vänster dörr

Höger dörr

L H2 H1 H

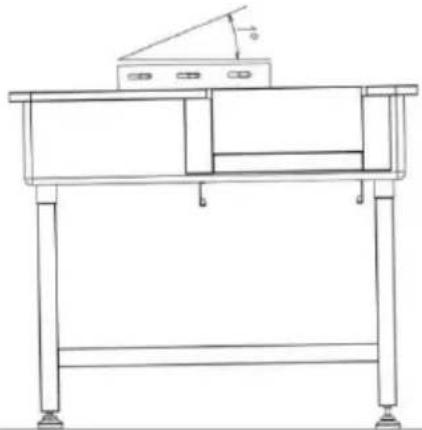

Technical line drawing of a mechanical device with no visible text or symbols

Modell#	L(mm)	H(mm)	H1 (mm)	H2 (mm)	B (mm)	NV (kg)
K 2E01003	870	1060	200	300	488	21.4
K 2E01004	870	1060	200	300	488	21.4

Modell#	Volym (CBM)	Lastkapacitet (Ibs)	Rekommenderat husdjur (i)
K 2E01003	0,21	220	L×B×H: 33×16×18
K 2E01004	0,21	220	L×B×H: 33×16×18

OPERATION

Pure mechanical diagram showing a piston-cylinder assembly with no text or symbols

CARE INSTRUCTIONS

YH CONSULTING LIMITED. C/O YH Consulting

Limited Office 147, Centurion House, London

Road, Staines-upon-Thames, Surrey, TW18 4AX

EC

REP

E-CrossStu GmbH

Mainzer Landstr.69,

60329 Frankfurt am Main.
