LZX-16R - Grooming set Vevor - Free user manual and instructions

Product Type	Dog Grooming Bathtub
Brand	Vevor
Model	LZX-16R
Main Material	Steel and Plastic
Maximum Supported Weight	130 kg (286 lbs)
Recommended Use	Medium-sized dogs and cats
Included Accessories	Shower, soap dispenser, comb, licking mat, gloves, hex keys, wrench, lifting rope, etc.
Features	Grooming with shower, bath, optional drying stand
Water Connection	Hot and cold water (NPT9/16, adapter included)
Maintenance	Clean with soft cloth and mild cleaning agent after each use
Drain Maintenance	Regularly clean the transparent drain cover
Electrical Safety	Keep outlets at least 3 m from the bathtub
Animal Safety	Do not let children play, supervise the animal during bathing
Weight Capacity	Do not exceed 130 kg
Installation	Assembly required, tools provided
Warranty	Electronic warranty certificate available at vevor.com/support
Country of Origin	China (manufacturer in Shanghai)
Importer (Australia)	SIHAO PTY LTD, 1 ROKEVA STREET, ASTWOOD NSW 2122
Importer (USA)	Sanven Technology Ltd, Suite 250, 9166 Anaheim Place, Rancho Cucamonga, CA 91730
Spare Parts	Available upon request from customer service

Frequently Asked Questions - LZX-16R Vevor

How to assemble the Vevor LZX-16R bathtub?

Follow the installation steps in the manual. Start by installing the adjustable feet on the base support. Then place the bathtub into the bottom support and secure it with the provided screws and nuts. Mount the side and back panels, install the shower, soap dispenser, and other accessories. Make sure the sealing rings are properly placed to avoid leaks.

What is the maximum weight the bathtub can support?

The maximum supported weight is 130 kg (286 lbs). Never exceed this limit to ensure the safety of the animal and the product.

Can I use this bathtub for a cat?

Yes, the bathtub is suitable for medium-sized dogs and cats. Make sure the animal is comfortable and supervise it constantly during bathing.

How to clean the bathtub after use?

Use a soft cloth or sponge with a mild cleaning agent to clean the bathtub. Rinse thoroughly and dry. Regularly clean the drain to prevent blockages.

What to do if the faucet leaks?

Check that the watertight rubber plug is correctly installed. If damaged, replace it. Contact Vevor customer service if necessary.

Is it necessary to connect hot and cold water?

Yes, the bathtub is designed to be connected to hot and cold water pipes. Use the included adapter if necessary. Ensure the connections are watertight.

Is the bathtub suitable for large dogs?

The bathtub can accommodate medium-sized dogs. For very large dogs, check that the weight does not exceed 130 kg and that the animal can comfortably enter through the door.

How to install the soap dispenser?

Insert the pump head into the mounting hole of the sink, align the fastener with the neck and tighten. Remove the bottle and screw it on. Follow the specific instructions provided with the dispenser for proper installation.

What to do if the water does not drain?

Check that the transparent drain cover is clean and the sealing ring is properly in place. Regularly clean the drain to avoid blockages.

Where can I find spare parts?

Contact Vevor customer service via www.vevor.com/support. You can also consult the parts list in the manual and order the necessary parts.

USER MANUAL LZX-16R Vevor

Installation video guide

We continue to be committed to provide you with tools at competitive prices. "Save Half", "Half Price" or any other similar expressions used by us only represent an estimate of savings you might benefit from buying certain tools with us compared to the major top brands and do not necessarily mean to cover all categories of tools offered by us. You are kindly reminded to verify carefully when placing an order with us if you are actually saving half in comparison with the top major brands.

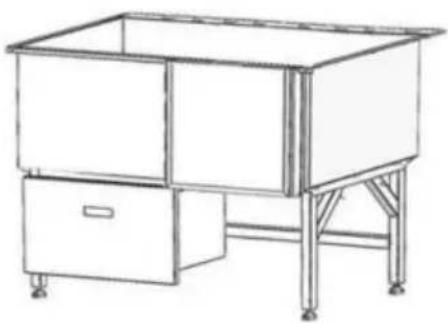

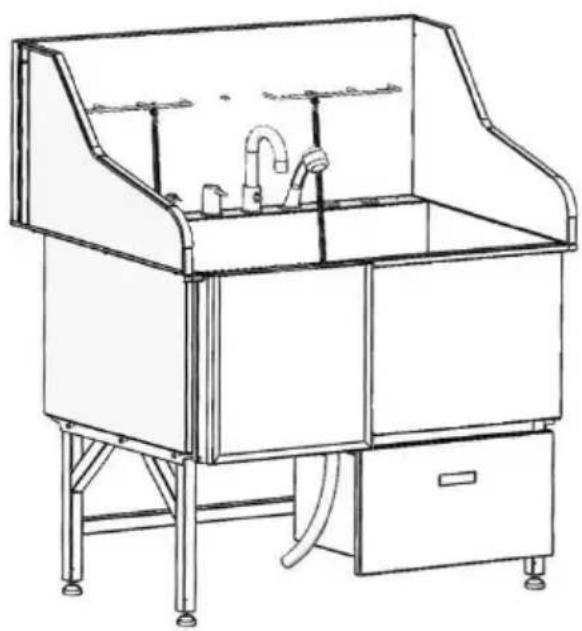

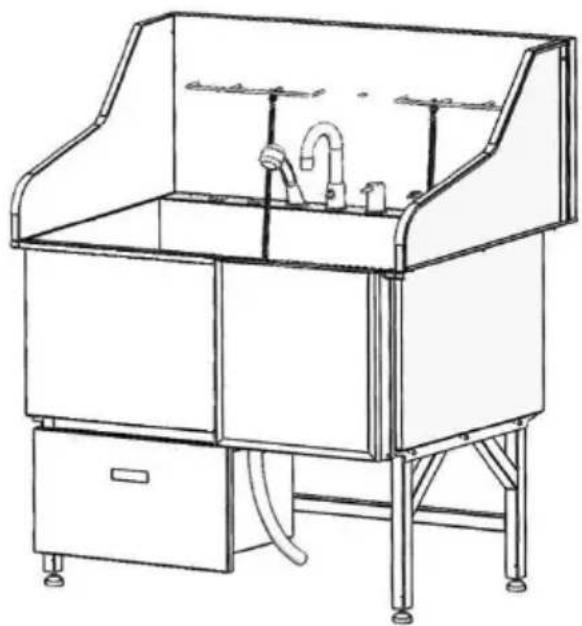

MODEL: LZX-16L \ LZX-16R

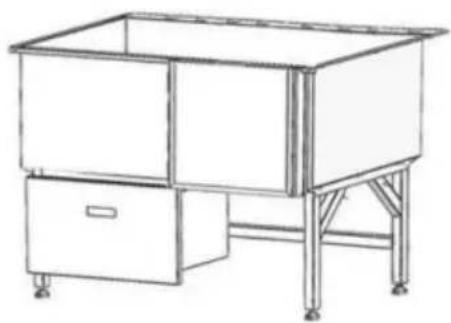

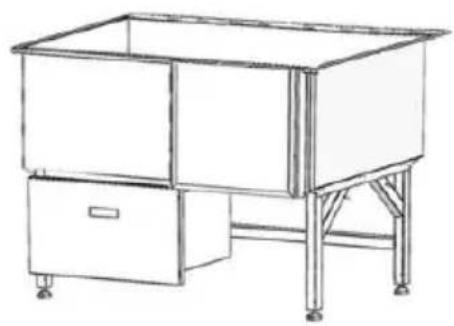

(LZX-16L) (LZX-16R)

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel free to contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction. Please read all manual instructions carefully before operating. VEVOR reserves a clear interpretation of the user manual. The appearance of the product shall be subject to the product you received. Please forgive us that we won't inform you if there are any technology or software updates on our product.

IMPORTANT SAFEGUARDS

WARNING: Read and understand this entire manual before operating or servicing this product. Failure to follow these warnings and instructions can cause personal injury or damage to valuable property.

• Avoid children using the grooming tub. This product is not a toy. Do not allow children to play with it.
• Keep away from sharp points, blades, and other items.
• Please wipe the cylinder dry with a cloth after use to extend its life.
• Assembly precautions
• Assemble only according to these instructions. Improper assembly can create hazards.
• Wear ANSI-approved safety goggles and heavy-duty work gloves during assembly.
• Keep assembly area clean and well-lit.
• Keep bystanders out of the area during assembly.
• Do not assemble when tired or when under the influence of alcohol, drugs, or medication.
• Product capabilities apply to properly and completely assembled products only.
• For additional information regarding the parts listed in the following pages, please refer to the Assembly Diagram of this manual. Unwrap and separate all parts in a clean work area. Please keep small spare parts out of children's reach.

SAVE THESE INSTRUCTIONS

Warning! Products are only used for pet bathing.

PREPARATIONS BEFORE INSTALLATION

Necessary safety equipment:

Gloves, goggles

Caution: Before installing the product, wear gloves and goggles to avoid possible physical damage during installation.

INSTRUCTIONS

Thank you very much for choosing this pet bathtub. Please read all instructions before using it. The information will help you achieve the possible results.

Parts List:

1 pc		1 pc		1 pc		1 pc
1: Tub		2: Base		3: Left side pa		4: Right side panel
1 pc		1 set		1 set		2 pcs
5: Reverse side side panel		6: Take a show		7: Downcomer		8: Base
2 pcs		4pcs		2 pcs		2 pcs
9: Plastic Floor Grate		10:Adjustable Angle pad		11: Lifting rope		12: Adapter (in the 6: Tak a shower)
1 set		1 pc		1 pc		1 pc
13:Soap dispenser		14: Hanging ring		15: Hex key Allen wrench		16: Hex key Allen wrench
6 pcs		4 pcs		12+2pcs		8 pcs
17: Hexagon fla head screw M8* 16		18: Hexagon flat head screw M8*25		19: Hexagon flat round head screws M6* 16		20: M8 Hexagon nut
2 pcs		4 pcs		4 pcs		1 pc
21: M6*410mm Round steel		22: Half hole Shelf connection		23: Full hole Shelf connection		24: Wrench
1 pair	1 rol		1pc		1 pc		1 pc
25: Cotton gloves	26: Feed str		27: Pet com		28: Licking tray		29: Scouring pad

Installation steps

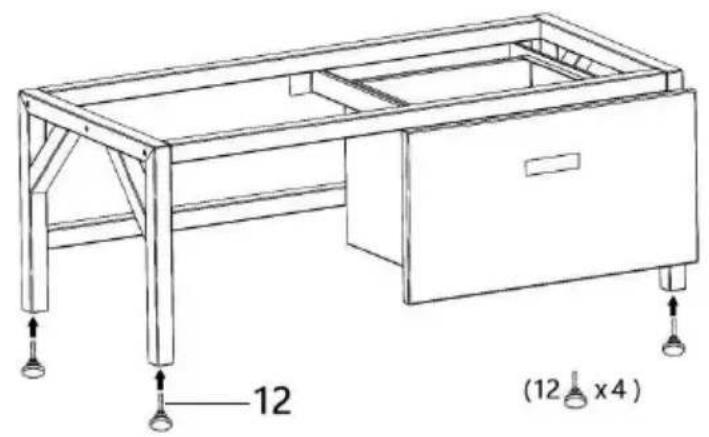

① Install the adjusting feet on the base bracket. Note: The depth of the movable foot is not less than 12mm, and the depth of the four movable foot screws should be consistent as far as possible. Tighten the spare nut during installation and adjust it later.

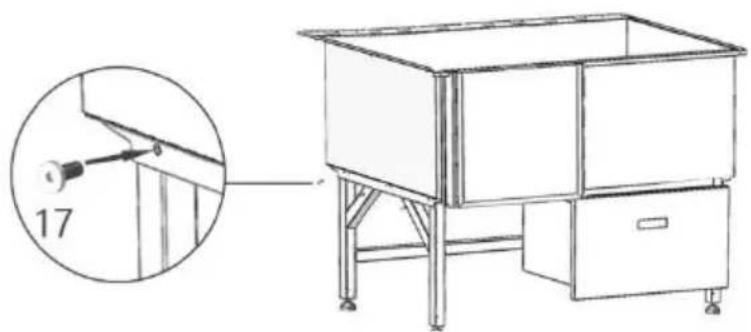

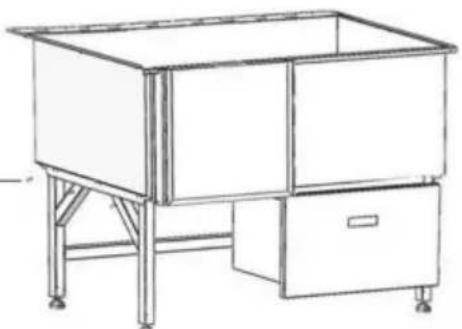

② Place the bathtub in the bottom bracket and secure the bottom bracket and bathtub with screws and nuts.

Left Door Right Door

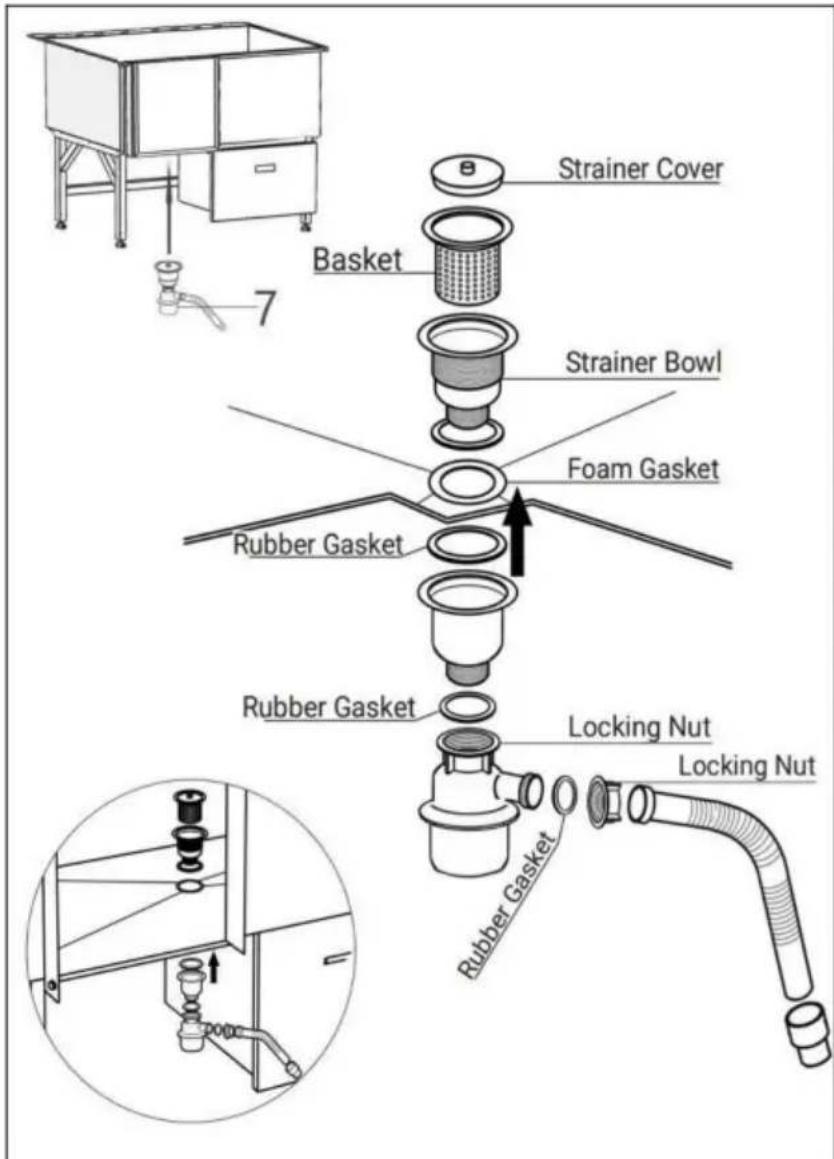

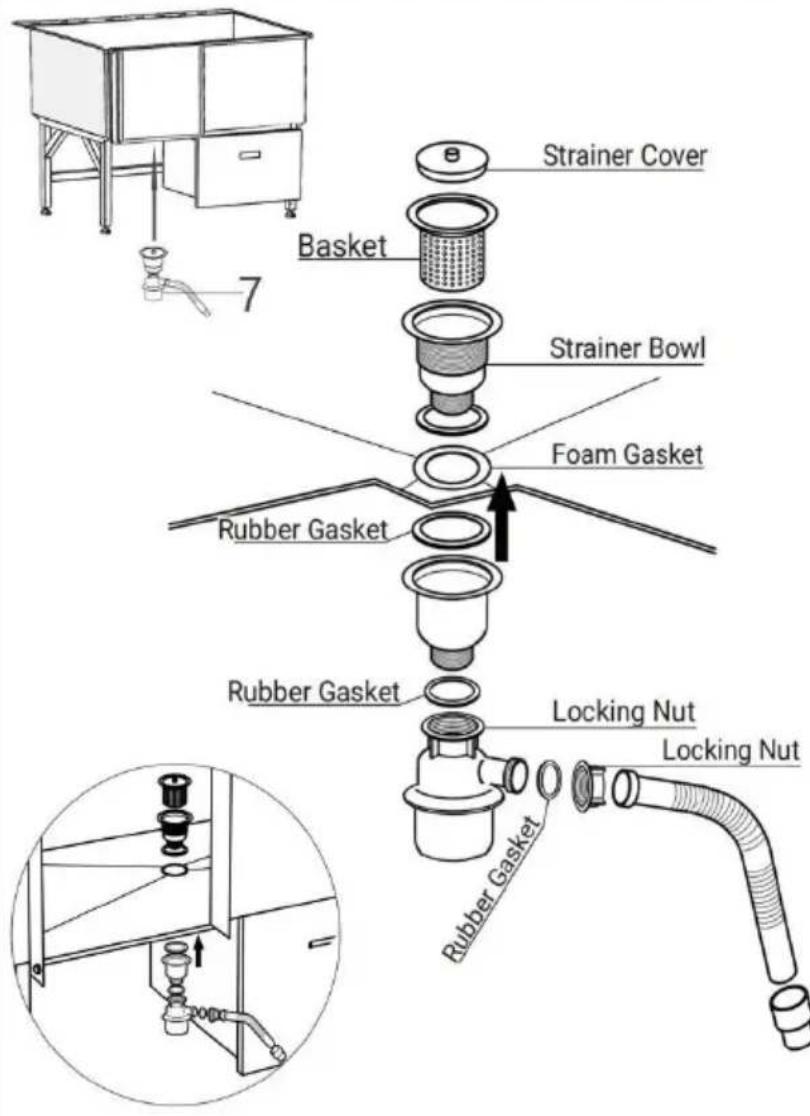

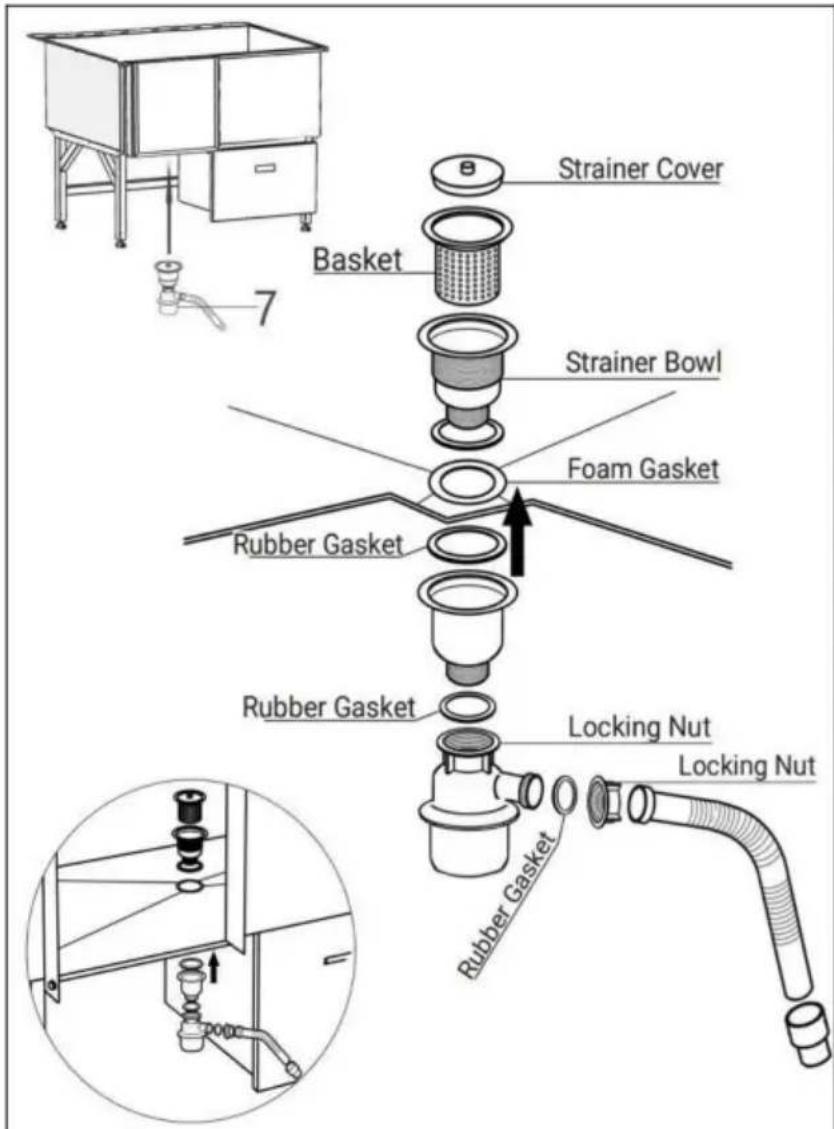

	4 Install the strainer,ensure that the sealing ring is free of dislocation and wrinkles.Caution:When installing please pay attention to whether the sealing ring placed correctly, avoid water leakage due to incorrect seal installation. And check whether the transparent cover of the drain is tightened.Note:Please refer to the instructions attached to the downpipe sleeve box for detailed installation instructions

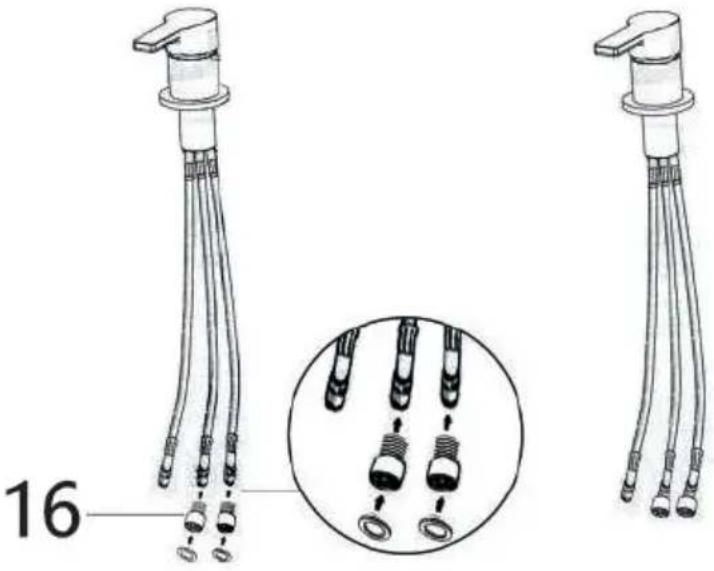

(Note: Please refer to the instructions attached to the faucet sleeve box for detailed installation instructions.)	5 Access adapterPut the rubber ring into the adapter, and connected the adapter to the cold water pipe and hot water pipe respectively.Caution:The normal size of the water inlet pipe NPT9/16. If you need to switch to G1/2, please install an adapter.Adapter in the 6: Take shower.

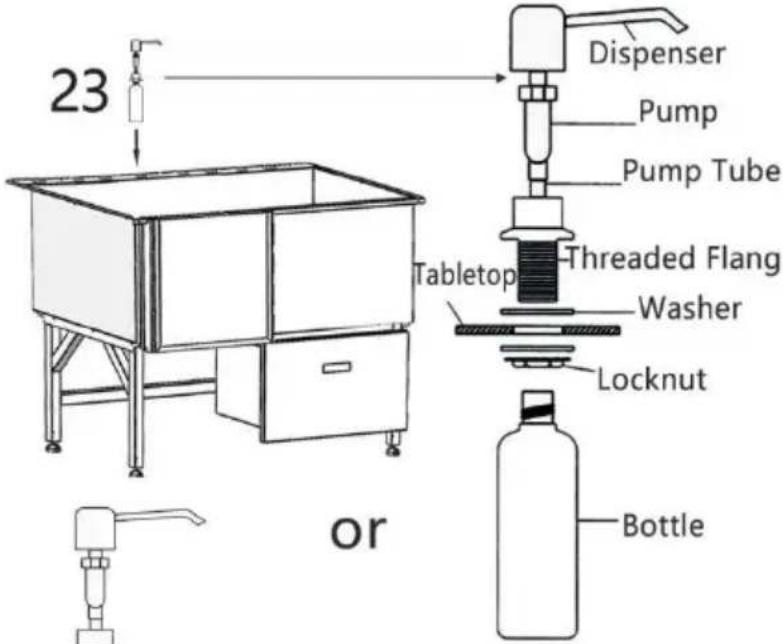

(Note: Please refer to the manual attached to the soap dispenser cartridge for detailed installation instructions.)	6Soap dispenser installation: Prepare the soap dispenser, insert the pump head into the sin mounting hole, align the fastener with the bottleneck and tighten it clockwise, take out the bottle and align the bot with the bottleneck and tighten it clockwise.Or:Put the suction pump head into the slot, fix t pump head, lift the pum head to connect the silicone tube, and put the gravity ball into the dishwashing liquid.

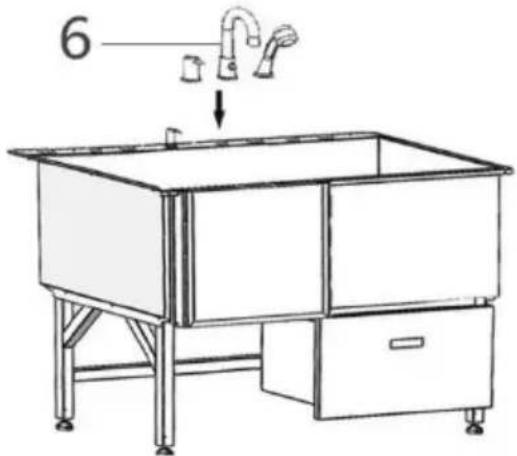

	7Install the shower to ensure that the seal ring free of dislocation and wrinkles.Note1: During installation please pay attention to whether the sealing ring placed correctly to avoid water leakage due to incorrect sealing installation. And check that the shower is tight.Note2: Please refer to instructions attached to the faucet sleeve box fo detailed installation instructions

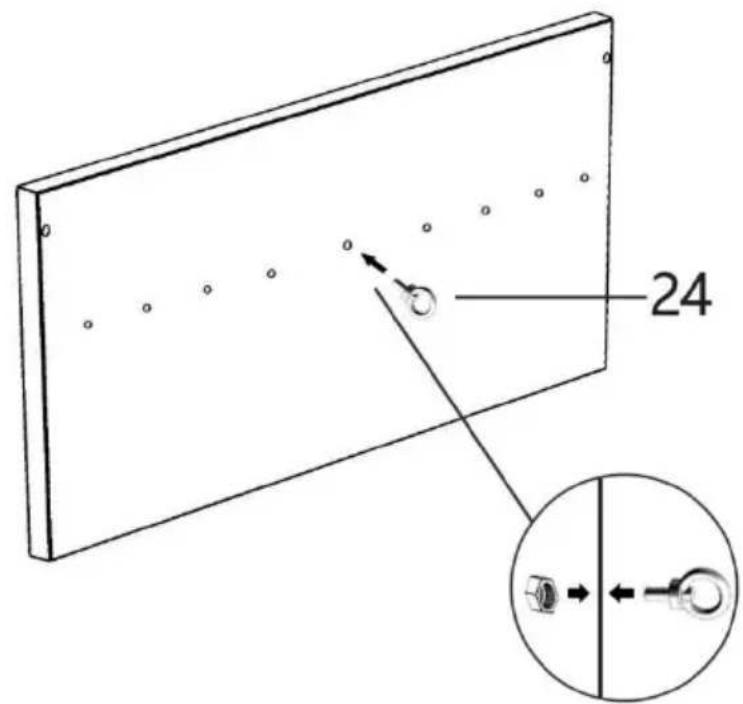

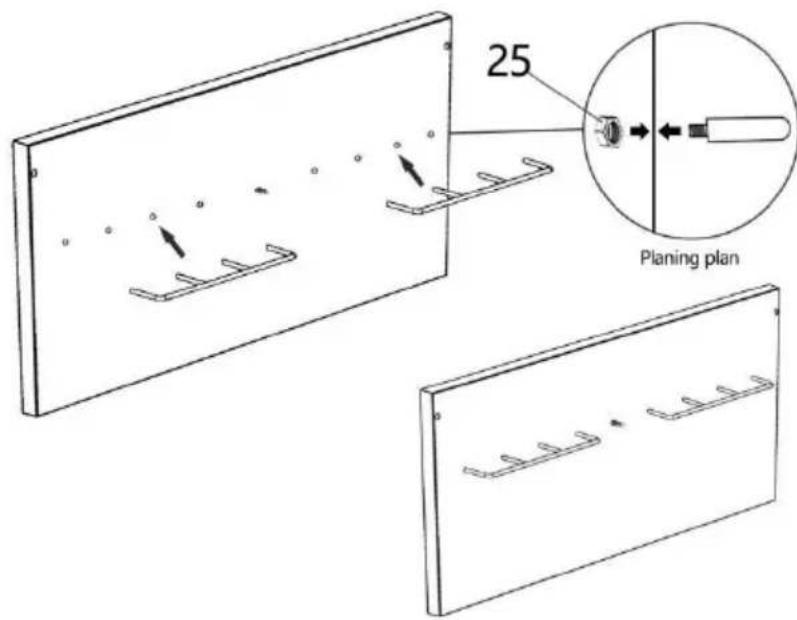

⑧ Install the lifting ring: Install the ring in the hole of the tailgate.

(1)

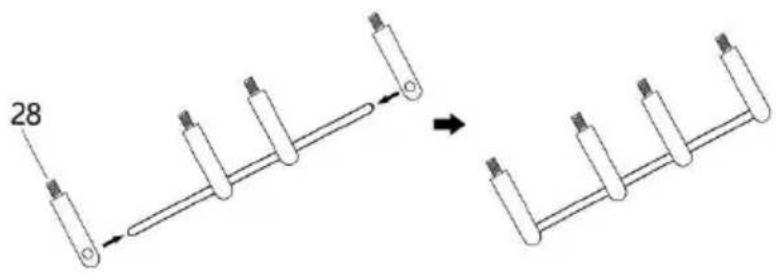

⑨ Install the air drying rack connector:

(2)

First, insert the two full-hole connectors into the round steel, and then place the two half-hole connectors at each end of the round steel.

	10Air drying rack installation: First align the air drying rack connector with the hole the rear baffle, then fix connecting head on both sides of the rear baffle with nuts, and then fix middle connecting head on the rear baffle with nuts.

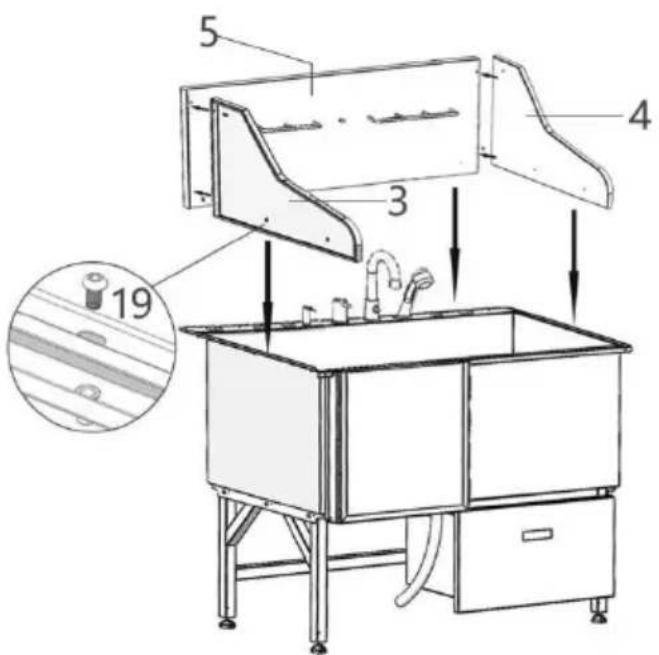

	11Screw the left and baffles, then screw the back panels, and finally screw the left and right baffles and the back panels.

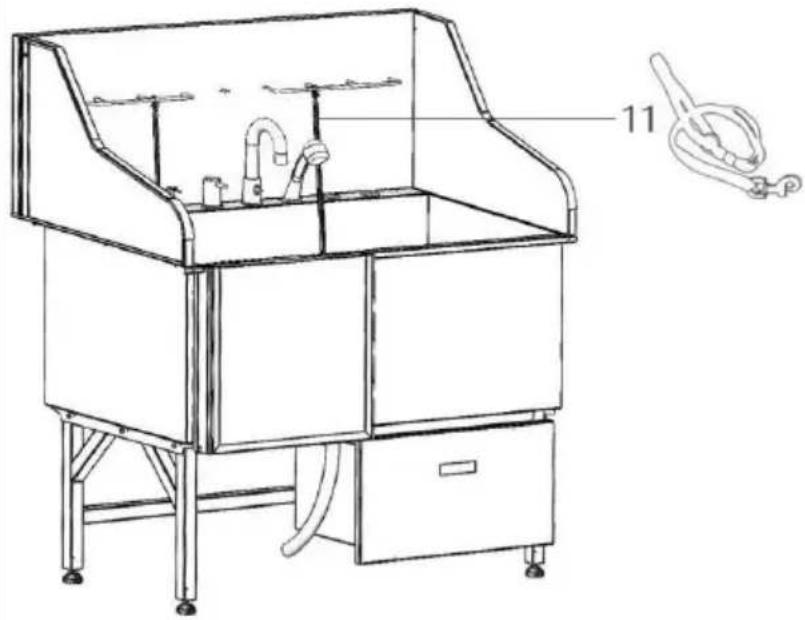

	12Mounting sling.

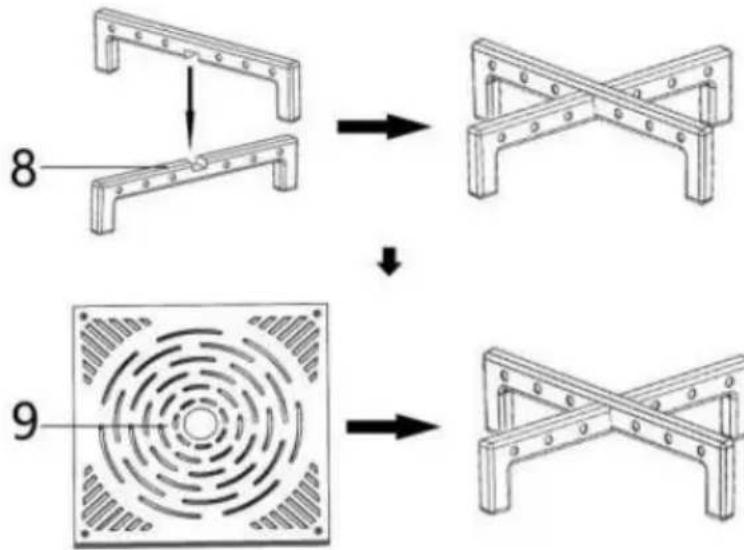

	13Install the filter plateCross mount the brackeand secure them withscrew water filter plates.

⑭ Put the filter board in the tub.

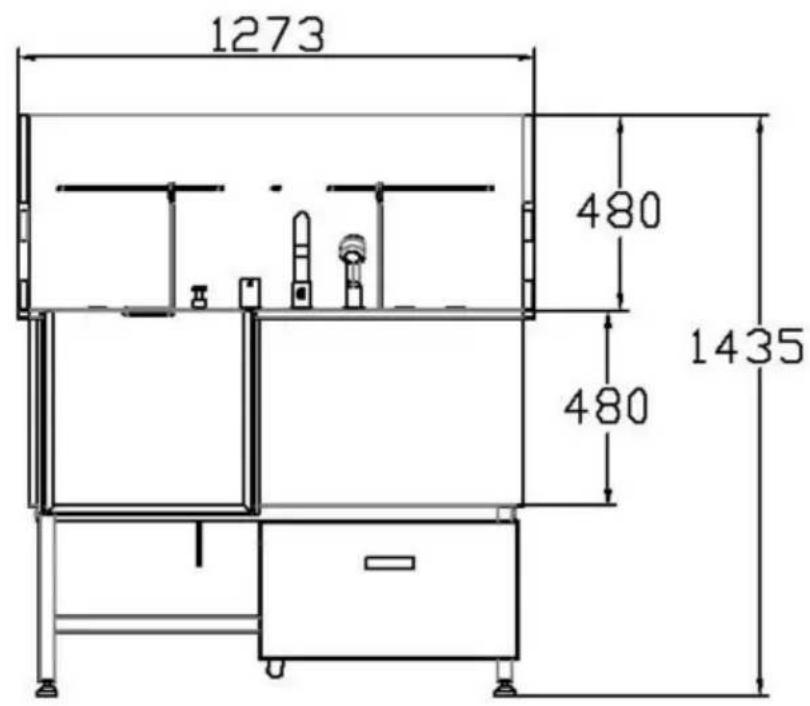

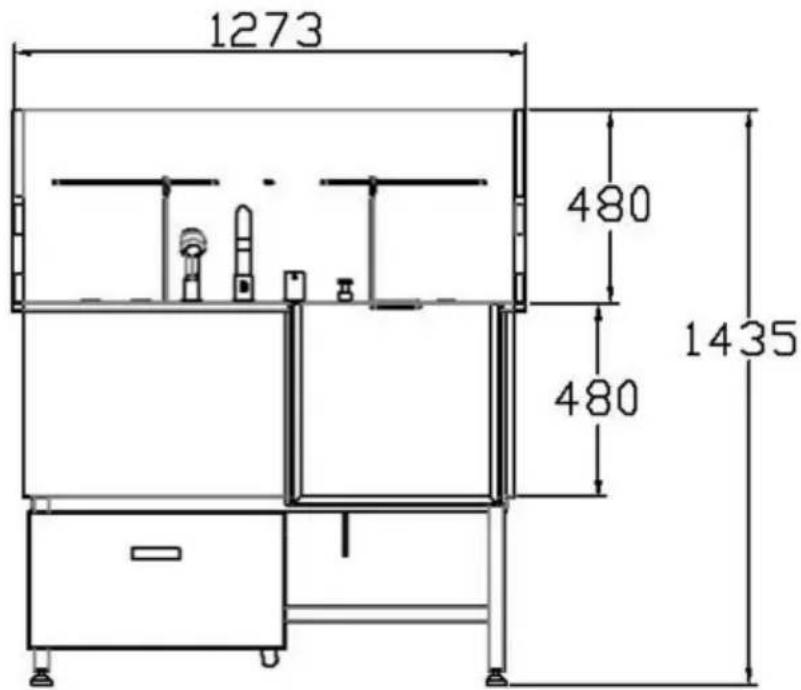

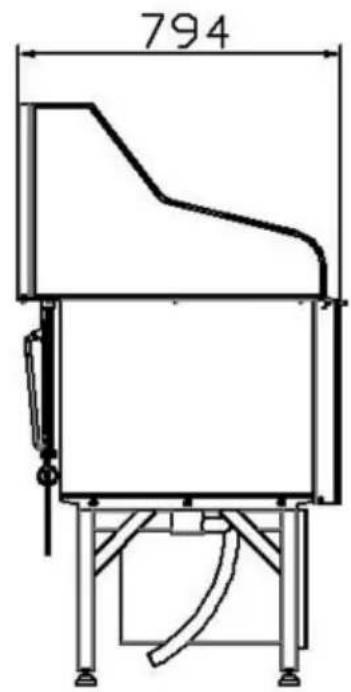

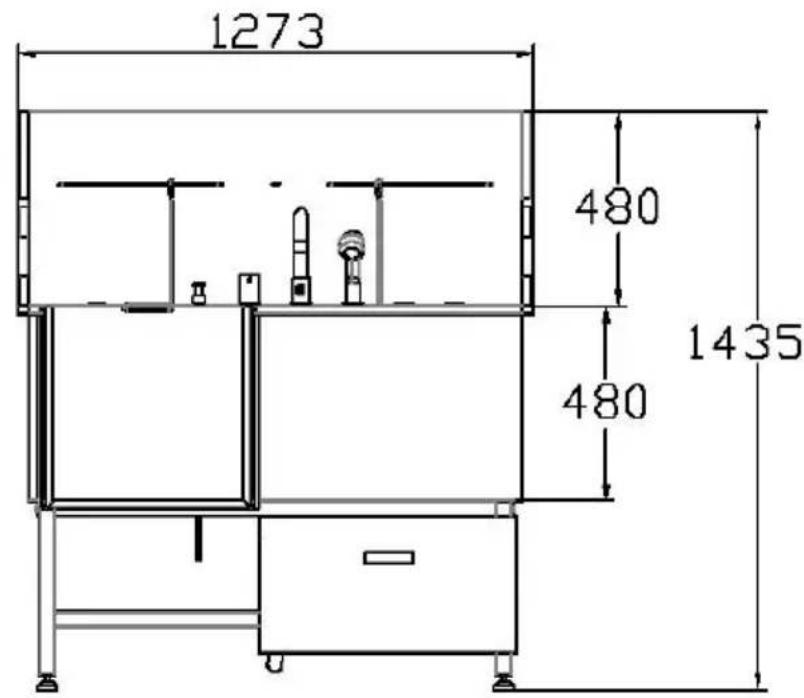

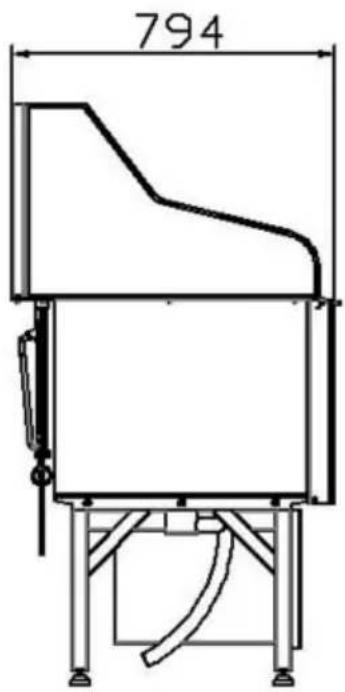

Left Door

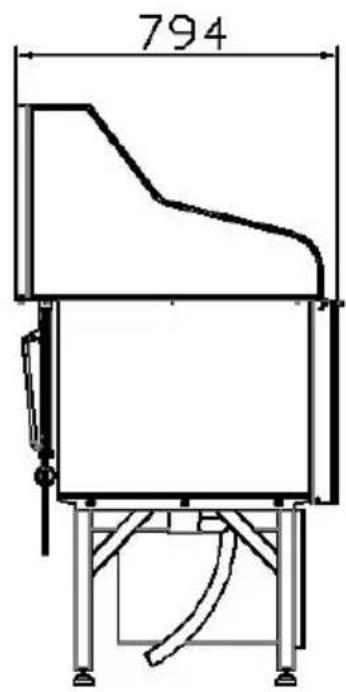

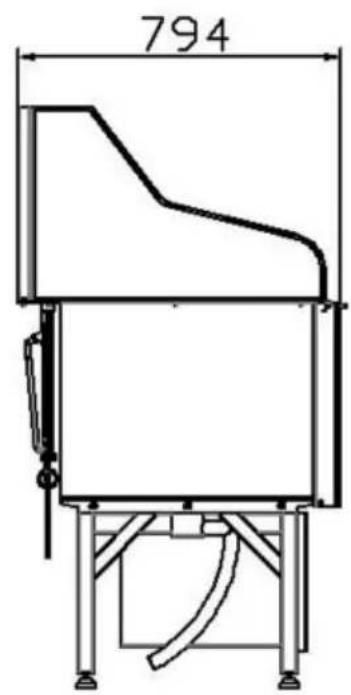

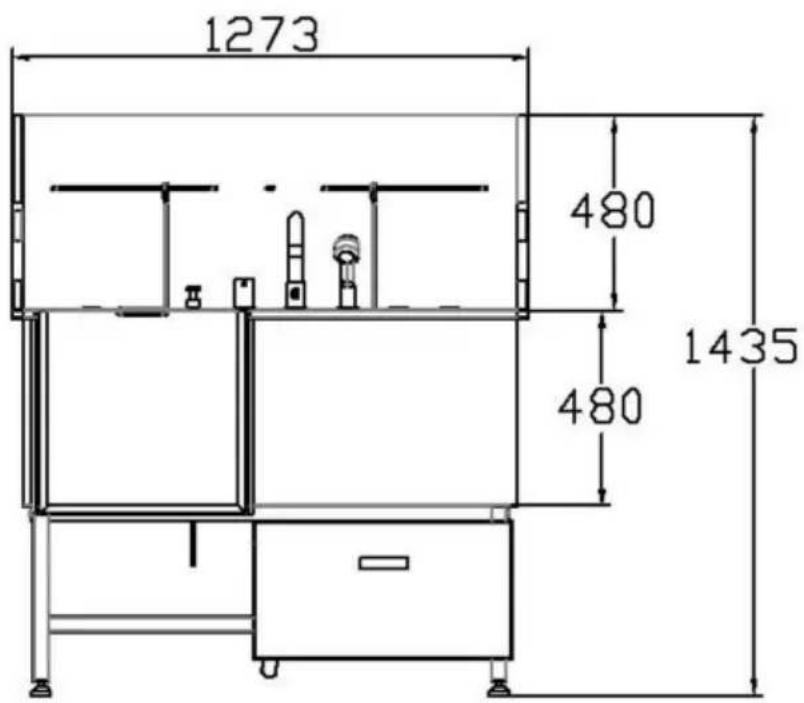

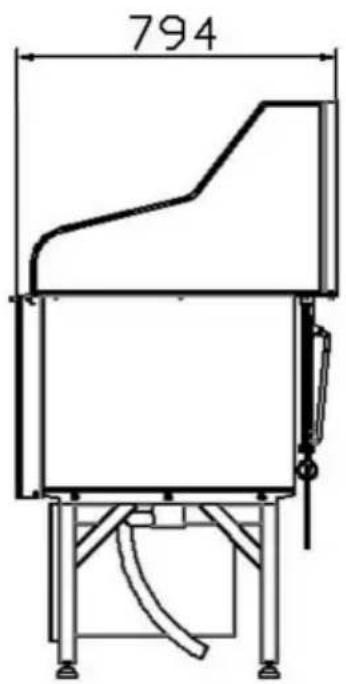

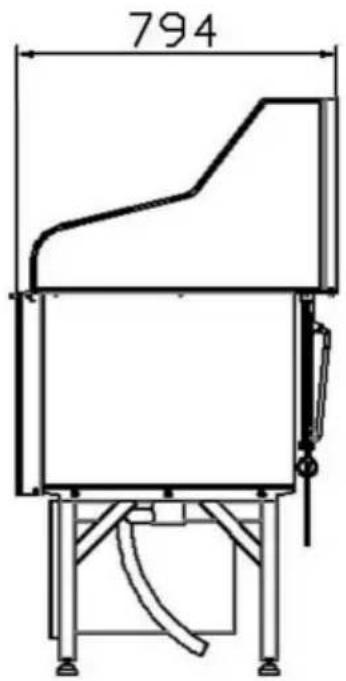

(Unit: mm)

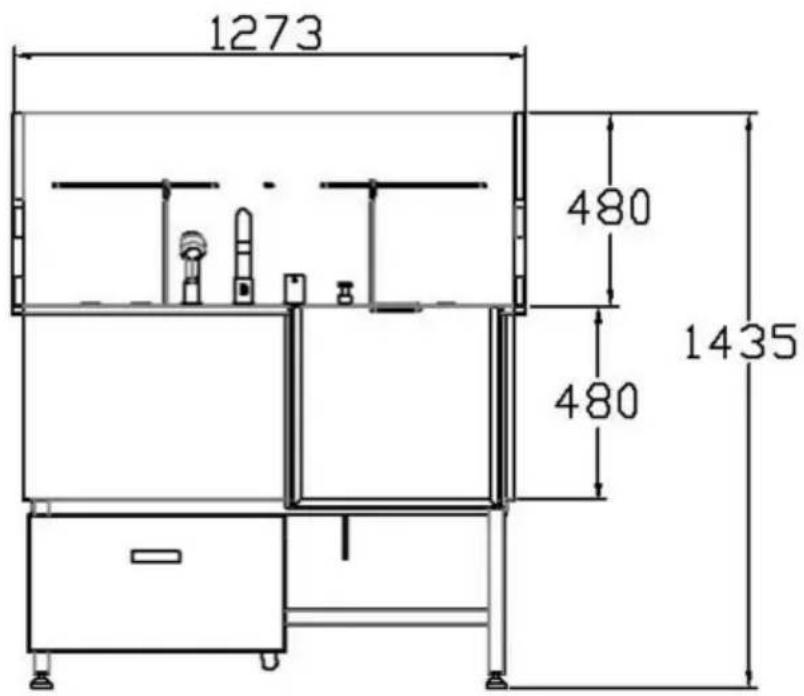

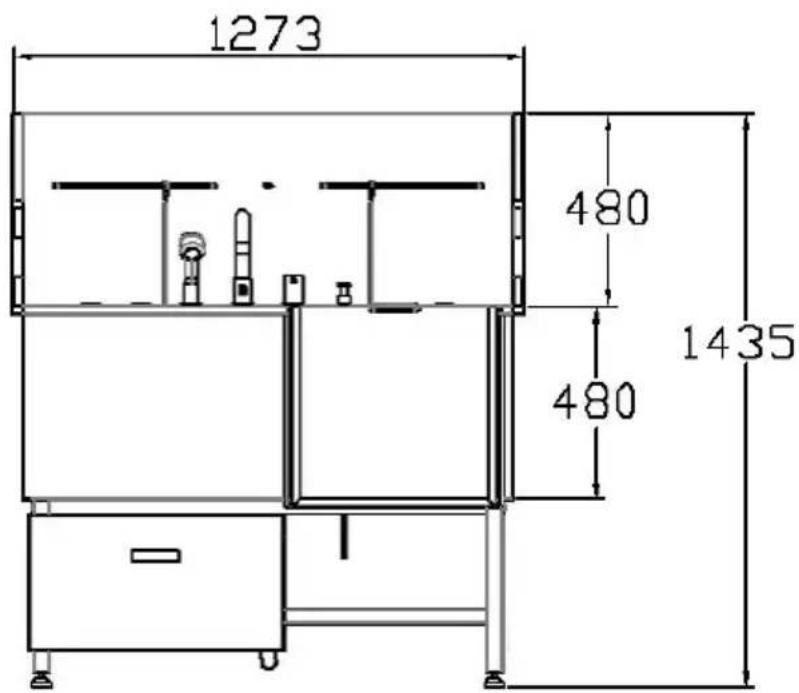

Right Door (Unit: mm)

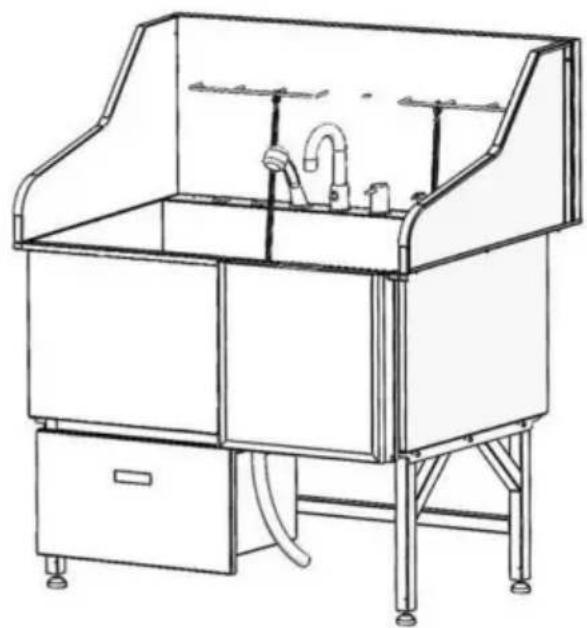

OPERATION

1. Make sure the water pipe connection is complete and the water supply is normal. (Connect the hot and cold water pipes according to the hot and cold water signs on the faucet switch)

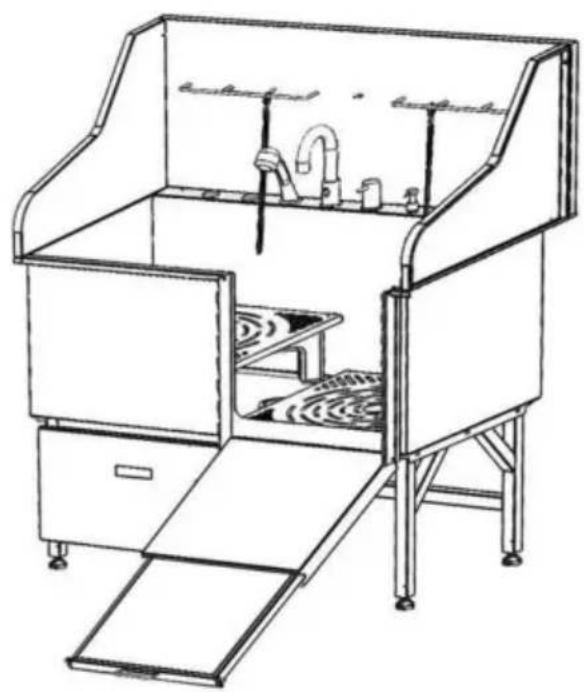

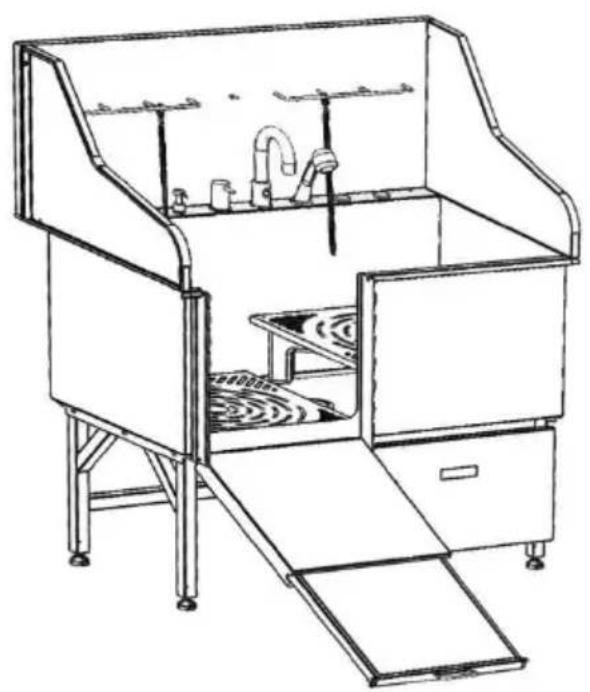

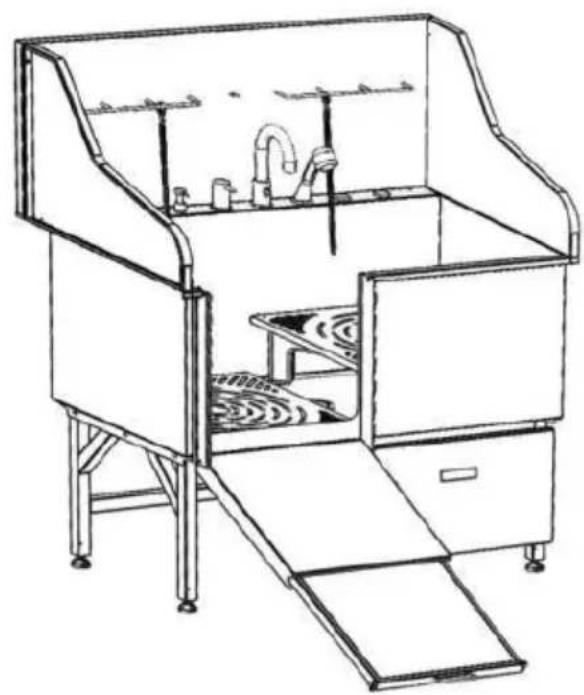

2. Pull out the stairs and open the door, let the pet walk into the bath itself or hold the pet inside the tub by yourself, then close the door.
3. Start to bath.
4. After the bath, let the water out of the tub and take the animal out.
5. Clean the tub with a cloth.

MAINTENANCE

1. In between use, the tub should be cleaned with a soft cloth or sponge using a mild cleaning agent.
2. Pay attention to regularly clean the hair from the drain to avoid clogging.
3. Please clean the transparent cover of the drain regularly. After disassembly like a nut, it can be easily cleaned, and be careful not to lose the seal ring when installing it back.

CARE INSTRUCTIONS

Don't put the bathtub on an uneven surface.

Don't drop or mistreat the bathtub.

COMMON MALFUNCTIONS

If the faucet leaks, please check whether the waterproof rubber plug is installed. If it is damaged, it needs to be replaced in time.

Safety Information

Warning

General Safety Instructions

- Improper installation and/or operation may result in property damage, injury to yourself or your pet. Follow the instructions carefully and contact customer service or a local contractor if any point is confusing, too difficult for you to do on your own, or requires special modification for your circumstances. Keep these instructions for future reference. Provide them to anyone who will use this device and provide them with this device if it is ever sold to a third party.

- ONLY use this bathtub for its intended purpose: bathing medium-size pets such as cats and dogs.

- DO NOT use it with pets that exceed this product's weight capacity, whose predisposition becomes violent upon contact with water, or whose physiological features preclude safe regular bathing (e.g., chinchilla, rat).

- NEVER use this bathtub for humans, especially children, or allow them to play on or with it.

- DO NOT run or allow others to run in the area around this bathtub, allow children or pets to stay under the tub. Restrict access to the necessary.

- Ensure all components and fasteners are intact and securely tightened before use. Do not operate this bathtub if any part is damaged or shows signs of malfunction. Repair or replace problematic components before further use. NEVER replace any parts with non-identical ones.

- Consult a veterinarian before use if your pet may have an illness or condition such as skin allergies that might be worsened by bathing. Only use in compliance with the veterinarian's recommendations (e.g., using specially medicated shampoos).

- Be mindful of your pet's mood while using this bathtub. If unwillingness is unavoidable, take precautions to prevent the pet from harming you,

themselves, or others during bathing.

Provide a reward afterward.

- NEVER load this bathtub with more than 286 pounds (130 kg). Particularly for larger animals, be careful to prevent them from jumping or moving in such a way that causes violent impacts as this might exceed capacity.

- DO NOT leave this bathtub unattended during use.

Electrical Safety Instructions

- Ensure all electrical outlets and exposed electrical connections around are at least 10 feet (3 m) away from this bathtub or fully protected from possible splashing during bathing. DO NOT use any chargers or external cords closer than this distance without similar protection.

- Electrical devices such as electrical transformers, televisions, lights, and telephones should be at least 6'7" (2 m) away from this bathtub at all times. In particular, never bring a charging cell phone near the bathtub and never allow any electrical device to be placed or used in such a way that it could fall into the water under any circumstance.

- For extra safety, install this bathtub at least 6'7" (2 m) away from conductive metal surfaces to reduce the risk of electric shock from splashing water. Any metal surface closer than this should be permanently bonded to a dedicated terminal box with a solid copper conductor at gauge (3.3 m) thick.

Water Safety Instructions

- ONLY install this bathtub on firm, level, and nonslip surfaces that can support its weight while filled with your pet and water. The surfaces must be impervious to damage from moisture and the surrounding area must be able to handle the expected humidity created by the water. - An adequate drainage system should be provided to safely deal with overflow and to permit easy emptying of this bathtub. - Make sure your water supply for this bathtub is turned off during installation.

• NEVER allow the water level to rise above the level of your pet's body during use.
• DO NOT set up or leave this bathtub in temperatures below 32°F. Do not turn on the shower if there is any possibility that water in its line is frozen.
• DO NOT add chemicals other than standard mild soaps and pet shampoos to the bathing water. After use, only apply nontoxic cleaning agents to the bathtub's internal surface and rinse it away completely. For sterilization, only use pet-safe and nontoxic disinfectants.
• DO NOT allow dirty and stagnant water to remain in this bathtub for a long period. Drain, clean, and dry the tub completely after each use.

Heat Safety Instructions

• Adequate ventilation should be provided to safely deal with the expected heat and humidity.
• The water temperature should be close to your pet's body temperature. Water that is either too cold or too hot will cause discomfort, may irritate your pet's skin, and may even cause injury or illness. Before use, learn about the appropriate water temperatures for bathing your pet. For best results, set your water heater's maximum temperature accordingly if possible. If adding preheated water, make sure it is within the temperature range appropriate for your pet before allowing your pet to enter.

Manufacturer: Shanghai Muxin Muye Youxiangongsi

Address: Shuangchenglu 803nong11hao1602A-1609shi, Baoshanqu, Shanghai 200000 CN.

Imported to AUS: SIHAO PTY LTD. 1 ROKEVA STREET EASTWOOD NSW 2122 Australia

Imported to USA: Sanven Technology Ltd. Suite 250, 9166 Anaheim Place, Rancho Cucamonga, CA 91730
