Product Type	Deck Baluster (Scaffolding Kit)
Brand	Vevor
Model	YG19-813B-101
Number of Pieces	101 pieces
Outer Diameter of Tubes	3/4 inch (19 mm)
Length of Balusters	32 inches (81.3 cm)
Railing Height	42 inches (106.7 cm)
Material	Aluminum metal
Included Screws	M5x30 screws (202 pieces)
Included Connectors	Plastic connectors (202 pieces)
Main Functions	Installation on horizontal rail, creating deck railing
Intended Use	Outdoor use for deck balustrade
Load Capacity	Applicable only after complete and correct assembly
Safety	Use safety glasses and gloves; keep children away; do not let children climb
Assembly	Requires 2 people; required tool: Phillips screwdriver (electric drill, circular saw, measuring tape to be provided)
Maintenance and Cleaning	Clean with a damp cloth; do not intentionally impact to avoid damage
Repairability	Contact technical support via www.vevor.com/support
Spare Parts	M5x30 screws and plastic connectors available; other parts to purchase separately
Warranty	Electronic warranty certificate available at www.vevor.com/support

Frequently Asked Questions - YG19-813B-101 Vevor

How many balusters are included in the YG19-813B-101 kit?

The kit contains 101 aluminum balusters, along with 202 M5x30 screws and 202 plastic connectors.

What is the railing height after installation?

The railing reaches a height of 42 inches (approx. 106.7 cm), for a baluster length of 32 inches (81.3 cm).

Can I install the baluster alone?

No, assembly requires two people to handle the parts and ensure safety.

What tools do I need to provide for installation?

You will need a Phillips screwdriver (or electric drill at slow speed), a circular saw, and a measuring tape.

Is the kit compatible with all deck rails?

It is designed for installation on a horizontal rail. Holes must be marked with a center distance of 4.5 inches (11.4 cm) between balusters.

What safety precautions should be followed?

Wear safety glasses and work gloves. Keep children and animals away. Do not climb on the railing and do not let children climb.

How to maintain the baluster?

Clean with a damp cloth. Avoid intentional impacts that could damage the aluminum or the wooden fence.

Where to find spare parts?

M5x30 screws and plastic connectors are included. For other parts, contact Vevor support via www.vevor.com/support.

Is the product guaranteed?

Yes, an electronic warranty certificate is available on the Vevor website. Keep your proof of purchase.

Can I use this baluster for a stair railing?

This product is specifically designed for deck railings on a horizontal rail. For stairs, check compatibility with angles and fastenings.

USER MANUAL YG19-813B-101 Vevor

Technical Support and E-Warranty Certificate www.vevor.com/support

DECKING BALUSTER

MODEL:YG19-660B-101/YG19-914B-101/

YG19-813B-101/YG19-660B-51/

YG19-813B-51/YG19-914B-51

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represents an estimate of savings you might benefit from buying certain tools with us compared to the major top brands and does not necessarily mean to co all categories of tools offered by us. You are kindly reminded to verify carefully when you are placing an order with us if you are actually Saving Half in comparison with the top major brands.

MODEL:YG19-660B-101/YG19-914B-101/YG19-813B-101/YG19-660B-51/YG19-813B-51/YG19-914B-51

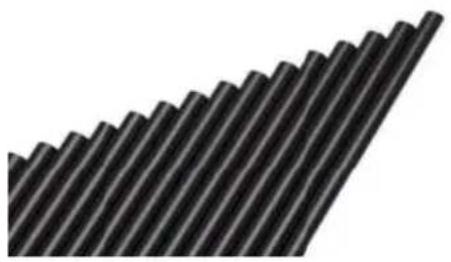

Close-up of a diagonal striped pattern resembling corrugated metal or fabric (no text or symbols)

Close-up of a black plastic component with a metallic screw head, enclosed in a circular frame (no text or symbols)

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel free to contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instructions carefully before operating. VEVOR reserves a clear interpretation of user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform you and there are any technology or software updates on our product.

WARNING:

1. Do not allow children to climb on the unit.
2. Keep children and pets away during assembly.

SAFETY INSTRUCTIONS

1. Please assemble the product in strict accordance with the instruction Incorrect assembly could be hazardous.
2. Please wear safety goggles and work gloves properly during assemb
3. Do not try to assemble the product when feeling tired or when unc influence of alcohol, drugs or medication.
4. Load bearing capacity and other product parameters are applied to properly and completely assembled product only.
   5.Separate and count all parts and hardware.
5. Prepare the following tool: Philips Head Screwdriver.
6. If using power tools, please be careful to slow down and stop when needed.
7. Two people are required for assembly.
8. Follow the intended uses only.
9. The product is made of metal aluminum. After installation, please not intentionally impact to avoid damage to the wooden fence.

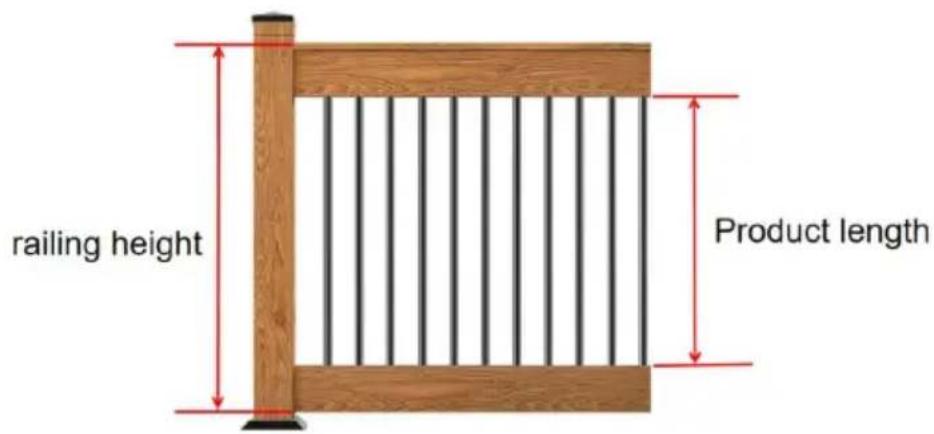

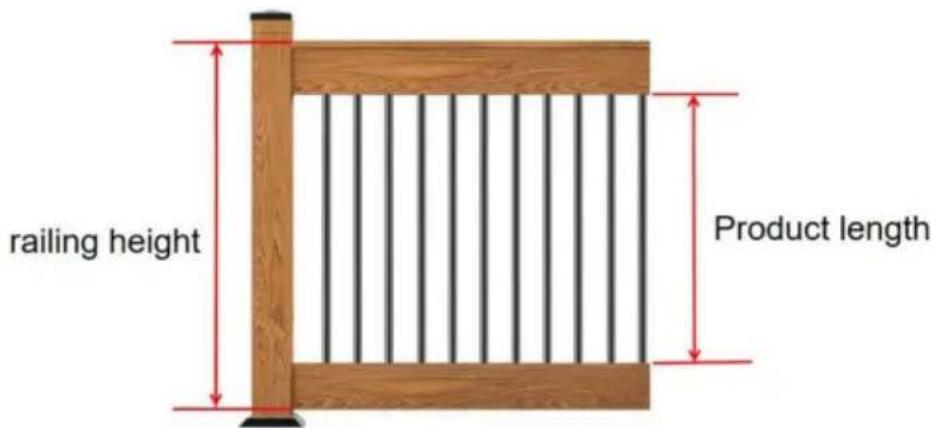

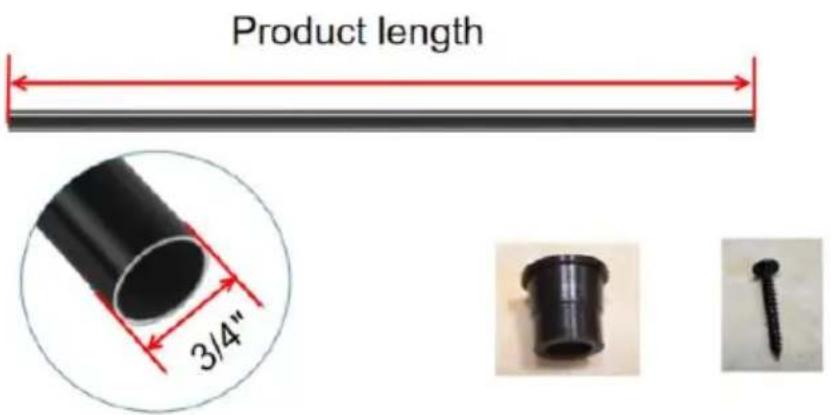

PARAMETER LIST

Model	Number of kits	Product outer diameter	Product length	railing height	M5*30 Screw	Plastic connector
YG19-66 0B-101	101pcs	∅3/4"	26inch	36inch	202pcs	202pcs
YG19-91 4B-101	101pcs	∅3/4"	36inch	48inch	202pcs	202pcs
YG19-813B-101	101pcs	∅3/4"	32inch	42inch	202pcs	202pcs
YG19-660B-51	51pcs	∅3/4"	26inch	36inch	102pcs	102pcs
YG19-813B-51	51pcs	∅3/4"	32inch	42inch	102pcs	102pcs
YG19-914B-51	51pcs	∅3/4"	36inch	48inch	102pcs	102pcs

Each Decking Baluster requires 2 connectors and 2 screw mounting; The package only includes Decking Baluster, M5*30 Screw and Plastic connector, Please purchase the other installation parts by yourself. Decking Baluster, is applicable to the installation on the horizontal rail

2pcs Plastic connector and 2pcs screws

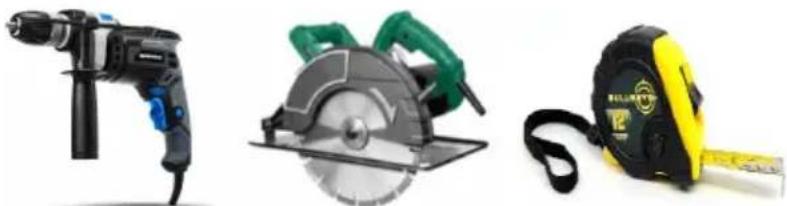

You need to prepare the electric drill, Circular Saw, and the tape mea by yourself before installation.

Three industrial tools: a pushaxe, a circular cutter cutter, and a tape measure (no text or symbols visible)

Installation Guide

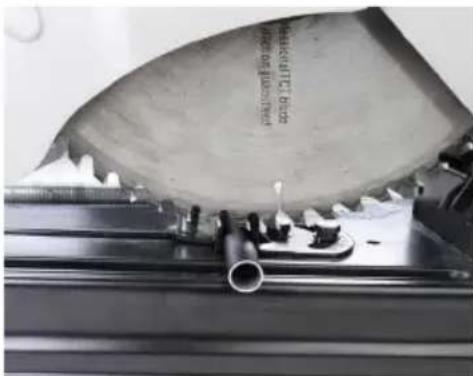

1. Process the Decking Baluster according to the height of the railing.

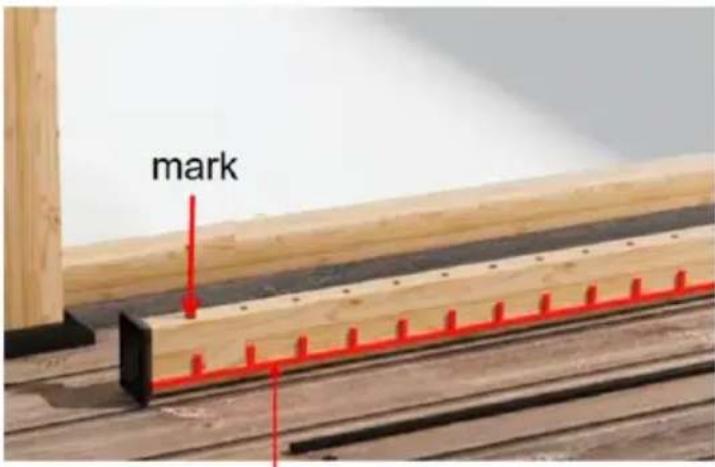

1. Draw the installation mark on the railing, the center distance of the markers is 4.5 inches, the marking distance between the top railing a bottom railing is the same;

Two markers are 4.5 inches apart

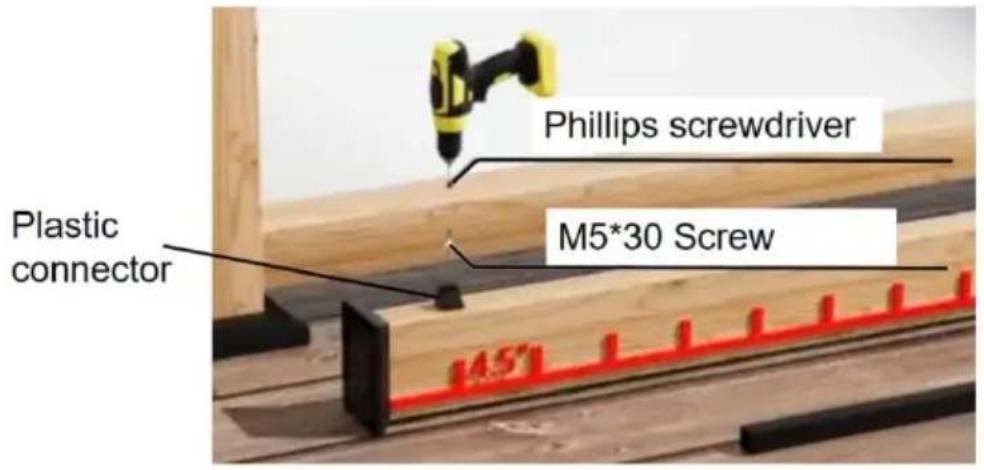

1. On the marked mark, screw the plastic connector to the railing.

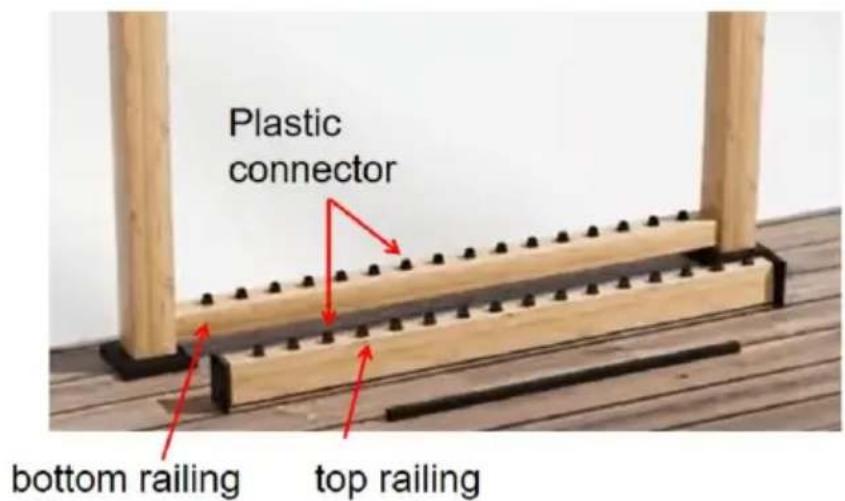

1. Install all connectors on the top and bottom rails

1. Insert the inner hole of Decking Baluster into the plastic connector insert the plastic connector of the top track into the inner hole of De Baluster

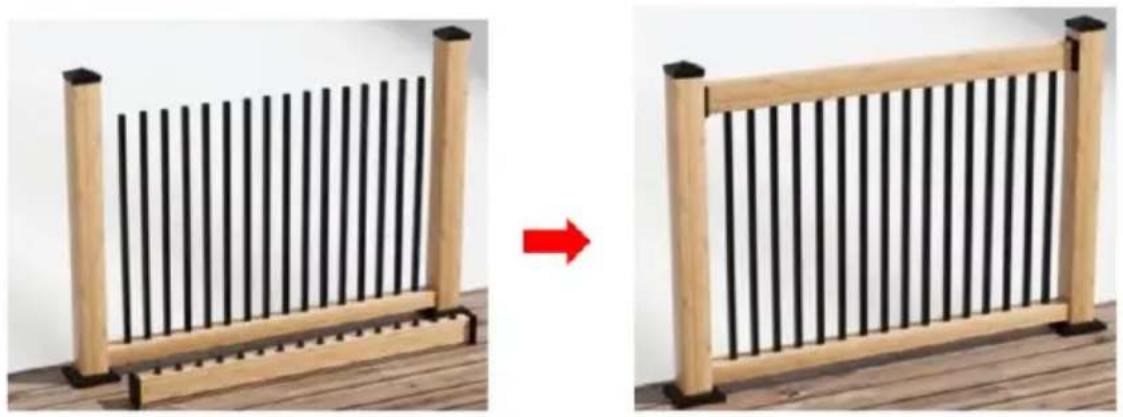

Two wooden deck railings with black vertical bars, one showing a red arrow indicating change (no text or symbols)

1. Fix the top railing to the left and right railing columns and complete installation; After installation, the two Decking Baluster's are less than 4 inches

Manufacturer: Shanghaimuxinmuyeyouxiangongsi

Address: Shuangchenglu 803nong11hao1602A-1609shi, baoshanqu, shanghai 200000 CN.

Imported to AUS: SIHAO PTY LTD. 1 ROKEVA STREETEASTWOOD NSW 2122 Australia

Imported to USA: Sanven Technology Ltd. Suite 250, 9166 Anaheim Place, Rancho Cucamonga, CA 91730

UK

REP

YH CONSULTING LIMITED. C/O YH Consultin Limited Office 147, Centurion House, London Road, Staines-upon-Thames, Surrey, TW18 4A>

EC

REP

Technical Support and E-Warranty Certificate

www.vevor.com/support
