WBS-021 - Scaffolding Vevor - Free user manual and instructions

Product Type	Portable Scaffolding
Brand	Vevor
Model	WBS-021
Maximum Load	800 lb (363 kg)
Adjustable Height	70 to 115 cm
Platform Size	140 x 38 cm
Foldable	Yes
Number of Sections	4
Color	Silver Gray
Material	Steel
Locking System	Side pins and support tube pins
Tensioned Steel Cable	Yes, with adjustable tensioner
Usage	Indoor and outdoor (on stable ground)
Assembly	Manual, no special tools required
Maintenance	Dry after use to prevent rust
Safety	Check general condition before each use
Warranty	See website www.vevor.com/support

Frequently Asked Questions - WBS-021 Vevor

How to assemble the Vevor WBS-021 scaffolding?

Open the folded scaffolding, secure the side pins and support tube pins, then tighten the steel cable with the tensioner. Tighten the screws at the ends.

What is the maximum load of the WBS-021 scaffolding?

The maximum load is 800 lb (363 kg), evenly distributed on the platform. Never exceed this limit.

How to adjust the height of the scaffolding?

Unlock the pins, adjust to the desired height between 70 and 115 cm, then secure the bolts into the concentric holes and lock the wing nuts.

Is the Vevor WBS-021 scaffolding foldable?

Yes, it is foldable for easy storage and transport. Make sure it is dry before folding.

What are the important safety instructions?

Before each use, check the general condition: welds, threads, no looseness. Do not exceed the maximum load and make sure the pins are fully inserted.

How to maintain the WBS-021 scaffolding?

After each use, dry it to prevent rust. Store it in a dry place. Regularly check the welds and fasteners.

Can I use the scaffolding outdoors?

Yes, but only on a stable and flat ground. Avoid loose or sloping surfaces. Do not use in strong wind.

Where to find the complete user manual?

The manual is available for free download on notice-facile.com or on the Vevor website (www.vevor.com/support).

What to do if the scaffolding is damaged?

Do not use the scaffolding if damaged. Contact Vevor technical support via their website for replacement parts or repair.

Is the scaffolding delivered with a warranty?

Yes, an electronic warranty is available at www.vevor.com/support. Keep your proof of purchase.

USER MANUAL WBS-021 Vevor

Technical Support and E-Warranty Certificate www.vevor.com/support

PORTABLE SCAFFOLDING

MODEL:WBS-020/WBS-021/WBS-022/WBS-023

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represents an estimate of savings you might benefit from buying certain tools with us compared to the major top brands and does not necessarily mean to co all categories of tools offered by us. You are kindly reminded to verify carefully when you are placing an order with us if you are actually Saving Half in comparison with the top major brands.

VEVOR®

PORTABLE SCAFFOLDING

MODEL:WBS-020/WBS-021/WBS-022/WBS-023

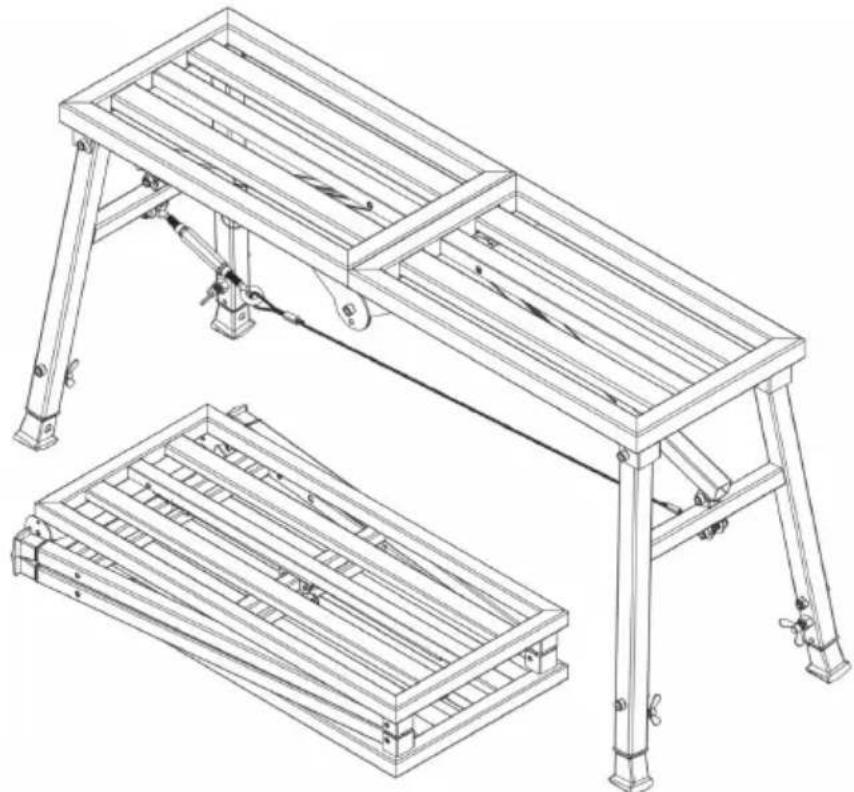

Technical line drawing of two mechanical supports or structural frames, one with a handle and the other with a ladder (no text or symbols)

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel free to contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instructions carefully before operating. VEVOR reserves a clear interpretation of user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform you and there are any technology or software updates on our product.

Warning-To reduce the risk of injury, user must read in manual carefully.

SECURITY & WARNINGS

1. Do not exceed the scope of the work platform.
2. After use, please dry before storage to avoid product rusting.
3. Procedures not specifically explained in this manual must be perform only by a qualified technician.
4. Before use, make sure that the pins on both sides of the fold and of the diagonal support rod are inserted into the holes.

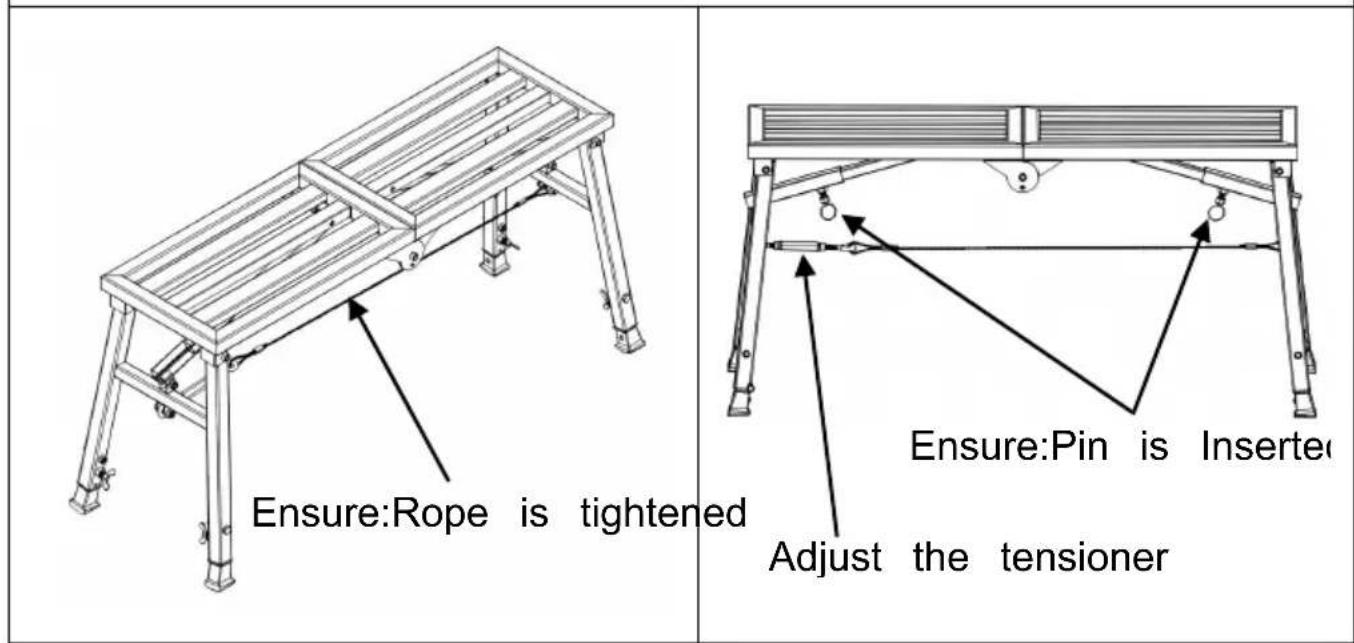

5. Make sure the wire rope is already tightened.
6. To prevent serious injury from tool failure, do not use it when it is damaged:

1) Please check the overall condition of the product before each use.

• Is the screw thread damaged?
• Is the weld cracked?
- Are there gaps in all parts?

Before each use, check that the workbench is working properly before actually using it. If the workbench does not work properly, follow the inspection instructions to see if there is a problem.

in order to prevent serious damage, the failure of the work platform careful when overhaul, and before use to solve all problems. If the s provided in the troubleshooting guide does not solve the problem, che the workbench with a qualified technician before using it.

3) make sure the working platform is safe enough to continue using.

SAVE THESE INSTRUCTIONS

PARAMETER LIST

Model	WBS-020	WBS-021	WBS-022	WBS-023
Max.Load	400lbs	800lbs	882lbs	882lbs
Height	19.7"-29.1"50-74cm	27.6"-45.3"70-115cm	31.5"-51.2"80-130cm	35.4"-59"90-150cm
Platform Size	39.4"X11.4"100X29cm	55.1"X15"140X38cm	63"X15"160X38cm	71"X15"180X38cm
Foldable	√	√	√	√
Series	3	4	4	4
Color	Silver Gray	Silver Gray	Silver Gray	Silver Gray

ASSEMBLY STEPS

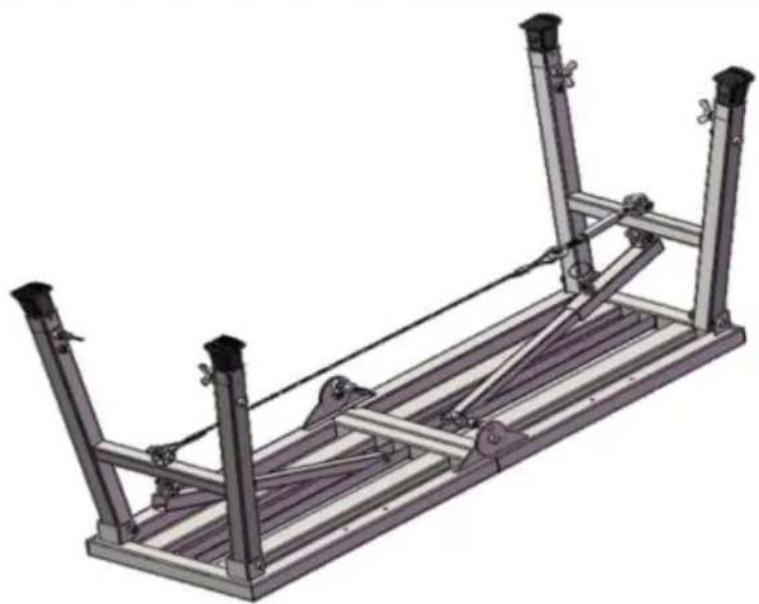

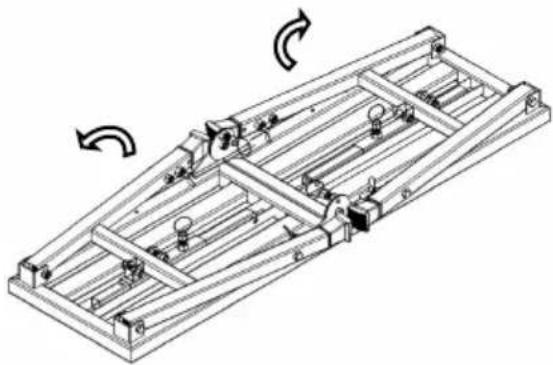

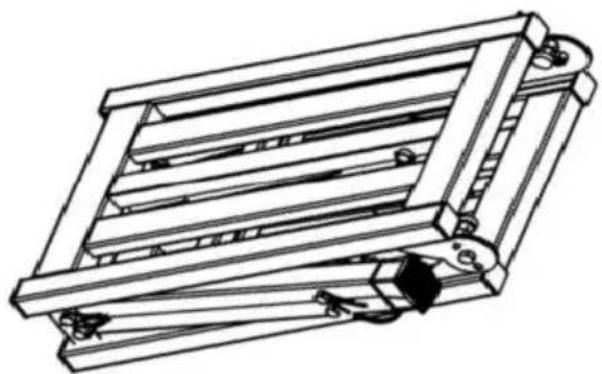

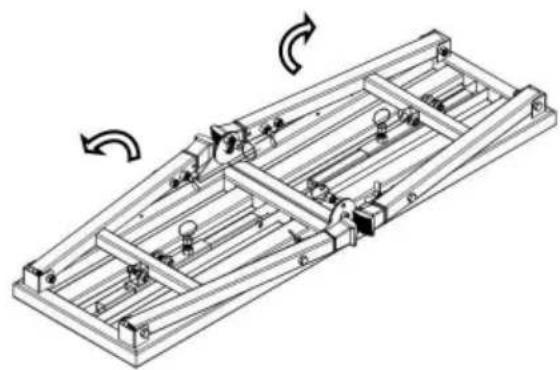

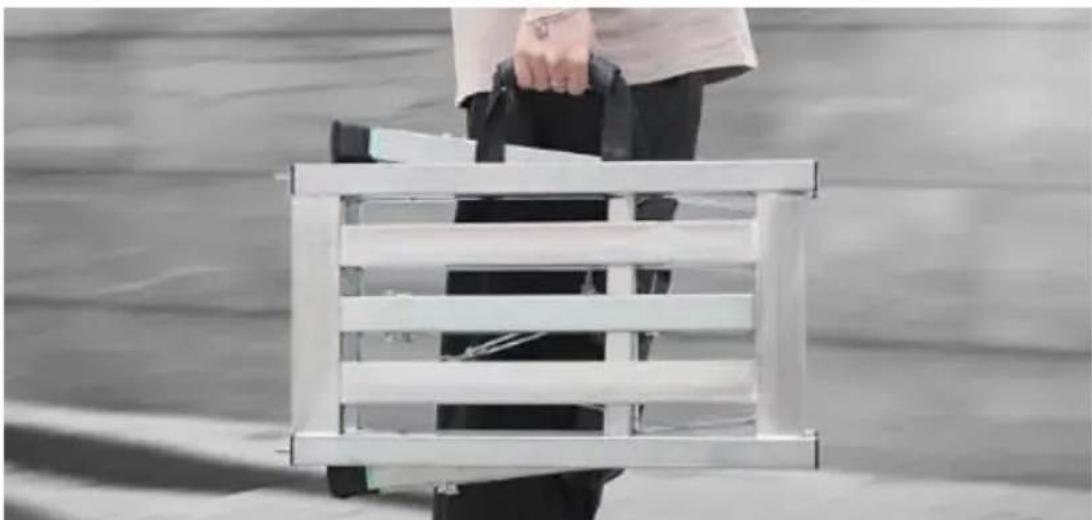

1.Open the folded scaffolding.

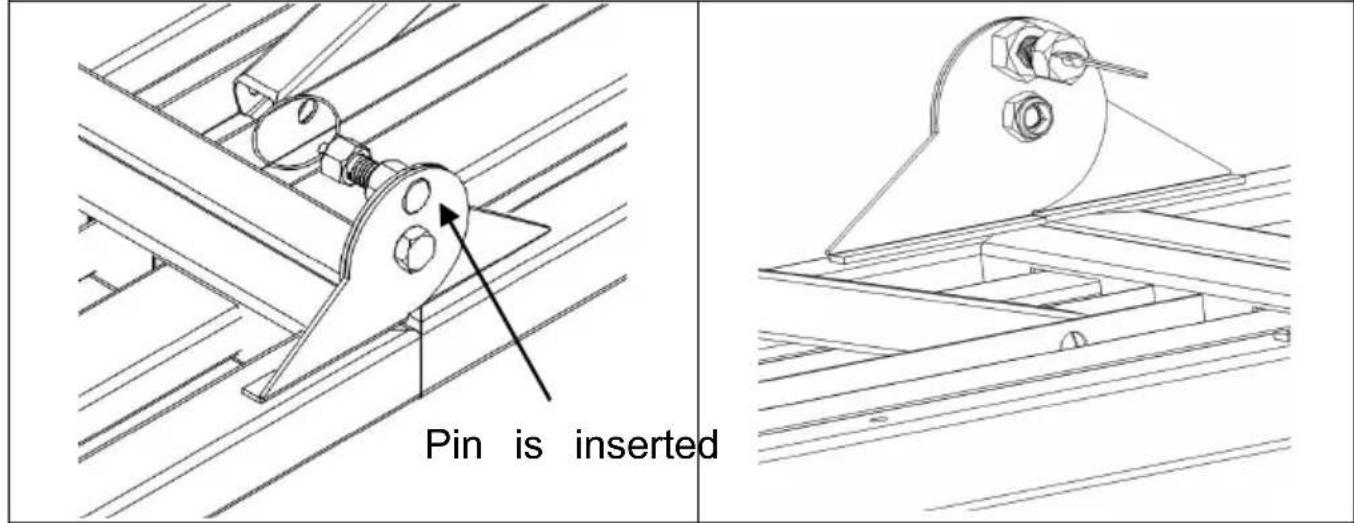

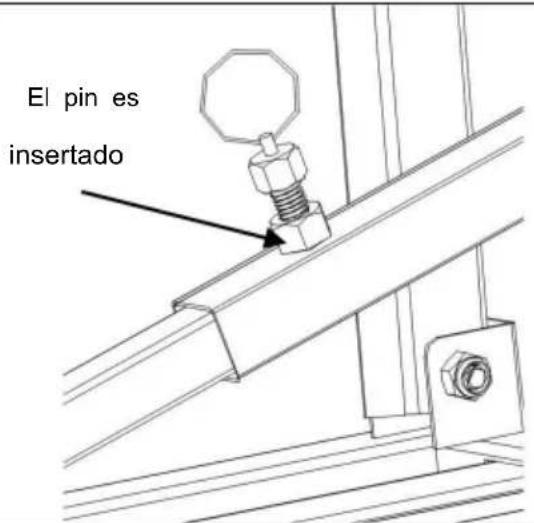

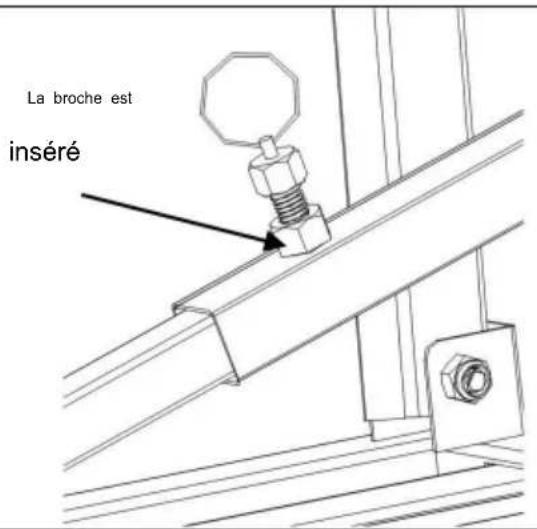

1. Secure both side pins securely and can not be easily pul

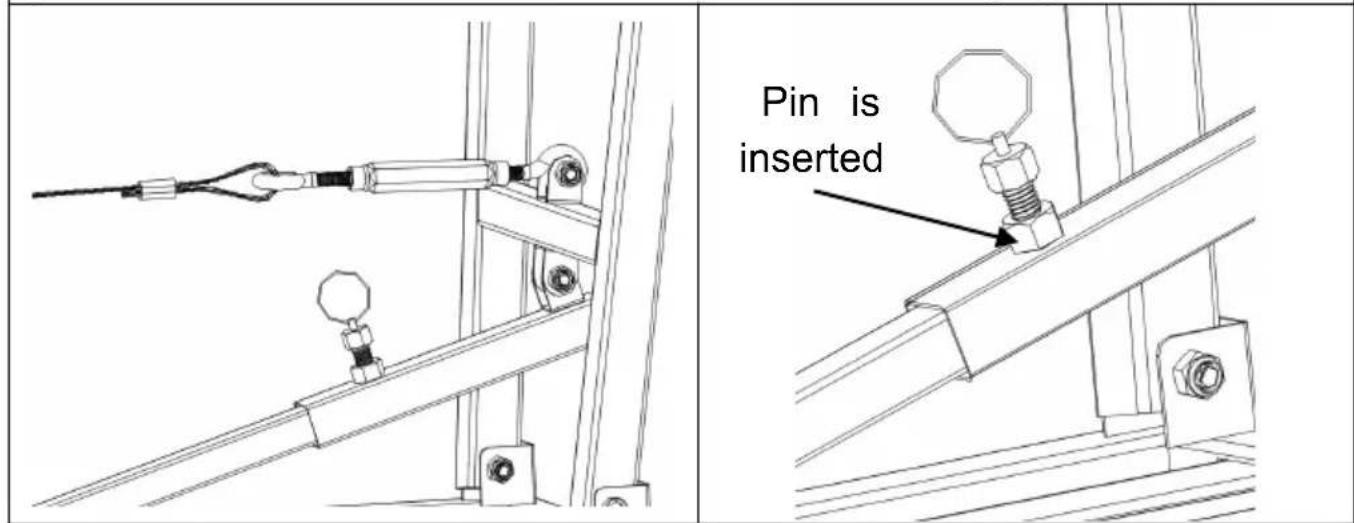

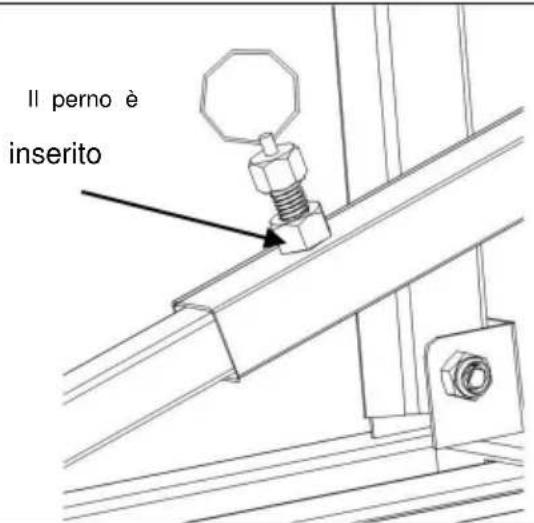

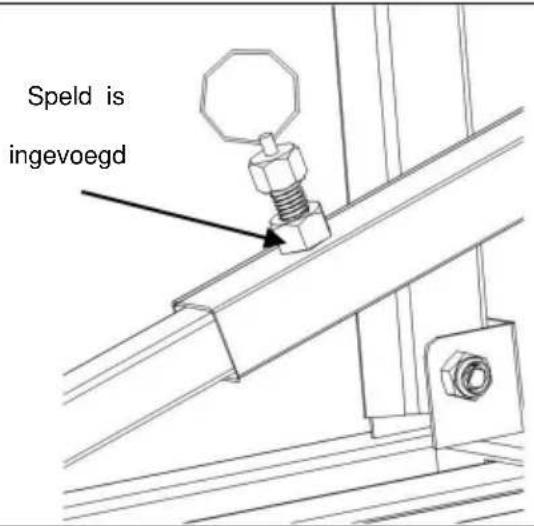

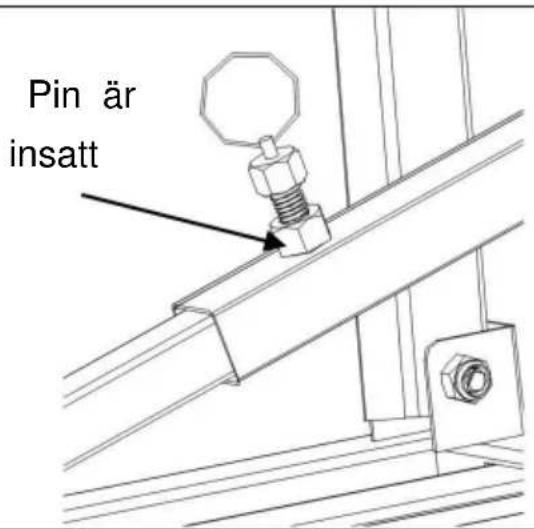

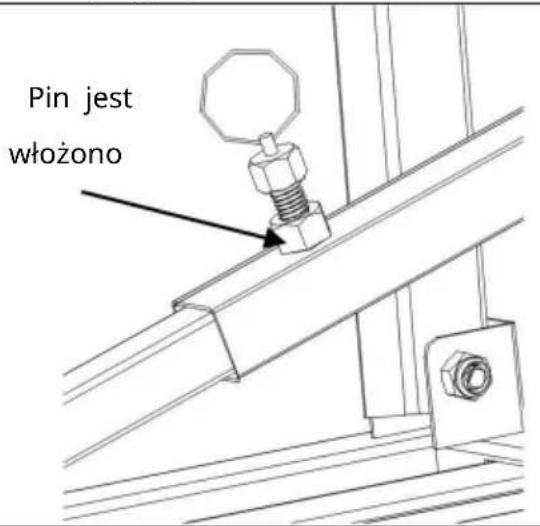

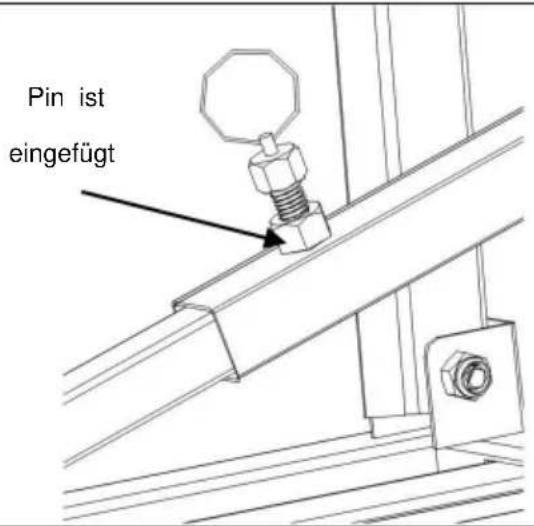

1. Lock the pins on both ends of the support tube to ensure pins are stuck inside and can not be easily pulled out.

1. Tighten one end of wire rope with screw.

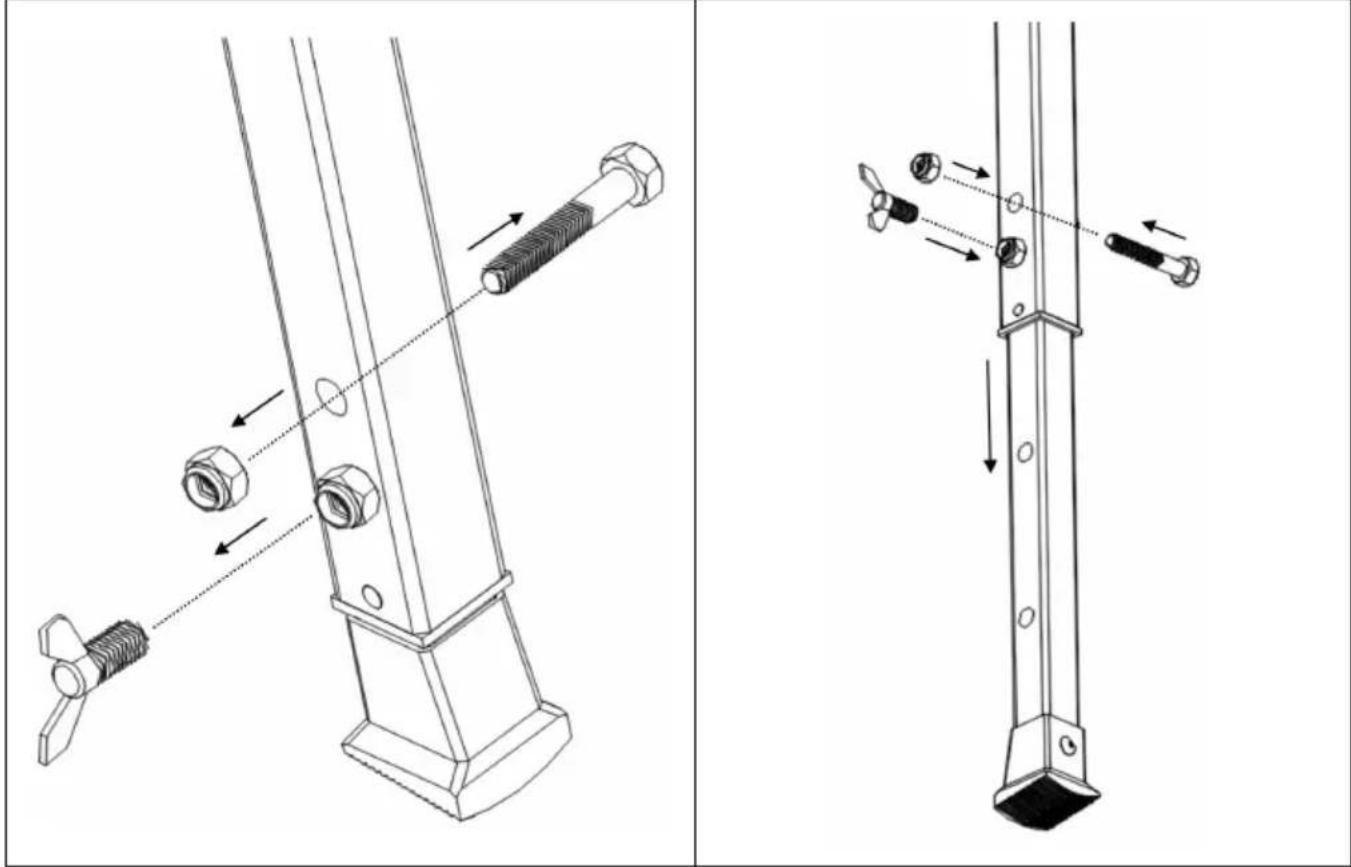

1. After adjusting the product to your desired height, secure the the product with bolts through the concentric holes while locking butterfly wing screw.

INSTRUCTIONS

Use the Portable Scaffolding picture.

Person pushing a metal ladder on a wheeled cart (no text or symbols visible)

Worker in safety gear climbing a metal ladder inside a modern office hallway (no visible text or symbols)

Person installing or adjusting a white curtain on a metal ladder inside a room with potted plants and a window (no text visible)

Manufacturer: Shanghaimuxinmuyeyouxiangongsi

Address: Shuangchenglu 803nong11hao1602A-1609shi, baoshanqu, shanghai 200000 CN.

Imported to AUS: SIHAO PTY LTD. 1 ROKEVA STREETEASTWOOD NSW 2122 Australia

Imported to USA: Sanven Technology Ltd. Suite 250, 9166 Anaheim Place, Rancho Cucamonga, CA 91730

UK

REP

YH CONSULTING LIMITED.

C/O YH Consulting Limited Office 147,

Centurion House, London Road,

Staines-upon-Thames, Surrey, TW18 4AX

EC

REP

E-CrossStu GmbH

Mainzer Landstr.69,

60329 Frankfurt am Main.

VEVOR®

TOUGH TOOLS, HALF PRICE

Technical Support and E-Warranty Certificate

www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

Technical line drawing of a two-tiered metal frame structure with support legs and a horizontal panel (no text or symbols)
