Brand	Vevor
Model	WBS-022
Product Type	Portable folding scaffolding
Maximum load capacity	882 lb (400 kg)
Working height	80 to 130 cm (31.5 to 51.2 in)
Platform dimensions	160 x 38 cm (63 x 15 in)
Material	Steel with anti-rust coating
Scaffolding weight	Approx. 30 kg
Color	Silver gray
Series	4
Foldable	Yes
Number of steps	4
Height adjustment	By bolts and wing screws
Safety	Locking pins, tight steel cable, stability checked before use
Assembly	Opening, locking pins, fixing cable, adjusting turnbuckle
Maintenance	Dry after use to prevent rust; check welds, threads, and play before each use
Warranty	Technical support and electronic warranty certificate at www.vevor.com/support
Spare parts	Available via Vevor after-sales service
Repairability	Repairs by qualified technician; simple troubleshooting possible by user
Recommended use	Light domestic and professional use

Frequently Asked Questions - WBS-022 Vevor

How to assemble the Vevor WBS-022 scaffolding?

Unfold the scaffolding, then lock the side pins and those of the support tube. Fix the steel cable with a screw and adjust the turnbuckle. Finally, adjust the height and tighten the bolts and wing screws.

What is the maximum load supported by the WBS-022?

The maximum load is 882 lb (400 kg). Never exceed this limit.

How to adjust the height of the scaffolding?

After choosing the desired height, secure the base of the scaffolding with bolts through the concentric holes, then lock the wing screw.

How to maintain the scaffolding to prevent rust?

After each use, dry thoroughly the scaffolding before storing. Avoid prolonged exposure to moisture.

What are the safety points to check before each use?

Check that the pins are properly inserted, that the steel cable is tight, and inspect the general condition: weld cracks, damaged threads, abnormal play.

Can I use the scaffolding outdoors?

Yes, but ensure it is placed on a stable and level surface. Do not use in strong wind or on uneven ground.

Is the WBS-022 easy to store?

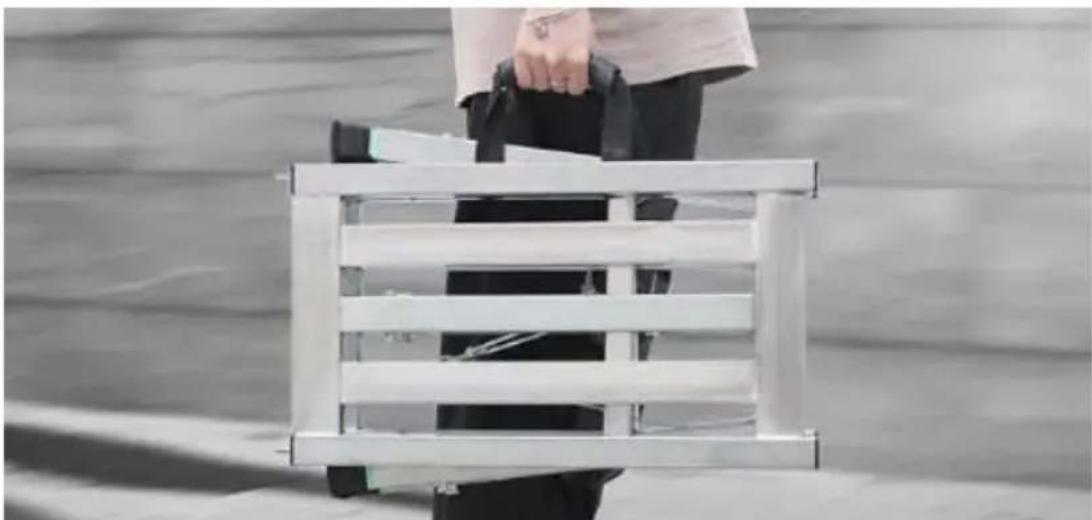

Yes, the scaffolding is foldable and easily stores in a small space.

Where to find spare parts?

Contact Vevor after-sales service via www.vevor.com/support to obtain spare parts.

What to do if a part is damaged?

Do not use the scaffolding. Consult the troubleshooting guide in the manual. If the problem persists, call a qualified technician.

Is the scaffolding delivered with a warranty?

Yes, Vevor provides an electronic warranty certificate. Register your product at www.vevor.com/support to activate the warranty.

USER MANUAL WBS-022 Vevor

PORTABLE SCAFFOLDING

MODEL: WBS-020/WBS-021/WBS-022/WBS-023

We continue to be committed to provide you with tools at competitive prices. "Save Half", "Half Price", or any other similar expressions used by us only represent an estimate of savings you might benefit from buying certain tools with us compared to the major top brands and do not necessarily mean to cover all categories of tools offered by us. You are kindly reminded to verify carefully when placing an order with us if you are actually saving half in comparison with the top major brands.

VEVOR®

PORTABLE SCAFFOLDING

MODEL: WBS-020/WBS-021/WBS-022/WBS-023

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel free to contact us:

This is the original instruction. Please read all manual instructions carefully before operating. VEVOR reserves a clear interpretation of the user manual. The appearance of the product shall be subject to the product you received. Please forgive us that we won't inform you if there are any technology or software updates on our product.

Warning - To reduce the risk of injury, the user must read the manual carefully.

SECURITY & WARNINGS

1. Do not exceed the scope of the work platform.
2. After use, please dry before storage to avoid product rusting.
3. Procedures not specifically explained in this manual must be performed only by a qualified technician.

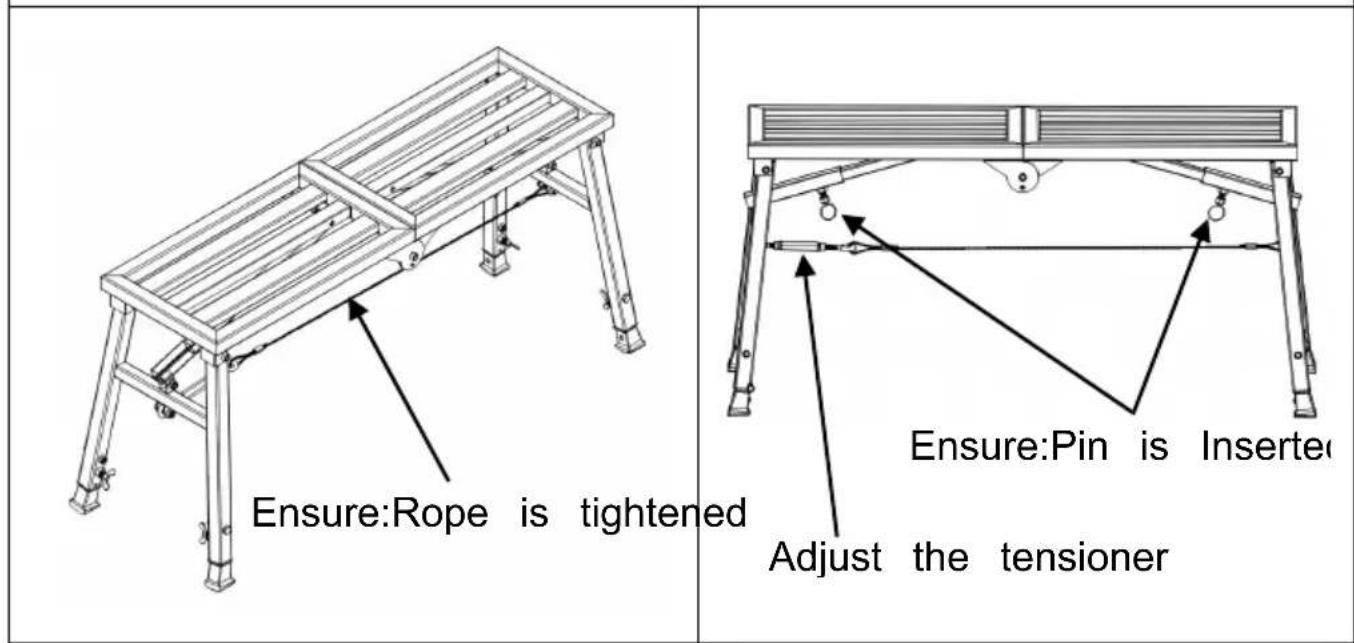

4. Before use, make sure that the pins on both sides of the fold and of the diagonal support rod are inserted into the holes.
5. Make sure the wire rope is already tightened.
6. To prevent serious injury from tool failure, do not use it when it is damaged:

1) Please check the overall condition of the product before each use.

• Is the screw thread damaged? • Is the weld cracked? • Are there gaps in all parts?

Before each use, check that the workbench is working properly before actually using it. If the workbench does not work properly, follow the inspection instructions to see if there is a problem.

In order to prevent serious damage, be careful when overhauling the work platform, and solve all problems before use. If the solution provided in the troubleshooting guide does not solve the problem, check the workbench with a qualified technician before using it.

3) Make sure the working platform is safe enough to continue using.

SAVE THESE INSTRUCTIONS

PARAMETER LIST

Model	WBS-020	WBS-021	WBS-022	WBS-023
Max.Load	400lbs	800lbs	882lbs	882lbs
Height	19.7"-29.1"50-74cm	27.6"-45.3"70-115cm	31.5"-51.2"80-130cm	35.4"-59"90-150cm
Platform Size	39.4"X11.4"100X29cm	55.1"X15"140X38cm	63"X15"160X38cm	71"X15"180X38cm
Foldable	√	√	√	√
Series	3	4	4	4
Color	Silver Gray	Silver Gray	Silver Gray	Silver Gray

ASSEMBLY STEPS

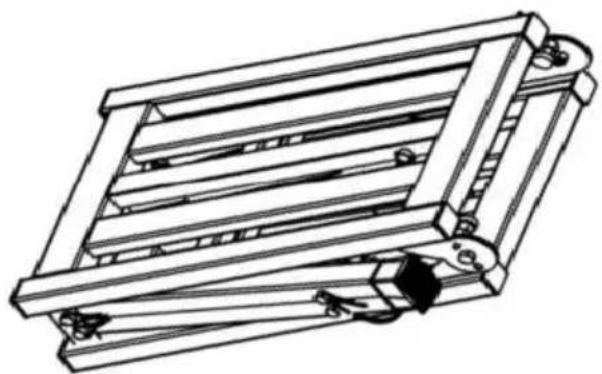

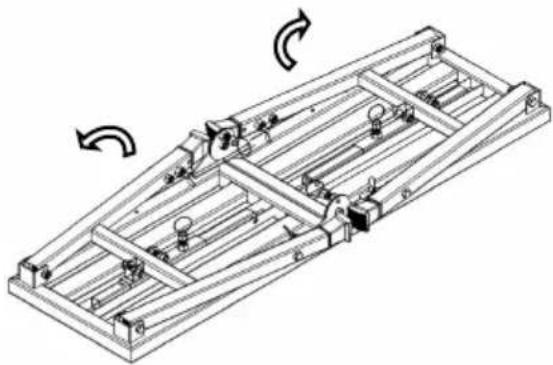

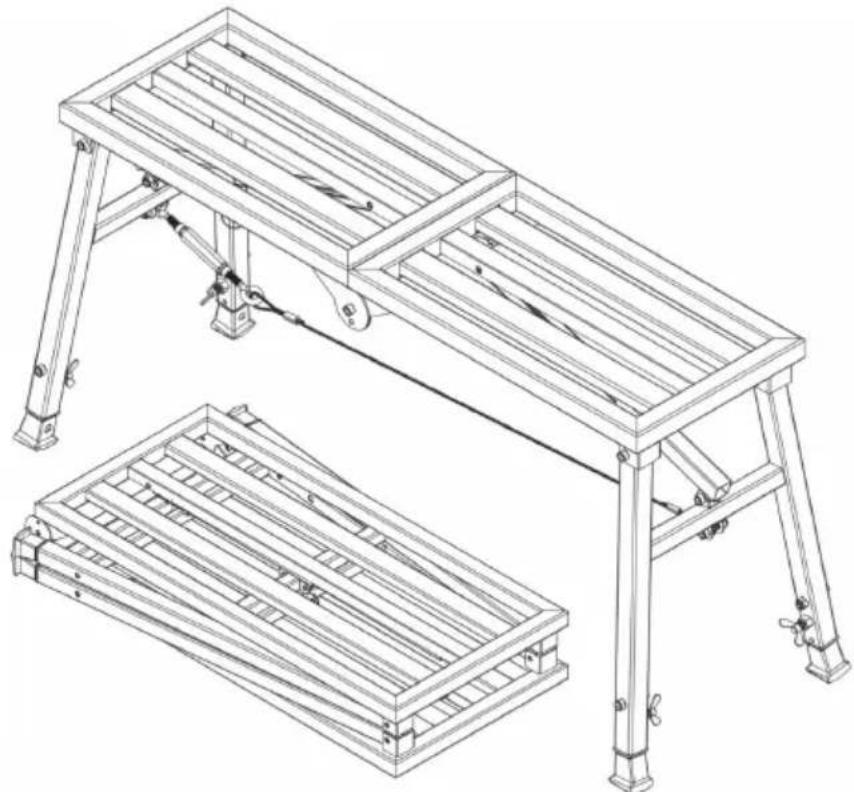

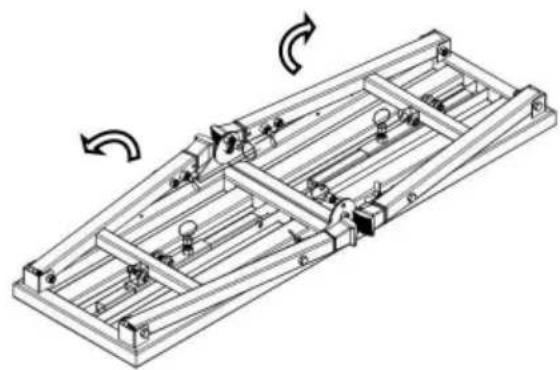

1.Open the folded scaffolding.

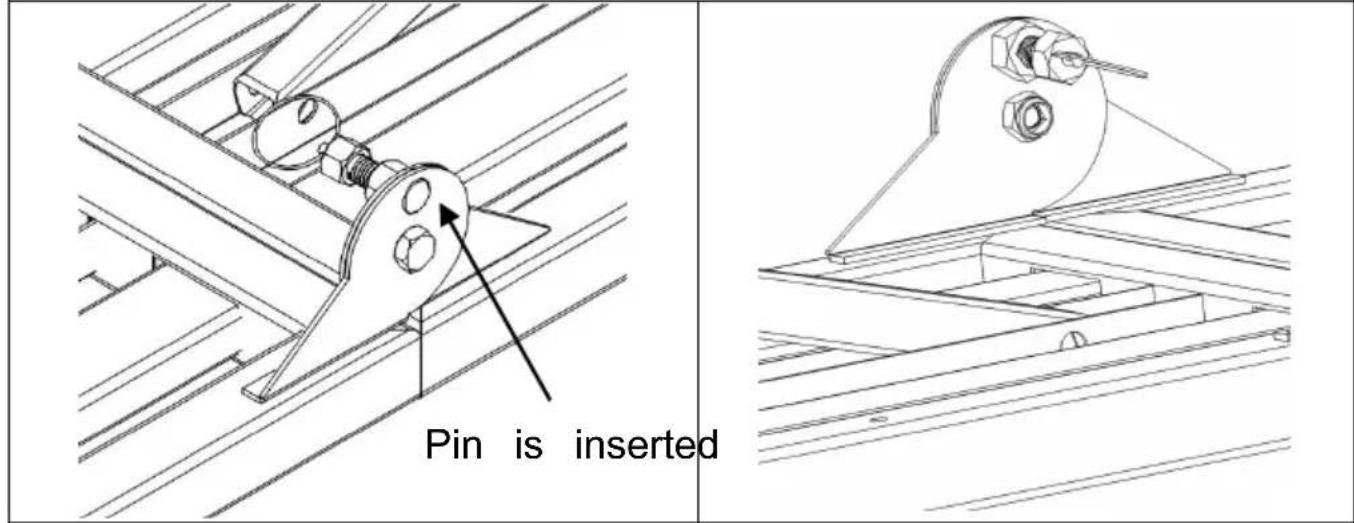

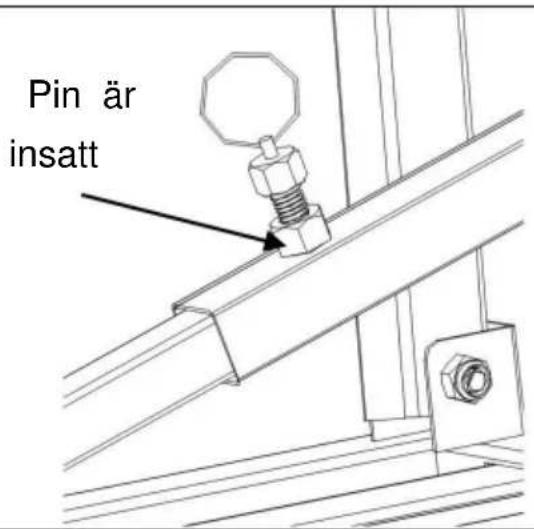

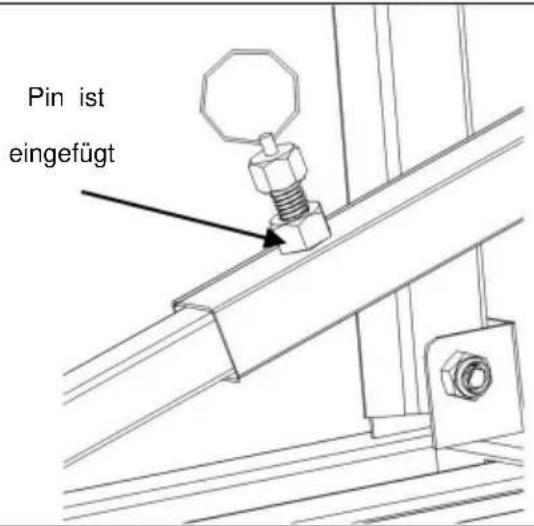

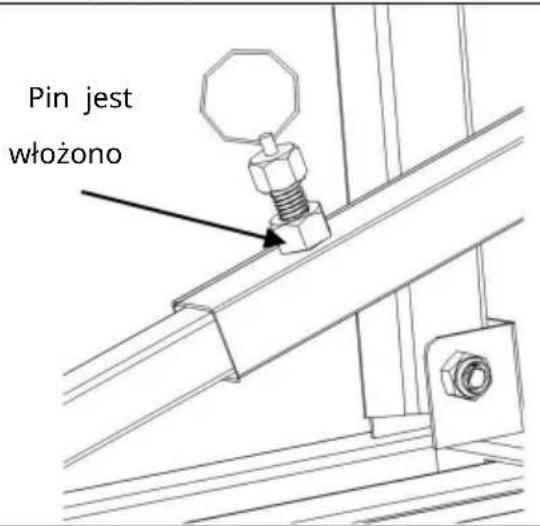

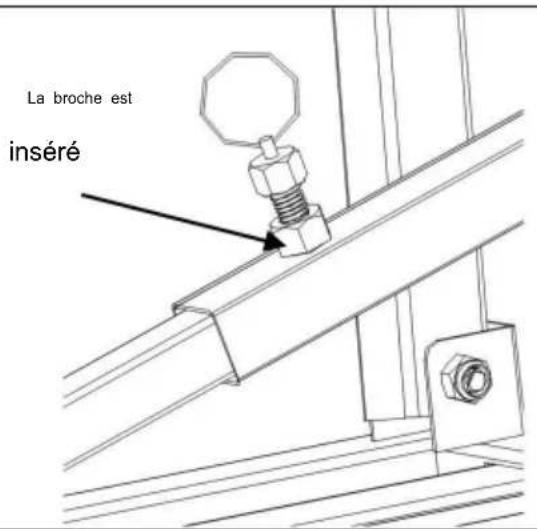

1. Secure both side pins securely and can not be easily pulled out.

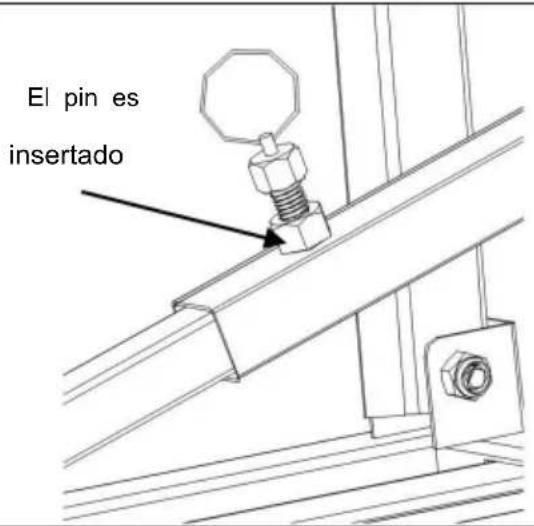

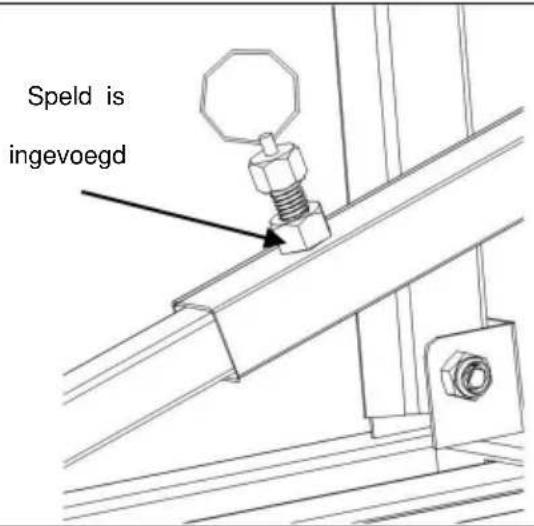

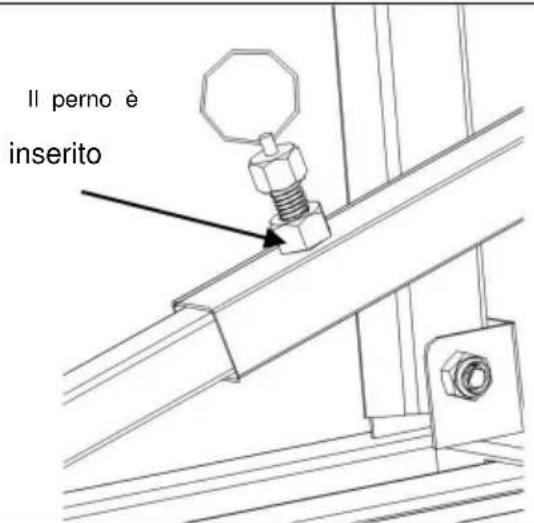

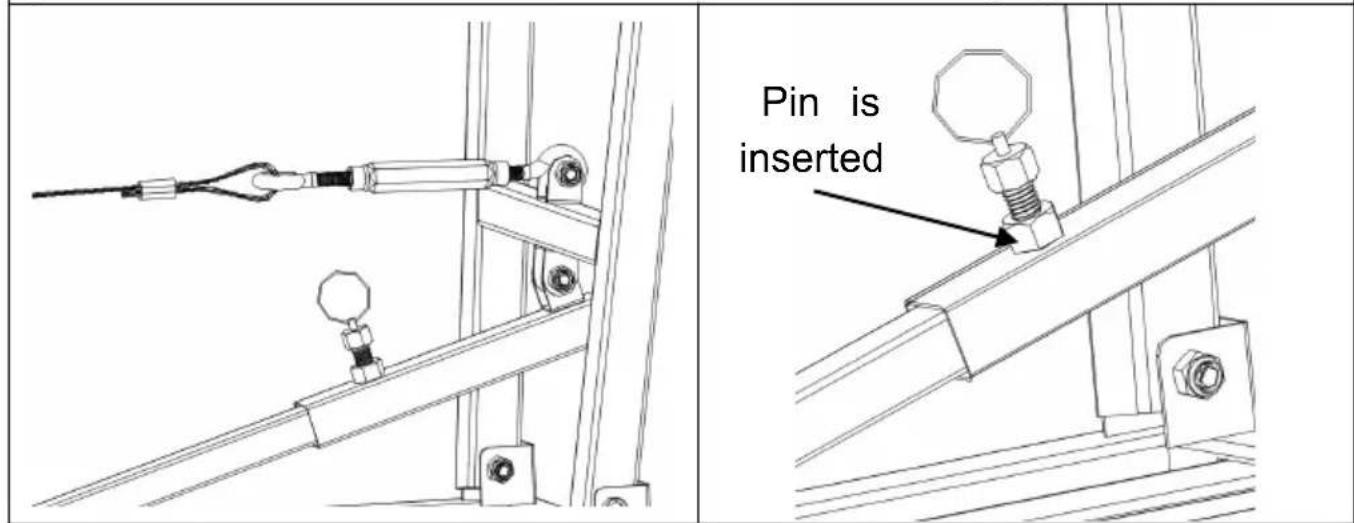

1. Lock the pins on both ends of the support tube to ensure pins are stuck inside and can not be easily pulled out.

1. Tighten one end of wire rope with screw.

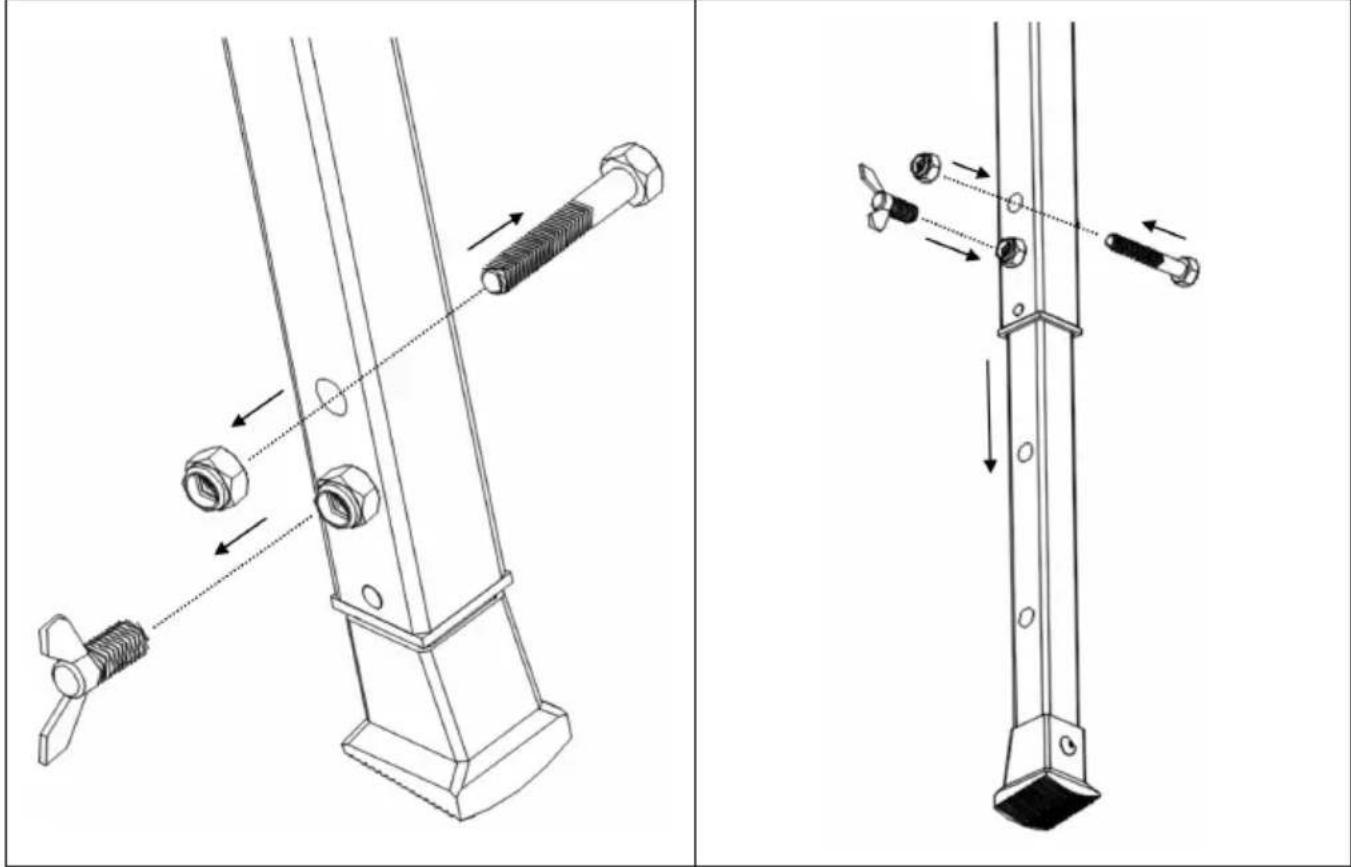

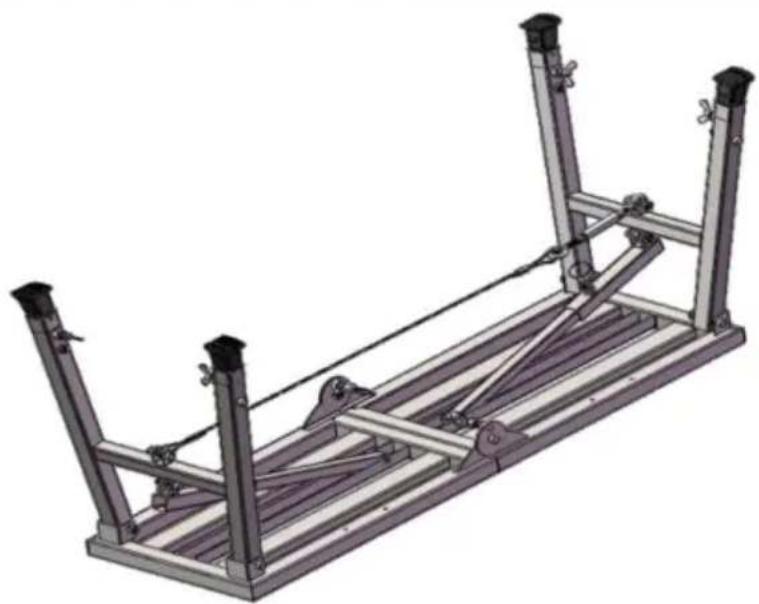

1. After adjusting the product to your desired height, secure the product with bolts through the concentric holes while locking the butterfly wing screw.
