WBS-023 - Scaffolding Vevor - Free user manual and instructions

Product Type	Portable Scaffold
Brand	Vevor
Model	WBS-023
Maximum Load	882 lb (400 kg)
Adjustable Working Height	90 to 150 cm
Platform Dimensions	180 x 38 cm
Main Material	Steel
Foldable	Yes
Number of Series (Adjustment Steps)	4
Color	Silver Gray
Safety	Locking pins, tensioned steel cable, fixing bolts
Assembly	Open, insert pins, tighten cable, adjust height
Maintenance	Dry after use to prevent rust, check condition of welds and threads before each use
Warranty	Electronic warranty certificate at www.vevor.com/support
Usage	Indoor and outdoor on stable ground

Frequently Asked Questions - WBS-023 Vevor

How to assemble the Vevor WBS-023 scaffold?

Assembly requires opening the folded scaffold, then securely fixing the side pins and support tube pins. Ensure the pins are fully inserted and cannot be easily removed. Then tighten one end of the steel cable with a screw and tension it. Finally, adjust to the desired height and lock with bolts and wing nuts.

What is the maximum load supported by the WBS-023?

The maximum load is 882 pounds (approx. 400 kg). Never exceed this limit to avoid risk of injury or property damage.

What height adjustments are available?

The scaffold offers an adjustable height from 35.4 to 59 inches (90 to 150 cm) thanks to 4 adjustment steps.

How to maintain the scaffold to extend its lifespan?

After each use, dry the scaffold thoroughly to prevent rust. Before each use, check general condition: cracked welds, damaged threads, any loose or missing parts.

Can I use the scaffold on uneven ground?

It is recommended to use the scaffold on a stable and level surface. For uneven ground, ensure the scaffold is level and secured with shims if necessary, but this is not officially supported.

What type of steel cable is used and how to tension it?

The provided steel cable must be tensioned firmly. Secure one end with a screw, then use the built-in tensioner to adjust tension. Ensure the cable is in good condition and undamaged.

Does the scaffold come with a warranty?

Yes, Vevor offers an electronic warranty certificate. Visit www.vevor.com/support to register your product and get technical assistance.

How to fold and store the scaffold?

To fold, first remove the locking pins and loosen the cable. Carefully fold the scaffold following the reverse of unfolding. Store it in a dry place away from moisture.

What accessories are compatible with the WBS-023?

The manual does not mention specific accessories, but you can use additional platforms or guardrails suitable for portable scaffolds of the same brand. Check compatibility with the manufacturer.

What to do if a part is damaged or missing?

Contact Vevor customer service via www.vevor.com/support to obtain replacement parts. Do not use the scaffold with defective parts to avoid accidents.

USER MANUAL WBS-023 Vevor

Technical Support and E-Warranty Certificate www.vevor.com/support

PORTABLE SCAFFOLDING

MODEL:WBS-020/WBS-021/WBS-022/WBS-023

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represents an estimate of savings you might benefit from buying certain tools with us compared to the major top brands and does not necessarily mean to co all categories of tools offered by us. You are kindly reminded to verify carefully when you are placing an order with us if you are actually Saving Half in comparison with the top major brands.

VEVOR®

PORTABLE SCAFFOLDING

MODEL:WBS-020/WBS-021/WBS-022/WBS-023

Technical line drawing of two mechanical supports or structural frames, one with a handle and the other with a slatted base (no text or symbols)

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel free to contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instructions carefully before operating. VEVOR reserves a clear interpretation of user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform you and there are any technology or software updates on our product.

Warning-To reduce the risk of injury, user must read in manual carefully.

SECURITY & WARNINGS

1. Do not exceed the scope of the work platform.
2. After use, please dry before storage to avoid product rusting.
3. Procedures not specifically explained in this manual must be perform only by a qualified technician.

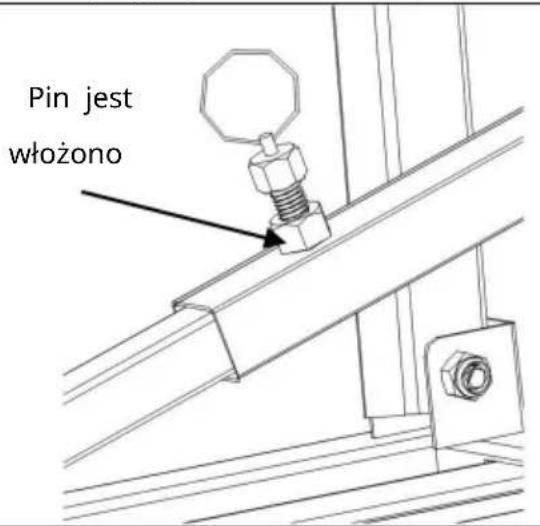

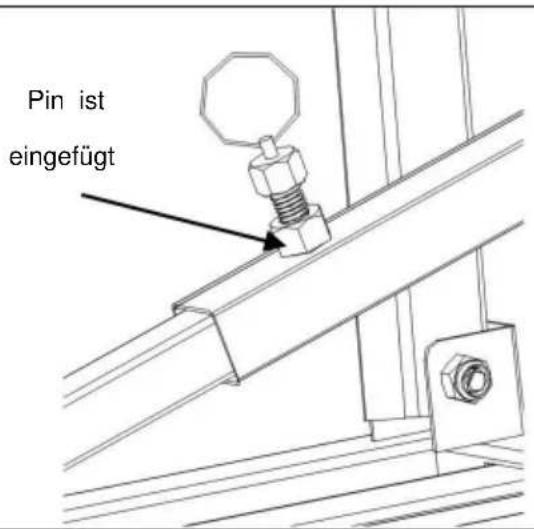

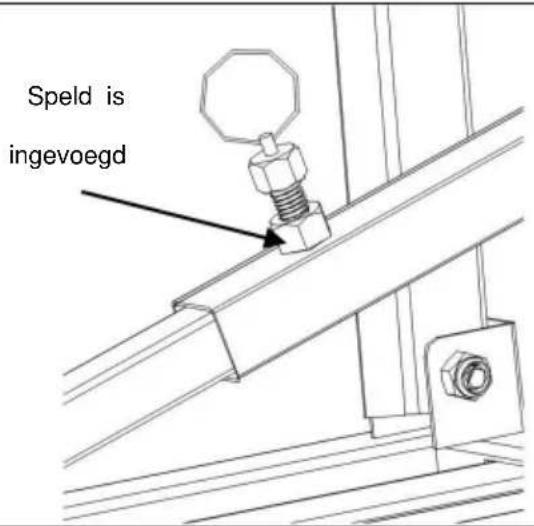

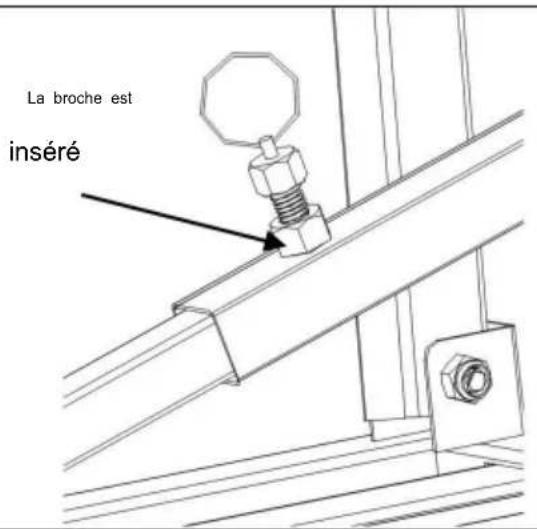

4. Before use, make sure that the pins on both sides of the fold and of the diagonal support rod are inserted into the holes.

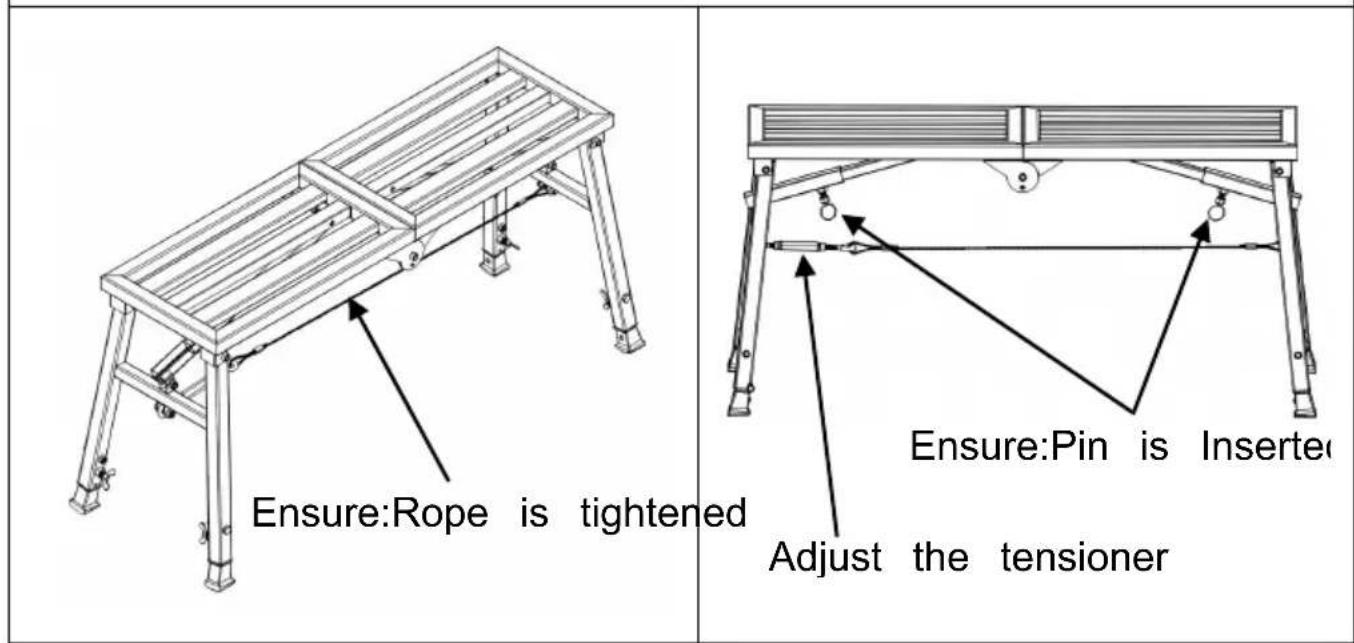

5. Make sure the wire rope is already tightened.
6. To prevent serious injury from tool failure, do not use it when it is damaged:

1) Please check the overall condition of the product before each use.

• Is the screw thread damaged?
• Is the weld cracked?
- Are there gaps in all parts?

Before each use, check that the workbench is working properly before actually using it. If the workbench does not work properly, follow the inspection instructions to see if there is a problem.

in order to prevent serious damage, the failure of the work platform careful when overhaul, and before use to solve all problems. If the s provided in the troubleshooting guide does not solve the problem, che the workbench with a qualified technician before using it.

3) make sure the working platform is safe enough to continue using.

SAVE THESE INSTRUCTIONS

PARAMETER LIST

Model	WBS-020	WBS-021	WBS-022	WBS-023
Max.Load	400lbs	800lbs	882lbs	882lbs
Height	19.7"-29.1"50-74cm	27.6"-45.3"70-115cm	31.5"-51.2"80-130cm	35.4"-59"90-150cm
Platform Size	39.4"X11.4"100X29cm	55.1"X15"140X38cm	63"X15"160X38cm	71"X15"180X38cm
Foldable	√	√	√	√
Series	3	4	4	4
Color	Silver Gray	Silver Gray	Silver Gray	Silver Gray

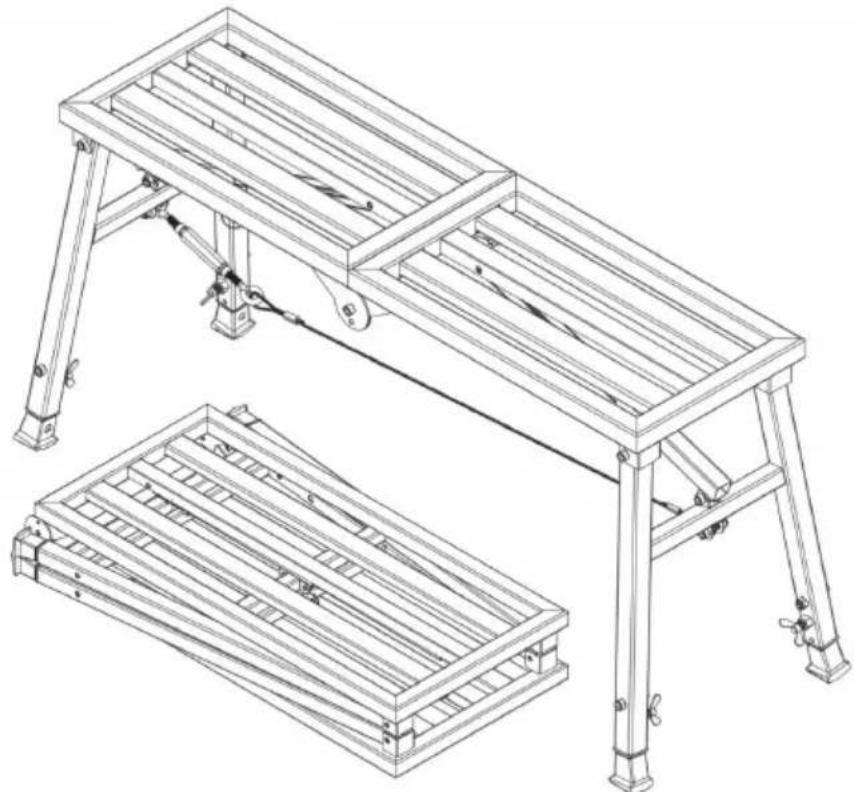

ASSEMBLY STEPS

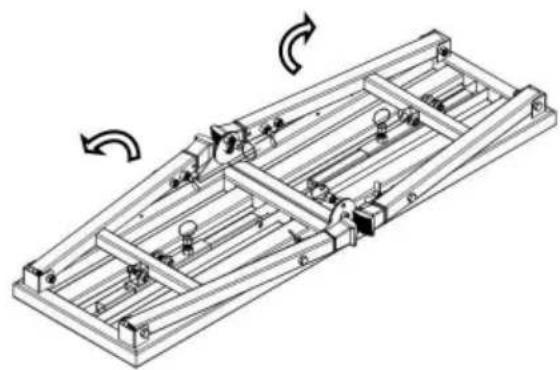

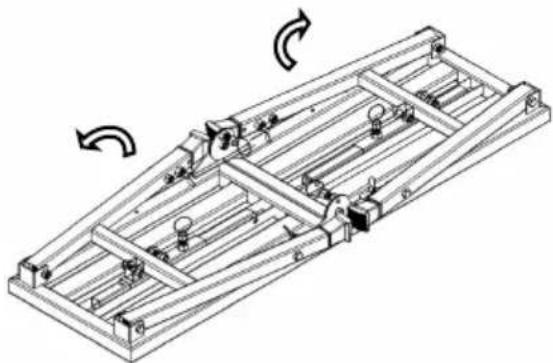

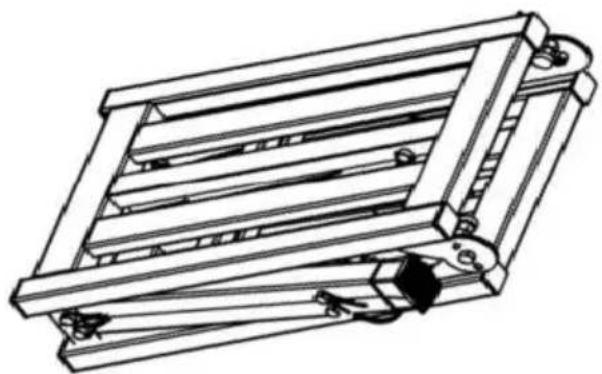

1.Open the folded scaffolding.

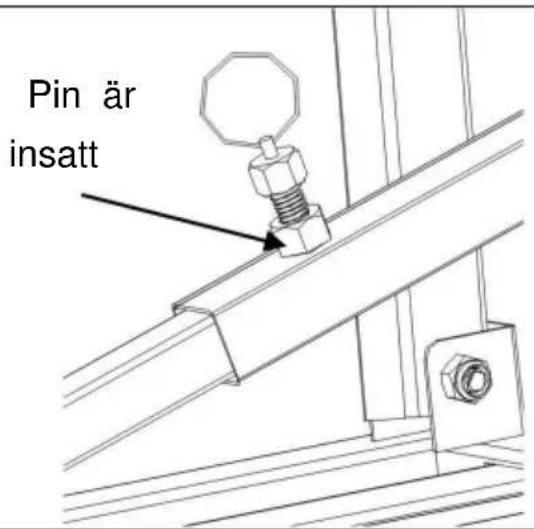

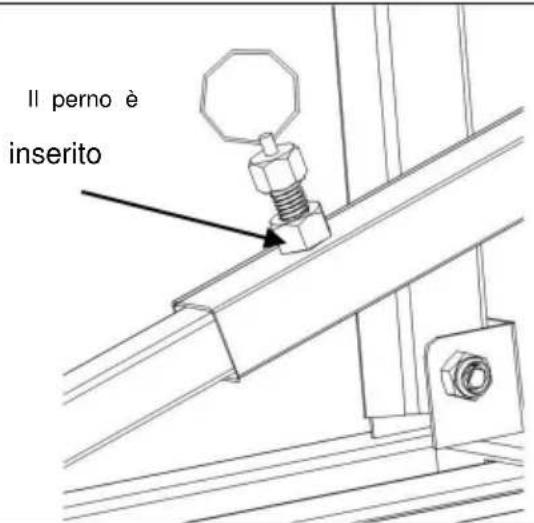

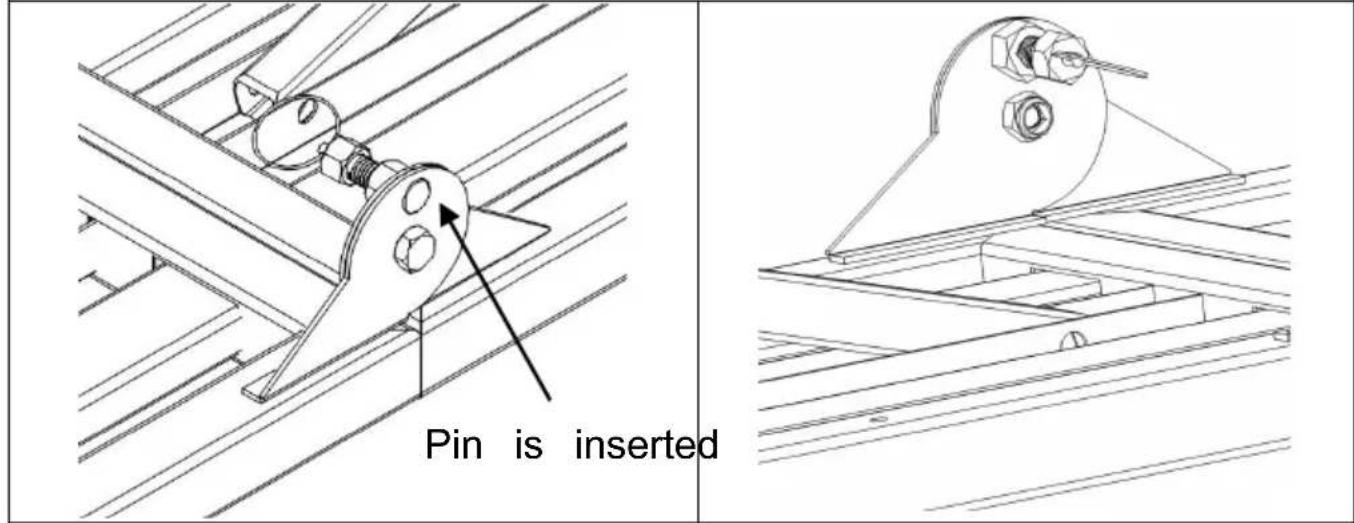

1. Secure both side pins securely and can not be easily pul

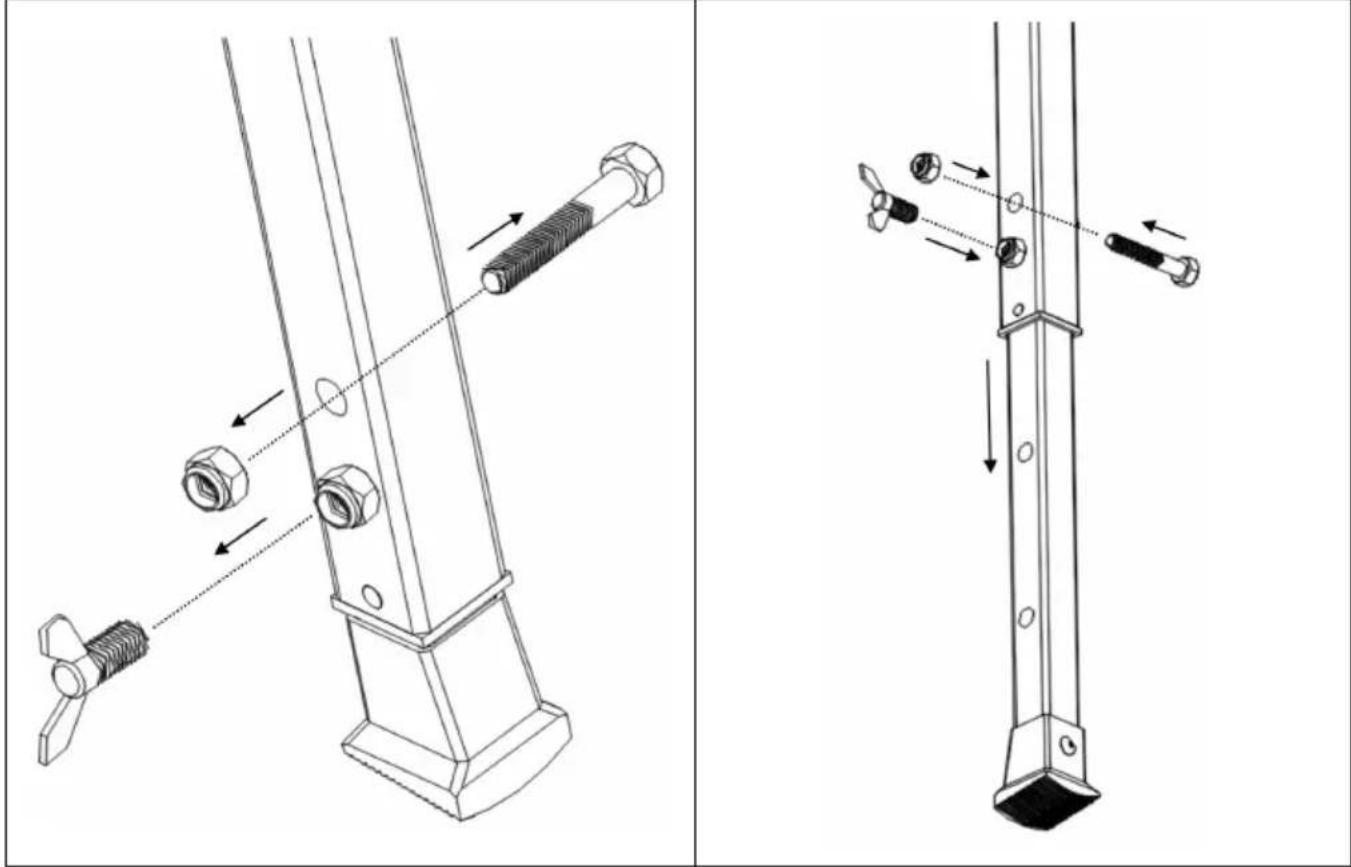

1. Lock the pins on both ends of the support tube to ensure pins are stuck inside and can not be easily pulled out.

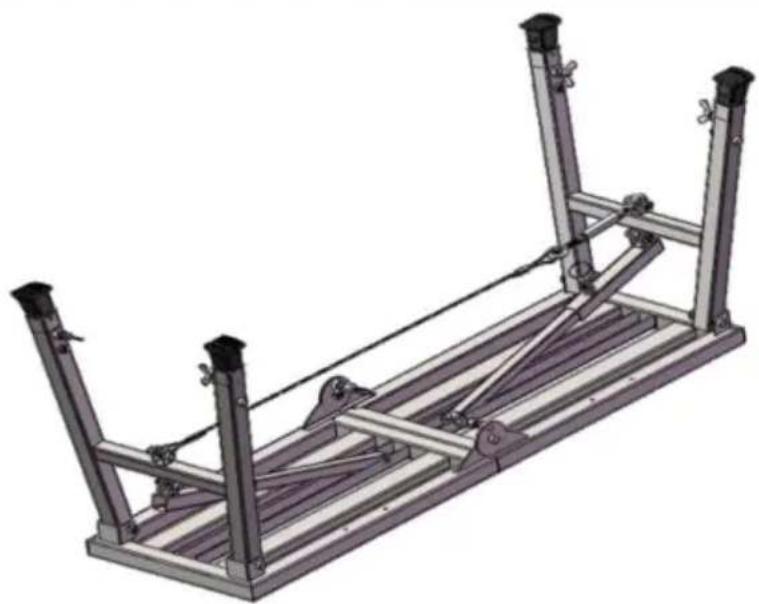

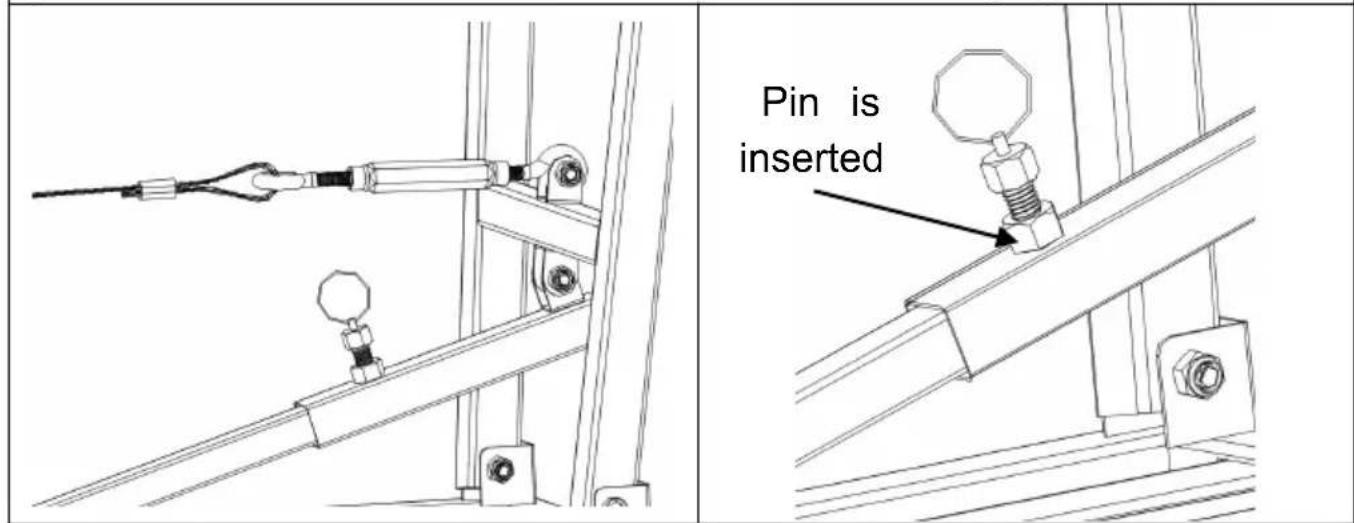

1. Tighten one end of wire rope with screw.

1. After adjusting the product to your desired height, secure the the product with bolts through the concentric holes while locking butterfly wing screw.

INSTRUCTIONS

Use the Portable Scaffolding picture.

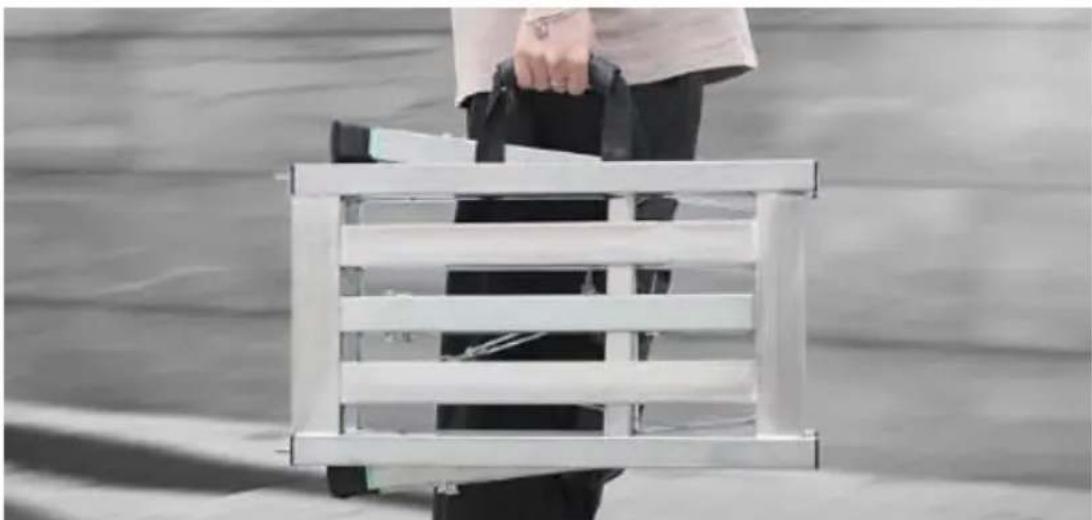

Person pushing a metal ladder on a wheeled cart (no text or symbols visible)

Worker in safety gear climbing a metal ladder inside a modern office hallway (no visible text or symbols)

Person installing or adjusting a white curtain on a metal ladder inside a room with potted plants and a window (no text visible)

Manufacturer: Shanghaimuxinmuyeyouxiangongsi

Address: Shuangchenglu 803nong11hao1602A-1609shi, baoshanqu, shanghai 200000 CN.

Imported to AUS: SIHAO PTY LTD. 1 ROKEVA STREETEASTWOOD NSW 2122 Australia
