USER MANUAL WBS-020 Vevor

Technical Support and E-Warranty Certificate www.vevor.com/support

PORTABLE SCAFFOLDING

MODEL:WBS-020/WBS-021/WBS-022/WBS-023

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represents an estimate of savings you might benefit from buying certain tools with us compared to the major top brands and does not necessarily mean to co all categories of tools offered by us. You are kindly reminded to verify carefully when you are placing an order with us if you are actually Saving Half in comparison with the top major brands.

VEVOR®

PORTABLE SCAFFOLDING

MODEL:WBS-020/WBS-021/WBS-022/WBS-023

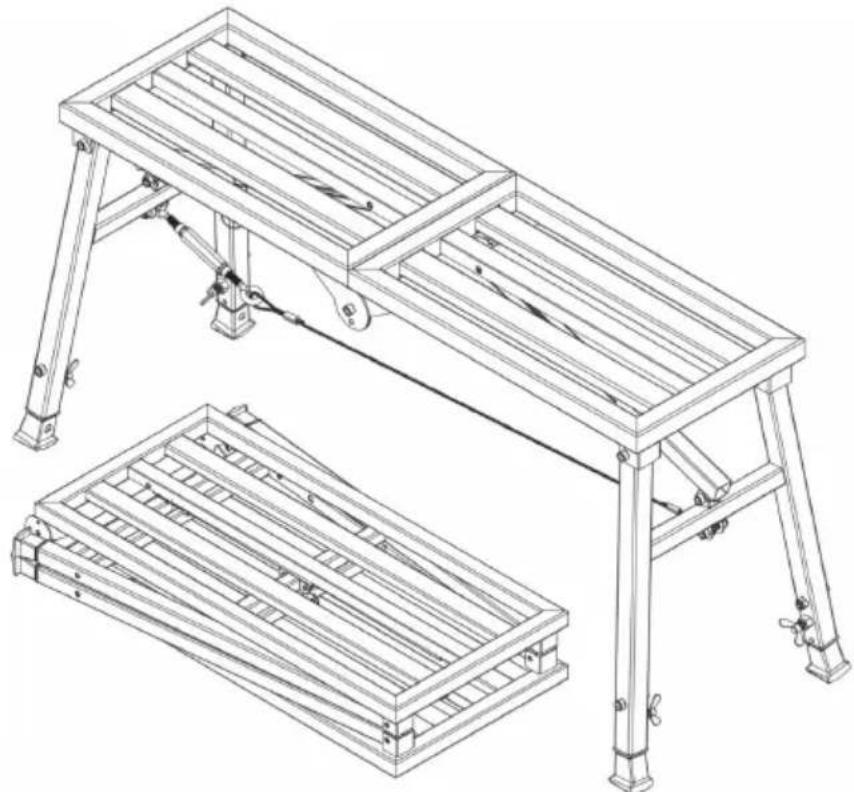

Technical line drawing of two mechanical supports or structural frames, one with a handle and the other with a slatted base (no text or symbols)

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel free to contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instructions carefully before operating. VEVOR reserves a clear interpretation of user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform you and there are any technology or software updates on our product.

Warning-To reduce the risk of injury, user must read in manual carefully.

SECURITY & WARNINGS

1. Do not exceed the scope of the work platform.
2. After use, please dry before storage to avoid product rusting.
3. Procedures not specifically explained in this manual must be perform only by a qualified technician.
4. Before use, make sure that the pins on both sides of the fold and of the diagonal support rod are inserted into the holes.
5. Make sure the wire rope is already tightened.
6. To prevent serious injury from tool failure, do not use it when it is damaged:

1) Please check the overall condition of the product before each use.

• Is the screw thread damaged?
• Is the weld cracked?
- Are there gaps in all parts?

Before each use, check that the workbench is working properly before actually using it. If the workbench does not work properly, follow the inspection instructions to see if there is a problem.

in order to prevent serious damage, the failure of the work platform careful when overhaul, and before use to solve all problems. If the s provided in the troubleshooting guide does not solve the problem, che the workbench with a qualified technician before using it.

3) make sure the working platform is safe enough to continue using.

SAVE THESE INSTRUCTIONS

PARAMETER LIST

Model	WBS-020	WBS-021	WBS-022	WBS-023
Max.Load	400lbs	800lbs	882lbs	882lbs
Height	19.7"-29.1"50-74cm	27.6"-45.3"70-115cm	31.5"-51.2"80-130cm	35.4"-59"90-150cm
Platform Size	39.4"X11.4"100X29cm	55.1"X15"140X38cm	63"X15"160X38cm	71"X15"180X38cm
Foldable	√	√	√	√
Series	3	4	4	4
Color	Silver Gray	Silver Gray	Silver Gray	Silver Gray

ASSEMBLY STEPS

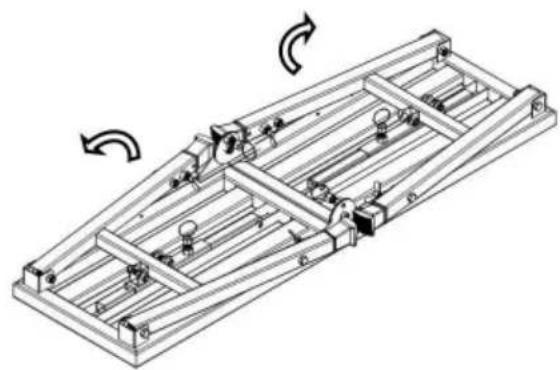

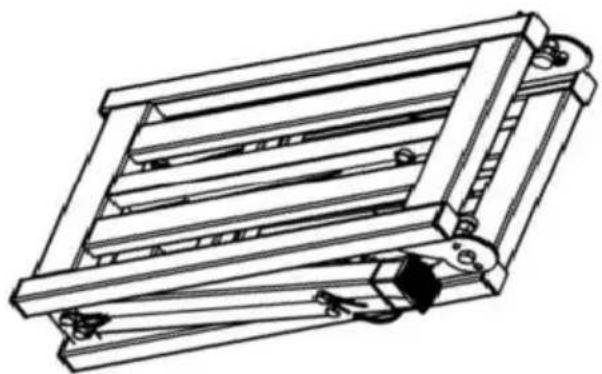

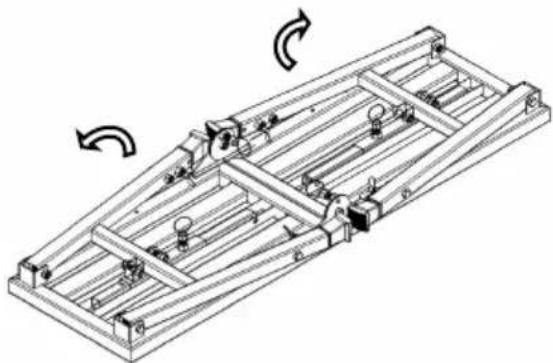

1.Open the folded scaffolding.

1. Secure both side pins securely and can not be easily pul

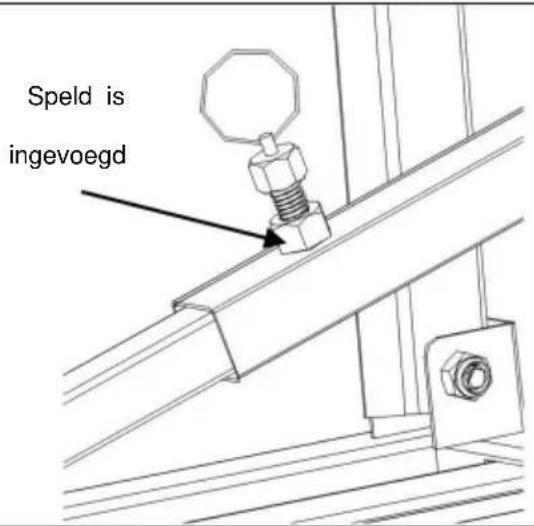

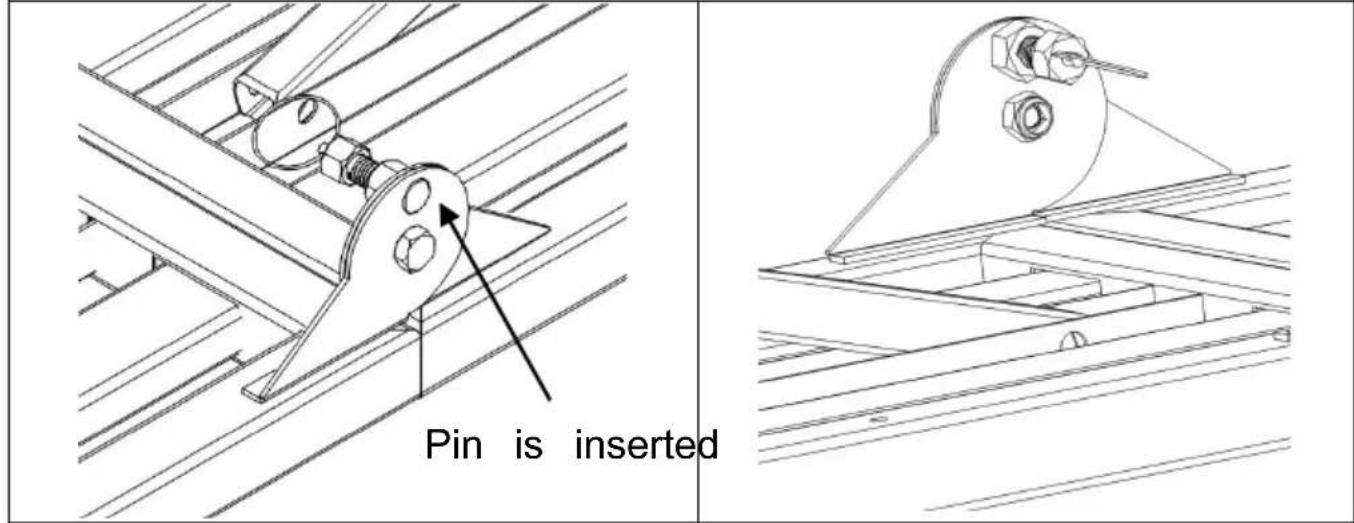

Pin is inserted

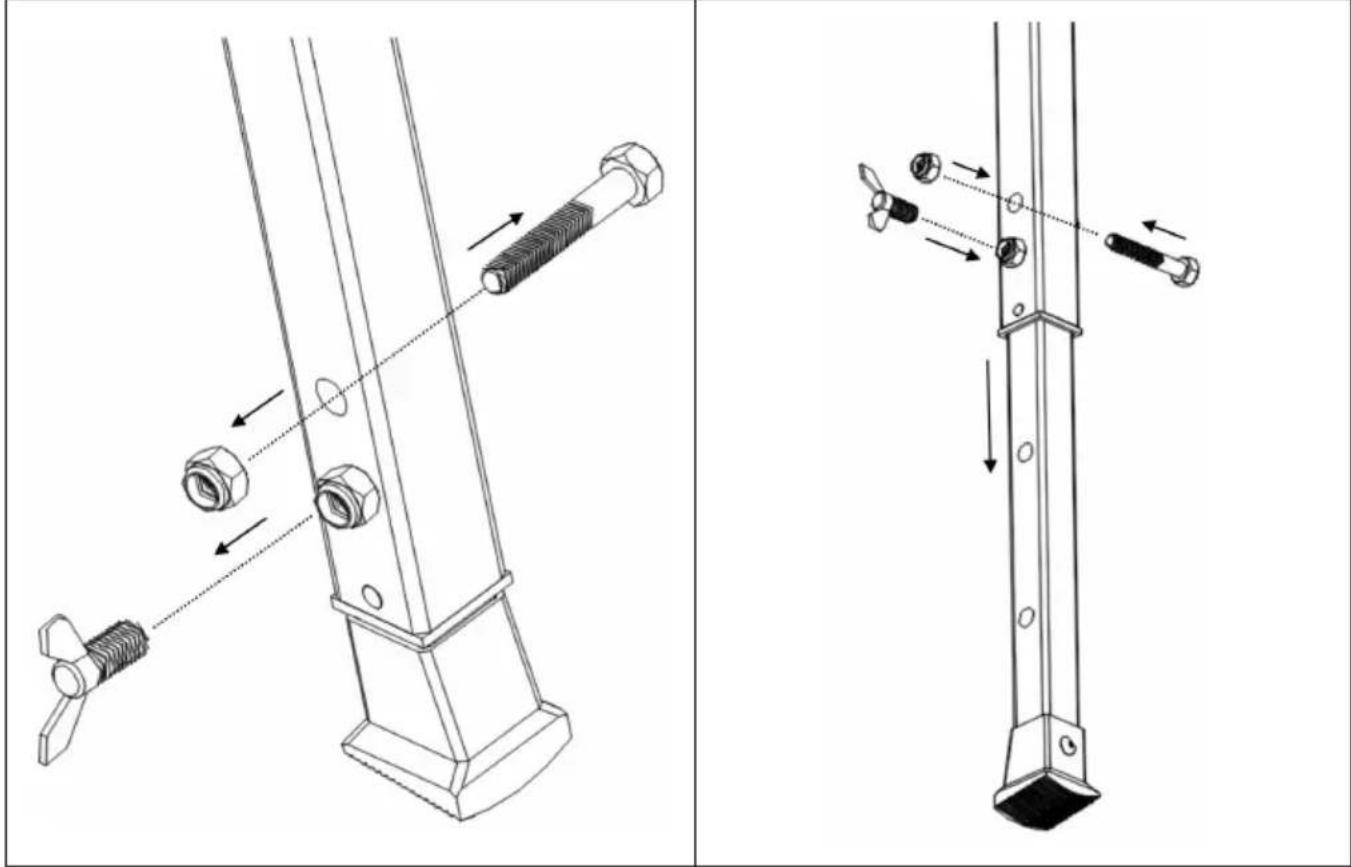

1. Lock the pins on both ends of the support tube to ensure pins are stuck inside and can not be easily pulled out.

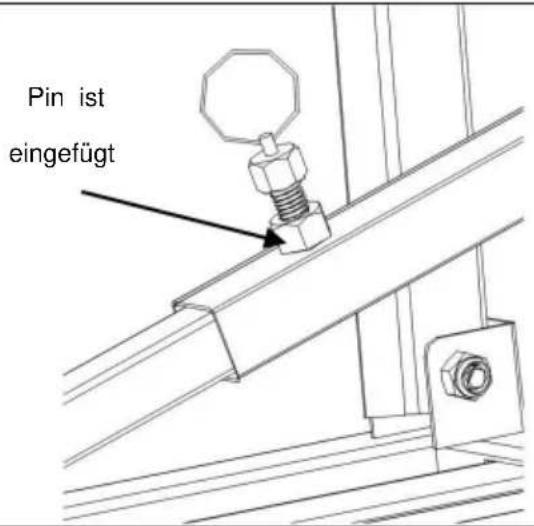

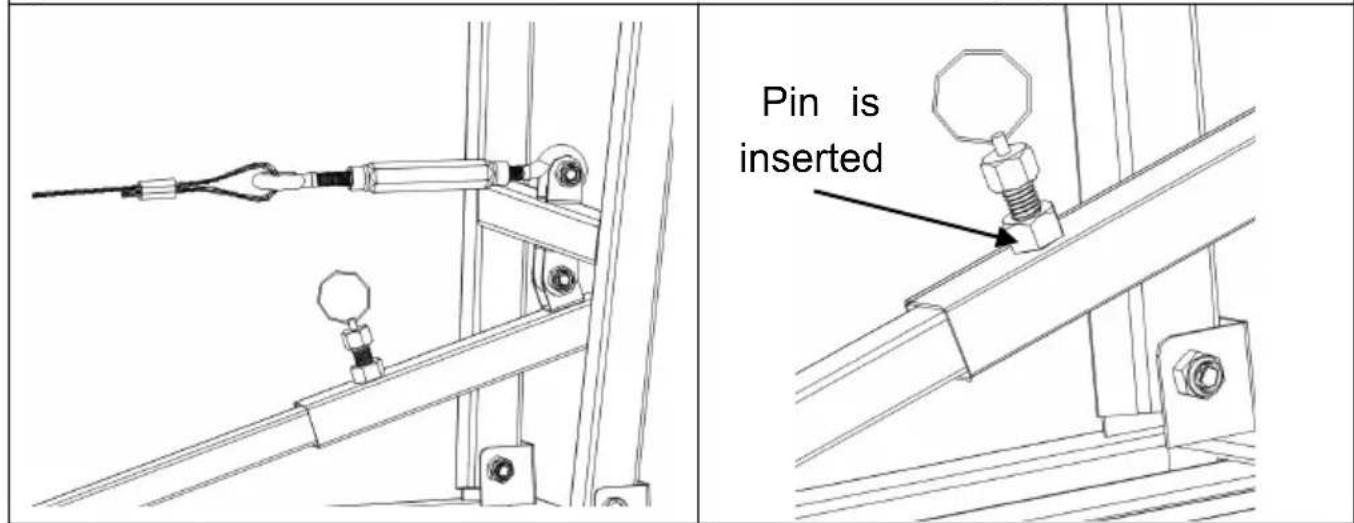

Pin is inserted

1. Tighten one end of wire rope with screw.

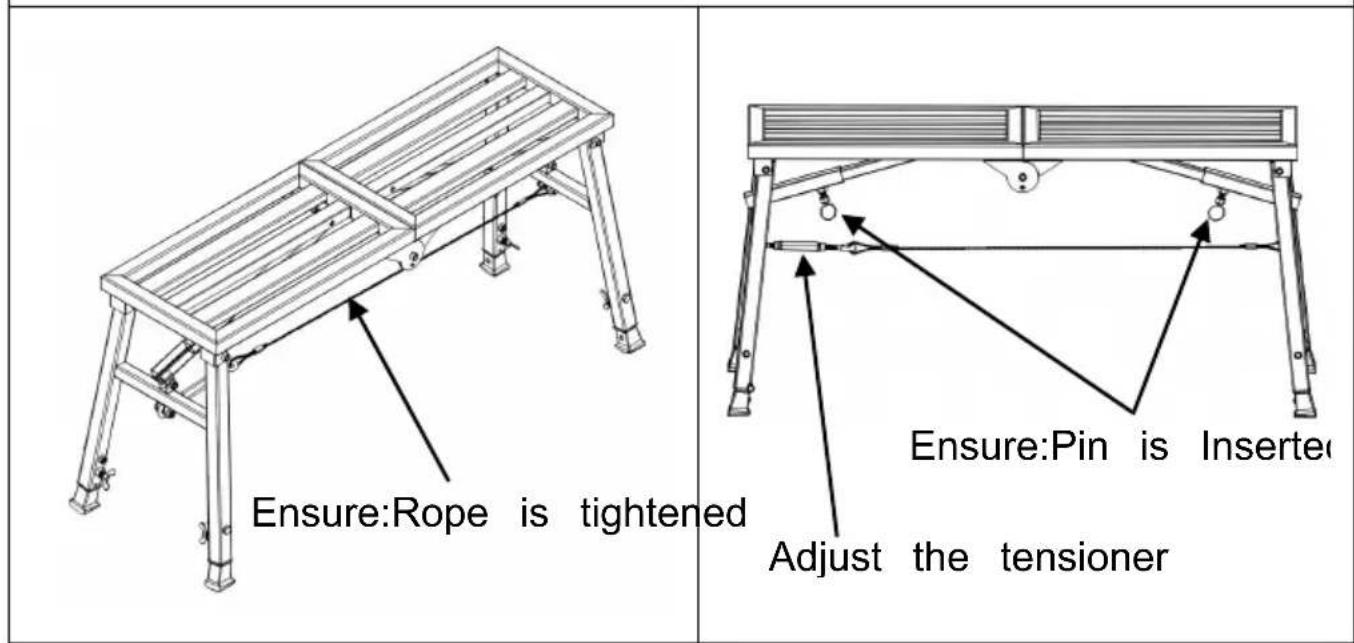

Ensure: Rope is tightened Ensure: Pin is Inserted Adjust the tensioner

1. After adjusting the product to your desired height, secure the the product with bolts through the concentric holes while locking butterfly wing screw.

Technical diagram showing mechanical assembly with bolted components and directional arrows indicating movement or force

INSTRUCTIONS

Use the Portable Scaffolding picture.

Person pushing a metal ladder on a wheeled cart (no text or symbols visible)

Worker in safety gear climbing a metal ladder inside a modern office hallway (no visible text or symbols)

Person installing a white curtain on a metal ladder in a room with potted plants and a window (no text or symbols visible)
