USER MANUAL TN-1122B Vevor
Technical Support and E-Warranty Certificate www.vevor.com/support
TABLE SAW MITER GAUGE
MODEL:N-1122A, TN-1122B, N-1122C, TN-1122D
We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represent the estimate of savings you might benefit from buying certain tools with us compared to top brands and does not necessarily mean to cover all categories of tools offered. We are kindly reminded to verify carefully when you are placing an order with us actually saving half in comparison with the top major brands.
MODEL:N-1122A, TN-1122B, N-1122C, TN-1122D
NEED HELP? CONTACT US!
Have product questions? Need technical support? Please feel fr contact us:
Technical Support and E-Warranty Certificate www.vevor.com/support
This is the original instruction, please read all manual instruction carefully before operating. VEVOR reserves a clear interpretation user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform you there are any technology or software updates on our product.
SAFETY FIRST
Disconnectsaw frompower sourcebefore fittingor removing
Always wearprop- er respiratoryprotection whenworking nearairborne dustparticles
Use caution when handling sharp objects (sawblades, router bits, drillbits and so on). Use protective gloves whenever possible.
Always wearproper eyeprotectionwhen workingwith machineryand tools
Always wearproperearprotection whenworking withmachinery.
Please read and fully understand any and all safety materials that can with your power tools or machinery before operation.
Always follow all safety guidelines set in place by the power tool or machine manufacturer.
SAFETY GUIDELINES
WARNING! To reduce the risk of injury, user must read the instruct- manual.
WARNING! Read all instructions. Failure to follow all instructions listed below may result in electric shock fire and/or serious injury. The term "power tool" in all of the warnings listed below refers to your mains-operated (corded) power tool or battery-operated (cordless) power tool.
SAVE THESE INSTRUCTIONS
1) Work area safety
a) Keep work area clean and well lit. Cluttered or dark areas invite accidents.
b) Don't use power tools in a dangerous environment. Don't use pow tools in damp or wet locations, or expose them to rain.
c) Do not operate power tools in explosive atmospheres, such as in
presence of flammable liquids, gases, or dust. Power tools create spa that may ignite the dust or fumes.
d) Keep children and bystanders away while operating a power tool. Distractions can cause you to lose control.
e) Make your workshop child-proof with padlocks, master switches, or removing starter keys.
2) Electrical safety
a) Power tool plugs must match the outlet. Never modify the plug in a way. Do not use any adapter plugs with earthed grounded) power tools. Unmodified plugs and matching them out will reduce risk of elec shock
b)Ground electric tools. If the tool is equipped with a three-prong plug should only be plugged into a grounded three-hole electrical outlet. If more pro outlet is not available, have it installed by a qualified electric Never remove the third prong or modify the provided plug in any way. c)Avoid body contact with earthed or grounded surfaces such as pipes radiators, ranges and refrigerators. There is an increased risk of elec shock if your body is earthed or grounded
d) Do not expose power tools to rain or wet conditions. Water enteri power tool will increase the risk of electric shock
e) Do not abuse the cord. Never use the cord for carrying, pulling, unplugging the power tool. Keep the cord away from heat, oil, sharp or moving parts. Damaged or entangled cords increase the risk of elec shock.
f )Use a proper extension cord and make sure it is in good condition using an extension cord, be sure to use one heavy enough to carry current your machine draws. An undersized cord causes a drop in line voltage, resulting in loss of power and overheating. When operating a power to outdoors, use an extension cord suitable for outdoor use
3) Additional safety rules for the Precision Miter Gauge System
a) Read this manual and these safety guidelines. Follow the manufacturer's safety guidelines for the tool on which you are using the
accessory, and learn the applications and imitations of the tool as we the hazards specific to it. Operating the power tool before understandi safe and proper use could result in personal injury
b) Ensure that the handle is tight and the fence extrusion T-knobs are secure prior to starting the power tool.
c) Keep your hands away from a moving blade or bit when operating machine. Never reach near a moving blade or bit to clear debris. Turn the power tool and watch for the blade or bit to come to a complete d) Always support long boards on both the infeed and the outfeed e) Always securely hold workpieces against the machine table and miga gauge or fence.
f) This miter-gauge system is designed for a specific application. Do not modify and/or use it for any other application. If you have questions the miter gauge.
WARNING:
This product can expose you to chemicals including Acrylonitrile and dioxins, which are known to the State of California to cause cancer, reproductive harm.
For more information go to www.P65Warnings.ca.gov.

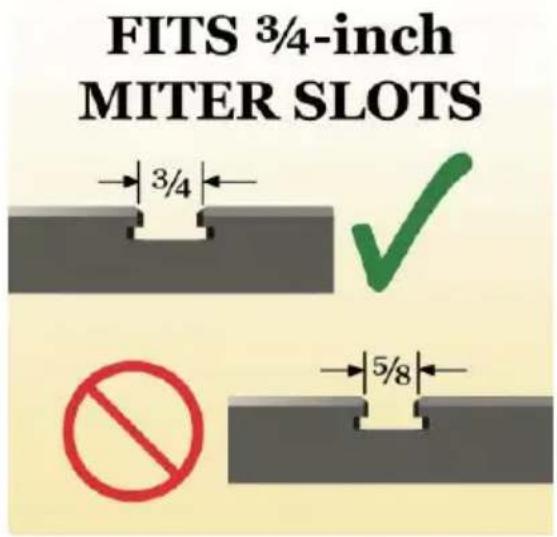

This product is only suitable for 3/4 inch diagonal grooves
CALIBRATE IF NEEDED
Generally, the Miter Gauge is ready to go right out of the box. In the chance that the miter gauge needs to be calibrated. Read the following steps to correctly and precisely align and calibrate your new miter gauge.

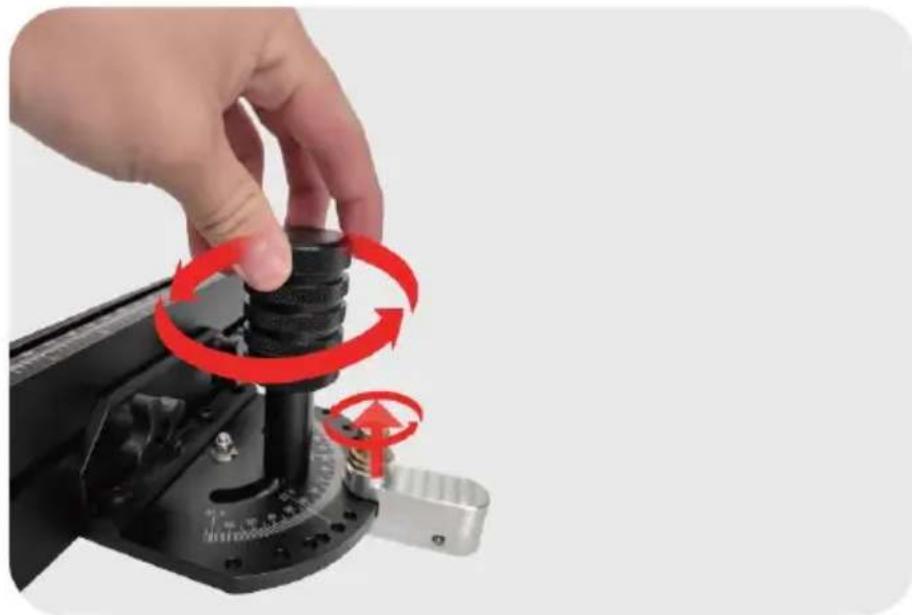

1. Release the fixed knob and handle
Loosen the handle of the slope gauge counterclockwise, lift the metal and rotate it 90^ to release it

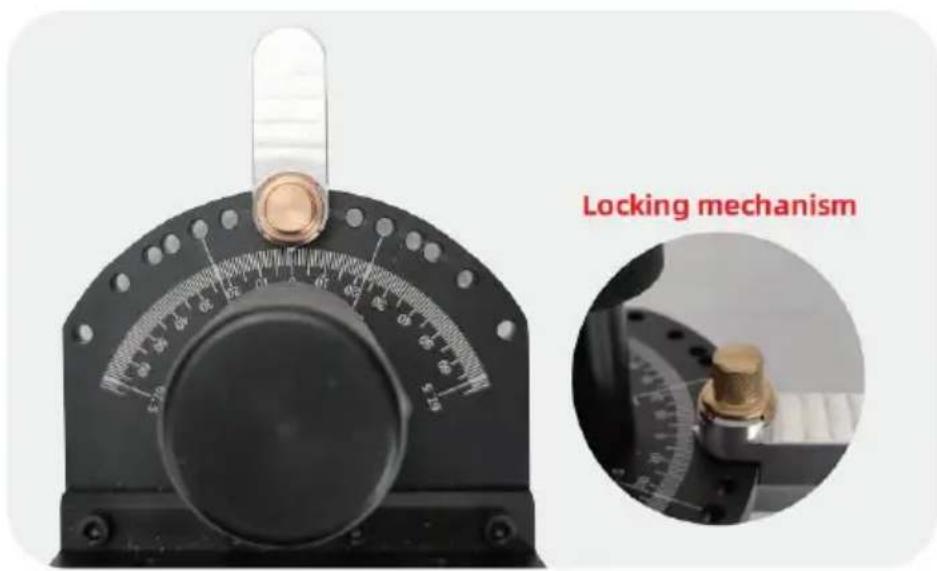

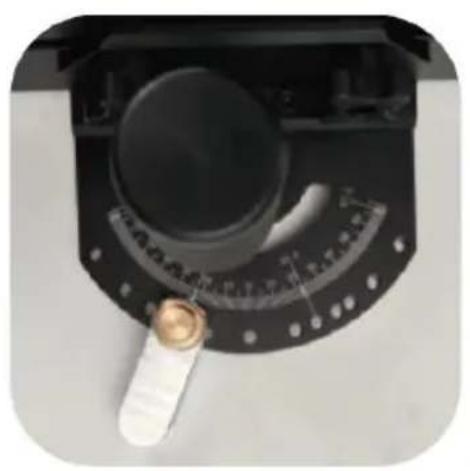

2. Set Index to Zero
With the locking pin engaged(lowered and locked to the zero positive position) adjust the miter gauge head to zero on the index point as

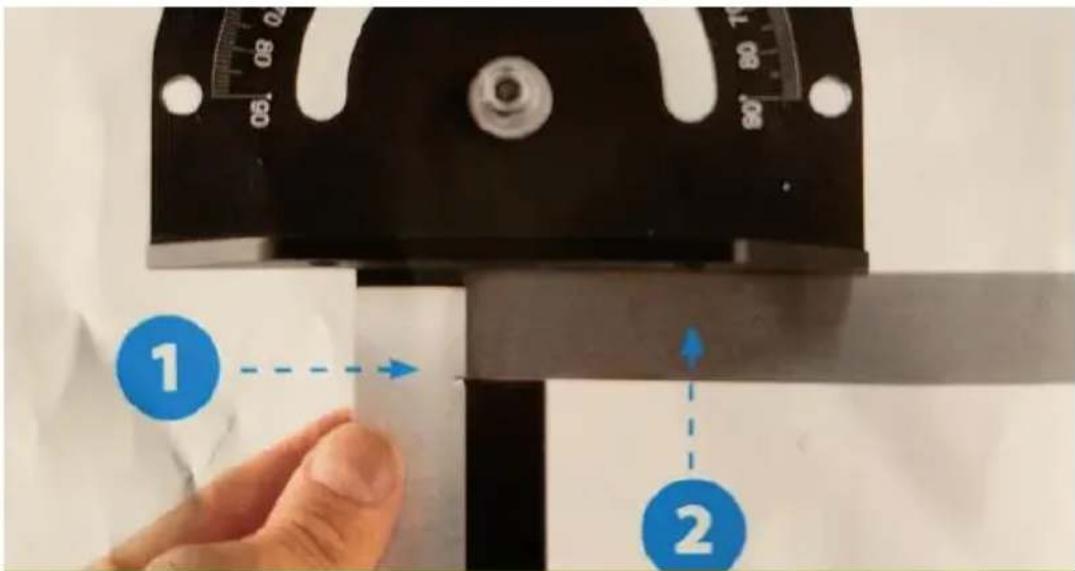

3. Square it Up
Place a square up and against the miter bar (1), next, slide it up again, face of the miter gauge (2). Set the face of the miter gauge so that degrees to the miter bar.

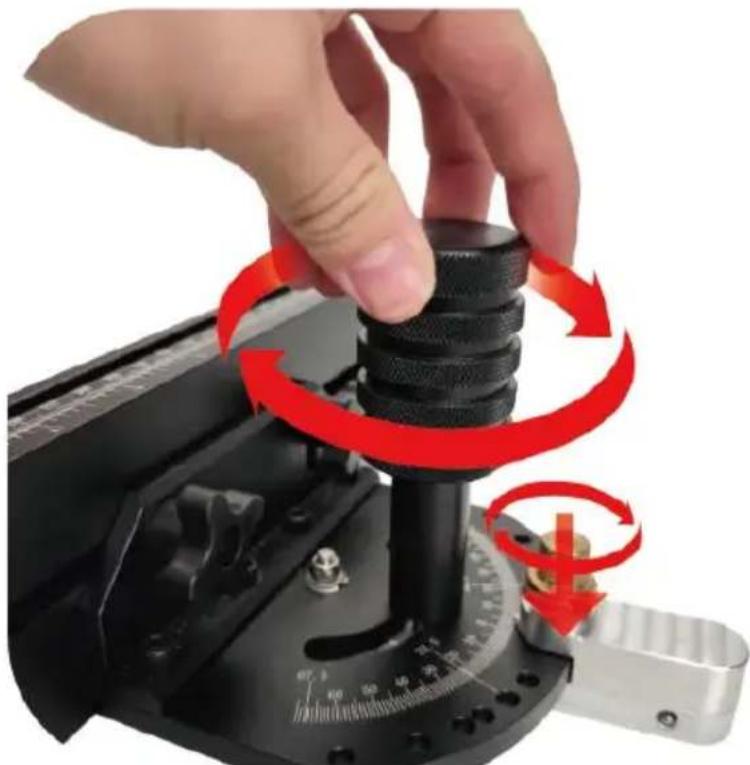

4. Lock the knob mechanism and tighten the
Once you have set the working surface to 90^ , first tighten the har maintain the pan tilt position, and secondly, rotate the metal knob into card slot
5. Adjust The Plungershandle
Depending on your table saw slot, you may want to adjust the spring loaded plungers on the miter bar. Simply use a hex key wrench to plungers outward or draw them inward until you achieve just the right
Comment:
When adjusting the plungers do not over extend them. Doing will prevent the miter bar from sliding smoothly and could possibly damage the plungers.

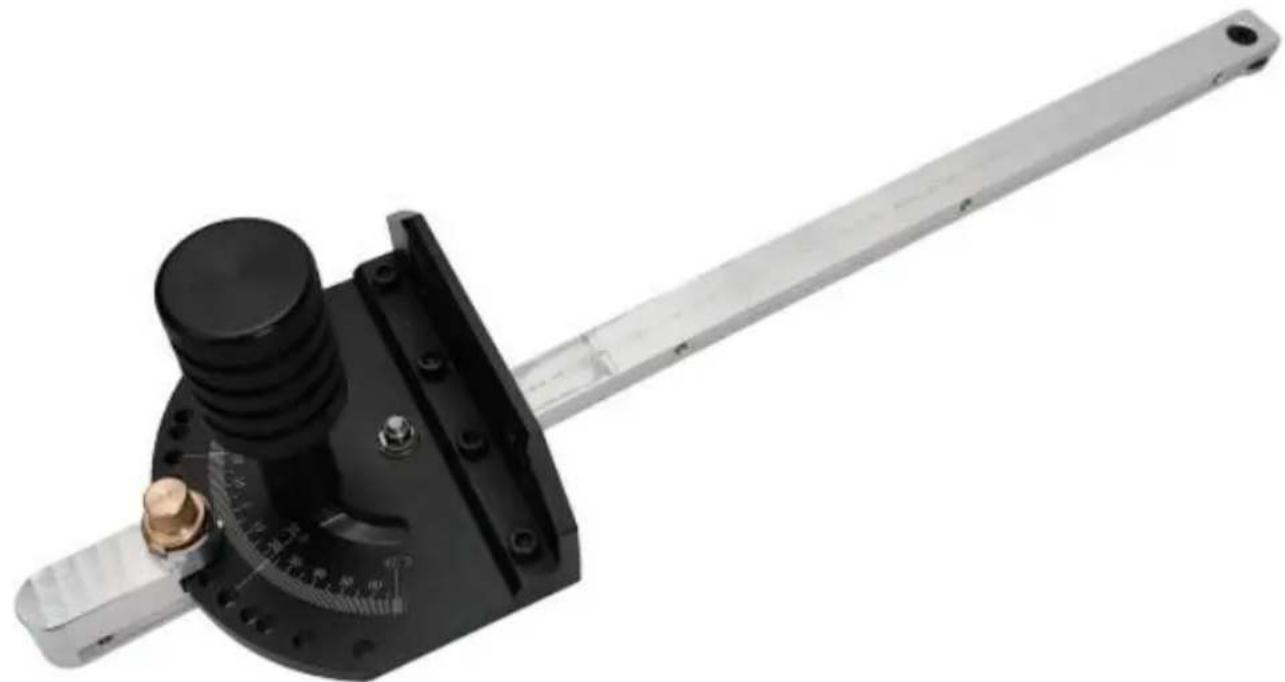

6. You're Ready to Go!
Your new Miter Gauge is now calibrated and ready for use.

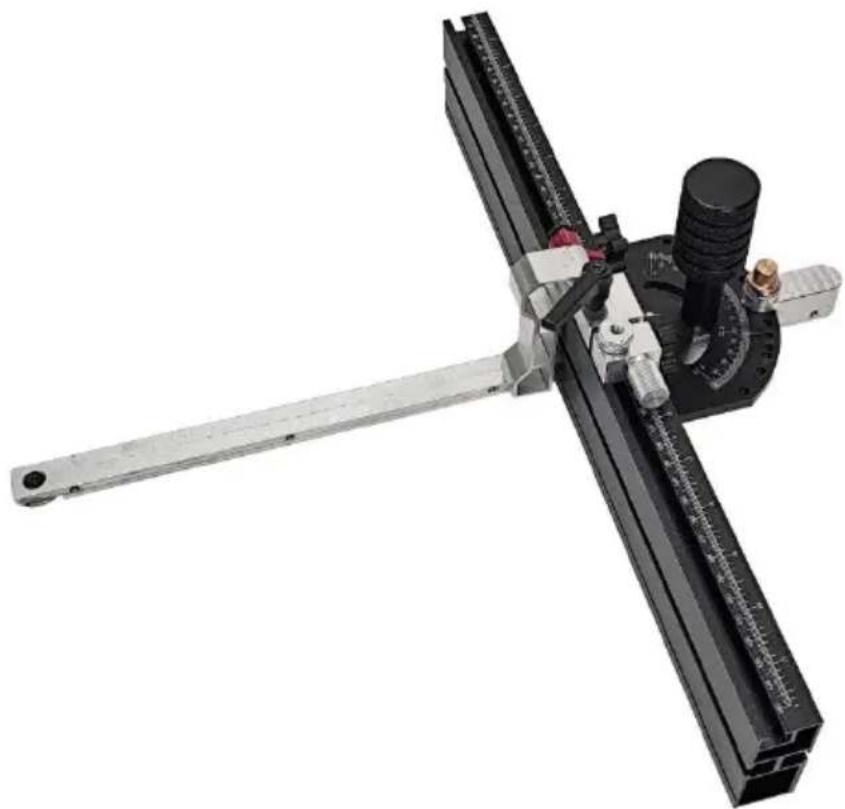

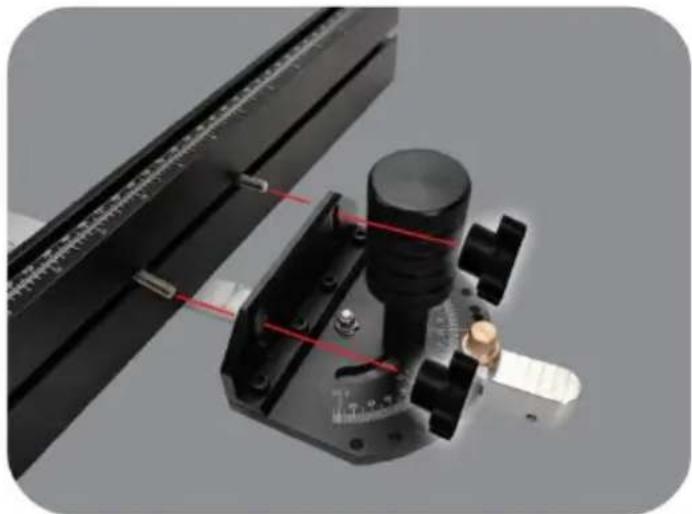

7. Aluminum Miter Fence Installation handle
Many modern precision miter gauges are pre-drilled at a standard height to accept miter fences. Simply align the bolts with the holes, and secure the fence to the gauge using the supplied bolts, washers and t-knobs as above.

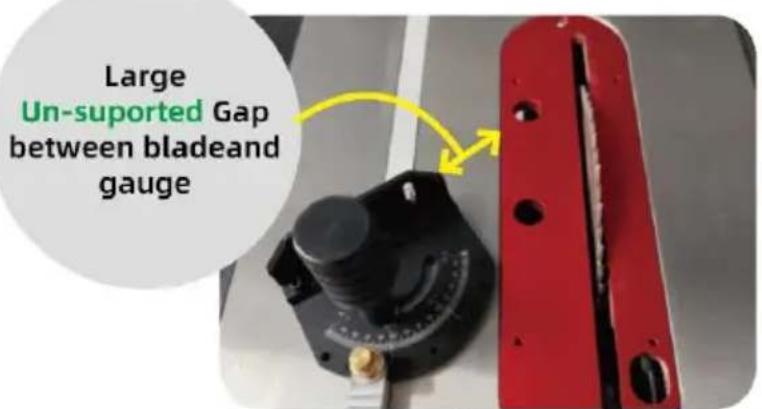

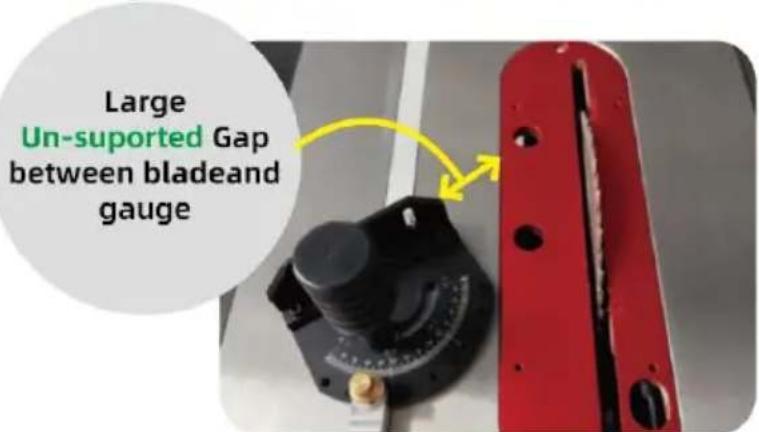

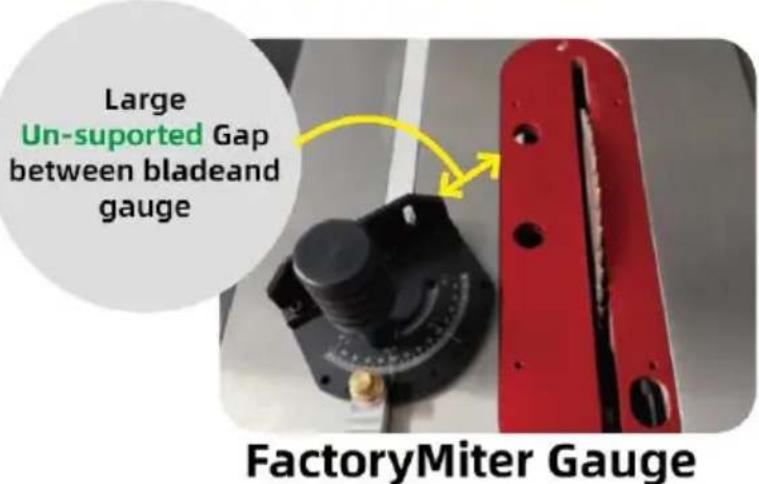

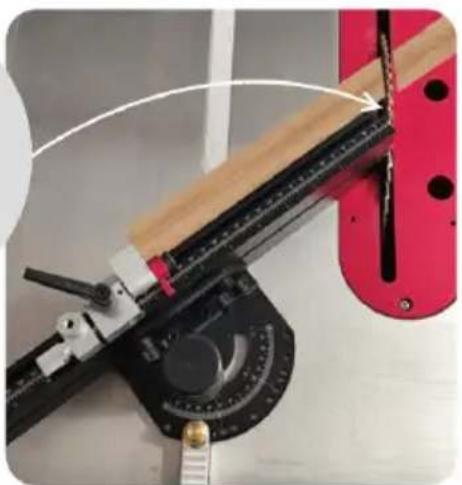

Why Use a Miter Fence?

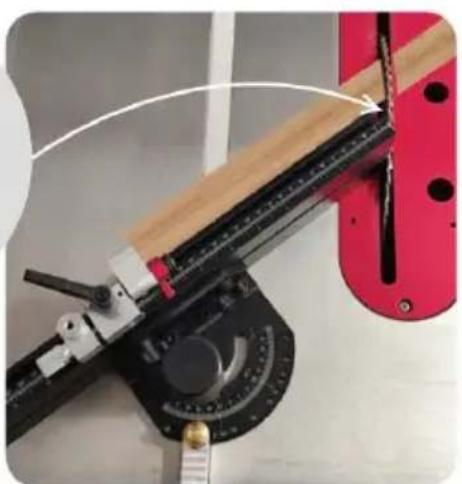

FactoryMiter Gauge

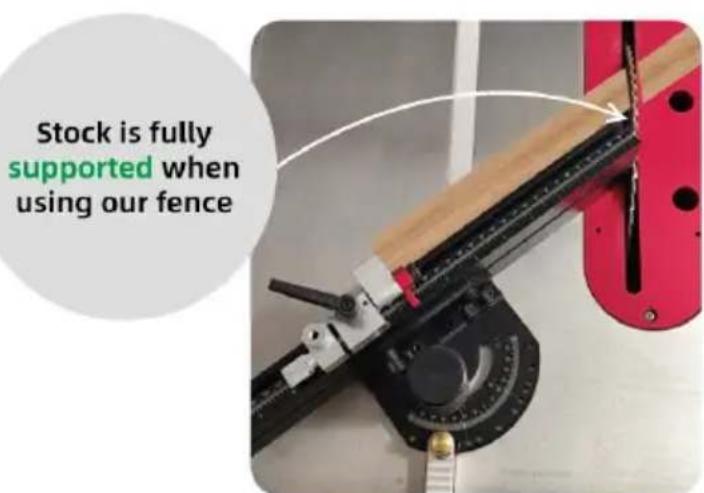

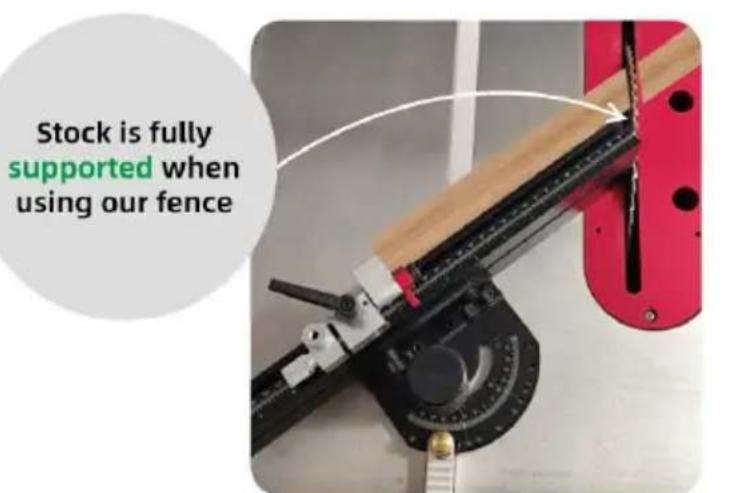

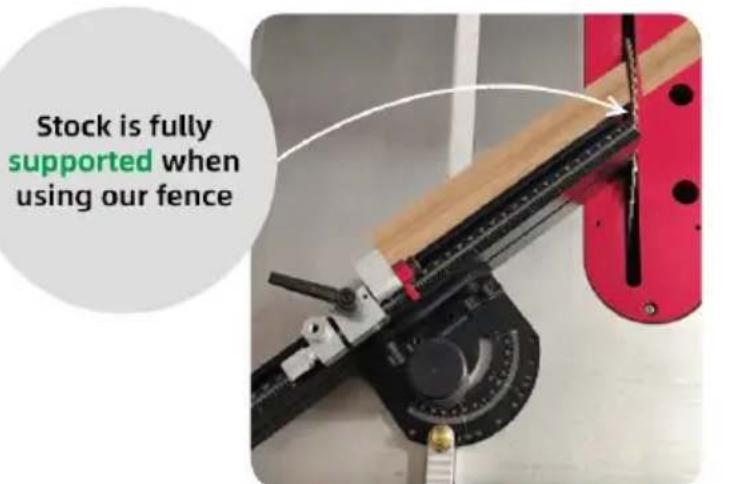

Stock is fully supported when using our fence
MiterGaugewithfence

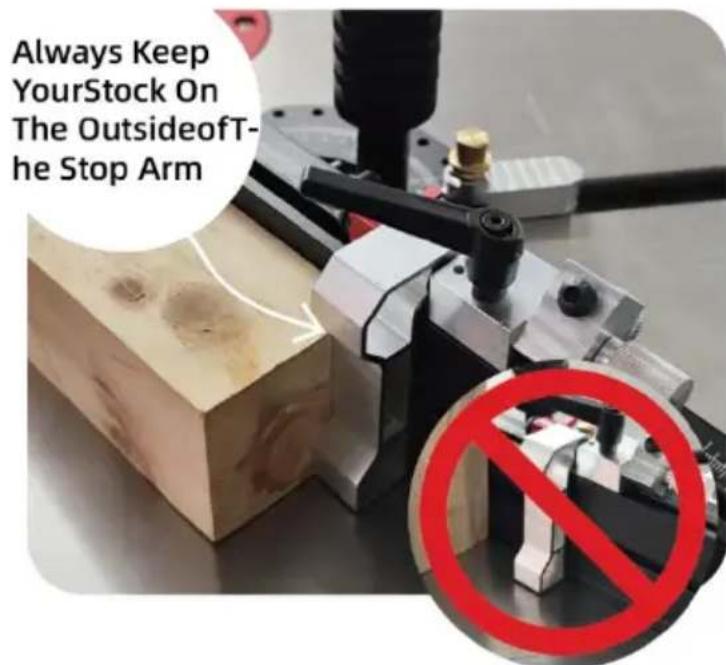

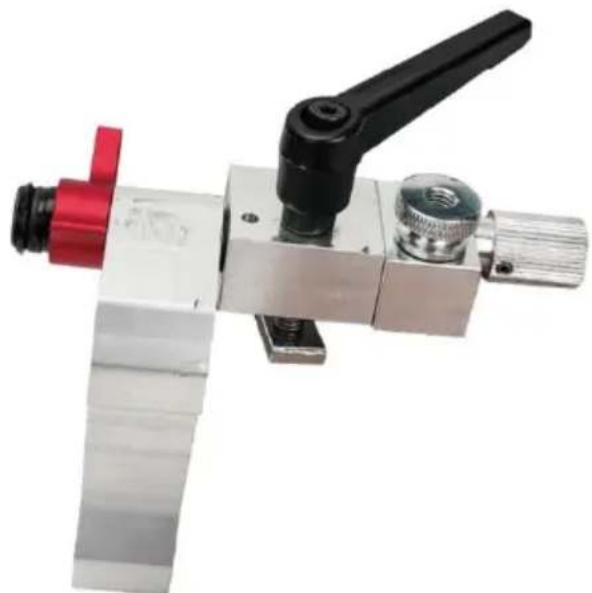

Flip Stop Installation
The ideal solution for repetitive length cuts on your table saw, the fli quickly and easily slides right into the top track on the aluminum fen is secured in place by tightening the t-knob
Depending on which side of the blade you are cutting on, your stock Always contact the flip stop on the outside of the arm. This ensures flip stop will hold your stock in place with minimal play. The Flip Sto be used on either side of the blade while on the aluminum fence. If necessary, the Flip Stop can be reversed by disassembling the unit, pl the arm on the other side of the stop and then reassembling the ur

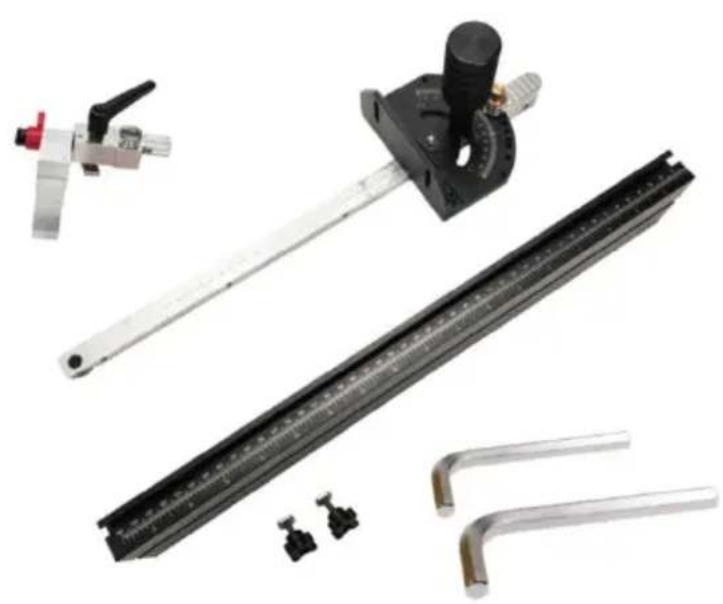

SKU1.

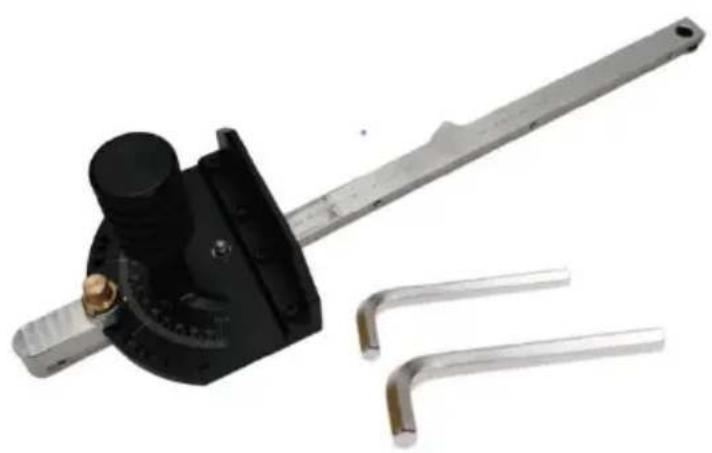

Table saw oblique cutting gauge without support -60 ° to+60 ° without charge
Inventory:
adjustment plate&sliding bar, assembled)
Handle * 1
grating limiter * 1
hex wrench (4mm) * 1
hex wrench (2mm) * 1
instruction manual * 1
SKU2.
Table saw oblique cutting gauge with support -60 ° to+60 ° 18 inch charged
Inventory:
Backing Mountain * 1
Diagonal cutting gauge * 1
(metal adjustment plate & sliding bar, assembled)
Handle * 1
grating limiter * 1
hex wrench (4mm) * 1
hex wrench (2mm) * 1
instruction manual * 1
Backing length:
18"(460mm)
SKU3.

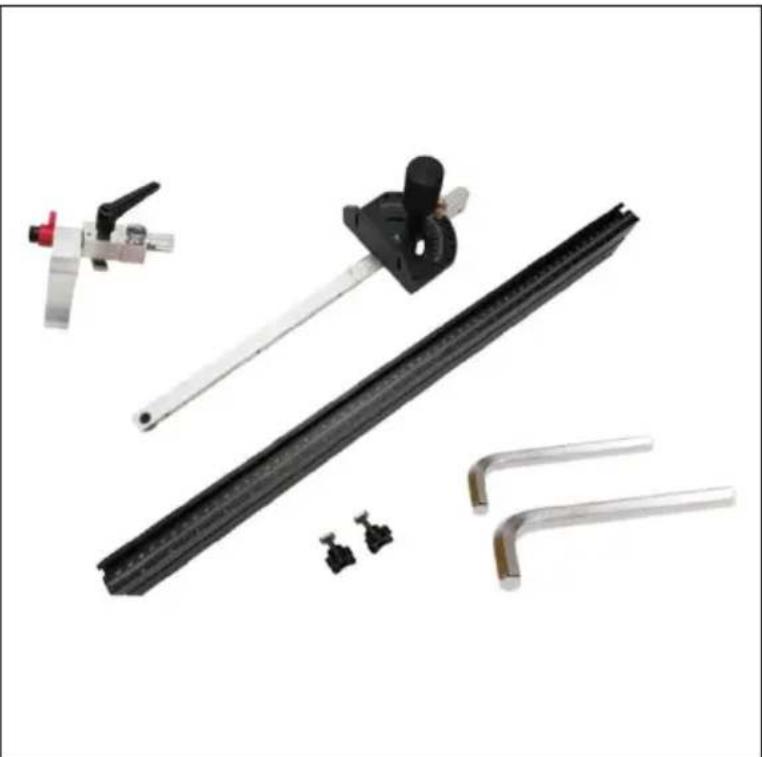

Table saw oblique cutting gauge with support -60 ° to+60 ° 26 inch without charge
Inventory:
Backing Mountain * 1
Diagonal cutting gauge * 1(metal
adjustment plate&sliding bar,
assembled)
Handle * 1
grating limiter * 1
hex wrench (4mm) * 1
hex wrench (2mm) * 1
instruction manual * 1
Backing length:
24"(610mm)
SKU4.

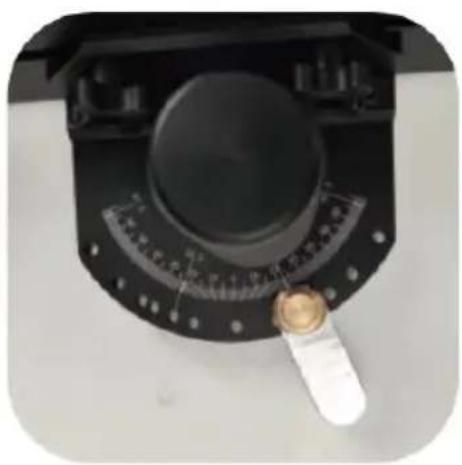

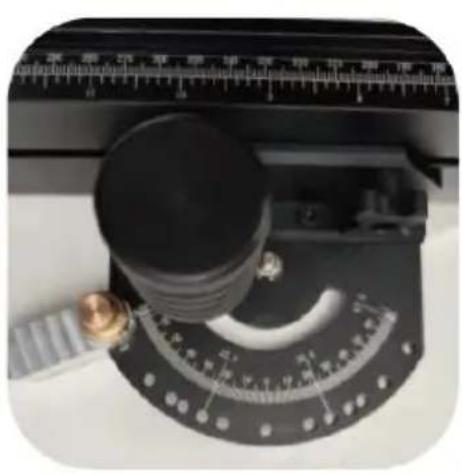

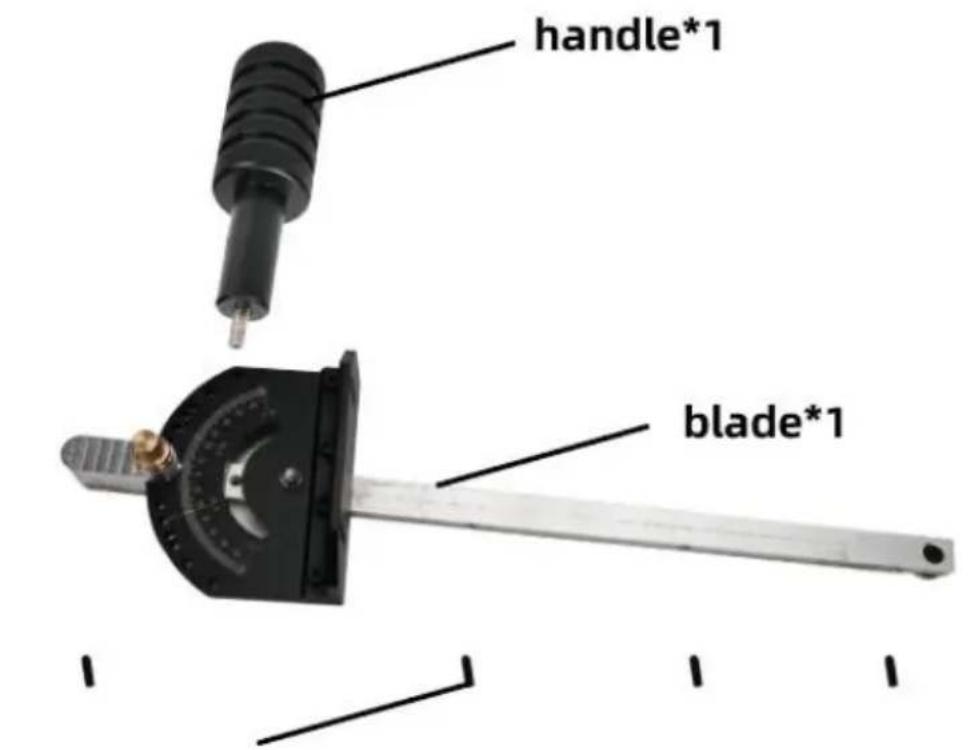

Table saw oblique cutting gauge with support -60 ° to+60 ° 18-35 in non charged
Inventory:
Backing Mountain * 1
Diagonal cutting gauge * 1(metal
adjustment plate&sliding bar,
assembled)
Handle * 1
grating limiter * 1
hex wrench (4mm) * 1
hex wrench (2mm) * 1
instruction manual * 1
Backing length:
19-35"(490-890mm)
Disassembled diagram of herringbone scale parts
Spring Jimmy screw*4
Display of the range of division values for the herringbone
Address: Baoshanqu Shuangchenglu 803long 11hao 1602A-1609shi Shanghai
Imported to AUS: SIHAO PTY LTD, 1 ROKEVA STREETEASTWOOD NSW 2122 Australia
Imported to USA: Sanven Technology Ltd., Suite 250, 9166 Anaheim Place, Rancho Cucamonga, CA 91730
SHUNSHUN GmbH
Romeracker 9 Z2021, 76351
Unit 5 Albert Edward House, The
Pavilions Preston, United Kingdom
Made In China
