USER MANUAL 80165 Vevor

Technical Support and E-Warranty Certificate

www.vevor.com/support

Track Saw

USER MANUAL

MODEL:80165

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only repressor estimate of savings you might benefit from buying certain tools with us compared to top brands and does not necessarily mean to cover all categories of tools offered by are kindly reminded to verify carefully when you are placing an order with us if you actually saving half in comparison with the top major brands.

MODEL:80165

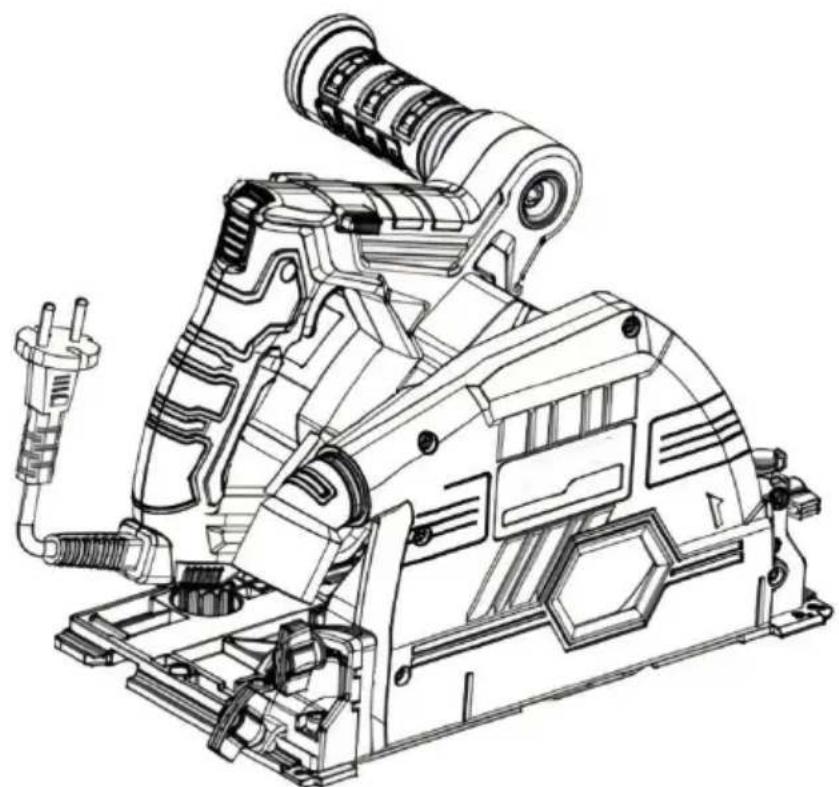

Technical line drawing of a mechanical device with no visible text or symbols

(The picture is for reference only, please refer to the actual object)

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel free contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instructions carefully before operating. VEVOR reserves a clear interpretation of user manual. The appearance of the product shall be subject to the product you received. Please forgive us that we won't inform you there are any technology or software updates on our product.

Warning-To reduce the risk of injury, user must read instructio manual carefully.

This product is subject to the provision of European Directive 2012/19/EC. The symbol showing a wheelie bin crossed through indicates that the product requires separate refuse collection in European Union. This applies to the product and all accessori marked with this symbol. Products marked as such may not be discarded with normal domestic waste, but must be taken to collection point for recycling electrical and electronic devices

General safety warning for power tools

Warning!

Read all safety warnings, instructions, drawings and regulations provided with power tools. Failure to follow the instructions listed below can result in electric shock, fire and/or serious injury.

Keep all warnings and instructions for future reference.

The term "power tool" in the warning means either a mains powered (wired) power tool or a battery powered (wireless) power tool.

A) Workplace safety

1. Keep the workplace clean and bright. Messy and dark fields can lead to accidents.
2. Do not operate power tools in explosive environments, such as flammable liquids, gases or dust. Sparks from power tools can ignite dust or gas.
3. Keep power tools away from children and bystanders. A lack of concentration can cause you to lose control of your tools.

B) Electrical safety

1. The plug of the power tool must match the socket. The plug must never be modified in any way.

Power tools that need to be grounded should not use any adapter plugs.

Unmodified plugs and matching sockets will reduce the risk of electric shock.

1. Keep your body away from ground surfaces, such as pipes, heat sinks, and refrigerators. If you touch a grounded surface.
2. Do not expose power tools to rain or humidity. Water entering power tools increase the risk of electric shock.
3. Do not abuse the cord. Never handle, pull, or unplug power tools with cords. Keep cords away from heat sources, oil, sharp edges, or moving parts. Damaged or entangled cords increase the risk of shock.
4. When using power tools outdoors, use an extension cord suitable for outdoor use. Electrical wiring suitable for outdoor use will reduce the risk of electrical shock.
5. Use a power supply with residual current device (RCD) protection if it is not possible to avoid operating the appliance in a humid environment. The U of RCD reduces the risk of electric shock.
6. Do not touch the power plug with wet hands.
7. If the wire is damaged, it will be replaced by the manufacturer or its agent avoid safety hazards.

c) Personal safety

1. Stay alert, pay attention to the operation and stay awake when operating power tools. Do not operate electric tools when you are tired, or when you have reaction to drugs, alcohol, or treatment.
   Momentary negligence in operating power tools can result in serious personal injury.
2. Use personal protective equipment. Always wear safety goggles. Protective devices, such as dust masks, non-slip safety shoes, hard hats, hearing protection and other devices used under appropriate conditions can reduce personal injury.
3. Prevent accidental startup. Make sure the switch is in the off position before connecting the power and/or battery pack, picking up or handling tools. Handling tools with fingers on the switch or power on while the switch is on can cause danger.

4. Remove all adjustment keys or wrenches before the power tool is switched. A wrench or key left on a rotating part of a power tool can result in personal in

5. Don't overextend your hands. Always pay attention to your footing and balance. This allows for better control of power tools in the event of an accident

6. Dress appropriately. Don't wear loose clothing or accessories. Keep your hair and clothes away from moving parts. Loose clothing,
   accessories, or long hair may involve moving parts.

7. If a device is provided for connection with the chip removal and dust collect equipment, ensure that it is properly connected and used. The use of dust collection devices can reduce the risk of dust.

8. Don't let the familiarity of frequent tool use lead you to ignore the safety guidelines of the tool. A careless action can lead to serious injury in an instant.

9. Always wear safety goggles when using power tools to avoid eye damage. Safety goggles must comply with ANSI Z87.1, European EN 166 or Australia/New Zealand AS/ NZS 1336. In Australia/New Zealand, a mask is required by law to protect the face.

It is the employer's responsibility to ensure that tool operators and other personnel near the work area wear appropriate safety equipment.

Line drawing of a person wearing a hard hat and safety goggles (no text or symbols)

D) Power tools and precautions

1. Do not force the use of power tools, according to the use of appropriate pc tools. Choosing the right power tool designed according to the rated value will make you work more efficiently and safely.
2. If the switch cannot be turned on or off, do not use the power tool. Electric tools that cannot be controlled by a switch are dangerous and must be repaired.

3. Unplug and/or remove the battery pack (if removable) from the power supply before any adjustment, replacement of accessories or storage of electrical equipment. This protective safety measure reduces the risk of accidental starting of power tools.

4. Store unused power tools outside the reach of children, and do not allow people who are not familiar with power tools and do not understand these instructions to operate power tools. Power tools are dangerous in the hands of untrained users.

5. Maintain power tools and accessories. Check whether moving parts are adjusted in place or stuck, check for broken parts and other conditions that affect the operation of power tools. If there is damage, repair the power tool before use. Many accidents are caused by poorly maintained power tools.

6. Keep cutting tools sharp and clean. A well-maintained tool with a sharp cutting edge is less likely to stick and easier to control.

7. Select power tools, accessories and tool heads according to the operation instructions, and consider the operating conditions and the operation to be carried out. Using power tools for operations that are not suitable for their purpose can lead to dangerous situations.

8. Keep the handle and grip surface dry, clean, and free of grease. In the ever an accident, a slippery handle does not guarantee a safe grip and control of the tool.

9. Do not wear cloth work gloves That may become entangled when using the

e) Maintenance

1. Use the same spare parts to repair electric tools by professional maintenance personnel. This will ensure the safety of the power tools being serviced.

2. Please follow the instructions in this manual when applying lubricating oil and replacing accessories.

Electric circular saws use safety warnings

Danger:

a) Keep hands away from the sawing area and blade at all times. Always hold the auxiliary handle or motor housing with your other hand. If you hold the circuit saw with both hands, you won't be hurt by the blade.
b) Do not touch the underside of the workpiece. The guard does not protect against the danger of the saw blade under the workpiece.
c) Adjust the cutting depth to the thickness of the workpiece. The serration visible under the workpiece should be less than one tooth height.
d) Do not hold the workpiece or hold the workpiece on the leg for sawing, the workpiece should be clamped on a stable platform. Proper support of the workpiece is essential to reduce personal injury, saw blade jamming or loss of control.

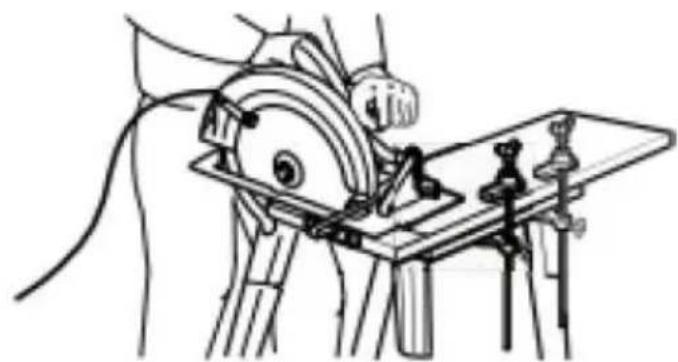

Line drawing of a person using a large circular saw on a workbench (no text or symbols)

Typical diagram of correct hand holding, workpiece support, and power line routing (when available).

e) When the sawing workpiece is operated, it is possible to touch the dark line its own wire. The machine must be held through an insulated grip surface. Touching a "live" wire can also electrify the

exposed metal part of the tool, thus electrocuting the operator.

f ) When used as a splitting saw, always use a splitting guard and a straight edge guide. This improves the cutting accuracy and reduces the chance the saw blade getting stuck.

g) Always use a saw blade with the right size and shaft shape (diamond or round). If the saw blade and the circular saw clamping parts do not match, it will cause eccentric operation and lead to loss of control.

h) Damaged washers and bolts that do not match dimensions shall not be used. For improved operation and safe operation, saw blade washers and bolts are specially designed for circular saws.

Reasons for rebound and operator protection:

Rebound is the sudden reverse operation when the saw blade is squeezed, stuck, or off-center, causing the circular saw to lift uncontrollably and away from the workpiece towards the operator.

When the saw blade is squeezed or tightly stuck by the closed cut, the saw blade is blocked and the motor reaction force drives the machine to snap back towards the operator.

If the blade is twisted or deviated from the cutting surface, the serrated edges on the back edge of the blade can dig into the upper surface of the woo causing the blade to crawl out of the cut and bounce back towards the operator.

Rebound is the result of misuse of the circular saw and/or incorrect operating procedures or conditions, and can be avoided by taking appropriate precautions.

a) Grip the handle of the circular saw with both hands, and position your upper arms enough to withstand the rebound. The body is on either side of the circular saw and not aligned with the blade. Rebound will cause the circular saw to spring back, but if proper

precautions are taken, the rebound can be controlled by the operator.

b) When the saw blade is stuck, or the sawing is interrupted for any reason, release the switch trigger and hold the circular saw in the

material without moving until the saw blade comes to a complete stop Do not attempt to remove the saw from the workpiece or pull the saw backward while the saw blade is in operation or is likely to spring back. Investigate and take proper action to eliminate the cause of the saw blade sticking

c) When restarting the circular saw in the workpiece, align the saw blade with the cut and check that the saw blade is inserted into the material. If the saw blade stuck, it will crawl out of the piece or bounce off the piece when the tool is restarted.

d) Support large sheet material to reduce the damage of saw blade extrusion and rebound. The large sheet material sags due to its own weight, and the support material must be placed in the two measures below the sheet material, near the cutting line and the edge of the sheet material.

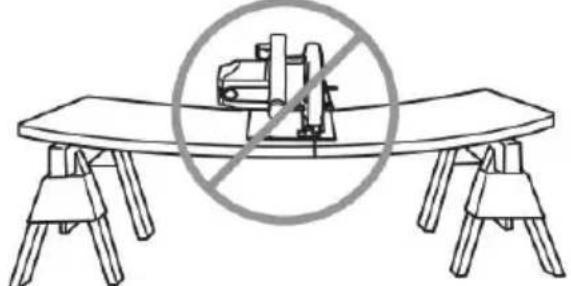

To avoid bouncing, place a support plate or panel close to the cut.	Do not place the support plate or par far from the cutting area.

e) Do not use dull or damaged saw blades. Saw blades with no open edge or improperly installed can form narrow saw marks, which can lead to severe friction stuck blades, and rebound.

f ) Cutting depth and Angle adjustment locking buttons must be tightened and secured before sawing. If the blade regulator moves while sawing, it may cause the blade to jam and rebound.

g) Take extra care when "insert sawing" on existing walls or other blind areas. Sticking out the saw blade may cut an object that causes rebound.

Guard rebound description

a) Before each use, check that the cover is closed freely. If the lower guard does not return quickly, do not operate the circular saw. Do not clip or tie the lock guard in the open position. If the circular saw is suddenly dropped, the lower guard may bend out of shape. Lift the lower guard with a retracted handle and make it that the guard rears at any cutting Angle and depth without touching the saw blade or any other part.

b) Check the working condition of the lower guard spring. If the guard and spring do not work properly, they must be repaired before use. The lower guard may be slow to move due to damage to parts, gum deposits, or waste buildup.

c) Lift the lower guard manually only for special sawing, such as "plug-in sawing" and "combined sawing". Lift the lower guard with the retractable handle. The lower guard must be released as soon as the saw blade enters the sawing material. For all other sawing operations, the lower guard should return automatically.

d) Always ensure that the lower guard covers the saw blade before placing the circular saw on the table or the ground. An unprotected, inertial saw blade cause the circular saw to retreat and cut an object on its travel, taking into account the time the saw blade stops after the switch is released.

Additional security warning

1. Be especially careful when cutting wet wood, pressurized wood, or trees that contain knobs. Without reducing the speed of the saw blade, keep the tool smoothly pushed to avoid overheating of the serrations, as well as to avoid the plastic melting when cutting.
2. Do not attempt to remove the cutting material when the saw blade is moving. Wait until the saw blade has stopped completely before grabbing the cutting material.

The saw blade will still move some distance after the power is turned off.
3. Be careful not to cut into nails.
Check wood for nails and remove them before cutting.

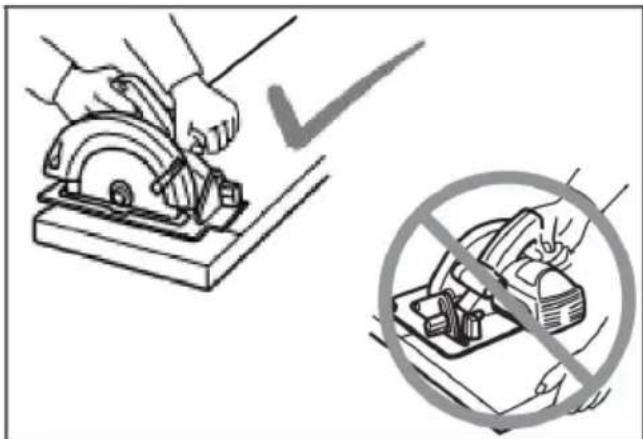

4. When cutting, please place the
wider part of the base of the electric circular saw on the part of the workpiece t is firmly supported, not on the part that will be cut down. If the workpiece is sh small, clamp it. Do not try to hold short pieces!
5. Before putting down the tool after cutting, ensure that the lower protective cover is closed and the saw blade is completely stopped.

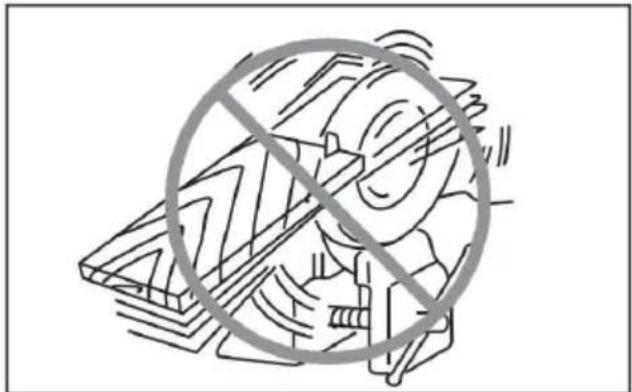

6. Do not attempt to cut with an electric circular saw held backward with a vice. This is very dangerous and can lead to serious accidents.

Illustration showing a hand using a cutting tool to cut a flatbed sheet metal, with a checkmark and no warning symbol (no text or labels)

1. Some materials contain toxic chemicals. Be careful not to inhale dust and avoid skin contact. Follow the material supplier's safety tips.

2. Do not stop the saw blade by applying side pressure to it.

3. Do not use any grinding wheel.

4. Only use saw blades of the diameter indicated on the tool or specified in the instructions. Using an incorrectly sized saw blade can

affect the proper protection of the saw blade or the operation of the protective cover, resulting in serious personal injury.

1. Keep the saw blade sharp and clean. Resin and wood bitumen that get stuc on the blade and harden can slow down the electric circular saw and increase the likelihood of rebound. Therefore, remove the

saw blade from the tool first, and then clean it with resin and asphalt remover, hot water or kerosene.

Illustration of a person crossed out of a large screen with a diagonal line overlay (no text or symbols)

Keep the saw blade clean. Do not use gasoline.

1. Wear a dust mask and protective earmuffs when using tools.

2. Be sure to use a saw blade suitable for the material being cut.

3. Only use saw blades whose marked speed is equal to or greater than the speed indicated on the tool.

Please keep this manual.

Do not follow the relevant product safety rules for convenience or because you are familiar enough with the product (experience gained due to re-use). Improper use or failure to follow the safety rules in the instruction manual can result in serious personal injury.

Product specification

- Due to the ongoing development program, we reserve the right to change the specifications without notice.

Item No.		80165
Blade Diameter		165 MM
Cutting depth	90°	57 MM
	45°	42 MM
No Load Speed (rpm)		4500
Voltage		110V / 220V
Safety level		II

Operation instruction

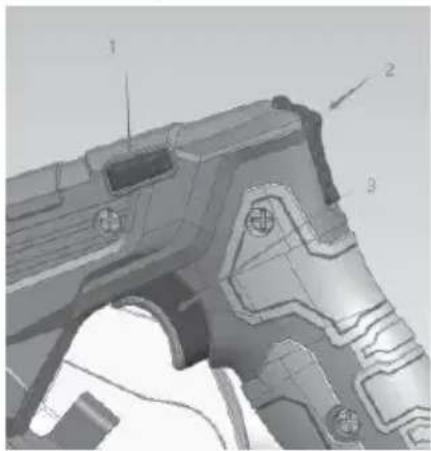

- Switch operation

3D mechanical component diagram showing internal parts and mounting features (no text or symbols)

1. Lock button;

2. push rod;

3. Switch;

Note:

- Before turning on the power, make sure to check whether the switch button is active normally and is in the open and normal closed state. In order to prevent the user from accidentally pulling the trigger of the switch, the tool adopts a locking mechanism. When the cutting operation is required, the locking button is pushed to one side, and the switch button is activated after the push rod is pushed to the top. Then the cutting operation can be performed.

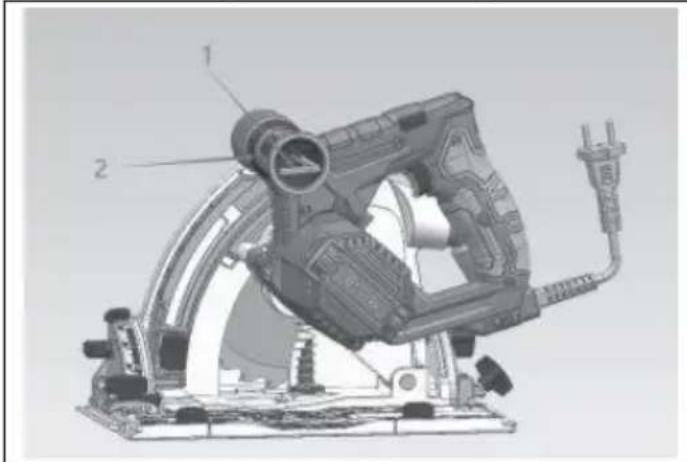

● Storage of hexagonal wrench

Technical illustration of a mechanical device with labeled parts (1 and 2), no readable text or symbols present.

1. Hex wrench; 2. Additional handle

The hex key is stored on the tool. To remove the hex key, pull it out. To install the Allen wrench, place it on the handle and insert it as far as possib

- Remove or install the saw blade

Note:

• Do not use saw blades that do not conform to the specifications specified in this manual.
• The blade speed used should at least reach the maximum no-load speed in the specification value

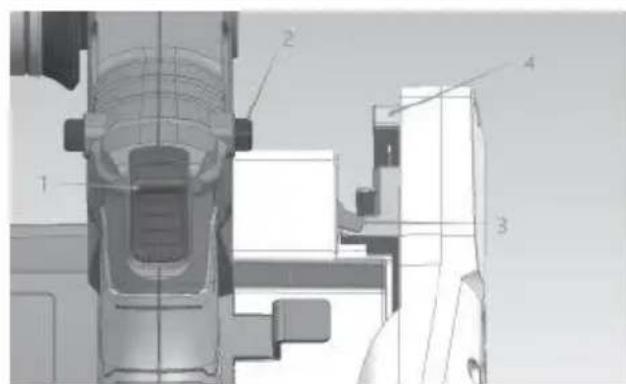

Technical diagram of a mechanical assembly with numbered components labeled 1 to 4

1. Push rod 2.Self lock 3.Limited borad 4.Depth Rule

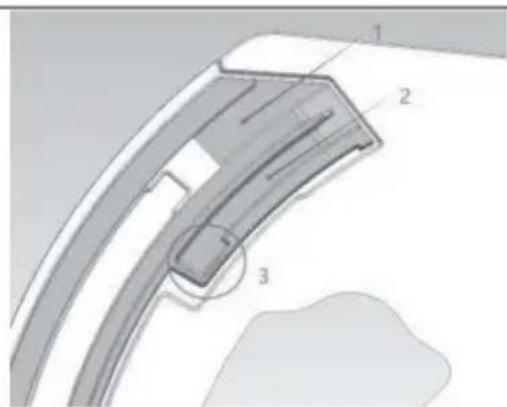

Technical diagram of a curved mechanical component with numbered parts labeled 1, 2, and 3.

1. Lead 2 . Lead 3. Stop slot

Step 1: To facilitate the removal of the saw blade, the depth ruler is designed with two lead slots. When removing the saw blade, push the latch to the right w pushing the rod up, push the limit plate into the path of lead 2, release the pus and press the handle down, and the limit plate will be embedded in the stop slo

Step 2: Fully press the self-locking, rotate the saw blade until the saw blade cannot be turned, then use a wrench to turn counterclockwise to loosen the scre of the press knife, and then remove the screw of the press knife and the extern pressure plate, and remove the saw blade from the bottom.

If the machine is not in Step 1 state when you want to install the saw blade, repeat Step 1 and do the opposite of step 2. Lock the knife screw clockwise.

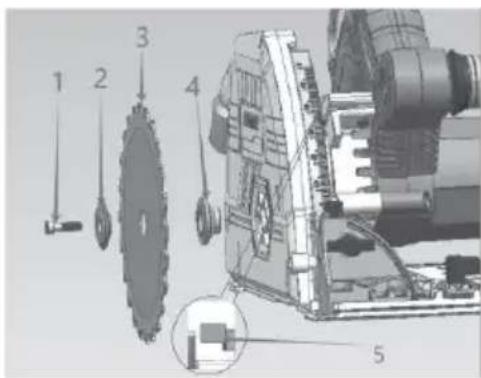

1 2 3 4 5

1. Press screw

2. External press plate

3.Blade

1. Inner flange

5.Self lock

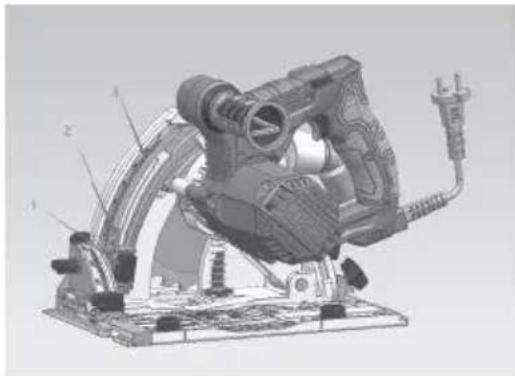

- Adjust the depth of the cut

3D mechanical assembly diagram showing a motor and housing components (no visible text or labels)

1. Push Button

2. Depth adjustment plate

3. Depth gauge

Press the push button on the depth adjustment plate, and move the A/B scale of the depth adjustment plate to the required depth, release the push button and spring back. (The A/B scale corresponds to the cutting depth without guide rail/wi guide rail) In order to make the cutting more clean and safe, please adjust the cutting depth to the position of no more than one tooth below the workpiece. Using the proper cutting depth can reduce the potential for personal injury caused by the saw blade bouncing.

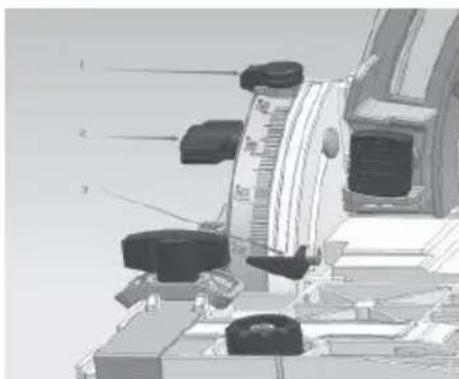

- Bevel cutting

Technical diagram of a mechanical assembly with numbered components, likely a valve or pump assembly.

1.Top rod

2.Lock knob

3.Pointer

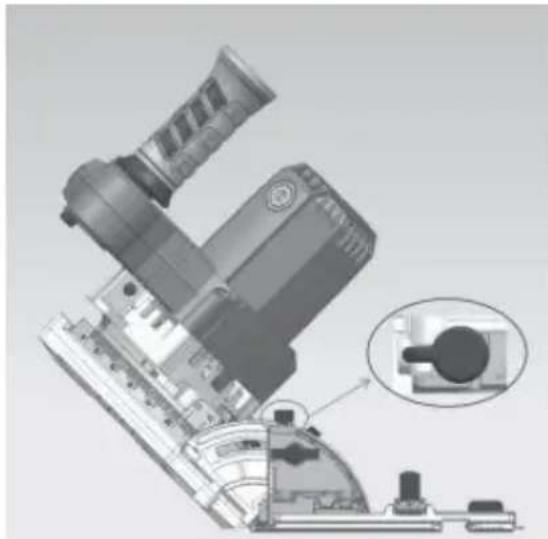

-1°-47°Tilt

0°-45° : Loosen the front and rear locking knobs, tilt the machine, observe the pointer indicating the scale, point it at the desired Angle, tighten the locking knobs on both sides so that it is fixed.

-1°/47° : To get -1°/47° oblique cutting Ang turn the top rod to make it in the picture b tilt the machine, when the pointer points to 1° /47° Angle, tighten the locking knobs ( both sides to make it fixed.

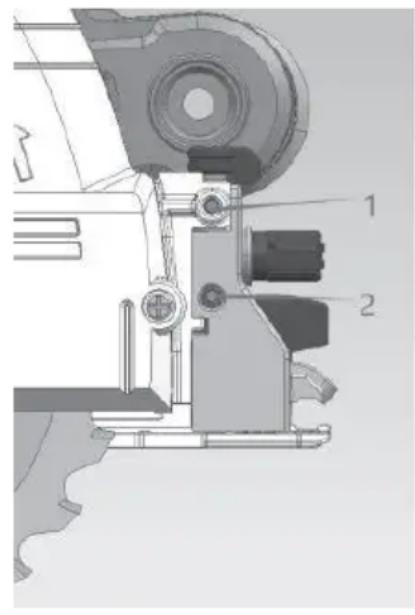

Mechanical device assembly diagram showing internal components and a close-up inset (no visible text or symbols)

Note:

Set the saw blade back to the correct Angle to set the ejector lever back.

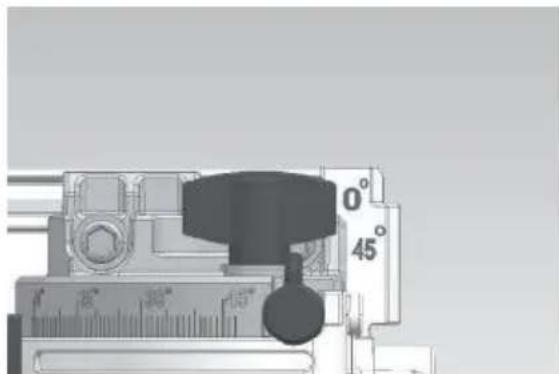

Alignment at

Align the cutting line with the 0^ scale line the base plate when a 0^ cut is performed, align the cutting line with the 45^ scale line the base plate when a 45^ cut is performed

Mechanical assembly diagram showing a cylindrical component with angular measurement indicators (0° and 45°), no readable text or symbols present.

• cutting (conventional sawing)

Attention:

Be sure to gently move the tool forward in a straight line. Applying excessive pressure to the tool or twisting the tool can cause the motor overheat and cause the tool to rebound, potentially resulting in serious injury.

Never place any part of your body under the of the tool when cutting, especially at the beginning of the cut.

Otherwise, serious injury may result.

The saw blade is exposed below the tool base.

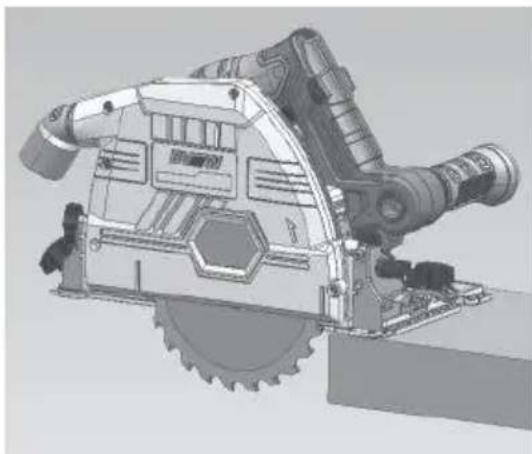

Technical illustration of a mechanical cutting tool with visible blade and gear (no text or symbols)

Hold on to the tools. This tool is equipped with both an auxiliary

handle and a handle. Using both handles at the same time is the best way to get the tool. If both hands are on the circular saw, the blade won't cut them. The first of the base is placed on the workpiece for cutting without any contact with the blade. Then start the tool according to the switch operation and wait until the saw blade reaches full speed. Now, gently press the circular saw head down to the preset cutting depth, then simply move the tool forward on the surface of the workpiece to keep it smooth and flat until the

cutting operation is complete.

To make the cutting cleaner, make sure the tool cuts in a straight line and at consistent forward speed. If the actual cutting line is

different from the planned cutting line, do not attempt to turn or push the tool back to the originally planned cutting line. Doing so may cause the saw blade to get stuck and cause the tool to bounce or possibly cause serious injury. Release the switch, wait for the saw blade to stop and then pull back the tool.

Align the tool with the new cutting line and start cutting again. When determini the cutting position, try to avoid exposing the operator to debris and sawdust sprayed by the chainsaw. Wear safety goggles to avoid injury.

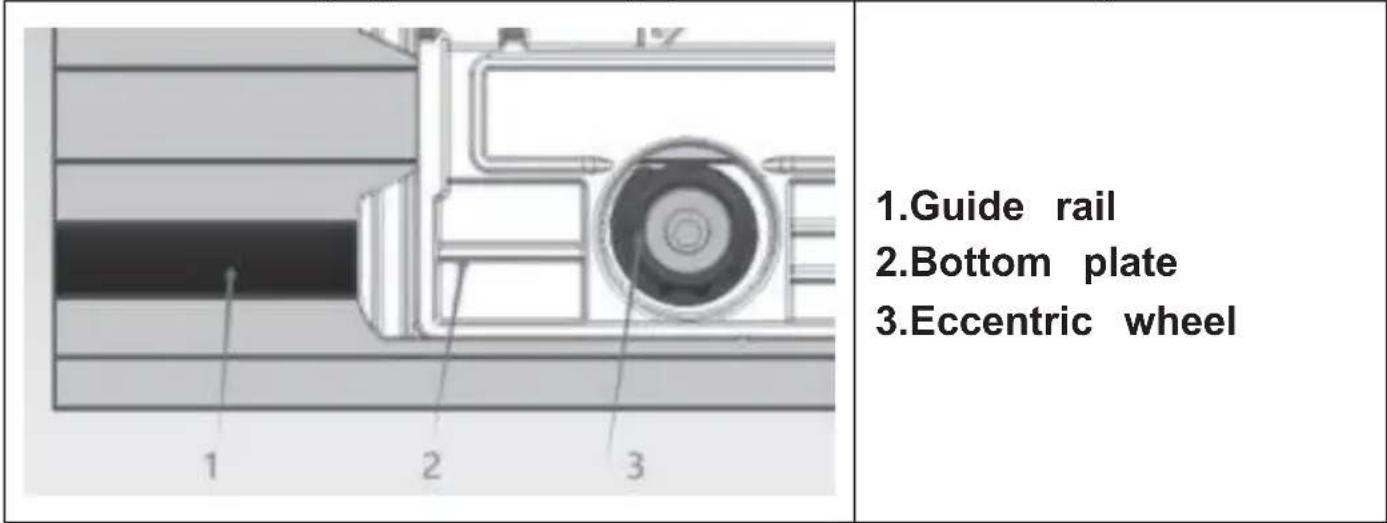

- When using guide rail (optional accessories)

1.Guide rail 2.Bottom plate 3.Eccentric wheel

Place the tool at the end of the guide rail. Turn the two eccentric wheels on the tool base so that the tool can slide smoothly. Hold on to the tool The tool is equipped with both a secondary handle and a handle. Using both

handles at the same time is the best way to grip the tool. Open the tool, press tool down to the preset cutting depth (the B scale line on the depth adjustment board corresponds to the cutting depth when there is a guide rail), and then cut.

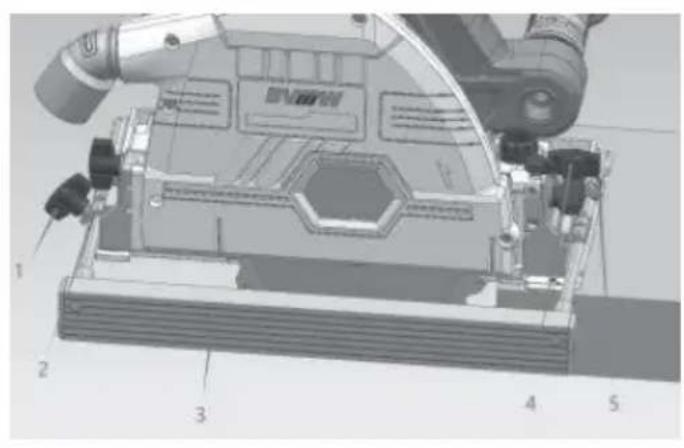

- guide ruler (optional)

3D technical diagram of a mechanical assembly with numbered components (no readable text or symbols)

1\4. Press rule knob
2. Rear pressure ruler plate
3. Guide ruler
5.Front press plate

Angle gauges can be used for oblique cutting at different angles

A guide allows you to make more accurate straight cuts. Just insert the guide rule into the groove reserved on the bottom plate and lock the press ruler knob, the guide ruler can be pressed tightly by pressing the front and back press ruler plate and adjust inside and outside according to the required cutting width, so that repeated cutting of the same width is possible.

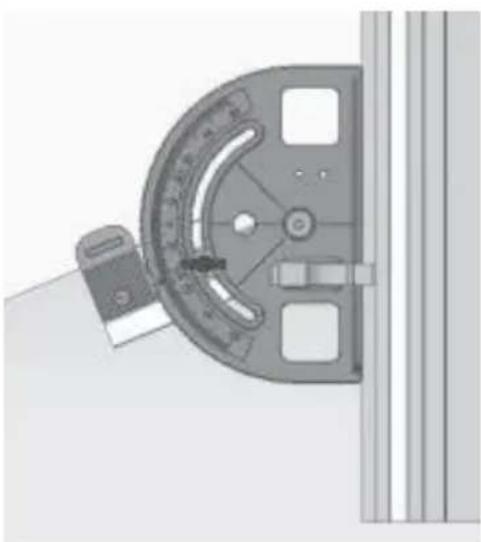

- Angle gauge (optional accessories)

Angle gauges can be used for oblique cutting at different angles.

Mechanical component diagram showing a curved dial and mounting bracket (no text or symbols)

Upkeep

Attention:

• Before preparing for inspection or maintenance, be sure to turn off the switch and unplug the tool.
• Clean the protective cover to ensure the removal of accumulated sawdust that may impede the operation of the protective cover system. A dirty protective cover system may limit its operation, resulting in serious injury. The most effective way to complete the cleaning is to use compressed air. If you blow sawdust out the protective cover, make sure you wear proper safety glasses and respiratory protection.
• Do not use gasoline, benzene, thinner, alcohol or similar materials to clean tools. Otherwise, the tool may become discolored, deformed, or cracked.

Adjust the accuracy of 45^ cutting and vertical cutting

This adjustment has been completed before the product leaves the factory.

However, if the tool is turned off, use the hex wrench to adjust the adjusting screw and check the 90^ or 45^ saw blade with a three-edge rule and an Angle rule.

Technical diagram of a mechanical device with numbered components labeled 1 and 2

1. Adjust 45° cut;
2. Adjust vertical Angle cutting

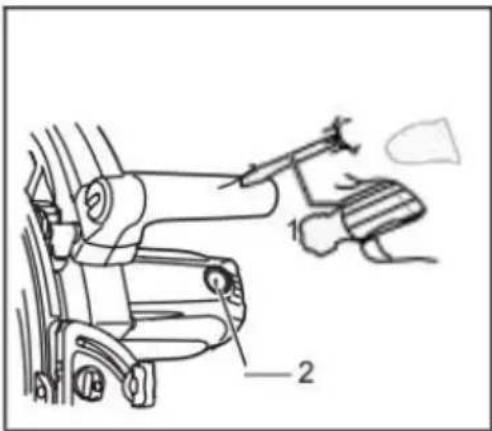

Carbon brush replacement

Replace and check carbon brushes regularly. Both brushes should be replaced at the same time. Please use only the same carbon brush. Remove the carbon brush clamp cover with a screw driver. Remove the worn carbon brush, insert a new one, and tighten the cap.

Technical diagram showing mechanical assembly with labeled parts 1 and 2

Optional accessories

These accessories or devices are intended for use with power tools listed in this specification. If other accessories or devices are used, there is a of injury. Optional accessories or devices may only be used for the specified purpose.

• Guide rail
• Guide ruler
• Angle gauge

80165 Parts Brakdown
Fig	Part Name	QTY	Fig	Part Name	QTY
1	Hex wrench	1	43	Inner Flange	1
2	Auxiliary handle	1	44	165MM blade	1
3	Cross pan head self-tapping screw ST4*16	8	45	Outer Flange	1
4	Handle cover	-1	-46	Press screw M6x20 (equivalent to grade 12.9)	-1
5	Lock catch	1	47	Hexagonal cylindrical head screw M5×12 (triplet) flat washer Φ15	2
6	Switch guide rod	1	48	Flat washer φ8.3*φ15.2*1.2	2
7	Switch button	1	49	Corrugated washer	2
8	Switch spring	1	50	Eccentric wheel	2
9	Switch	-1	-51	Base plate	-1
10	Push rod	1	52	Press knob	2
11	Push rod spring φ0.5*7*20*φ5.2	3	53	Front press plate	1
12	Torsional spring	1	54	Flat washer Φ4 x Φ12 x 1	1
13	Press plate of cable	1	55	Cross pan head self-tapping screwST4*12	5
14	Cross pan head screw M5*(triple)	-4	-56	Locking knob	-2
15	Rubber column φ5.5*9 (removed)	2	57	Flat washerΦ6*Φ16*1	2
16	Motor housing	1	58	Front leg	1
17	Hexagon socket screw M8*4	1	59	Jacking rod	1
18	Cable	1	60	Set screw M5×10	2
19	-Cable sheath	-1	-61	O-ring d1=5 d2=2.5	-1
20	Brush holder	2	62	Return spring	1
21	Carbon brush	2	63	Spring frame	1
22	Brush holder Cover	2	64	Small semi-round square diameter screw M6x25	1
23	Stator φ72*45	1	65	Rear leg	1
24	Cross pan head self-tapping screw ST5*58	-2	-66	Hexagonal cylindrical head screw M6x20 (triple)	-4
25	windshield	1	67	Rear press plate	1
26	Ball bearing 608	1	68	Small semi-round square diameter screw M6x30	1
27	rotor	1	69	Push button	1
28	self-locking	1	70	Push button spring φ1*8*28*φ8.5	1
29	-Self-locking spring	-1	-71	Depth Adjustment plate	-1
30	Ball bearing 6000	1	72	Depth gauge	1
31	Cross pan head screw M5*	1	73	Tape fastener	1
32	Limit plate	1	74	Lock nut M4	1
33	Gear housing	1	75	Pointer	1
34	Needle bearing HK0808	-1	-76	Cross pan head screw M4 x 8	-1
35	Shaft retaining ring φ15	1	77	Pin	1
36	Big gear	1	78	Head housing seat	1
37	Flat key 5*5*8	1	79	Shaft retaining ring φ8	1
38	Spindle	1	80	Dust pipe	1
39	Retaining ring for φ28 holes	-1	-81	Head cap	-1
40	Ball bearing 6001	1	82	Phillips pan head screw M4 x 10	5
41	Front cover	1
42	Cross pan head screw M5*(triple)	2

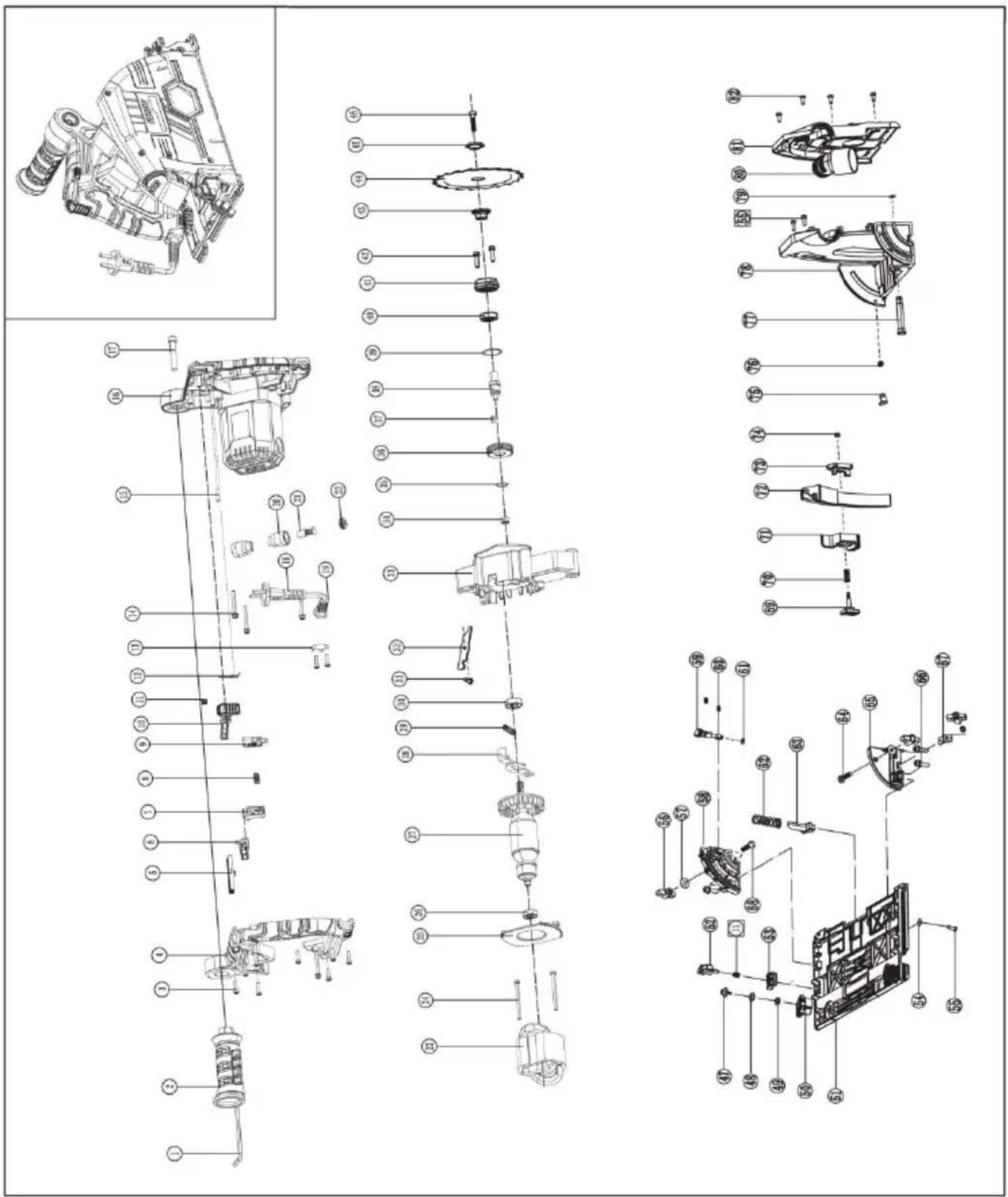

Exploded view diagram of a mechanical assembly with numbered parts and exploded views

Manufacturer: Shanghaimuxinmuyeyouxiangongsi

Address: Shuangchenglu 803nong11hao1602A-1609shi, baoshanqu, shanghai 200000 CN.

Imported to AUS: SIHAO PTY LTD, 1 ROKEVA STREETEASTWOOD NSW 2122 Australia

Imported to USA: Sanven Technology Ltd., Suite 250, 9166 Anaheim Place, Rancho Cucamonga, CA 91730

EC

REP

E-CrossStu GmbH

Mainzer Landstr.69, 60329 Frankfurt am Main

UK

REP

YH CONSULTING LIMITED.

C/O YH Consulting Limited Office 147, Centurion House

London Road, Staines-upon-Thames, Surrey, TW18 4A

VEVOR®

TOUGH TOOLS, HALF PRICE

Technical Support and E-Warranty Certificate www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

Technical line drawing of a mechanical device with no visible text or symbols

Line drawing of a person wearing a helmet and safety goggles (no text or symbols)

Line drawing of a person using a cutting tool on a workbench (no text or symbols)

Illustration showing hand using a cutting tool and no-hand tool, with checkmark and prohibition symbol indicating inspection or rejection.

Illustration of a person sitting at a desk with a large 'X' symbol overlaid, no text or symbols present.

Technical illustration of a mechanical component with numbered parts (1, 2, 3), no visible text or symbols beyond labels

Technical illustration of a mechanical device with labeled parts (1 and 2), no visible text or symbols beyond labels

Technical diagram of a mechanical assembly with numbered components labeled 1, 2, 3, and 4

Technical diagram of a curved mechanical component with numbered parts labeled 1, 2, and 3.

3D mechanical assembly diagram showing a motor with labeled parts (no text or symbols present)

1. Bouton poussoir 2.

Technical diagram of a mechanical assembly with numbered components, likely a valve or actuator component.

Mechanical assembly diagram showing a device with a highlighted component (no text or symbols visible)

Close-up of a mechanical component with angular measurement indicators (0° and 45°) and no visible text or symbols.

3D technical illustration of a mechanical cutting tool with visible blades and mounting base (no text or symbols)

Technical diagram of a mechanical assembly with numbered components labeled 1 to 5

Mechanical component diagram showing a curved dial and mounting bracket (no text or symbols)

Entretien

Attention:

Technical diagram of a mechanical device with labeled parts 1 and 2

Technical diagram showing mechanical assembly with labeled parts 1 and 2

Exploded view diagram of a mechanical assembly with numbered parts and exploded views

Fabricant : Shanghaimuxinmuyeyouxiangongsi

Adresse : Shuangchenglu 803nong11hao1602A-1609shi, baoshanqu, Shanghai

200000 CN.

Importé en Australie : SIHAO PTY LTD, 1 ROKEVA STREET, ASTWOOD NSW 2122 Australie

C/O YH Consulting Limited Bureau 147, Centurion House,

Route de Londres, Staines-upon-Thames, Surrey, TW18 4AX

VEVOR®

TOUGH TOOLS, HALF PRICE

www.vevor.com/support

Tauchsäge

BENUTZERHANDBUCH

MODELL:80165

Technical line drawing of a mechanical device with no visible text or symbols

Line drawing of a person wearing a helmet and safety goggles (no text or symbols)

Line drawing of a person operating a cutting tool with a blade and clamping mechanism (no text or symbols)

Illustration showing a hand using a cutting tool to cut a flatbed saw, with a checkmark and no warning symbol (no text or labels)

Illustration of a person sitting at a desk with a large 'X' symbol overlaid, no text or symbols present.

Technical diagram of a firearm with numbered parts labeled 1, 2, and 3

Technical illustration of a mechanical device with labeled parts (1 and 2), no visible text or symbols beyond labels

Technical diagram of a mechanical assembly with numbered components labeled 1, 2, 3, and 4

Technical diagram of a curved mechanical component with numbered parts labeled 1, 2, and 3.

3D mechanical assembly diagram showing a motor with labeled parts (no text or symbols present)

1. Druckknopf 2.

Technical diagram of a mechanical assembly with numbered components, likely a valve or actuator component.

1.Obere

Mechanical assembly diagram showing a device with a highlighted component (no text or symbols visible)

Close-up of a mechanical component with angular measurement markings (0° and 45°), no readable text or symbols beyond measurement indicators.

3D technical illustration of a mechanical cutting tool with visible blades and mounting base (no text or symbols)

Technical diagram of a mechanical assembly with numbered components labeled 1 to 5

Mechanical component diagram showing a curved housing with mounting holes and a handle (no text or symbols)

Instandhaltung

Aufmerksamkeit:

Technical diagram of a mechanical device with labeled parts 1 and 2

Technical diagram showing mechanical assembly with labeled parts 1 and 2

Optionales Zubehör

Exploded view diagram of a mechanical assembly with numbered parts and exploded views

Hersteller: Shanghaimuxinmuyeyouxiangongsi

Adresse: Shuangchenglu 803nong11hao1602A-1609shi, baoshanqu, Shanghai 200000 CN.

Nach AUS importiert: SIHAO PTY LTD, 1 ROKEVA STREETEASTWOOD NSW 2122 Australien

Importiert in die USA: Sanven Technology Ltd., Suite 250, 9166 Anaheim Place, Rancho Cucamonga, CA 91730

C/O YH Consulting Limited Office 147, Centurion House, London Road, Staines-upon-Thames, Surrey, TW18 4AX

VEVOR®

TOUGH TOOLS, HALF PRICE

elettronica www.vevor.com/support

Sega circolare

MANUALE D'USO

MODELLO:80165

Technical line drawing of a mechanical device with no visible text or symbols

Line drawing of a person wearing a helmet and safety goggles (no text or symbols)

Line drawing of a person using a cutting tool on a workbench (no text or symbols)

Illustration showing hand using a cutting tool and no-hand tool, with checkmark and prohibition symbol indicating inspection or rejection.

Illustration of a person sitting at a desk with a large 'X' symbol overlaid, no text or symbols present.

Technical diagram of a firearm with numbered parts labeled 1, 2, and 3

Technical illustration of a mechanical device with labeled parts (1 and 2), no readable text or symbols present.

1. Chiave esagonale;

Technical diagram of a mechanical assembly with numbered components labeled 1, 2, 3, and 4

Technical diagram of a curved mechanical component with numbered parts labeled 1, 2, and 3.

3D mechanical assembly diagram showing a motor with labeled parts (no text or symbols present)

1. Pulsante 2. Piastra

Technical diagram of a mechanical assembly with numbered components, likely a valve or actuator component.

Mechanical assembly diagram showing a device with a magnified inset view (no text or symbols)

Close-up of a mechanical component with angular measurement markings (0° and 45°), no readable text or symbols beyond measurement indicators.

3D technical illustration of a mechanical cutting tool with visible blade and gear (no text or symbols)

Technical diagram of a mechanical assembly with numbered components labeled 1 to 5

Mechanical component diagram showing a curved dial and mounting bracket (no text or symbols)

Manutenzione

Attenzione:

Technical diagram of a mechanical device with labeled parts 1 and 2

Technical diagram showing mechanical assembly with labeled parts 1 and 2

Accessori opzionali

Exploded view diagram of a mechanical assembly with numbered parts and exploded views

Importato in AUS: SIHAO PTY LTD, 1 ROKEVA STREETEASTWOOD NSW 2122 Australia

Importato negli USA: Sanven Technology Ltd., Suite 250, 9166 Anaheim Place, Rancho Cucamonga, CA 91730

Technical line drawing of a mechanical device with no visible text or symbols

Line drawing of a person wearing a helmet and safety goggles (no text or symbols)

Line drawing of a person using a cutting tool on a workbench (no text or symbols)

Illustration showing hand using a cutting tool and no-hand tool, with checkmark and prohibition symbol indicating inspection or rejection.

Illustration of a person sitting at a desk with a large 'X' symbol overlaid, no text or symbols present.

Technical diagram of a firearm with numbered parts labeled 1, 2, and 3

Technical illustration of a mechanical device with labeled parts (1 and 2), no visible text or symbols beyond labels

1.Llave hexagonal
2. Mango adicional

Technical diagram of a mechanical assembly with numbered components labeled 1, 2, 3, and 4

Technical diagram of a curved mechanical component with numbered parts labeled 1, 2, and 3.

1. Cable 2. Cable 3. Ranura de tope

3D mechanical assembly diagram showing a motor with labeled parts (no text or symbols present)

1. Botón pulsador 2.

Technical diagram of a mechanical assembly with numbered components, likely for assembly or inspection purposes.

Mechanical assembly diagram showing a device with a magnified inset view (no text or symbols)

Close-up of a mechanical component with angular measurement markings (0° and 45°), no readable text or symbols beyond measurement indicators.

corte (aserrado convencional)

Atención:

3D technical illustration of a mechanical cutting tool with visible blades and mounting base (no text or symbols)

Technical diagram of a mechanical assembly with numbered components labeled 1 to 5

Mechanical component diagram showing a curved dial and lever mechanism (no text or symbols)

Mantenimiento

Atención:

Technical diagram of a mechanical device with numbered components labeled 1 and 2

1. Ajuste de corte de 45°;

2.Ajustar vertical

Corte en ángulo

Technical diagram showing mechanical assembly with labeled parts 1 and 2

Exploded view diagram of a mechanical assembly with numbered parts and exploded views

Fabricante: Shanghaimuxinmuyeyouxiangongsi

Dirección: Shuangchenglu 803nong11hao1602A-1609shi, baoshanqu, shanghai 200000 CN.

Importado a Australia: SIHAO PTY LTD, 1 ROKEVA STREETEASTWOOD NSW 2122 Australia

Importado a EE. UU.: Sanven Technology Ltd., Suite 250, 9166 Anaheim Place, Rancho Cucamonga, CA 91730

REPRESENTANTE CE

E-CrossStu GmbH

C/O YH Consulting Limited Oficina 147, Centurion House,

Carretera de Londres, Staines-upon-Thames, Surrey, TW18 4AX

VEVOR®

TOUGH TOOLS, HALF PRICE

Technical line drawing of a mechanical device with no visible text or symbols

Line drawing of a person wearing a helmet and safety goggles (no text or symbols)

Line drawing of a person operating a cutting tool with a blade and clamped parts (no text or symbols)

Illustration showing hand using a cutting tool and no tool, with checkmark and prohibition symbol indicating inspection or rejection.

Illustration of a person sitting at a desk with a large 'X' symbol overlaid, no text or symbols present.

Technical diagram of a firearm with numbered parts labeled 1, 2, and 3

Technical illustration of a mechanical device with labeled parts (1 and 2), no readable text or symbols present.

1. Klucz imbusowy;

2.Dodatkowy uchwyt

Technical diagram of a mechanical assembly with numbered components labeled 1, 2, 3, and 4

Technical diagram of a curved mechanical component with numbered parts labeled 1, 2, and 3.

1. Ołów 2. Ołów 3. Slot stopu

3D mechanical assembly diagram showing a motor with labeled parts (no text or symbols present)

1. Przycisk 2. Płytka

Technical diagram of a mechanical assembly with numbered components, likely a valve or actuator component.

Mechanical assembly diagram showing a device with a magnified inset view (no text or symbols)

Wyrównanie w

Close-up of a mechanical component with angular measurement markings (0° and 45°), no readable text or symbols beyond measurement indicators.

3D technical illustration of a mechanical cutting tool with visible blade and gear (no text or symbols)

Technical diagram of a mechanical assembly with numbered components (no readable text or symbols)

Mechanical component diagram showing a curved housing with mounting holes and a handle (no text or symbols)

Utrzymanie

Uwaga:

Technical diagram of a mechanical device with labeled parts 1 and 2

Technical diagram showing mechanical assembly with labeled parts 1 and 2

Exploded view diagram of a mechanical assembly with numbered parts and exploded views

Producent: Shanghaimuxinmuyeyouxiangongsi

Adres: Shuangchenglu 803nong11hao1602A-1609shi, baoshanqu, szanghaj 200000 CN.

Importowane do AUS: SIHAO PTY LTD, 1 ROKEVA STREETEASTWOOD NSW 2122 Australia

Importowane do USA: Sanven Technology Ltd., Suite 250, 9166 Anaheim Place, Rancho Cucamonga, CA 91730

Przedsław ciel UE

E-CrossStu GmbH

Mainzer Landstr.69, 60329 Frankfurt nad Menem.

REP WIELKIEJ BRYTANII

YH CONSULTING LIMITED.

C/O YH Consulting Limited Biuro 147, Centurion House,

London Road, Staines-upon-Thames, Surrey, TW18 4AX

VEVOR®

TOUGH TOOLS, HALF PRICE

www.vevor.com/support

Technical line drawing of a mechanical device with no visible text or symbols

HULP NODIG? NEEM CONTACT MET ONS OP!

Line drawing of a person wearing a helmet and safety goggles (no text or symbols)

Line drawing of a person using a cutting tool on a workbench (no text or symbols)

Illustration showing a hand using a cutting tool to clean or reduce the surface, with a checkmark and no-smoking symbol below.

Illustration of a person sitting at a desk with a large 'X' symbol overlaid, no text or symbols present.

Technical diagram of a firearm with numbered parts labeled 1, 2, and 3

1. Vergrendelknop;

2. duwstang;

3. Schakelaar;

Opmerking:

Technical illustration of a mechanical device with labeled parts (1 and 2), no readable text or symbols present.

1. Inbussleutel;

2. Extra handgreep

Technical diagram of a mechanical assembly with numbered components labeled 1, 2, 3, and 4

1. Duwstang 2. Zelfborgend

2. Beperkte Borad 4. Diepteregel

Technical diagram of a curved mechanical component with numbered parts labeled 1, 2, and 3.

1. Lood 2. Lood 3. Stopgleuf

3D mechanical assembly diagram showing a motor and housing components (no text or labels visible)

Technical diagram of a mechanical assembly with numbered components, likely a valve or actuator component.

Mechanical assembly diagram showing a device with a magnified inset view (no text or symbols)

Opmerking:

Close-up of a mechanical component with angular measurement indicators (0° and 45°) and no visible text or symbols.

3D technical illustration of a mechanical cutting tool with visible teeth and blade geometry (no text or symbols)

Technical diagram of a mechanical assembly with numbered components labeled 1 through 5

Mechanical component diagram showing a curved dial and lever mechanism (no text or symbols)

Onderhoud

Aandacht:

Technical diagram of a mechanical device with labeled parts 1 and 2

Technical diagram showing mechanical assembly with labeled parts 1 and 2

Optionele accessoires

Exploded view diagram of a mechanical assembly with numbered parts and exploded views

Fabrikant: Shanghaimuxinmuyeyouxiangongsi

Adres: Shuangchenglu 803nong11hao1602A-1609shi, baoshanqu, shanghai 200000 CN.

C/O YH Consulting Limited Kantoor 147, Centurion House, Londen Road, Staines-upon-Thames, Surrey, TW18 4AX

VEVOR®

TOUGH TOOLS, HALF PRICE

Technische ondersteuning en e- garantiecertificaat www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

www.vevor.com/support

Spårsåg

ANVÄNDARMANUAL

MODELL: 80165

Technical line drawing of a mechanical device with no visible text or symbols

Line drawing of a person wearing a helmet and safety goggles (no text or symbols)

Line drawing of a person using a cutting tool on a workbench (no text or symbols)

Illustration showing a hand using a cutting tool to cut a flatboard, with a checkmark and a crossed-out plan for no tool.

Illustration of a person sitting at a desk with a large 'X' symbol overlaid, no text or symbols present.

Technical diagram of a firearm with numbered parts labeled 1, 2, and 3

Technical illustration of a mechanical device with labeled parts (1 and 2), no readable text or symbols present.

1. Sexkantnyckel;
2. Extra handtag

Technical diagram of a mechanical assembly with numbered components labeled 1, 2, 3, and 4

Technical diagram of a curved mechanical component with numbered parts labeled 1, 2, and 3.

3D mechanical assembly diagram showing a motor and housing components (no visible text or labels)

1. Tryckknapp 2.

Technical diagram of a mechanical assembly with numbered components, likely a valve or actuator component.

1.Överstång

2.Låsknopp

1. Pekare

-1°-47° Lutning

Technical illustration of a mechanical device with an inset close-up showing a component (no text or symbols visible)

Close-up of a mechanical component with angular measurement markings (0° and 45°), no readable text or symbols beyond measurement indicators.

3D technical illustration of a mechanical cutting tool with visible teeth and blade (no text or symbols)

Technical diagram of a mechanical assembly with numbered components labeled 1 to 5

Mechanical component diagram showing a curved dial and mounting bracket (no text or symbols)

Underhåll

Uppmärksamhet:

Technical diagram of a mechanical device with numbered components labeled 1 and 2

1. Justera 45° skärningy

2. Justera vertikalt

Vinkelskärning

Byte av kolborste

Technical diagram showing mechanical assembly with labeled parts 1 and 2

Valfria tillbehör

Exploded view diagram of a mechanical assembly with numbered parts and exploded views

Tillverkare: Shanghaimuxinmuyeyouxiangongsi

Adress: Shuangchenglu 803nong11hao1602A-1609shi, baoshanqu, shanghai 200000 CN.

Importerad till AUS: SIHAO PTY LTD, 1 ROKEVA STREETEASTWOOD NSW 2122 Australien

Importerad till USA: Sanven Technology Ltd., Suite 250, 9166 Anaheim Place, Rancho Cucamonga, CA 91730

EC

REP

E-CrossStu GmbH

Mainzer Landstr.69, 60329 Frankfurt am Main.

UK

REP

YH CONSULTING LIMITED.

C/O YH Consulting Limited Office 147, Centurion House,

London Road, Staines-upon-Thames, Surrey, TW18 4AX

VEVOR®

TOUGH TOOLS, HALF PRICE
