USER MANUAL ZX-B012 Vevor

Technical Support and E-Warranty Certificate www.vevor.com/support

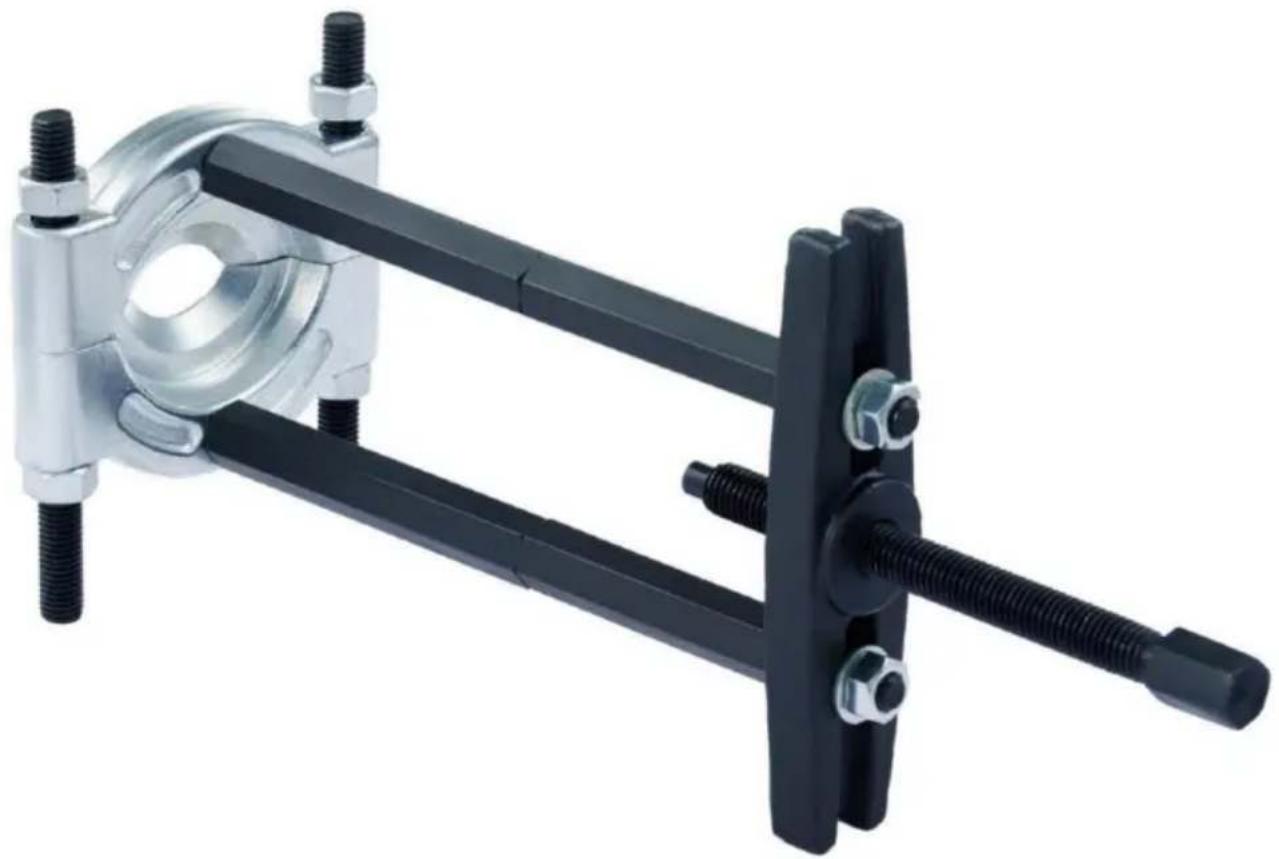

BEARING SEPARATOR

AND PULLER SET

MODEL:ZX-B012

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represent the approximate savings you might benefit from buying certain tools with us compared to top brands and does not necessarily mean to cover all categories of tools offered. Are kindly reminded to verify carefully when you are placing an order with us actually saving half in comparison with the top major brands.

MODEL:ZX-B012

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel fr contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instruction carefully before operating. VEVOR reserves a clear interpretation user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform you there are any technology or software updates on our product.

IMPORTANT SAFEGUARDS

WARNING: Read and understand this entire manual before operating or servicing this product. Failure to follow these warning and instructions can cause personal injury or damage to valuable property.

• Avoid children using the product. And this product is not a toy. Do not all children to play.

Assembly precautions

1. Assemble only according to these instructions. Improper assembly can create hazards.
2. Wear ANSI-approved safety goggles and heavy-duty work gloves during assembly and using.
3. Keep assembly area clean and well-lit.
4. Keep bystanders out of the area during assembly.
5. Do not assemble when tired or when under the influence of alcohol, drug medication.
6. Product capabilities apply to properly and completely assembled product only
7. For additional information regarding the parts listed in the following pages, please refer to the Assembly Diagram of this manual. Unwrap and separate parts in a clean work area. Please keep small spare parts out of children's
8. Assemble and use this product ONLY in accordance with these instructions for its intended purpose of bearing removal and bearing housing separation.
9. DO NOT overreach. Keep proper footing and balance at all times.
10. Maintain this product. Check for misalignment, binding, wear, or other damage before use. If any damage is detected, repair or replace the problematic components before further use.

SAVE THESE INSTRUCTIONS

SPECIFICATION

Model	ZX-B012
Material	45#
Bearing Splitter Sizes	2in&3in
Puller Leg Length	142mm
Yoke Length	160mm

PACKAGE LIST

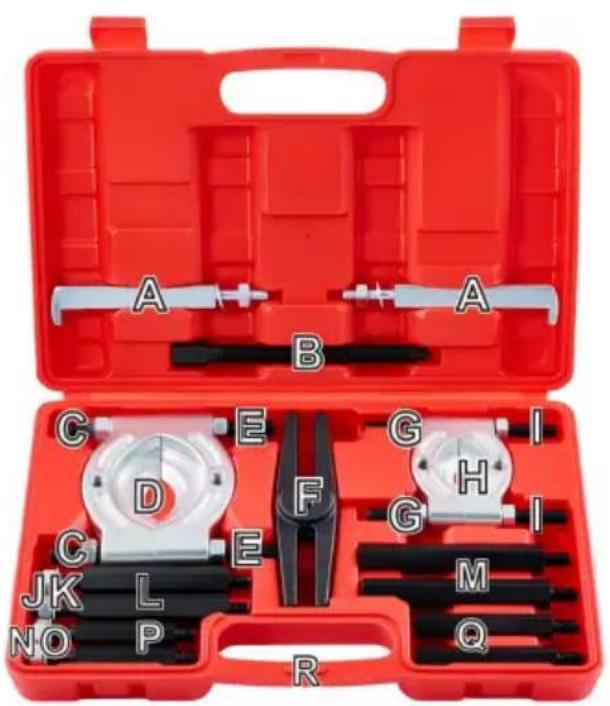

No.	Name	Qty
A	Puller Legs	2
B	Lead Screw	1
C	M12×1.75 Nuts	4
D	Bearing Separator Jaw	1
E	M12×1.25 Screws	2
F	Yoke	1
G	M10×1 Nuts	2
H	Bearing Separator Jaw	1
I	M10×1 Screws	2
J	M10×1.5 Nuts	2
K	Washers	2
L	Extensions Screws (Lower Part)	2
M	Extension Screws (Upper Part)	2
N	M10×1.5 Nuts	2
O	Washers	2
P	Extension Screws (Lower Part)	2
Q	Extension Screws (Upper Part)	2
R	Storage Case	1

OPERATION

Bearing Removal

1. Select the proper bearing separator jaw (D or H) for the bearing being re
2. Loosen the separator jaw nuts (C) sufficiently to allow the jaws to catch the bearing housing.
3. Use your wrench (not included) to evenly tighten the nuts until the jaws are

securely set behind the bearing housing.

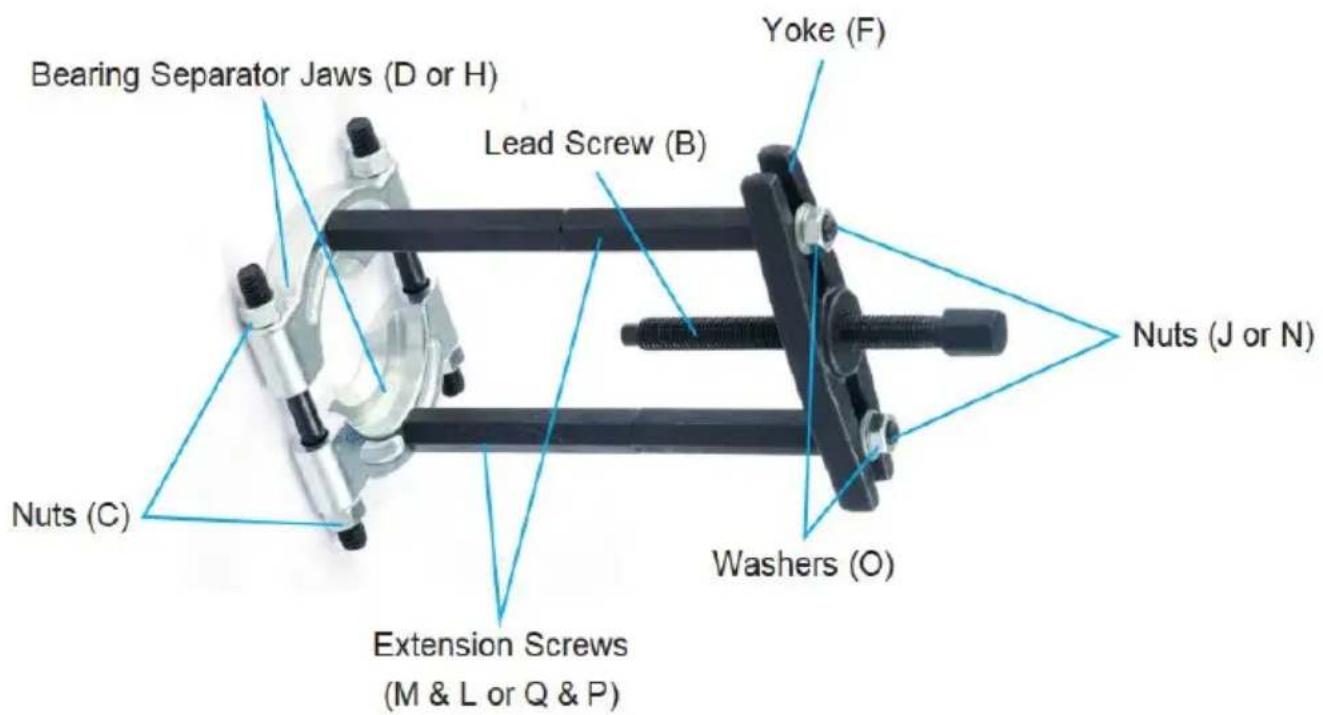

1. Screw both extension screws (M & L or Q & P) into the bearing separately as shown.

ONLY use extensions screws of matching lengths.

1. Place the 6 inch yoke (F) over the extension screws and tightly secure v washers (O) and nuts (C).
2. Screw the lead screw (B) into the yoke until it touches the center of the where the bearings are mounted.
3. Using your wrench, turn the lead screw clockwise until the bearing housing begins to move off the shaft.
4. Continue turning the lead screw until the bearing housing is off the shaft.
5. Remove the lead screw by turning it counterclockwise.
6. Remove the bearing housing.

Bearing Housing Separation

1. Select the proper bearing separator jaw (D or H).
2. Loosen the separator jaw nuts sufficiently to allow the jaws to catch between each bearing housing.

3. Using a wrench, begin to tighten the nuts until the jaws are securely set between the bearing housings.

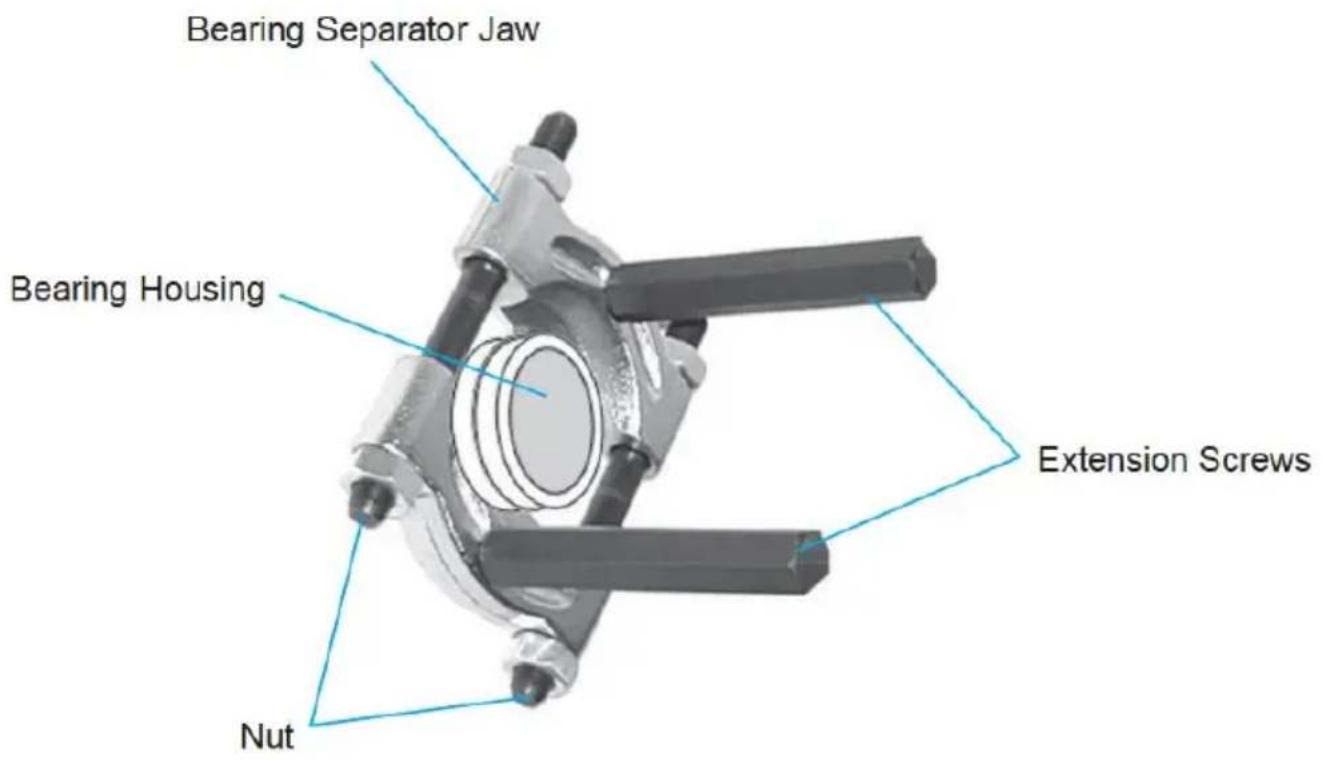

4. Screw in both extension screws (M & L or Q & P) as shown.

ONLY use extensions screws of matching lengths.

1. Continue tightening the nuts until the bearing housings are separated.

Tighten slowly and carefully to avoid overtightening the separator jaw nut which could damage the bearings.

You can grip the extension screws during this step for extra leverage if need

1. When the bearing housings are separated, remove the bearing separator ja

MAINTENANCE

• Clean these tools with a clean moist cloth after each use. Do not use ca chemicals or harsh abrasives. Rinse entirely clean and allow time to dry completely before further use.
• Lubricate attachments as needed to ensure smooth operation.
• Replace components if their threading begins to wear and cannot be used smoothly and safely.
