USER MANUAL WPSR-XM008 Vevor

Technical Support and E-Warranty Certificate www.vevor.com/support

PIPE SHELVES

MODEL:WPSR-XM008/WPSR-XM009

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represents an estimate of savings you might benefit from buying certain tools with us compared to the major top brands and does not necessarily mean to cover all categories of tools offered by us. You are kindly reminded to verify carefully when you are placing an order with us if you are actually Saving Half in comparison with the top major brands.

MODEL: WPSR-XM008/WPSR-XM009

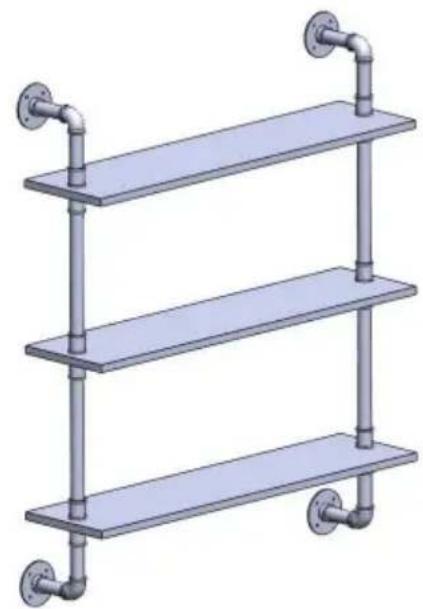

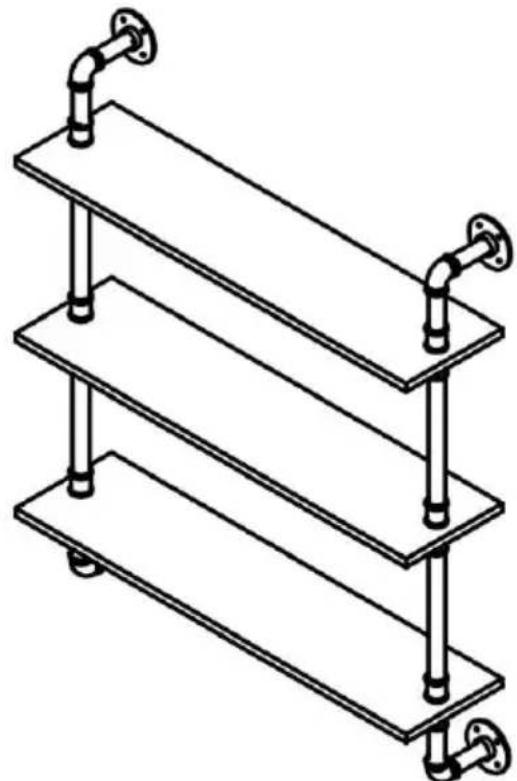

Isometric line drawing of a three-tiered shelf with metal pipes and flanges (no text or symbols)

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel free to contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instructions carefully before operating. VEVOR reserves a clear interpretation of our user manual. The appearance of the product shall be subject to the product you received. Please forgive us that we won't inform you again there are any technology or software updates on our product.

IMPORTANT SAFEGUARDS

WARNING: Read and understand this entire manual before operating or servicing this product. Failure to follow these warnings and instructions can cause personal injury or damage to valuable property.

- Avoid children using the product. And this product is not a toy. Do not allow children to play.

SETUP PRECAUTIONS

1. Assemble only according to these instructions. Improper assembly can create hazards.
2. Keep the assembly area clean and well-lit.
3. Capabilities apply to properly and completely assembled product only.
4. Keep bystanders out of the area during assembly.
5. Do not assemble when tired or when under the influence of alcohol, drugs or medication.
6. Keep away from sharp points, blades and other items.
7. For additional information regarding the parts listed in the following pages, please refer to the Assembly Diagram of this manual. Unwrap and separate all parts in a clean work area. Please keep small spare parts of children's reach.

SAVE THESE INSTRUCTIONS

SAFETY AND PRECAUTIONS

WARNING:

• Do not place too heavy weight on the pipe shelves, it may bend or ev break the board, we recommend placing the weight of no more than 50lb
• The pipe shelves is installed only on solid walls, such as solid brick wall and concrete walls. If the pipe shelves is installed on wooden walls, the thickness of the wooden wall be at least 6cm.

CAUTION:

• When installing the pipe shelves, pay attention to keeping the board in horizontal state, so as to have a better experience of placing items
• This product is intended for indoor installation use only.

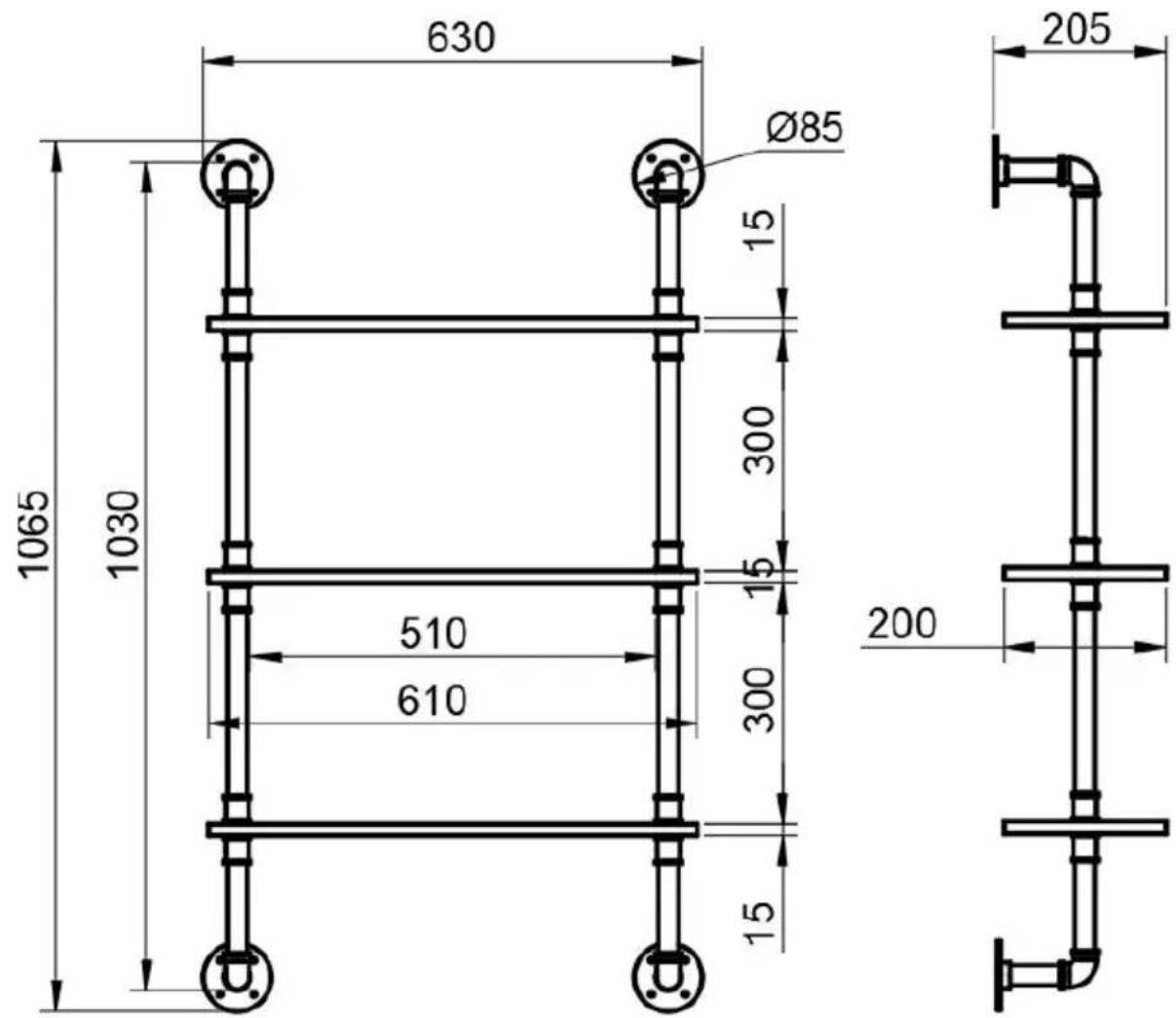

SPECIFICATION

MODEL: WPSR-XM008

630 Ø85 15 300 1065 1030 510 610 300 15 205 200

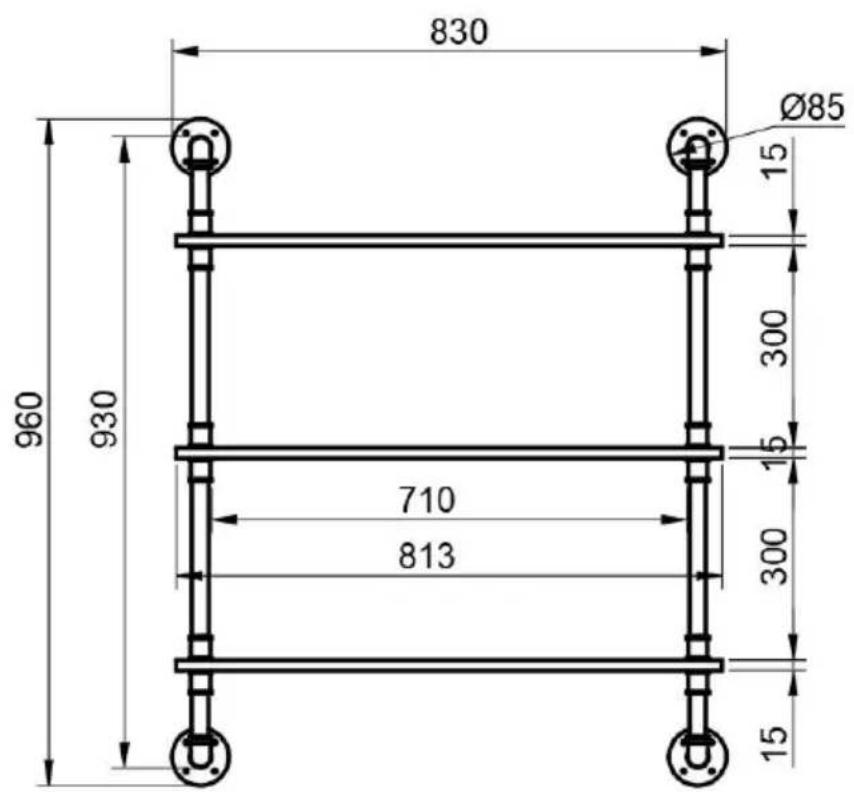

MODEL: WPSR-XM009

830 Ø85 15 960 930 300 710 15 813 300 15

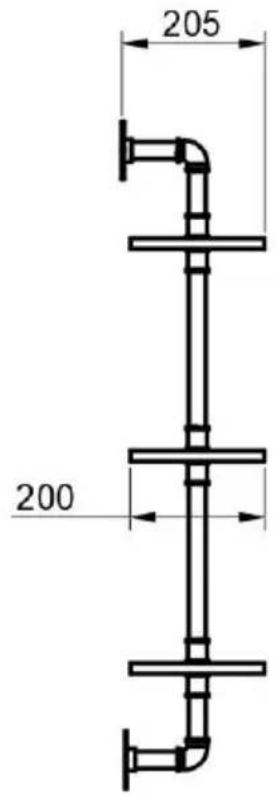

205 200

Note: The number unit in the figure is mm.

Part List

Mark	Name	Picture	QTY	Specifications
				WPSR-XM008	WPSR-XM009
A	Two way connector		12	/
B	elbow connector		4	/
C	Mounting flange		4	/
D	Board		3	/	/
E	Pipe		6	L=38mm	L=38mm
F	Pipe		4	L=87mm	L=87mm
G	Pipe		4	L=135mm	L=87mm
H	Pipe		4	L=254mm	L=254mm

Install accessories

Mark	Name	Specifications	Picture	QTY
R	Screw	M5*40mm		16
S	Plastic expansion tube	D=8mm		16

PIPE SHELVES ASSEMBLE

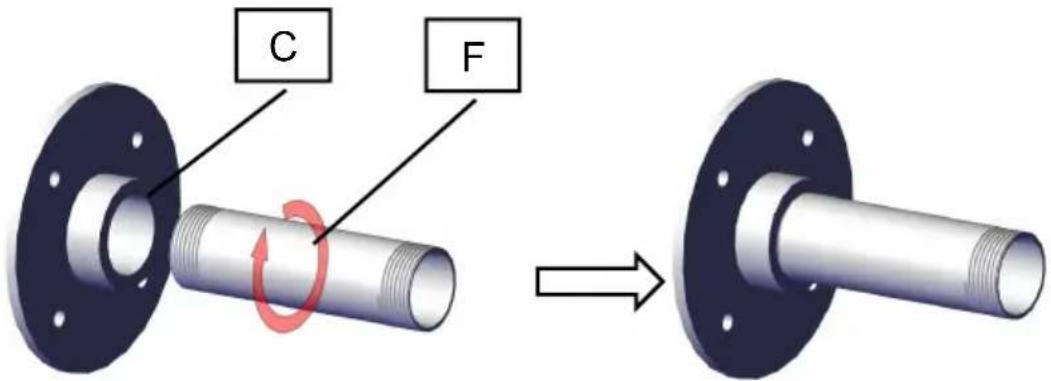

STEP1.Screw the mounting flange C together with the round pipe F. 4 groups in total.

C F

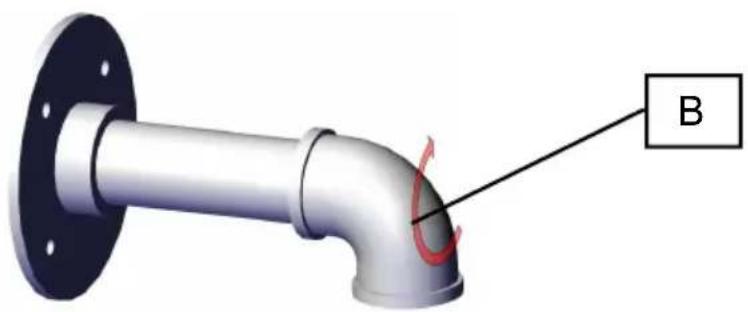

STEP2. Tighten the elbow connector B into the previous component. 2 groups in total.

3D rendering of a pipe fitting with flange and curved edge, labeled B (no text or symbols on the object itself)

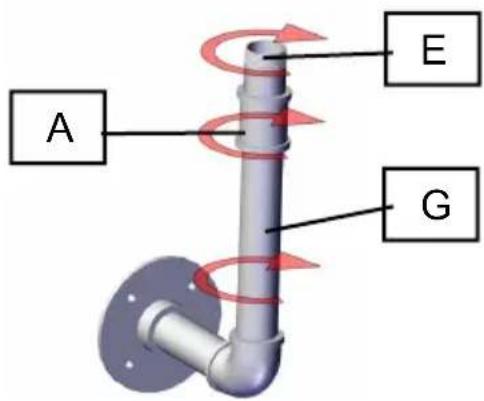

STEP3. Install pipe G, Two way connector A and pipe E.

A E G

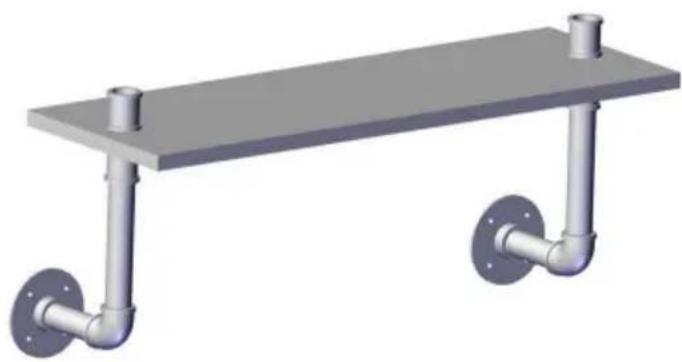

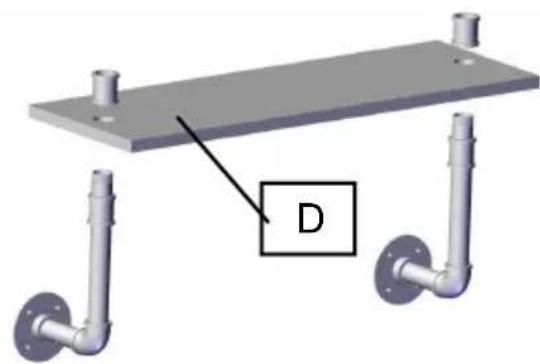

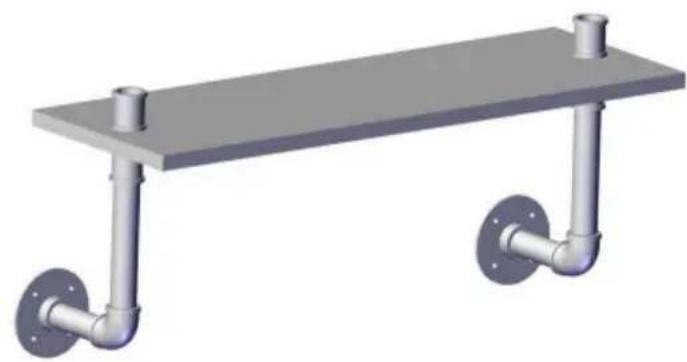

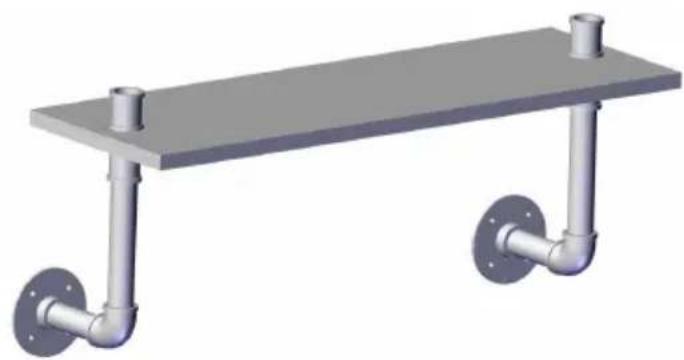

STEP4.Insert board D and secure with A.

3D diagram of a metal floor support with two pipe fittings and a labeled component 'D' (no text or symbols beyond label)

3D rendering of a metal floor-mounted platform with two flanged ends (no text or symbols)

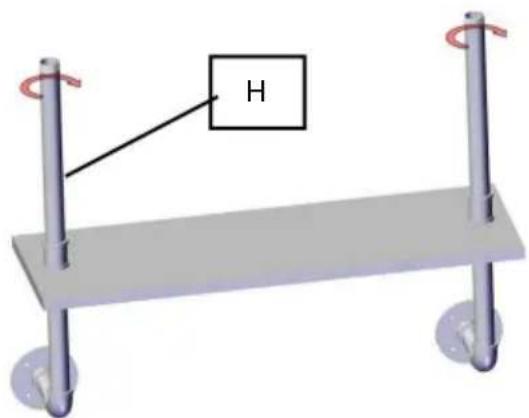

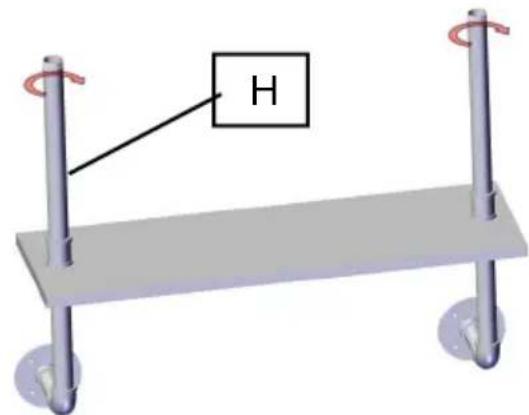

STEP5. Install pipe H.

H

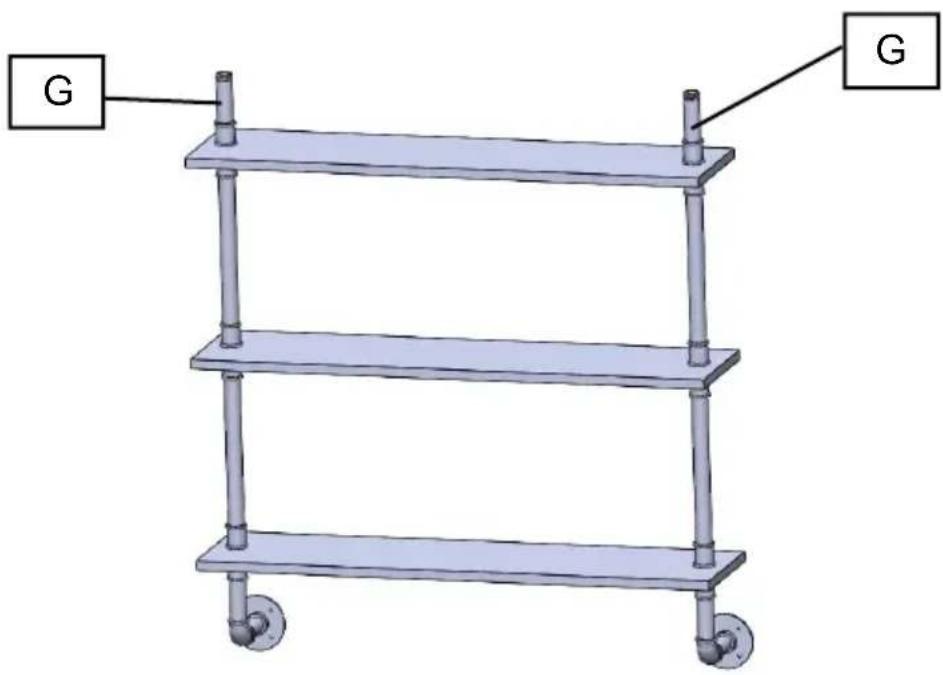

STEP6.Repeat Step4 and then screw on pipe G.

3D diagram of a three-tiered shelving unit with two labeled components (G), no text or symbols present.

STEP7. Install the elbow connector B.

3D rendering of a mechanical support structure with two vertical posts and a horizontal base, no text or symbols visible

STEP8. Install the component of step1.

3D illustration of a three-tiered wall-mounted shelf with metal pipes and flanges (no text or symbols)

ATTACH PIPE SHELVES TO THE WALL

Note: At least one assistant is recommended.

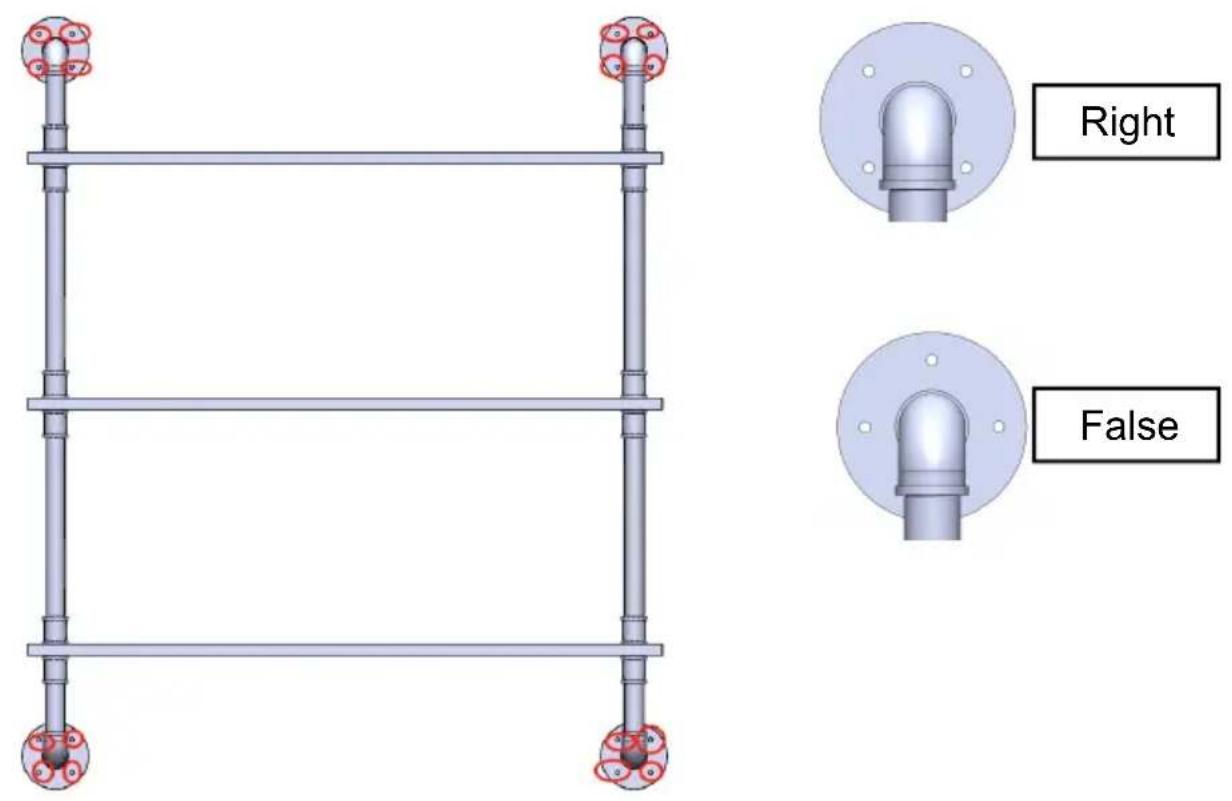

STEP1: Locate the pipe shelves to the wall and determine the height you want to install them at. Use a level to make sure the boards are level, mark the location holes on the mounting flange.

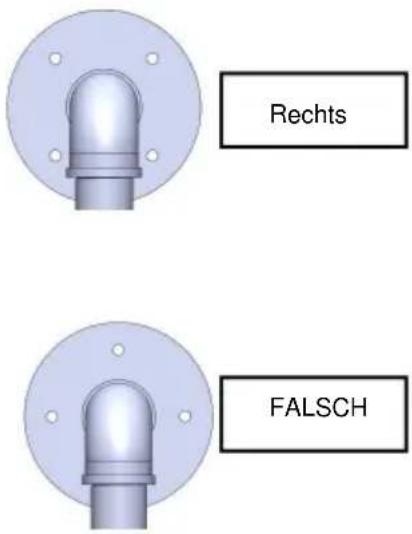

Note: The fixed points of the flange should be distributed on both of the tube for better operation to tighten the screw.

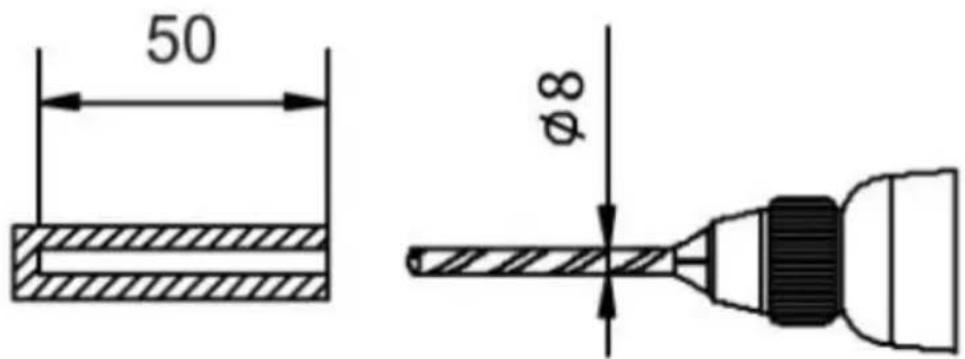

STEP2: Drill holes in the concrete wall with an impact drill bit. The size of the holes is shown below.(If mounted on a wooden wall, drill holes with common drill bit.)

50 Ø8

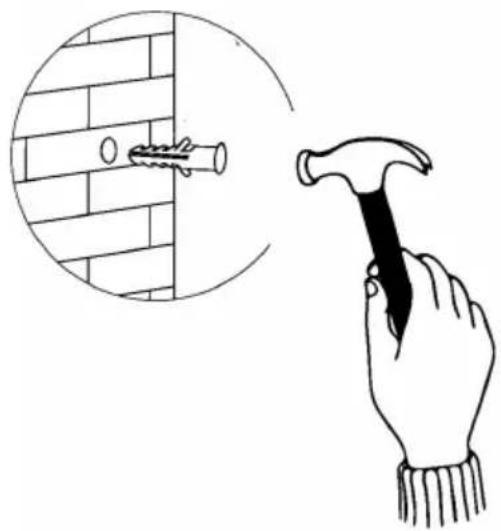

STEP3:Drive Plastic expansion tube into each hole.

Illustration showing a hand using a hammer to clean or store tiles near a brick wall, with a magnified inset showing the pipe being inserted (no text or symbols present)

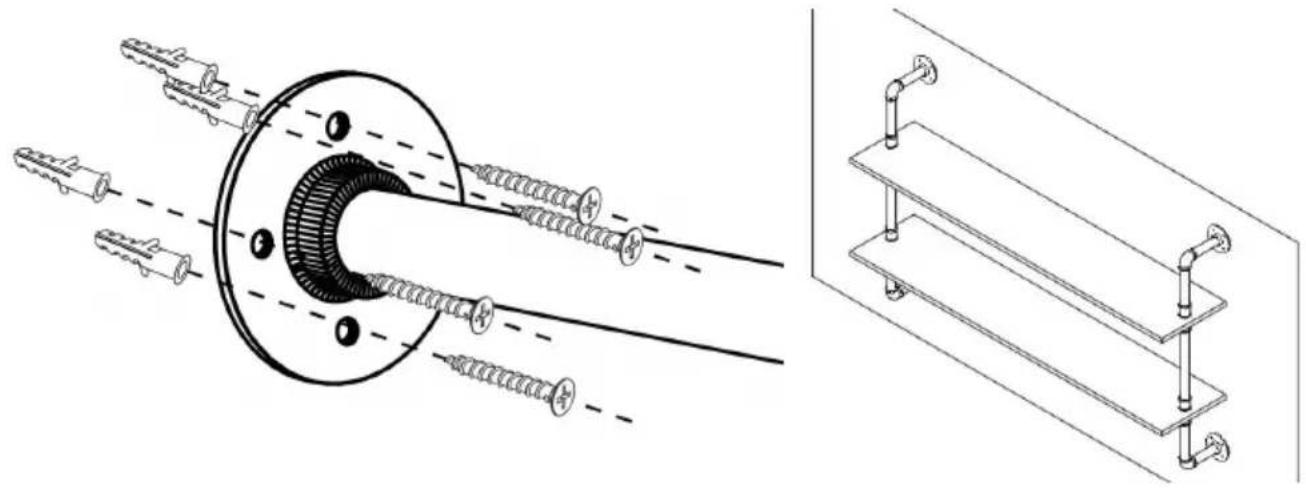

STEP4: For each mounting hole, secure pipe shelves with tapping screws.

Technical illustration of a mechanical assembly with threaded fasteners and a separate plan view of a multi-tiered platform (no text or symbols)

Manufacturer: Shanghaimuxinmuyeyouxiangongsi

Address: Shuangchenglu 803nong11hao1602A-1609shi, baoshanqu, shanghai 200000 CN.

Imported to AUS: SIHAO PTY LTD. 1 ROKEVA STREETEASTWOOD NSW 2122 Australia

Imported to USA: Sanven Technology Ltd. Suite 250, 9166 Anaheim Place, Rancho Cucamonga, CA 91730

UK

REP

YH CONSULTING LIMITED.

C/O YH Consulting Limited Office 147,

Centurion House, London Road,

Staines-upon-Thames, Surrey, TW18 4AX

EC

REP

E-CrossStu GmbH

Mainzer Landstr.69,

60329 Frankfurt am Main.

VEVOR®

TOUGH TOOLS, HALF PRICE

Technical Support and E-Warranty Certificate

www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

Isometric line drawing of a three-tiered shelf with metal pipes and mounting feet (no text or symbols)

BESOIN D'AIDE? CONTACTEZ-NOUS!

www.vevor.com/support

3D rendering of a pipe fitting with flange and angle annotation (no text or symbols)

3D diagram of a metal shelf mounted on two flanged pipes, with a labeled component 'D' (no text or symbols beyond label)

3D rendering of a metal floor-mounted platform with two flanged side pipes and two cylindrical ends (no text or symbols)

ÉTAPE 5.Installez le tuyau H.

H

3D diagram of a mechanical support structure with two vertical posts and a horizontal base, showing rotational motion indicated by red arrows (no text or symbols)

3D illustration of a three-tiered metal shelf with vertical pipes and flanges (no text or symbols)

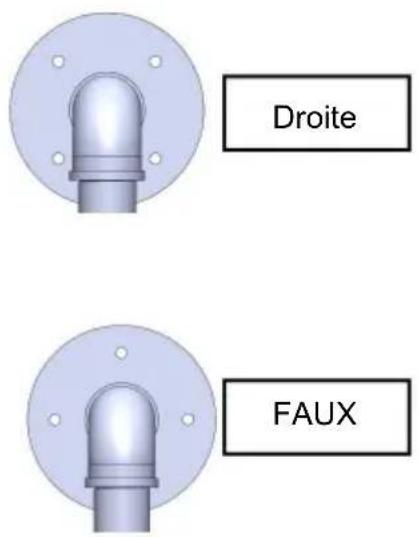

FIXEZ LES ÉTAGÈRES DE TUYAUX AU MUR

Pure structural diagram of a vertical frame with four flanged supports (no text or symbols)

Droite FAUX

Illustration of a hand using a hammer to clean or store tiles, with a magnified inset showing a nail being inserted (no text or symbols present)

Technical diagram showing a mechanical assembly with threaded rods and a separate plan view of a multi-tiered support structure (no text or symbols present)

Fabricant : Shanghaimuxinmuyeyouxiangongsi

Adresse : Shuangchenglu 803nong11hao1602A-1609shi, baoshanqu, Shanghai 200000 CN.

Importé en Australie : SIHAO PTY LTD. 1 RUE ROKEVAASTWOOD NSW 2122 Australie

C/O YH Consulting Limited Bureau 147,

Centurion House, London Road,

Staines-upon-Thames, Surrey, TW18 4AX

REPRÉSENTANT CE

E-CrossStu GmbH

Mainzer Landstr.69,

Isometric line drawing of a three-tiered shelf or platform structure with metal fittings (no text or symbols)

3D rendering of a pipe fitting with flange and curved edge, labeled B (no text or symbols on the object itself)

3D diagram of a metal floor support structure with two flanged pipe fittings and a labeled component 'D' (no text or symbols beyond label)

3D rendering of a metal shelf with two flanged ends and two cylindrical legs (no text or symbols)

3D diagram of a mechanical support structure with two vertical posts and a horizontal base, no text or symbols present

3D illustration of a three-tiered metal shelf with vertical pipes and flanges (no text or symbols)

Pure structural diagram of a vertical frame with four red circular components at both ends (no text or symbols)

Illustration of a hand using a hammer to tighten a screw on a brick wall, with a magnified inset showing the same object (no text or symbols present)

Technical diagram showing a mechanical assembly with threaded rods and a separate plan view of a multi-tiered support structure (no text or symbols present)

Hersteller: Shanghaimuxinmuyeyouxiangongsi

Adresse: Shuangchenglu 803nong11hao1602A-1609shi, baoshanqu, Shanghai 200000 CN.

Nach AUS importiert: SIHAO PTY LTD. 1 ROKEVA STREETEASTWOOD NSW 2122 Australien

Importiert in die USA: Sanven Technology Ltd. Suite 250, 9166 Anaheim Ort, Rancho Cucamonga, CA 91730

UK

REP

YH CONSULTING LIMITED.

C/O YH Consulting Limited Office 147,

Centurion House, London Road,

Staines-upon-Thames, Surrey, TW18 4AX

www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

MODELLO:WPSR-XM008/WPSR-XM009

Isometric line drawing of a three-tiered shelf with metal fittings and flanges (no text or symbols)

HO BISOGNO DI AIUTO? CONTATTACI!

3D diagram of a pipe fitting with flange and curved edge, labeled B (no text or symbols on the pipe itself)

3D diagram of a metal shelf support with two flanged pipes and a labeled component 'D' (no text or symbols beyond label)

3D rendering of a metal shelf with two flanged ends and two cylindrical legs (no text or symbols)

3D diagram of a mechanical support structure with two vertical posts and a horizontal base, showing rotational motion indicated by red arrows (no text or symbols)

3D illustration of a three-tiered metal shelf with vertical pipes and wall connections (no text or symbols)

FISSARE GLI SCAFFALI TUBO ALLA PARETE

Pure structural diagram of a vertical frame with four flanged supports (no text or symbols)

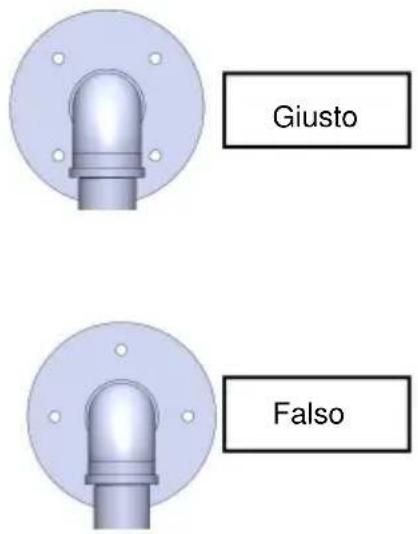

Giusto Falso

Illustration of a hand using a hammer to tighten a screw on a brick wall, with a magnified inset showing the same object (no text or symbols present)

Technical diagram showing a mechanical assembly with threaded rods and a separate plan view of a multi-tiered support structure (no text or symbols present)

Importato in AUS: SIHAO PTY LTD. 1 ROKEVA STREETEASTWOOD NSW 2122Australia

C/O YH Consulting Limited Office 147,

Centurion House, London Road,

Staines-upon-Thames, Surrey, TW18 4AX

REP.CE

E-CrossStu GmbH

Mainzer Landstr.69,

elettronica www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

MODELO:WPSR-XM008/WPSR-XM009

Isometric line drawing of a three-tiered shelf or platform structure with metal fittings (no text or symbols)

3D rendering of a pipe fitting with flange and curved edge, labeled B (no text or symbols on the object itself)

3D diagram of a metal shelf mounted on two flanged pipes, with a labeled component 'D' pointing to the plate (no text or symbols beyond label)

3D rendering of a metal shelf with two flanged pipes and two cylindrical ends (no text or symbols)

3D diagram of a three-tiered shelving unit with wheels and railings, no text or symbols present

PASO 7. Instale el conector acodado B.

3D rendering of a metal beam supported by two vertical posts with red rotational arrows indicating rotation (no text or symbols)

3D illustration of a three-tiered metal shelf with vertical pipes and flanges (no text or symbols)

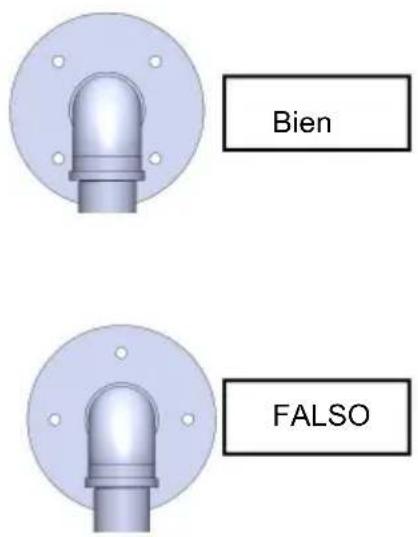

FIJAR ESTANTES PARA TUBERÍAS A LA PARED

Pure structural diagram of a vertical frame with four flanged supports (no text or symbols)

Bien FALSO

Illustration of a hand using a hammer to mark a nail on a brick wall, with a magnified inset showing the nail being inserted (no text or symbols present)

Technical diagram showing a mechanical assembly with threaded rods and a separate plan view of a multi-tiered support structure (no text or labels)

Fabricante: Shanghaimuxinmuyeyouxiangongsi

Dirección: Shuangchenglu 803nong11hao1602A-1609shi, baoshanqu, shanghai 200000 CN.

Importado a AUS: SIHAO PTY LTD. 1 ROKEVA CALLE ASTWOOD

Centurion House, London Road,

Staines-upon-Thames, Surrey, TW18 4AX

REPRESENTANTE DE LA CE

E-CrossStu GmbH

Mainzer Landstr.69,

Isometric line drawing of a three-tiered shelf or platform structure with metal fittings (no text or symbols)

POTRZEBUJE POMOCY? SKONTAKTUJ SIĘ Z NAMI!

3D diagram of a pipe fitting with flange and curved edge, labeled B (no text or symbols on the pipe itself)

3D diagram of a metal shelf mounted on two flanged pipes, labeled with point D (no text or symbols beyond label)

3D rendering of a metal floor-mounted platform with two flanged side pipes (no text or symbols)

3D diagram of a mechanical support structure with two vertical posts and a horizontal base, showing rotational motion indicated by red arrows (no text or symbols)

KROK 8. Zainstaluj komponent z kroku 1.

3D illustration of a three-tiered metal shelf with vertical pipes and flanges (no text or symbols)

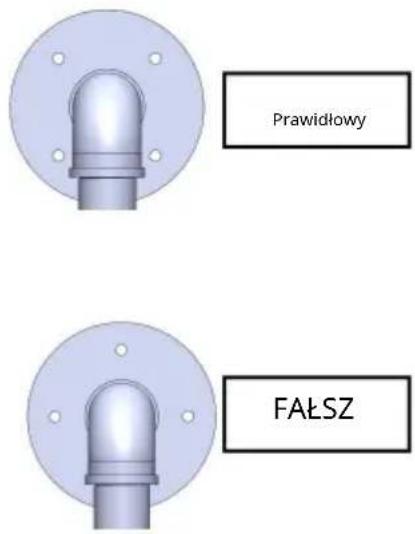

PRZYMOCUJ PÓŁKI NA RURE DO ŚCIANY

Pure structural diagram of a vertical frame with four flanged supports (no text or symbols)

Illustration of a hand using a hammer to tighten a screw on a brick wall, with a magnified inset showing the same object (no text or symbols present)

Technical diagram showing a mechanical assembly with threaded rods and a separate plan view of a multi-tiered support structure (no text or symbols present)

Producent: Shanghaimuxinmuyeyouxiangongsi

Adres: Shuangchenglu 803nong11hao1602A-1609shi, baoshanqu, szanghaj 200000 CN.

Import do AUS: SIHAO PTY LTD. 1 ROKEVA STREETEASTWOOD

C/O YH Consulting Limited Office 147,

Centurion House, London Road,

Staines-upon-Thames, Surrey, TW18 4AX

REPREZENT KE

E-CrossStu GmbH

Mainzer Landstr.69,

60329 Frankfurt nad Menem.

VEVOR®

TOUGH TOOLS, HALF PRICE

www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

Technische ondersteuning en e-garantiecertificaat www.vevor.com/support

PIJPENPLANKEN

MODEL:WPSR-XM008/WPSR-XM009

Isometric line drawing of a three-tiered shelf or platform structure with metal fittings (no text or symbols)

HULP NODIG? NEEM CONTACT MET ONS OP!

3D rendering of a pipe fitting with flange and curved edge, labeled B (no text or symbols on the object itself)

3D diagram of a metal shelf mounted on two flanged pipes, with a labeled component 'D' pointing to the plate (no text or symbols beyond label)

3D rendering of a metal shelf with two flanged ends and two cylindrical legs (no text or symbols)

3D diagram of a mechanical support structure with two vertical posts and a horizontal base, no text or symbols present

3D illustration of a three-tiered metal shelf with vertical pipes and flanges (no text or symbols)

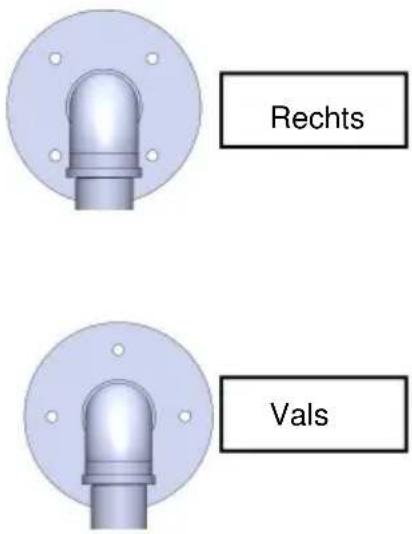

BEVESTIG DE PIJPENPLANKEN AAN DE MUUR

Pure structural diagram of a vertical frame with two flanged ends and red circular components at top corners (no text or symbols)

Rechts Vals

Illustration of a hand using a hammer to tighten a bolt on a brick wall, with a magnified inset showing the tool (no text or symbols present)

Technical diagram showing a mechanical assembly with threaded rods and a separate plan view of a multi-tiered support structure (no text or symbols present)

Fabrikant: Shanghaimuxinmuyeyouxiangongsi

Adres: Shuangchenglu 803nong11hao1602A-1609shi, baoshanqu, shanghai 200000 CN.

C/O YH Consulting Limited Office 147,

Centurion House, London Road,

Staines-upon-Thames, Surrey, TW18 4AX

EG REP

E-CrossStu GmbH

Mainzer Landstr.69,

60329 Frankfurt am Main.

VEVOR®

TOUGH TOOLS, HALF PRICE

Technische ondersteuning en e-garantiecertificaat www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

Isometric line drawing of a three-tiered shelf or platform structure with metal fittings (no text or symbols)

BEHÖVS HJÄLP? KONTAKTA OSS!

3D rendering of a pipe fitting with flange and curved edge, labeled B (no text or symbols on the object itself)

3D diagram of a metal shelf support with two flanged pipes and a labeled component 'D' (no text or symbols beyond label)

3D rendering of a metal shelf with two flanged ends and two cylindrical legs (no text or symbols)

3D diagram of a mechanical support structure with two vertical posts and a horizontal base, no text or symbols present

STEG 8. Installera komponenten i steg 1.

3D illustration of a three-tiered metal shelf with vertical pipes and flanges (no text or symbols)

FÄSTA RÖRHYLLOR PÅ VÄGGEN

Obs: Minst en assistent rekommenderas.

Pure structural diagram of a vertical frame with four flanged supports (no text or symbols)

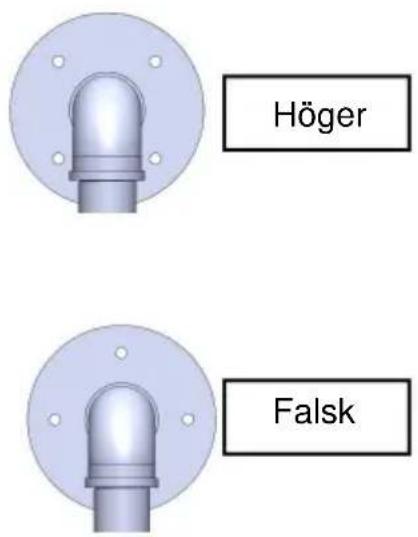

Höger Falsk

Illustration of a hand using a hammer to tighten a bolt on a brick wall, with a magnified inset showing the tool (no text or symbols present)

Technical diagram showing a mechanical assembly with threaded rods and a separate plan view of a multi-tiered support structure (no text or symbols present)

Tillverkare: Shanghaimuxinmuyeyouxiangongsi

Adress: Shuangchenglu 803nong11hao1602A-1609shi, baoshanqu, shanghai 200000 CN.

Importerad till AUS: SIHAO PTY LTD. 1 ROKEVA STREETEASTWOOD NSW 2122 Australien

Importerad till USA: Sanven Technology Ltd. Suite 250, 9166 Anaheim Place, Rancho Cucamonga, CA 91730

UK

REP

YH CONSULTING LIMITED.

C/O YH Consulting Limited Office 147,

Centurion House, London Road,

Staines-upon-Thames, Surrey, TW18 4AX

EC

REP

E-CrossStu GmbH

Mainzer Landstr.69,

60329 Frankfurt am Main.

VEVOR®

TOUGH TOOLS, HALF PRICE

www.vevor.com/support
