USER MANUAL YFHVQN246 Vevor

Technical Support and E-Warranty Certificate www.vevor.com/support

MURPHY BED KIT

MODEL:YFHVQN246

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represents an estimate of savings you might benefit from buying certain tools with us compared to the major top brands and does not necessarily mean to co all categories of tools offered by us. You are kindly reminded to verify carefully when you are placing an order with us if you are actually Saving Half in comparison with the top major brands.

VEVOR®

TOUGH TOOLS, HALF PRICE

MURPHY BED KIT

MODEL:YFHVQN246

Collection of black metal automotive components laid out on a concrete floor, including sensors, brackets, and accessories (no visible text or symbols)

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel free to contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instructions carefully before operating. VEVOR reserves a clear interpretation of user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform you and there are any technology or software updates on our product.

SAFETY INSTRUCTIONS

1. Please read and understand this manual carefully before using the Murphy Bed Kit.

The installation should be done by an adult, and children should not without supervision.

1. Please install the Murphy Bed Kit completely before using the bed, otherwise it may cause serious harm to people.
2. Check the stability and safety of the kit for regular intervals and use should be stopped immediately in case of damage or suspicious problems.
3. Children should not use the kit alone to spread out or store the b不需要 they may be harmed.

Thank you very much for choosing this Murphy Bed Kit.

If there is any difference between the color of this product and the the instruction manual, please refer to the physical object.

PARAMETER LIST

Model	YFHVQN246
Adapted models	Queen-Vertical
Mattress size	W×L:60×80in(1520×2030mm)
mattress thickness	6-10in(152-254mm)
Maximum mattress weight	68lbs(31kg)

INSTRUCTIONS

Murphy Bed Kit suitability Queen-Vertical

Note: The Murphy Bed Kit does not include bed and bed cabinets, need to be equipped by users themselves.

Standard Queen Mattress

Max Weight: 68lbs

Max Depth : 10"

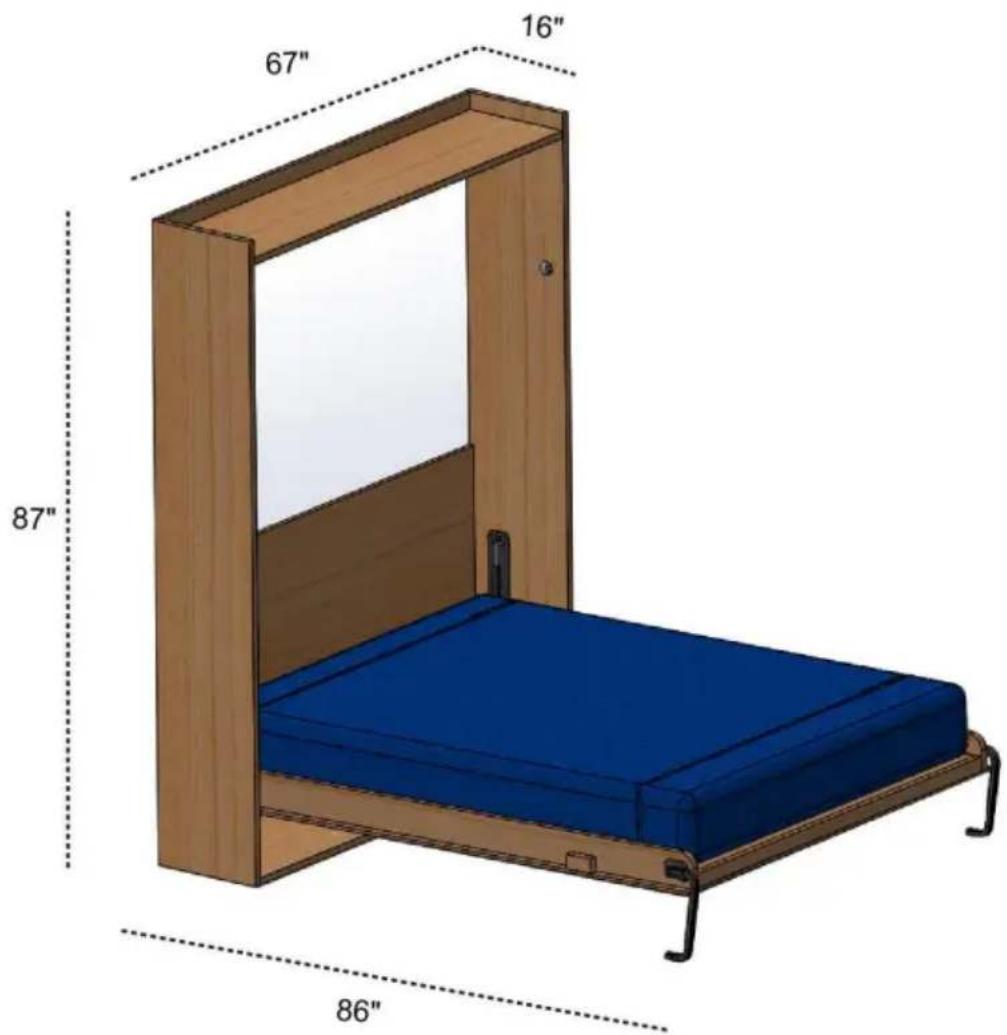

67" 16" 87" 86"

Max Weight capacity: 900lbs

1. General description

Use

The murphy bed system allows to bring the bed spring from its verti position inside the cabinet in a horizontal positions, to be used as a a absolutely quick and easy way, with very low efforts.

Before using the Murphy bed, the user must be sure of its good co and the good condition of its accessories.

Before using the Murphy bed, the user must make sure that on the sleeping surface there is only the mattress and bed linens.

2 . Safety

Safety standard

Compliance with the Safety standards puts the user in terms of working productively, without danger of harm to himself to others.

It's forbidden to use the product without any mattress on the bedspring surface.

It's forbidden to use the bed for a different use, than the one described previously in section USE.

Non correct installation or not made by specialized craftsmen, make cause detachments, breaking or dysfonctions with possible damages to persons, things or animals. All given instructions have to be strictly observed.

Before starting to use the product the users shall be aware of its fun and its technical features, learn through an accurate and complete real of the present user's guide.

Tampering or replacement of bed parts that are not allowed.

The use of accessories or spare parts other than those recommended the supplier, present a non proper and hazardous use of the product

It's strictly forbidden to remove any safety device and protection (labels) on the set; periodically check the incidental position on the mechanism of blankets or else. Before starting any maintenance, repair work or cleaning the operator must have read and understood all tec information contained in this guide. Any maintenance and repair shall performed by qualified personnel only.

WARNING !!!

Never place the product near any heat sources. Position and lock the system to be maintained clear of objects that may hinder its movement. The instructions and rules contained in this manual must be observed times.

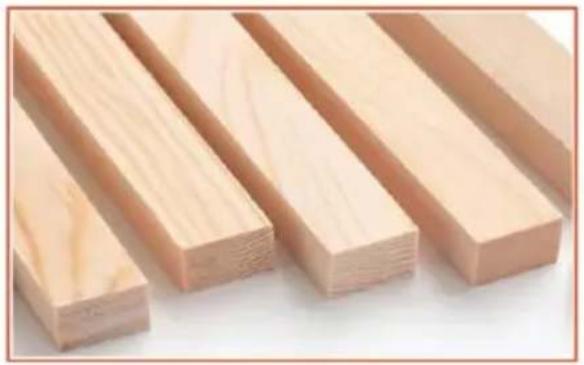

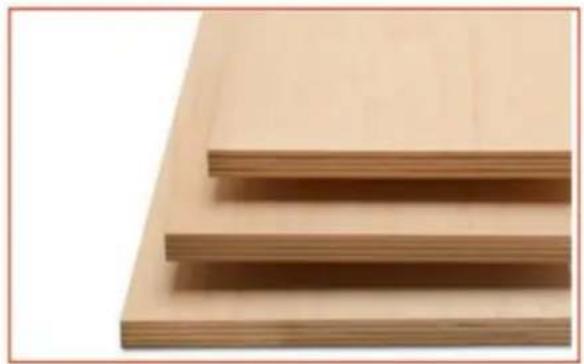

Suggest using below materials for wooden cabinets and bed fram

Close-up of five wooden plank bars arranged diagonally (no text or symbols visible)

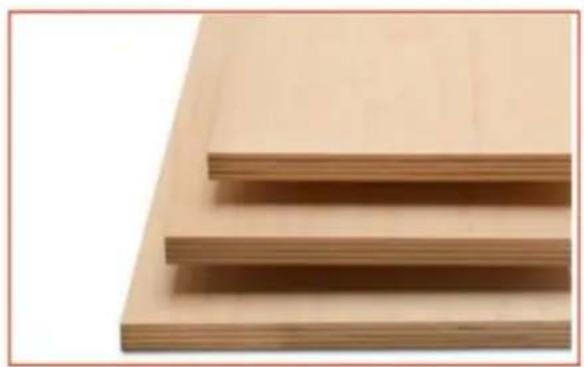

Stack of three beige wooden panels or sheets, no text or symbols visible

Wooden Sticks Plywood Sheet

Technical features

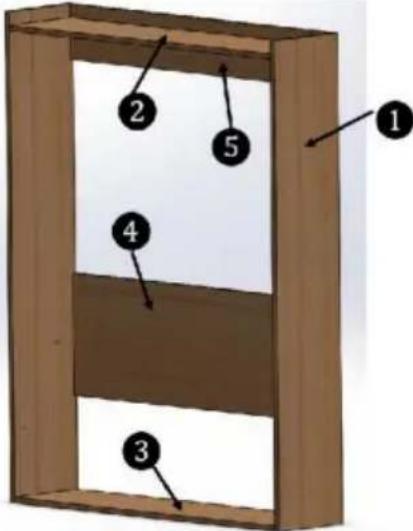

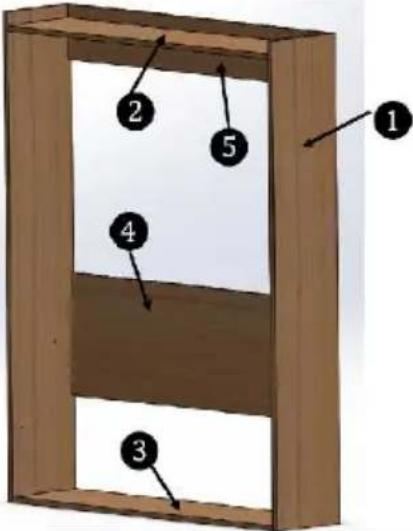

Cabinet
Number	Material	Dimension	IQTY	Important
1	1inch Plywood	2212*406*25 mm	2	Internal dimensions of cabinet: 1654*388*2102 mm
2	1inch Plywood	1654*388*25mm	1
3	1inch Plywood	1654*406*25mm	1
4	3/4 inch Plywood	1654*550*18mm	1
5	3/4 inch Plywood	1654*250*18mm	1

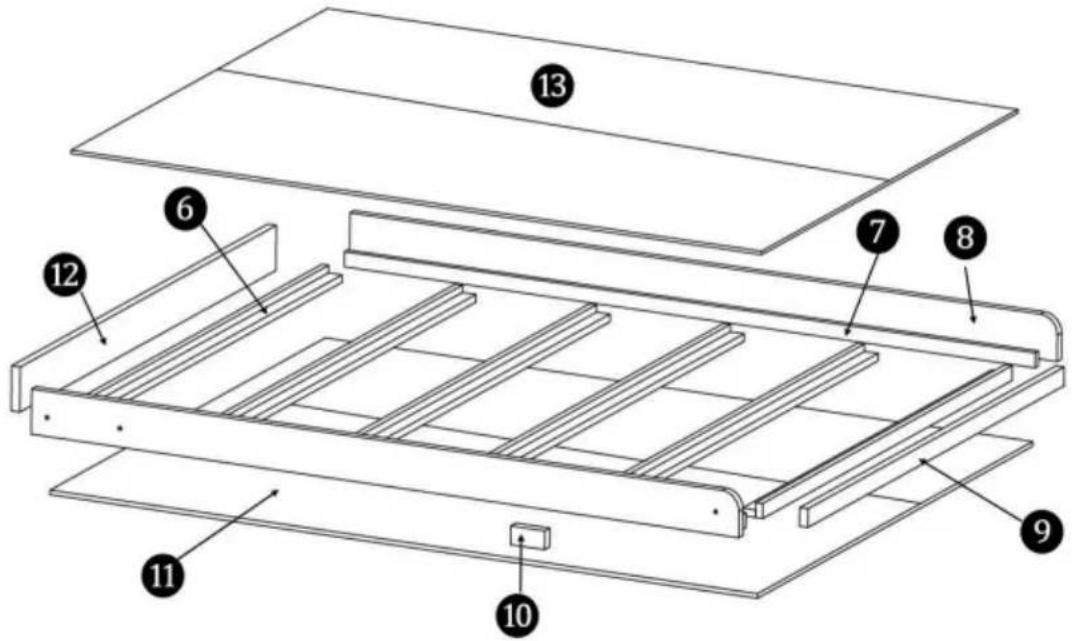

Bed frame
Number	Material	Dimension	IQTY	Important
6	3/4 inch wood	40*20*1480 mm	12	Weight of the bed frame : 62kg(136.4lbs)Dimensions of bed frame : 2077*1634*132 mm
7	3/4 inch wood	40*20*2027 mm	2
8	1inch Plywood	2077*120*25 mm	2
9	1inch Plywood	1520*50*25 mm	1
10	1-1/2 inch wood	32*32*100mm	1
11	1/2 inch Plywood	2077*1634*12mm	1
12	1inch Plywood	1520*120*25 mm	1
13	3/8inch Plywood	2022*1516*9 mm	1
14	mattress	1520*2030*(152-254)mm(60*80*(6-10)inch)	1	Weight of mattress: 31kg (68lbs)
TOTAL WEIGHT OF BED FRAME AND MATT NEED TO BE:				92-95kg (202lbs-209lbs)

Safety and Care Advice

• Check you have all the components and tools listed on the following pages.
• Remove all fittings from the plastic bags and separate them into the groups.
• Keep children and animals away from the work area, small parts c choke if swallowed.
  • Make sure you have enough space to layout the parts before start
• During assembly do not stand or put weight on the product, this cause damage.
• Assemble the item as close to its final position (in the same room possible.
• Assemble on a soft level surface to avoid damaging the unit or yc
• Parts of the assembly will be easier with 2 people.

• To reduce the likelihood of damaging your product please ensure that your power drill is set on a low torque setting

Install the required tools

			13mm OpenEnd Wrench
	Screws Drive Bit	Wood Drill BitDia 6mm	Wood Drill BitDia11mm
Horizontal adjustment tool

List of kit parts

Note: The quantities below are the correct amount to complete the assembly. In some cases more fittings may be supplied than are req

Two black metal L-shaped connectors with bolt holes, shown side by side (no text or symbols)

A:Side Bracket x 2pc

Two metallic bracket plates with mounting holes, shown in 3D rendering (no text or symbols)

B:Connect Bracket x 2p

Two identical metal bracket components with flanges and mounting holes (no text or symbols)

C:Leg x 2pcs

D:YFGS5001100 x 2pcs	E:Mattress Strap x 2pc	F:Bearing x 4pc
G:Stopper x 2pcs	H:Metal Nut M8x 4pcs	ScrewI:M5x20mm x72pcs
J:Screw M4x20mm x8pcs	Drilling template: 710*294mm	Drilling template: 306*82mm

Construction guide

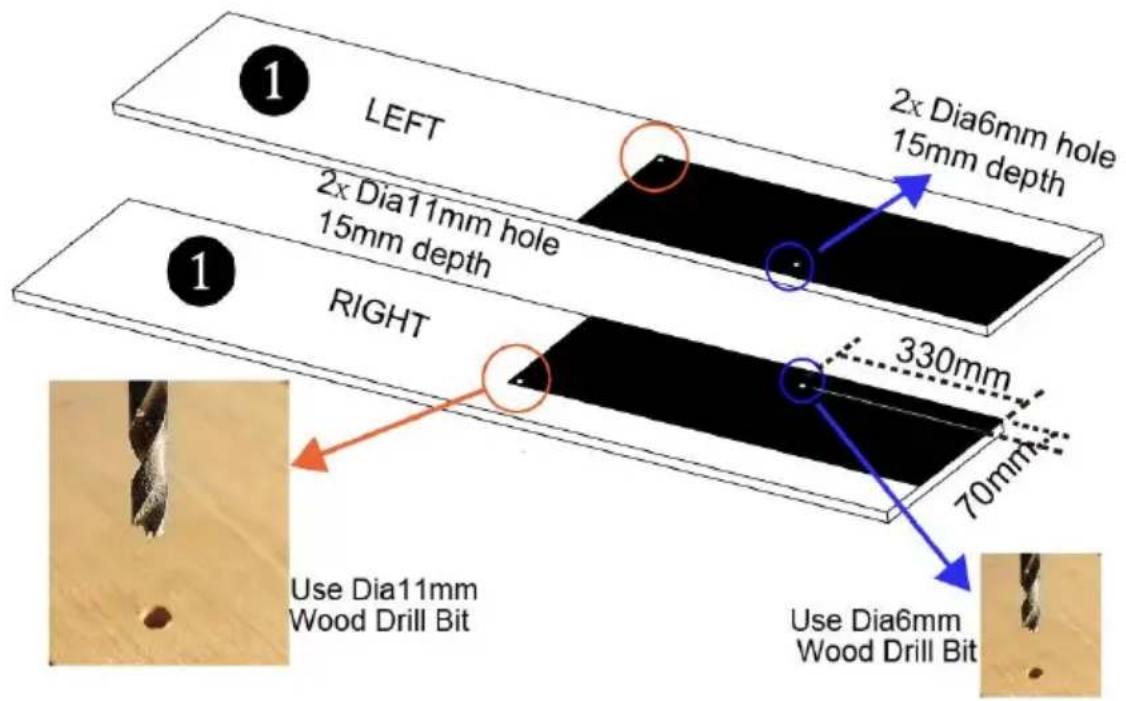

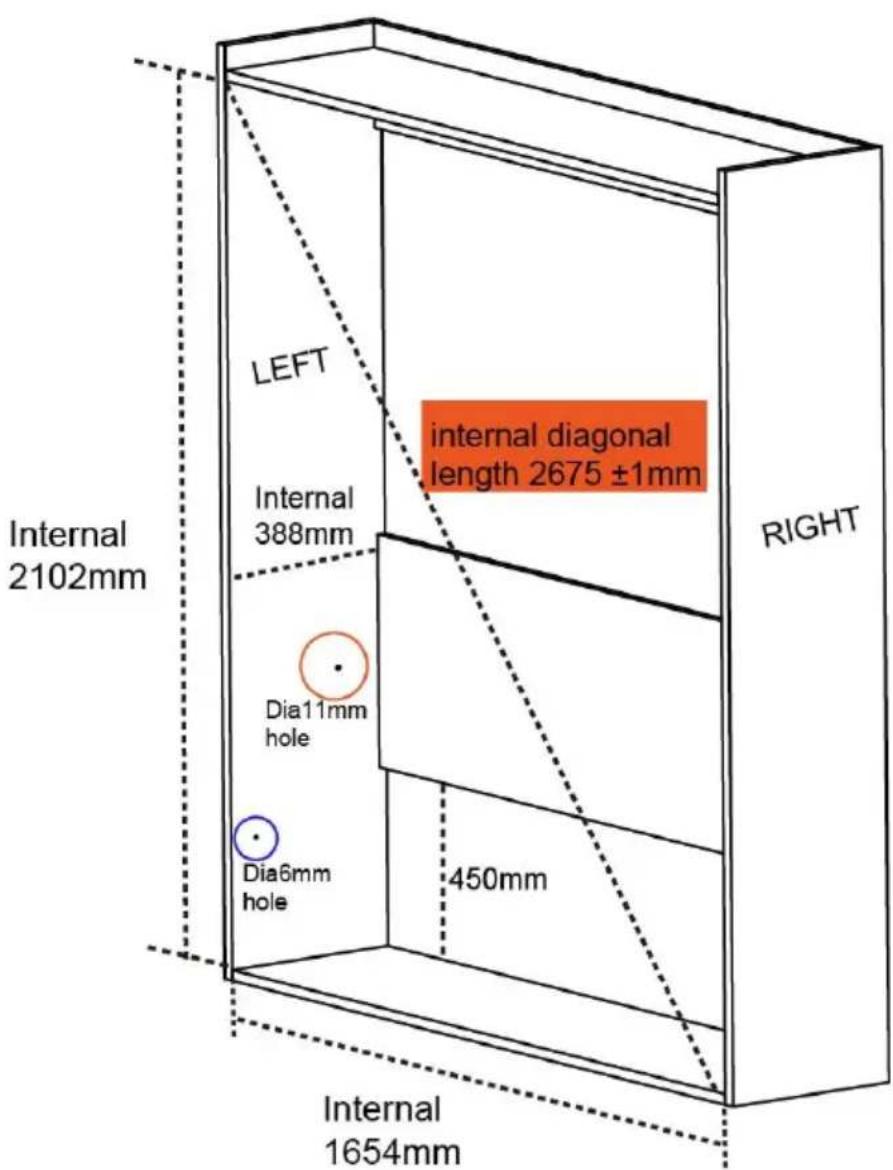

Step1: Make the cabinet

Put the drilling template of 710*294mm on the side panel and ensure edge of the template are flush with the side panel as the picture.

Mark the circular hole of the template on the side panel, then remove template and drill Dia11mm hole & Dia6mm hole as the picture, dept hole is 15mm.

Make the cabinet with screws and waterproof wood glue, ensure the internal dimension as the picture, ensure the cabinet is stable and sa

LEFT 2x Dia11mm hole 15mm depth 2x Dia6mm hole 15mm depth RIGHT 330mm 70mm Use Dia11mm Wood Drill Bit Use Dia6mm Wood Drill Bit

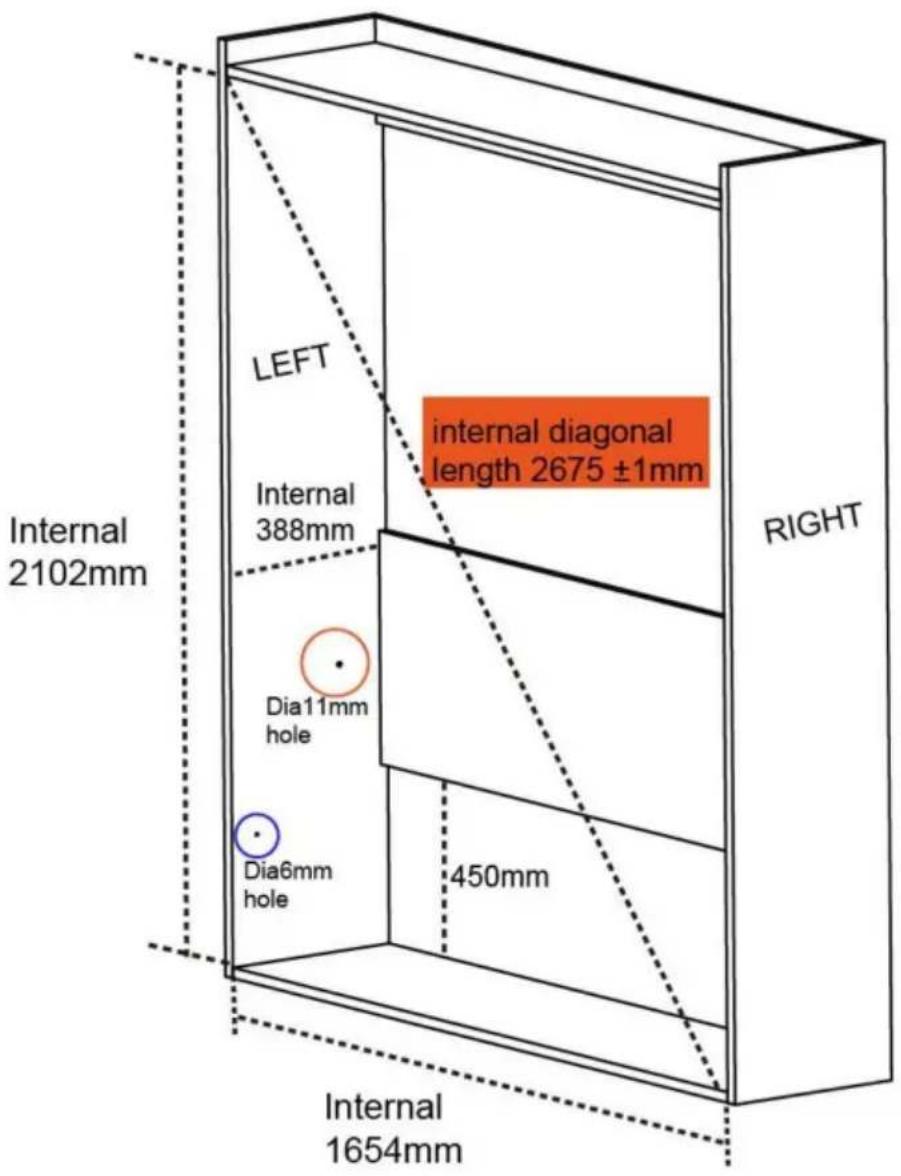

LEFT internal diagonal length 2675 ±1mm Internal 388mm Dia11mm hole Dia6mm hole 450mm Internal 2102mm RIGHT Internal 1654mm

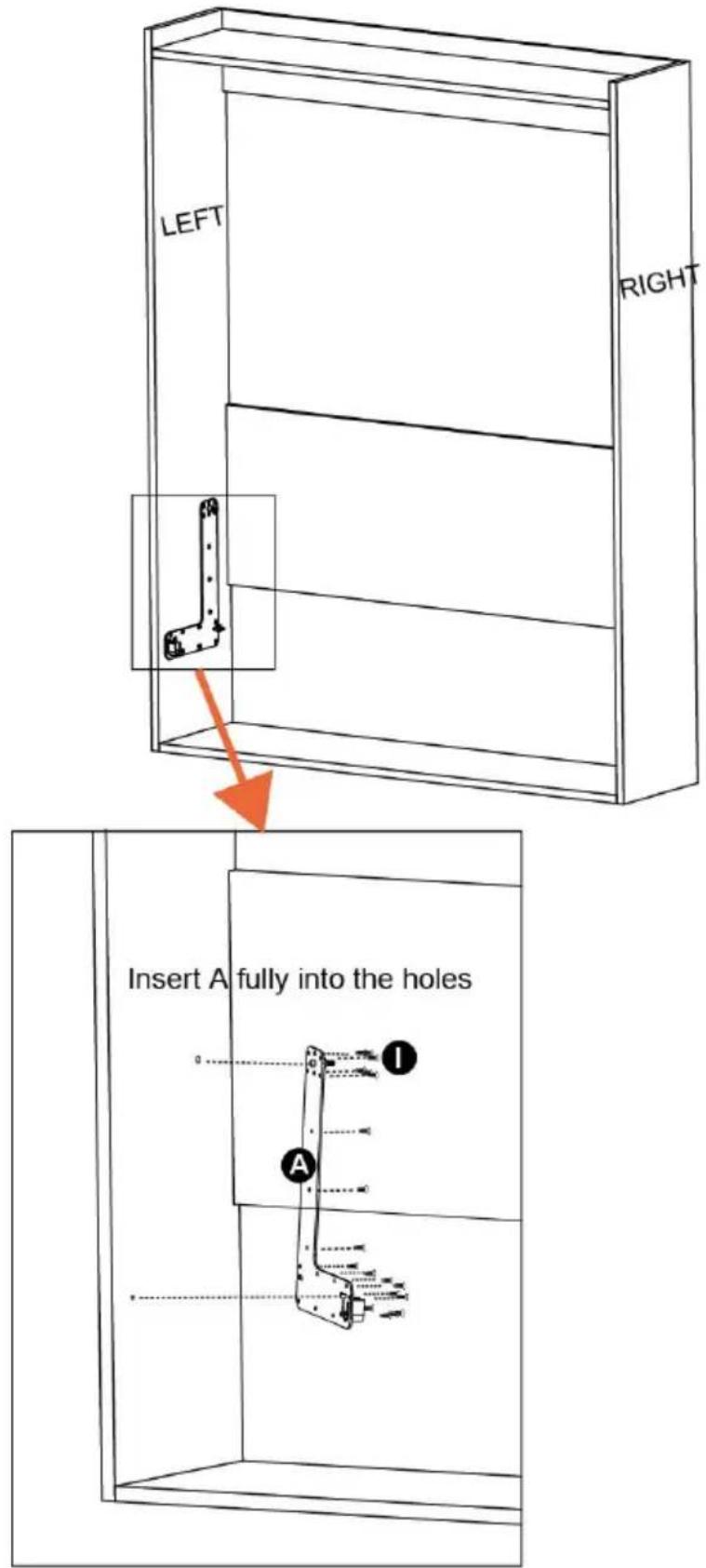

Step 2:

Insert the pin on the side bracket A fully into the Dia11mm hole and hole, fix a to cabinet with screws I.

Repeat the above installation on the other side.

LEFT RIGHT Insert A fully into the holes

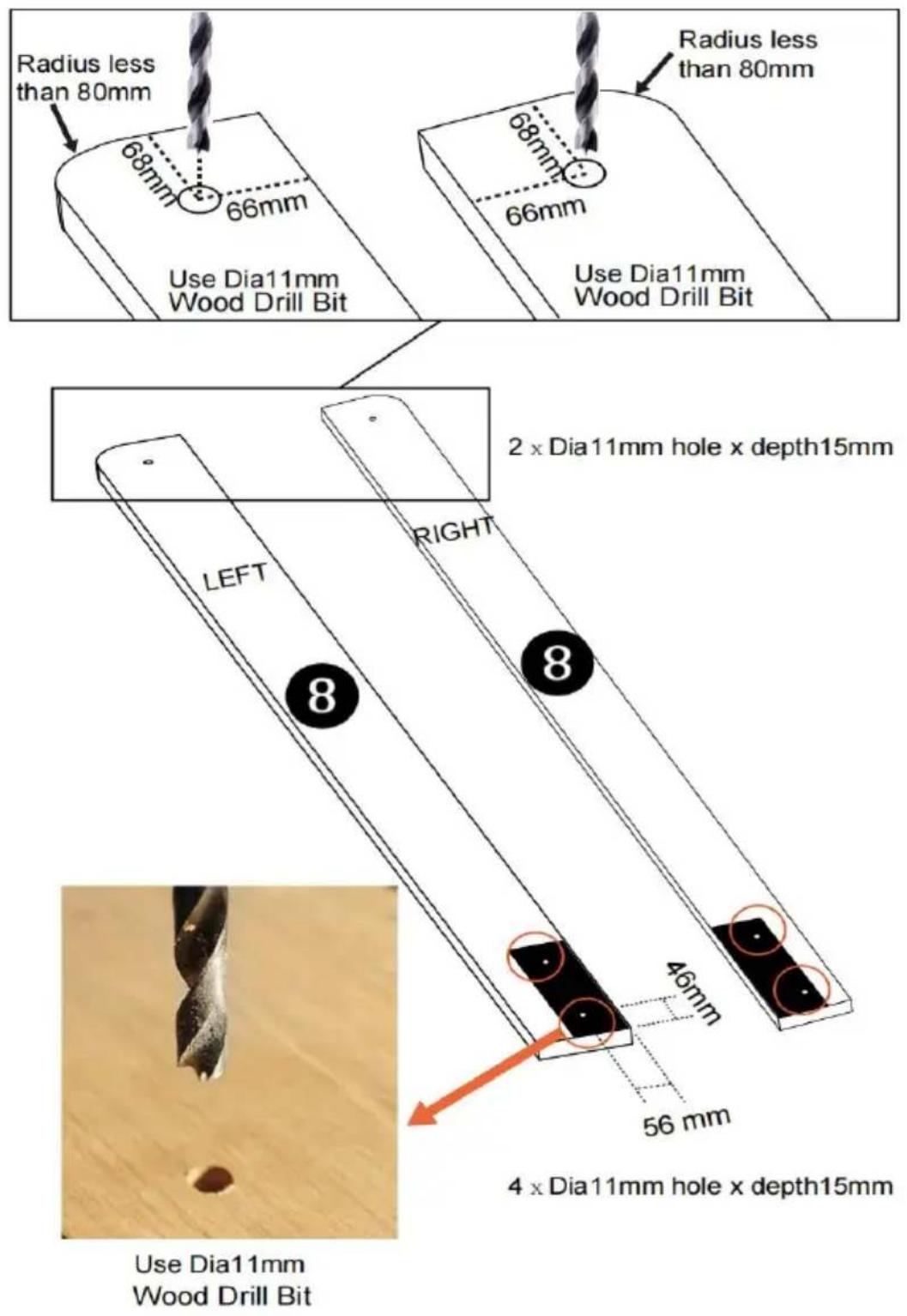

Step 3: Put the drilling template of 306 × 82 ~mm on the panel 8 and the edge of the template are flush with the panel as the picture. Mark the circular hole of the template on the panel 8, then remove template and drill Dia11mm hole as the picture, depth of hole is 15m. Mark the drilling holes according to the dimensions as the picture on another side of the panel, then drill Dia11mm hole, depth of hole is

Radius less than 80mm 68mm 66mm Use Dia11mm Wood Drill Bit Radius less than 80mm 68mm 66mm Use Dia11mm Wood Drill Bit 2 x Dia11mm hole x depth15mm LEFT RIGHT 8 46mm 56 mm Use Dia11mm Wood Drill Bit 4 x Dia11mm hole x depth15mm

Step 4:

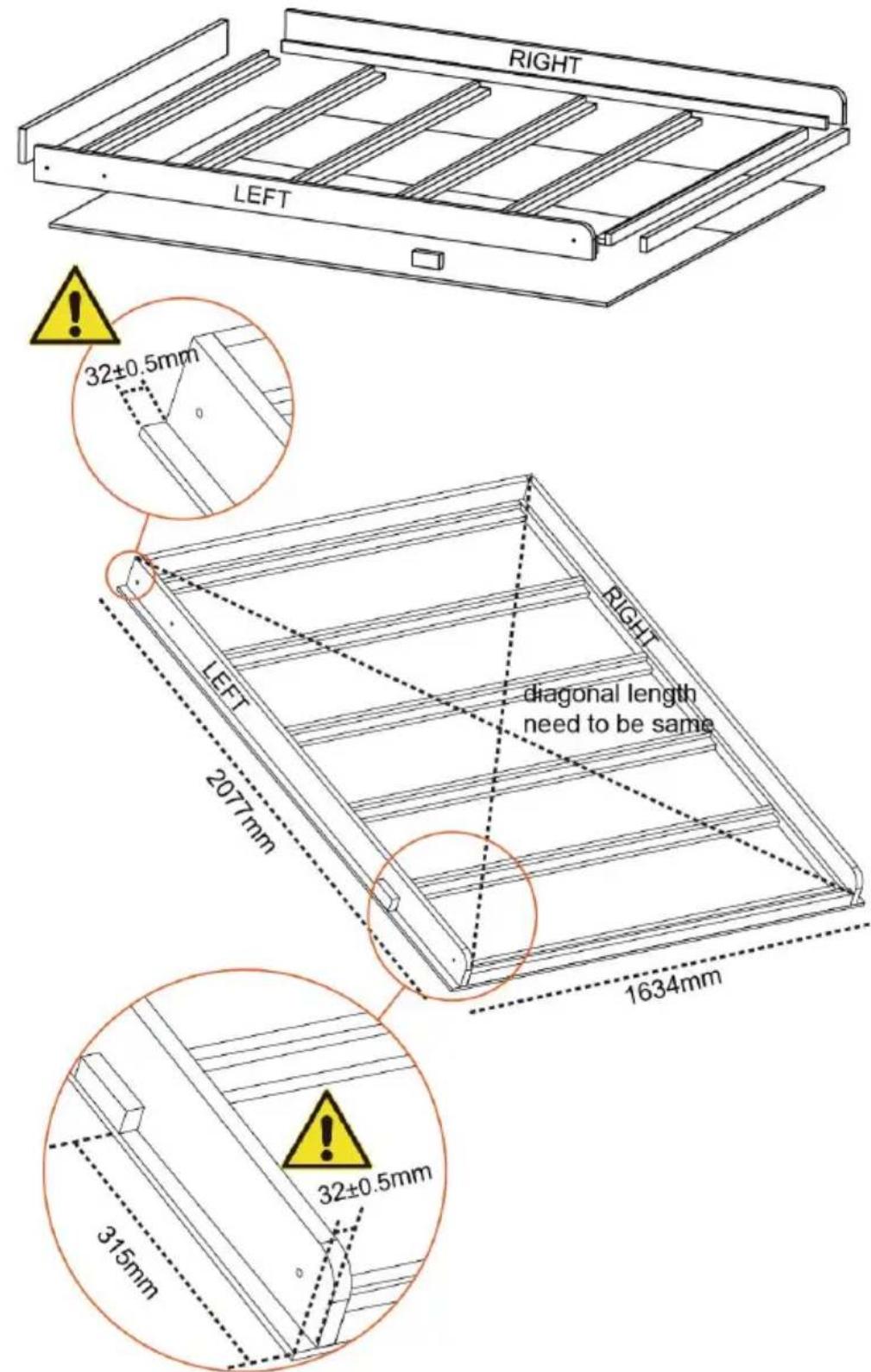

Make the bed frame with screws and waterproof wood glue as picture. Ensure the dimension from the apron panel to the edge of the door are 32mm as picture.

Keep the diagonal length as picture are same.

Ensure the cabinet is stable and safety.

RIGHT LEFT 32±0.5mm RIGHT diagonal length need to be same LEFT 2077mm 1634mm 315mm 32±0.5mm

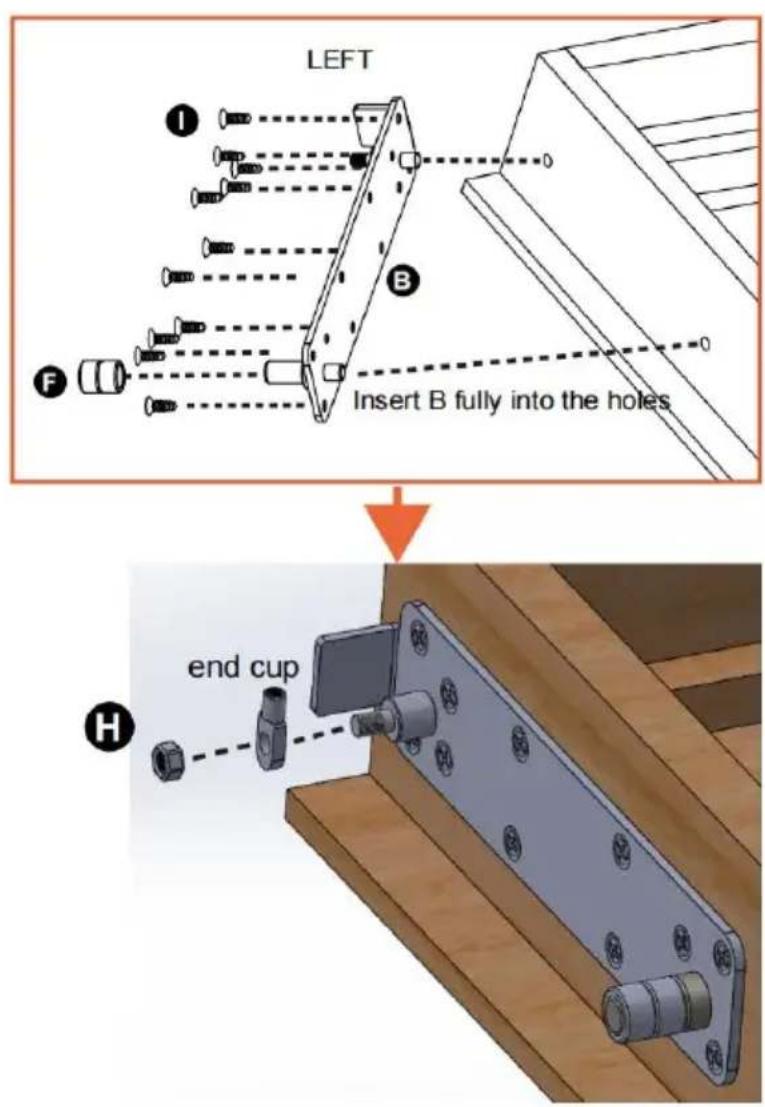

Step 5:

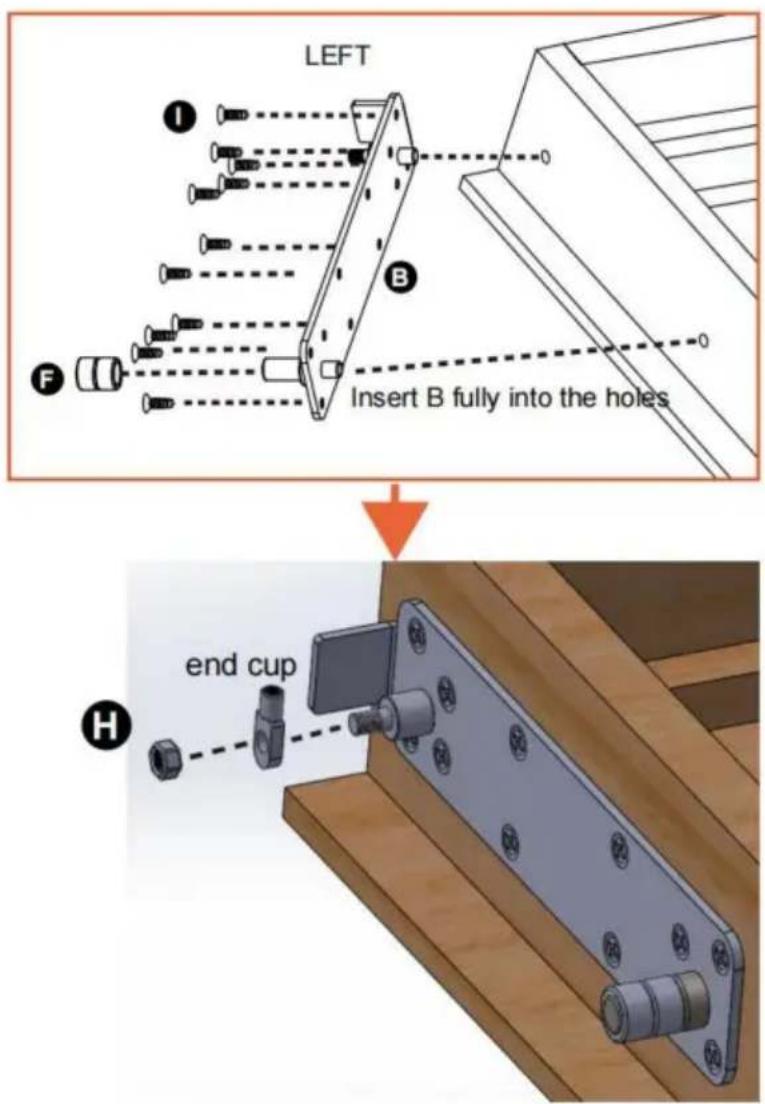

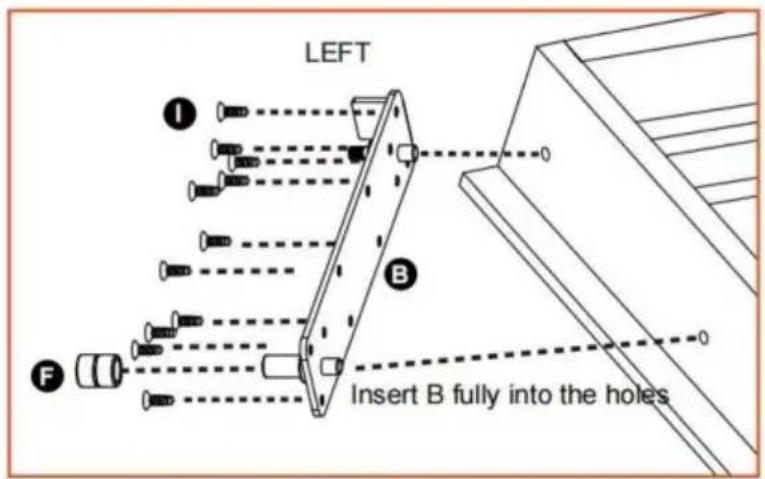

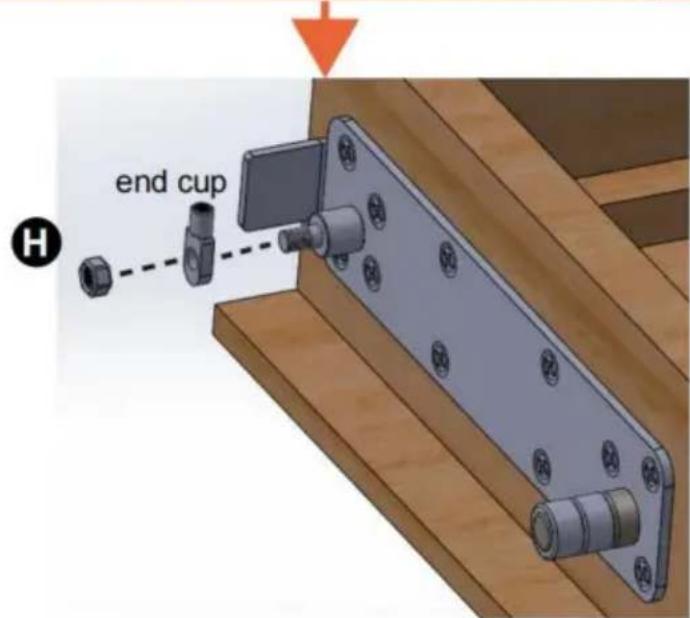

Insert the pin on the connect bracket B fully into the Dia11mm holes fix B to the bed frame with screws I.

Insert 2pcs bearing F to the connect bracket B as the picture.

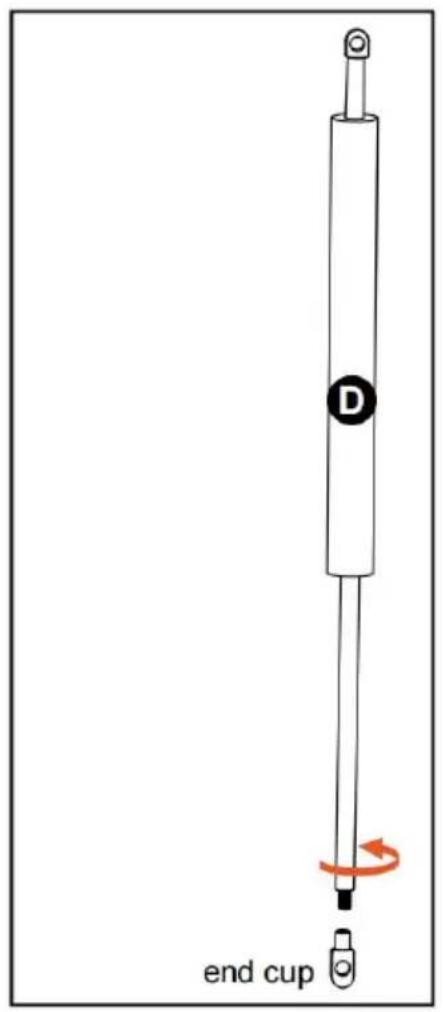

Turn the end cap of the gas spring out as the picture, then install connect bracket B and fix it with nut H as the picture .

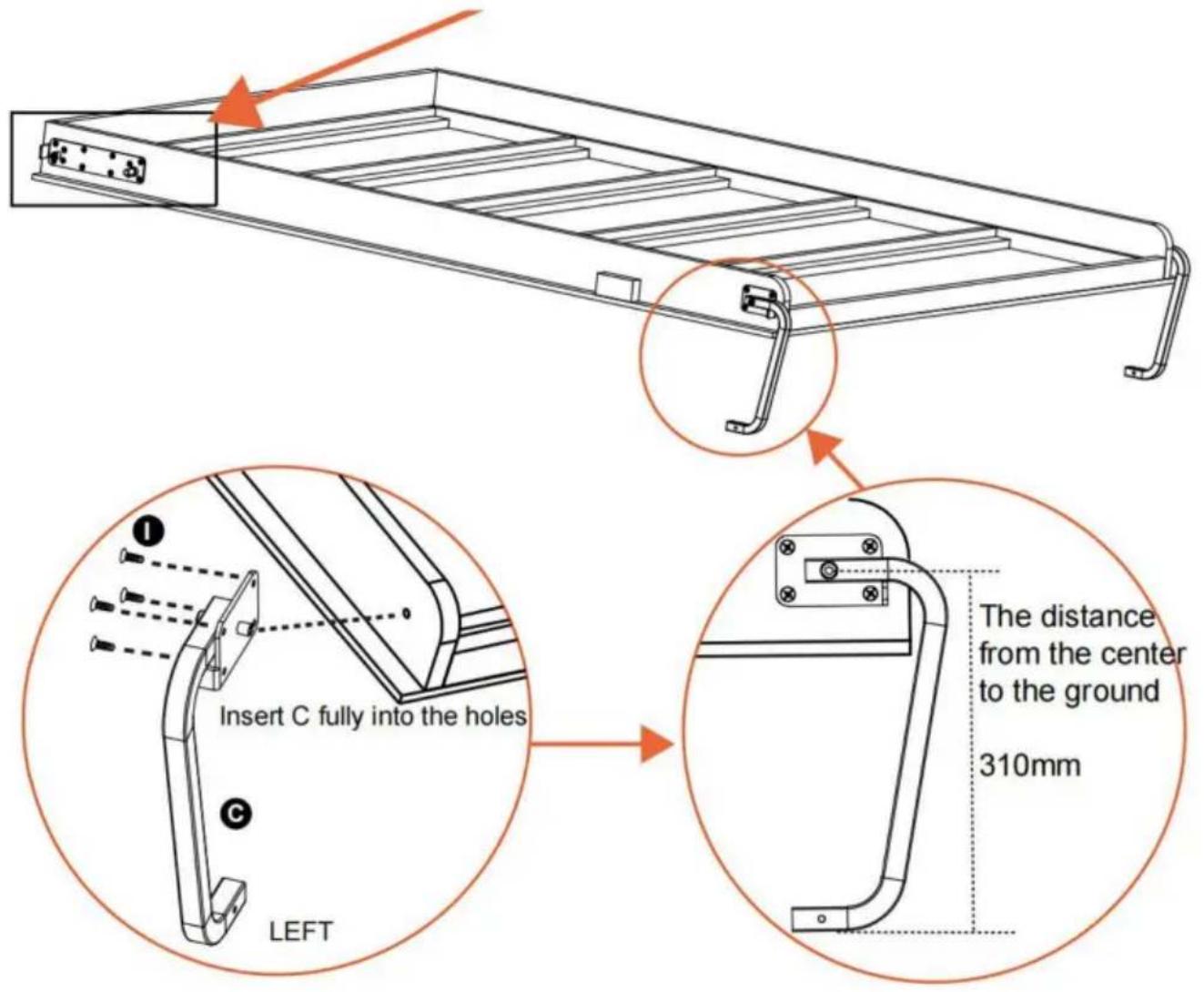

Insert the pin on the leg C fully into the Dia11mm holes, then fix C bed frame with screws I. Keep the distance from the center to the 310mm as the picture.

Repeat the above installation on the other side.

D end cup

LEFT I B F Insert B fully into the holes end cup H

Insert C fully into the holes LEFT The distance from the center to the ground 310mm

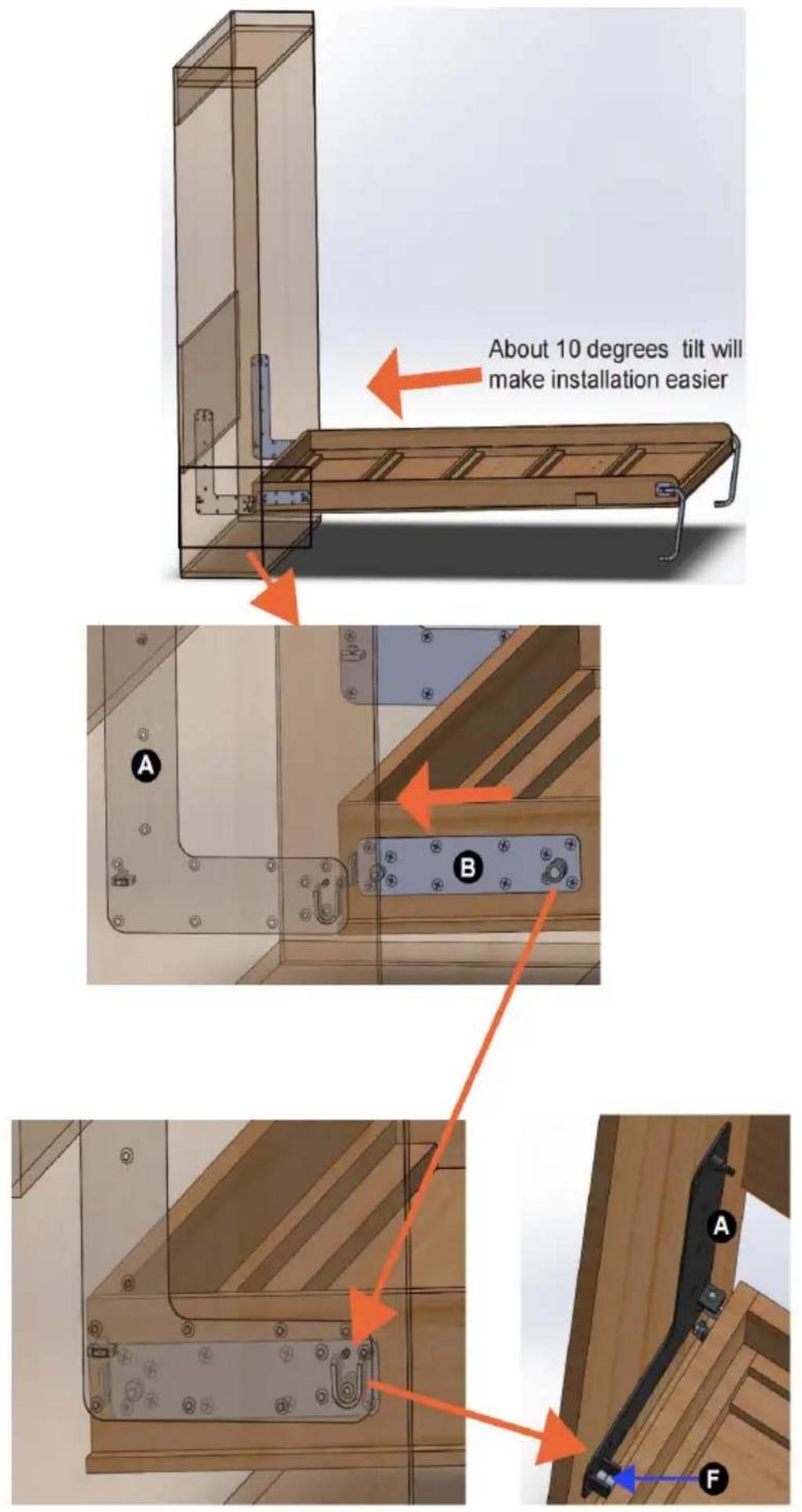

Step 6:

Insert the bed frame with a little angle to the cabinet as the picture. Put the connect bracket B with bearing F on the side bracket A as picture. Install the handle to the bed frame.

Step 7:

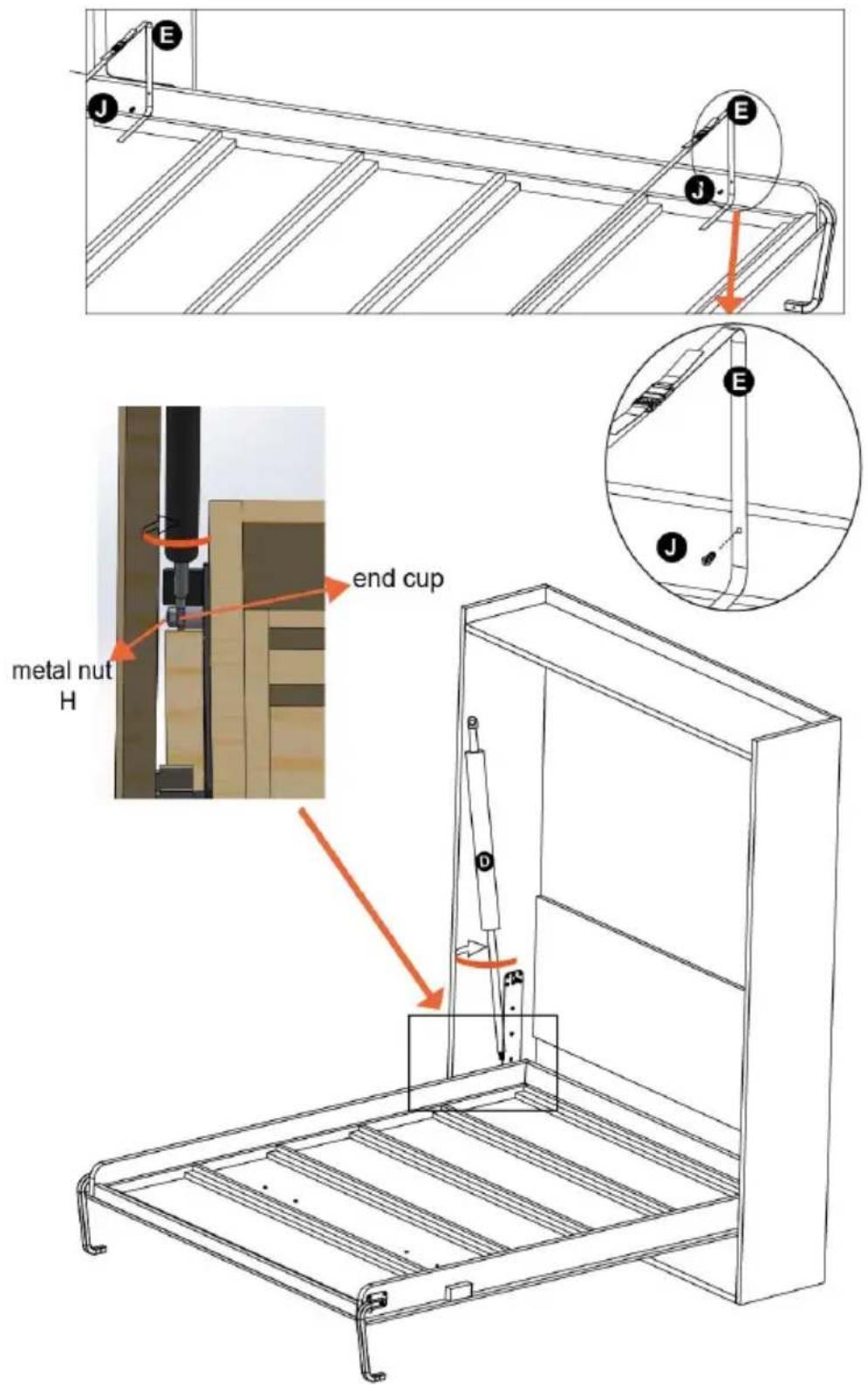

First, attach the two mattress straps E to the bed frame with a scre. Then turn the gas spring D into the end cap as the picture, tighten spring with the end cap;

Repeat the above installation on the other side.

E J E J E J end cup metal nut H

Step 8:

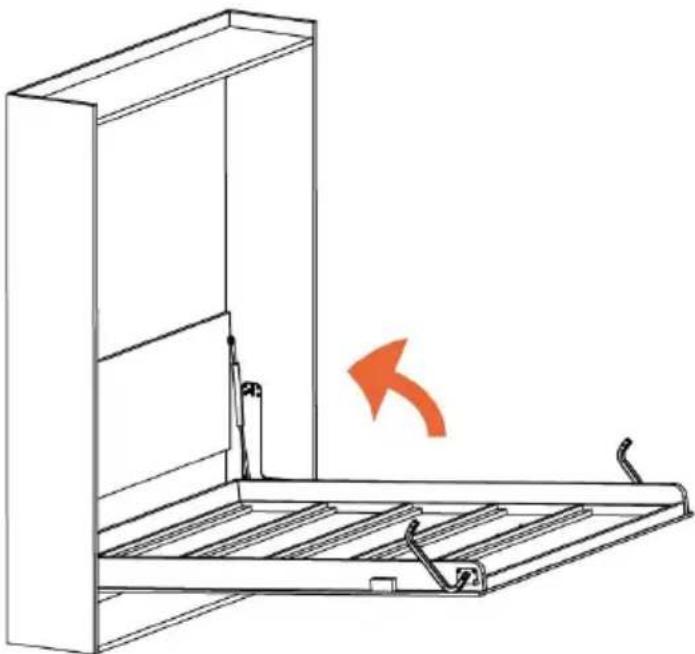

Close the bed frame into the cabinet as the picture.

Line drawing of a cabinet with an orange arrow indicating direction (no text or symbols)

Step 9:

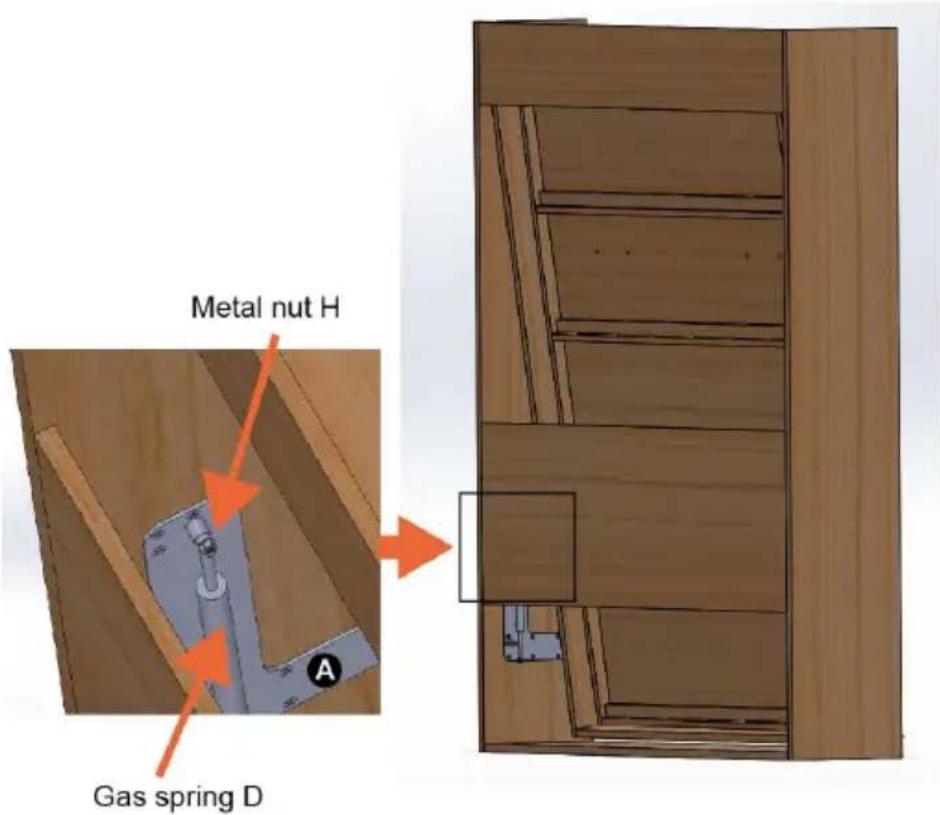

Install the gas spring D to the A bracket from the back of cabinet, metal nut H.

Repeat the above installation on the other side.

Metal nut H Gas spring D

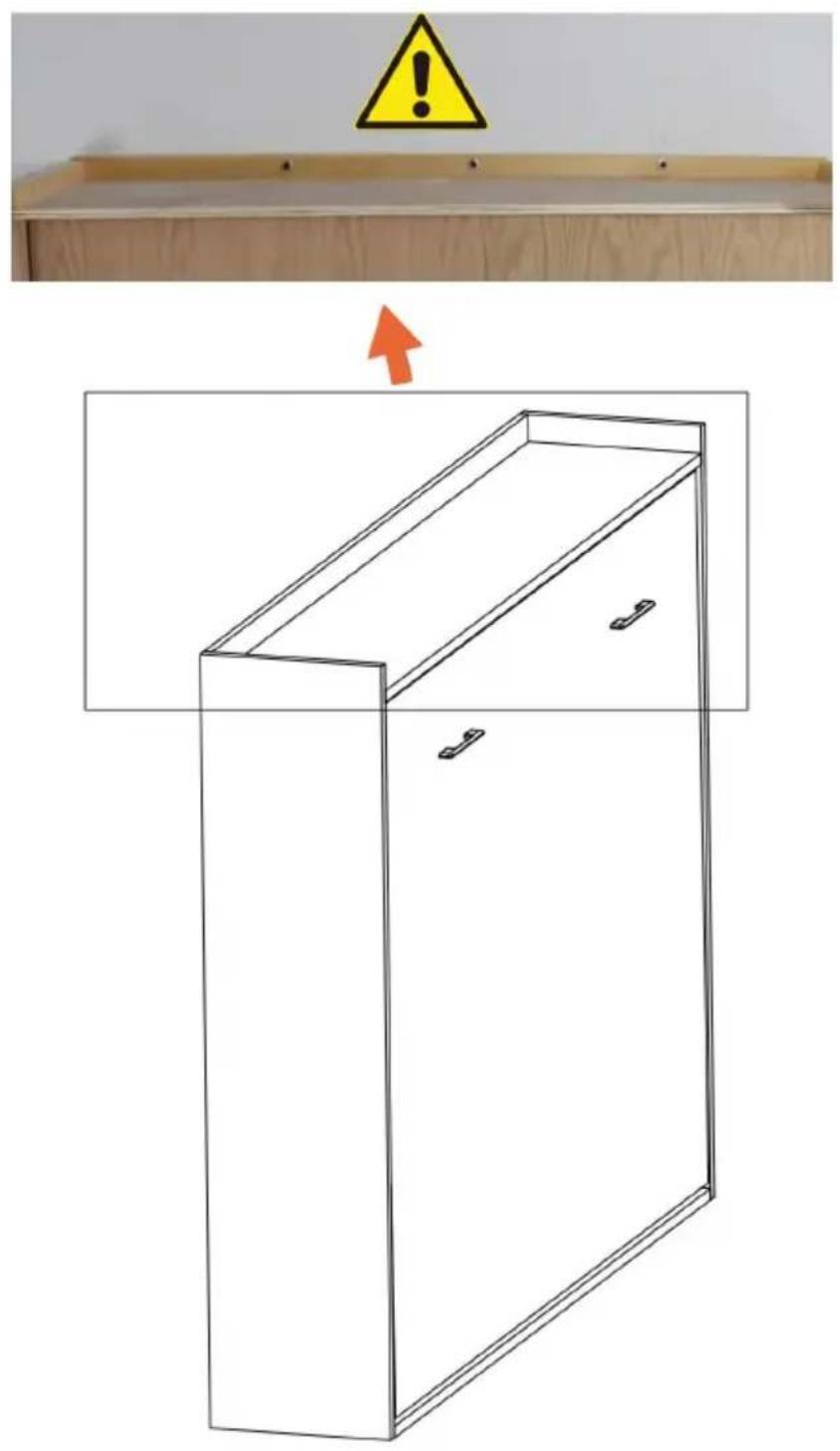

Step 10:

Fix the cabinet to solid wall. The cabinet must be fixed to the wall before open it.

Diagram showing a wooden cabinet with warning sign and an arrow pointing to it, alongside a safety warning symbol.

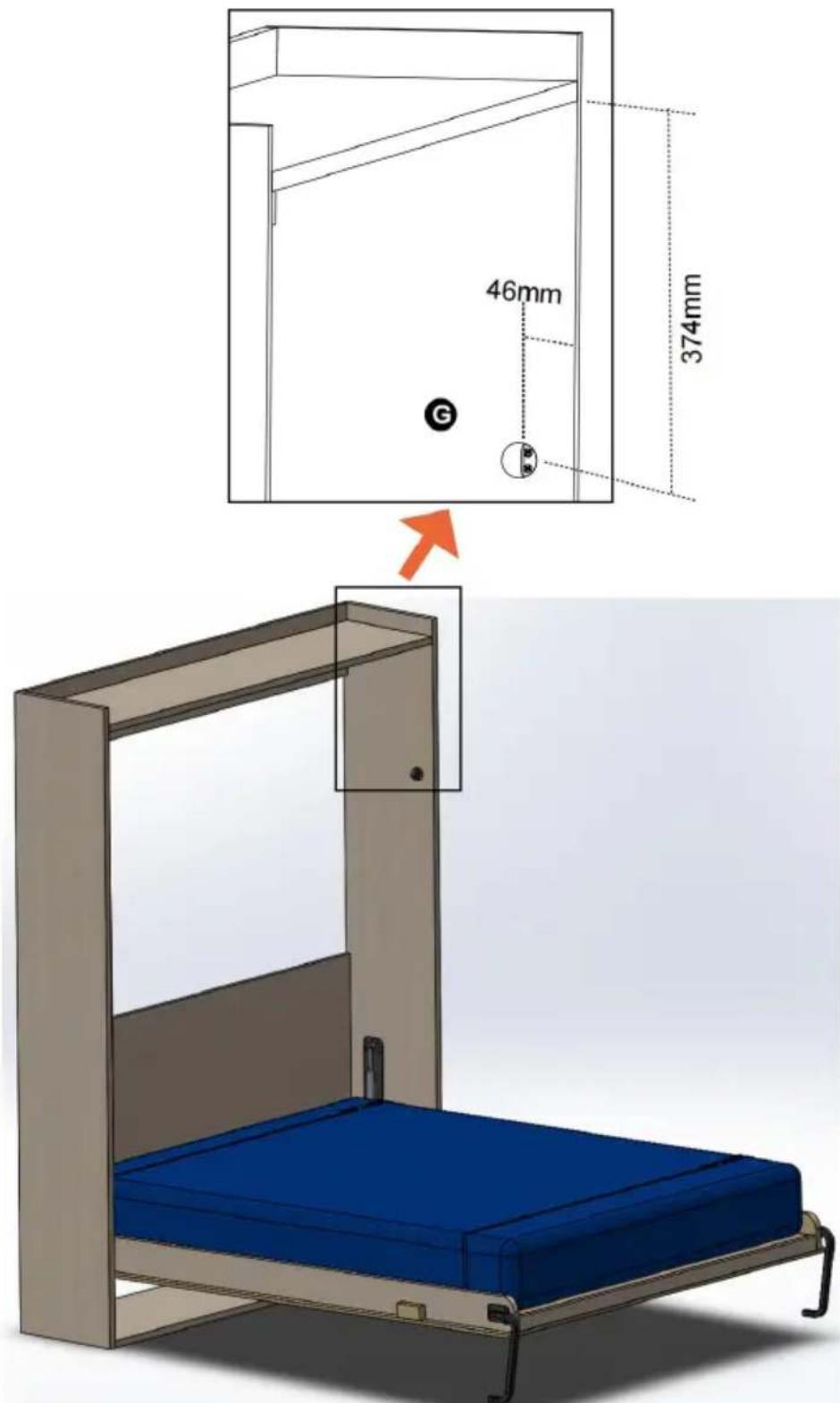

Step 11:

Open the bed, put the panel 13 on the bed frame.

Put the mattress on the bed frame and fix by the straps E.

Install the stopper G to cabinet with screws J.

Repeat the above installation on the other side.

46mm 374mm

Manufacturer: Shanghaimuxinmuyeyouxiangongsi

Address: Shuangchenglu 803nong11hao1602A-1609shi, baoshanqu, shanghai 200000 CN.

Imported to AUS: SIHAO PTY LTD. 1 ROKEVA STREETEASTWOOD NSW 2122 Australia

Imported to USA: Sanven Technology Ltd. Suite 250, 9166 Anaheim Place, Rancho Cucamonga, CA 91730

UK

REP

YH CONSULTING LIMITED. C/O YH Consultin Limited Office 147, Centurion House, London Road, Staines-upon-Thames, Surrey, TW18 4A>

EC
