USER MANUAL WFH-1240 Vevor

Affordable. Reliable. Home Improvement.

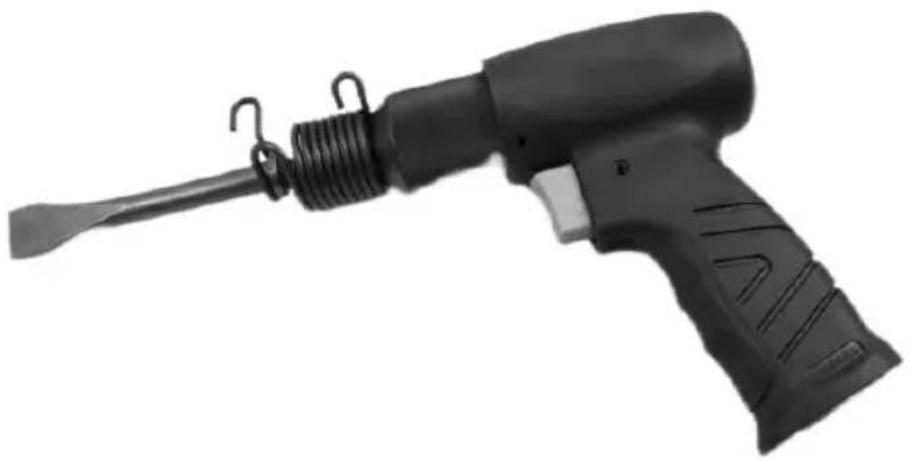

Air Hammer

Model: WFH-1240

Model: WFH-1240

Black industrial soldering iron with coiled spring and handle (no text or symbols visible)

This is the original instruction, please read all manual instructions care before operating. VEVOR reserves a clear interpretation of our user manual. The appearance of the product shall be subject to the product received. Please forgive us that we won't inform you again if there are technology or software updates on our product.

	Warning-To reduce the risk of injury, user must read instructions manual carefully.
	Warning-marking concerning risk of Eye Injury
	Warning-marking concerning Risk of Hearing Loss
	Never use oxygen or other bottled gasses

First Time Usage

1. Preparing a tool for first time operation

Please read and adhere to these Operating Instructions before using the tool. Fundamental safety precautions must always be rigorously observed to prevent damage to the equipment and to ensure the personal safety of the user as others working in the vicinity of the operation.

2. Connection to the compressed air system

Ensure that the pressure provided by the compressed air system does not set the maximum permissible pressure of the fastener driving tool. Initially, set the pressure to the lower end of the recommended allowable pressure range (ref: TECHNICAL DATA).

HOW TO GET STARTED

Step 1. Choose the suitable shovel and position it within the machine.

Close-up of a finger pressing a black cylindrical object with threaded end (no text or symbols visible)

Step 2. Those who follow the trend should tighten the shock-absorbing spring enter the innermost part of the Machine.

Close-up of a hand holding a black wire spring with a coiled spring (no text or symbols visible)

Step 3. Determine the required installation of the air connector, Install the air connector and oil injector

Close-up of a gloved hand holding a small mechanical component, possibly a tool or device (no visible text or symbols)

NA

EU

AUS

NOTE: The product boasts three distinct types of air connectors, specifically designed to accommodate European, American, and Australian styles. Additiona the necessity of an oil injector can be ascertained based on the actual usage scenario.

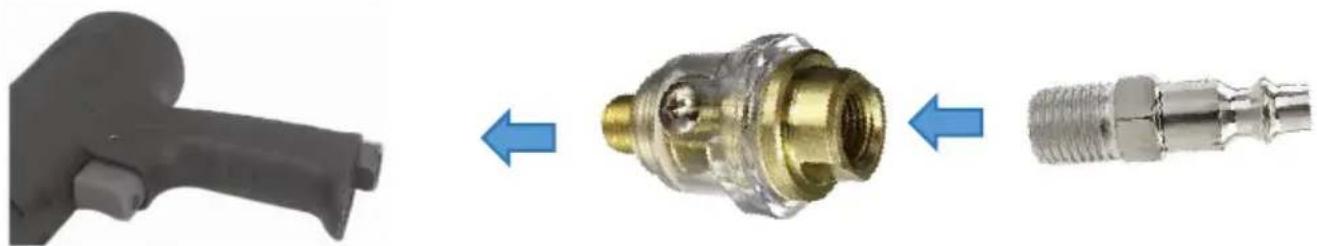

\* Oil Injector Installation

Three types of automotive air purifiers shown in different orientations: a gray spray gun, a brass valve with internal components, and a metallic connector (no text or symbols visible)

As shown in the figure, install the oil injector and the air connector in sequence

\* For use with an oil injector

Two-step illustration showing hands using a screwdriver to apply liquid into a light bulb (no text or symbols present)

1. Loosen the screws of the oil injected

2. Add lubricating oil

NOTE: The lubricating oil, accessories, and tools specified in the operation instructions, excluding those items listed in the accessories list, must be proc by the customer independently.

NOTE: The illustrated product serves solely for installation guidance purposes. The actual product may vary and is subject to the specifications of the purchase item.

Maintenance and Cleaning

1. Disconnect the tool from the compressor prior to making any adjustments, clearing jams, performing servicing and maintenance, relocating, and during periods of non-operation.
2. Regular lubrication is essential. If your tool is not equipped with an in-line automatic oiler, add 2 or 6 drops of pneumatic tool oil into the air inlet before workday or after 2 hours of continuous use, depending on the characteristics of workpiece or the type of fasteners being used.
3. Air-operated tools must be inspected regularly, and any worn or broken pa must be replaced to ensure the tool operates safely and efficiently. Check an replace all damaged O-rings, seals, etc. Tighten all screws and caps to prevent personal injury. This maintenance should be performed by a qualified expert..
4. Make regular inspection for free movement of trigger, spring and Air nozzl assure safe system is complete and functional: no loose and missing parts, r building or stocking parts.
5. Keep magazine and nose of tool clean and free of any dirt lint or abras particles.

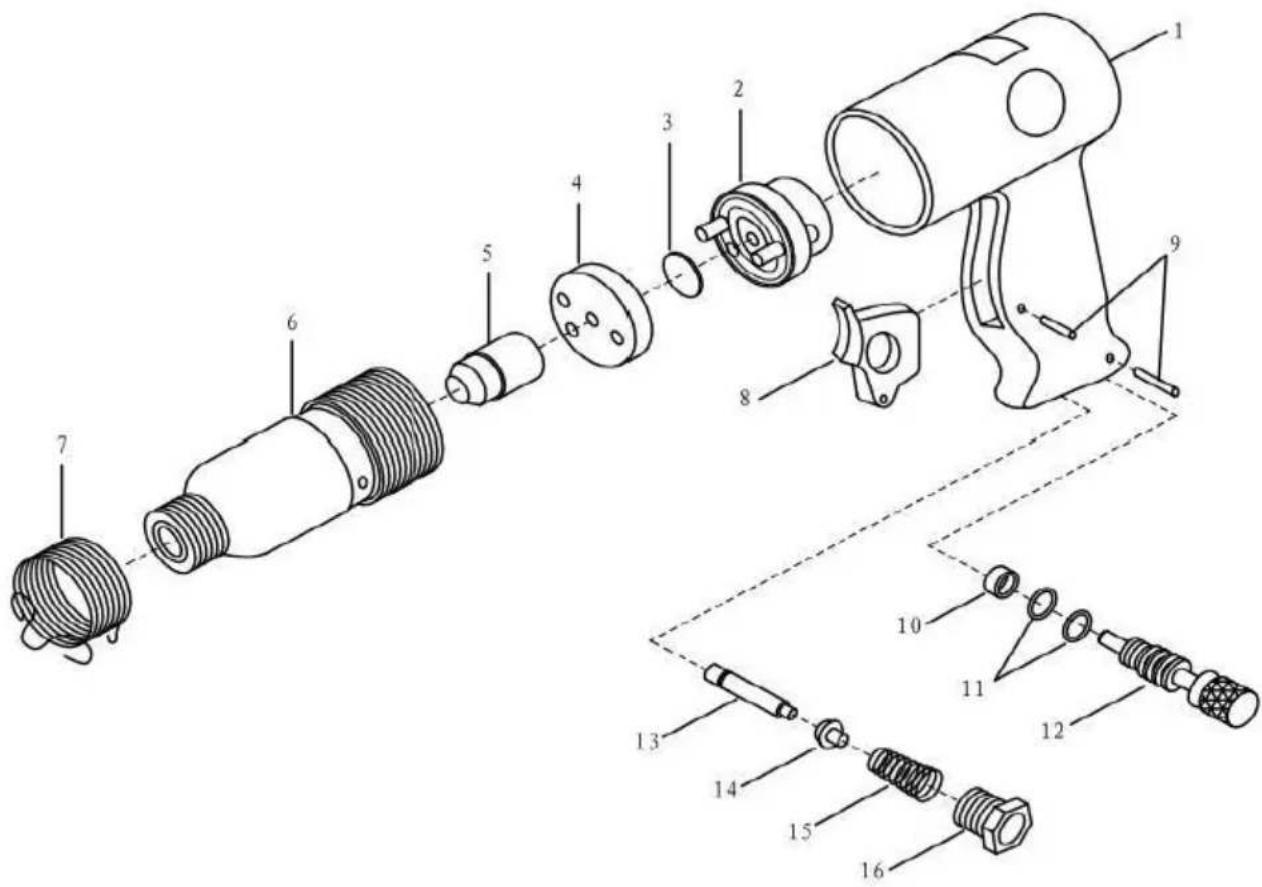

SCHEMATIC&PART LIST

Ref.	Part#	Description	Q'TY
1	WFH-1240-01	Housing	1
2	WFH-1040-02	Sealing Valve	1
3	WFH-1040-03	Valve Plate	1
4	WFH-1040-04	Sealing Valve's Cover	1
5	WFH-1240-02	Piston	1
6	WFH-1240-03	Cylinder	1
7	WFH-1040-07	Spring	1
8	WFH-1040-08	Trigger	1
9	3*16	Straight Pin	1
10	WFH-1040-09	Throttle Valve	2
11	O-RING 8*1.9	O-Ring	1
12	WFH-1040-10	Adjusting Valve Pole	2
13	WFH-1040-11	Pin	1
14	WFH-1040-12	Gas Admittance Valve	1
15	WFH-1040-13	Taper Spring	1
16	WFR-1060-02	Air Inlet Connector	1
17	WFH-1040-14	Jacket	1

Exploded view diagram of a mechanical assembly with numbered parts for identification

PRODUCT PARAMETER

MODEL NO	WFH-1240
Chisel Shank (Round)	0.401inch
Blow Per Minute	2700BPM
Air Inlet.	1/4inch
Air Consumption	90PSI (6.3Bar)
WEIGHT	2.4KG
Functional accessory	1. 170MM scrapers (round heads) * 4PCS2. Air nozzle connectors (US/Europe/Australia) *3PC3. Spring round seat scraper seat *1PCS4. oil injector *1PCS

Manufacturer: Shanghaimuxinmuyeyouxiangongsi

Address: Shuangchenglu 803nong11hao1602A-1609shi, baoshanqu, shanghai 200000 CN.

Imported to AUS: SIHAO PTY LTD. 1 ROKEVA STREETEASTWOOD NSW 2122 Australia

Imported to USA: Sanven Technology Ltd. Suite 250, 9166 Anaheim Place, Rancho Cucamonga, CA 91730

EC

REP

E-CrossStu GmbH

Mainzer Landstr.69, 60329 Frankfurt am Main

UK

REP

YH CONSULTING LIMITED.

C/O YH Consulting Limited Office 147, Centurion House, London Road, Staines-upon-Thames, Surrey TW18 4AX

VEVOR

Affordable. Reliable. Home Improvement.

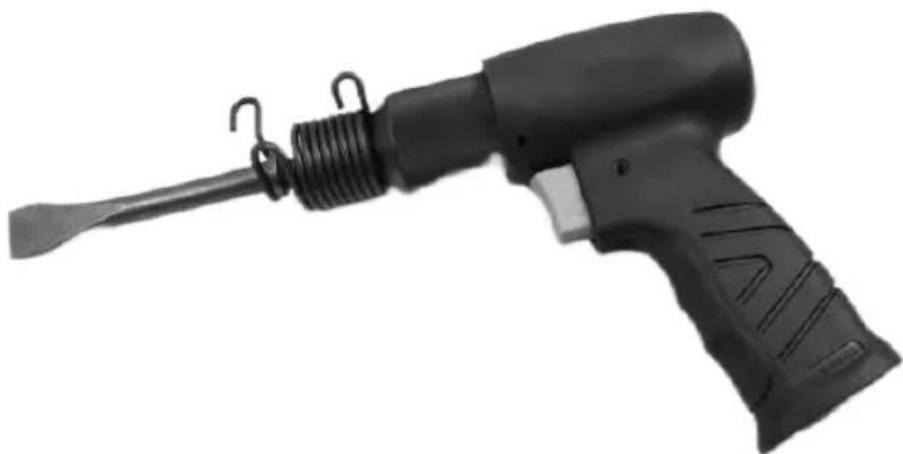

Marteau pneumatique
