USER MANUAL XZO-12D Vevor
Technical Support and E-Warranty Certificate www.vevor.com/support
SAUSAGE STUFFER
MODEL: XZO-12D, XZO-25D
We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represent of savings you might benefit from buying certain tools with us compared top brands and doses not necessarily mean to cover all categories of tools offered are kindly reminded to verify carefully when you are placing an order with us actually saving half in comparison with the top major brands.
VEVOR®
TOUGH TOOLS, HALF PRICE
SAUSAGE STUFFER
MODEL: XZO-12D, XZO-25D


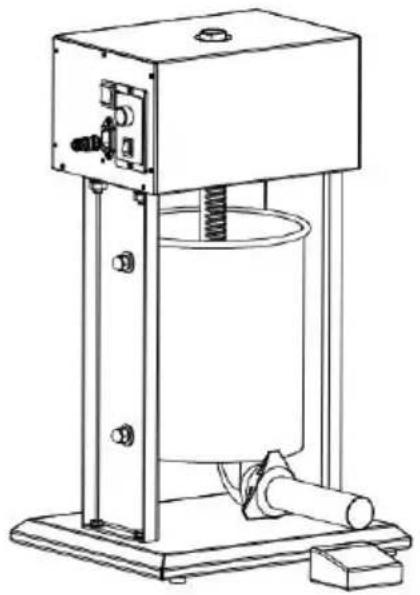

Technical line drawing of a mechanical device with a cylindrical body and mounting base (no text or symbols)NEED HELP? CONTACT US!
Have product questions? Need technical support? Please feel from contact us:
Technical Support and E-Warranty Certificate www.vevor.com/support
This is the original instruction, please read all manual instruction carefully before operating. VEVOR reserves a clear interpretation user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform you there are any technology or software updates on our product.
 | Warning-To reduce the risk of injury, user must read instructions manual carefully. |
 | CORRECT DISPOSALThis product is subject to the provision of European Directive 2012/19/EC. The symbol showing a wheelie bin crossed through indicates that the product requires separate refuse collection in European Union. This applies to the product and all accessor marked with this symbol. Products marked as such may not discarded with normal domestic waste, but must be taken to collection point for recycling electrical and electronic devices |
Important SAFETY INSTRUCTIONS
When using electrical appliances, basic safety precautions should always be followed as below:
- Read all instruction before using this appliance.
- Do not operate this appliance with a damaged cord, plug or malfunctions.
- To protect against electrical shock, do not immerse foot switch, cord, plug or stuffer in water or other liquids.
- This appliance is not intended for using by children.
- Keep fingers and hands clear of all moving parts.
-
Unplug this appliance when not in use or before cleaning.
-
This appliance is for household use only.
-
Never dip machine into any liquid and sharp edges. Do not use appliance with wet hands. If the appliance is humid or wet, unplug it immediately.
-
This appliance can be used by children aged from 8 years and a and persons with reduced physical, sensory or mental capabilities or I of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and unders
the hazards involved. Children shall not play with the appliance. Clear and user maintenance shall not be made by children without supervisi
10. Always disconnect the machine from the supply if it is left unatte and before assembling, disassembling or cleaning.
11. If the supply cord is damaged, it must be replaced by the man of its service agent or a similar qualified person in order to avoid a
12. Keep your finger away from moving parts and fitted tools .Never your fingers etc in hinge mechanism.
13. Use only original spare parts.
14. In order to ensure your children's safety, please keep all packaging (plastic bags, boxes, polystyrene etc.) out of their reach.
15. Do not interfere with any safety switches.
16. Place the machine on a smooth, flat and stable working surface.
17. Wait until moving parts stop running before you remove the lid c machine.
18. Do not exceed the maximum content indicated on the accessories
BEFORE CONNECTING TO POWER
Before connecting to the power, recheck the type of supply and mains voltage match with the details given on the rating label of appliance.
Using for the first time, rip off all wrapping paper and plastic by Clean the fittings.
SAVE THESE INSTRUCTIONS, HOUSEHOLD USE ONLY
FCC Information
CAUTION: Changes or modifications not expressly approved by the pa responsible for compliance could void the user's authority to operate t equipment!
This device complies with Part 15 of the FCC Rules. Operation is such the following two conditions:
1) This product may cause harmful interference.
2) This product must accept any interference received, including interference that may cause undesired operation.
WARNING: Changes or modifications to this product not expressly approved by the party.responsible for compliance could void the user's authority to operate the product.
Note: This product has been tested and found to comply with the lir a Class B digital device pursuant to Part 15 of the FCC Rules, The are designed to provide reasonable protection against harmful interferer in a residential installation.
This product generates, uses and can radiate radio frequency energy, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If product does cause harmful interference to radio or television reception, which can be determined by turning the product off and on, user is encouraged to try to correct the interference by one or more following measures.
- Reorient or relocate the receiving antenna.
- Increase the distance between the product and receiver.
- Connect the product to an outlet on a circuit different from that to the receiver is connected.
- Consult the dealer or an experienced radio/TV technician for assista
PARTS LIST
| Name | QTY | Diagram |
| Stuffing tube 12mm | 1 |  |
| Stuffing tube 15mm | 1 |  |
| Stuffing tube 21mm | 1 |  |
| Stuffing tube 30mm | 1 |  |
| Stuffing tube 37mm | 1 |  |
| Cleaning brush | 1 |  |
| Piston rod | 1 |  |
ASSEMBLY ANDINSTALLATION
- Choose a workbench with a suitable height and make sure you have enough room for operation.
- Assemble the stufing tube. Four sizes of stuffing tubes have been provided with the unit (Diametersare 15mm, 21mm, 30mm and 37mm). Choose an appropriate tube and carefully insert it into the fixedcollar, slowly tighten it onto the barrel, press down on the packing tube, an sure it has beenstuck and locked.
OPERATION
- Place the pedal in a dry position.2.Switch ON the power supply, a set the on-off switch (red) to ON.3. Turn the REVERSE switch (black UP and let the piston move to the top4. Tilt the cylinder and place into the cylinder.
- Place the cylinder back on the frame.
- Turn the REVERSE switch(black)to DOWN and push the lower side of the footpad. The piston will start to drop.7. If the piston drops too fast, slow, use the speed controller (knob) on the side of the electric box 1 adjust to the appropriate speed.
- When filling the housing, remove the foot from the pad and the p stop9. When the piston moves down to the bottom of the cylinder, the device will stopautomatically. Then turn the REVERSE switch (black) to lift the piston to the top.10. Repeat the process from 4 if necessary


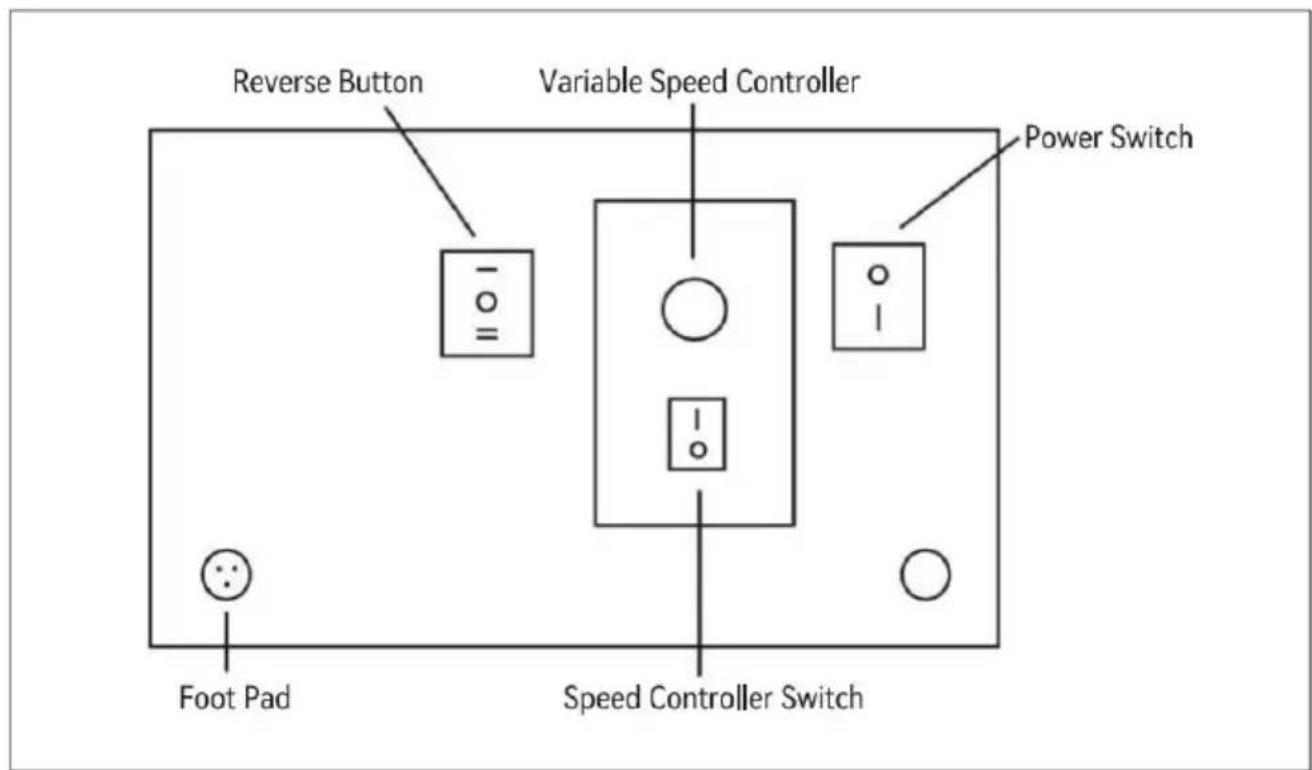

Reverse Button Variable Speed Controller Power Switch Foot Pad Speed Controller Switch


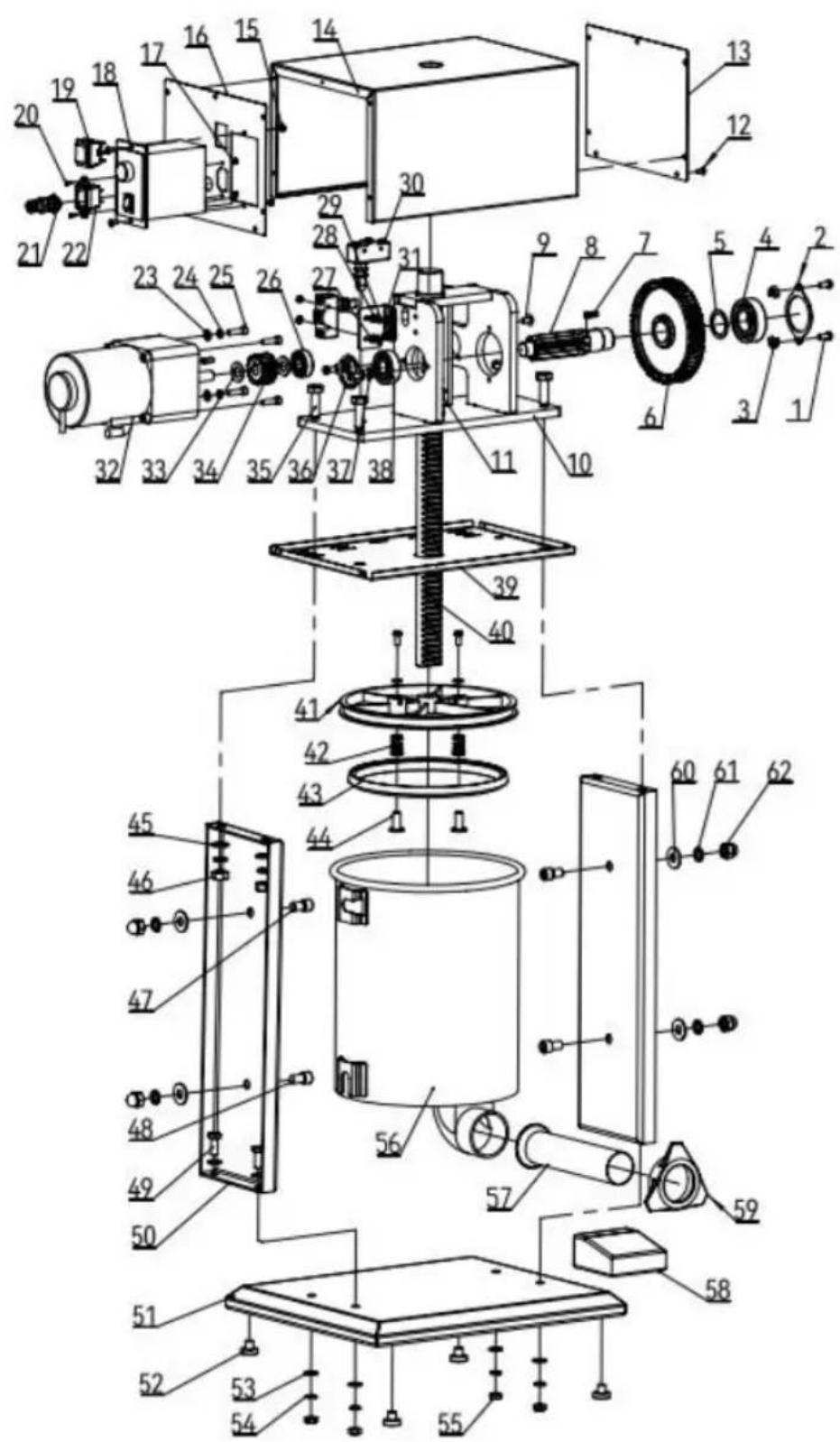

Exploded view diagram of a mechanical assembly with numbered components for identificationPARTS LIST
| No. | Name | QTY | No. | Name | QTY |
| 1 | Screw M6x12t | 7 | 31 | Fixed Base | 1 |
| 2 | Bearing Retainer 1 | 1 | 32 | Motor | 1 Set |
| 3 | Bearing Gasket 1 | 2 | 33 | Closing Ring 2 | 2 |
| 4 | Bearing 6205 | 1 | 34 | Bearing 6205 | 1 |
| 5 | Closing Ring 1 | 1 | 35 | Screw M10x30 | 4 |
| 6 | Gear Wheel | 1 | 36 | Bearing Retainer 2 | 1 |
| 7 | Flat Key 5x18 | 2 | 37 | Bearing Gasket 2 | 2 |
| 8 | Rack Wheel Shaft | 1 | 38 | Bearing 6203 | 1 |
| 9 | Screw M6x10 | 4 | 39 | Middle Fixed Plate | 1 |
| 10 | Pinion Stand | 1 | 40 | Gear Rack | 1 |
| 11 | Flanged Brass Bushing | 1 | 41 | Piston | 1 |
| 12 | Screw M4x8 | 23 | 42 | Exhaust Pin Spring | 1 |
| 13 | Back Plate | 1 | 43 | Sealing Washer | 1 |
| 14 | Cover | 1 | 44 | Exhaust Valves | 1 |
| 15 | Nut M4 | 5 | 45 | Flat Washer φ10 | 4 |
| 16 | Lateral Plate1 | 1 | 46 | Nut φ10 | 4 |
| 17 | Nut M3 | 2 | 47 | Slot Screw M10x16 | 2 |
| 18 | Speed Governor | 1 | 48 | Screw M10x16 | 2 |
| 19 | Rocker Switch | 1 | 49 | Screw M8x20 | 4 |
| 20 | Screw M3x8 | 2 | 50 | Lateral Plate2 | 2 |
| 21 | Aviation Plug | 1 | 51 | Pedestal | 1 |
| 22 | Socket | 1 | 52 | Sucker | 4 |
| 23 | Flat Washer φ6 | 5 | 53 | Flat Washer φ8 | 8 |
| 24 | Spring Washer φ6 | 4 | 54 | Spring Washer φ8 | 4 |
| 25 | Screw M6x20 | 1 | 55 | Nut M8 | 4 |
| 26 | Bearing 6201 | 1 | 56 | Charging Basket | 1 |
| 27 | Flat Washer φ4 | 3 | 57 | Packed Pipe | 1 Set |
| 28 | Spring Washer φ4 | 3 | 58 | Foot Switch | 1 |
| 29 | Screw M4x30 | 2 | 59 | Trilobal Cap | 1 |
| 30 | Limit Switch | 2 | 60 | Flat Washer φ10 | 4 |
| 61 | Spring Washer φ10 | 8 | 62 | Cap Nut M10 | 4 |

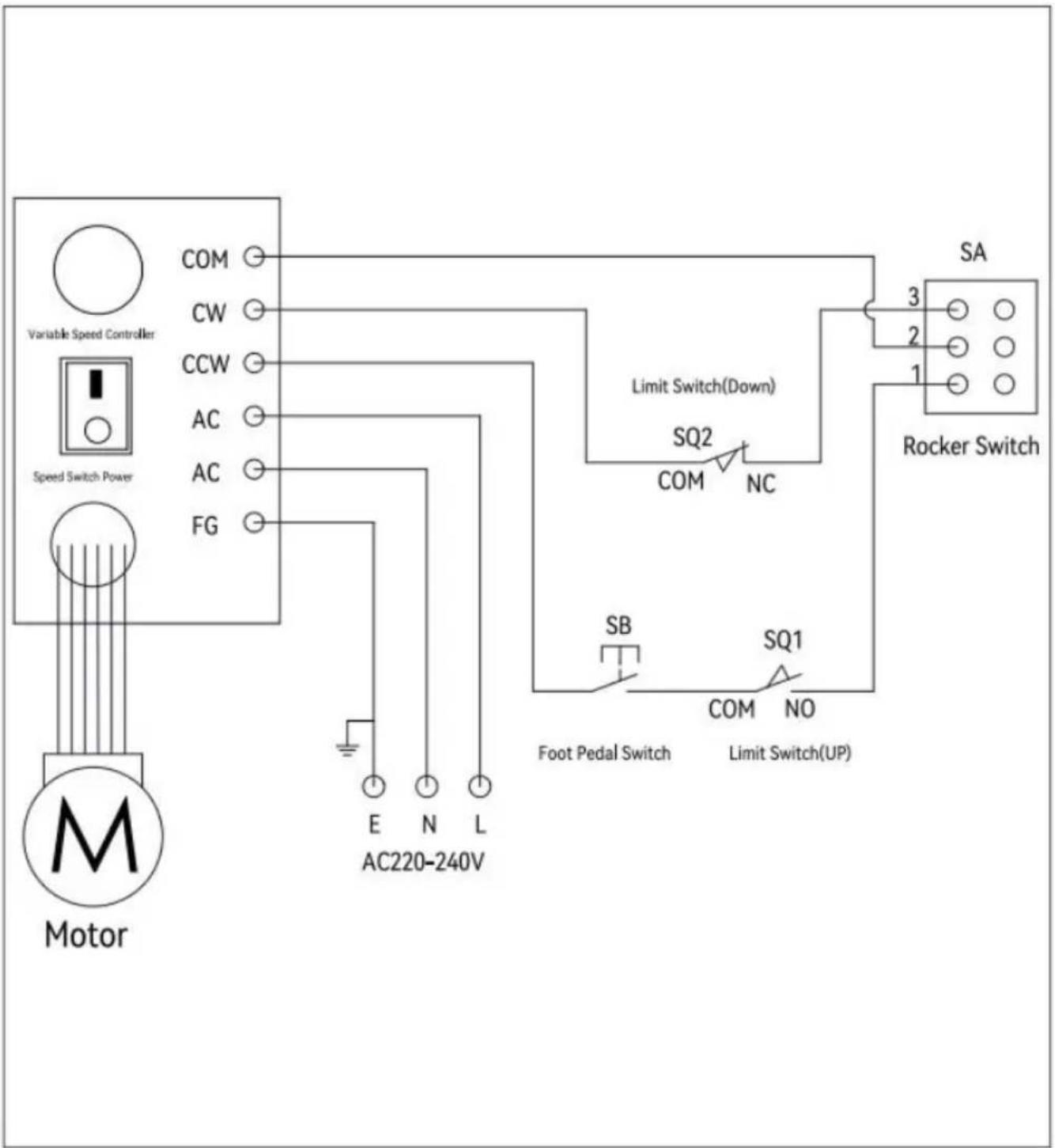

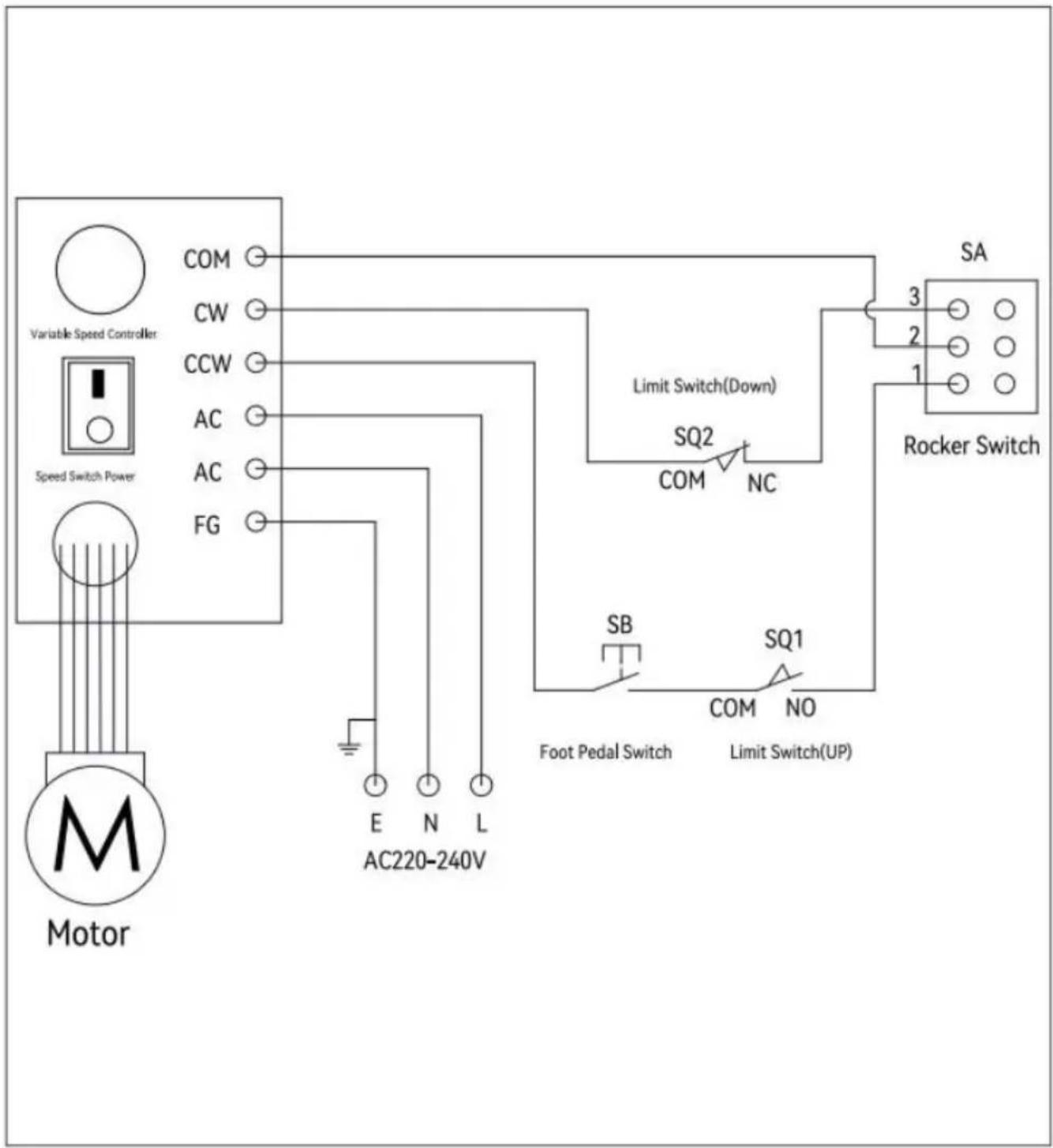

SCHEMATIC CIRCUIT DIAGRAM
- Please unplug the power supply before cleaning.
- Remove and clean all parts that come in contact with the sausage.
- Wipe non-removable parts with a cloth to remove bacteria.
- Lubricate moving parts and gears to extend product life.
- Do not use corrosive or abrasive detergents for cleaning.
- Store the machine in a dry, clean and secure place.
Manufacturer: Shanghaimuxinmuyeyouxiangongsi
Address: Shuangchenglu 803nong11hao1602A-1609shi, baoshanqu, shanghai 200000 CN.
Imported to AUS: SIHAO PTY LTD. 1 ROKEVA STREETEASTWOOD NSW 2122 Australia
Imported to USA: Sanven Technology Ltd. Suite 250, 9166 Anaheim Place, Rancho Cucamonga, CA 91730
YH CONSULTING LIMITED. C/O YH Consulting Limited Office 147, Centurion House, London Road, Staines-upon-Thames, Surrey, TW18 4AX
VEVOR®
TOUGH TOOLS, HALF PRICE
Technical Support and E-Warranty Certificate www.vevor.com/support
VEVOR®
TOUGH TOOLS, HALF PRICE
We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represent of savings you might benefit from buying certain tools with us compared top brands and doses not necessarily mean to cover all categories of tools offered are kindly reminded to verify carefully when you are placing an order with us actually saving half in comparison with the top major brands.
VEVOR®
TOUGH TOOLS, HALF PRICE
SAUSAGE STUFFER
MODELE: XZO-12D, XZO-25D
Have product questions? Need technical support? Please feel from contact us:
Technical Support and E-Warranty Certificate www.vevor.com/support
This is the original instruction, please read all manual instruction carefully before operating. VEVOR reserves a clear interpretation user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform you there are any technology or software updates on our product.
Important SAFETY INSTRUCTIONS
ASSEMBLY ANDINSTALLATION
| No. | Name | QTY | No. | Name | QTY |
| 1 | Screw M6x12t | 7 | 31 | Fixed Base | 1 |
| 2 | Bearing Retainer 1 | 1 | 32 | Motor | 1 Set |
| 3 | Bearing Gasket 1 | 2 | 33 | Closing Ring 2 | 2 |
| 4 | Bearing 6205 | 1 | 34 | Bearing 6205 | 1 |
| 5 | Closing Ring 1 | 1 | 35 | Screw M10x30 | 4 |
| 6 | Gear Wheel | 1 | 36 | Bearing Retainer 2 | 1 |
| 7 | Flat Key 5x18 | 2 | 37 | Bearing Gasket 2 | 2 |
| 8 | Rack Wheel Shaft | 1 | 38 | Bearing 6203 | 1 |
| 9 | Screw M6x10 | 4 | 39 | Middle Fixed Plate | 1 |
| 10 | Pinion Stand | 1 | 40 | Gear Rack | 1 |
| 11 | Flanged Brass Bushing | 1 | 41 | Piston | 1 |
| 12 | Screw M4x8 | 23 | 42 | Exhaust Pin Spring | 1 |
| 13 | Back Plate | 1 | 43 | Sealing Washer | 1 |
| 14 | Cover | 1 | 44 | Exhaust Valves | 1 |
| 15 | Nut M4 | 5 | 45 | Flat Washer φ10 | 4 |
| 16 | Lateral Plate1 | 1 | 46 | Nut φ10 | 4 |
| 17 | Nut M3 | 2 | 47 | Slot Screw M10x16 | 2 |
| 18 | Speed Governor | 1 | 48 | Screw M10x16 | 2 |
| 19 | Rocker Switch | 1 | 49 | Screw M8x20 | 4 |
| 20 | Screw M3x8 | 2 | 50 | Lateral Plate2 | 2 |
| 21 | Aviation Plug | 1 | 51 | Pedestal | 1 |
| 22 | Socket | 1 | 52 | Sucker | 4 |
| 23 | Flat Washer φ6 | 5 | 53 | Flat Washer φ8 | 8 |
| 24 | Spring Washer φ6 | 4 | 54 | Spring Washer φ8 | 4 |
| 25 | Screw M6x20 | 1 | 55 | Nut M8 | 4 |
| 26 | Bearing 6201 | 1 | 56 | Charging Basket | 1 |
| 27 | Flat Washer φ4 | 3 | 57 | Packed Pipe | 1 Set |
| 28 | Spring Washer φ4 | 3 | 58 | Foot Switch | 1 |
| 29 | Screw M4x30 | 2 | 59 | Trilobal Cap | 1 |
| 30 | Limit Switch | 2 | 60 | Flat Washer φ10 | 4 |
| 61 | Spring Washer φ10 | 8 | 62 | Cap Nut M10 | 4 |
SCHEMATIC CIRCUIT DIAGRAM
YH CONSULTING LIMITED. C/O YH Consulting Limited Office 147, Centurion House, London Road, Staines-upon-Thames, Surrey, TW18 4AX
VEVOR®
TOUGH TOOLS, HALF PRICE
We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represent of savings you might benefit from buying certain tools with us compared top brands and doses not necessarily mean to cover all categories of tools offered are kindly reminded to verify carefully when you are placing an order with us actually saving half in comparison with the top major brands.
VEVOR®
TOUGH TOOLS, HALF PRICE
SAUSAGE STUFFER
MODELL: XZO-12D, XZO-25D
Have product questions? Need technical support? Please feel fr contact us:
Technical Support and E-Warranty Certificate www.vevor.com/support
This is the original instruction, please read all manual instruction carefully before operating. VEVOR reserves a clear interpretation user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform you there are any technology or software updates on our product.
Important SAFETY INSTRUCTIONS
ASSEMBLY ANDINSTALLATION
| No. | Name | QTY | No. | Name | QTY |
| 1 | Screw M6x12t | 7 | 31 | Fixed Base | 1 |
| 2 | Bearing Retainer 1 | 1 | 32 | Motor | 1 Set |
| 3 | Bearing Gasket 1 | 2 | 33 | Closing Ring 2 | 2 |
| 4 | Bearing 6205 | 1 | 34 | Bearing 6205 | 1 |
| 5 | Closing Ring 1 | 1 | 35 | Screw M10x30 | 4 |
| 6 | Gear Wheel | 1 | 36 | Bearing Retainer 2 | 1 |
| 7 | Flat Key 5x18 | 2 | 37 | Bearing Gasket 2 | 2 |
| 8 | Rack Wheel Shaft | 1 | 38 | Bearing 6203 | 1 |
| 9 | Screw M6x10 | 4 | 39 | Middle Fixed Plate | 1 |
| 10 | Pinion Stand | 1 | 40 | Gear Rack | 1 |
| 11 | Flanged Brass Bushing | 1 | 41 | Piston | 1 |
| 12 | Screw M4x8 | 23 | 42 | Exhaust Pin Spring | 1 |
| 13 | Back Plate | 1 | 43 | Sealing Washer | 1 |
| 14 | Cover | 1 | 44 | Exhaust Valves | 1 |
| 15 | Nut M4 | 5 | 45 | Flat Washer φ10 | 4 |
| 16 | Lateral Plate1 | 1 | 46 | Nut φ10 | 4 |
| 17 | Nut M3 | 2 | 47 | Slot Screw M10x16 | 2 |
| 18 | Speed Governor | 1 | 48 | Screw M10x16 | 2 |
| 19 | Rocker Switch | 1 | 49 | Screw M8x20 | 4 |
| 20 | Screw M3x8 | 2 | 50 | Lateral Plate2 | 2 |
| 21 | Aviation Plug | 1 | 51 | Pedestal | 1 |
| 22 | Socket | 1 | 52 | Sucker | 4 |
| 23 | Flat Washer φ6 | 5 | 53 | Flat Washer φ8 | 8 |
| 24 | Spring Washer φ6 | 4 | 54 | Spring Washer φ8 | 4 |
| 25 | Screw M6x20 | 1 | 55 | Nut M8 | 4 |
| 26 | Bearing 6201 | 1 | 56 | Charging Basket | 1 |
| 27 | Flat Washer φ4 | 3 | 57 | Packed Pipe | 1 Set |
| 28 | Spring Washer φ4 | 3 | 58 | Foot Switch | 1 |
| 29 | Screw M4x30 | 2 | 59 | Trilobal Cap | 1 |
| 30 | Limit Switch | 2 | 60 | Flat Washer φ10 | 4 |
| 61 | Spring Washer φ10 | 8 | 62 | Cap Nut M10 | 4 |
SCHEMATIC CIRCUIT DIAGRAM
YH CONSULTING LIMITED. C/O YH Consulting Limited Office 147, Centurion House, London Road, Staines-upon-Thames, Surrey, TW18 4AX
VEVOR®
TOUGH TOOLS, HALF PRICE
www.vevor.com/support
VEVOR®
TOUGH TOOLS, HALF PRICE
We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represent of savings you might benefit from buying certain tools with us compared top brands and doses not necessarily mean to cover all categories of tools offered are kindly reminded to verify carefully when you are placing an order with us actually saving half in comparison with the top major brands.
VEVOR®
TOUGH TOOLS, HALF PRICE
SAUSAGE STUFFER
MODELLO: XZO-12D, XZO-25D
Have product questions? Need technical support? Please feel from contact us:
Technical Support and E-Warranty Certificate www.vevor.com/support
This is the original instruction, please read all manual instruction carefully before operating. VEVOR reserves a clear interpretation user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform you there are any technology or software updates on our product.
Important SAFETY INSTRUCTIONS
ASSEMBLY ANDINSTALLATION
| No. | Name | QTY | No. | Name | QTY |
| 1 | Screw M6x12t | 7 | 31 | Fixed Base | 1 |
| 2 | Bearing Retainer 1 | 1 | 32 | Motor | 1 Set |
| 3 | Bearing Gasket 1 | 2 | 33 | Closing Ring 2 | 2 |
| 4 | Bearing 6205 | 1 | 34 | Bearing 6205 | 1 |
| 5 | Closing Ring 1 | 1 | 35 | Screw M10x30 | 4 |
| 6 | Gear Wheel | 1 | 36 | Bearing Retainer 2 | 1 |
| 7 | Flat Key 5x18 | 2 | 37 | Bearing Gasket 2 | 2 |
| 8 | Rack Wheel Shaft | 1 | 38 | Bearing 6203 | 1 |
| 9 | Screw M6x10 | 4 | 39 | Middle Fixed Plate | 1 |
| 10 | Pinion Stand | 1 | 40 | Gear Rack | 1 |
| 11 | Flanged Brass Bushing | 1 | 41 | Piston | 1 |
| 12 | Screw M4x8 | 23 | 42 | Exhaust Pin Spring | 1 |
| 13 | Back Plate | 1 | 43 | Sealing Washer | 1 |
| 14 | Cover | 1 | 44 | Exhaust Valves | 1 |
| 15 | Nut M4 | 5 | 45 | Flat Washer φ10 | 4 |
| 16 | Lateral Plate1 | 1 | 46 | Nut φ10 | 4 |
| 17 | Nut M3 | 2 | 47 | Slot Screw M10x16 | 2 |
| 18 | Speed Governor | 1 | 48 | Screw M10x16 | 2 |
| 19 | Rocker Switch | 1 | 49 | Screw M8x20 | 4 |
| 20 | Screw M3x8 | 2 | 50 | Lateral Plate2 | 2 |
| 21 | Aviation Plug | 1 | 51 | Pedestal | 1 |
| 22 | Socket | 1 | 52 | Sucker | 4 |
| 23 | Flat Washer φ6 | 5 | 53 | Flat Washer φ8 | 8 |
| 24 | Spring Washer φ6 | 4 | 54 | Spring Washer φ8 | 4 |
| 25 | Screw M6x20 | 1 | 55 | Nut M8 | 4 |
| 26 | Bearing 6201 | 1 | 56 | Charging Basket | 1 |
| 27 | Flat Washer φ4 | 3 | 57 | Packed Pipe | 1 Set |
| 28 | Spring Washer φ4 | 3 | 58 | Foot Switch | 1 |
| 29 | Screw M4x30 | 2 | 59 | Trilobal Cap | 1 |
| 30 | Limit Switch | 2 | 60 | Flat Washer φ10 | 4 |
| 61 | Spring Washer φ10 | 8 | 62 | Cap Nut M10 | 4 |
SCHEMATIC CIRCUIT DIAGRAM
Importato in AUS: SIHAO PTY LTD. 1 ROKEVA STREETEASTWOOD NSW 2122 Australia
YH CONSULTING LIMITED. C/O YH Consulting Limited Office 147, Centurion House, London Road, Staines-upon-Thames, Surrey, TW18 4AX
VEVOR®
TOUGH TOOLS, HALF PRICE
We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represent of savings you might benefit from buying certain tools with us compared top brands and doses not necessarily mean to cover all categories of tools offered are kindly reminded to verify carefully when you are placing an order with us actually saving half in comparison with the top major brands.
VEVOR®
TOUGH TOOLS, HALF PRICE
SAUSAGE STUFFER
MODÈLE : XZO-12D,XZO-25D
Have product questions? Need technical support? Please feel from contact us:
Technical Support and E-Warranty Certificate www.vevor.com/support
This is the original instruction, please read all manual instruction carefully before operating. VEVOR reserves a clear interpretation user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform you there are any technology or software updates on our product.
Important SAFETY INSTRUCTIONS
ASSEMBLY ANDINSTALLATION
| No. | Name | QTY | No. | Name | QTY |
| 1 | Screw M6x12t | 7 | 31 | Fixed Base | 1 |
| 2 | Bearing Retainer 1 | 1 | 32 | Motor | 1 Set |
| 3 | Bearing Gasket 1 | 2 | 33 | Closing Ring 2 | 2 |
| 4 | Bearing 6205 | 1 | 34 | Bearing 6205 | 1 |
| 5 | Closing Ring 1 | 1 | 35 | Screw M10x30 | 4 |
| 6 | Gear Wheel | 1 | 36 | Bearing Retainer 2 | 1 |
| 7 | Flat Key 5x18 | 2 | 37 | Bearing Gasket 2 | 2 |
| 8 | Rack Wheel Shaft | 1 | 38 | Bearing 6203 | 1 |
| 9 | Screw M6x10 | 4 | 39 | Middle Fixed Plate | 1 |
| 10 | Pinion Stand | 1 | 40 | Gear Rack | 1 |
| 11 | Flanged Brass Bushing | 1 | 41 | Piston | 1 |
| 12 | Screw M4x8 | 23 | 42 | Exhaust Pin Spring | 1 |
| 13 | Back Plate | 1 | 43 | Sealing Washer | 1 |
| 14 | Cover | 1 | 44 | Exhaust Valves | 1 |
| 15 | Nut M4 | 5 | 45 | Flat Washer φ10 | 4 |
| 16 | Lateral Plate1 | 1 | 46 | Nut φ10 | 4 |
| 17 | Nut M3 | 2 | 47 | Slot Screw M10x16 | 2 |
| 18 | Speed Governor | 1 | 48 | Screw M10x16 | 2 |
| 19 | Rocker Switch | 1 | 49 | Screw M8x20 | 4 |
| 20 | Screw M3x8 | 2 | 50 | Lateral Plate2 | 2 |
| 21 | Aviation Plug | 1 | 51 | Pedestal | 1 |
| 22 | Socket | 1 | 52 | Sucker | 4 |
| 23 | Flat Washer φ6 | 5 | 53 | Flat Washer φ8 | 8 |
| 24 | Spring Washer φ6 | 4 | 54 | Spring Washer φ8 | 4 |
| 25 | Screw M6x20 | 1 | 55 | Nut M8 | 4 |
| 26 | Bearing 6201 | 1 | 56 | Charging Basket | 1 |
| 27 | Flat Washer φ4 | 3 | 57 | Packed Pipe | 1 Set |
| 28 | Spring Washer φ4 | 3 | 58 | Foot Switch | 1 |
| 29 | Screw M4x30 | 2 | 59 | Trilobal Cap | 1 |
| 30 | Limit Switch | 2 | 60 | Flat Washer φ10 | 4 |
| 61 | Spring Washer φ10 | 8 | 62 | Cap Nut M10 | 4 |
SCHEMATIC CIRCUIT DIAGRAM
YH CONSULTING LIMITED. C/O YH Consulting Limited Office 147, Centurion House, London Road, Staines-upon-Thames, Surrey, TW18 4AX
VEVOR®
TOUGH TOOLS, HALF PRICE
We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represent of savings you might benefit from buying certain tools with us compared top brands and doses not necessarily mean to cover all categories of tools offered are kindly reminded to verify carefully when you are placing an order with us actually saving half in comparison with the top major brands.
VEVOR®
TOUGH TOOLS, HALF PRICE
SAUSAGE STUFFER
MODEL: XZO-12D, XZO-25D
Have product questions? Need technical support? Please feel from contact us:
Technical Support and E-Warranty Certificate www.vevor.com/support
This is the original instruction, please read all manual instruction carefully before operating. VEVOR reserves a clear interpretation user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform you there are any technology or software updates on our product.
Important SAFETY INSTRUCTIONS
ASSEMBLY ANDINSTALLATION
| No. | Name | QTY | No. | Name | QTY |
| 1 | Screw M6x12t | 7 | 31 | Fixed Base | 1 |
| 2 | Bearing Retainer 1 | 1 | 32 | Motor | 1 Set |
| 3 | Bearing Gasket 1 | 2 | 33 | Closing Ring 2 | 2 |
| 4 | Bearing 6205 | 1 | 34 | Bearing 6205 | 1 |
| 5 | Closing Ring 1 | 1 | 35 | Screw M10x30 | 4 |
| 6 | Gear Wheel | 1 | 36 | Bearing Retainer 2 | 1 |
| 7 | Flat Key 5x18 | 2 | 37 | Bearing Gasket 2 | 2 |
| 8 | Rack Wheel Shaft | 1 | 38 | Bearing 6203 | 1 |
| 9 | Screw M6x10 | 4 | 39 | Middle Fixed Plate | 1 |
| 10 | Pinion Stand | 1 | 40 | Gear Rack | 1 |
| 11 | Flanged Brass Bushing | 1 | 41 | Piston | 1 |
| 12 | Screw M4x8 | 23 | 42 | Exhaust Pin Spring | 1 |
| 13 | Back Plate | 1 | 43 | Sealing Washer | 1 |
| 14 | Cover | 1 | 44 | Exhaust Valves | 1 |
| 15 | Nut M4 | 5 | 45 | Flat Washer φ10 | 4 |
| 16 | Lateral Plate1 | 1 | 46 | Nut φ10 | 4 |
| 17 | Nut M3 | 2 | 47 | Slot Screw M10x16 | 2 |
| 18 | Speed Governor | 1 | 48 | Screw M10x16 | 2 |
| 19 | Rocker Switch | 1 | 49 | Screw M8x20 | 4 |
| 20 | Screw M3x8 | 2 | 50 | Lateral Plate2 | 2 |
| 21 | Aviation Plug | 1 | 51 | Pedestal | 1 |
| 22 | Socket | 1 | 52 | Sucker | 4 |
| 23 | Flat Washer φ6 | 5 | 53 | Flat Washer φ8 | 8 |
| 24 | Spring Washer φ6 | 4 | 54 | Spring Washer φ8 | 4 |
| 25 | Screw M6x20 | 1 | 55 | Nut M8 | 4 |
| 26 | Bearing 6201 | 1 | 56 | Charging Basket | 1 |
| 27 | Flat Washer φ4 | 3 | 57 | Packed Pipe | 1 Set |
| 28 | Spring Washer φ4 | 3 | 58 | Foot Switch | 1 |
| 29 | Screw M4x30 | 2 | 59 | Trilobal Cap | 1 |
| 30 | Limit Switch | 2 | 60 | Flat Washer φ10 | 4 |
| 61 | Spring Washer φ10 | 8 | 62 | Cap Nut M10 | 4 |
SCHEMATIC CIRCUIT DIAGRAM
C/O YH Consulting Limited Office 147, Centurion House,
London Road, Staines-upon-Thames, Surrey, TW18 4AX
VEVOR®
TOUGH TOOLS, HALF PRICE
Technisch Ondersteuning en e-garantiecertificaat www.vevor.com/support
VEVOR®
TOUGH TOOLS, HALF PRICE
We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represent of savings you might benefit from buying certain tools with us compared top brands and doses not necessarily mean to cover all categories of tools offered are kindly reminded to verify carefully when you are placing an order with us actually saving half in comparison with the top major brands.
VEVOR®
TOUGH TOOLS, HALF PRICE
SAUSAGE STUFFER
MODELL: XZO-12D, XZO-25D
Have product questions? Need technical support? Please feel fr contact us:
Technical Support and E-Warranty Certificate www.vevor.com/support
This is the original instruction, please read all manual instruction carefully before operating. VEVOR reserves a clear interpretation user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform you there are any technology or software updates on our product.
Important SAFETY INSTRUCTIONS
ASSEMBLY ANDINSTALLATION
| No. | Name | QTY | No. | Name | QTY |
| 1 | Screw M6x12t | 7 | 31 | Fixed Base | 1 |
| 2 | Bearing Retainer 1 | 1 | 32 | Motor | 1 Set |
| 3 | Bearing Gasket 1 | 2 | 33 | Closing Ring 2 | 2 |
| 4 | Bearing 6205 | 1 | 34 | Bearing 6205 | 1 |
| 5 | Closing Ring 1 | 1 | 35 | Screw M10x30 | 4 |
| 6 | Gear Wheel | 1 | 36 | Bearing Retainer 2 | 1 |
| 7 | Flat Key 5x18 | 2 | 37 | Bearing Gasket 2 | 2 |
| 8 | Rack Wheel Shaft | 1 | 38 | Bearing 6203 | 1 |
| 9 | Screw M6x10 | 4 | 39 | Middle Fixed Plate | 1 |
| 10 | Pinion Stand | 1 | 40 | Gear Rack | 1 |
| 11 | Flanged Brass Bushing | 1 | 41 | Piston | 1 |
| 12 | Screw M4x8 | 23 | 42 | Exhaust Pin Spring | 1 |
| 13 | Back Plate | 1 | 43 | Sealing Washer | 1 |
| 14 | Cover | 1 | 44 | Exhaust Valves | 1 |
| 15 | Nut M4 | 5 | 45 | Flat Washer φ10 | 4 |
| 16 | Lateral Plate1 | 1 | 46 | Nut φ10 | 4 |
| 17 | Nut M3 | 2 | 47 | Slot Screw M10x16 | 2 |
| 18 | Speed Governor | 1 | 48 | Screw M10x16 | 2 |
| 19 | Rocker Switch | 1 | 49 | Screw M8x20 | 4 |
| 20 | Screw M3x8 | 2 | 50 | Lateral Plate2 | 2 |
| 21 | Aviation Plug | 1 | 51 | Pedestal | 1 |
| 22 | Socket | 1 | 52 | Sucker | 4 |
| 23 | Flat Washer φ6 | 5 | 53 | Flat Washer φ8 | 8 |
| 24 | Spring Washer φ6 | 4 | 54 | Spring Washer φ8 | 4 |
| 25 | Screw M6x20 | 1 | 55 | Nut M8 | 4 |
| 26 | Bearing 6201 | 1 | 56 | Charging Basket | 1 |
| 27 | Flat Washer φ4 | 3 | 57 | Packed Pipe | 1 Set |
| 28 | Spring Washer φ4 | 3 | 58 | Foot Switch | 1 |
| 29 | Screw M4x30 | 2 | 59 | Trilobal Cap | 1 |
| 30 | Limit Switch | 2 | 60 | Flat Washer φ10 | 4 |
| 61 | Spring Washer φ10 | 8 | 62 | Cap Nut M10 | 4 |
SCHEMATIC CIRCUIT DIAGRAM
YH CONSULTING LIMITED. C/O YH Consulting Limited Office 147, Centurion House, London Road, Staines-upon-Thames, Surrey, TW18 4AX
VEVOR®
TOUGH TOOLS, HALF PRICE
www.vevor.com/support
VEVOR®
TOUGH TOOLS, HALF PRICE
We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represent of savings you might benefit from buying certain tools with us compared top brands and doses not necessarily mean to cover all categories of tools offered are kindly reminded to verify carefully when you are placing an order with us actually saving half in comparison with the top major brands.
VEVOR®
TOUGH TOOLS, HALF PRICE
SAUSAGE STUFFER
MODELO: XZO-12D, XZO-25D
Have product questions? Need technical support? Please feel from contact us:
Technical Support and E-Warranty Certificate www.vevor.com/support
This is the original instruction, please read all manual instruction carefully before operating. VEVOR reserves a clear interpretation user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform you there are any technology or software updates on our product.
Important SAFETY INSTRUCTIONS
ASSEMBLY ANDINSTALLATION
| No. | Name | QTY | No. | Name | QTY |
| 1 | Screw M6x12t | 7 | 31 | Fixed Base | 1 |
| 2 | Bearing Retainer 1 | 1 | 32 | Motor | 1 Set |
| 3 | Bearing Gasket 1 | 2 | 33 | Closing Ring 2 | 2 |
| 4 | Bearing 6205 | 1 | 34 | Bearing 6205 | 1 |
| 5 | Closing Ring 1 | 1 | 35 | Screw M10x30 | 4 |
| 6 | Gear Wheel | 1 | 36 | Bearing Retainer 2 | 1 |
| 7 | Flat Key 5x18 | 2 | 37 | Bearing Gasket 2 | 2 |
| 8 | Rack Wheel Shaft | 1 | 38 | Bearing 6203 | 1 |
| 9 | Screw M6x10 | 4 | 39 | Middle Fixed Plate | 1 |
| 10 | Pinion Stand | 1 | 40 | Gear Rack | 1 |
| 11 | Flanged Brass Bushing | 1 | 41 | Piston | 1 |
| 12 | Screw M4x8 | 23 | 42 | Exhaust Pin Spring | 1 |
| 13 | Back Plate | 1 | 43 | Sealing Washer | 1 |
| 14 | Cover | 1 | 44 | Exhaust Valves | 1 |
| 15 | Nut M4 | 5 | 45 | Flat Washer φ10 | 4 |
| 16 | Lateral Plate1 | 1 | 46 | Nut φ10 | 4 |
| 17 | Nut M3 | 2 | 47 | Slot Screw M10x16 | 2 |
| 18 | Speed Governor | 1 | 48 | Screw M10x16 | 2 |
| 19 | Rocker Switch | 1 | 49 | Screw M8x20 | 4 |
| 20 | Screw M3x8 | 2 | 50 | Lateral Plate2 | 2 |
| 21 | Aviation Plug | 1 | 51 | Pedestal | 1 |
| 22 | Socket | 1 | 52 | Sucker | 4 |
| 23 | Flat Washer φ6 | 5 | 53 | Flat Washer φ8 | 8 |
| 24 | Spring Washer φ6 | 4 | 54 | Spring Washer φ8 | 4 |
| 25 | Screw M6x20 | 1 | 55 | Nut M8 | 4 |
| 26 | Bearing 6201 | 1 | 56 | Charging Basket | 1 |
| 27 | Flat Washer φ4 | 3 | 57 | Packed Pipe | 1 Set |
| 28 | Spring Washer φ4 | 3 | 58 | Foot Switch | 1 |
| 29 | Screw M4x30 | 2 | 59 | Trilobal Cap | 1 |
| 30 | Limit Switch | 2 | 60 | Flat Washer φ10 | 4 |
| 61 | Spring Washer φ10 | 8 | 62 | Cap Nut M10 | 4 |
SCHEMATIC CIRCUIT DIAGRAM
YH CONSULTING LIMITED. C/O YH Consulting Limited Office 147, Centurion House, London Road, Staines-upon-Thames, Surrey, TW18 4AX
VEVOR®
TOUGH TOOLS, HALF PRICE
