EVS-12L - Food machine Vevor - Free user manual and instructions

Product type	Sausage stuffer (stuffing machine)
Model	EVS-12L
Brand	Vevor
Cylinder capacity	12 liters
Material	Stainless steel (estimated)
Dimensions (approx.)	40 × 25 × 50 cm (estimated)
Weight (approx.)	12 kg (estimated)
Power supply	220-240 V, 50/60 Hz (estimated)
Power	300 W (estimated)
Main functions	Sausage stuffing, automatic descent piston, reverse operation, speed variator
Included accessories	4 filling tubes with diameters 1,6 / 2,2 / 3,2 / 3,8 mm
Maintenance and cleaning	Unplug before cleaning; hand wash parts in contact with food; do not immerse the motor block; lubricate moving parts regularly
Safety	Automatic stop at end of travel; safety switch; do not use with children without supervision; keep fingers away from moving parts
Spare parts and repairability	Use only original spare parts; contact the manufacturer or a qualified service
General information	Domestic use only; CE compliance (Directive 2012/19/EU); keep instructions

Frequently Asked Questions - EVS-12L Vevor

How to assemble the filling tube?

Choose the appropriate tube (available diameters: 1.6 / 2.2 / 3.2 / 3.8 mm). Insert it into the fixed collar, slowly tighten on the barrel, then push the tube until it is securely fixed and locked.

How to start the piston to push the meat?

Turn the reverse switch to UP to raise the piston, then tilt the cylinder and place the meat. Replace the cylinder, turn the switch to DOWN and press the pedal. The piston descends. Use the speed button to adjust the descent.

What to do if the piston descends too fast or too slow?

Use the speed adjustment knob (speed control) to adjust the descent speed. Turn it to slow down or speed up as needed.

How to reverse the direction of the piston?

Use the reverse switch: turn it to UP to raise the piston, to DOWN to lower it. This allows unloading or repositioning the piston.

Does the appliance stop automatically at the end of travel?

Yes, when the piston reaches the bottom of the cylinder, the appliance stops automatically. You must then turn the switch to UP to raise the piston.

How to clean the machine after use?

First unplug the appliance. Remove and hand wash all parts in contact with meat. Wipe non-removable parts with a damp cloth. Never immerse the motor in water. Lubricate moving parts and gears after cleaning.

Can I use abrasive detergent to clean?

No, do not use corrosive or abrasive detergents. Use warm water with a little mild soap, then rinse and dry thoroughly.

What are the important safety precautions?

Keep fingers and hands away from moving parts. Never immerse the cord or plug in water. Always unplug before cleaning or when not in use. Children should not use the appliance without supervision.

Where can I find spare parts?

Use only original Vevor spare parts. Contact the manufacturer or an authorized after-sales service for suitable parts.

What to do if the power cord is damaged?

The damaged power cord must be replaced by the manufacturer, its after-sales service, or a qualified person to avoid any danger. Do not attempt to repair it yourself.

USER MANUAL EVS-12L Vevor

SAUSAGE STUFFER

Model: EVS-10L, EVS-12L, EVS-15L

Model: EVS-10L, EVS-12L, EVS-15L

This is the original instruction. Please read all manual instructions carefully before operating. VEVOR reserves a clear interpretation of the user manual. The appearance of the product shall be subject to the product you received. Please forgive us that we won't inform you if there are any technology or software updates on our product.

Warning-To reduce the risk of injury, user must read in manual carefully.

CORRECT DISPOSALThis product is subject to the provision of European D 2012/19/EC. The symbol showing a wheelie bin cross through indicates that the product requires separate re collection in the European Union. This applies to the and all accessories marked with this symbol. Products as such may not be discarded with normal domestic w must be taken to a collection point for recycling electr electronic devices

Important SAFETY INSTRUCTIONS

When using electrical appliances, basic safety precautions should always be followed as below:

1. Read all instructions before using this appliance.
2. Do not operate this appliance with a damaged cord, plug, or malfunction.
3. To protect against electrical shock, do not immerse foot switch, cord, plug, or stuffer in water or other liquids.
4. This appliance is not intended for use by children.
5. Keep fingers and hands clear of all moving parts.
6. Unplug this appliance when not in use or before cleaning.
7. This appliance is for household use only.
8. Never dip the machine into any liquid or touch sharp edges. Do not use the appliance with wet hands. If the appliance is humid or wet, unplug it immediately.
9. This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.
10. Always disconnect the machine from the supply if it is left unattended and before assembling, disassembling or cleaning.
11. If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or a similarly qualified person in order to avoid a hazard.
12. Keep your fingers away from moving parts and fitted tools. Never put your fingers etc. in the hinge mechanism.
13. Use only original spare parts.
14. In order to ensure your children's safety, please keep all packaging (plastic bags, boxes, polystyrene etc.) out of their reach.
15. Do not interfere with any safety switches.
16. Place the machine on a smooth, flat and stable working surface.
17. Wait until moving parts stop running before you remove the lid of the machine.
18. Do not exceed the maximum content indicated on the accessories.

BEFORE CONNECTING TO POWER

Before connecting to the power, recheck that the type of supply and mains voltage match the details given on the rating label of the appliance.

When using for the first time, rip off all wrapping paper and plastic, and clean the fittings.

SAVE THESE INSTRUCTIONS, HOUSEHOLD USE ONLY

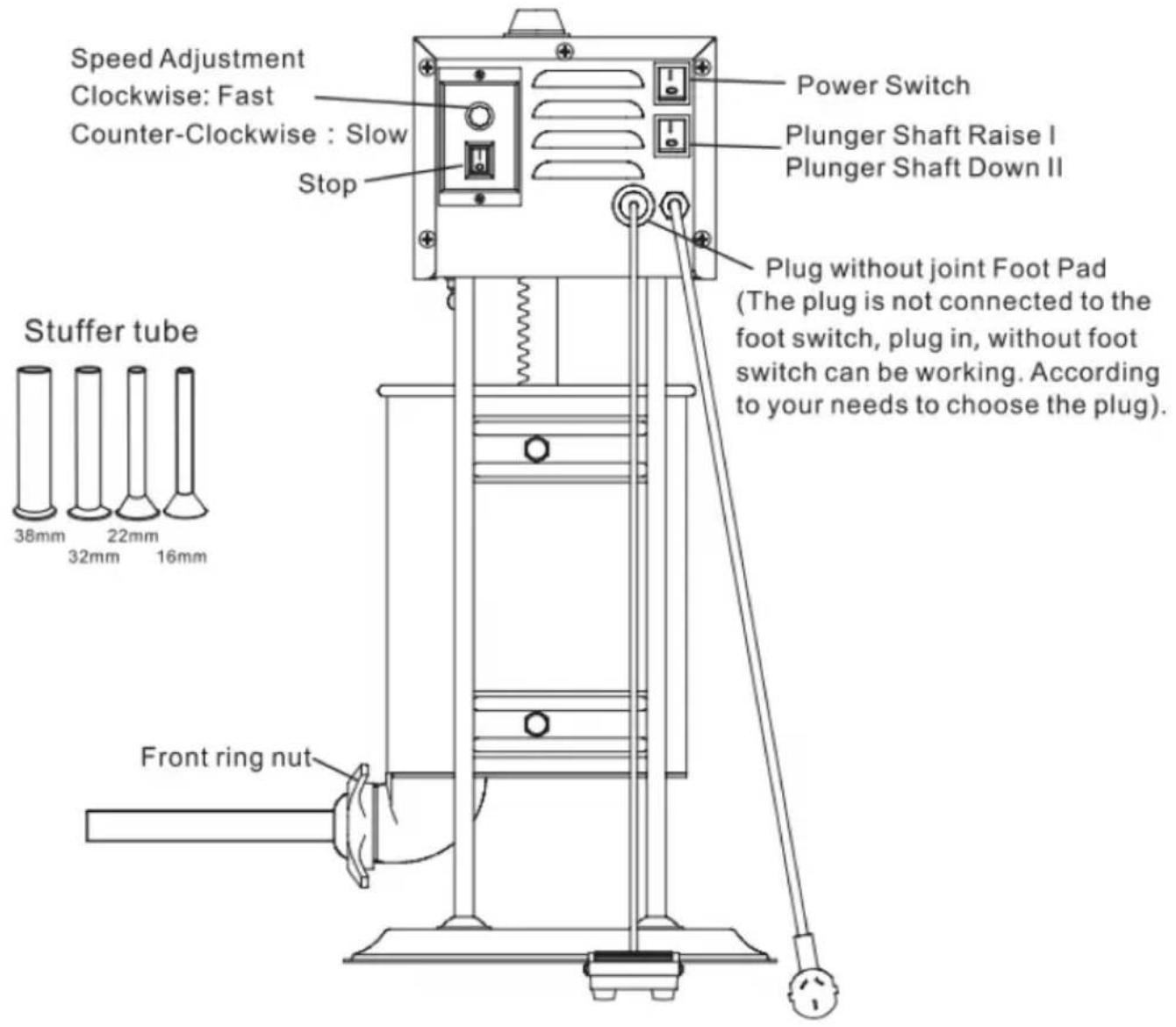

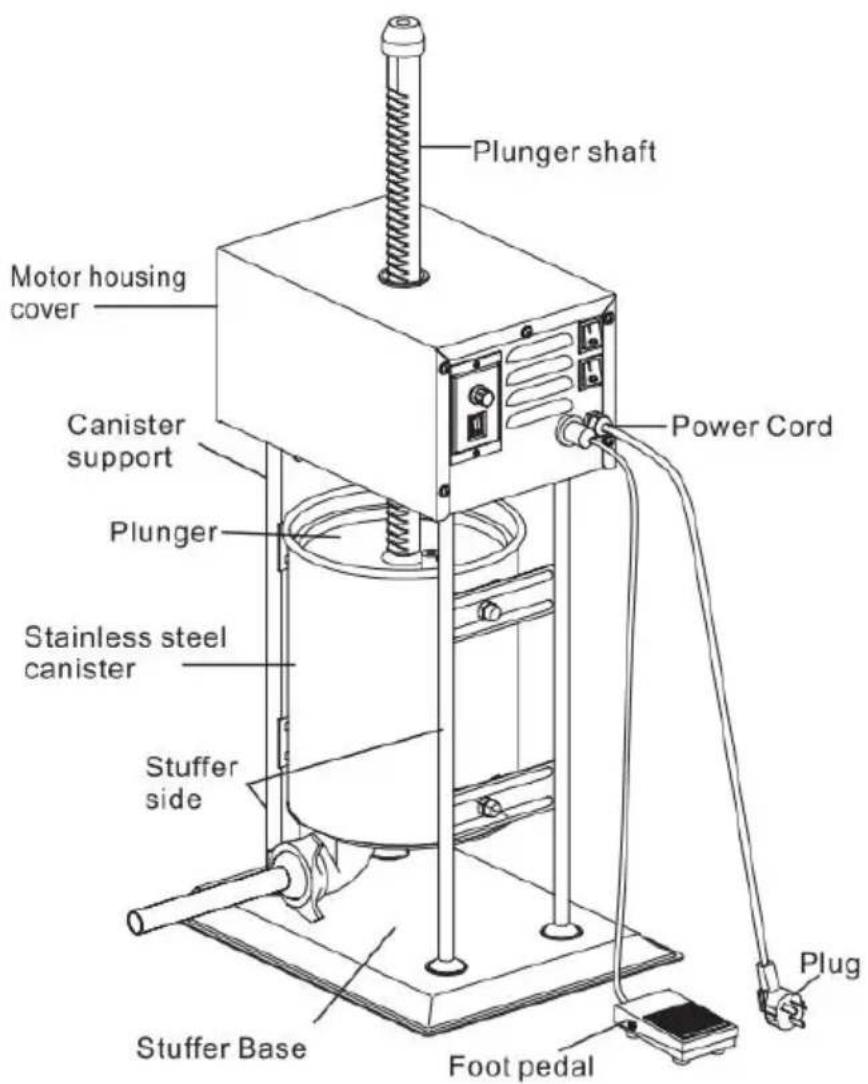

PRODUCT DETAILS

ASSEMBLY AND INSTALLATION

1. Choose a workbench with a suitable height and make sure you have enough room for operation.
2. Assemble the stuffing tube. Four sizes of stuffing tubes have been provided with the unit (diameters are 16mm, 22mm, 32mm and 38mm). Choose an appropriate tube and carefully insert it into the fixed collar, slowly tighten it onto the barrel, press down on the packing tube, and ensure it has been stuck and locked.

HOW TO USE

1. Place the foot pad in a dry position.
2. Connect electrical power.
3. Turn reverse switch to UP, let the piston move to the top.
4. Tilt the cylinder and place meat in cylinder.
5. Place the cylinder back on to the frame.
6. Turn REVERSE switch to DOWN and push the down side of the first so the Gpiston will start to come down.
7. If the piston is corning down too fast or too slow, use the speed (knob) to adjust to appropriate speed.
8. While filling the casing, remove your foot from the foot pad and the willstop.
9. When the piston moves down on the bottom of the cylinder, the ap will0stop automatically. Then turn REVERSE switch to UP to raise the piston to thetop.
10. Repeat above process starting at No.4 if necessary.

REPAIR AND MAINTENANCE

1. Please unplug the power supply before cleaning.
2. Remove and clean all parts that come in contact with the sausage.
3. Wipe non-removable parts with a cloth to remove bacteria.
4. Lubricate moving parts and gears to extend product life.
5. Do not use corrosive or abrasive detergents for cleaning.
6. Store the machine in a dry, clean and secure place.

Manufacturer: Shanghai Muxin Wood Industry Co., Ltd.

Address: Room 1602A-1609, No. 11, Lane 803, Shuangcheng Road, Baoshan District, Shanghai 200000, CN.

Imported to AUS: SIHAO PTY LTD. 1 ROKEVA STREET, EASTWOOD NSW 2122, Australia

Imported to USA: Sanven Technology Ltd. Suite 250, 9166 Anaheim Place, Rancho Cucamonga, CA 91730
