SAUSAGE STUFFER

Model: EVS-10L,EVS-12L,EVS-15L

Model: EVS-10L,EVS-12L,EVS-15L

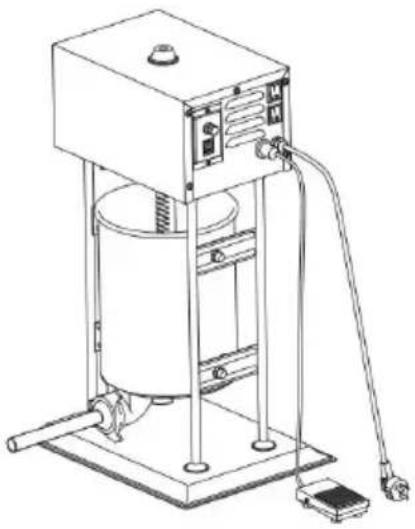

Technical line drawing of a mechanical device with cylindrical body and vertical supports (no text or symbols)

This is the original instruction, please read all manual instructions carefully before operating. VEVOR reserves a clear interpretation of user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform you and there are any technology or software updates on our product.

Warning-To reduce the risk of injury, user must read in manual carefully.

CORRECT DISPOSALThis product is subject to the provision of European D 2012/19/EC. The symbol showing a wheelie bin cross through indicates that the product requires separate re collection in the European Union. This applies to the and all accessories marked with this symbol. Products as such may not be discarded with normal domestic w must be taken to a collection point for recycling electr electronic devices

Important SAFETY INSTRUCTIONS

When using electrical appliances, basic safety precautions should always be followed as below:

1. Read all instruction before using this appliance.
2. Do not operate this appliance with a damaged cord, plug or malfun
3. To protect against electrical shock, do not immerse foot switch, co plug or stuffer in water or other liquids.
4. This appliance is not intended for using by children.
5. Keep fingers and hands clear of all moving parts.
6. Unplug this appliance when not in use or before cleaning.

7. This appliance is for household use only.

8. Never dip machine into any liquid and sharp edges. Do not use appliance with wet hands. If the appliance is humid or wet, unplug it immediately.

9. This appliance can be used by children aged from 8 years and a and persons with reduced physical, sensory or mental capabilities or I of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and unders the hazards involved. Children shall not play with the appliance. Clear and user maintenance shall not be made by children without supervisi

10. Always disconnect the machine from the supply if it is left unatte and before assembling, disassembling or cleaning.

11. If the supply cord is damaged, it must be replaced by the man of its service agent or a similar qualified person in order to avoid a

12. Keep your finger away from moving parts and fitted tools .Never your fingers etc in hinge mechanism.

13. Use only original spare parts.

14. In order to ensure your children's safety, please keep all packaging (plastic bags, boxes, polystyrene etc.) out of their reach.

15. Do not interfere with any safety switches.

16. Place the machine on a smooth, flat and stable working surface.

17. Wait until moving parts stop running before you remove the lid c machine.

18. Do not exceed the maximum content indicated on the accessories

BEFORE CONNECTING TO POWER

Before connecting to the power, recheck the type of supply and mains voltage match with the details given on the rating label of appliance.

Using for the first time, rip off all wrapping paper and plastic by Clean the fittings.

SAVE THESE INSTRUCTIONS, HOUSEHOLD USE ONLY

PRODUCT DETAILS

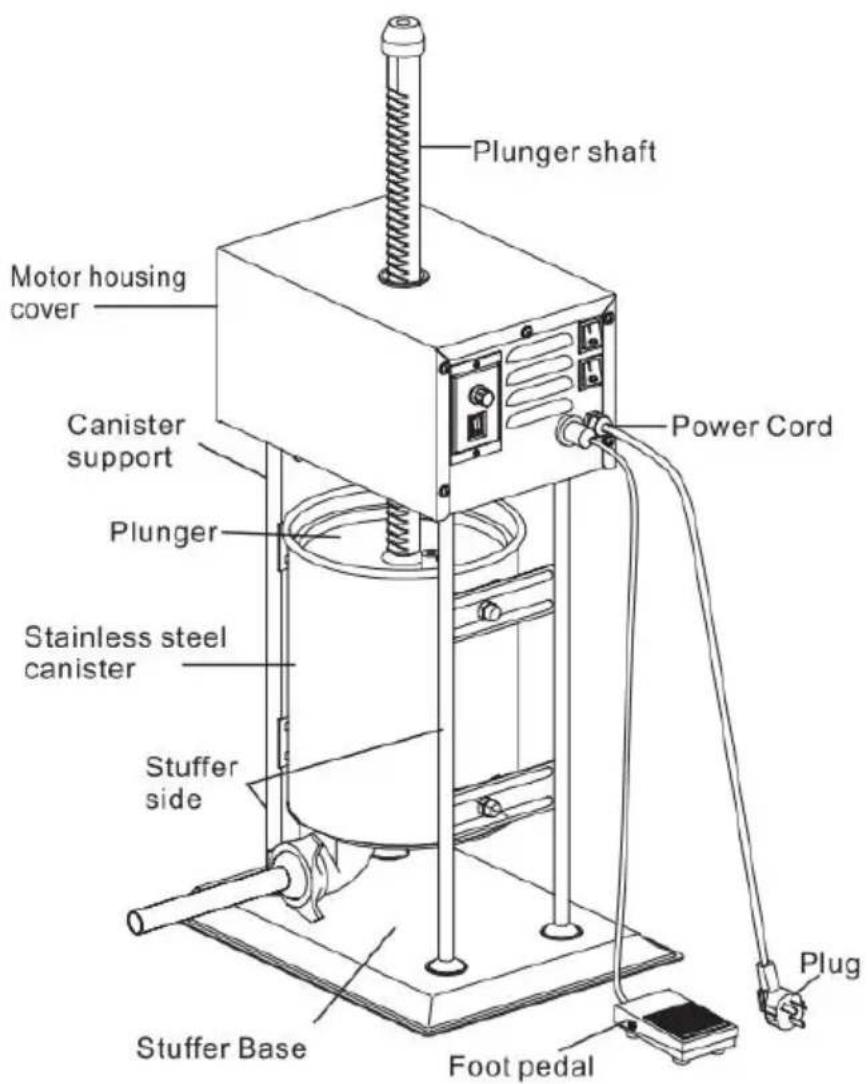

Plunger shaft Motor housing cover Canister support Plunger Stainless steel canister Stuffer side Stuffer Base Foot pedal Power Cord Plug

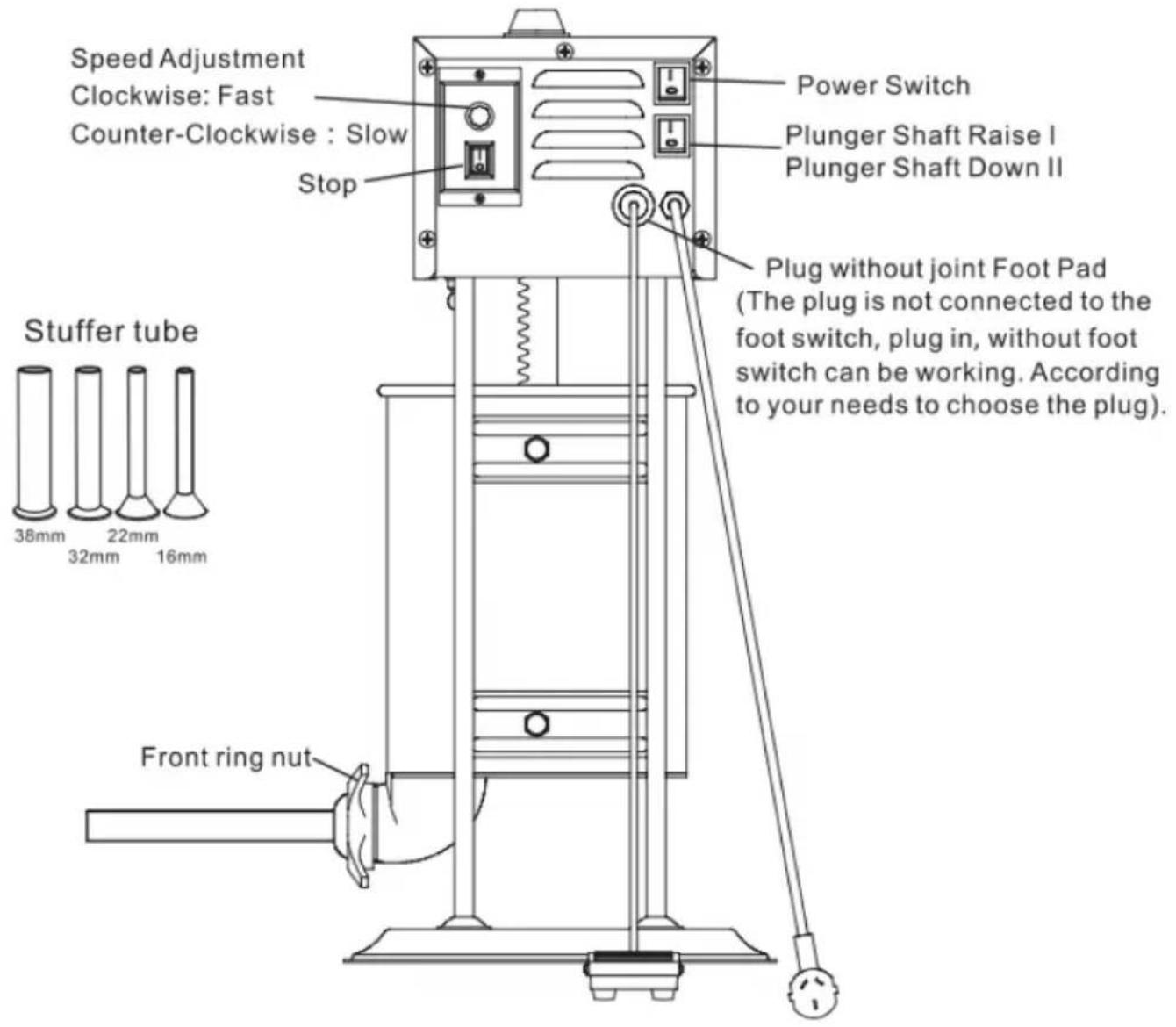

Speed Adjustment Clockwise: Fast Counter-Clockwise : Slow Stop Power Switch Plunger Shaft Raise I Plunger Shaft Down II Plug without joint Foot Pad (The plug is not connected to the foot switch, plug in, without foot switch can be working. According to your needs to choose the plug). Stuffer tube 38mm 32mm 22mm 16mm Front ring nut

ASSEMBLY ANDINSTALLATION

1. Choose a workbench with a suitable height and make sure you have enough room for operation.
2. Assemble the stufing tube. Four sizes of stuffing tubes have been provided with the unit (Diametersare 16mm, 22mm, 32mm and 38mm). Choose an appropriate tube and carefully insert it into the fixedcollar, slowly tighten it onto the barrel, press down on the packing tube, an sure it has beenstuck and locked.

HOW TO USE

1. Place the foot pad in a dry position.
2. Connect electrical power.
3. Turn reverse switch to UP, let the piston move to the top.
4. Tilt the cylinder and place meat in cylinder.
5. Place the cylinder back on to the frame.
6. Turn REVERSE switch to DOWN and push the down side of the first so the Gpiston will start to come down.
7. If the piston is corning down too fast or too slow, use the speed (knob) to adjust to appropriate speed.
8. While filling the casing, remove your foot from the foot pad and the willstop.
9. When the piston moves down on the bottom of the cylinder, the ap will0stop automatically. Then turn REVERSE switch to UP to raise the piston to thetop.
10. Repeat above process starting at No.4 if necessary.

REPAIR AND MAINTENANCE

1. Please unplug the power supply before cleaning.
2. Remove and clean all parts that come in contact with the sausage.
3. Wipe non-removable parts with a cloth to remove bacteria.
4. Lubricate moving parts and gears to extend product life.
5. Do not use corrosive or abrasive detergents for cleaning.
6. Store the machine in a dry, clean and secure place.

Manufacturer: Shanghaimuxinmuyeyouxiangongsi

Address: Shuangchenglu 803nong11hao1602A-1609shi, baoshanqu, shanghai 200000 CN.

Imported to AUS: SIHAO PTY LTD. 1 ROKEVA STREETEASTWOOD NSW 2122 Australia

Imported to USA: Sanven Technology Ltd. Suite 250, 9166 Anaheim Place, Rancho Cucamonga, CA 91730

UK

REP

YH CONSULTING LIMITED. C/O YH Consulting

Limited Office 147, Centurion House, London Road, Staines-upon-Thames, Surrey, TW18 4AX

EC

REP

E-CrossStu GmbH

Mainzer Landstr.69,

60329 Frankfurt am Main.
