YFVTW245 - Murphy bed Vevor - Free user manual and instructions

Product type	Vertical double Murphy bed (folding wall bed)
Brand	Vevor
Model	YFVTW245
Bed frame dimensions	1947 x 1104 x 132 mm
Cabinet interior dimensions	1124 x 388 x 1972 mm
Compatible mattress	990 x 1900 mm (39 x 75 inches), thickness 152-254 mm (6-10 inches)
Maximum mattress weight	20 kg (44 lb)
Total weight of frame and mattress	61-64 kg (134-141 lb)
Maximum system weight capacity	408 kg (900 lb)
Bed frame weight alone	42 kg (92.4 lb)
Frame material	Wood and plywood (thicknesses 3/4, 1, 1/2, 3/8 inch)
Mechanism type	Gas springs and bearings
Main functions	Vertical folding, wall storage, use as bed
Installation	Requires assembly and wall mounting by an adult
Safety	Do not use without mattress, periodic checks, do not obstruct mechanism
Maintenance and cleaning	Clean with a soft cloth, check stability regularly, do not use abrasives
Spare parts and repairability	Contact Vevor technical support for spare parts
General information	Murphy Twin-Vertical bed kit, delivered without mattress or cabinet, electronic warranty at www.vevor.com/support

Frequently Asked Questions - YFVTW245 Vevor

What are the dimensions of the Vevor YFVTW245 Murphy bed?

The bed frame measures 1947 x 1104 x 132 mm. The interior cabinet is 1124 x 388 x 1972 mm. The recommended mattress is 990 x 1900 mm (standard twin).

What type of mattress is compatible with this bed?

A twin mattress 990 x 1900 mm (39 x 75 inches) with a thickness between 152 and 254 mm (6 to 10 inches). The mattress weight must not exceed 20 kg.

How to install the Vevor Murphy bed?

Installation is done in several steps: build the cabinet, attach the side brackets, assemble the bed frame, install the gas springs, and fix the cabinet to the wall. It is recommended to have two people and use the provided drilling templates.

What are the important safety instructions?

Never use the bed without a mattress. Check stability regularly. Do not let children operate the mechanism. Install away from heat sources. Securely fix the cabinet to the wall before opening.

What is the maximum weight capacity of the system?

The system supports up to 900 lb (408 kg) total load, including the frame and mattress.

Is the bed delivered with a mattress?

No, the kit does not include the mattress or the wooden cabinet. These must be provided by the user according to the specified dimensions.

How to maintain the Murphy bed?

Clean with a soft, dry cloth. Periodically check the fastenings and the proper functioning of the gas springs. Do not use abrasive products.

Can I repair the bed myself?

For any repairs, contact Vevor technical support. Do not attempt to modify or replace parts without authorization. Routine maintenance (checks) can be done by the user.

What is the warranty for this product?

Vevor offers an electronic warranty. Register your product at www.vevor.com/support to activate the warranty and get technical support.

Is the bed difficult to assemble?

Assembly requires time and DIY skills. It is advisable to follow the instructions carefully and have two people to handle heavy parts. Use the provided drilling templates for precise assembly.

USER MANUAL YFVTW245 Vevor

Technical Support and E-Warranty Certificate www.vevor.com/support

MURPHY BED KIT

MODEL:YFVTW245

We continue to be committed to provide you with tools at competitive prices. "Save Half", "Half Price" or any other similar expressions used by us only represent an estimate of savings you might benefit from buying certain tools with us compared to the major top brands and do not necessarily mean to cover all categories of tools offered by us. You are kindly reminded to verify carefully when you are placing an order with us if you are actually saving half in comparison with the top major brands.

VEVOR

TOUGH TOOLS, HALF PRICE

MURPHY BED KIT

MODEL:YFVTW245

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel free to contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction. Please read all manual instructions carefully before operating. VEVOR reserves a clear interpretation of the user manual. The appearance of the product shall be subject to the product you received. Please forgive us that we won't inform you if there are any technology or software updates on our product.

SAFETY INSTRUCTIONS

1. Please read and understand this manual carefully before using the Murphy Bed Kit.

The installation should be done by an adult, and children should not be without supervision.

1. Please install the Murphy Bed Kit completely before using the bed, otherwise it may cause serious harm to people.
2. Check the stability and safety of the kit at regular intervals and stop using it immediately in case of damage or suspicious problems.
3. Children should not use the kit alone to spread out or store the bed, otherwise they may be harmed.

Thank you very much for choosing this Murphy Bed Kit.

If there is any difference between the color of this product and the instruction manual, please refer to the physical object.

PARAMETER LIST

Model	YFVTW245
Adapted models	Twin-Vertical
Mattress size	W×L:39×75in(990×1900mm)
mattress thickness	6-10in(152-254mm)
Maximum mattress weigh	44lbs(20kg)

INSTRUCTIONS

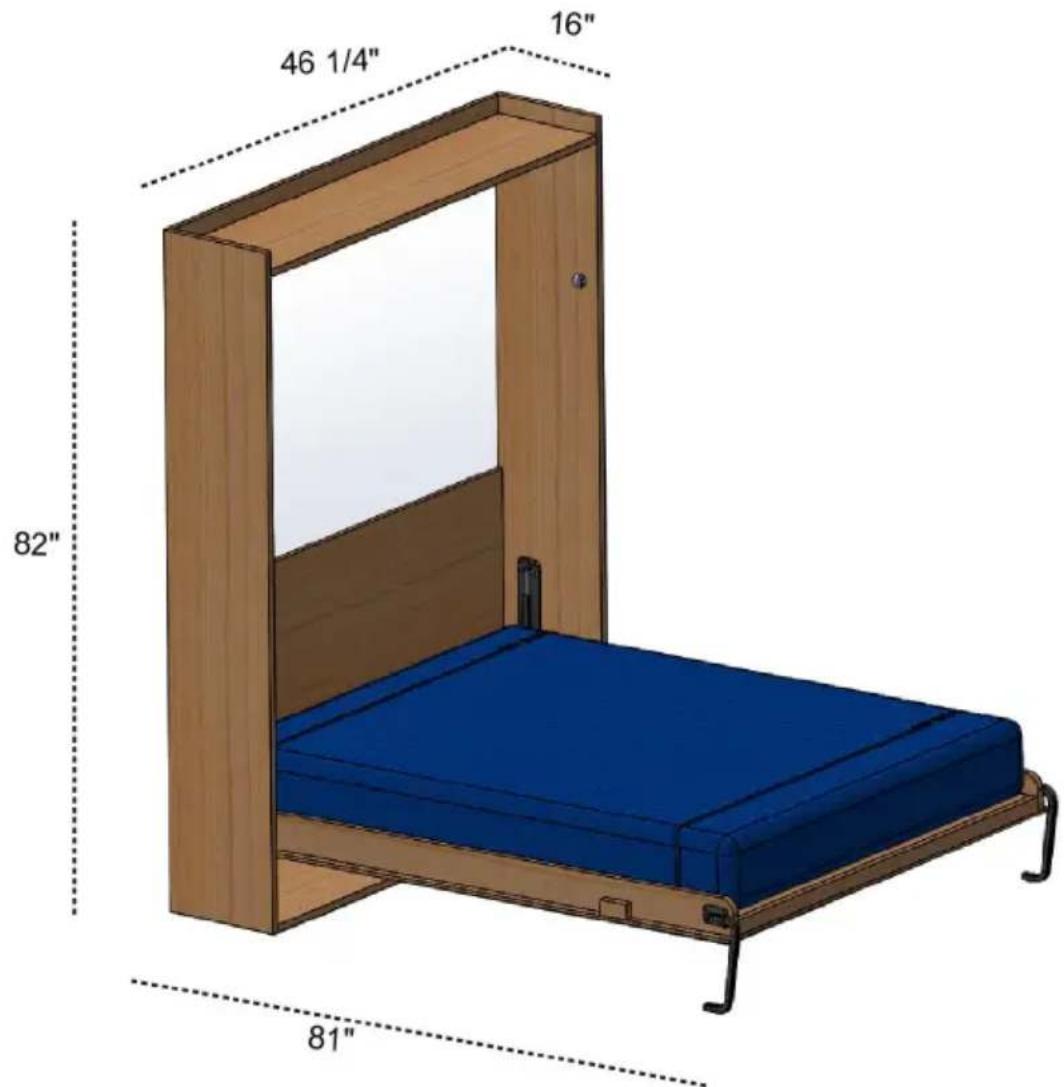

Murphy Bed Kit suitability Twin-Vertical

Note: The Murphy Bed Kit does not include bed and bed cabinets, nor need to be equipped by users themselves.

Standard Twin Mattress

Max Weight: 44lbs

Max Depth : 10"

Max Weight capacity: 900lbs

1. General description Use

The murphy bed system allows to bring the bed spring from its vertical position inside the cabinet in a horizontal positions, to be used as a a absolutely quick and easy way, with very low efforts.

Before using the Murphy bed, the user must be sure of its good condition and the good condition of its accessories.

Before using the Murphy bed, the user must make sure that on the sleeping surface there is only the mattress and bed linens.

2. Safety

Safety standard

Compliance with the Safety standards puts the user in terms of work productivity, without danger of harm to himself or others.

It's forbidden to use the product without any mattress on the bedspring surface.

It's forbidden to use the bed for a different use than the one described previously in section USE.

Non-correct installation or not made by specialized craftsmen may cause detachments, breaking or dysfunctions with possible damages to persons, things or animals. All given instructions have to be strictly observed.

Before starting to use the product, the users shall be aware of its functions and its technical features, learn through an accurate and complete reading of the present user's guide.

Tampering or replacement of bed parts that are not allowed.

The use of accessories or spare parts other than those recommended by the supplier presents a non-proper and hazardous use of the product.

It's strictly forbidden to remove any safety device and protection (labels) on the set; periodically check the incidental position on the mechanism of blankets or else. Before starting any maintenance, repair work or cleaning, the operator must have read and understood all technical information contained in this guide. Any maintenance and repair shall be performed by qualified personnel only.

WARNING !!!

Never place the product near any heat sources. Position and lock the system to be maintained clear of objects that may hinder its movement. The instructions and rules contained in this manual must be observed at all times.

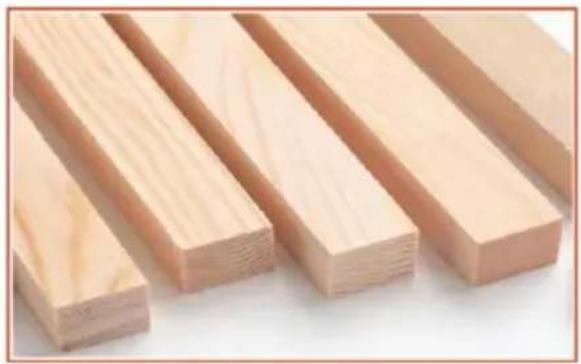

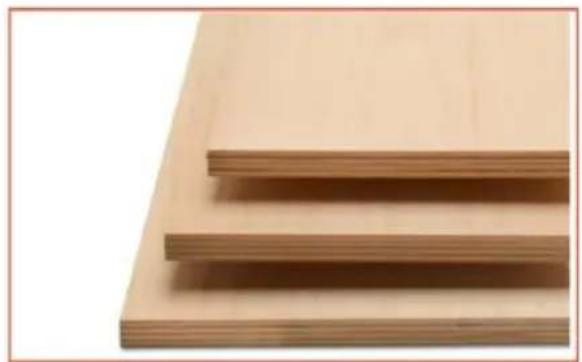

Suggest using below materials for wooden cabinets and bed frame.

Wooden Sticks Plywood Sheet

Technical features

Cabinet	1
Number	Material	Dimension	IQTY	Important
1	1inch Plywood	2082*406*25 mm	2	Internal dimensions of cabinet: 1124*388*1972 mm
2	1inch Plywood	1124*388*25mm	1
3	1inch Plywood	1124*406*25mm	1
4	3/4 inch Plywood	1124*550*18mm	1
5	3/4 inch Plywood	1124*250*18mm	1
Bed frame	13 12 11 9
Number	Material	Dimension	IQTY	Important
6	3/4 inch wood	40*20*950mm	12	Weight of the bed frame : 42kg(92.4lbs) Dimensions of bed frame : 1947*1104*132 mm
7	3/4 inch wood	40*20*1897 mm	2
8	1inch Plywood	1947*120*25 mm	2
9	1inch Plywood	990*50*25 mm	1
10	1-1/2 inch wood	32*32*100mm	1
11	1/2 inch Plywood	1947*1104*12 mm	1
12	1inch Plywood	990*120*25 mm	1
13	3/8inch Plywood	1892*986*9 mm	1
Bed frame	14
Number	Material	Dimension	IQTY	Important
14	mattress	990*1900*(152-254)mm(39*75*(6-10)inch)	1	Weight of mattress: 20kg (44lbs)
TOTAL WEIGHT OF BED FRAME AND MATT NEED TO BE:				61-64kg (134lbs-141lbs)

Safety and Care Advice

• Check you have all the components and tools listed on the following pages.
• Remove all fittings from the plastic bags and separate them into the groups.
• Keep children and animals away from the work area, small parts can choke if swallowed.
• Make sure you have enough space to layout the parts before starting.
• During assembly do not stand or put weight on the product, this can cause damage.
• Assemble the item as close to its final position (in the same room if possible).
• Assemble on a soft level surface to avoid damaging the unit or your floor.
• Parts of the assembly will be easier with 2 people.

• To reduce the likelihood of damaging your product please ensure that your power drill is set on a low torque setting.

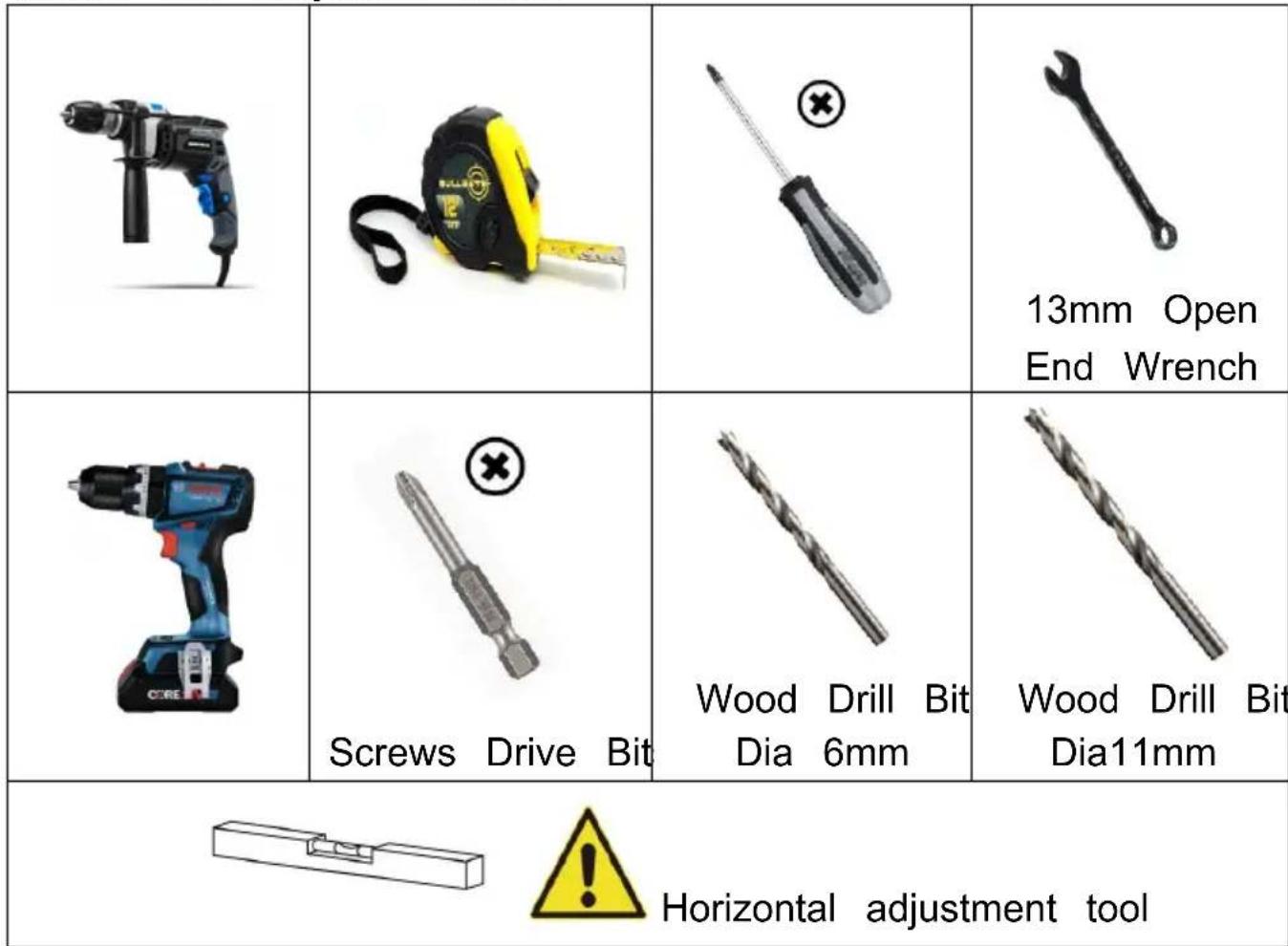

Install the required tools

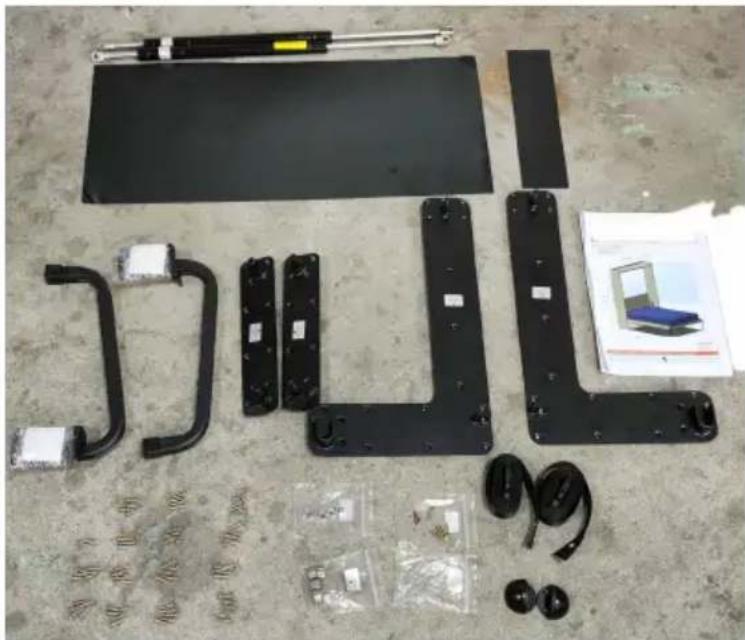

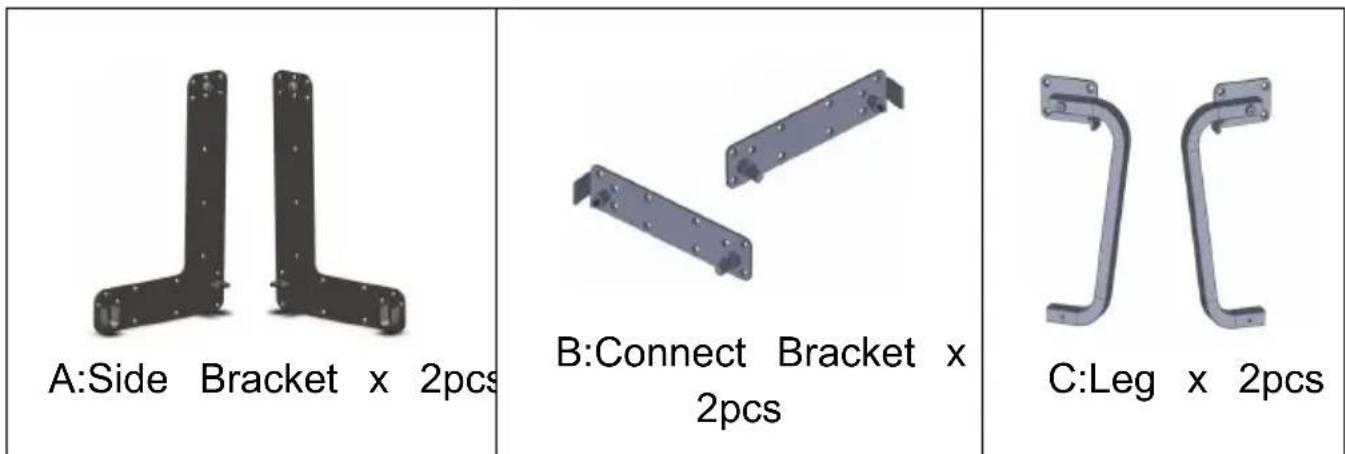

List of kit parts

Note: The quantities below are the correct amount to complete the assembly. In some cases more fittings may be supplied than are required.

D:YFGS300700A x 2pc	E:Mattress Strap x 2pc	F:Bearing x 4pcs
G:Stopper x 2pcs	H:Metal Nut M8x 4pc	Screw I:M5x20mm x72pcs
J:Screw M4x20mm x8pcs	Drilling template: 710*294m	Drilling template: 306*82mm

Construction guide

Step 1: Make the cabinet

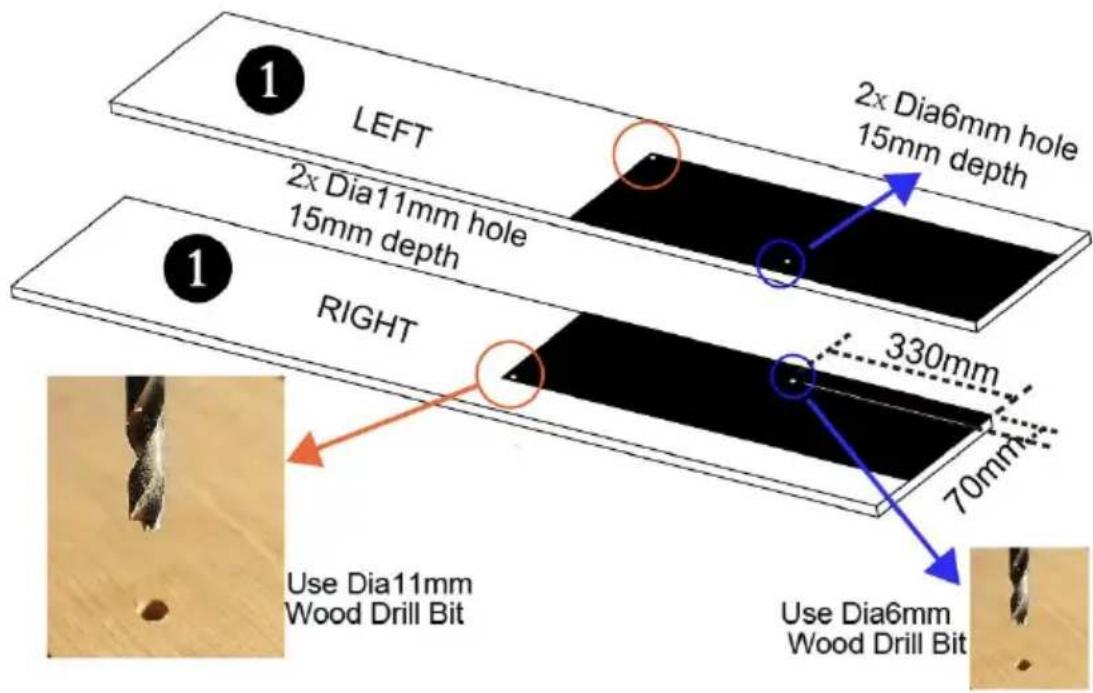

Place the drilling template of 710^*294mm on the side panel, ensuring the edges of the template are flush with the side panel as shown in the picture.

Mark the circular hole of the template on the side panel, then remove the template and drill an 11mm diameter hole and a 6mm diameter hole as shown in the picture. The depth of the holes is 15mm.

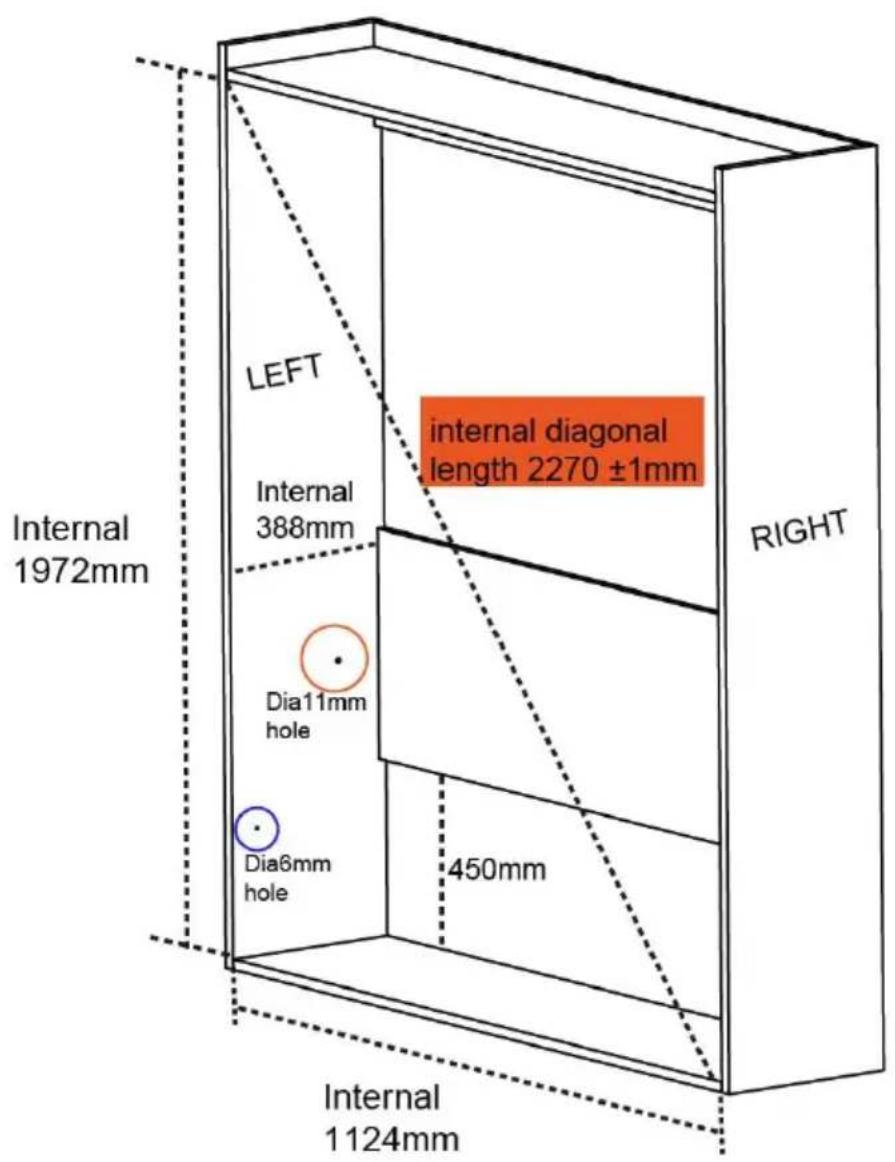

Assemble the cabinet using screws and waterproof wood glue, ensuring the internal dimensions match the picture and that the cabinet is stable and safe.

Step 2:

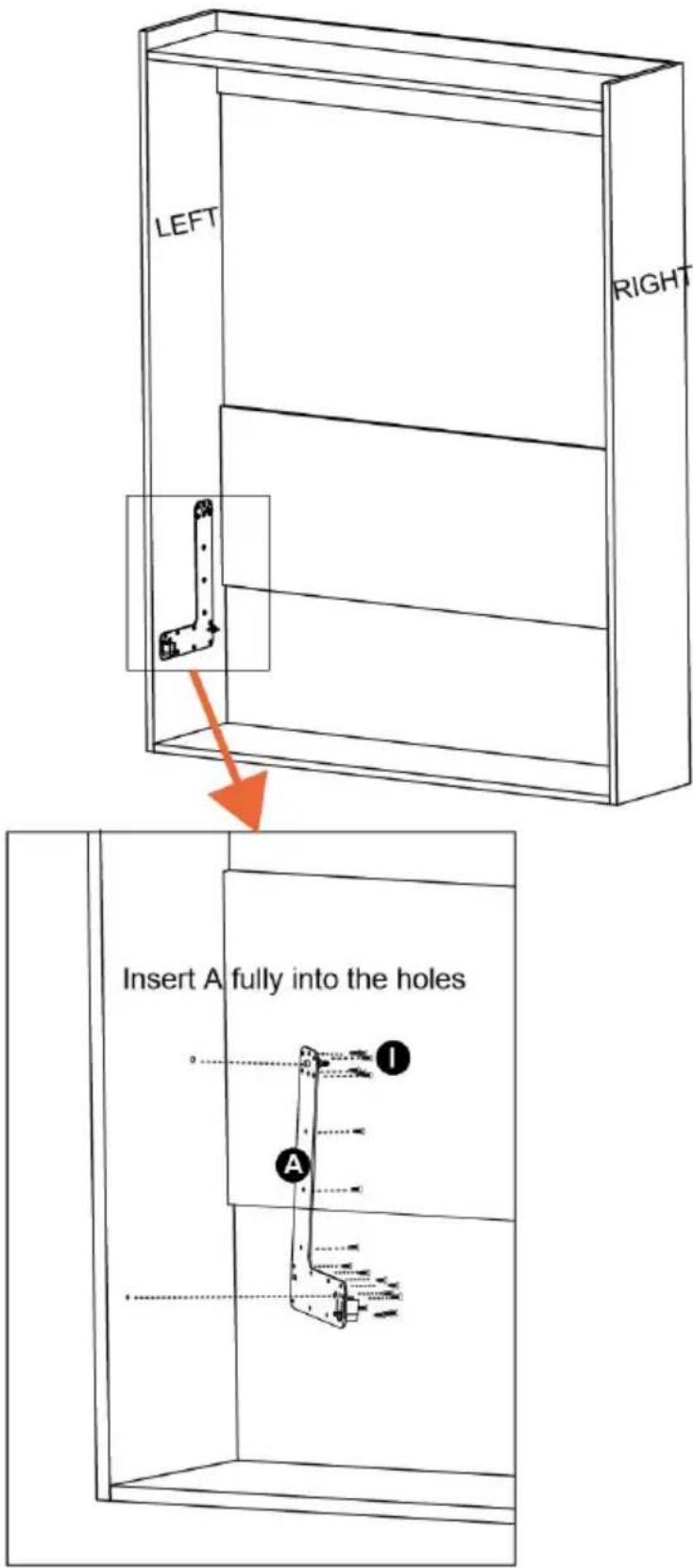

Insert the pin on side bracket A fully into the 11mm diameter hole and the hole, then fix bracket A to the cabinet with screws I.

Repeat the above installation on the other side.

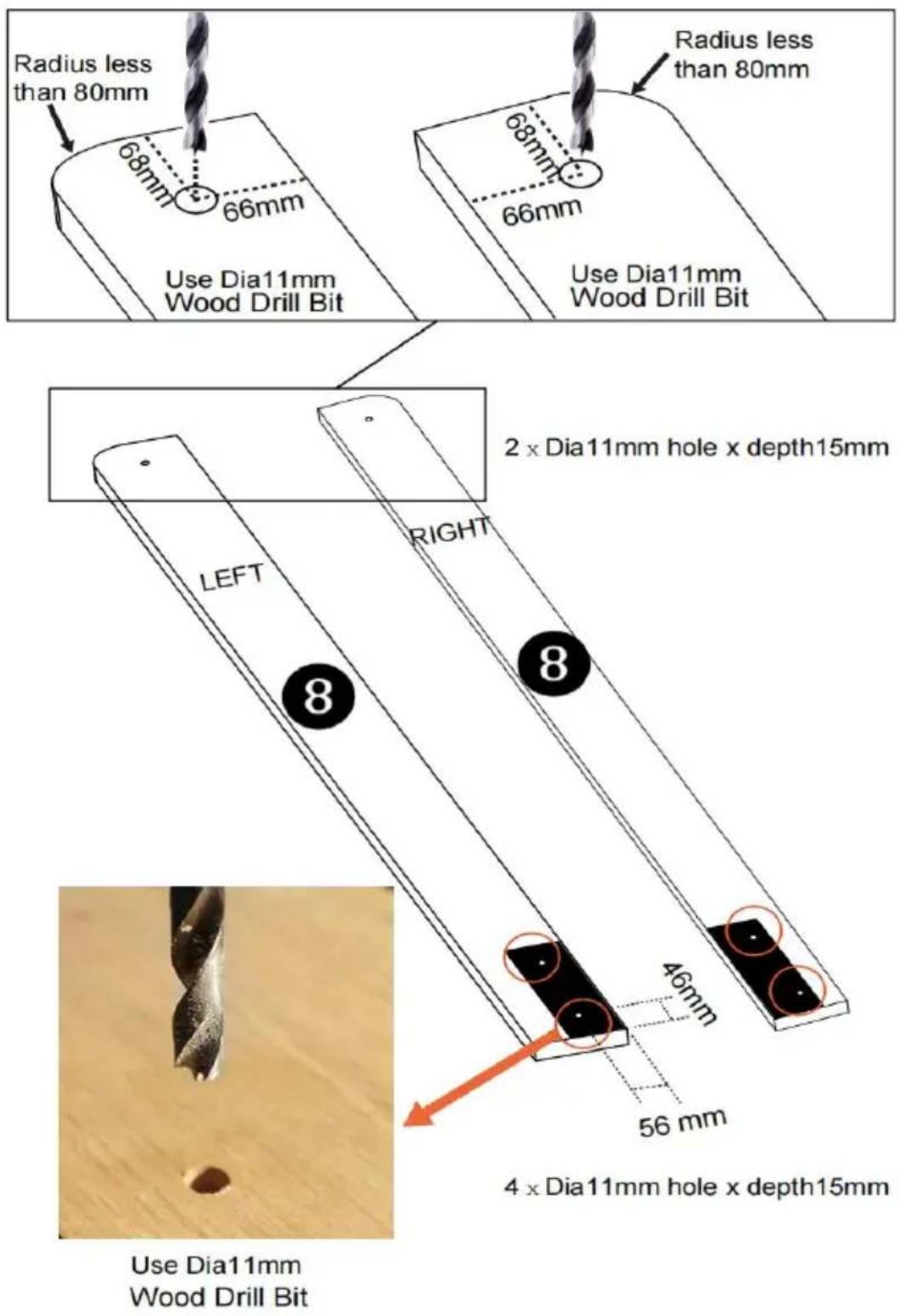

Step 3: Place the drilling template of 306^*82mm on panel 8, with the edges of the template flush with the panel as shown in the picture. Mark the circular hole of the template on panel 8, then remove the template and drill an 11mm diameter hole as shown in the picture. The depth of the hole is 15mm. Mark the drilling holes according to the dimensions shown in the picture on the other side of the panel, then drill an 11mm diameter hole. The depth of the hole is 15mm.

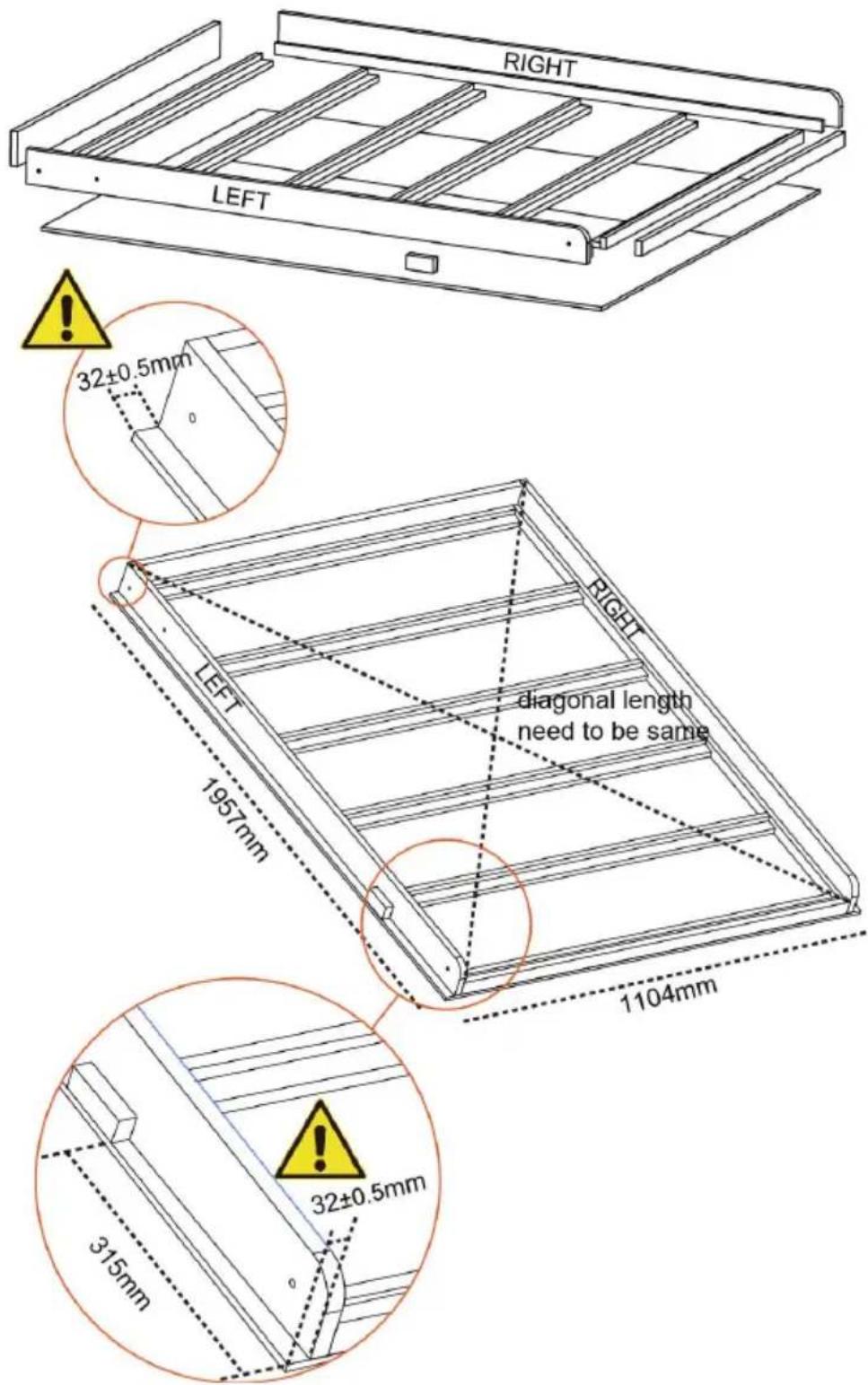

Step 4:

Assemble the bed frame using screws and waterproof wood glue as shown in the picture. Ensure the dimension from the apron panel to the edge of the door is 32mm as shown in the picture.

Keep the diagonal lengths as shown in the picture equal.

Ensure the cabinet is stable and safe.

Step 5:

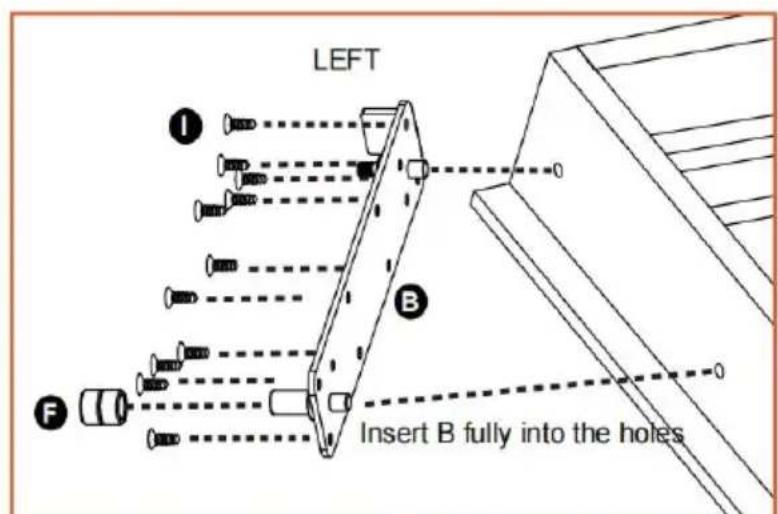

Insert the pin on connect bracket B fully into the 11mm diameter holes, then fix bracket B to the bed frame with screws I.

Insert 2pcs bearing F to the connect bracket B as the picture.

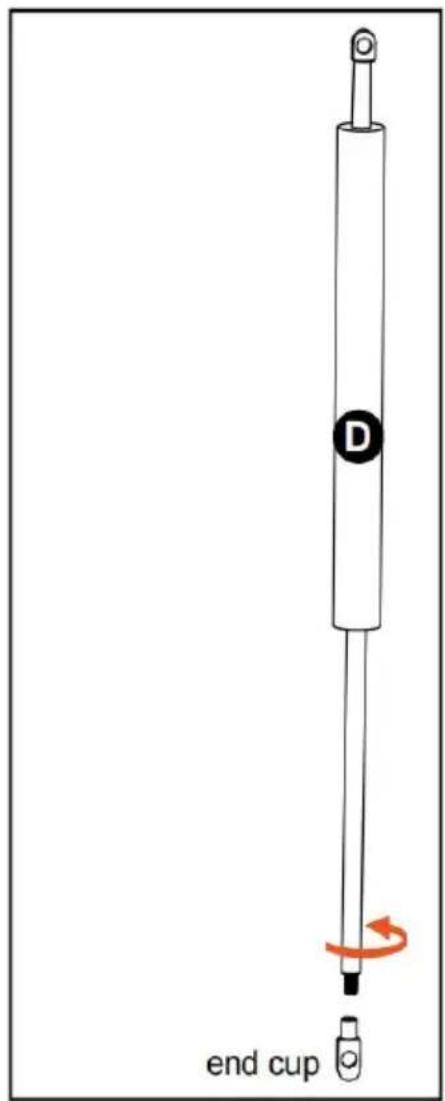

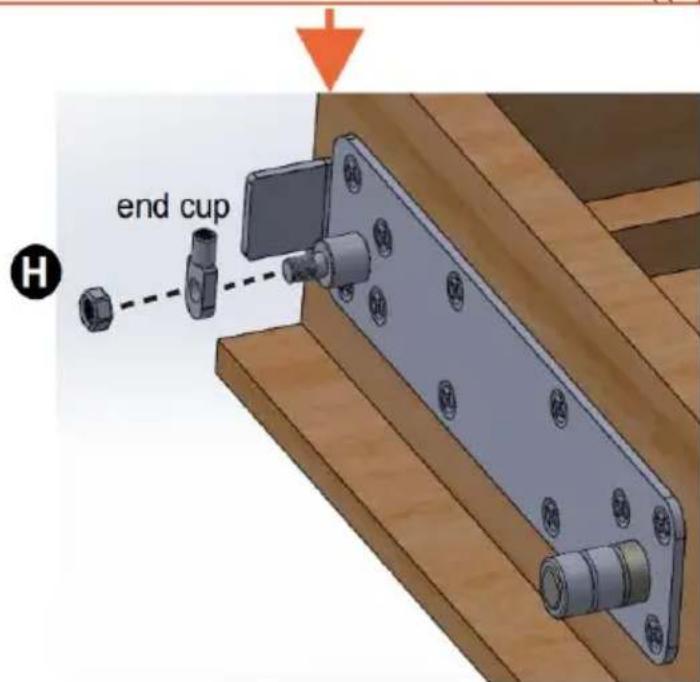

Turn the end cap of the gas spring out as the picture, then install connect bracket B and fix it with nut H as the picture.

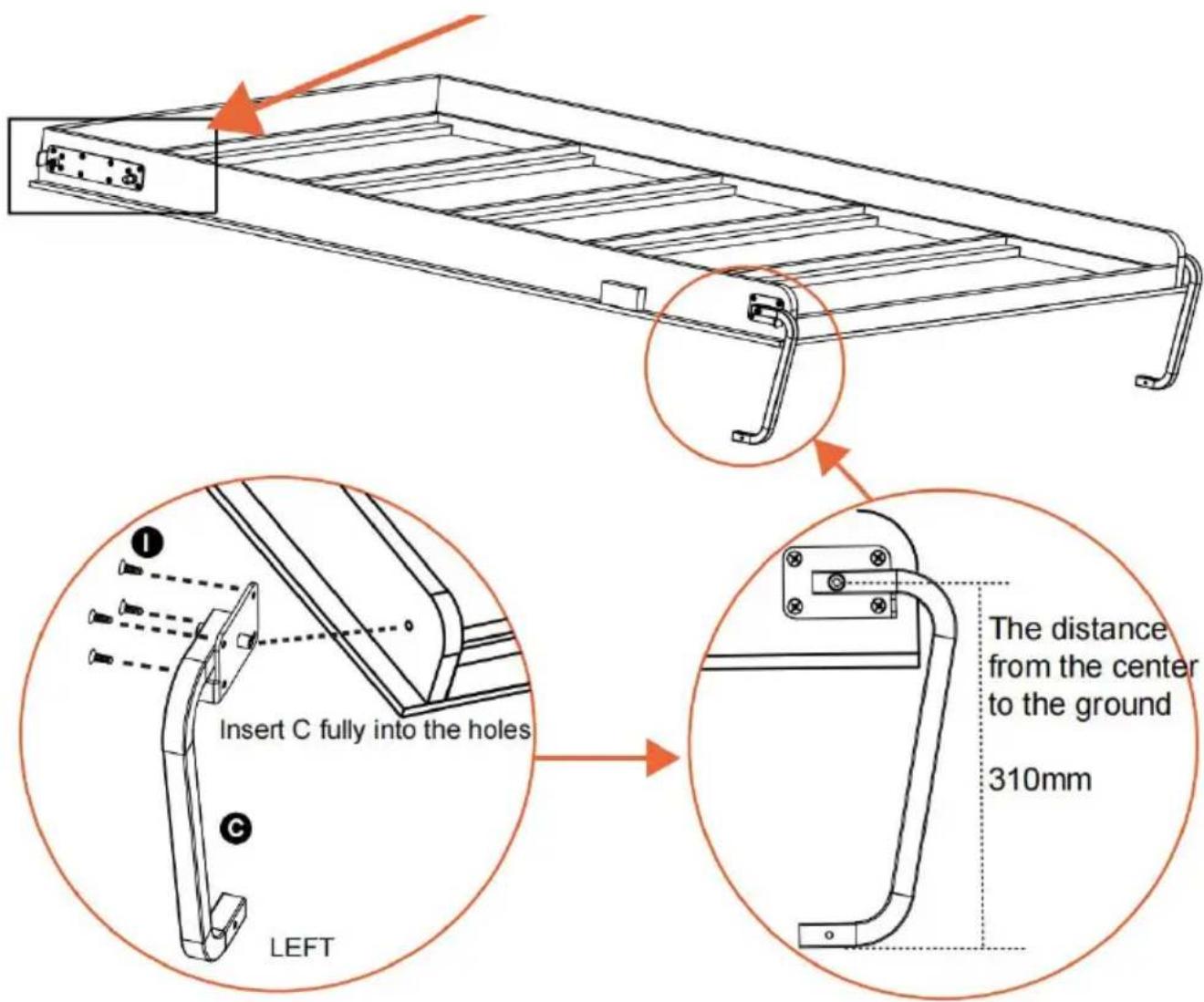

Insert the pin on the leg C fully into the Dia11mm holes, then fix C bed frame with screws I. Keep the distance from the center to the φ310mm as the picture.

Repeat the above installation on the other side.

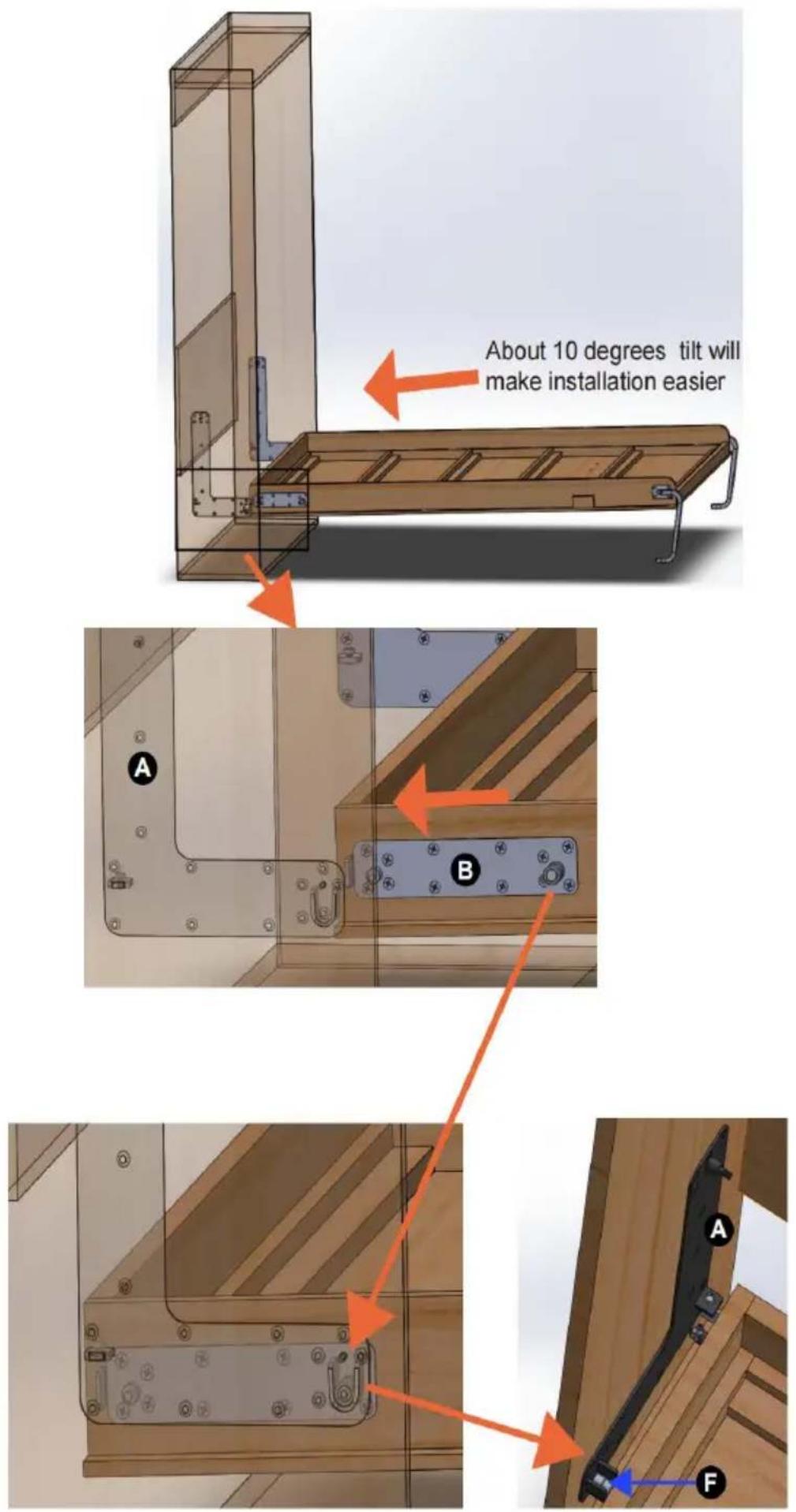

Step 6:

Insert the bed frame with a little angle to the cabinet as the picture. Put the connect bracket B with bearing F on the side bracket A as picture. Install the handle to the bed frame.

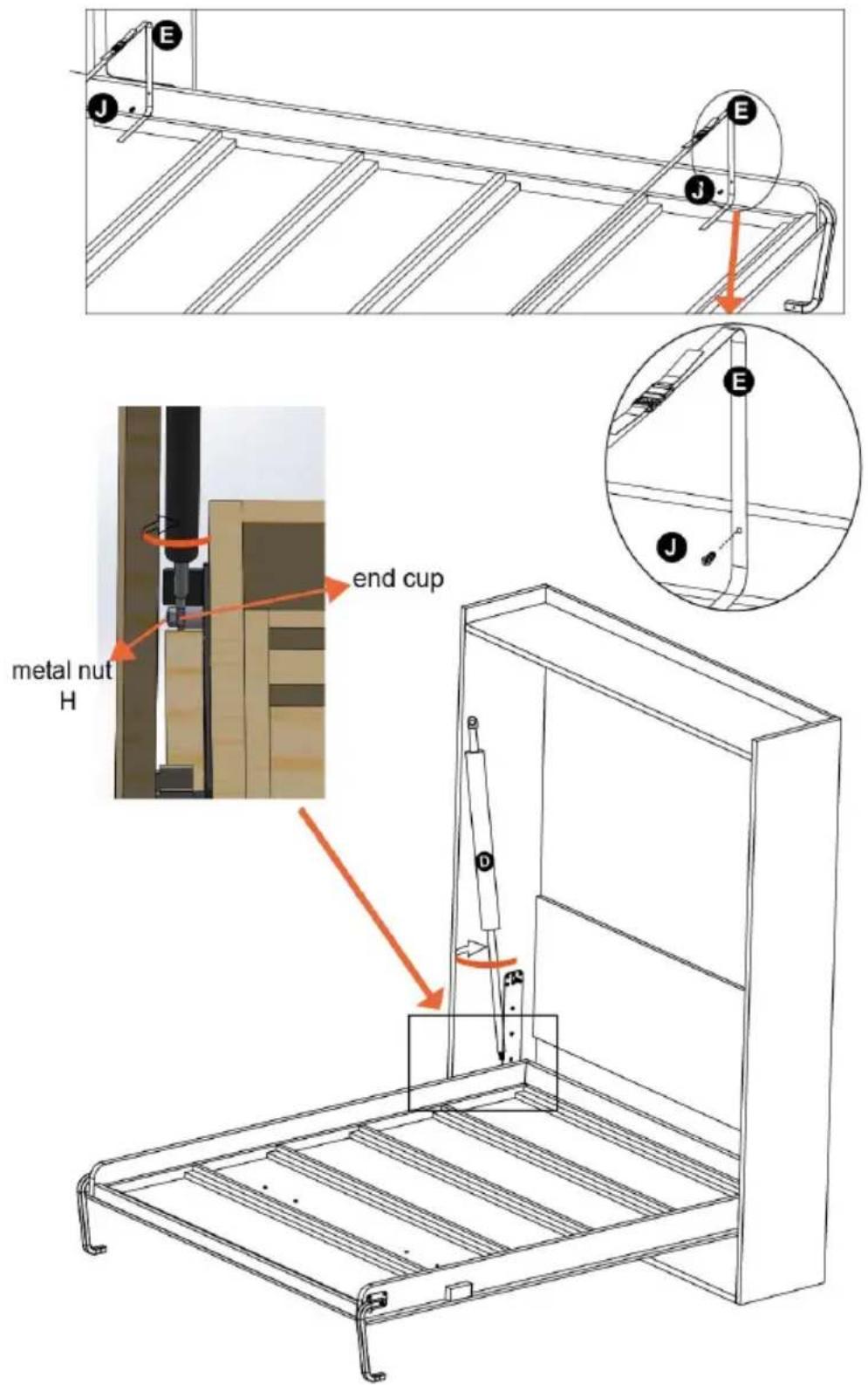

Step 7:

First, attach the two mattress straps E to the bed frame with a screw. Then turn the gas spring D into the end cap as the picture, tighten spring with the end cap;

Repeat the above installation on the other side.

Step 8:

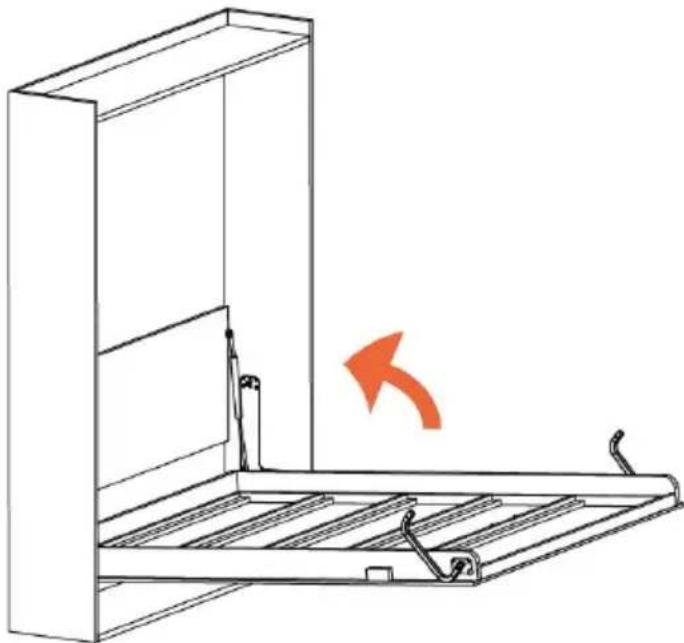

Close the bed frame into the cabinet as the picture.

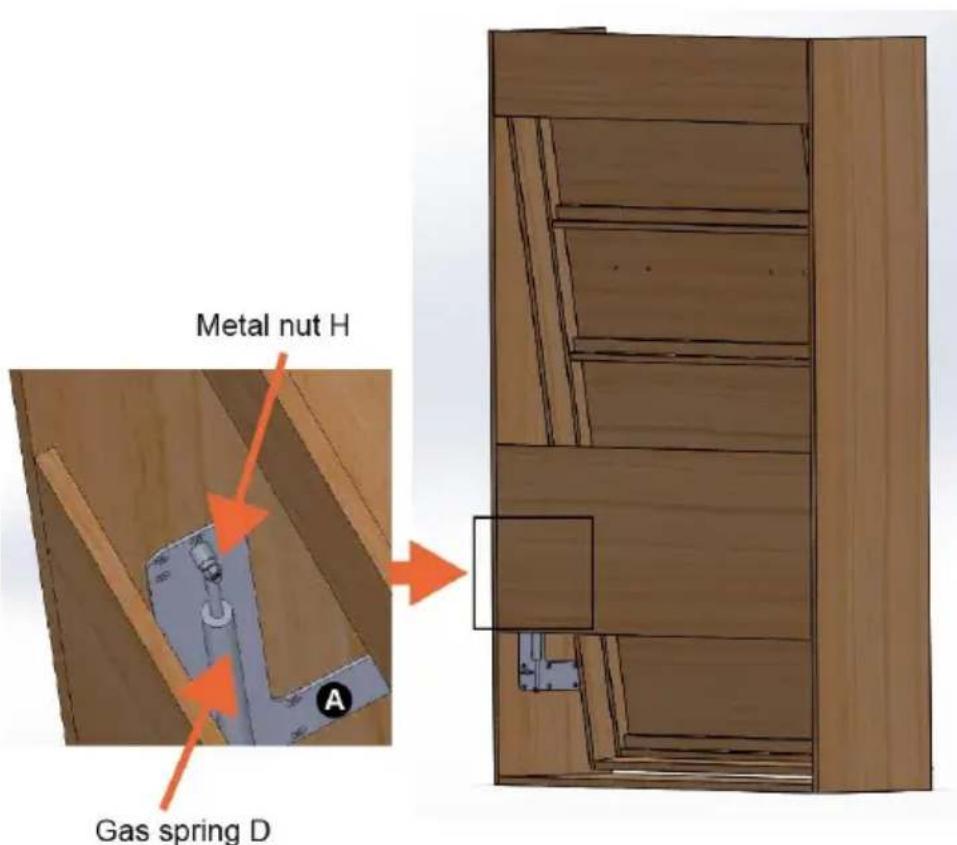

Step 9:

Install the gas spring D to the A bracket from the back of cabinet, metal nut H.

Repeat the above installation on the other side.

Step 10:

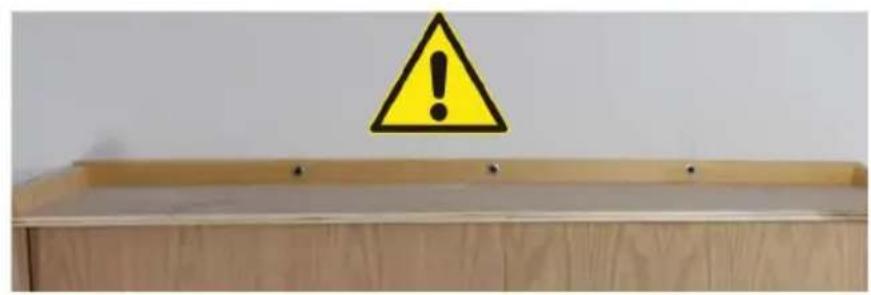

Fix the cabinet to a solid wall. The cabinet must be fixed to the wall before opening it.

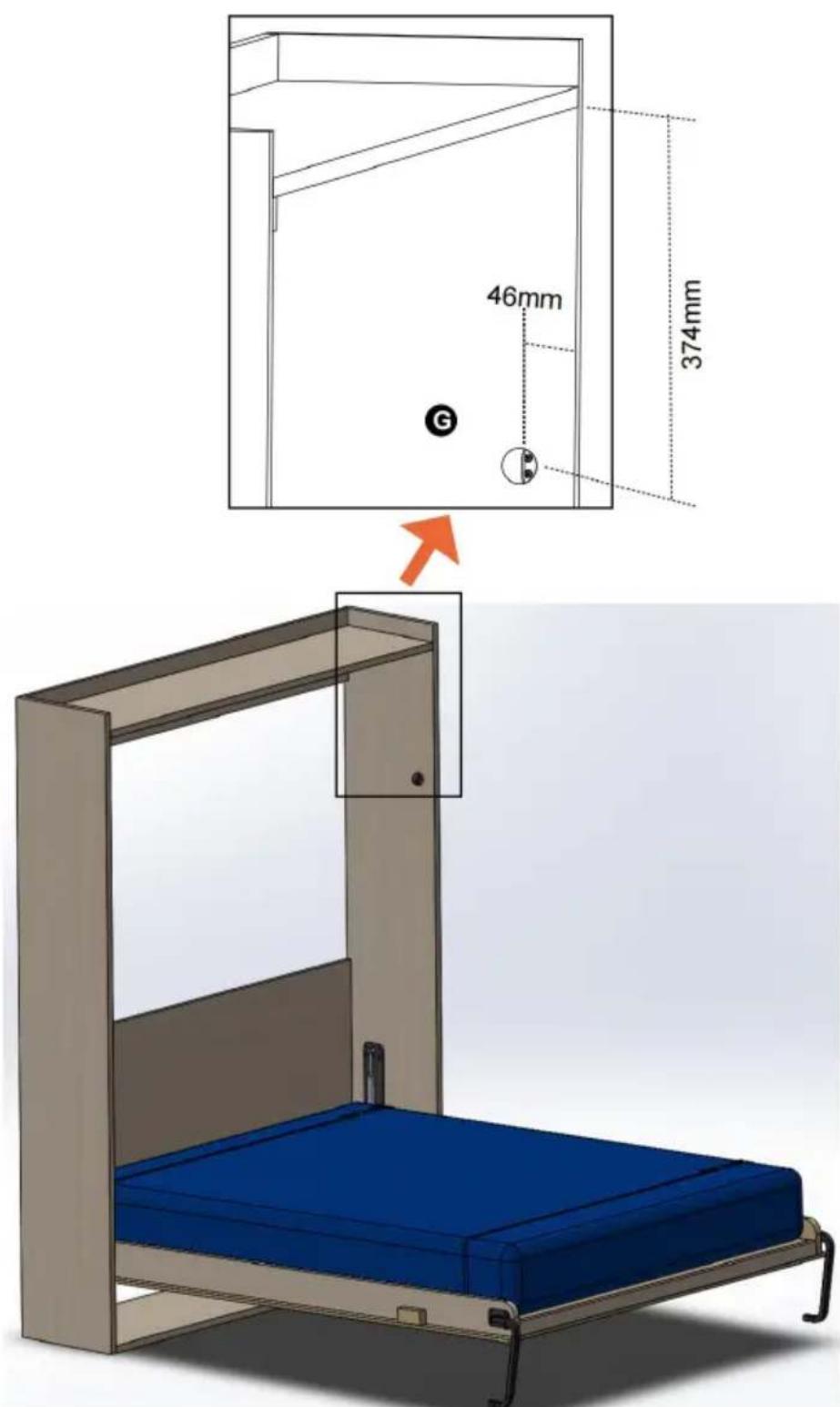

Step 11:

Open the bed, place panel 13 on the bed frame.

Place the mattress on the bed frame and secure it with the straps E.

Install the stopper G to the cabinet using screws J.

Repeat the above installation on the other side.

Manufacturer: Shanghaiuxinmuyeyouxianggsi

Address: Shuangchenglu 803nong11hao1602A-1609shi, baoshanqu, shanghai 200000 CN.

Imported to AUS: SIHAO PTY LTD. 1 ROKEVA STREETEASTWOOD NSW 2122 Australia

Imported to USA: Sanven Technology Ltd. Suite 250, 9166 Anaheim Place, Rancho Cucamonga, CA 91730

UK

REP

YH CONSULTING LIMITED. C/O YH Consultin Limited Office 147, Centurion House, London Road, Staines-upon-Thames, Surrey, TW18 4A

EC

REP

Technical Support and E-Warranty Certificate

www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

Technical support and electronic warranty certificate www.vevor.com/support

MURPHY BED KIT

Model: YFVTW245

YH CONSULTING LIMITED. C/O YH Consulting Limited Office 147, Centurion House, London Road, Staines-upon-Thames, Surrey, TW18 4AX

E-CrossStu GmbH

Mainzer Landstr.69,

YH CONSULTING LIMITED. C/O YH Consulting Limited Office 147, Centurion House, London Road, Staines-upon-Thames, Surrey, TW18 4AX

E-CrossStu GmbH

Mainzer Landstr.69,

60329 Frankfurt am Main.

VEVOR

TOUGH TOOLS, HALF PRICE

Imported in AUS: SIHAO PTY LTD. 1 ROKEVA STREET EASTWOOD NSW 2122 Australia

YH CONSULTING LIMITED. C/O YH Consulting Limited Office 147, Centurion House, London Road, Staines-upon-Thames, Surrey, TW18 4AX

REP.CE

E-CrossStu GmbH Mainzer Landstr.69, 60329 Frankfurt am Main.

VEVOR

TOUGH TOOLS, HALF PRICE

Technical specifications

Gabinete	1
	MaterialNúmero	Dimisión	IQTY	Importante
1	Madera contrachapada de 1 pulgada 2082*406*25 mm 2			Interno dimensiones de gabinete: 1124*388*1972 milimetros
2	Madera contrachapada de 1 pulgada 1124*388*25 mm	1
3	Madera contrachapada de 1 pulgada 1124*406*25 mm	1
4	3/4 de pulgada Madera contrachapada	1124*550*18mm	1
5	3/4 de pulgada Madera contrachapada	1124*250*18mm	1
Cama marco	13 6 12 11 9
Número de material	Dimisión	IQTY	Importante
6	3/4 de pulgada madera	40*20*950mm	12	Peso de la estructura de la casa: 42 kg (92,4 libras) Dimensiones de marco de la casa: 1947*1104*132 milimetros
7	3/4 de pulgada madera	40*20*1897 milimetro 2
8	1 pulgada Madera contrachapada	1947*120*25mm2
9	1 pulgada Madera	990*50*25 milimetros 1
10	contrachapada de 1-1/2 pulgada madera	32*32*100mm	1
11	1/2 pulgada Madera contrachapada	1947*1104*12mm 1
12	1 pulgada Madera contrachapada	990*120*25 milímetros 1
13	3/8 pulgadas Madera contrachapada	1892*986*9 milímetros 1
Cama marco	14
Número de	material	Dimisión	IQTY	Importante
14	colchón	990*1900*(152-25 4)mm (39*75*(6-10)pulgadas)	1	Peso de colchón: 20 kg (44 libras)
PESO TOTAL DEL ESTRUCTURA DE LA CAMA Y DEL COLCHON NECESITAN SER:				61-64kg (134 libras-141 libras)
