PIPE SHELVES
MODEL:WPSR-XM016/WPSR-XM017
We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represents an estimate of savings you might benefit from buying certain tools with us compared to the major top brands and does not necessarily mean to cover all categories of tools offered by us. You are kindly reminded to verify carefully when you are placing an order with us if you are actually Saving Half in comparison with the top major brands.
MODEL: WPSR-XM016/WPSR-XM017
NEED HELP? CONTACT US!
Have product questions? Need technical support? Please feel free to contact us:
Technical Support and E-Warranty Certificate www.vevor.com/support
This is the original instruction, please read all manual instructions carefully before operating. VEVOR reserves a clear interpretation of our user manual. The appearance of the product shall be subject to the product you received. Please forgive us that we won't inform you again there are any technology or software updates on our product.
IMPORTANT SAFEGUARDS
WARNING: Read and understand this entire manual before
operating or servicing this product. Failure to follow these warnings and instructions can cause personal injury or damage to valuable property.
- Avoid children using the product. And this product is not a toy. Do not allow children to play.
SETUP PRECAUTIONS
1.Assemble only according to these instructions. Improper assembly can create hazards.
2. Keep the assembly area clean and well-lit.
3.Capabilities apply to properly and completely assembled product only.
4. Keep bystanders out of the area during assembly.
5. Do not assemble when tired or when under the influence of alcohol, drugs or medication.
6.Keep away from sharp points,blades and other items.
7. For additional information regarding the parts listed in the following pages, please refer to the Assembly Diagram of this manual. Unwrap and separate all parts in a clean work area. Please keep small spare parts of children's reach.
SAVE THESE INSTRUCTIONS
SAFETY AND PRECAUTIONS
WARNING:
- Do not place too heavy weight on the pipe shelves, it may bend or even break the board, we recommend placing the weight of no more than 50lt.
- The pipe shelves is installed only on solid walls, such as solid brick wall and concrete walls. If the pipe shelves is installed on wooden walls, the thickness of the wooden wall be at least 6cm.
CAUTION:
- When installing the pipe shelves, pay attention to keeping the board in horizontal state, so as to have a better experience of placing items
- This product is intended for indoor installation use only.
SPECIFICATION

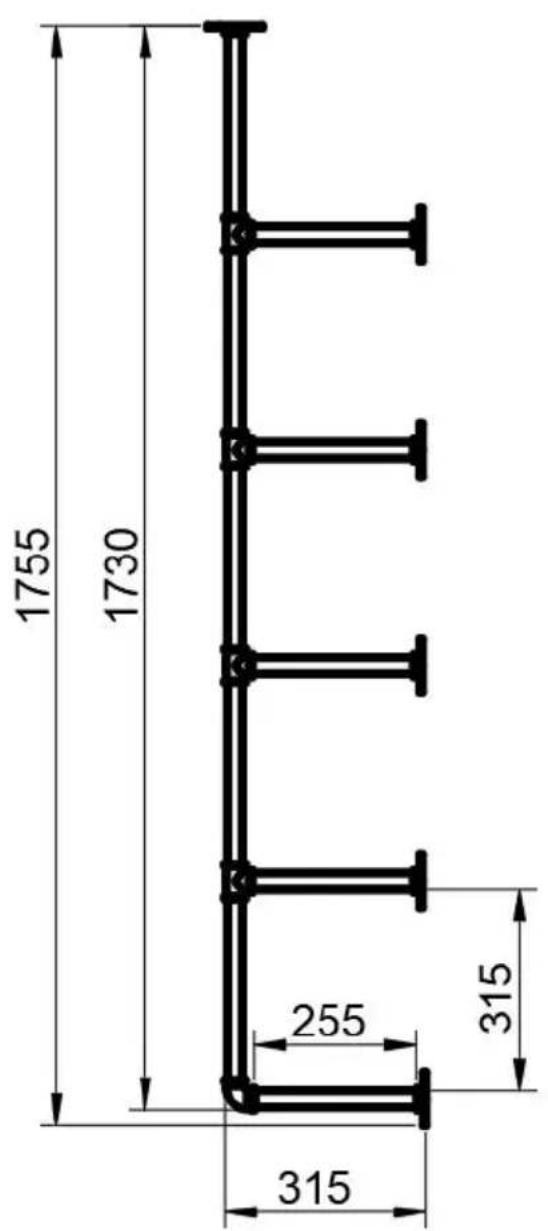

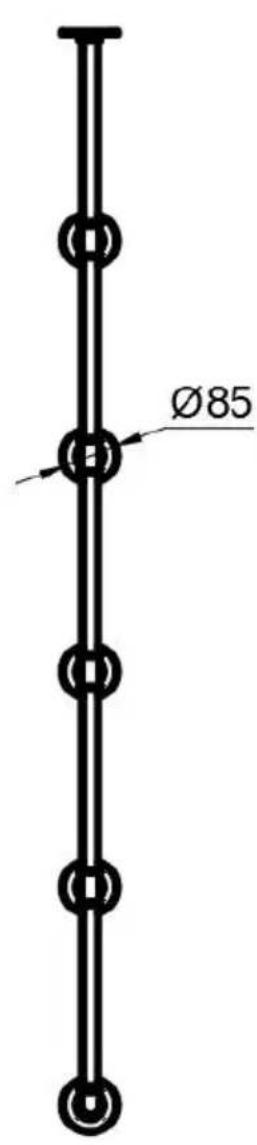

MODEL: WPSR-XM016

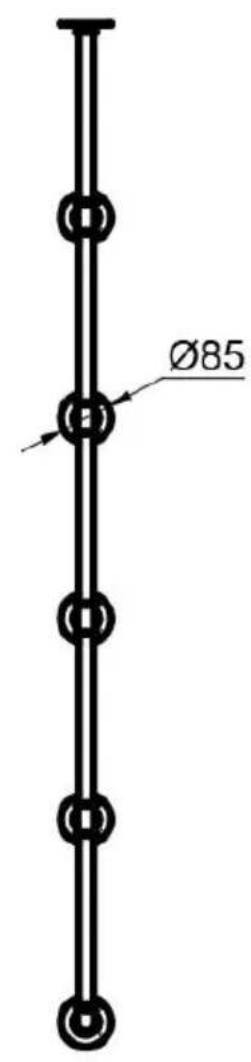

MODEL: WPSR-XM017

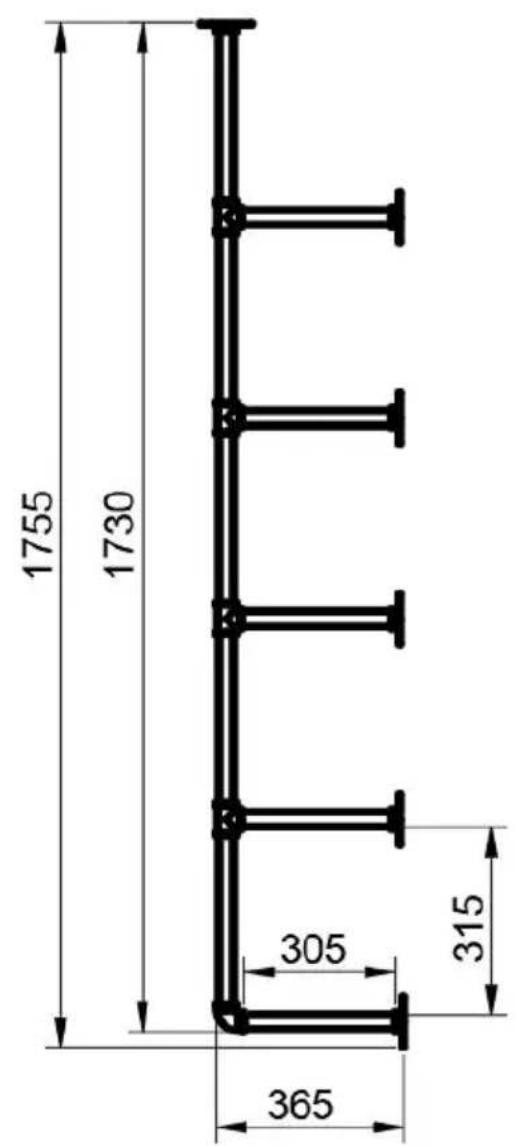

Note: The number unit in the figure is mm.
Part List
| Mark | Name | Picture | QTY | Specifications | |
| WPSR-X M016 | WPSR-XM 017 | ||||
| A | Tee connector | 8 | / | ||
| B | elbow connector | 2 | / | ||
| C | Mounting flange | 12 | / | ||
| D | Pipe | 10 | L=310mm | L=310mm | |
| E | Pipe | 10 | L=276mm | L=326mm | |
Install accessories
| Mark | Name | Specifications | Picture | QTY |
| R | Screw | M5*40mm | 48 | |
| S | Plastic expansion tube | D=8mm | 48 |

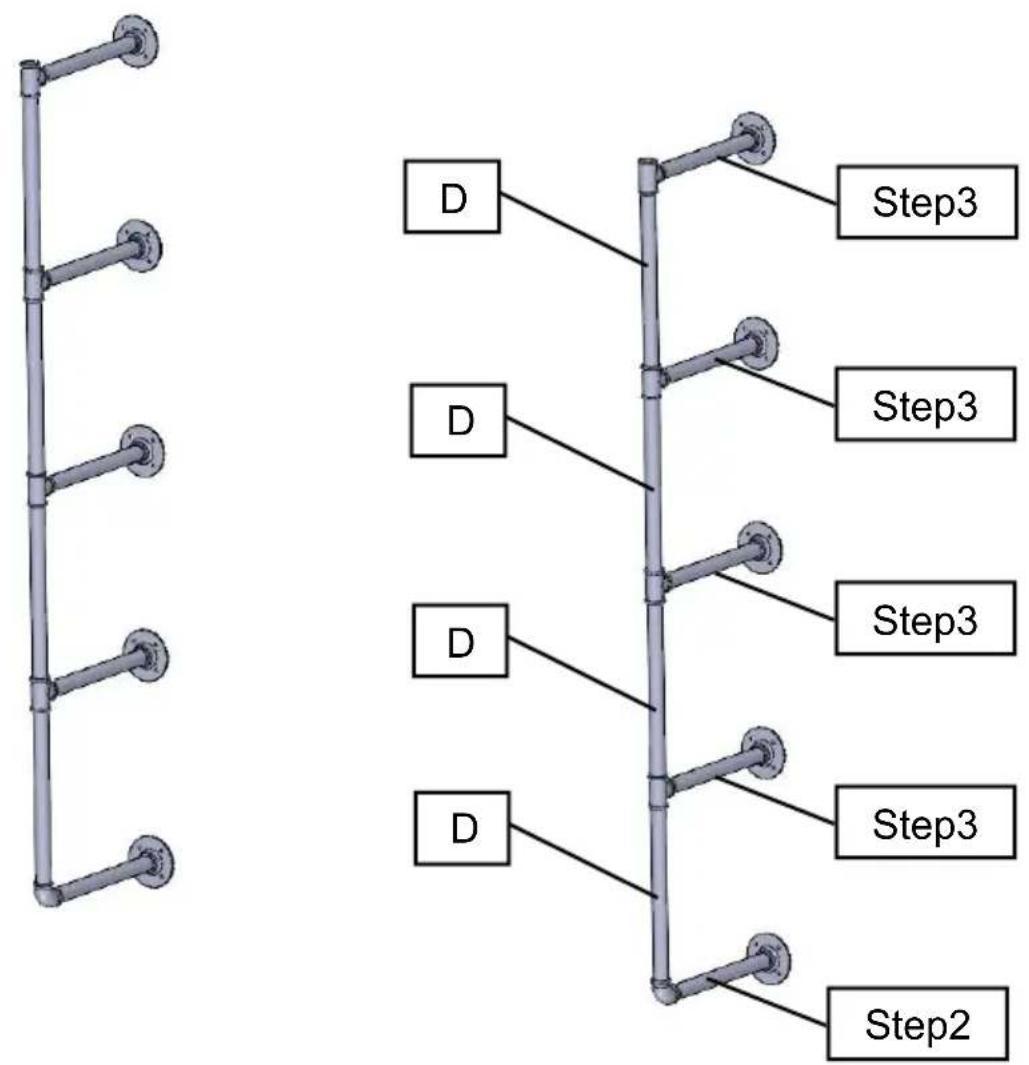

PIPE SHELVES ASSEMBLE

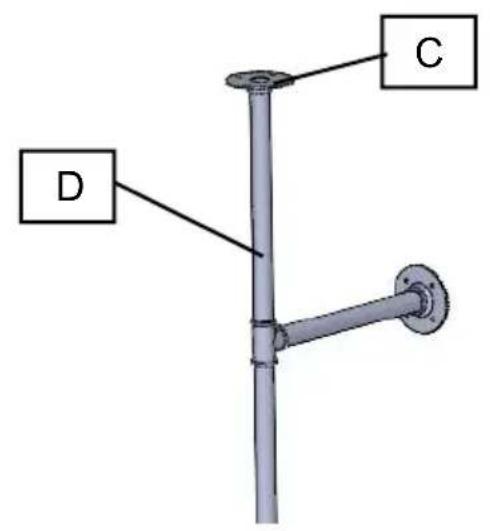

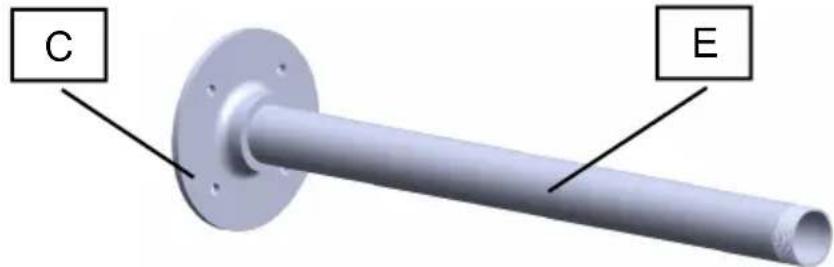

STEP1.Screw the mounting flange C together with the pipe F. 10 groups total.

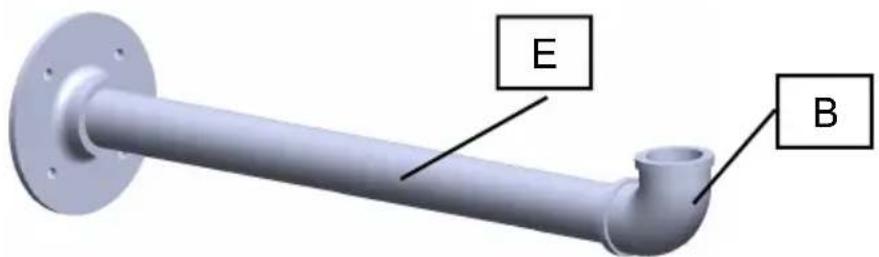

STEP2.Tighten the elbow connector B into the previous component. 2 groups in total.

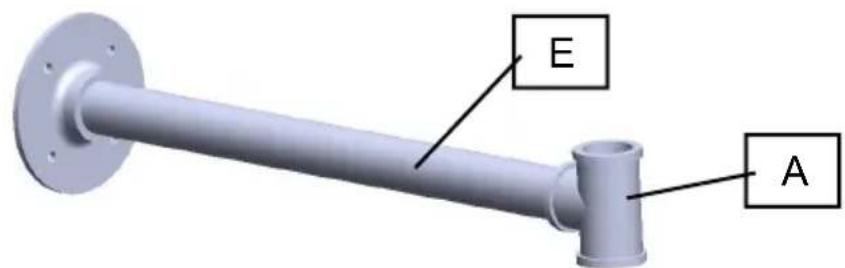

STEP3.Tighten the elbow connector A into the previous component of Step1. 8 groups in total.
STEP4.Connect the components of Step 2 and Step 3 with pipe D.
STEP5.Connect the pipe D and Mounting flange C.

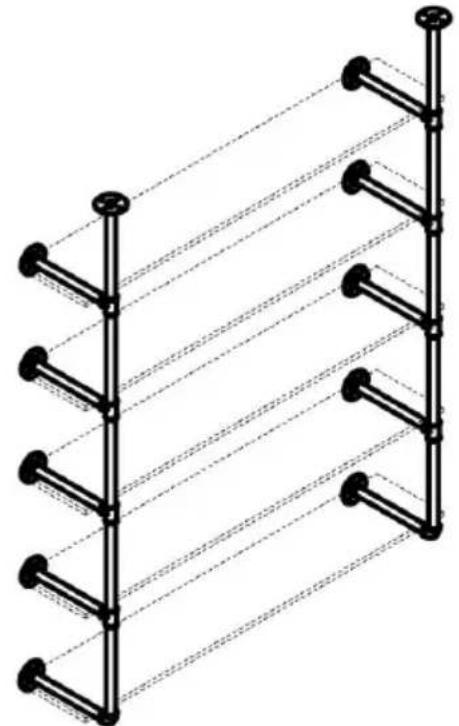

ATTACH PIPE SHELVES TO THE WALL
Note:At least one assistant is recommended.
STEP1:Locate the pipe shelves to the wall and determine the height you want to install them at. Use a level to make sure the boards are level, mark the location holes on the mounting flange.
Right
False
Note: The fixed points of the flange should be distributed on both of the tube for better operation to tighten the screw.

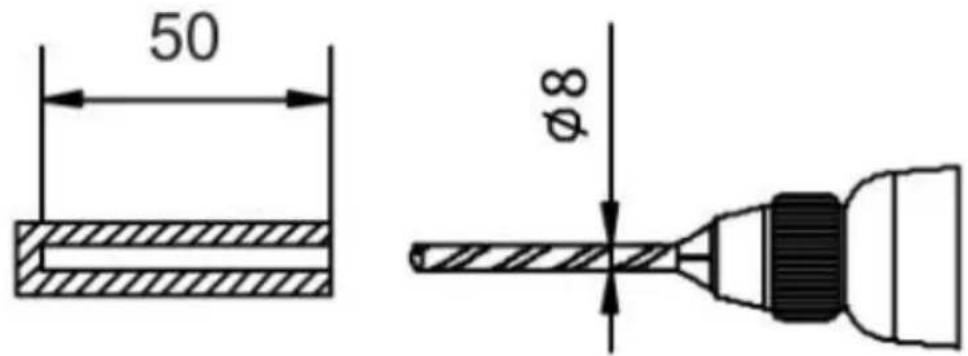

STEP2: Drill holes in the concrete wall with an impact drill bit. The size of the holes is shown below.(If mounted on a wooden wall, drill holes with common drill bit.)

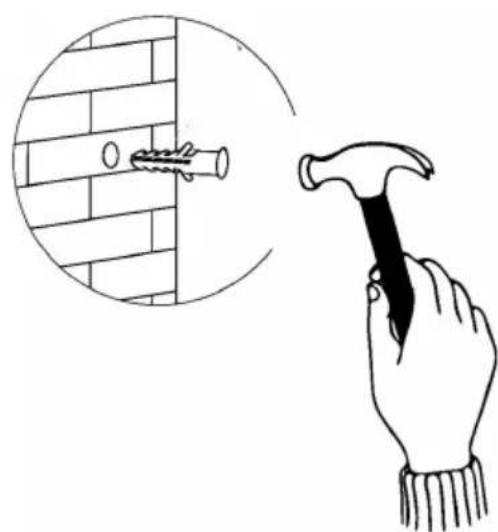

STEP3:Drive Plastic expansion tube into each hole.

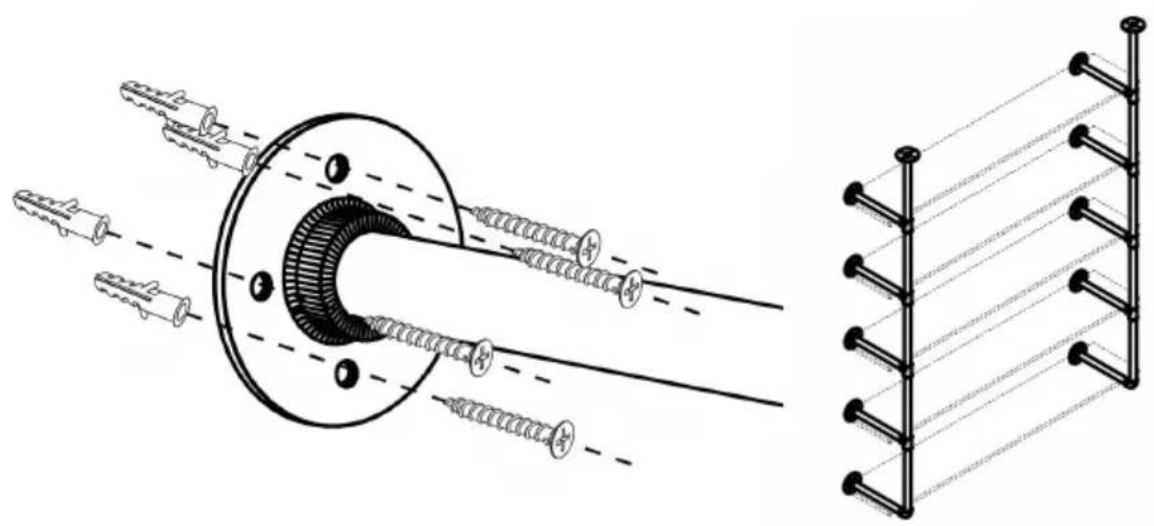

STEP4: For each mounting hole, secure pipe shelves with tapping screws.
