GEAR PULLER

MODEL: XC6527

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represents an estimate of savings you might benefit from buying certain tools with us compared to the major top brands and dose not r mean to cover all categories of tools offered by us. You are kindly reminded to verify carefully when placing an order with us if you are actually saving half in comparison with the top major brands

VEVOR®

GEAR PULLER

MODEL: XC6527

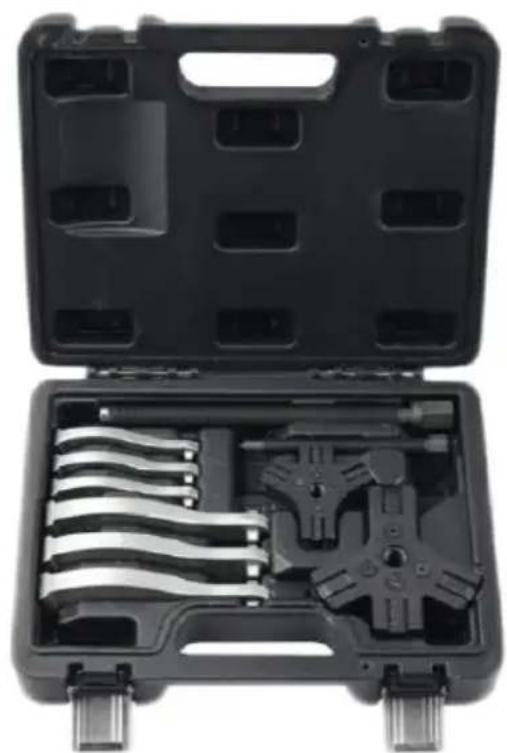

Open black hard-shell tool kit with multiple metal clamps and a handle (no text or symbols visible)

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel f contact us: Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instruction carefully before operating. VEVOR reserves a clear interpretation user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform you there are any technology or software updates on our product.

Safety & Warning

• Read and understand this entire manual before assembling, installing operating, or servicing this product. Failure to follow these warnings instructions can cause death, personal injury, or damage valuable property.
• While assembling and using this product, keep the work area clean well-lighted, and keep spectators and children out of the work area
• Wear ANSI-approved safety goggles, heavy-duty work gloves, and safety shoes during use.
• Use as intended only.
• Before each use, inspect the general condition of the product. Check broken, cracked, or bent parts, loose or missing parts, and any co that may affect the proper operation of the product.
• After every use, wipe with a clean cloth. Then, store the product in safe, dry location out of reach of children and other non-authorized people.
• Ensure only genuine parts are used for replacement & Repair.
• Be aware of dynamic loading! The sudden load movement may brief create an excess load, causing product failure.

Specifications

Model Series	XC6527
Max. Tensile Force (t)	2 (Small) & 5(large)
Max. Jaw Spread(inch)	3 Small) & 7 (large)
Structural Style	Mechanical

Figure of the Product

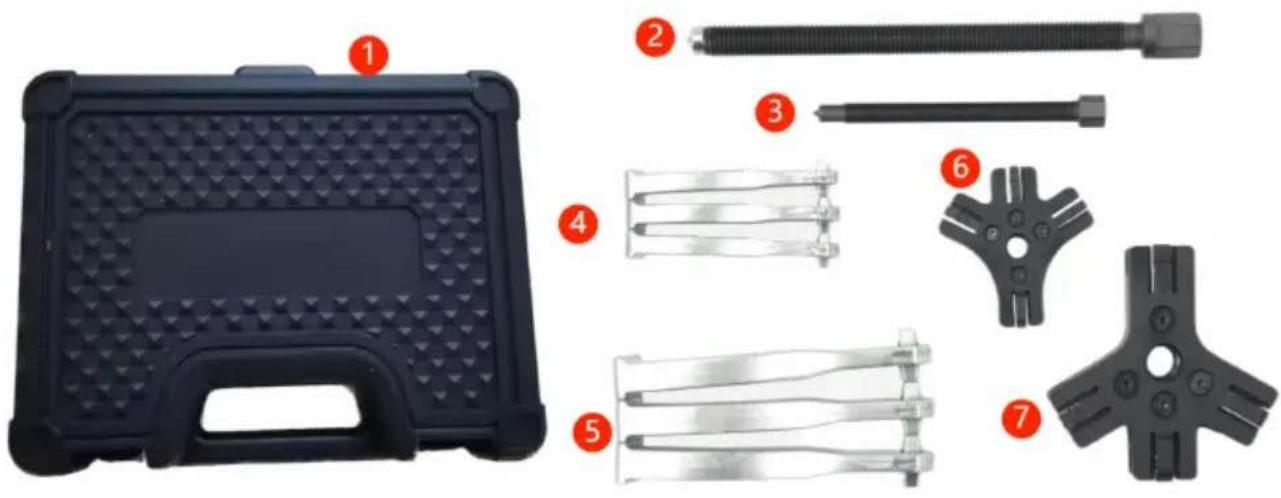

Exploded view diagram of a mechanical tool kit with numbered parts including base case, threaded rod, and multiple clamps.

Part	Description	Qty.
1	Toolbox	1
2	Large Screw	1
3	Small Screw	1
4	Small Pull Jaw	3
5	Large Pull Jaw	3
6	Small Pull Block	1
7	Large Pull Block	1

Installation instructions

Three-legged Pattern:

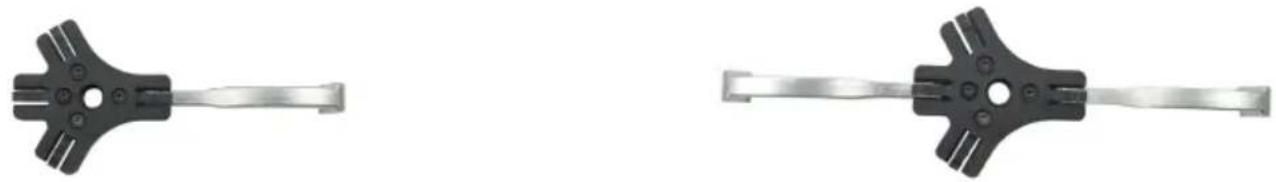

Step 1. Step 2.

Close-up of a black mechanical tool with a metallic handle and multiple arms (no visible text or symbols)

Close-up of a mechanical tool with three arms and a central hub (no text or symbols visible)

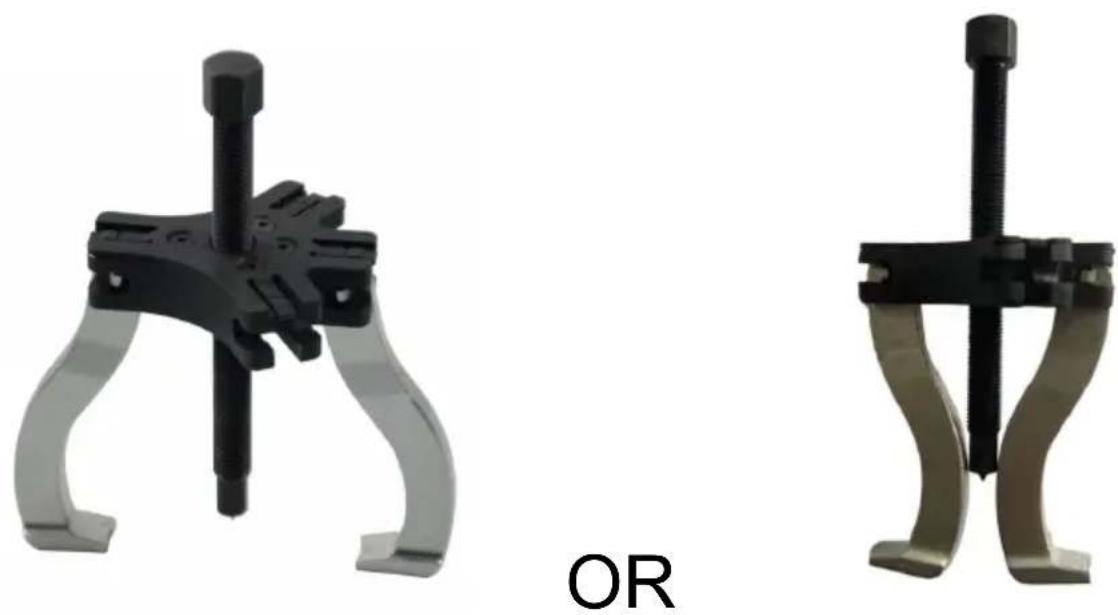

Step 3.

Mechanical clamp device with black and silver parts, no visible text or symbols

Mechanical clamp tool with black and gray components (no text or symbols visible)

OR

Double Leg Pattern

Step 1. Step 2.

Two identical mechanical tools with four protrusions and a central shaft, shown side by side (no text or symbols visible)

Step 3.

Two metal clamp holders with black and beige parts, labeled 'OR' below (no other text or symbols)

Instructions

A. Gear puller is often used in mechanical maintenance.

B. It is mainly used to remove the damaged bearings from the shaft the axis.

C. It mainly comprises a rotating handle, a screw rod, and a pulling There are two claws, three claws, the main size of the length of the claw, pull claw spacing, and screw length, to adapt to different diame and different coaxial installation depths of the bearing.

D. When in use, the screw center is positioned at the shaft end cer to adjust the position of the pulling claw so that the pulling claw is to the outer ring of the bearing, and the rotating handle makes the claw drive the bearing to move outward along the axis to remove.

Made In China
