WELDING TABLE HOB USER MANUAL

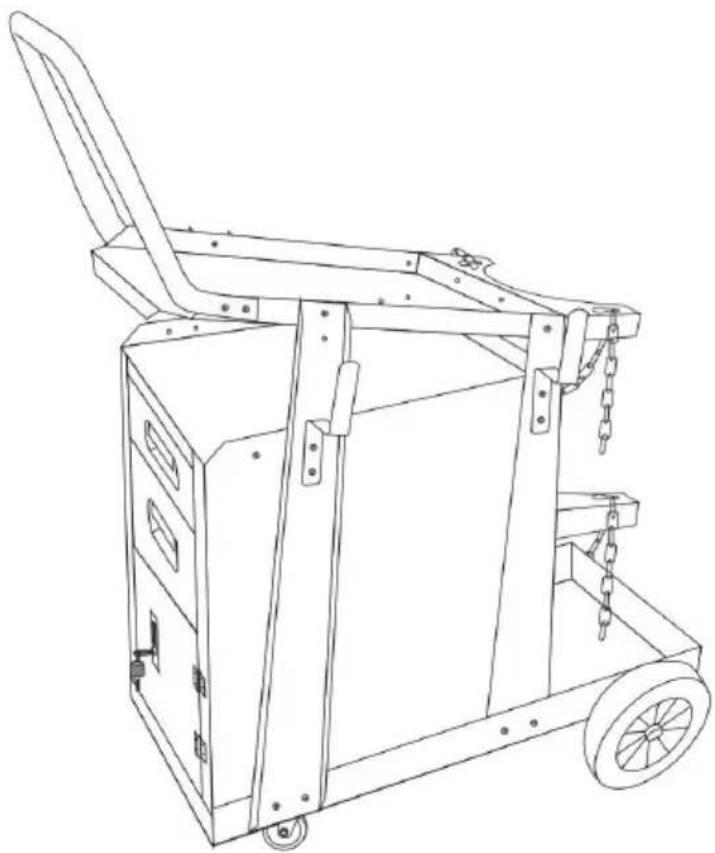

Line drawing of a mechanical cart with wheels and handle (no text or symbols)

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel fr contact us:

Technical Support and E-Warranty Certificate www. vevor. com/support

This is the original instruction, please read all manual instructions carefully before operating. VEVOR reserves a clear interpretation of user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform your use, there are any technology or software updates on our product.

SAFETY INSTRUCTIONS

WARNING:

Read this material before using this product. Failure to do so can result in injury.

Assembly precautions

1. Assemble only according to these instructions. Improper assembly can create hazards.
2. Wear safety goggles and heavy-duty work gloves during assembly.
3. Keep the assembly area clean and well-lit.
4. Keep bystanders out of the area during assembly.
5. Do not assemble when tired or when under the influence of alcohol, drugs medication.
6. The product capabilities apply to properly and completely assembled product only.
7. For additional information regarding the parts listed in the following pages, please refer to the Assembly Diagram of this manual. Unwrap and separate a parts in a clean work area.

Use precautions

1. Use with products heavier than the rated weights indicated may result in instability causing possible injury.
2. Mounts must be attached as specified in assembly instructions. Improper installation may result in damage or serious personal injury.
3. Make sure that the supporting surface will safely support the combined we of the equipment and all attached hardware and components.
4. Use the mounting screws provided and DO NOT OVER TIGHTEN mounting screws.
5. This product is not a toy. Do not allow children to play with or approach item.
6. Use as intended only. Do not sit or stand on table.
7. Inspect before every use. Do not use if parts are loose or damaged.
8. Use only on flat, level, hard surface.
9. Do not exceed listed weight capacity. Tighten all knobs securely before applying load.
10. Be aware of dynamic loading! Sudden load movement may briefly create excess load causing product failure.

ASSEMBLY INSTRUCTIONS

For additional information regarding the parts listed in the following pages, ref the Assembly

Diagram of this manual. Unwrap and separate all parts on a clear work area

PRODUCT PARAMETERS

Model	WT-178
Maximum load-bearing	350lb
Product Size (mm)	465*920*925

PACKING LIST

Item	Part Name	QTY	Picture
1	Handle	1 PCS
2	Hook	2 PCS
3	Hook	2 PCS
4	reinforced bracket	1 PCS
5	reinforced bracket	1PCS
6	drawer	1PCS	6
7	drawer	1PCS	7
8	top plate	1PCS	8
9	rear panel	1PCS	9
10	top plate of box body	1PCS	10
11	left side panel	1PCS
12	right side panel	1PCS
13	bottom plate	1PCS	13
14	cabinet door	1PCS	14
15	gas cylinder bracket	2PCS	15
16	chain	2PCS
17	universal wheel	2PCS	17
18	caster frame	2PCS	18
19	shaft	1PCS
20	screw	43PCS	AM6x14[S44A]
21	washer	43PCS
22	spring washer	43PCS
23	nut	43PCS	D∅6
24	washer	2PCS	E∅12
25	coiled spring pin	2PCS	F∅2.5
26	shaft key	1PCS	G
27	screw	4PCS	H M4x16
28	nut	4PCS	I M4

ASSEMBLY STEP

This is the original instruction, please read all manual instructions carefully be operating. VEVOR reserves clear interpretation of our user manual. The appearance of the product shall be subject to the product you received. Plea forgive us that we won't inform you again if there is any| technology or soft updates on our product.

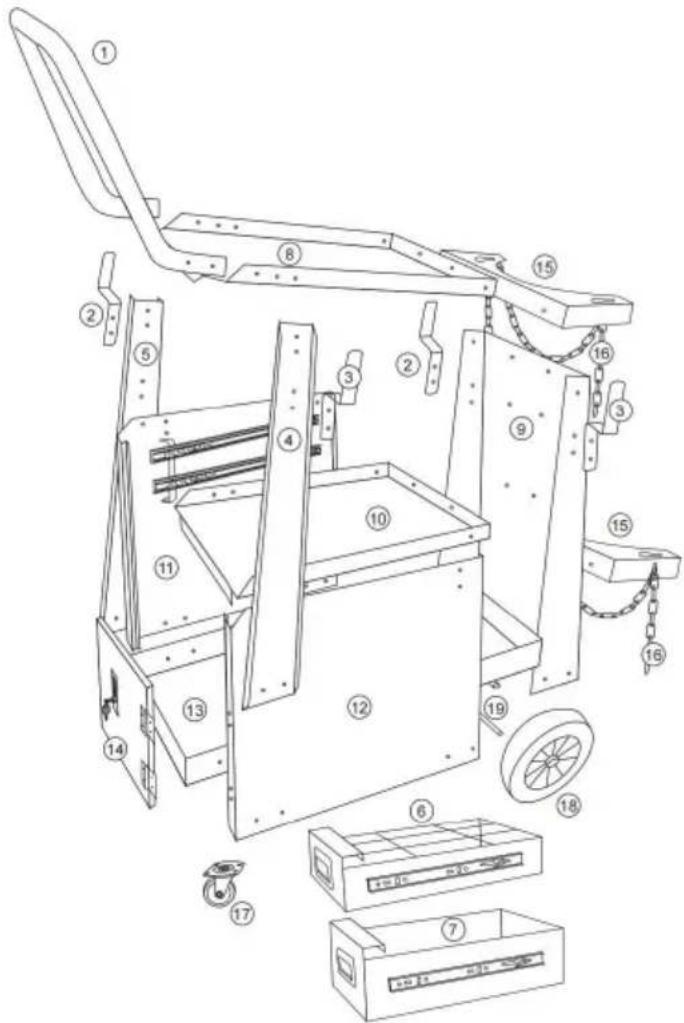

Technical diagram of an industrial machine with numbered components for identification and assembly reference.

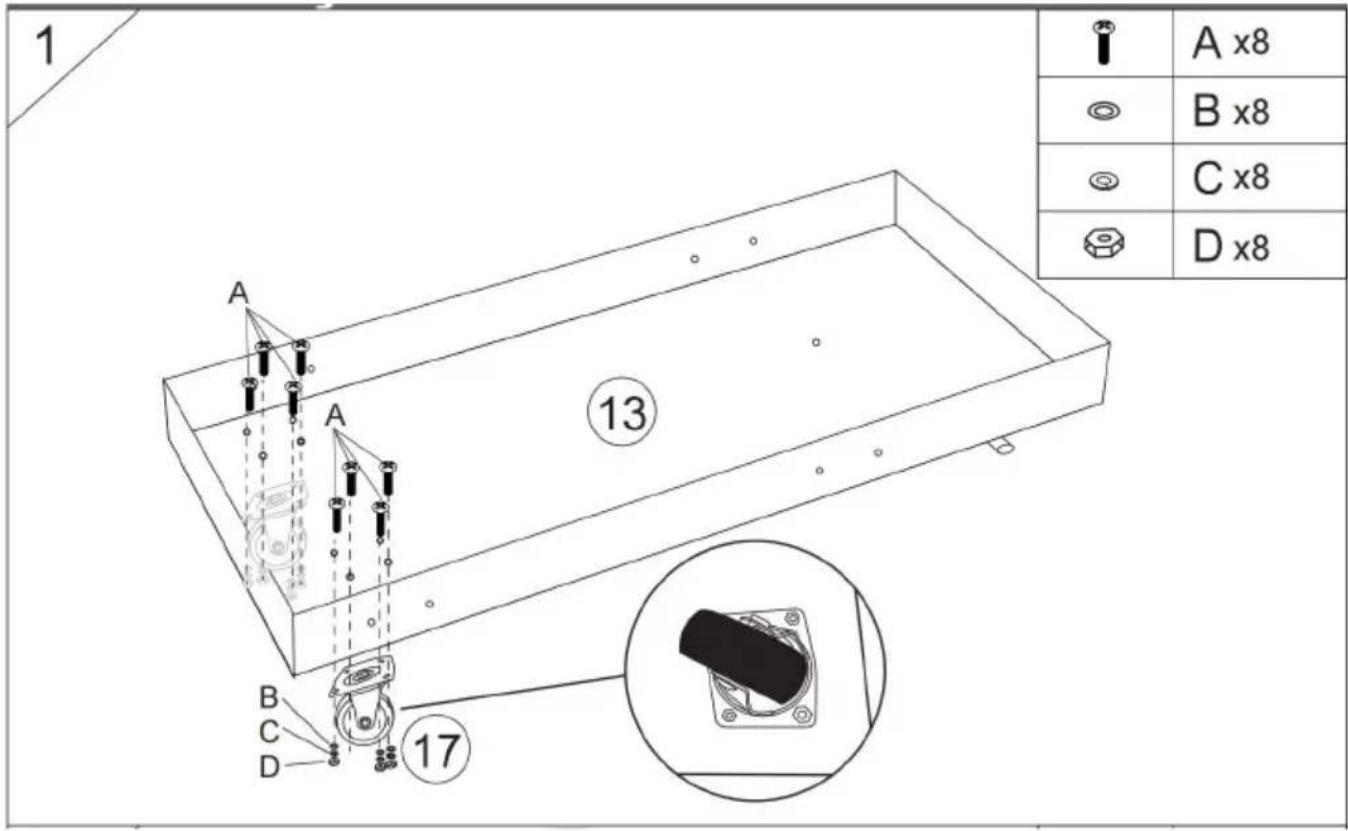

1. Install the universal wheel as shown in the figure.

1 A x8 B x8 C x8 D x8 13 17 B C D

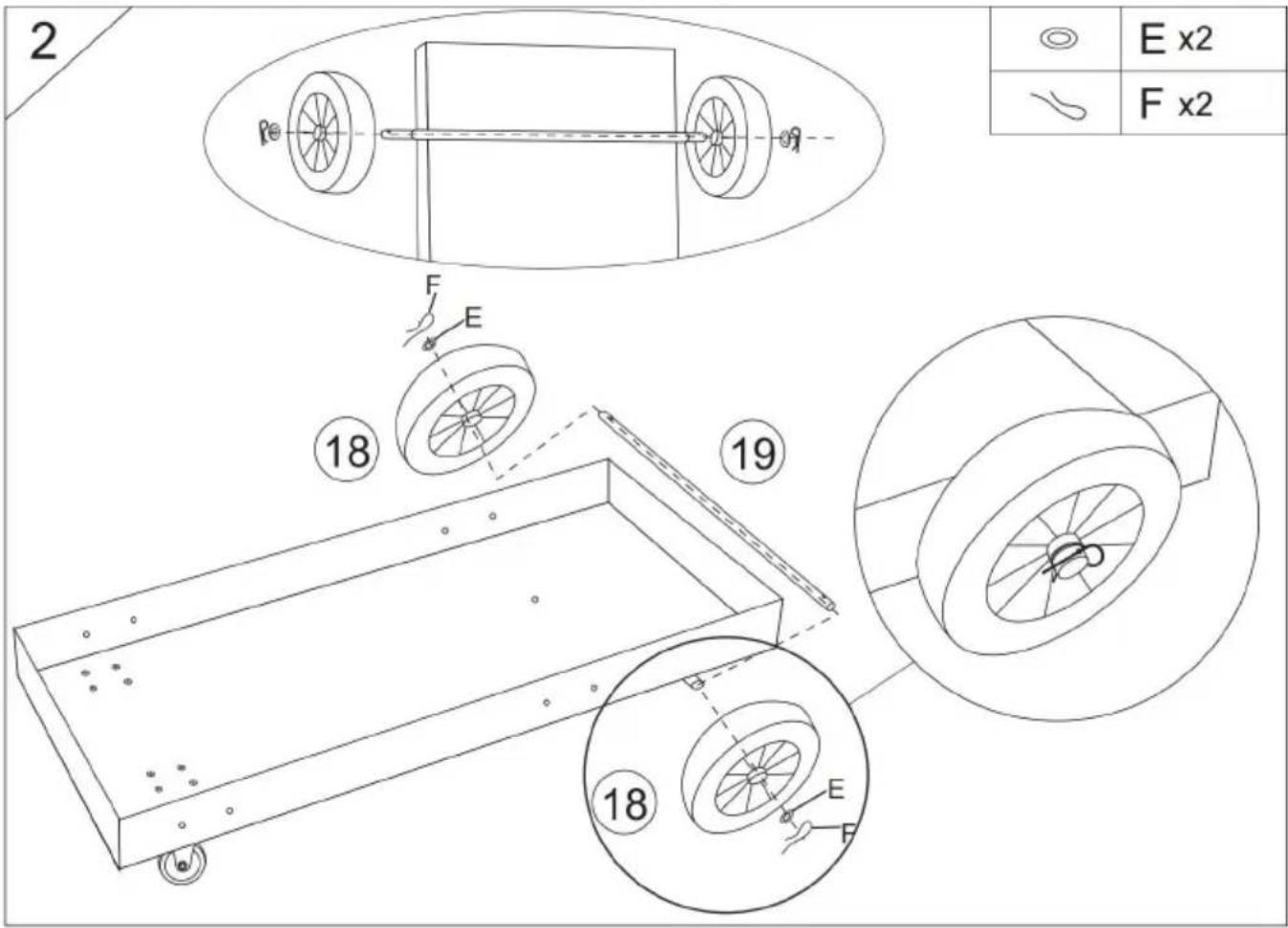

1. Install the caster as shown in the figure.

2 E x2 F x2 18 19 18 E F

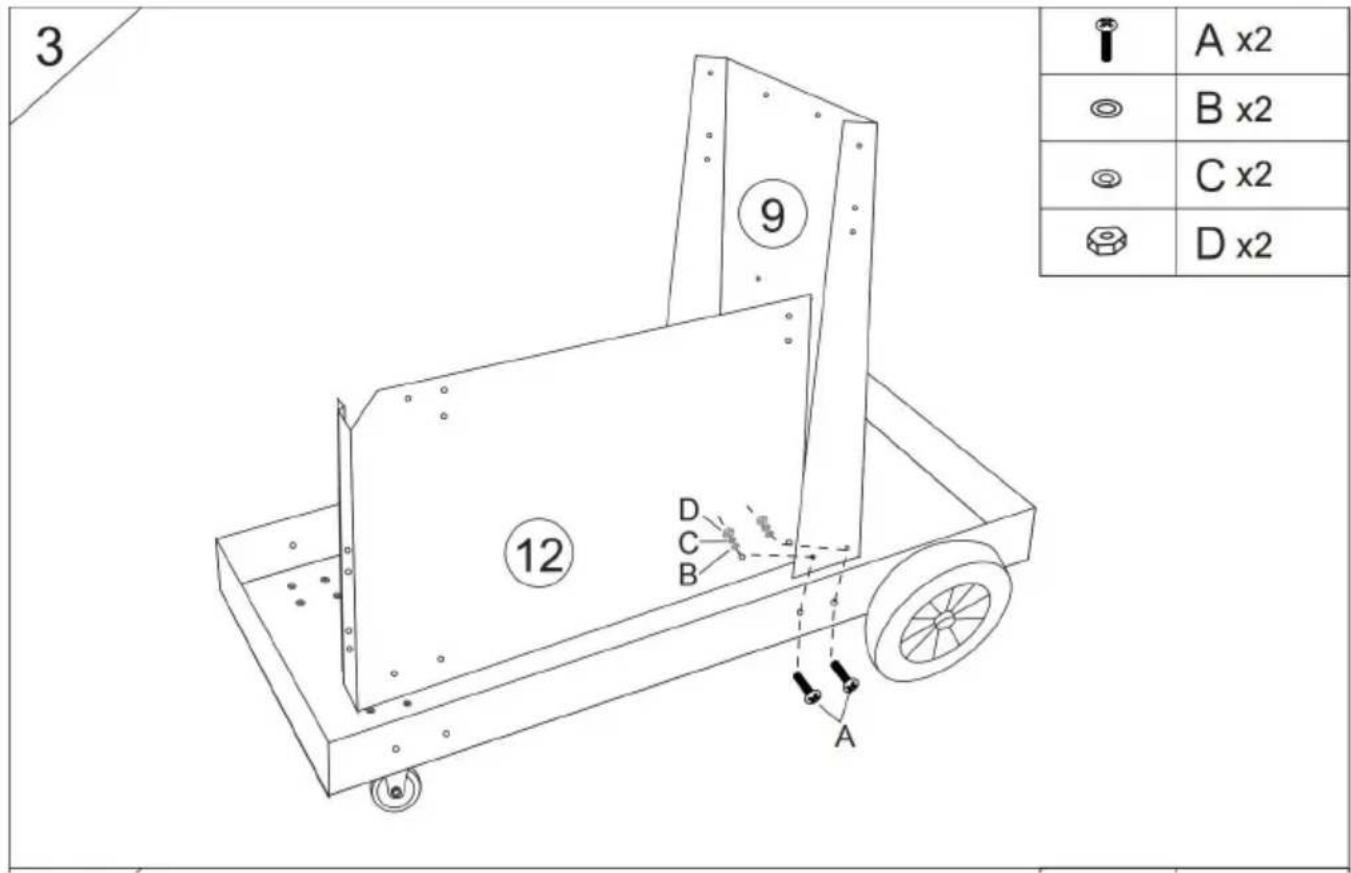

1. Install the rear panel as shown in the figure.

3 9 12 D C B A A x2 B x2 C x2 D x2

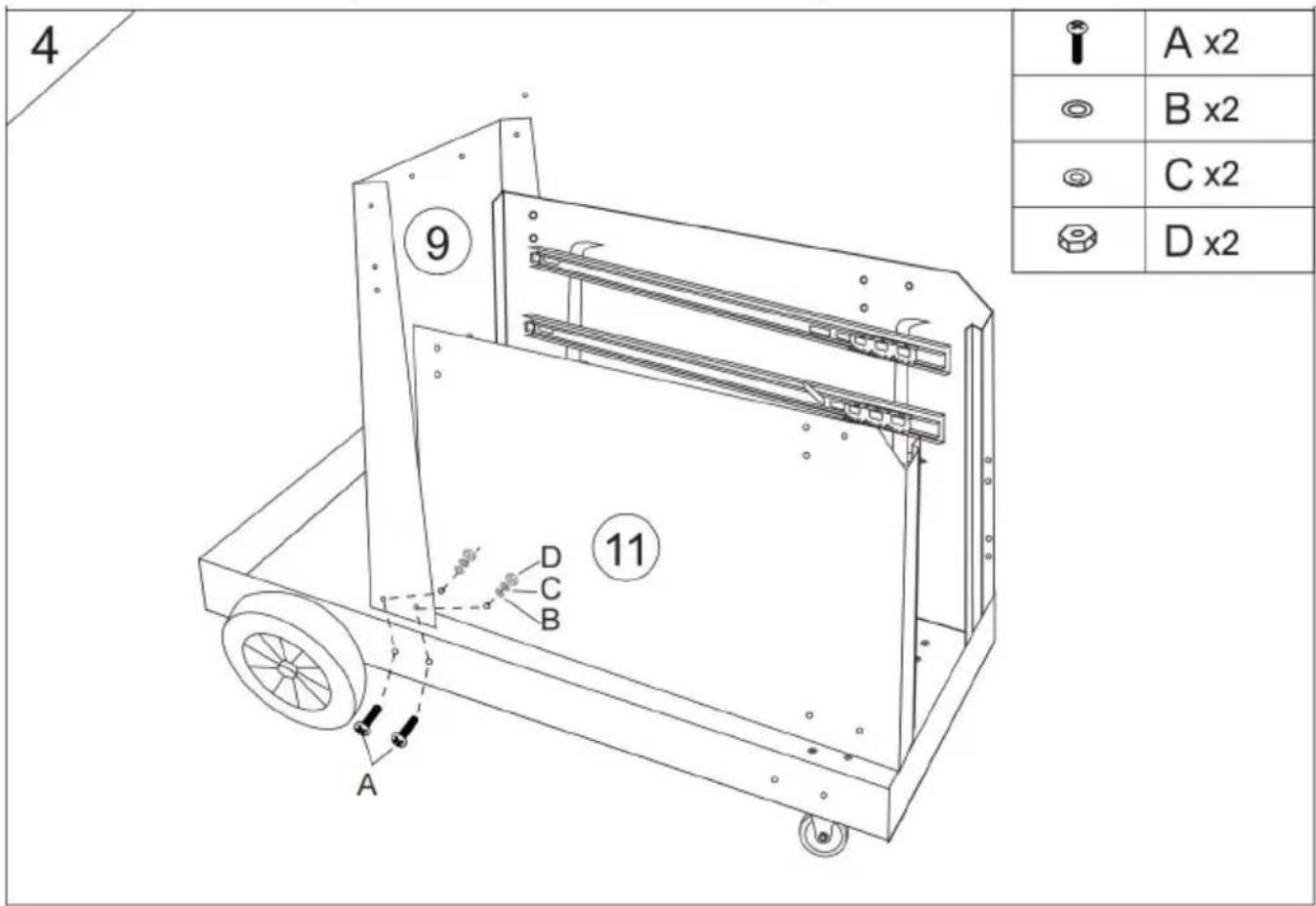

1. Install the side panel as shown in the figure.

4 A x2 B x2 C x2 D x2 9 11 A D C B

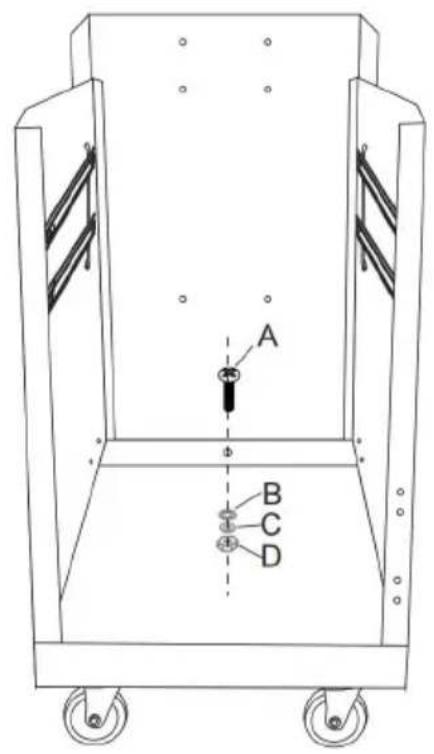

1. Fix the rear panel as shown in the figure.

5

A B C D

	A x1
	B x1
	C x1
	D x1

1. Install the reinforcing bracket as shown in the figure.

6

6 A B C D

	A x2
	B x2
	C x2
	D x2

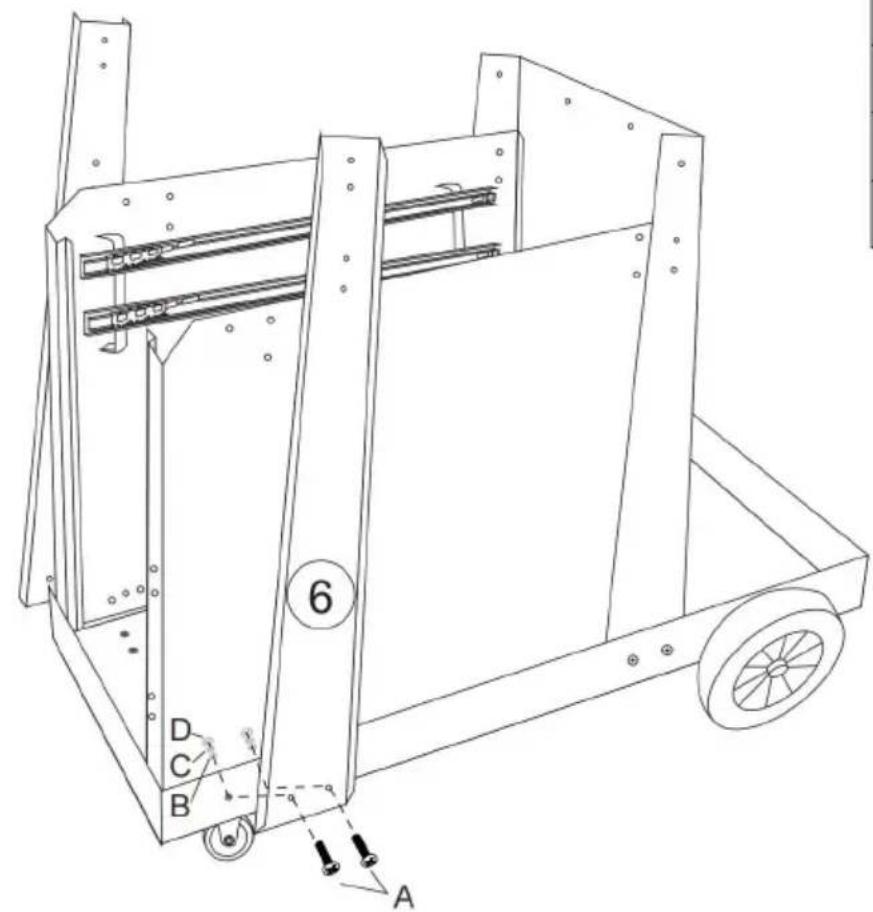

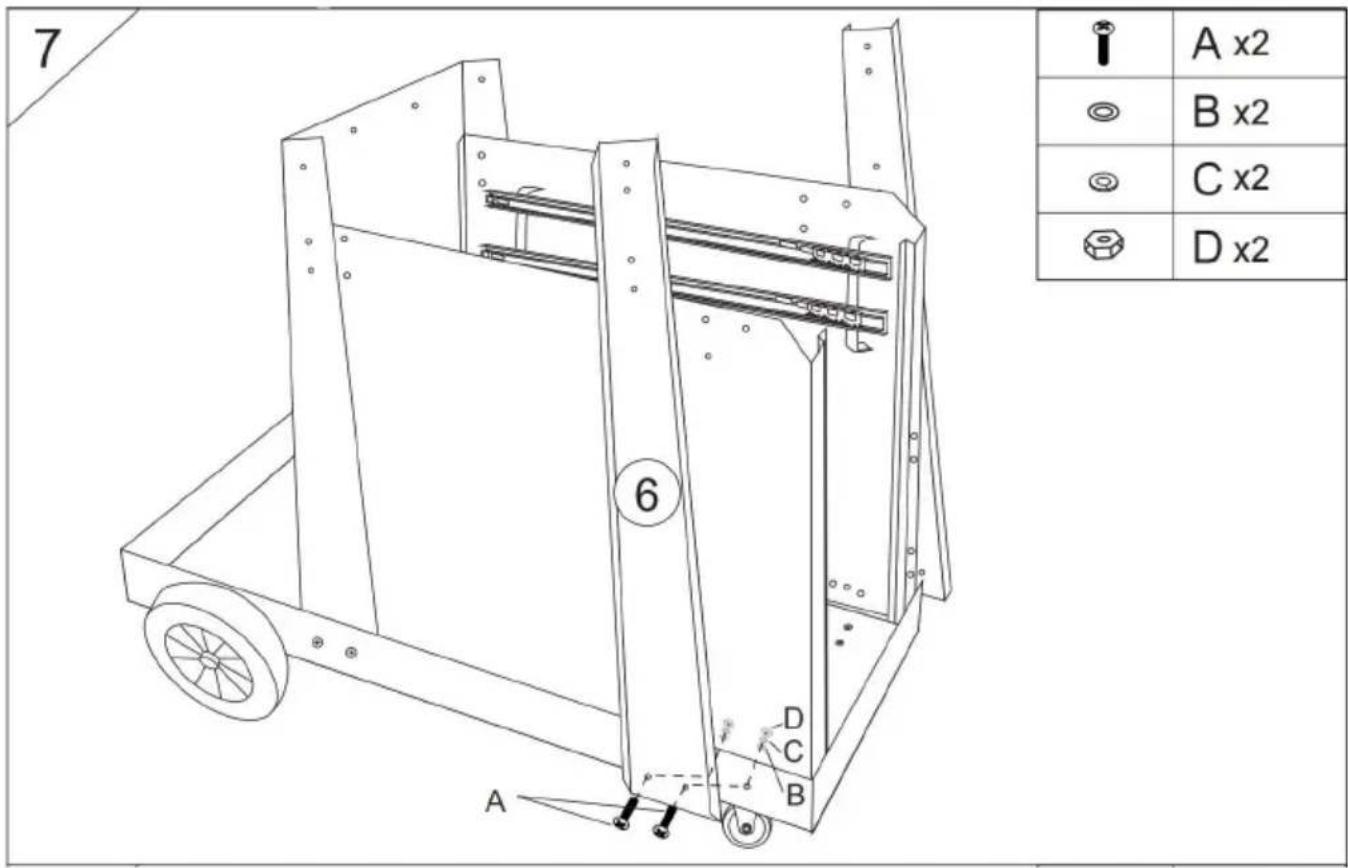

1. Install the reinforcing bracket as shown in the figure.

7 6 A x2 B x2 C x2 D x2 A D C B

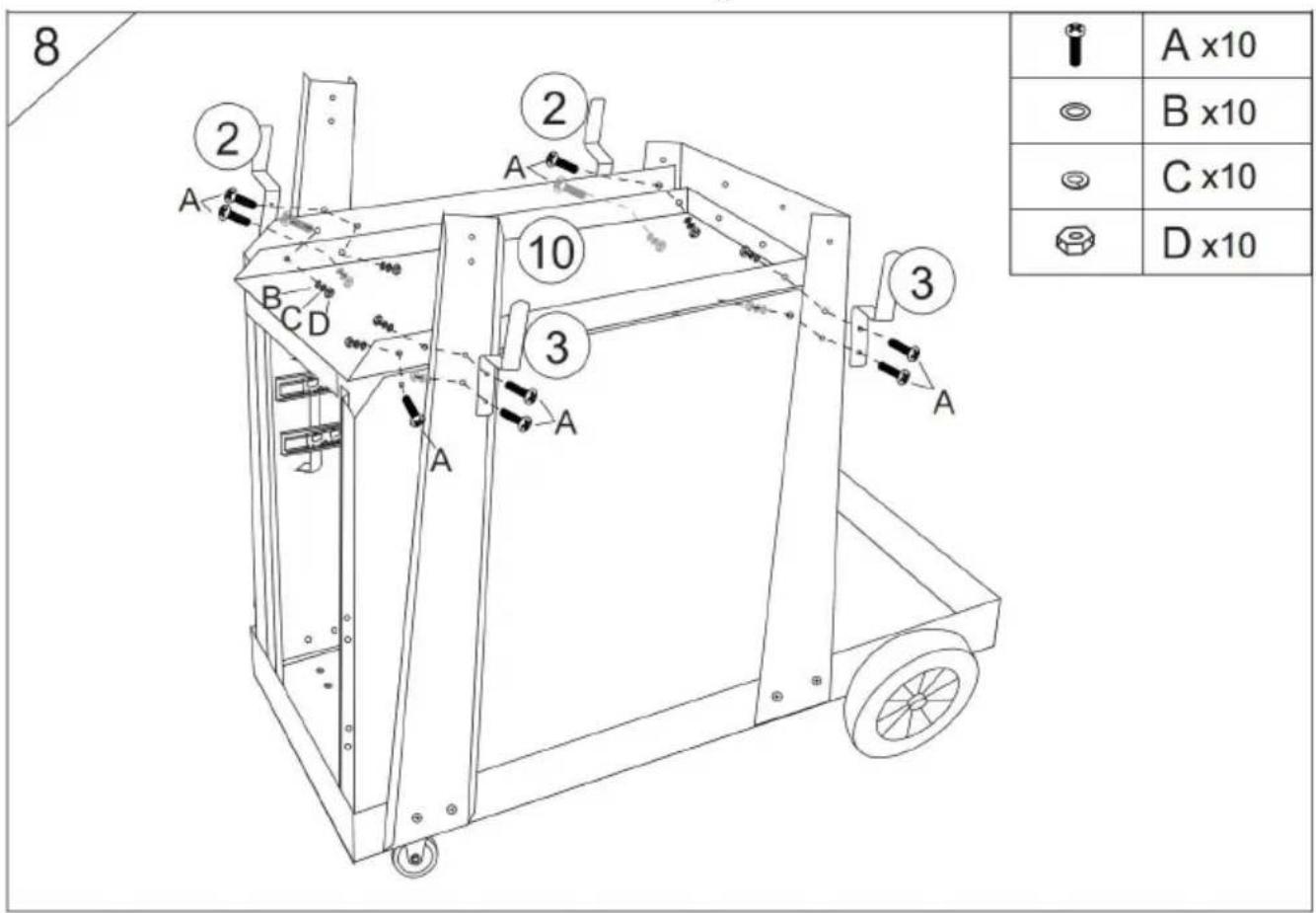

1. Install the hook as shown in the figure.

8 A x10 B x10 C x10 D x10

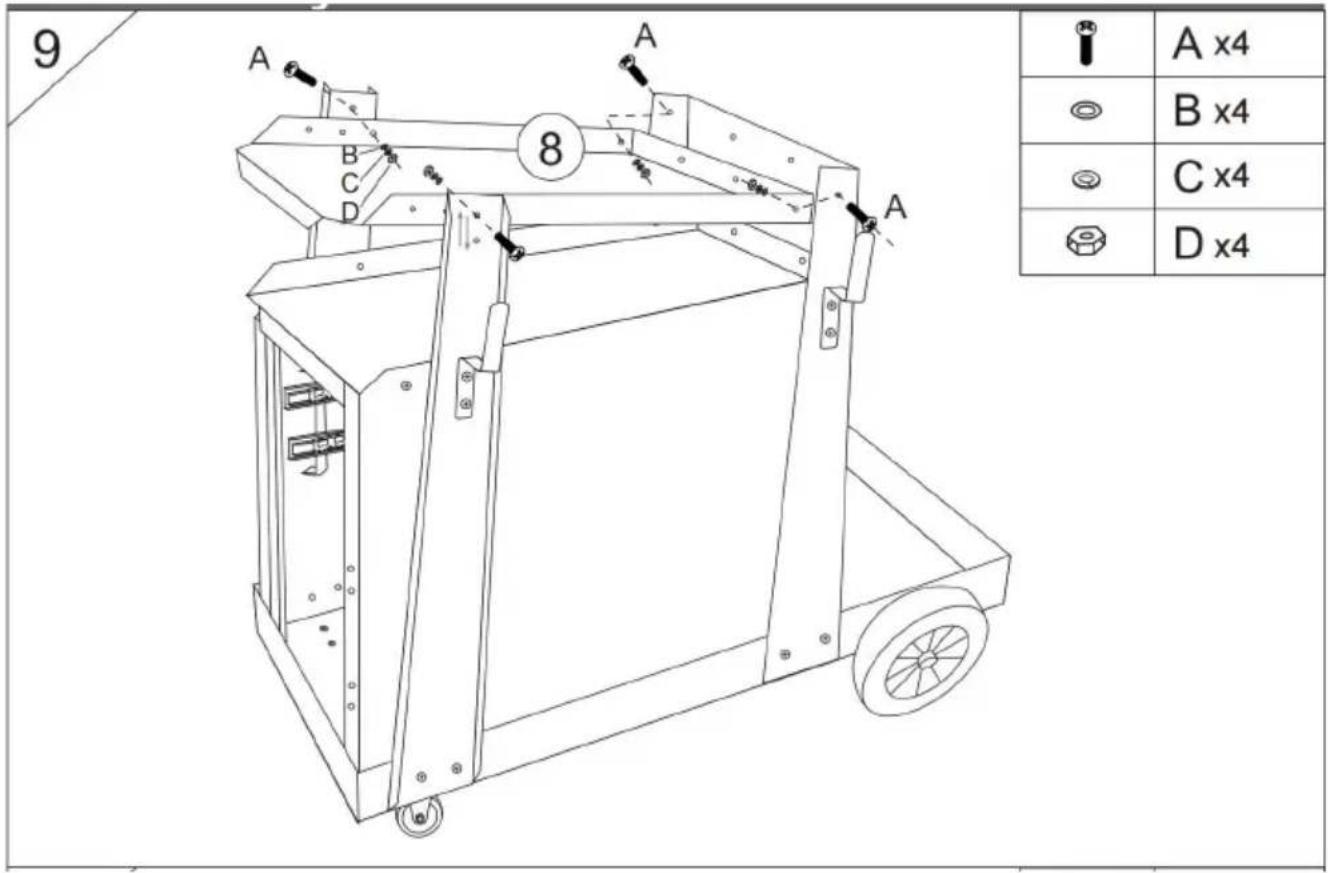

1. Install the top panel as shown in the figure.

9 A x4 B x4 C x4 D x4

1. Install the cabinet door as shown in the figure.

10 H x4 I x4 14 H H

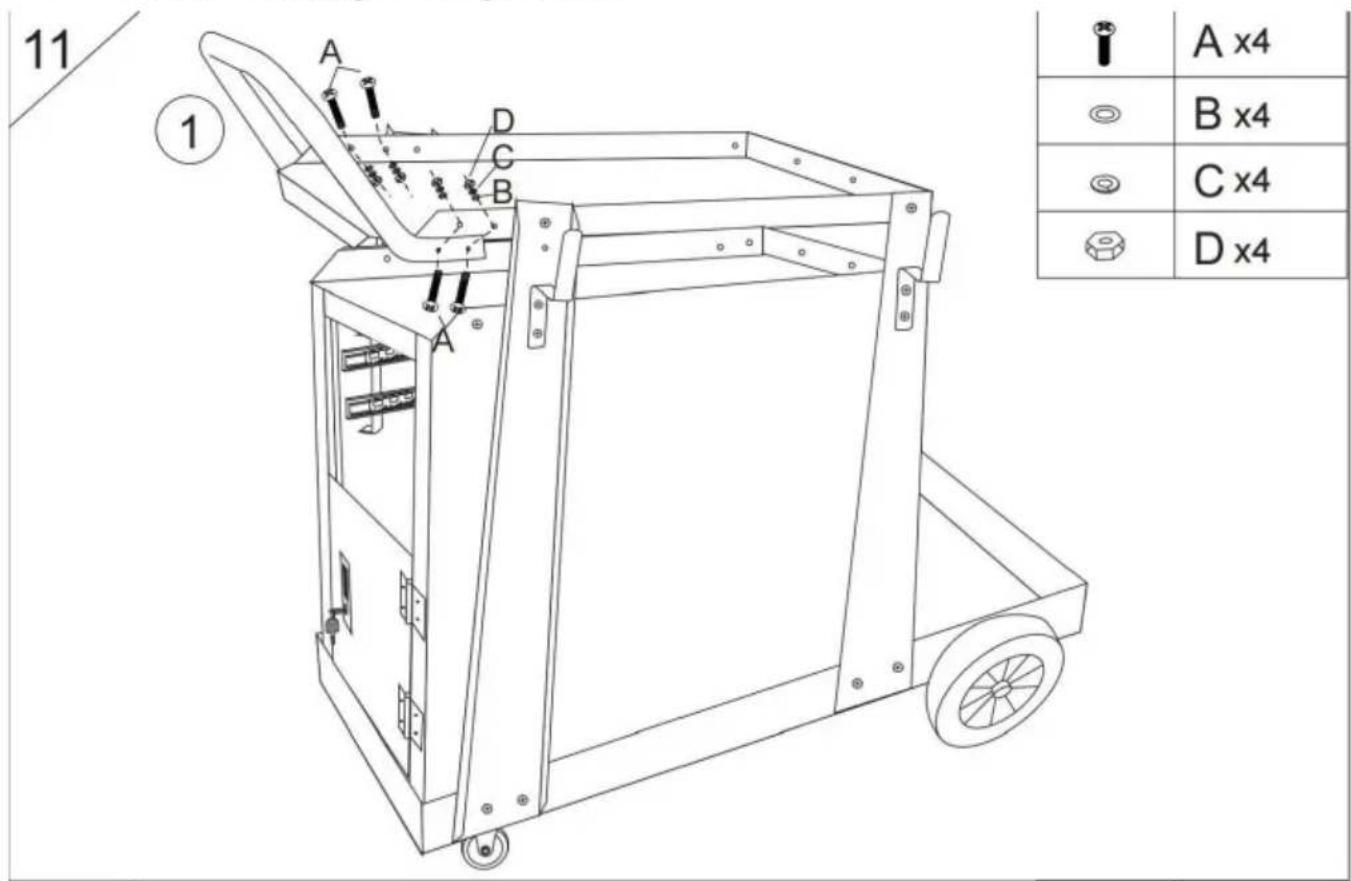

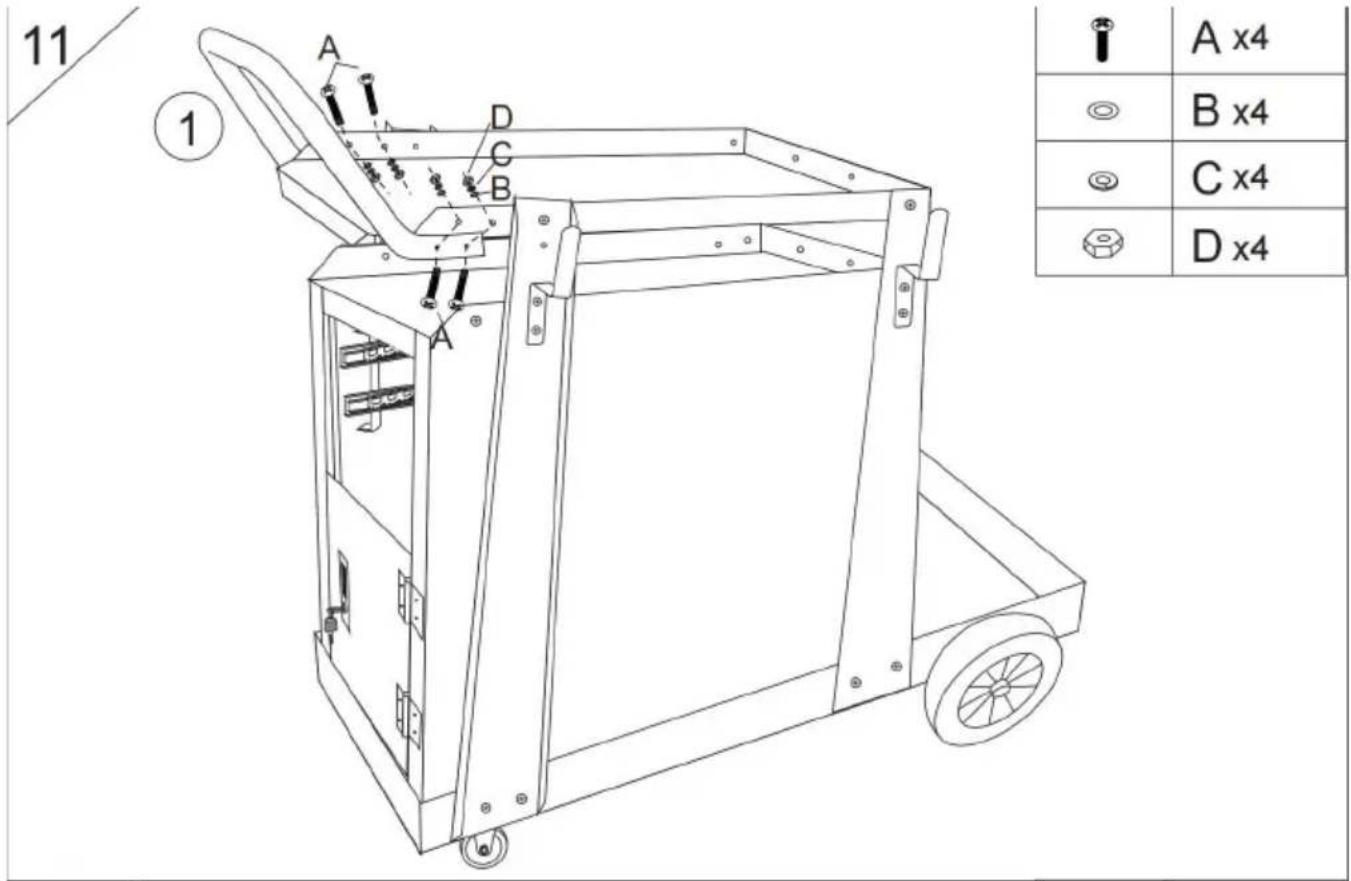

1. Install the handle as shown in the figure.

11 ① A D C B A x4 B x4 C x4 D x4

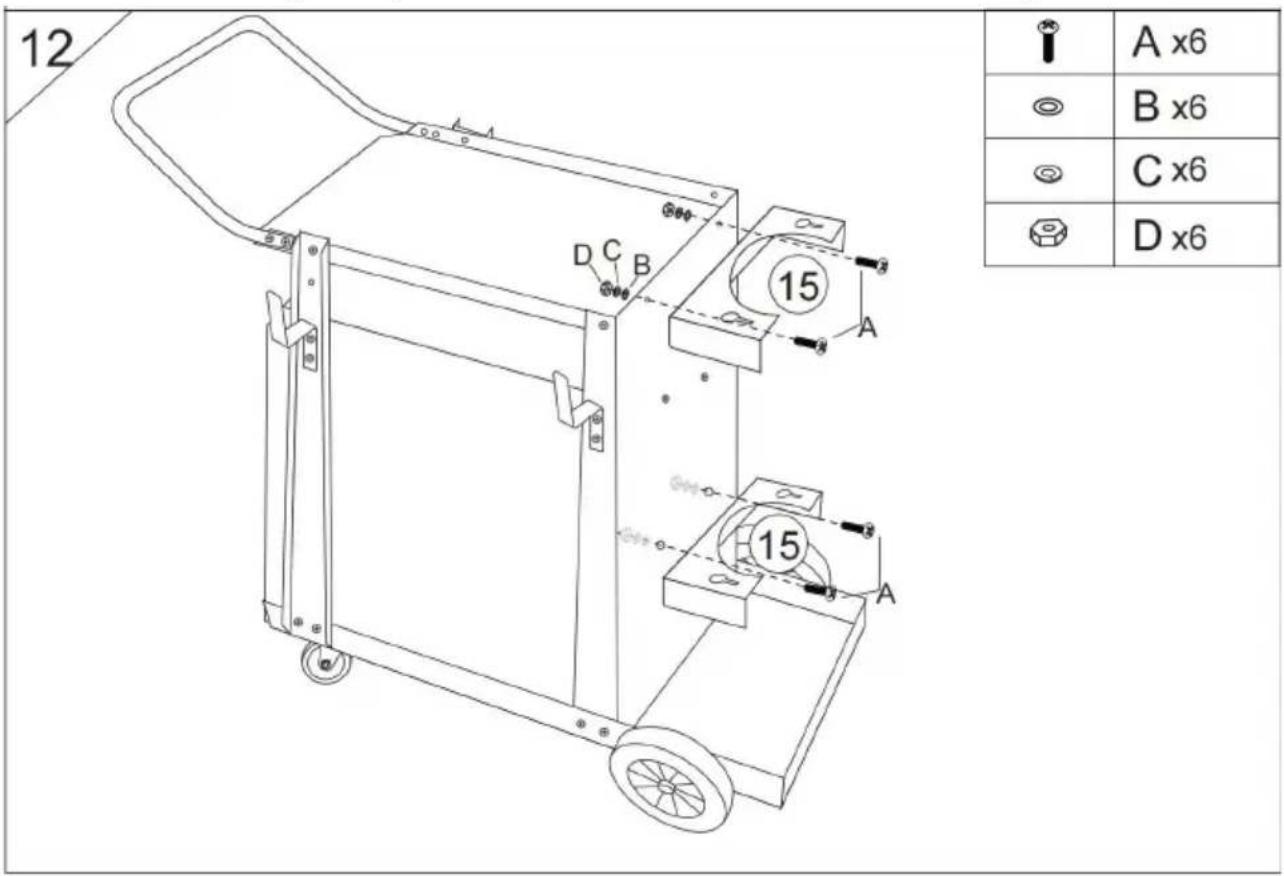

1. Install the gas cylinder bracket as shown in the figure.

12 A x6 B x6 C x6 D x6

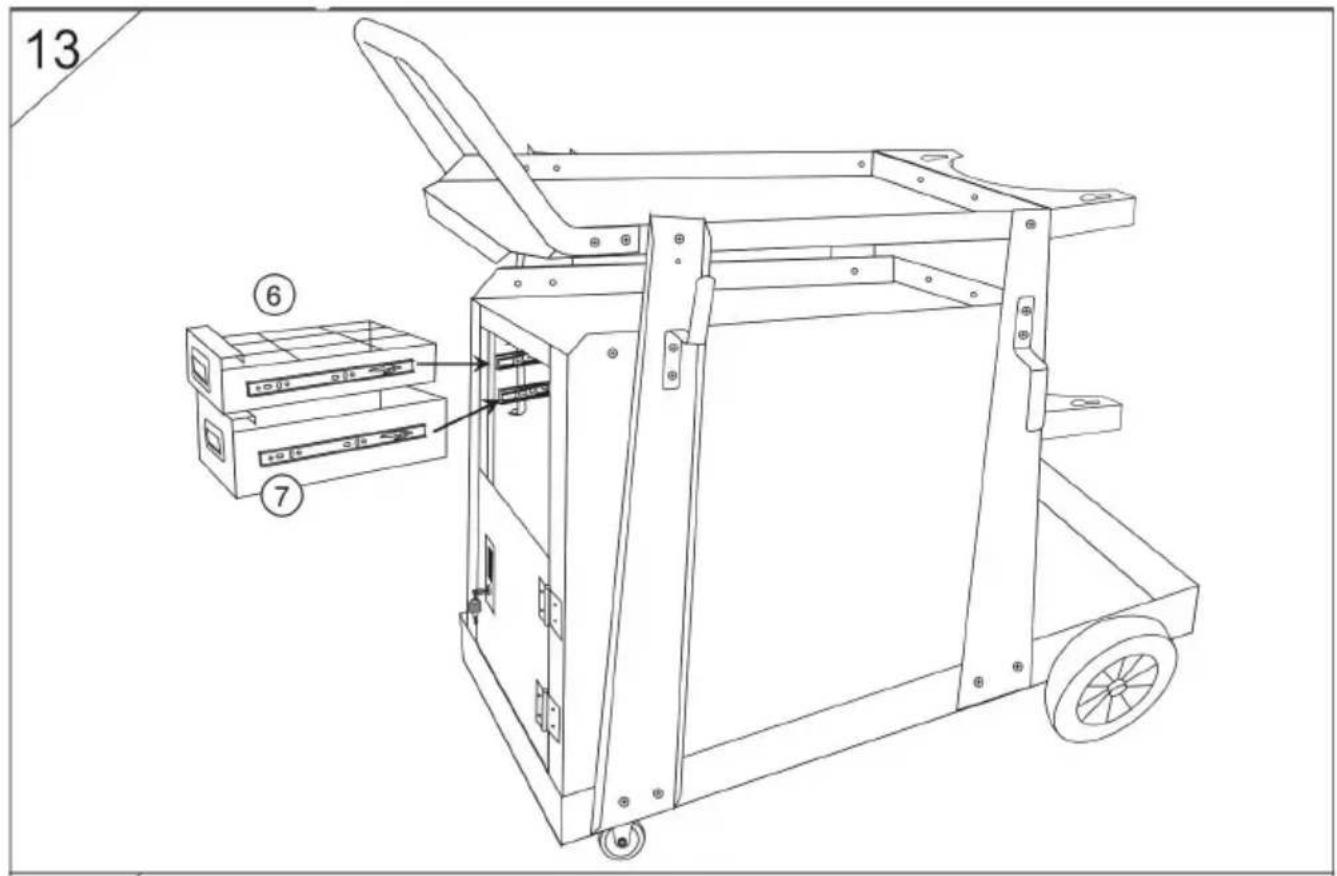

1. Install the drawer as shown in the figure.

13 ⑥ ⑦

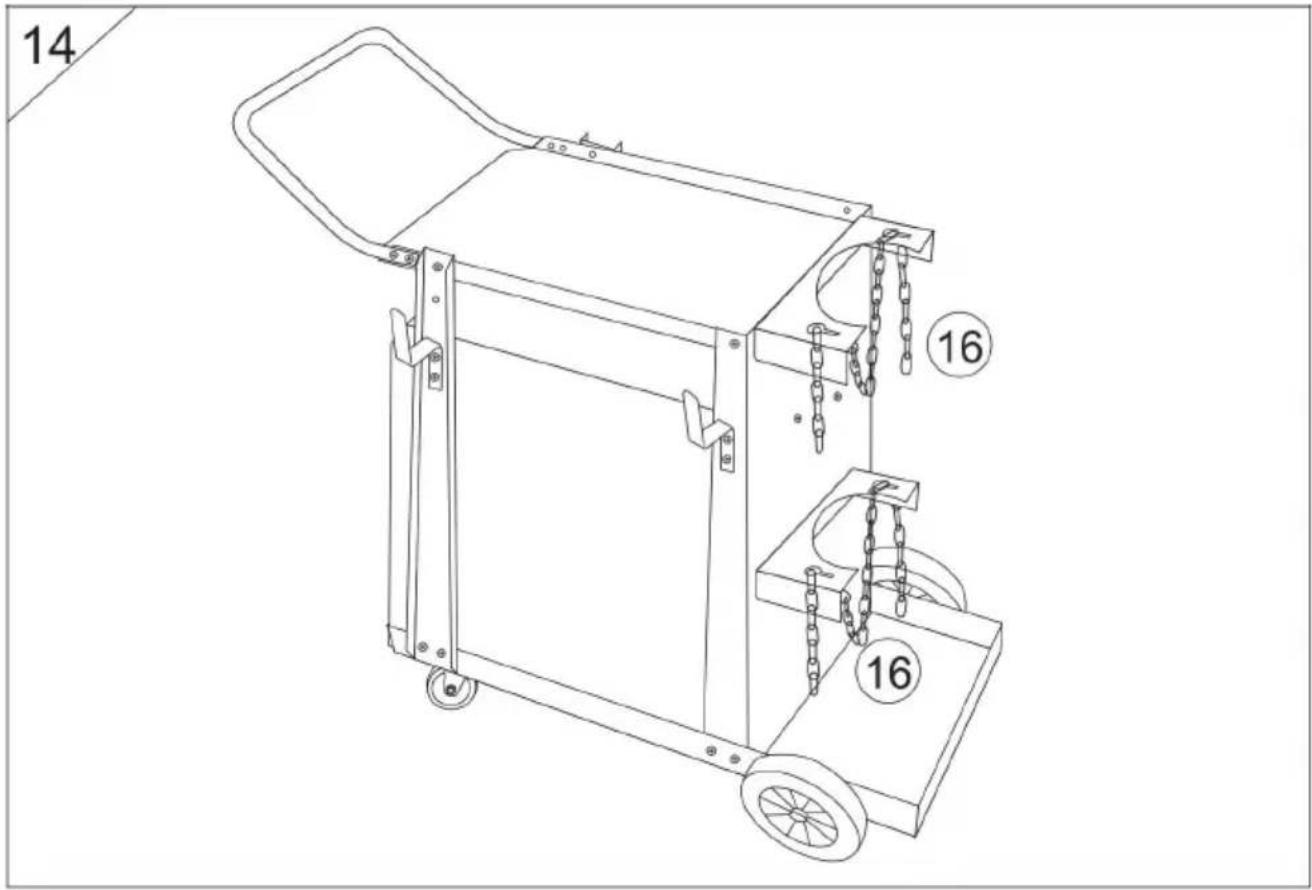

1. Install the chain as shown in the figure.

14 16 16
