USER MANUAL XF250 Vevor

Technical Support and E-Warranty Certificate www.vevor.com/support

AIR PURIFIER

MODEL: XF180U / XF180 / XF180A / XF250U / XF250 / XF250

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represent estimate of savings you might benefit from buying certain tools with us compared top brands and does not necessarily mean to cover all categories of tools offered are kindly reminded to verify carefully when you are placing an order with us actually saving half in comparison with the top major brands.

MODEL: XF180U / XF180 / XF180A / XF250U / XF250 / XF250A

Two VEVOR vacuum cleaner units with black flexible ducts, displayed on wheels (no text or symbols visible on the devices themselves)

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel fr contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instruction carefully before operating. VEVOR reserves a clear interpretation user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform you there are any technology or software updates on our product.

USER INFORMATION

Respected Users:

Before operation, please read the following safety precautions in order to avoid fire or personal injuries.

• This product is prohibited to be used under high temperature environment (above 80 °C), inflammable, explosive or greasy environment.
• When not in use for a long time, the power should be disconnected and pressed, and the machine switch is closed.
• The distance between smoke hood and smoke producing point directly influences smoking effect. (VEVOR advise: the bamboo smoking tube used a question mark? Smoking distance should be kept at 10-15cm)
• The longer the pipe, the weaker the smoking effect (VEVOR advise: Adjust direction of the fan or air conditioner outlet around the smoke hood that produces airflow. You can also make a seal to block the effect of air flow smoking.
• The longer the pipe, the less effective it is to smoke (VEVOR advise: The branch of the smoking pipe can up to 1.4M)
• The more frequently the pipe changed, the weak the smoking effect is. (VEVOR advise:Cut as few corners as you can)

IMPORTANT SAFEGUARDS

Please read and understand this entire manual before attempting to assemble,

operate or install the product. Failure to follow all instructions listed below may result in electric shock, fire and/or serious inj

WARNING:

• To Reduce The Risk Of Fire Or Electric Shock.Do Not Use This Air purifier Any Solid-State Speed Control Device.Include instructions pertaining to a risk of fire,electric shock, or injury to persons,for cleaning and user-maintenance, such as lubrication.

• DO NOT operate any air purifier with a damaged cord or plug. Discard air purifier or return to an authorized service facility for examination and/or re

• DO NOT run cord under carpeting. Do not cover cord with throw rugs, run or similar coverings.

• DO NOT route cord under furniture or appliances. Arrange cord away from traffic area and where it will not be tripped over. Disconnect the appliance the power supply before servicing.
• Regular Check: Have your air purifier checked regularly for any sign of malfunction! Stop using, Check if Plug, cord or appliance is damaged. Excessive noise, unpleasant odor or abnormal heat.
• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazard involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.
• Children should be supervised to ensure that they do not play with the appliance.
• Close supervision is necessary when any appliance is used by or near child. Children should be supervised to ensure that they do not play with the appliance. Cleaning and user maintenance shall not be done by children u they are older than and supervised.
• Use the appliance only for intended household purposes as described in this User Manual. Any other use is not recommended that may cause fire ele shock, or injury to people.
• If the supply cord is damaged, it must be replaced by the manufacturer, it service agent or similarly qualified persons in order to avoid a hazard.

Other safety rules

1. Always disconnect the power supply prior to servicing the air purifier, motor junction box.
2. Installation work must be out by a qualified person(s) in accordance to all and safety codes including the rules for fire-rated construction.
3. Follow all local building, safety and electrical codes, as well as NEC (Na Electrical Code) and OSHA( Occupational Safety and Health Act).

4. Electric service supply must be in accordance with the input parameters.

5. This unit must be properly grounded.

6. Do not bend or kink the power wires.
7. Do not use to exhaust hazardous or explosive vapors.
8. air purifier should always be vented to the exterior and in compliance with codes.
9. Prior to servicing or cleaning this unit, shut off power supply at the pane lock to prevent the power from being turned on.
10. Use this unit in the manner intended by the manufacturer. If you have an questions, please call customer service.

SAVE THESE INSTRUCTIONS

FCC INFORMATION

CAUTION: Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment!

This device complies with Part 1S of the FCC Rules. Operation is subject to following two conditions:

1) This product may cause harmful interference.
2) This product must accept any interference received, including interference that may cause undesired operation.

WARNING: Changes or modifications to this product not expressly approved by party.responsible for compliance could void the user's authority to operate the product.

Note: This product has been tested and found to comply with the limits for B digital device pursuant to Part 15 of the FCC Rules, These limits are des provide reasonable protection against harmful interference in a residential installation.

This product generates, uses and can radiate radio frequency energy, and if installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this product does cause harmful interference to radio or television reception, which can be determined

turning the product off and on, the user is encouraged to try to correct the interference by one or more of the following measures.

• Reorient or relocate the receiving antenna.
• Increase the distance between the product and receiver.

- Connect the product to an outlet on a circuit different from that to which receiver is connected.

- Consult the dealer or an experienced radio/TV technician for assistance.

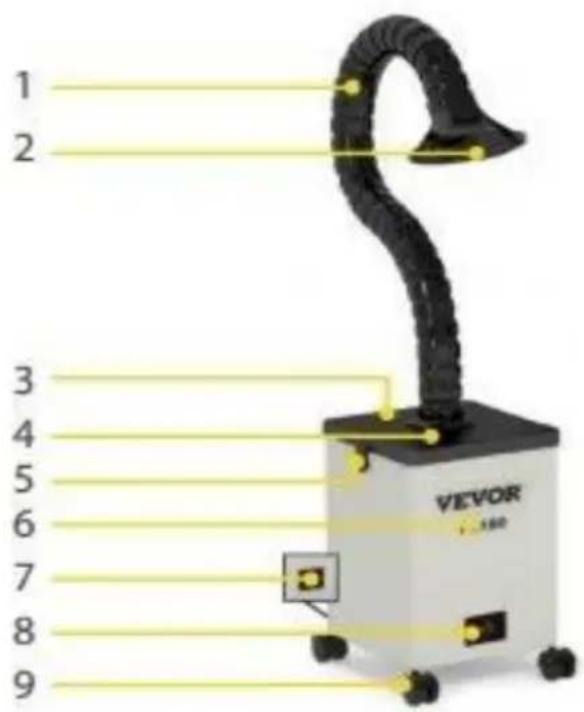

APPEARANCE STRUCTURE

VEVOR XF180/XF250 smoke purifier volume small, with four universal casters the bottom, mobile flexible plug-in. Smoking tube can be universal adjusted, applicable to all types of worktables. The purified air conforms to the PONY test certification, and the new filter is barrel-shaped, which also greatly increases the dust tolerance. The three-block variable speed adjustment can achieve a maximum flow of 180-250m3/h.

1 2 3 4 5 6 7 8 9 VEVOR

1. Bamboo Tube
2. Smoke Hood
3. Top Cover
4. Flange Which
5. Hasp
6. Host
7. Power Cord Interface
8. Switch
9. Castor Wheel

PACKING LIST

Please check the following parts carefully. If there is any missed or damaged please contact customer service department or dealers.

Main Machine	1
Power Line	1
Smoke Absorbing Pipe	1
Warranty Card	1
Operation Manual	1
Primary Filtering	5
H11 Hepa	1
Main-effect Filtering	1

OPERATION INSTRUCTIONS

• The power input of the machine shall be used within the specified rated v range(according to the power mark on the body) and it is forbidden to use the voltage is too high or too low.Turn off the machine and unplug the devi you find that the voltage is not stable.
• When using the machine, the ambient temperature range of the gas and d inhaled into the satiric mouth is:at room temperature of 50 °C,and it is forbid use above or below this temperature range.
• When using the machine, the humidity of the gas and dust inhaled by the inlet is 40% - 80% . Excessive humidity will quickly invalidate the filter and dar the internal circuit of the machine, and it is forbidden to use when the humidity higher than 80% .
• It is forbidded to use the machine without a filter core. The direct inhalatic soot or dust particles into the machine will cause damage to the fan and co system. The use of the machine in the above state caused by the time of maintenance at your own expense, will cause you greater losses.
• It is forbidded to continue to use the machine after the filter is severely b which will greatly shorten the service life of the machine and even cause da to the machine. The machine should be cleaned and maintained regularly, an filter tube should be replaced regularly. To ensure that the machine works in condition.
• When your machine filter is less clogged suction or when the filter core fa

remove odor, use the filter tube strictly. Please replace the filter cartridge with original configuration.

- It is forbidden to open the interior of the machine for maintenance. The warranty sticker on the fuselage is the only proof that you enjoy after-sales: Please do not tear up or damage the warranty sticker on the fuselage.

Simple diagram with a white circle containing a blue circular arrow and text, no readable symbols or text.

Key point Operation

- Press the first turn on low

.. Press the econd mid-range

... Press the third upscale

.... Press the fourth shutdown

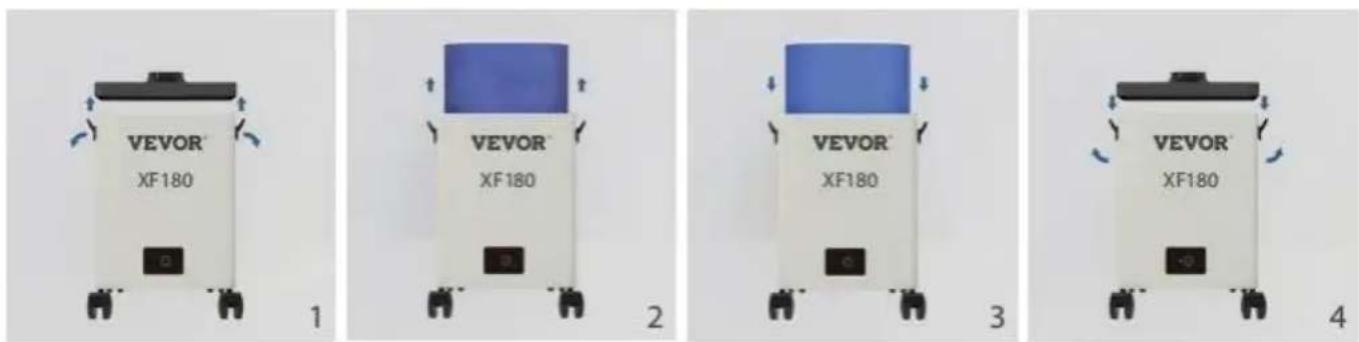

REPLACEMENT AND MAINTENANCE OF FILTRATION SYSTEM

VEVOR XF180 1 VEVOR XF180 2 VEVOR XF180 3 VEVOR XF180 4

1. Open both sides of the buckle, remove the top cove.
2. Remove the saturated filter.
3. Put the new filter tube smoothly into the installation cover of the machine and buckle it tight.
4. The top cover must be smoothly loaded into the box.

* NOTES: Do not use brute force to press down the filter core, otherwise that and buckle will be damaged.

Requirements:

- The filter core should be replaced regularly to ensure that the machine would good condition. Before replacing and maintaining the filter system, please ensure that the power is cut off! We have no responsibility for machine damage caused failure to comply with the regulations of the user's manual.

• The bamboo tube should be cleaned regularly so as not to cause the filte blocking too quickly.
• When the adsorption capacity is reduced, check whether the filter should be replaced.
• When replacing the new filter, record the replacement date.
• When installing and removing the filter cylinder, you should hold the four-w border with your hands and slowly put it in and out. When handling, you are allowed to use the inside of the head or top filter to avoid deformation or of the filter material and affect the filtration effect.
• The filter replacement alarm is triggered after 2500 hours of machine opera

3D diagram of a layered structure with yellow highlight points, no text or symbols present

Layer 1: Primary filtering cotton

-Filter PM50

Replacement Cycle: 7 to 30 days

Layer 2: Internal filter

-Filter PM0.5

Replacement Cycle: 3 to 6 months

Layer 3: Composite carbon, Medium effect extern filter Adsorption of harmful gases

Replacement Cycle: 6 to 12 months

FAULT HANDLING

Please cut off the power before checking and repairing the equipr

- Phenomenon: The system is still working, but the wind volume is weak and inhalation force is greatly reduced.

Reason: The air inlet is blocked or the filter fails to reach saturation.

Check turn off the power, open the top cover, check whether there is some plugged into the air mouth. Check the air outlet for blockage. If there is no difference in inspection and treatment, reboot if the wind volume is small, the should be replaced.

- Phenomenon: Automatic shutdown immediately after the machine is started, re-open and repeat the above phenomenon.

Reason: The internal air flow is impassable, the filter core resistance is too causing the fan to start the current is too large, automatic protection shutdown. Check: turn off the power, open the top cover, check whether there is a for body plugged into the air mouth; If there is no difference in inspection and treatment, set the file position to a minimum, and then reboot the file position suitable wind level.

SPECIFICATION PARAMETER

Model	XF180 series	XF250 series
Air Inlet	Φ65mm	Φ 65mm
Voltage	110~120V(USA)	110~120V(USA)
	220~240V(EU, AUS)	220V~240(EU, AUS)
Maximum Power	100W	150W
No-load Speed	5800	5800
Air Velocity	17.4m/s	24m/s
Noise Level	<70dB	<70dB
Length Of Duct	1.2m	1.2m
System Traffic	240m3/h	332m3/h
Dimensions Of Main U	265x265x335mm	265x265x430mm
Weight	8.5KG	10.1KG
Deploy	Pre-filter+H11+Main Filter	Pre-filter+H11+Main Filter
Layer Number	3	3

*Content is subject to update without notice.

SPECIFICATION PARAMETER

This product is subject to the provision of European Directive 2012/19/EC. The symbol showing a wheelie bin crossed through indicates that the product requires separate refuse collection in the European Union. This applies to the product and all accessories marked with this symbol. Products marked as such may not be discarded with normal domestic waste, but must be taken to a collection point for recycling electrical and electronic devices

USE REFERENCE

Case 1

Modern office setup with a green chair, a small spray gun on top, and a beige desk (no visible text or symbols)

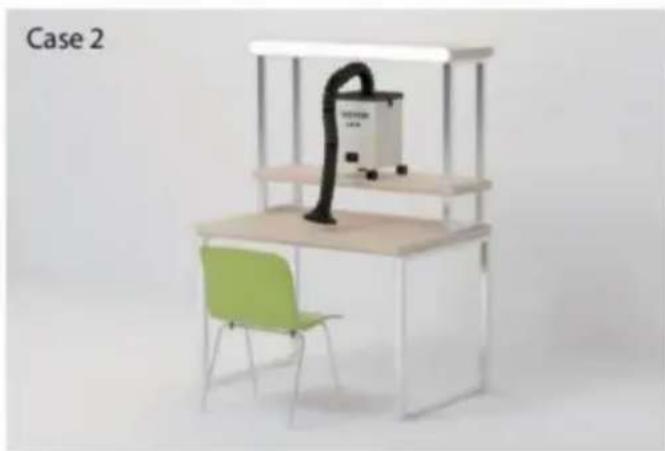

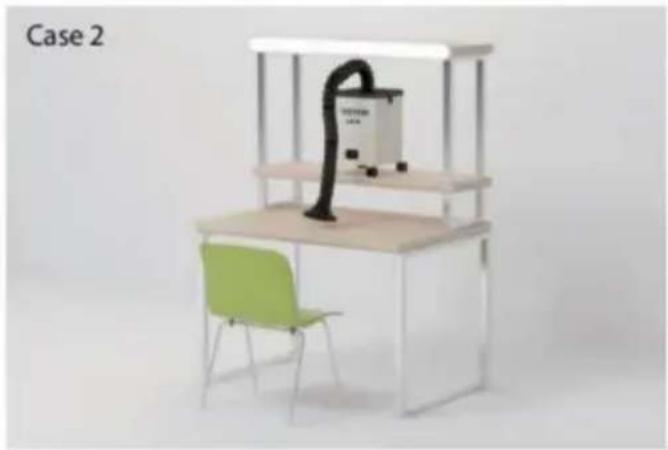

Case 2

3D rendering of a laboratory setup with a green chair, white table, and industrial equipment (no visible text or symbols)

ACCESSORIES INSTALLATION

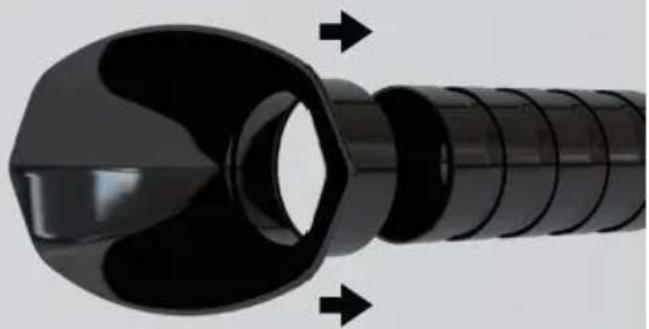

Installation of Smoking Cover

Close-up of a black mechanical component with a hexagonal opening and threaded end, showing internal structure and directional arrows (no text or symbols)

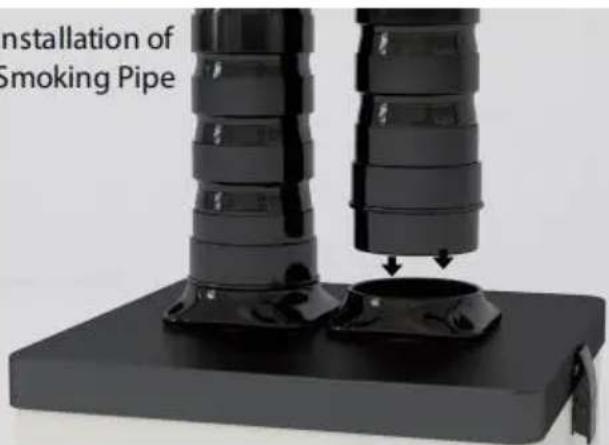

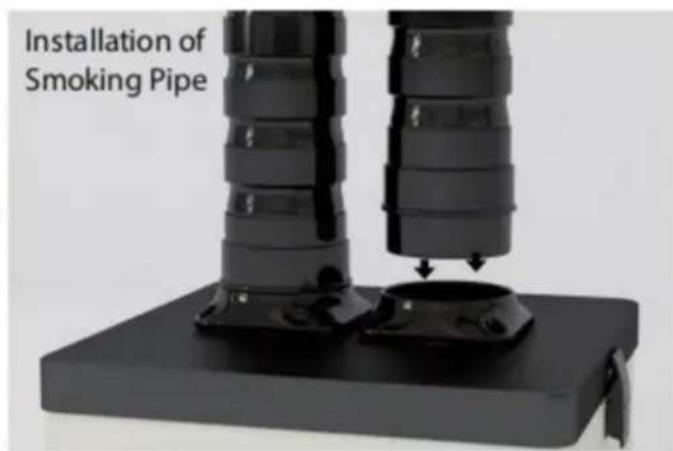

Installation of Smoking Pipe

VEVOR®

TOUGH TOOLS, HALF PRICE

Technical Support and E-Warranty Certificate

www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

Two VEVOR® industrial vacuum cleaner units with black flexible necks and wheels (no text or symbols visible on the devices themselves)

BESOIN D'AIDE? CONTACTEZ-NOUS!

STRUCTURE D'APPARENCE

Simple diagram with a white circle containing a circular arrow and text, no readable symbols or text.

Point clé Opération

3D diagram of a layered structure with yellow highlight points, no text or symbols present

3D rendering of a simple indoor setup with a green chair, a small vacuum cleaner, and a desk (no text or symbols visible)

3D rendering of a simple laboratory setup with a green chair, white table, and cylindrical device labeled 'Case 2' (no text or symbols on the device itself)

MONTAGE DES ACCESSOIRES

Installation of Smoking Cover

Installation of Smoking Pipe

VEVOR®

TOUGH TOOLS, HALF PRICE

www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

Two VEVOR industrial machines with black flexible necks and wheels, no visible text or symbols on the devices themselves.

Simple diagram with a white circle containing a circular arrow and text, no readable symbols or text.

Kernpunkt Bedienung

3D diagram of a layered structure with yellow highlight points, no text or symbols present

3D rendering of a simple classroom setup with a green chair, a desk lamp, and a vacuum cleaner (no text or symbols visible)

3D rendering of a simple laboratory setup with a green chair, white table, and black equipment (no text or symbols visible)

ZUBEHÖRINSTALLATION

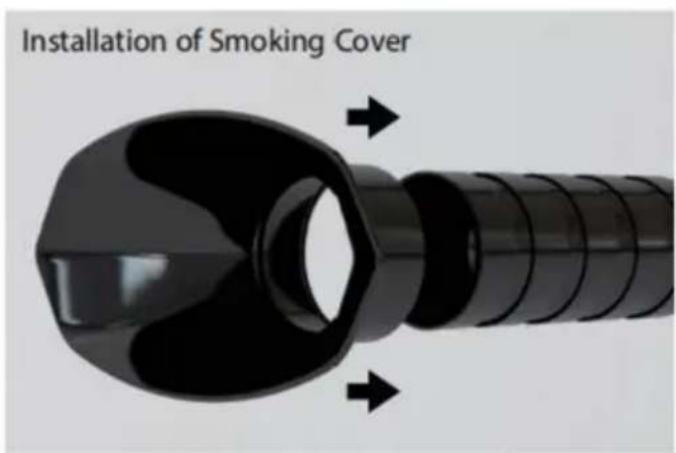

Installation of Smoking Cover

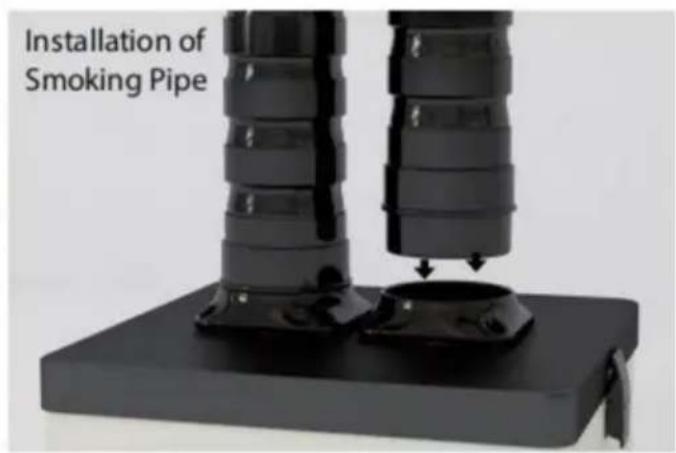

Installation of Smoking Pipe

VEVOR®

TOUGH TOOLS, HALF PRICE

www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

Two VEVOR® industrial vacuum cleaner units with black flexible necks and wheels (no text or symbols visible on the devices themselves)

Simple diagram with a white circle containing a circular arrow and text, no readable symbols or text.

3D diagram of a layered structure with yellow highlight points, no text or symbols present

Strato 1: cotone filtrante primario

-FiltroPM50

Modern office setup with a green chair, a small spray gun on top, and a beige table (no text or symbols visible)

3D rendering of a simple laboratory setup with a green chair, white table, and black equipment (no text or symbols visible)

Installation of Smoking Cover

Installation of Smoking Pipe

VEVOR®

TOUGH TOOLS, HALF PRICE

www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

Two VEVOR® hair bays with black flexible necks, displayed on wheels (no text or symbols visible on the devices themselves)

Simple diagram with a white circle containing a blue arrow and text, no readable symbols or text present.

3D diagram of a layered structure with yellow highlight points, no text or symbols present

Modern office setup with a green chair, a small vacuum cleaner on top, and a beige table (no visible text or symbols)

Modern laboratory setup with a green chair, white table, and black equipment labeled 'Case 2' (no text or symbols on main objects)

Installation of Smoking Cover

Installation of Smoking Pipe

VEVOR®

TOUGH TOOLS, HALF PRICE

www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

Two VEVOR industrial machines with black flexible necks and wheels, no visible text or symbols on the devices themselves.

POTRZEBUJESZ POMOCY? SKONTAKTUJ SIĘ Z NAMI!

Simple diagram with a white circle containing a circular arrow and text, no readable symbols or text.

3D diagram of a layered structure with yellow highlight points, no text or symbols present

Modern office setup with a green chair, a small spray gun on top, and a beige table (no text or symbols visible)

3D rendering of a simple laboratory setup with a green chair, white table, and black equipment (no text or symbols visible)

Installation of Smoking Cover

Installation of Smoking Pipe

VEVOR®

TOUGH TOOLS, HALF PRICE

www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

Technische ondersteuning en e-garantiecertificaat www.vevor.com/support

LUCHTREINIGER

MODEL: XF180U / XF180 / XF180A / XF250U / XF250 / XF250A

Two VEVOR dust suppressors with black flexible necks and wheels, no visible text or symbols on the devices themselves.

HULP NODIG? NEEM CONTACT MET ONS OP!

Simple diagram with a white circle containing a circular arrow and text, no readable symbols or text.

3D diagram of a layered structure with yellow highlight points, no text or symbols present

Laag 2: Intern filter

-FilterPM0.5

Modern office setup with a green chair, white table, and black spray tube (no visible text or symbols)

Case 2

Modern laboratory setup with a green chair, white counter, and cylindrical equipment (no visible text or symbols)

INSTALLATIE ACCESSOIRES

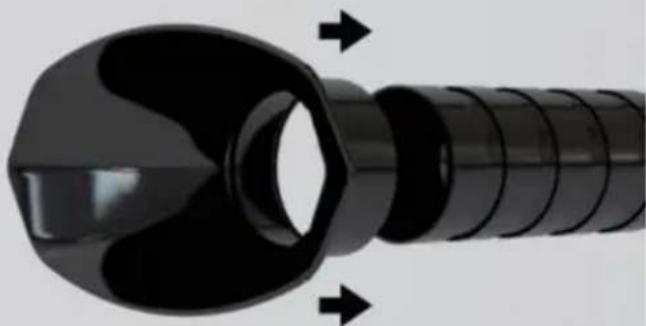

Installation of Smoking Cover

Close-up of a black mechanical component with a hexagonal end and threaded shaft, showing internal features and directional arrows (no text or symbols)

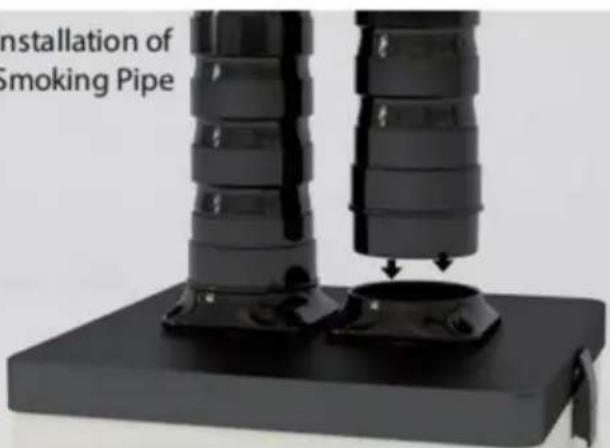

installation of Smoking Pipe

VEVOR®

TOUGH TOOLS, HALF PRICE

www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

Two VEVOR dust suppressors with black flexible necks and wheels, no visible text or symbols on the devices themselves.

BEHÖVER HJÄLP? KONTAKTA OSS!

Simple diagram with a circular arrow and '10.00mm' label, no readable text or symbols

Nyckelpunkt Drift

3D diagram of a layered structure with yellow highlight points, no text or symbols present

Lager 1: Primär filtrerande bomull

-FilterPM50

Modern office setup with a green chair, a small spray gun on top, and a beige table (no text or symbols visible)

3D rendering of a simple laboratory setup with a green chair, white table, and black equipment (no text or symbols visible)

INSTALLATION AV TILLBEHÖR

Installation of Smoking Cover

Installation of Smoking Pipe

VEVOR®

TOUGH TOOLS, HALF PRICE

www.vevor.com/support
