Product Type	Smoke Air Purifier (Hood)
Brand	VEVOR
Model	XF38 / XF38U
Main Unit Dimensions	125 x 76 x 137 mm
Weight	1.0 kg
Power Supply Voltage	220-240 V (EU) / 110-120 V (US)
Maximum Power	38 W
No-Load Speed	2700 rpm
Noise Level	< 55 dB
Airflow	86.6 m³/h
Air Inlet Size	120 x 130 mm
Included Filter	3 cotton filters
Recommended Use	Workstation, workshop, near smoke source
Certifications	FCC, CE
Safety Instructions	Do not use with a speed controller; unplug before maintenance; do not vacuum explosive vapors
Maintenance	Clean the exterior with a damp cloth; replace the filter regularly
Filter Replacement	Use only original VEVOR filters
Accessories Included	Main machine, 3 cotton filters, user manual
Warranty	Technical support and electronic warranty certificate at www.vevor.com/support
General Information	Brand VEVOR, model XF38, made in China

Frequently Asked Questions - XF38 Vevor

How to install the XF38 hood?

Place the hood 10 to 15 cm from the smoke source. Adjust the direction of the fan or air conditioner outlet to avoid drafts. Plug the device into a suitable outlet (220-240V or 110-120V depending on model).

How to replace the cotton filter?

Unplug the device, remove the old filter, and insert a new original VEVOR cotton filter. Put it back in place and plug it in. Replace the filter every 3 to 6 months depending on usage.

What is the noise level of the device?

The noise level is below 55 dB, making it quiet for use in a workshop or workstation.

Can I use this device in a kitchen?

This device is designed to purify air from light smoke (tobacco, incense) and not for greasy cooking vapors or hazardous fumes. It is not recommended for a kitchen.

What is the power consumption?

The maximum power is 38 W, which corresponds to a low consumption of about 0.038 kWh per hour.

How to clean the device?

Unplug the device before cleaning. Wipe the exterior with a soft, damp cloth. Do not use abrasive products. The cotton filter cannot be cleaned; it must be replaced.

What if suction decreases?

Check if the cotton filter is clogged. Replace it if necessary. Ensure the air inlet is not blocked and the distance to the smoke source is correct (10-15 cm).

Is the device under warranty?

Yes, VEVOR offers technical support and an electronic warranty certificate. Visit the website www.vevor.com/support for more information.

Can I use a non-original filter?

It is strongly recommended to use only original VEVOR cotton filters to ensure performance and safety of the device. Using other filters may reduce efficiency and damage the machine.

How to avoid interference with other electronic devices?

Keep the device away from radio or TV receivers. If interference occurs, reorient the receiving antenna or connect the hood to an outlet on a different circuit. The device complies with part 15 of the FCC rules.

USER MANUAL XF38 Vevor

Technical Support and E-Warranty Certificate www.vevor.com/support

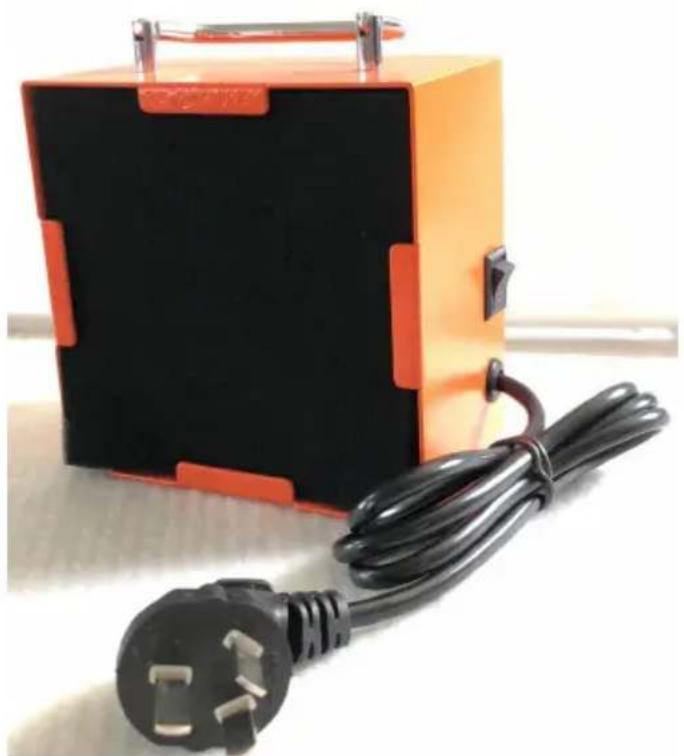

AIR PURIFIER

MODEL: XF38U / XF38

We continue to be committed to provide you with tools at competitive prices. "Save Half", "Half Price" or any other similar expressions used by us only represent an estimate of savings you might benefit from buying certain tools with us compared to top brands and does not necessarily mean to cover all categories of tools. We kindly remind you to verify carefully when placing an order with us that you are actually saving half in comparison with the top major brands.

VEVOR®

TOUGH TOOLS, HALF PRICE

AIR PURIFIER

MODEL: XF38U / XF38

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel free to contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction. Please read all manual instructions carefully before operating. VEVOR reserves the right to interpret the user manual. The appearance of the product shall be subject to the product you received. Please forgive us that we won't inform you of any technology or software updates on our product.

USER INFORMATION

Respected Users:

• Before operation, please read the following safety precautions in order to avoid fire or personal injuries.
• This product is prohibited from being used in high-temperature environments (above 80 °C), or in flammable, explosive, or greasy environments.
• When not in use for a long time, disconnect the power and ensure the machine switch is turned off.
• The distance between the smoke hood and the smoke-producing point directly influences the smoking effect (VEVOR advises: the bamboo smoking tube? Smoking distance should be kept at 10-15cm).
• The longer the pipe, the weaker the smoking effect (VEVOR advises: adjust the direction of the fan or air conditioner outlet around the smoke hood that produces airflow. You can also make a seal to block the effect of airflow (smoking)).

IMPORTANT SAFEGUARDS

Please read and understand this entire manual before attempting to assemble,

operate, or install the product. Failure to follow all instructions listed below may result in electric shock, fire, and/or serious injury.

WARNING:

• To reduce the risk of fire or electric shock, do not use this air purifier with any solid-state speed control device. Include instructions pertaining to a risk of fire, electric shock, or injury to persons, for cleaning and user maintenance, such as lubrication.
• DO NOT operate any air purifier with a damaged cord or plug. Discard the air purifier or return it to an authorized service facility for examination and/or repair.
• DO NOT run the cord under carpeting. Do not cover the cord with throw rugs, runners, or similar coverings.
• DO NOT route the cord under furniture or appliances. Arrange the cord away from

traffic areas and where it will not be tripped over. Disconnect the appliance from the power supply before servicing.

• Regular Check: Have your air purifier checked regularly for any sign of malfunction! Stop using it. Check if the plug, cord, or appliance is damaged. Excessive noise, unpleasant odor, or abnormal heat.
• This appliance can be used by children aged 8 years and above and persons with reduced physical, sensory, or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.
• Children should be supervised to ensure that they do not play with the appliance.
• Close supervision is necessary when any appliance is used by or near children. Children should be supervised to ensure that they do not play with the appliance. Cleaning and user maintenance shall not be done by children unless they are older than 8 and supervised.
• Use the appliance only for intended household purposes as described in this User Manual. Any other use is not recommended and may cause fire, electric shock, or injury to people.
• If the supply cord is damaged, it must be replaced by the manufacturer, its service agent, or similarly qualified persons in order to avoid a hazard.

Other safety rules

1. Always disconnect the power supply prior to servicing the air purifier, motor, or junction box.
2. Installation work must be carried out by qualified person(s) in accordance with all applicable codes and safety codes, including the rules for fire-rated construction.
3. Follow all local building, safety, and electrical codes, as well as NEC (National Electrical Code) and OSHA (Occupational Safety and Health Act).
4. Electric service supply must be in accordance with the input parameters.
5. This unit must be properly grounded.
6. Do not bend or kink the power wires.
7. Do not use to exhaust hazardous or explosive vapors.
8. The air purifier should always be vented to the exterior and in compliance with codes.
9. Prior to servicing or cleaning this unit, shut off power supply at the panel lock to prevent the power from being turned on.
10. Use this unit in the manner intended by the manufacturer. If you have any questions, please call customer service.

SAVE THESE INSTRUCTIONS

FCC INFORMATION

CAUTION: Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment!

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:

1) This product may cause harmful interference. 2) This product must accept any interference received, including interference that may cause undesired operation.

WARNING: Changes or modifications to this product not expressly approved by the party responsible for compliance could void the user's authority to operate the product.

Note: This product has been tested and found to comply with the limits for a Class B digital device pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.

This product generates, uses and can radiate radio frequency energy, and if installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this product does cause harmful interference to radio or television reception, which can be determined by turning the product off and on, the user is encouraged to try to correct the interference by one or more of the following measures.

- Reorient or relocate the receiving antenna.

• Increase the distance between the product and receiver.
• Connect the product to an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for assistance.

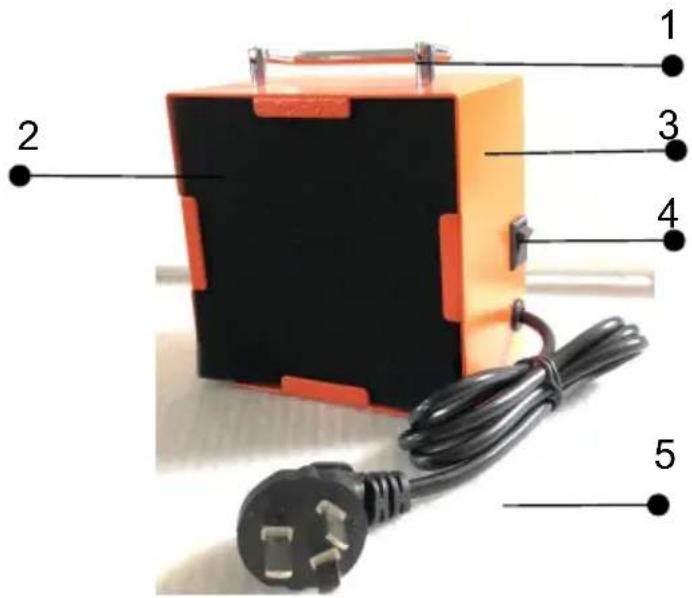

APPEARANCE STRUCTURE

VEVOR XF38/XF38U fume purifiers are small and portable. Suitable for all types of workbenches; good purification effect.

1. Handle
2. Filter Cotton
3. Host
4. Switch
5. Power Cord

PACKING LIST

Please check the following parts carefully. If any are missing or damaged, please contact customer service or dealers.

Main Machine	1
Filter cotton	3
Operation Manual	1

OPERATION INSTRUCTIONS

The power input of the machine shall be used within the specified rated voltage range (according to the power mark on the body), and it is forbidden to use the machine if the voltage is too high or too low.

Turn off the machine and unplug the power cord if you find that the voltage is not stable.

• When using the machine, the ambient temperature range of the gas and dust inhaled into the suction mouth is: at room temperature of 50 °C, and it is forbidden to use above or below this temperature range.
• When using the machine, the humidity of the gas and dust inhaled by the inlet is 40% - 80%. Excessive humidity will quickly invalidate the filter and damage the internal circuit of the machine, and it is forbidden to use when the humidity is higher than 80%.
• It is forbidden to continue to use the machine after the filter is severely blocked, which will greatly shorten the service life of the machine and even cause damage to the machine. The machine should be cleaned and maintained regularly, and the filter cotton should be replaced regularly to ensure that the machine works in good condition.
• When your machine filter is less clogged or when the filter core fails to remove odor, use the filter tube strictly. Please replace the filter cartridge with the original configuration.
• It is forbidden to open the interior of the machine for maintenance.

SPECIFICATION PARAMETER

Model	XF38	XF38U
Air Inlet	120x130 mm	120x130 mm
Voltage	220~240V(EU)	110~120V(USA)
Maximum Power	38W	38W
No-load Speed	2700 RPM	2700 RPM
Noise Level	<55dB	<55dB
System Traffic	86.6m3/h	86.6m3/h
Dimensions Of Main Unit	125x76x137mm	125x76x137mm
Weight	1.0 KG	1.0 KG

*Content is subject to update without notice.

CORRECT DISPOSAL

This product is subject to the provision of European Directive 2012/19/EC. The symbol showing a wheelie bin crossed through indicates that the product requires separate refuse collection in the European Union. This applies to the product and all accessories

marked with this symbol. Products marked as such may not be discarded with normal domestic waste, but must be taken to a collection point for recycling electrical and electronic devices
