XF180 - Range hood Vevor - Free user manual and instructions

Product Type	Smoke Extractor / Air Purifier
Brand	Vevor
Model	XF180
Dimensions (LxWxH)	265 x 265 x 340 mm
Net Weight	8.1 kg
Power Supply	110-120 V (US) / 220-240 V (EU, Australia)
Maximum Power	85 W
Max Airflow	200 m³/h
Air Speed	17 m/s
Noise Level	< 70 dB
Duct Length	1 m
Air Inlet Diameter	65 mm
Number of Speeds	3 (Low, Medium, High)
Filter Type	Pre-filter + H11 + Carbon Composite Filter
Number of Filtration Layers	3
Filter Replacement Alarm	Yes, after 2500 hours
Casters	4 Swivel Casters
Smoke Tube	Adjustable Bamboo Tube
Max Ambient Temperature	50 °C
Ambient Humidity	40% to 80%
Grounding	Required
Certifications	FCC (Part 15), PONY EIA
Warranty	Electronic certificate via www.vevor.com/support
Maintenance	Regular cleaning, periodic filter replacement

Frequently Asked Questions - XF180 Vevor

How to install the Vevor XF180 smoke extractor?

Make sure the device is unplugged. Place it on a stable surface, adjust the bamboo tube to the recommended distance of 10-15 cm from the smoke source. Plug in the power and select the desired speed.

How to replace the filter?

Turn off the power. Open the two buckles, remove the top cover, take out the old filter and insert the new one. Replace the cover without forcing. Follow the replacement cycles: primary filter 7-30 days, internal filter 3-6 months, external filter 6-12 months.

Why is the airflow low?

Check that the air inlet is not blocked. If the filter is saturated, replace it. Check the air outlet. If the problem persists, reduce the speed to minimum and restart.

What to do if the machine stops automatically?

This may be due to excessive filter resistance. Turn off the power, check for blockages. If none, restart at the lowest speed.

How to clean the extractor?

Unplug the device. Clean the exterior with a damp cloth. The bamboo tube should be cleaned regularly. Do not use abrasive products.

What is the ideal distance between the extractor and the smoke source?

Vevor recommends a distance of 10 to 15 cm for optimal effect.

Can the extractor be used outdoors?

No, it is designed for indoor use only. Do not use it in a humid or high-temperature environment (above 80°C) or flammable environment.

How to adjust the speed?

Use the rotary knob: low temperature (1), medium range (2), high range (3), stop (4). The corresponding speeds are low, medium, and high.

Is the warranty valid if I disassemble the device?

No, the warranty sticker must not be damaged. Opening the machine voids the warranty. For any maintenance, contact customer service.

Where to find spare parts?

Contact customer service via www.vevor.com/support. Replacement filters are available from authorized dealers.

USER MANUAL XF180 Vevor

Technical Support and E-Warranty Certificate www.vevor.com/support

AIR PURIFIER

MODEL: XF180U / XF180 / XF180A / XF250U / XF250 / XF250

We continue to be committed to providing you with tools at competitive prices. "Save Half", "Half Price", or any other similar expressions used by us only represent an estimate of savings you might benefit from buying certain tools with us compared to top brands, and does not necessarily mean to cover all categories of tools offered. We kindly remind you to verify carefully when placing an order with us whether you are actually saving half in comparison with the top major brands.

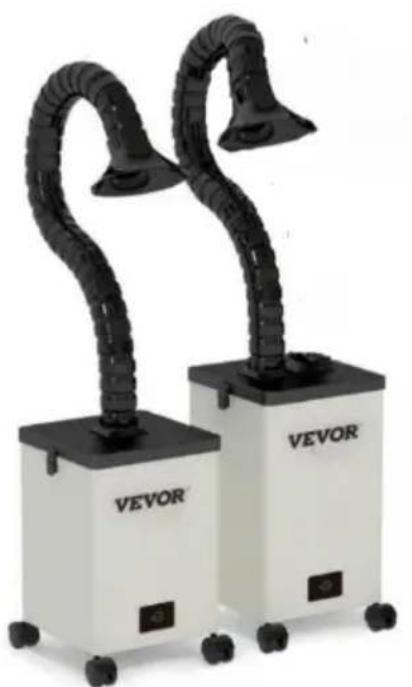

MODEL: XF180

The picture is for reference only, please refer to the actual object.

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel free to contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction. Please read all manual instructions carefully before operating. VEVOR reserves the right to interpret the user manual. The appearance of the product shall be subject to the product you received. Please forgive us that we won't inform you of any technology or software updates on our product.

USER INFORMATION

Respected Users: Before operation, please read the following safety precautions in order to avoid fire or personal injuries.

• This product is prohibited from being used in high temperature environments (above 80 °C), or in inflammable, explosive, or greasy environments.
• When not in use for a long time, the power should be disconnected and the machine switch closed.
• The distance between the smoke hood and the smoke producing point directly influences the smoking effect. (VEVOR advises: the bamboo smoking tube used? Smoking distance should be kept at 10-15cm)
• The longer the pipe, the weaker the smoking effect. (VEVOR advises: Adjust the direction of the fan or air conditioner outlet around the smoke hood that produces airflow. You can also make a seal to block the effect of airflow.)
• The longer the pipe, the less effective it is to smoke. (VEVOR advises: The branch of the smoking pipe can be up to 1.4 meters.)
• The more frequently the pipe is changed, the weaker the smoking effect is. (VEVOR advises: Cut as few corners as you can.)

IMPORTANT SAFEGUARDS

Please read and understand this entire manual before attempting to assemble, operate, or install the product. Failure to follow all instructions listed below may result in electric shock, fire, and/or serious injury.

operate or install the product. Failure to follow all instructions listed below may result in electric shock, fire and/or serious injury.

To reduce the risk of fire or electric shock, do not use this air purifier with any solid-state speed control device. Include instructions pertaining to a risk of fire, electric shock, or injury to persons, for cleaning and user maintenance, such as lubrication.

• To reduce the risk of fire or electric shock, do not use this air purifier with any solid-state speed control device. Include instructions pertaining to a risk of fire, electric shock, or injury to persons, for cleaning and user-maintenance, such as lubrication.
• DO NOT operate any air purifier with a damaged cord or plug. Discard air purifier or return to an authorized service facility for examination and/or repair.
• DO NOT run the cord under carpeting. Do not cover the cord with throw rugs, runners, or similar coverings.
• DO NOT route the cord under furniture or appliances. Arrange the cord away from traffic areas and where it will not be tripped over. Disconnect the appliance from the power supply before servicing.
• Regular Check: Have your air purifier checked regularly for any sign of malfunction! Stop using if the plug, cord, or appliance is damaged. Excessive noise, unpleasant odor, or abnormal heat may indicate a problem.
• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.
• Children should be supervised to ensure that they do not play with the appliance.
• Close supervision is necessary when any appliance is used by or near children. Children should be supervised to ensure that they do not play with the appliance. Cleaning and user maintenance shall not be done by children unless they are older than 8 and supervised.
• Use the appliance only for intended household purposes as described in this User Manual. Any other use is not recommended and may cause fire, electric shock, or injury to people.
• If the supply cord is damaged, it must be replaced by the manufacturer, its service agent, or similarly qualified persons in order to avoid a hazard.

Other safety rules

1. Always disconnect the power supply prior to servicing the air purifier, motor, or junction box.
2. Installation work must be carried out by a qualified person(s) in accordance with all applicable codes and safety codes, including the rules for fire-rated construction.
3. Follow all local building, safety, and electrical codes, as well as NEC (National Electrical Code) and OSHA (Occupational Safety and Health Act).
4. Electric service supply must be in accordance with the input parameters.
5. This unit must be properly grounded.
6. Do not bend or kink the power wires.
7. Do not use to exhaust hazardous or explosive vapors.
8. The air purifier should always be vented to the exterior and in compliance with codes.
9. Prior to servicing or cleaning this unit, shut off power supply at the panel lock to prevent the power from being turned on.
10. Use this unit in the manner intended by the manufacturer. If you have any questions, please call customer service.

SAVE THESE INSTRUCTIONS

FCC INFORMATION

CAUTION: Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment!

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:

1) This product may cause harmful interference. 2) This product must accept any interference received, including interference that may cause undesired operation.

WARNING: Changes or modifications to this product not expressly approved by the party responsible for compliance could void the user's authority to operate the product.

Note: This product has been tested and found to comply with the limits for a Class B digital device pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.

This product generates, uses and can radiate radio frequency energy, and if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this product does cause harmful interference to radio or television reception, which can be determined by turning the product off and on, the user is encouraged to try to correct the interference by one or more of the following measures.

• Reorient or relocate the receiving antenna.
• Increase the distance between the product and receiver.

- Connect the product to an outlet on a circuit different from that to which the receiver is connected.

- Consult the dealer or an experienced radio/TV technician for assistance.

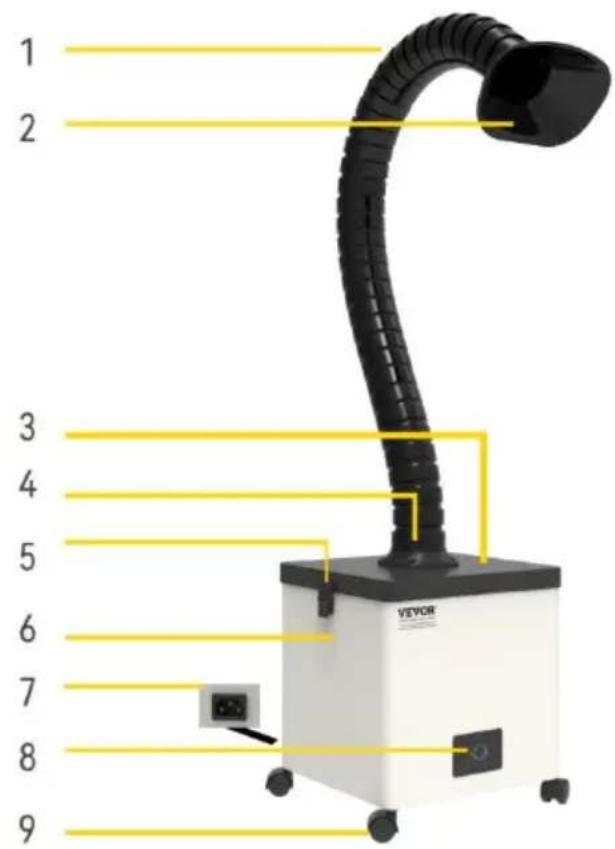

APPEARANCE STRUCTURE

VEVOR XF180/XF250 smoke purifier is compact in size and equipped with four universal casters at the bottom, making it mobile and flexible to plug in. The smoke tube can be universally adjusted and is applicable to all types of worktables. The purified air conforms to the PONY test certification, and the new filter is barrel-shaped, which greatly increases dust tolerance. The three-block variable speed adjustment can achieve a maximum flow of 180-250 m³/h.

1. Bamboo Tube
2. Smoke Hood
3. Top Cover
4. Flange
5. Hasp
6. Host
7. Power Cord Interface
8. Switch
9. Caster Wheel

PACKING LIST

Please check the following parts carefully. If any part is missing or damaged, please contact customer service or your dealer.

Main Machine	1
Power Line	1
Smoke Absorbing Pipe	1
Warranty Card	1
Operation Manual	1
Primary Filtering	5
H11 Hepa	1
Main-effect Filtering	1

OPERATION INSTRUCTIONS

• The power input of the machine shall be used within the specified rated voltage range (according to the power mark on the body). It is forbidden to use voltages that are too high or too low. Turn off the machine and unplug the power cord if you find that the voltage is not stable.
• When using the machine, the ambient temperature range of the gas and dust inhaled into the suction mouth is at room temperature of 50 °C. It is forbidden to use above or below this temperature range.
• When using the machine, the humidity of the gas and dust inhaled by the inlet is 40% - 80%. Excessive humidity will quickly invalidate the filter and damage the internal circuit of the machine, and it is forbidden to use when the humidity is higher than 80%.
• It is forbidden to use the machine without a filter core. The direct inhalation of soot or dust particles into the machine will cause damage to the fan and control system. The use of the machine in the above state caused by the time of maintenance at your own expense will cause you greater losses.
• It is forbidden to continue to use the machine after the filter is severely blocked,

which will greatly shorten the service life of the machine and even cause damage to the machine. The machine should be cleaned and maintained regularly, and the filter tube should be replaced regularly. To ensure that the machine works in good condition.

- When your machine filter is less clogged, suction is reduced, or when the filter core fails to remove odor, use the filter tube strictly. Please replace the filter cartridge with the original configuration.

- It is forbidden to open the interior of the machine for maintenance. The warranty sticker on the fuselage is the only proof that you enjoy after-sales service. Please do not tear up or damage the warranty sticker on the fuselage.

Key point Operation

- Press the first time to turn on low speed

.. Press the second time for mid-range

... Press the third time for high speed

.... Press the fourth time to shut down

REPLACEMENT AND MAINTENANCE OF FILTRATION SYSTEM

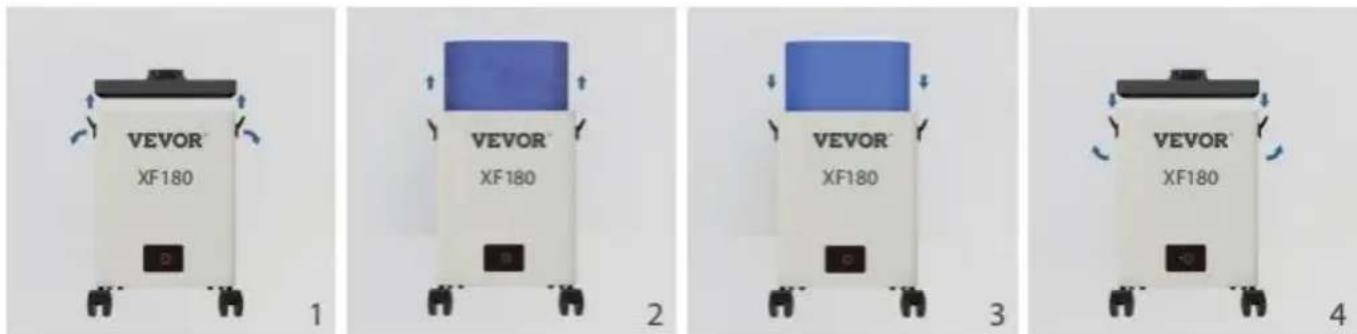

1. Open both sides of the buckle, remove the top cover.
2. Remove the saturated filter.
3. Put the new filter tube smoothly into the installation cover of the machine and buckle it tight.
4. The top cover must be smoothly loaded into the box.

* NOTES: Do not use brute force to press down the filter core, otherwise that and buckle will be damaged.

Requirements:

- The filter core should be replaced regularly to ensure that the machine would good condition. Before replacing and maintaining the filter system, please ensure that the power is cut off! We have no responsibility for machine damage caused failure to comply with the regulations of the user's manual.

- The bamboo tube should be cleaned regularly so as not to cause the filter blocking too quickly.

- When the adsorption capacity is reduced, check whether the filter should be replaced.

- When replacing the new filter, record the replacement date.

- When installing and removing the filter cylinder, you should hold the four-w border with your hands and slowly put it in and out. When handling, you are allowed to use the inside of the head or top filter to avoid deformation or of the filter material and affect the filtration effect.

- The filter replacement alarm is triggered after 2500 hours of machine opera

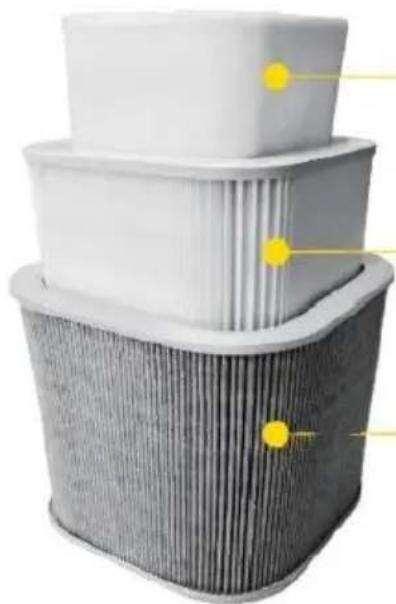

Layer 1: Primary filtering cotton

-Filter PM50

Replacement Cycle: 7 to 30 days

Layer 2: Internal filter

-Filter PM0.5

Replacement Cycle: 3 to 6 months

Layer 3: Composite carbon, medium effect external filter. Adsorption of harmful gases.

Replacement cycle: 6 to 12 months.

FAULT HANDLING

Please cut off the power before checking and repairing the equipment.

- Phenomenon: The system is still working, but the wind volume is weak and inhalation force is greatly reduced.

Reason: The air inlet is blocked or the filter fails to reach saturation.

Check: turn off the power, open the top cover, check whether there is something plugged into the air mouth. Check the air outlet for blockage. If there is no difference in inspection and treatment, reboot. If the wind volume is small, the filter should be replaced.

- Phenomenon: Automatic shutdown immediately after the machine is started, re-open and repeat the above phenomenon.

Reason: The internal air flow is impassable, the filter core resistance is too high, causing the fan to start with too much current, automatic protection shutdown. Check: turn off the power, open the top cover, check whether there is a foreign body plugged into the air mouth; If there is no difference in inspection and treatment, set the file position to a minimum, and then reboot to a suitable wind level.

SPECIFICATION PARAMETER

Model	XF180 series
Air Inlet	φ65mm
Voltage	110~120V(USA)
	220~240V(EU, AUS)
Maximum Power	85W
Air Velocity	17m/s
Noise Level	<70dB
Length Of Duct	1m
System Traffic	200m3/h
Dimensions Of Main Unit	265x265x340mm
Weight	8.1KG
Deploy	Pre-filter+H11+Main Filter
Layer Number	3

*Content is subject to update without notice.

CORRECT DISPOSAL

This product is subject to the provision of European Directive 2012/19/EC. The symbol showing a wheelie bin crossed through indicates that the product requires separate refuse collection in the European Union. This applies to the product and all accessories marked with this symbol. Products marked as such may not be discarded with normal domestic waste, but must be taken to a collection point for recycling electrical and electronic devices.

USE REFERENCE

Case 1

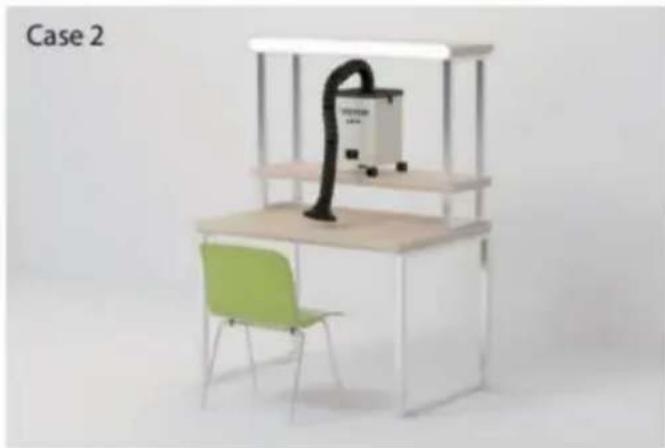

Case 2

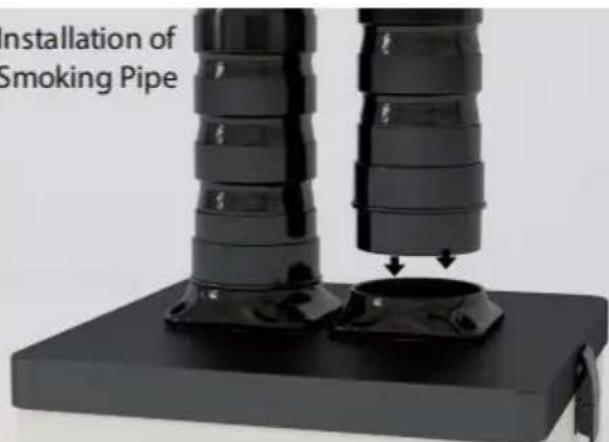

ACCESSORIES INSTALLATION

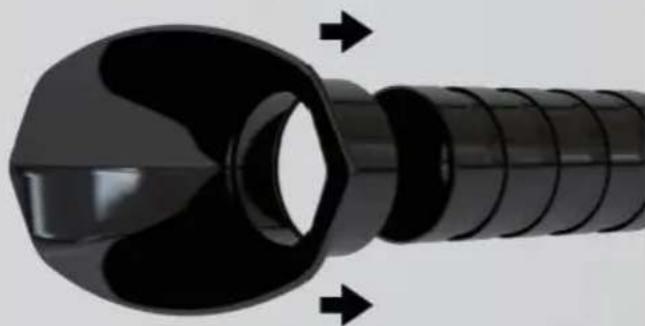

Installation of Smoking Cover

VEVOR®

TOUGH TOOLS, HALF PRICE

Technical Support and E-Warranty Certificate

www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

STRUCTURE APPEARANCE

Key Point Operation

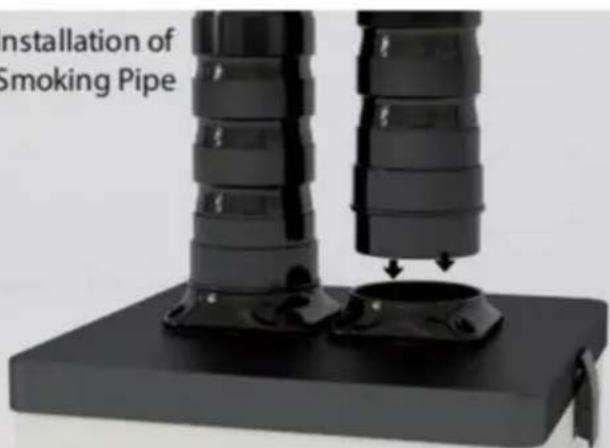

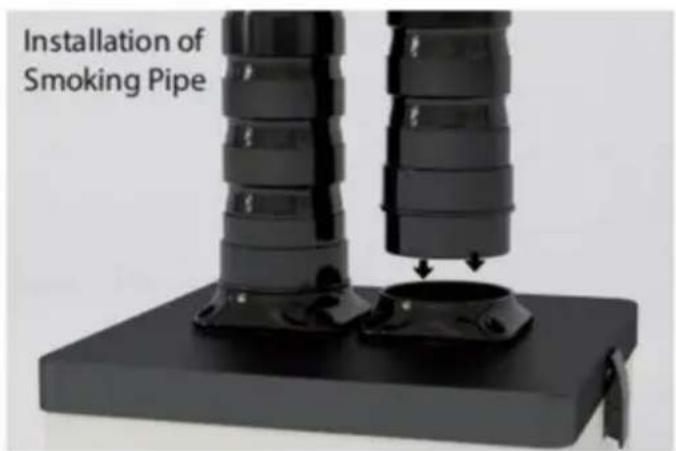

ACCESSORIES INSTALLATION

VEVOR®

TOUGH TOOLS, HALF PRICE

Key Point Operation

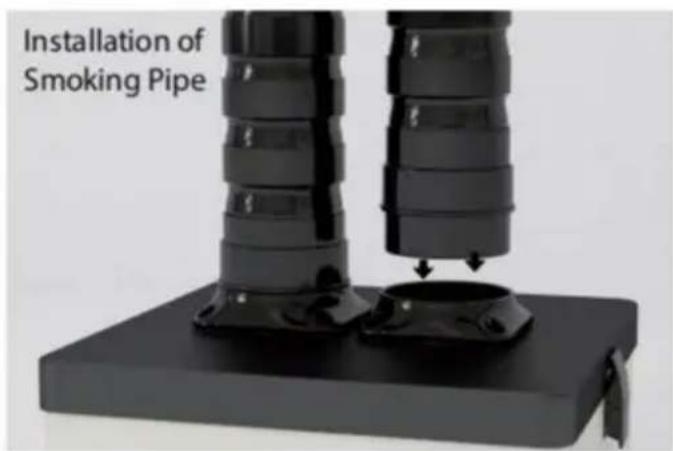

ACCESSORY INSTALLATION

VEVOR®

TOUGH TOOLS, HALF PRICE

www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

Layer 1: primary filter cotton

-PM50 filter

VEVOR®

TOUGH TOOLS, HALF PRICE

electronics www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

VEVOR®

TOUGH TOOLS, HALF PRICE

VEVOR®

TOUGH TOOLS, HALF PRICE

NEED HELP? CONTACT US!

Layer 2: Internal filter

-PM0.5 filtering

Case 2

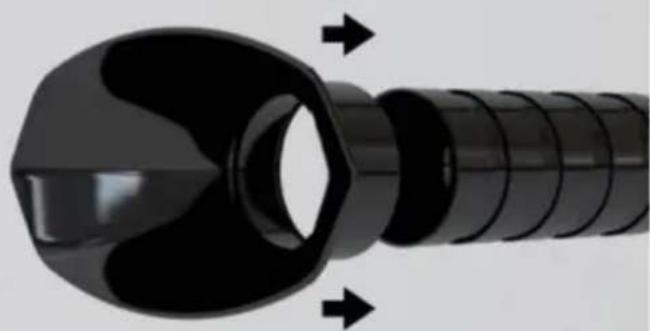

INSTALLATION ACCESSORIES

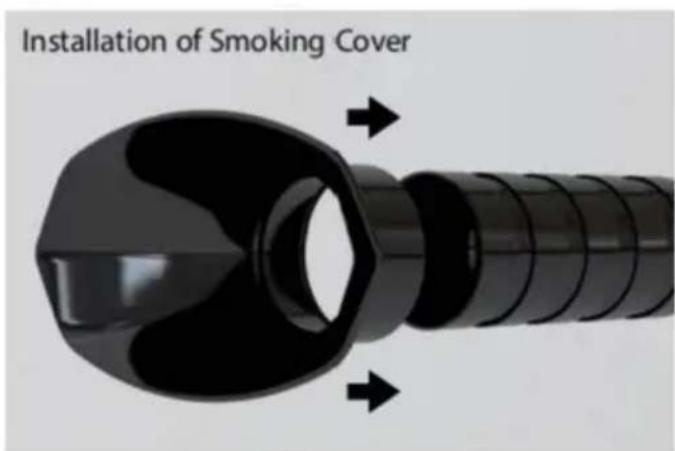

Installation of Smoking Cover

VEVOR®

TOUGH TOOLS, HALF PRICE

warranty certificate www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

Key point Drift

Layer 1: Primary filtering cotton

-Filter PM50

INSTALLATION OF ACCESSORIES

VEVOR®

TOUGH TOOLS, HALF PRICE

www.vevor.com/support
