USER MANUAL SKL400 Vevor

Technical Support and E-Warranty Certificate www.vevor.com/support

CYCLONE DUST SEPARATOR KIT

MODEL: SKL300/ SKL400

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represent estimate of savings you might benefit from buying certain tools with us compared top brands and does not necessarily mean to cover all categories of tools offered are kindly reminded to verify carefully when you are placing an order with us actually saving half in comparison with the top major brands.

VEVOR®

TOUGH TOOLS, HALF PRICE

CYCLONE DUST SEPARATOR KIT

MODEL: SKL300/ SKL400

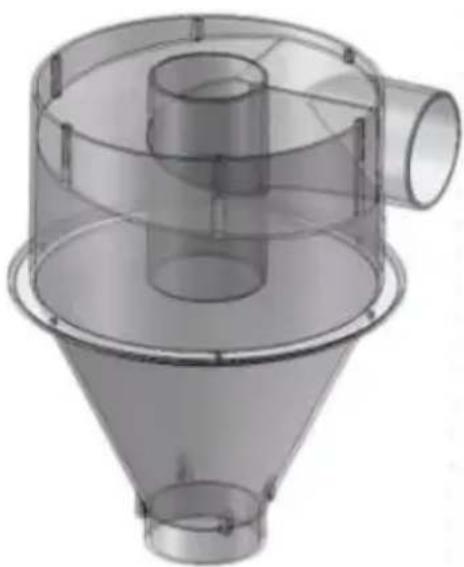

3D rendering of a conical industrial filter or pump device with internal components (no text or symbols visible)

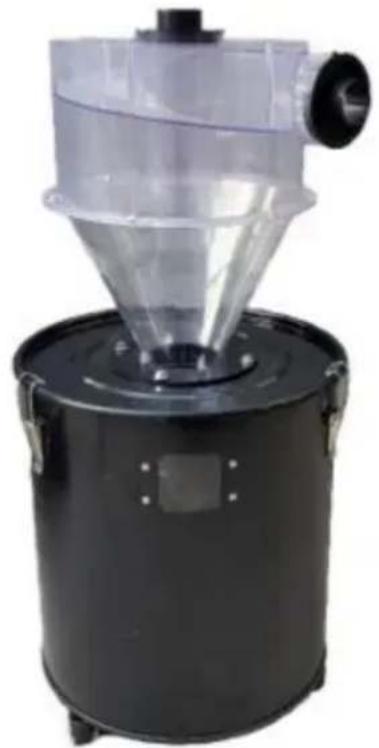

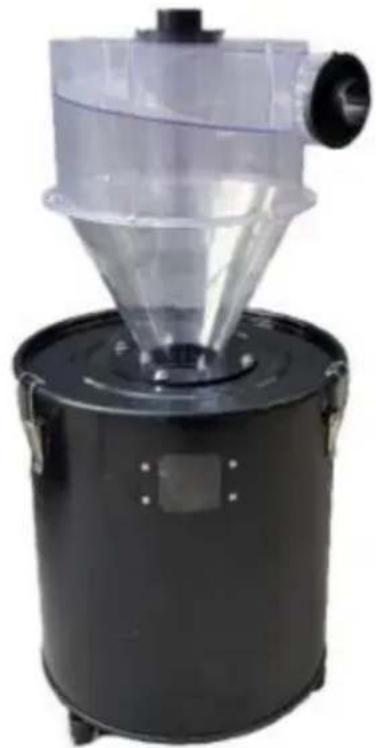

Exterior view of a black industrial vacuum cleaner with a conical funnel and transparent casing (no text or symbols visible)

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel fr contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instruction carefully before operating. VEVOR reserves a clear interpretation user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform you there are any technology or software updates on our product.

Symbol	Symbol Description
	Warning-To reduce the risk of injury, the user must re instructions manual carefully.

WARNING

Thank you for purchasing and using the cyclone separator. To ensure safety and proper use and maintenance of the cyclone separator, please read the manual carefully.

• Toxic substances cannot be separated to avoid harm to the body.
• Smoking or flammable and explosive substances cannot be separated
• Please do not use in places with flammable and explosive gases.
• Do not let children get close to the cyclone separator.
• Some dust may be toxic or cause allergic reactions.
• Do not introduce sparks or ignition sources into the cyclone separate
• Fire extinguishers should be always ready next to the separator.
• Do not dispose of collected dust casually.

SPECIFICATION PARAMETERS

Model	SKL300	SKL400
Inlet/outlet aperture of separato (in)	3.81	3.81
Matching joint aperture (in)	1.97	1.97
Bucket capacity (L)	Unconfigured bucket	50

PARTS LIST

MODEL: SKL300

Transparent plastic mechanical component with a conical base and cylindrical inlet (no text or symbols visible)

1

2

Coiled, translucent material with no visible text or symbols

3

4

5

6

7

8

9

Collection of mechanical fasteners including bolts, washers, and hexagons (no text or symbols visible)

10

11

12

ITEM	DESCRIPTION	Quantity	ITEM	DESCRIPTION	Quantity
1	cyclone separator	1	9	2-inch clamp	2
2	3.81inch-1.97inch diameter reduction	2	10	M8*12 screw	4
3	2-inch PU tube 2m	1		M8 nut	4
4	50mm outer diameter direct pipe	1		Flat gasket	4
5	50mm inner diameter elbow	1	11	50mm-32mm variable diameter	1
6	Sealant strip 1m	1	12	wrench	1
7	Sealing gasket	1	13	Instructions (No graph)	1
8	4-inch clamp	2

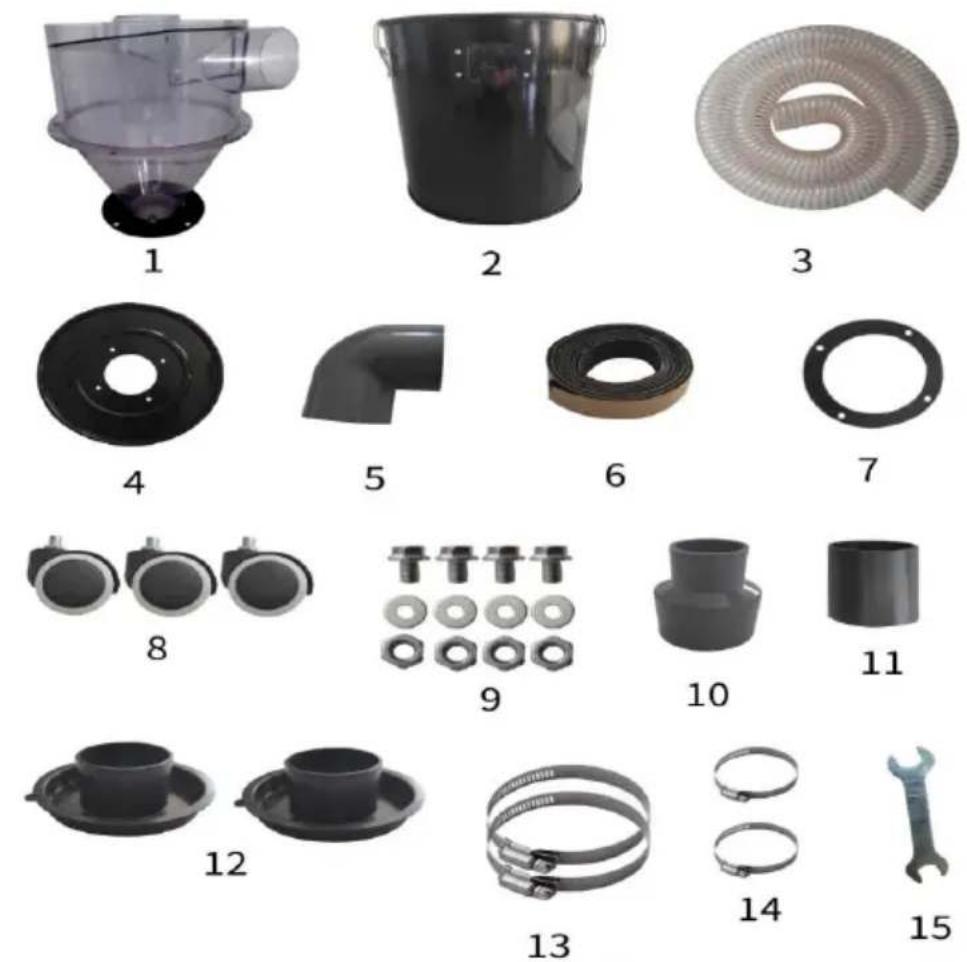

MODEL: SKL400

ITEM	DESCRIPTION	Quantity	ITEM	DESCRIPTION	Quantity
1	cyclone separator	1	10	50mm-32mm variable diameter	1
2	50L bucket	1	11	50mm outer diameter direct pipe	1
3	2-inch PU tube 2m	1	12	3.81inch -1.97inch diameter reduction	2
4	Barrel lid	1	13	4-inch clamp	2
5	50mm inner diameter elbow	1	14	2-inch clamp	2
6	Sealant strip 1m	1	15	wrench	1
7	Sealing gasket	1	16	Instructions(No graph)	1
8	Casters	3
9	M8*12 screw	4
	M8 nut	4
	Flat gasket	4

INSTALLATION INSTRUCTIONS

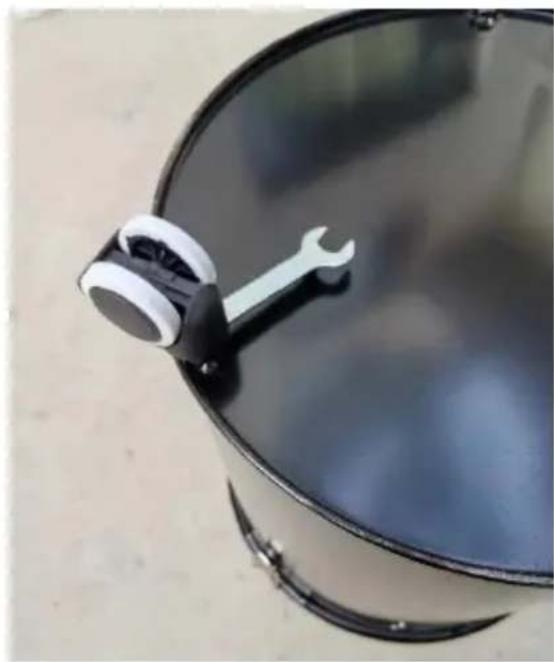

1. Install the bottom casters of the collection bucket, as shown in the diagram, using a wrench to assist in installation (can be ignored if the no collection bucket)

Close-up of a metallic cylindrical device with a wrench attached, placed on a surface (no text or symbols visible)

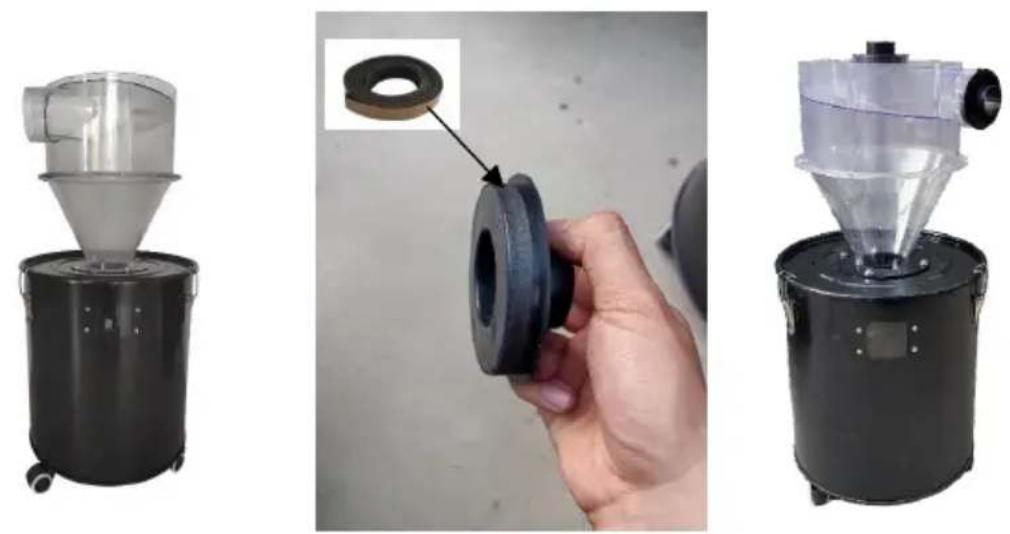

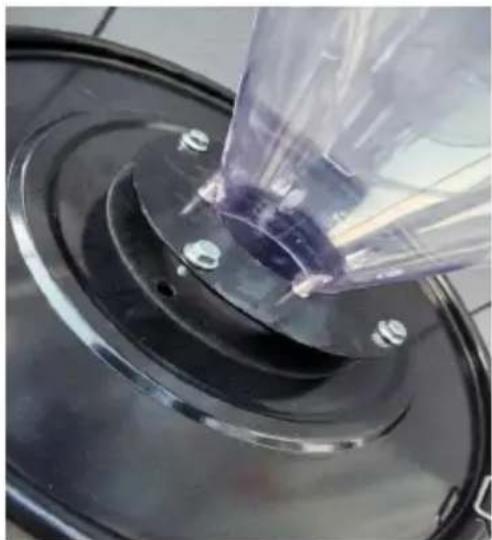

1. Place the sealing gasket between the bucket cover and the cyclon separator, secure it with four screws (ignore those without a collection bucket), and tighten it with a wrench as shown in the figure

Close-up of a transparent plastic bag dispensing liquid onto a black circular object (no text or symbols visible)

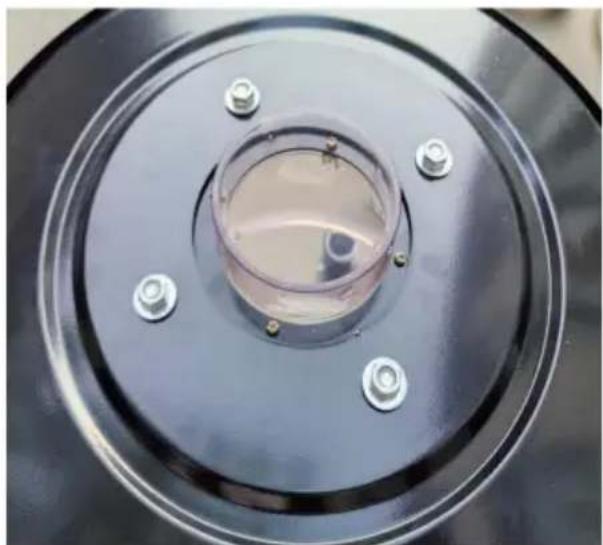

Close-up of a metallic circular component with a central transparent cylindrical opening and four bolted mounting holes (no text or symbols visible)

1. Tighten the three buckles, complete the installation of the main bo turn the 4-inch to 2-inch diameter, and wrap the sealing tape around

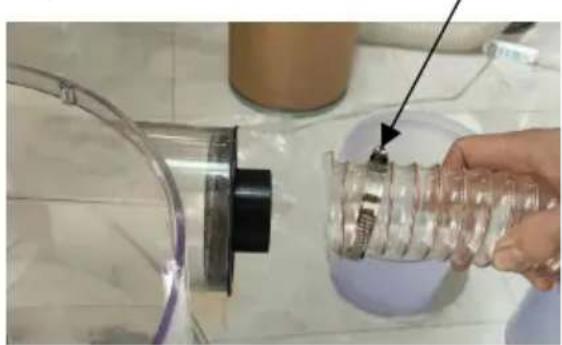

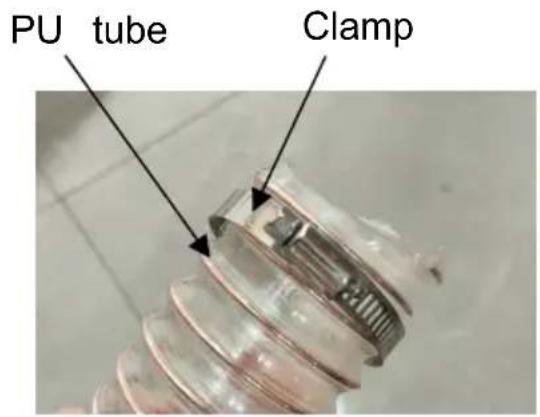

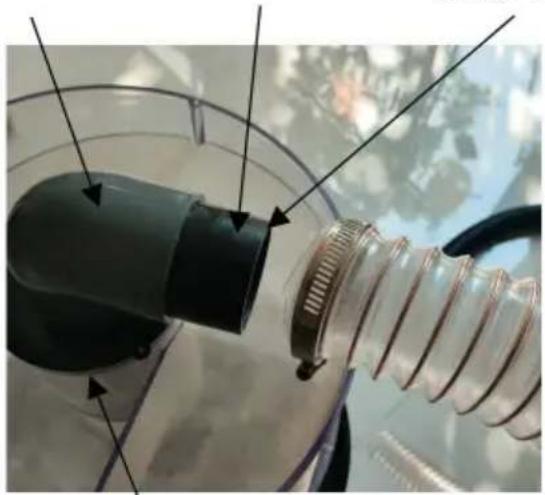

1. Installation of PU tube and interface.

Place the Clamp onto the PU tube and insert it into the interface. T with a cross screwdriver

PU tube Clamp

Tighten with a cross screwdriver

Laboratory setup with a hand holding a transparent plastic bottle and a small object inserted into it, next to a glassware component (no visible text or symbols)

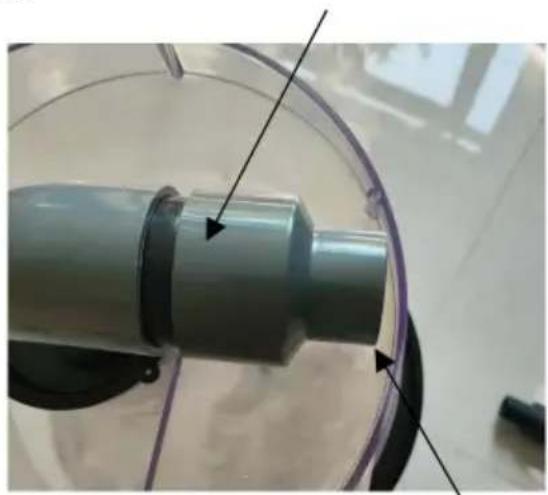

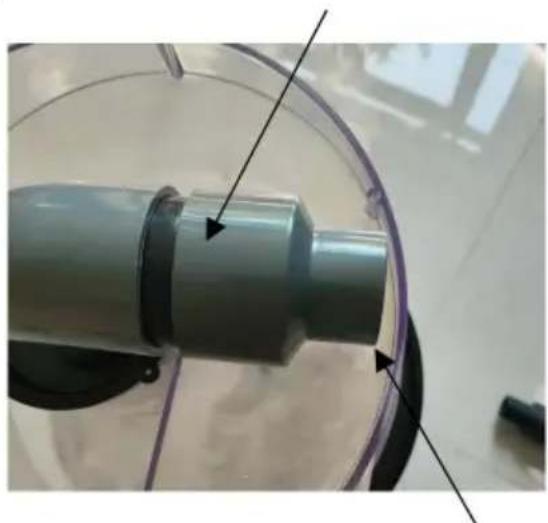

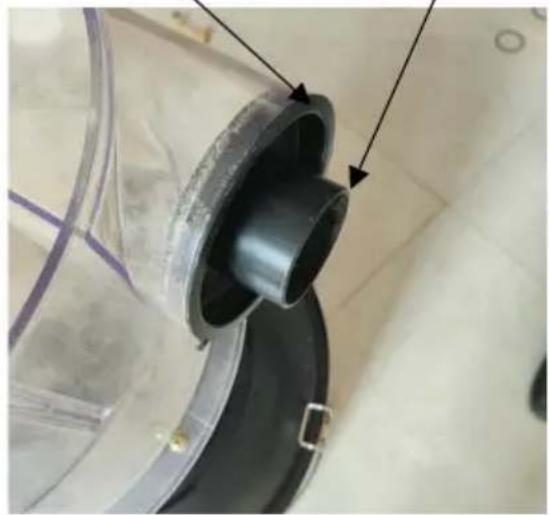

1. Flexible and versatile interfaces

Can be used for 4 inches, 2 inches, and 1.5 inches, and can be used to household vacuum cleaners, industrial vacuum cleaners, and woodworking vacuum cleaners

The air volume value needs to be greater than 50cfm to ensure the separation effect

4-inch interface

3D rendering of a conical industrial filter or hopper with internal structure and pipe connection (no text or symbols)

3.81inch -1.97inch

diameter reduction

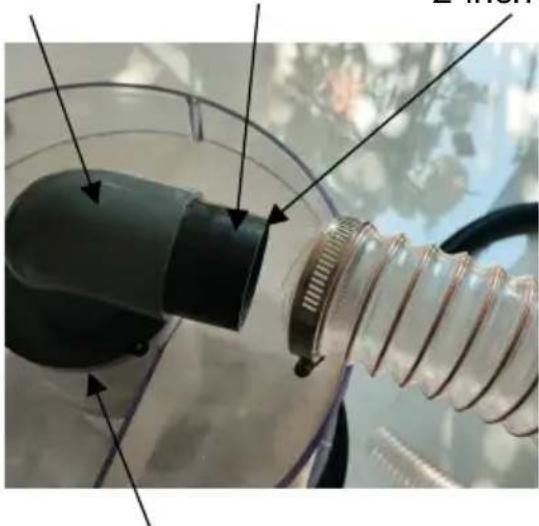

2-inch interface

Close-up of a mechanical component with a black cylindrical part inserted into a transparent housing (no visible text or symbols)

50mm inner 50mm outer

diameter

elbow

diameter direct

pipe

2-inch interface

50mm-32mm variable

diameter

Close-up of a black plastic plug inserted into a coiled spring, with arrows pointing to the component (no text or symbols visible)

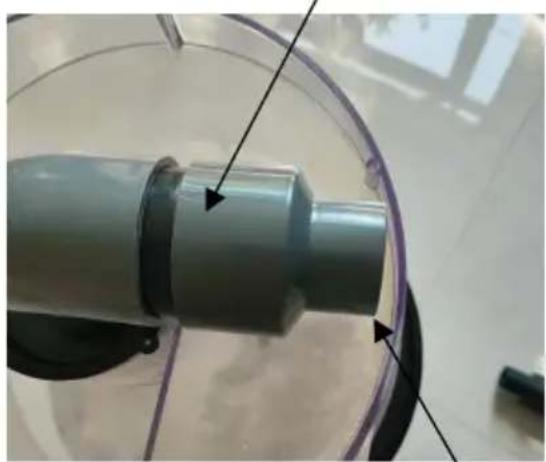

3.81inch -1.97inch

diameter reduction

Close-up of a cylindrical mechanical component with two arrows pointing to it, placed on a circular surface (no visible text or symbols)

1.5-inch interface

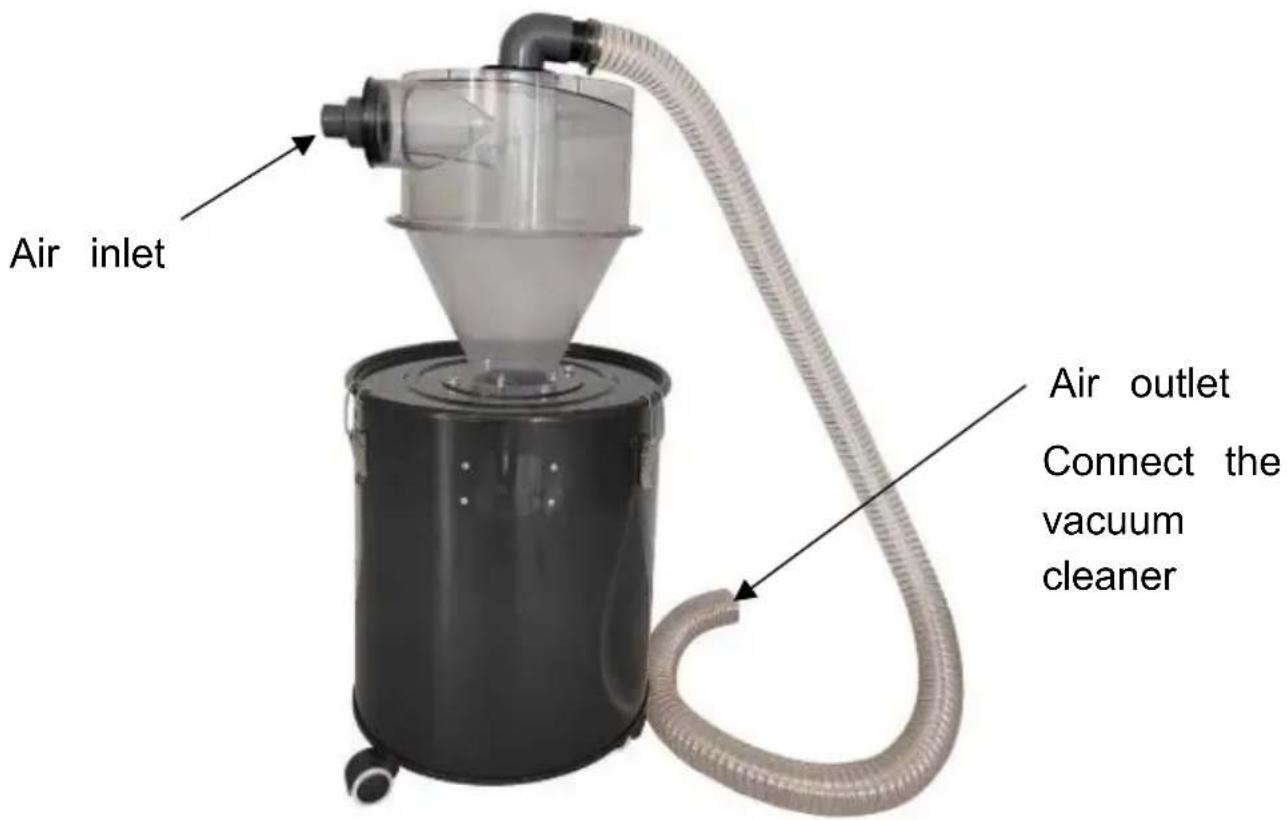

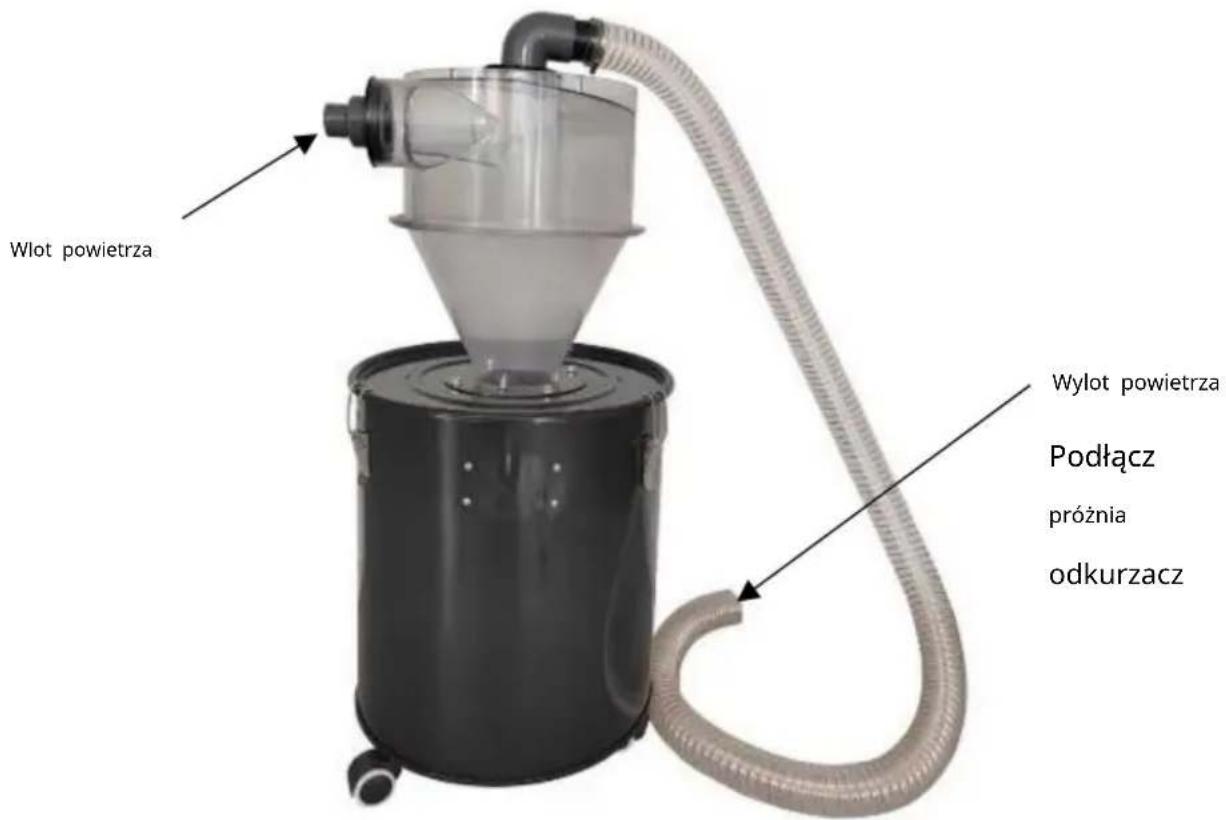

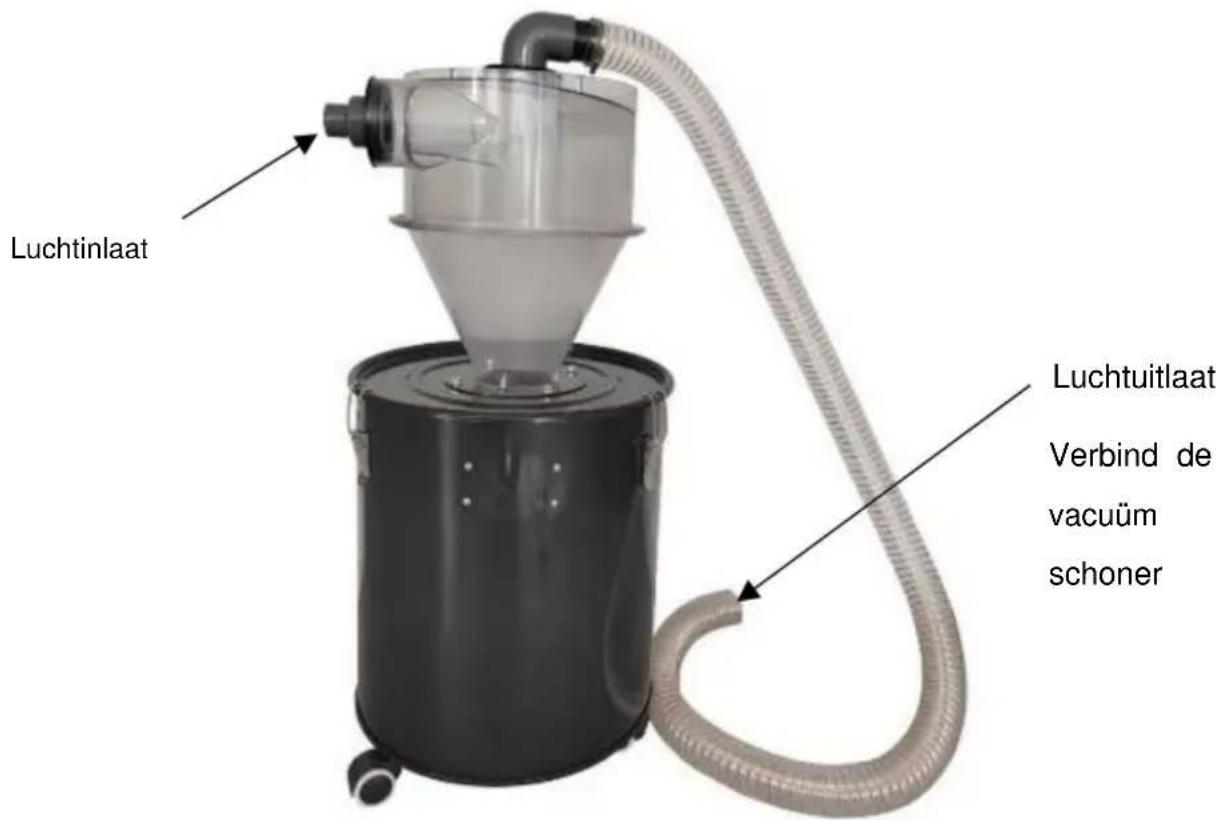

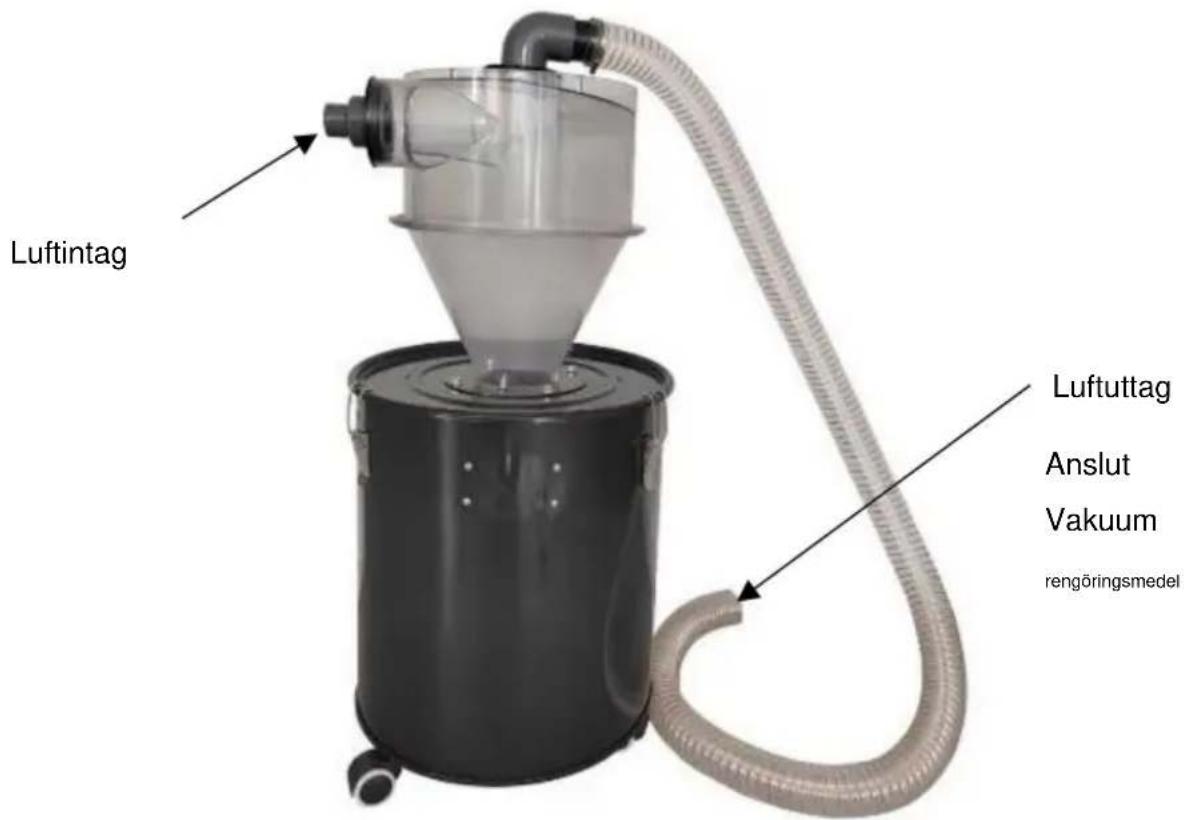

Air inlet Air outlet Connect the vacuum cleaner

FAULT DIAGNOSIS AND HANDLING METHODS

Fault	Cause analysis	Processing method
Loose hose	Loose connection	Each manufacturer has an error in the diameter of those, which can be fixed wrapping a sealing strip around the interface and then using clamps
The material does not fall due to rotation	Balance of gravity and centrifugal force for large particle materials	Cutting off the airflow or restarting will cause the material to fall
Low air volume	System blockage	Clean the dust collector fi elementCheck if the pipeline is blocked
Poor separation	Leakage in the bucke or low air volume in vacuum cleaner	1. Check if there are any leaks in the separator and collection bucket2. Clean the vacuum cleaner
The bucket is flattened by suction	Air flow in the intake hole is obstructed	Check if the hose is bloc
