USER MANUAL YCSR-10001-30 Vevor

Technical Support and E-Warranty Certificate

www.vevor.com/support

FIRE RING COVER

MODEL:YCSR-10001-30 /

YCSR-10001-36 / YCSR-10001-40

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represent estimate of savings you might benefit from buying certain tools with us compared top brands and does not necessarily mean to cover all categories of tools offered are kindly reminded to verify carefully when you are placing an order with us actually saving half in comparison with the top major brands.

MODEL:YCSR-10001-30 / YCSR-10001-36 / YCSR-10001-40

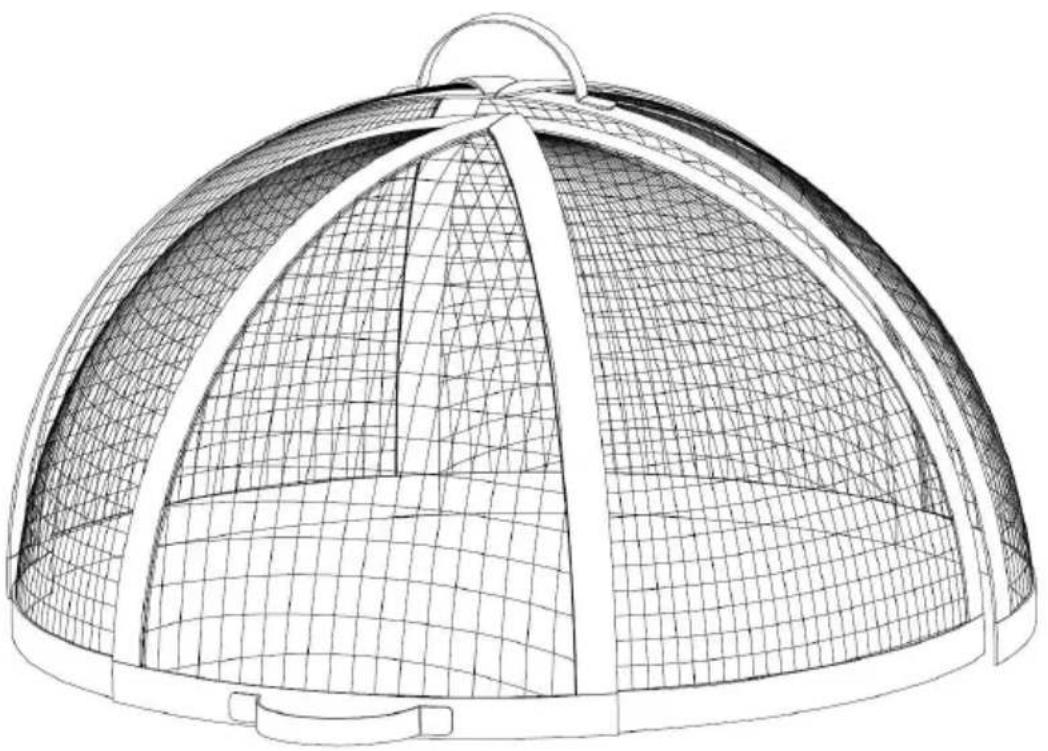

Line drawing of a dome-shaped metal structure with grid pattern and handle (no text or symbols)

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel fr contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instruction carefully before operating. VEVOR reserves a clear interpretation user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform you there are any technology or software updates on our product.

IMPORTANT SAFEGUARDS

WARNING: Read and understand this entire manual before operating or servicing this product. Failure to follow these warnings and instructions can cause personal injury or damage to valuable property.

• To prevent burns from the heated lid, make sure the brazier is co before placing the lid on it.
• Avoid children using the devices. and this product is not a toy. Do allow children to play with.
• Keep away from sharp points, blades and other items, so as not to scratch the product.

SAVE THESE INSTRUCTIONS

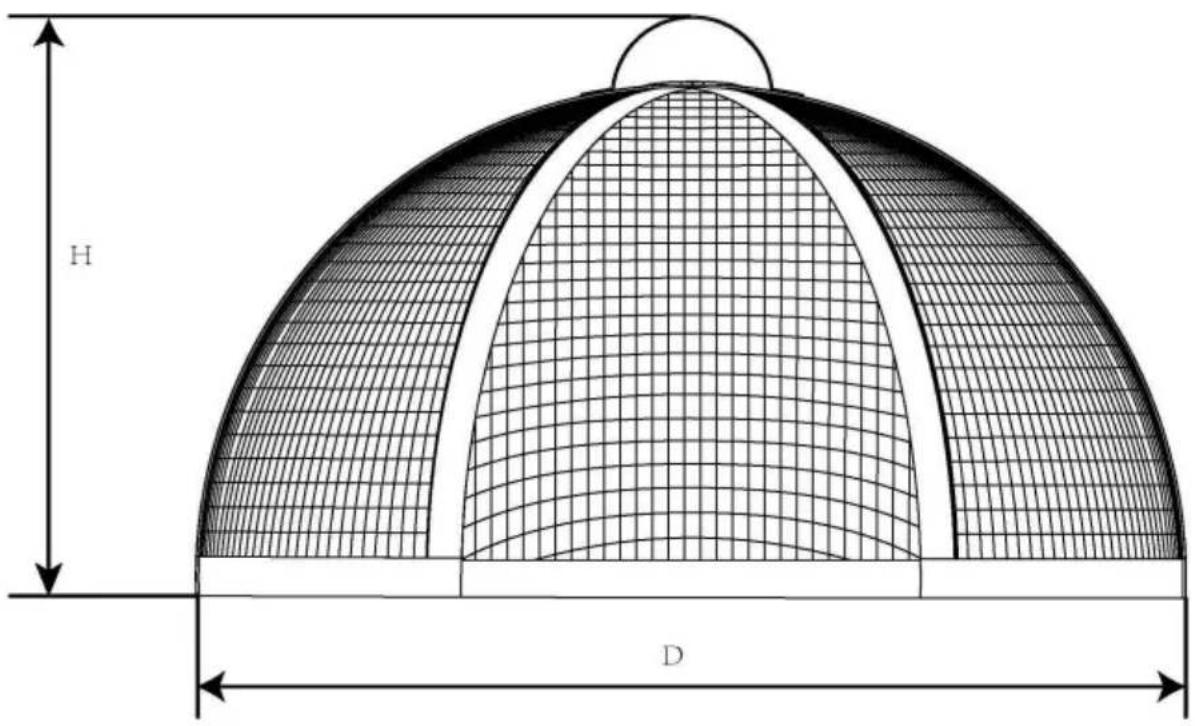

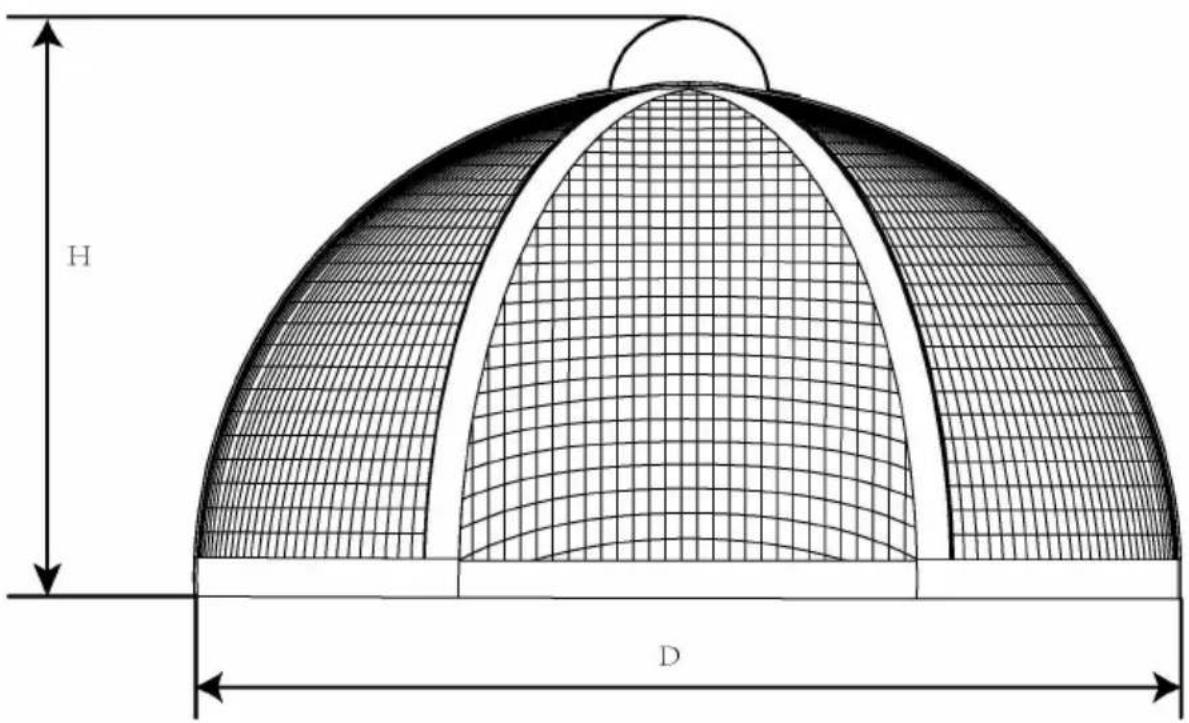

PRODUCT SPECIFICATIONS:

Model#	Product Size (mm)	Internal Size (mm)	Weight(kg)
YCSR-10001-30	φ770*430	φ705*350	5.1
YCSR-10001-36	φ930*500	φ850*430	6.4
YCSR-10001-40	φ1020*550	φ940*480	7.3

SIMPLE INSTRUCTION

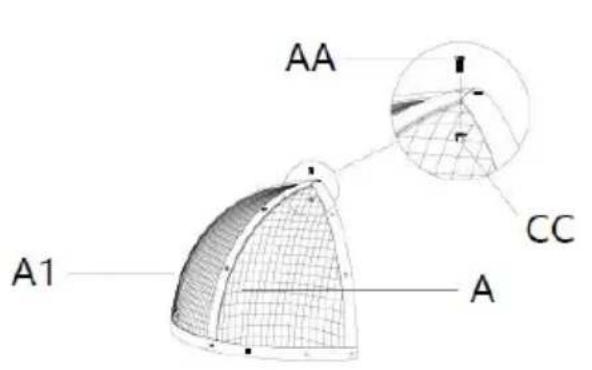

Step 1: Assemble A and A1 mesh
4 AA screws and 4 CC nuts

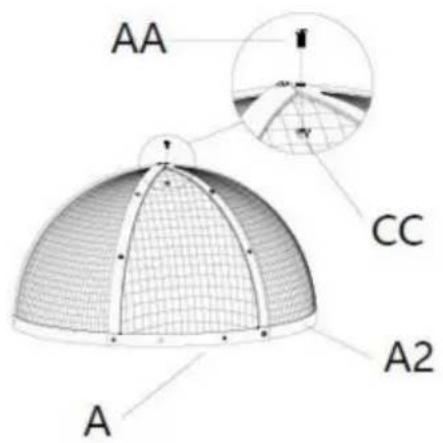

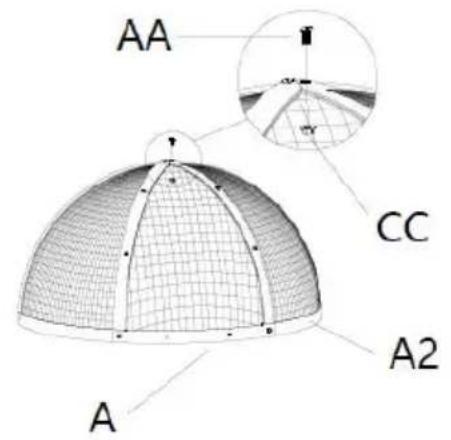

Step2: Assemble A and A2 mesh 4 AA screws and 4 CC nuts

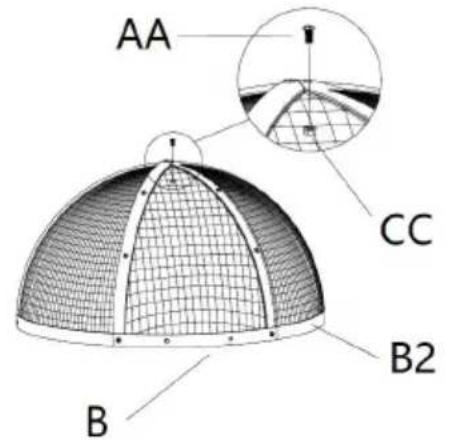

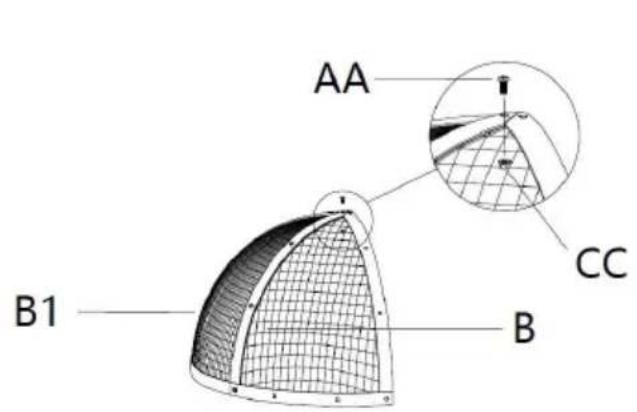

Step3: Assemble B and B1 mesh 4 AA screws and 4 CC nuts

Step4: Assemble B and B2 mesh with 4 AA screws and 4 CC nuts

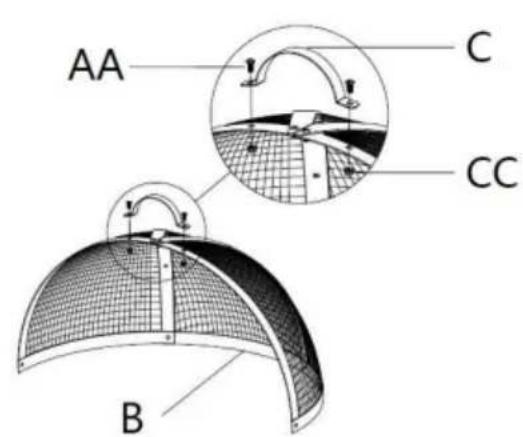

Step 5: Assemble the part and ha Step 6: Assemble the part and ha D assembled in Step 2, using 2 / C assembled in Step 4, using 2 / screws and 2 CC nuts. screws and 2 CC nuts.

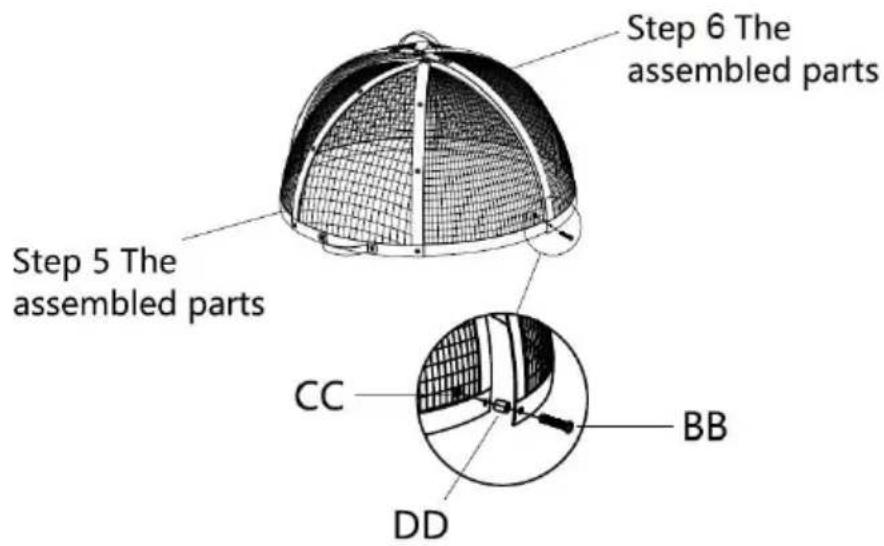

Step 7: Assemble the parts of Steps 5 and 6 with 2 BB screws, 2 CC nuts and 2DD annular tubes.

ATTENTION:

• It is recommended to find someone to assist with the installation.
  ● Make sure that the fire ring cover panels are installed in the prop position, and then finally tighten the screws with the plate handle.
  ● After the entire fire ring cover is installed, check whether the inner net can be turned over smoothly

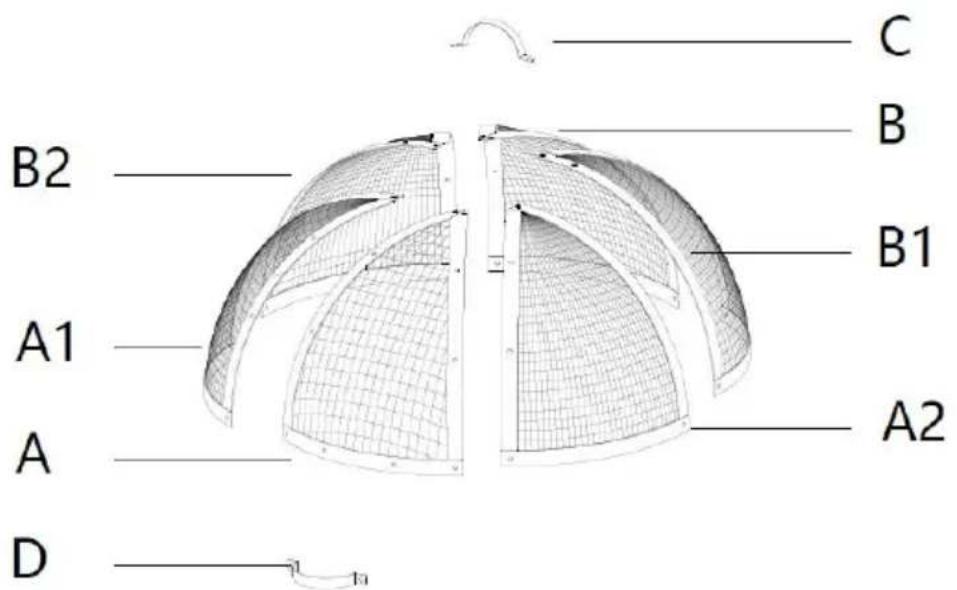

PACKAGE INCLUDE

NO	COMPONENTS	PICTURE	SYMBOL	Q'TY
				FITS MODEL #
				YCSR-10001-30/YCSR-10001-36/YCSR-10001-40
1	A-screen		A	1pcs
2	A1-screen		A1	1pcs
3	A2-screen		A2	1pcs
4	B-screen		B	1pcs
5	B1-screen		B1	1pcs
6	B2-screen		B2	1pcs
7	Big handle		C	1pcs
8	Small handle		D	1pcs
9	screw		AA	20pcs
10	screw		BB	2pcs
11	nut		CC	22pcs
12	Annular tubes		DD	2pcs
13	Hexagonal wrench		/	1pcs
14	wrench		/	1pcs
15	poker		/	1pcs

Manufacturer: Shanghaimuxinmuyeyouxiangongsi

Address: Shuangchenglu 803nong11hao1602A-1609shi, baoshanqu, shanghai 200000 CN.

Imported to AUS: SIHAO PTY LTD. 1 ROKEVA STREETEASTWOOD NSW 2122 Australia

Imported to USA: Sanven Technology Ltd. Suite 250, 9166 Anaheim Place, Rancho Cucamonga, CA 91730
