USER MANUAL SC-YMP1 Vevor

Technical Support and E-Warranty Certificate www.vevor.com/support

FOOD WARMER DISPLAY

MODEL: SC-YMP1

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represent estimate of savings you might benefit from buying certain tools with us compared top brands and does not necessarily mean to cover all categories of tools offered are kindly reminded to verify carefully when you are placing an order with us actually saving half in comparison with the top major brands.

MODEL:SC-YMP1

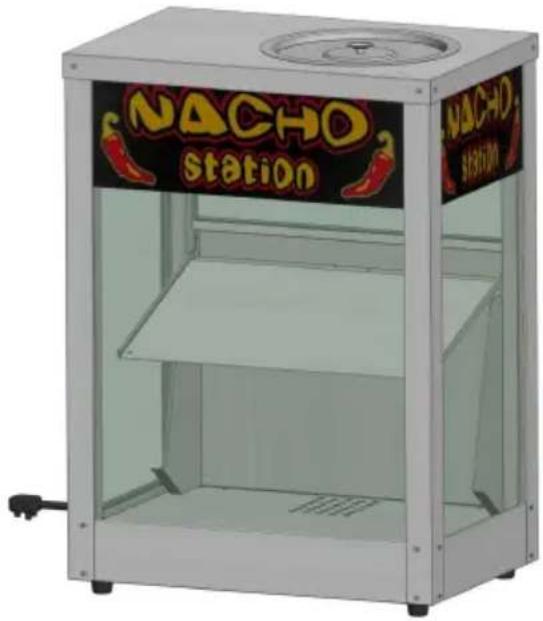

NACHO station NACHO STATION

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel fr contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instruction carefully before operating. VEVOR reserves a clear interpretation user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform you there are any technology or software updates on our product.

	Warning-To reduce the risk of injury, user must re instructions manual carefully.
	CORRECT DISPOSALThis product is subject to the provision of European D 2012/19/EU. The symbol showing a wheelie bin cros through indicates that the product requires separate re collection in the European Union. This applies to the and all accessories marked with this symbol. Products as such may not be discarded with normal domestic w must be taken to a collection point for recycling electr electronic devices.
	Indoor Use Only

Warming Tips

To ensure that this product will not be scratched during transportation protective film is attached to the surface of the machine. Please tear protective films before use!

1. Instructions for use:

1. Must be safely grounded before use!
2. The voltage used must be consistent with the rated voltage.
3. The power indicator light is always on when the machine is powe

4. When you need to turn on the heat preservation function, turn on heating switch on the control panel. When the heating temperature reaches about 65^ , the machine will automatically turn off the heating function and the heating lamp will go out. When the temperature drops certain temperature, the heating function will be turned on again, the heating lamp will stay on again, and this cycle will achieve the constant temperature and heat preservation function.

5. During use, if you need lighting, you can turn on the lighting swit the lights will turn on, which can improve the display effect;

6. When finished, the power must be cut off when cleaning to preve accidents;
7. If any abnormality occurs during the process, you should stop using and ask a professional to troubleshoot it before continuing to use it.
8. This product is not suitable for people (including children) with phy sensory or mental disabilities or lack of experience and knowledge.
9. Since the temperature of the equipment is relatively high during operation, do not bring your hands or other parts of the body close surface of the machine to avoid burns or other injuries.

2. Precautions and maintenance:

1. It should be operated by designated personnel and should be prof in the use of machinery and equipment.
2. Be careful when moving the machine. If there is a fault, it must repaired by a professional. Do not knock it.
3. Please do not install and store this equipment in the following loc to avoid malfunction due to misoperation:

3.1 On an unstable table or counter.

3.2 Places where the temperature is too high or too low.

3.3 Places with excessive air volume and excessive dust.

3.4 Places where the power supply voltage is very unstable.

3.5 Where there is no good grounding device.

1. The appliance must not be cleaned with a water spray pipe or in water to prevent electrical leakage.

2. It is strictly prohibited to use liquids that are soluble in baking pa wipe the surface of the insulation cabinet.

3. Special precautions:

6.1 This product is a commercial device and is not suitable for home

6.2 Do not shake or tilt during use

6.3 It cannot be disassembled or modified. Disassembling it without permission may cause serious accidents.

6.4 The power needs to be cut off before cleaning to prevent accide leakage accidents.
6.5 During use, please do not touch the cabinet directly with your hand due to the high temperature. Special tools and high-temperature-resistag gloves are required when handling food.
6.6 It is prohibited to use hard or sharp objects to scratch the glass

3. Normal working environment conditions:

1. The ambient temperature is 5-50°C, and the relative air humidity is more than 90%;
2. Power supply voltage: 110V±10%, frequency: 60±1%HZ. (220V±10%, frequency: 50±1%HZ)

4. Product introduction

1. This product has a novel and unique design, beautiful appearance, four-sided glass see-through, durability, and easy maintenance. It has optional constant temperature, which can make the temperature uniform and keep the food fresh. There is a slag collecting basin design at bottom, which can reduce the oil deposition of potato chips. It is a s equipment for food display, heat preservation and drying.

5. Symbol description:

In this manual, symbols are used to highlight all important safety instructions and recommendations related to the equipment. To avoid risk of accidents, personal injury, or property damage, follow these instructions with extreme caution.

6. Product specifications

Model	Voltage (V)	Frequency (Hz)	Power (W)	Dimension (mm)
SC-YMP1	110	60	300	500*335*670
	220	50	300	500*335*670

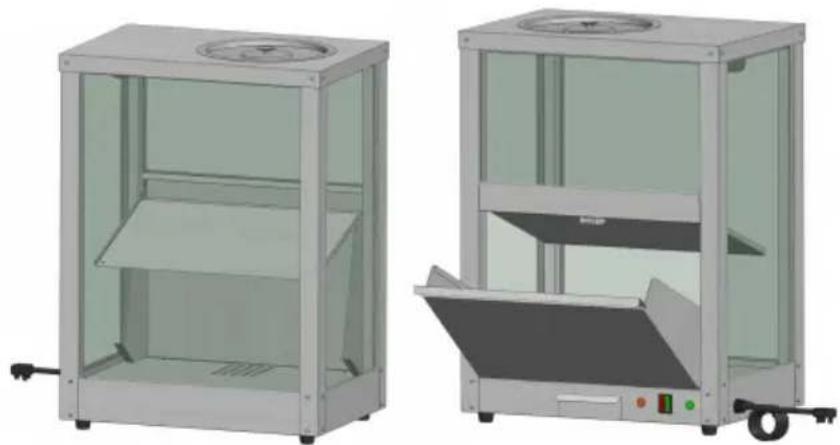

7. Product appearance

Two industrial equipment cabinets with open doors and ventilation grilles, shown from front and side views (no text or symbols visible)

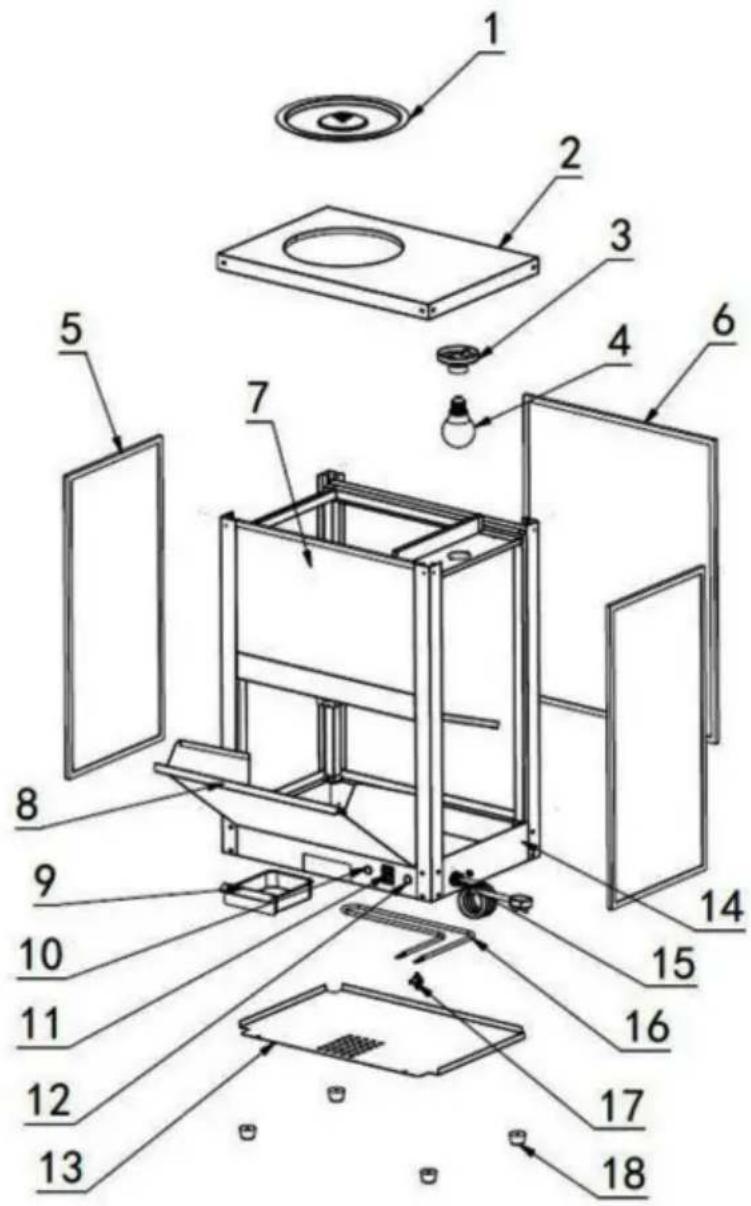

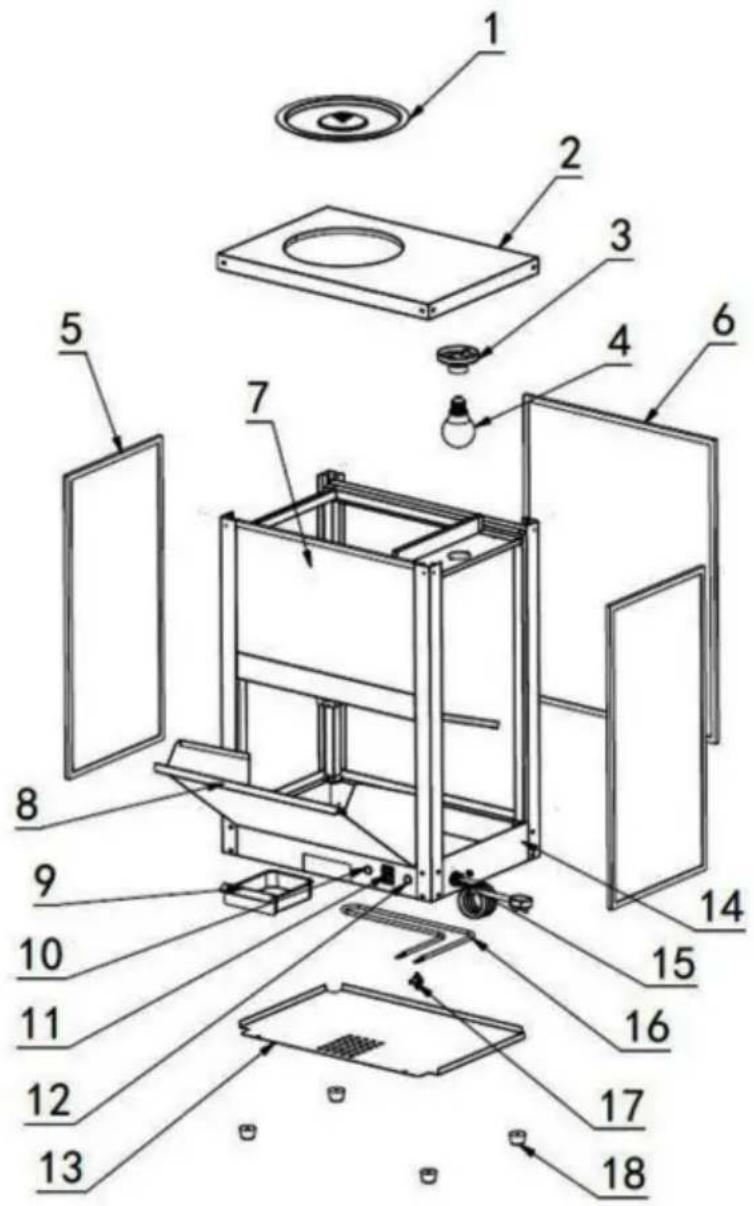

8.Product structure diagram

Exploded view diagram of a refrigerator with numbered parts for identification

SC-YMP1 Bill of Materials
No.	Name	Qty	No.	Name	Qty
1	Stainless steel lid	1	2	Top cover	2
3	Lamp base	1	4	LED warm light bulb	1
5	Side glass	2	6	Rear glass	1
7	Front glass	1	8	Dump board	1
9	Slag pan	1	10	Heating indicator light	1
11	Boat type bipolar switch	1	12	Power Indicator	1
13	Base pallet	1	14	Frame	1
15	Power cable	1	16	Heating pipe	1
17	65 degree temperature limiter	1	18	No.1 machine foot	4

Note: The location of the electrical components is based on the design that time. Our company reserves the right to change the participating designs. If the design is changed and the instructions are not update timely manner, we hope for your understanding!

Parts List

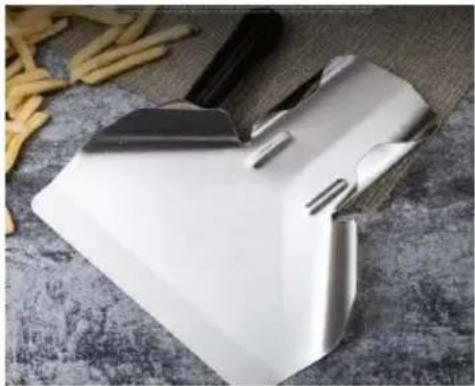

Stainless steel shovel	1pcs

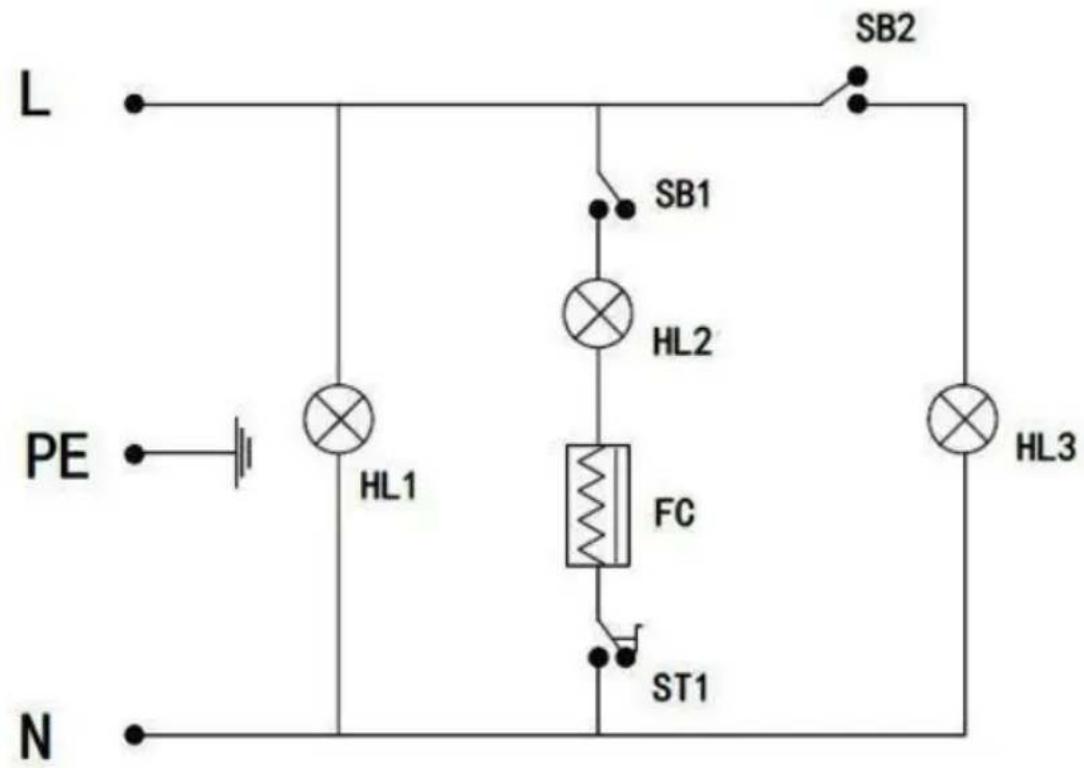

SC-YMP1 electrical schematic diagram

L PE N HL1 SB1 HL2 FC ST1 SB2 HL3

Illustrate

ST1: Temperature limiter HL1: Power indicator light FC: Heating

SB1: Heating switch HL2: Heating indicator light

SB2: Lighting switch HL3: Lighting ceiling lamp

9.Fault analysis

No.	Fault phenomenon	Reason	Method of exclusion
01	The green and red indicator light are on at the same time and the temperature does not rise.	The electric heating tube wiring is loose and the electric heating tube is burned out.	1Tighten the electric heating pipe wiring bolts.2Replace the electric heating tube
02	The work indicate light stays on an the temperature rise cannot be controlled.	Thermostat failure	1Replace the thermostat
03	The indicator light is off and the temperature control is normal.	Indicator light burned out	1Replace the indicator light
04	It cannot automatically keep warm.	Thermostat failure	1Replace the thermostat
05	There is electricit leakage from the casing and my hands feel numb.	The insulation is damp or the inner conductor is in contact with the outer shell.	1Send it to the maintenance department for repair.
06	The light does n light up or flicker	The cable interface is not connected o has poor contact.	1Plug it in tightly
Note: The above problems are only for analysis and reference not deal with them by yourself. Relevant professionals are requ conduct troubleshooting and repairs. In case of safety abnormal such as leakage, the power supply should be cut off immediat use should be stopped!

Special Note:

All contents of this manual are only for the design at that time. Our company reserves the right to change the participating designs. If the design is changed and the manual is not improved in a timely mann hope that the customer will understand!

Please keep this manual properly
