USER MANUAL NB-03 Vevor

Technical Support and E-Warranty Certificate www.vevor.com/support

Food Warmer Display

MODEL: NB-02/NB-03

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represent of savings you might benefit from buying certain tools with us compared top brands and does not necessarily mean to cover all categories of tools offered are kindly reminded to verify carefully when you are placing an order with us actually saving half in comparison with the top major brands.

VEVOR®

TOUGH TOOLS, HALF PRICE

Food Warmer Display

MODEL: NB-02/NB-03

Line drawing of a multi-tiered laboratory or storage unit with control panel and side-mounted dish (no text or symbols)

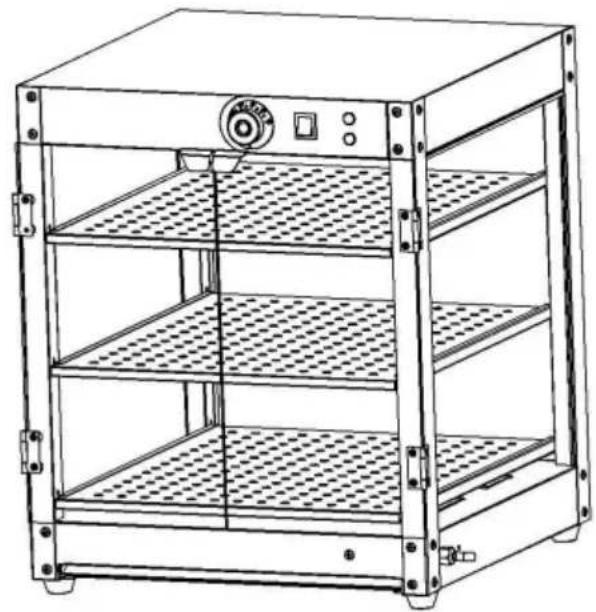

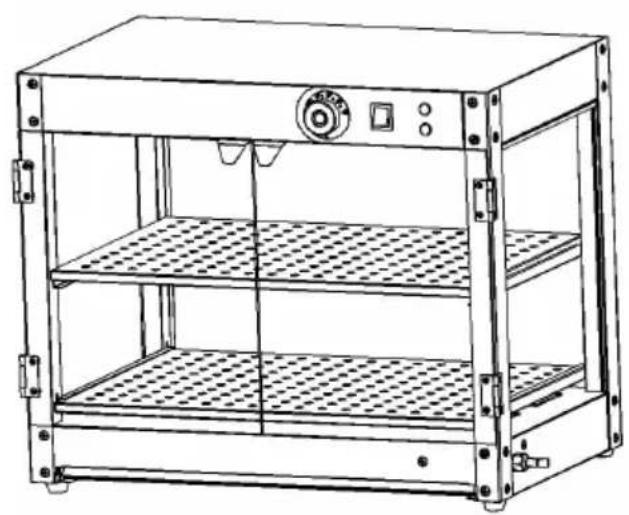

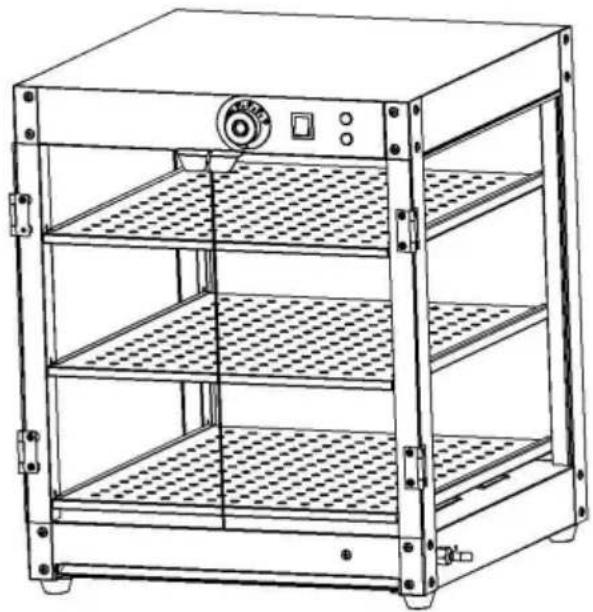

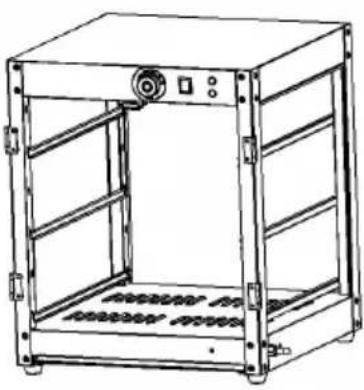

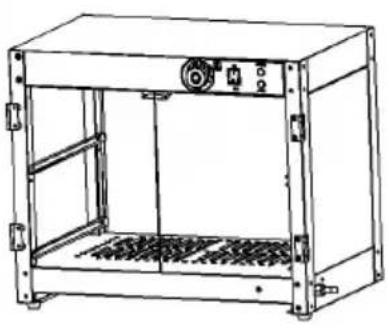

MODEL:NB-02 MODEL:NB-03

Line drawing of a multi-tiered laboratory appliance with control panel and side-mounted dish (no text or symbols)

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel fr contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instruction carefully before operating. VEVOR reserves a clear interpretation user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform you there are any technology or software updates on our product.

	Warning-To reduce the risk of injury, user must read instructions manual carefully.
	CORRECT DISPOSALThis product is subject to the provision of european D 2012/19/EU. The symbol showing a wheelie bin crossed through indicates that the product requires separate refu collection in the European Union. This applies to the p and all accessories marked with this symbol. Products as such may not be discarded with normal domestic w must be taken to a collection point for recycling electrica electronic devices.
	Indoor Use Only

Important Safeguards

When using electrical appliances, basic safety precautions should be followed, including the following.

1. READ ALL INSTRUCTIONS.
2. Unplug from outlet when not in use, before putting on or take parts, and before cleaning.
3. Do not operate the appliance with a damaged cord or plug or if the machine is malfunctioning or damaged. Send the unit to the nearest authorized service center for examination and repair.
4. Voltage of this machine was written on rating plate at side of macl
5. Place machine on a flat and stable surface, connect with DX47-63, C1 Leakage air Switch and three-prong plug

6. This appliance must be grounded while in use to protect the operat from electrical shock

7. Unplug main power cord from outlet from outlet while not in use and before cleaning. Allow to cool, clean and cover the unit and store in a and safe place if Not being used for a long time.

8. To avoid any risk of electrical shock, do not immerse cord, plug or machine into water or other liquid.
9. This appliance must be grounded to make sure safe.

Note: Water level protection will shut down machine power, when may lack water. You need turn off machine and refill water first, than you turn on machine.

CAUTION: NEVER immerse in water or near water

HOT on machine surface, please do not touch, In case of hurt.

1. This appliance can be used by children aged from 8 years and persons with reduced physical, sensory or mental capabilities or I of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and unders the hazards involved.
2. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.
3. Do not use outdoors. FOR HOUSEHOLD USE ONLY
4. Do not let the cord hang over the edge of the table or counter hot surfaces.
5. Put this instruction manual in a safe place. Do not discard.
   15 If the supply cord is damaged, it must be replaced by the manur its service agent or similarly qualified persons in order to avoid a ha
6. Electric Shock Danger! Non-professional personnel are forbidden to repair the products, otherwise it may result in electrical shock. When failures happen, it should be repaired by a qualified maintenance personnel.
7. WARNING! It is strictly prohibited to put the main body of the machine and the power cord into any liquid. The machine must be fully cool cleaning.
8. Do not place the product directly on the fire or near the source otherwise the product will be damaged or even result in danger. Onc

of the product is on fire, do not directly use water to extinguish the a wet cloth to cover the fire site.

1. When the plug is plugged into the socket, it must be plugged to otherwise it will cause the components overheating and burning due to poor contact.
2. Do not leave the product to work with no one watching. If the i is overheating, please stop working immediately and unplug the power

SAVE THESE INSTRUCTIONS

Chapter One Safety Precaution

Notice

·Prevent water and conductive liquid entering into the machine;·Please do not throw stick and other things into the·When the machine is in moving process, the angle not beyond 45°;·The distance between ventilation slot and wall should less than 20CM, to keep good ventilation, dry and cle

Safety warning

The machine should be operated by professional or of have been trained;·To ensure personal safety, please keep the machine properly grounded;·Ensure that the power supply is the same as the and the working voltage bias between rated voltage is ±10%;·If the power wire is damaged, it should be changed professionals to avoid danger;·When stop using , disassembling or do some clean please cut off the power;·To avoid electric shock, please do not pour water plug, motor and other electrical components.·Foamed material flammable, the user may not arbitradiscarded or dispose, should be in accordance with the relevant provisions of the state by the designated dep recycling.

1.SPECIFICATIONS & FEATURES

Model	voltage V	Frequency Hz	Power kw	Outline dimension mm
NB-02	110~120	50/60	0.8	610×380×510
	230	50/60
NB-03	110~120	50/60		510×510×610
	230	50/60

2.FCC Information

CAUTION: Changes or modifications not expressly approved by the pa responsible for compliance could void the user's authority to operate t equipment!

This device complies with Part 15 of the FCC Rules. Operation is such the following two conditions:

1) This product may cause harmful interference.
2) This product must accept any interference received, including interference that may cause undesired operation.

WARNING: Changes or modifications to this product not expressly approved by the party.responsible for compliance could void the user's authority to operate the product.

Note: This product has been tested and found to comply with the lir a Class B digital device pursuant to Part 15 of the FCC Rules, The are designed to provide reasonable protection against harmful interferer in a residential installation.

This product generates, uses and can radiate radio frequency energy, if not installed and used in accordance with the instructions, may cause

harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If product does cause harmful interference to radio or television reception, which can be determined by turning the product off and on, user is encouraged to try to correct the interference by one or more following measures.

• Reorient or relocate the receiving antenna.
• Increase the distance between the product and receiver.
• Connect the product to an outlet on a circuit different from that to the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for assista

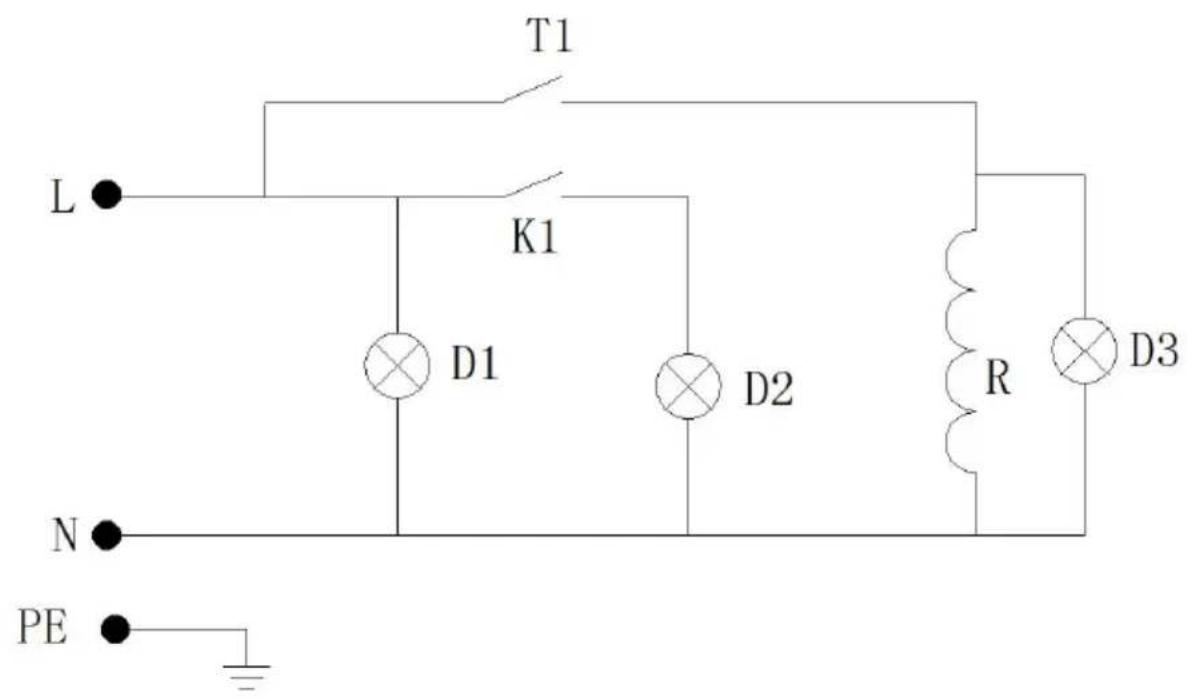

3.ELECTRICAL SCHEMATIC:

T1 L K1 D1 D2 R D3 N PE

A symbolic description:

1、D1 Power indicator lamp
2、K1 Lighting Switch
3、D2 Lighting

4、T1 Temperature control switch
5、R Heating pipe element
6、D3 Heat indicator lamp

4. BEFORE USE

1. This appliance connect with Leakage DZ121/1N, Leakage current15mA
2. Machine should store in a dry and safe place, 40^ C below.
3. Place machine on a flat and stable surface, tilt less than 3^

5. TRANSPORTATION AND MAINTENANCE:

Glass inside machine, handle with care during transportation, in case, DONOT use outdoors. Store in a dry and safe place after use, p do not upside down machine. Do not install pool or water.

6. OPERATION:

1. Use Heat for the first time and open the door to let the smoke or until the smoke and smell is gone (about 20 minutes); then use!
2. When heating the bottom plate, deformation is a normal phenomenon does not affect the normal use (because it is the whole plate, therm expansion and contraction.

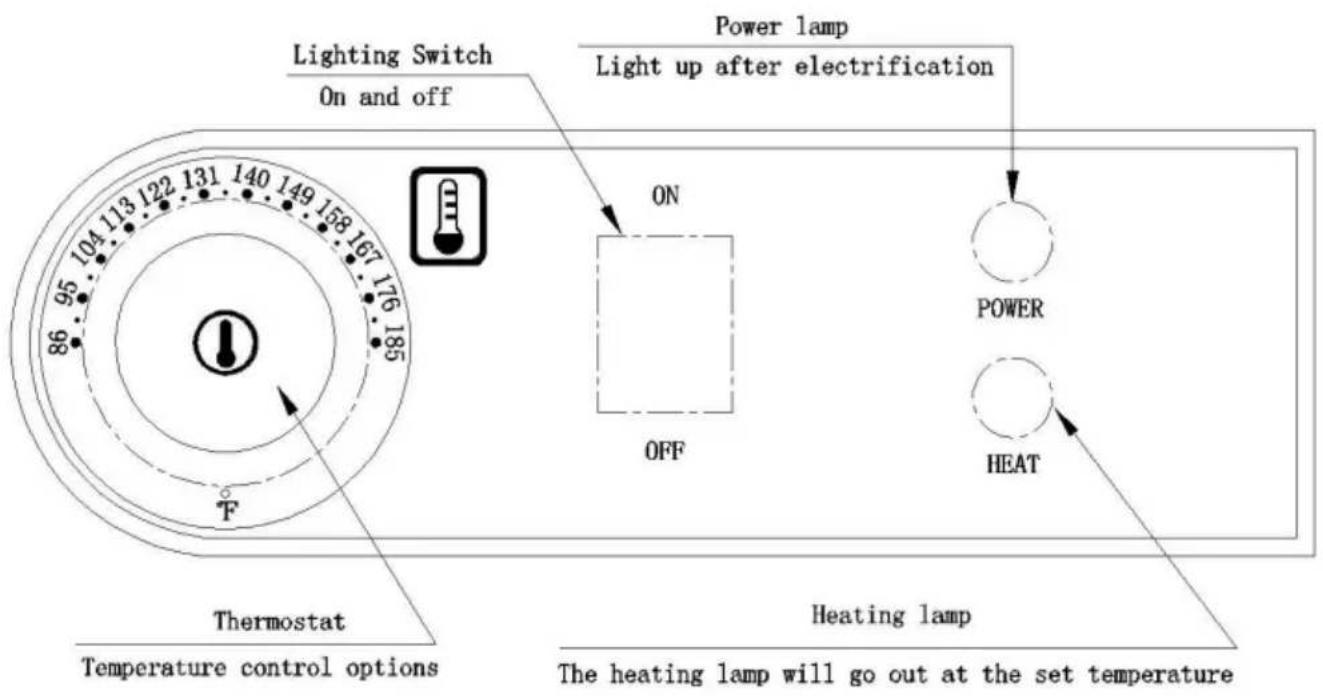

Operation Panel instructions

Lighting Switch On and off Power lamp Light up after electrification ON OFF POWER HEAT Thermostat Temperature control options Heating lamp The heating lamp will go out at the set temperature

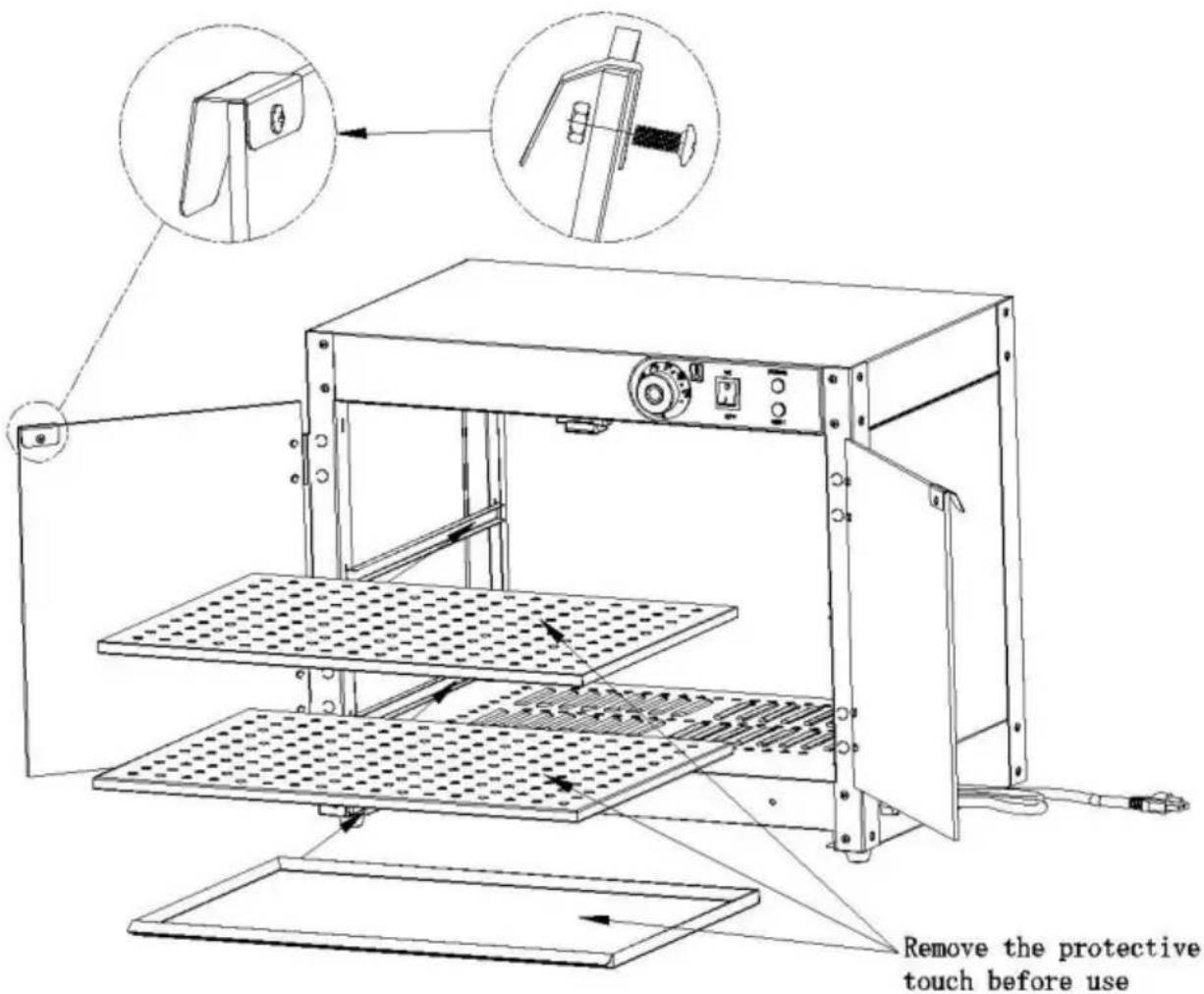

Remove the protective touch before use

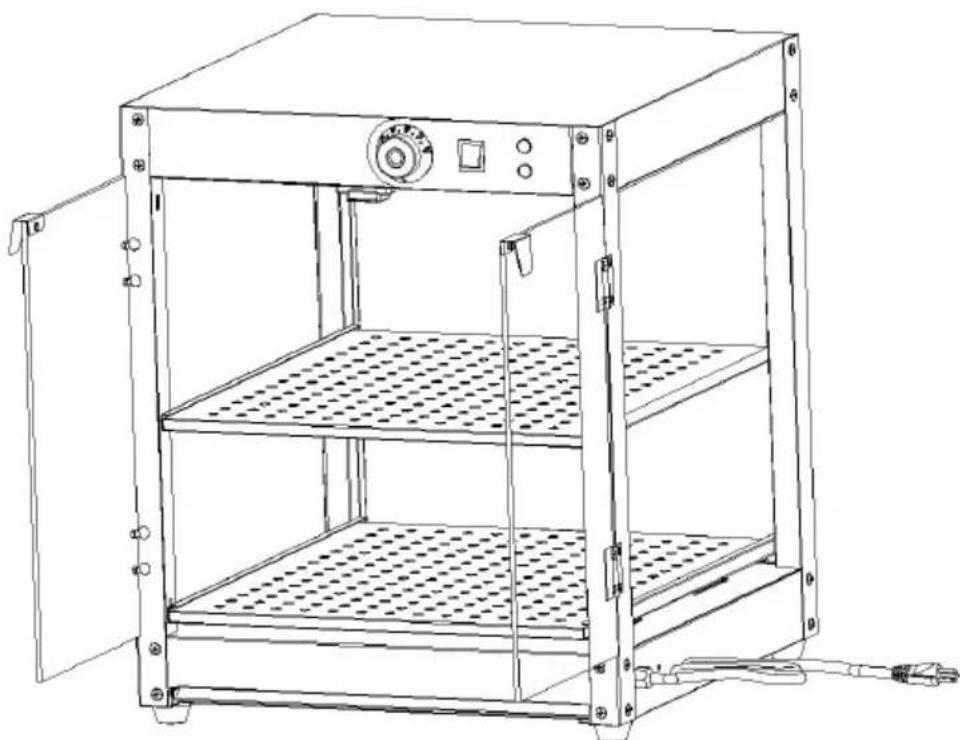

Line drawing of a multi-tiered industrial oven or storage unit with open door and control panel (no text or symbols)

Use Heat for the first time and open the door to let the smoke out quickly; until the smoke and smell is gone (about 20 minutes); then use!

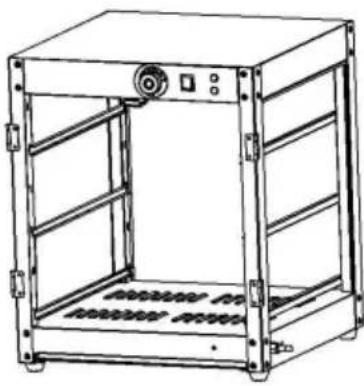

8.Decomposition table:

NO	PART	QTY		NO	PART	QTY
1	MODEL:NB-02	1		2		2
				3		1
				4		2
				5		2
				6		2

NO	PART	QTY		NO	PART	QTY
1	MODEL:NB-03	1		2		3
				3		1
				4		2
				5		2
				6		2

Manufacturer: Shanghaimuxinmuyeyouxiangongsi

Address: Shuangchenglu 803nong11hao1602A-1609shi, baoshanqu, shanghai 200000 CN.

Imported to AUS: SIHAO PTY LTD. 1 ROKEVA STREETEASTWOOD NSW 2122 Australia

Imported to USA: Sanven Technology Ltd. Suite 250, 9166 Anaheim Place, Rancho Cucamonga, CA 91730

UK

REP

YH CONSULTING LIMITED. C/O YH Consultin Limited Office 147, Centurion House, London Road, Staines-upon-Thames, Surrey, TW18 4A>

EC

REP

Technical Support and E-Warranty Certificate

www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

Line drawing of a multi-tiered laboratory or storage unit with control panel and side-mounted dish (no text or symbols)

MODÈLE:NB-02

Line drawing of a multi-tiered laboratory or storage unit with control panel and side-mounted lid (no text or symbols)

MODÈLE:NB-03

BESOIN D'AIDE? CONTACTEZ-NOUS!

A symbolic description:

1、D1 Power indicator lamp

4、T1 Temperature control switch

2、K1 Lighting Switch

5、R Heating pipe element

3、D2 Lighting

6、D3 Heat indicator lamp

4. AVANT UTILISATION

Operation Panel instructions

Lighting Switch On and off Power lamp Light up after electrification ON OFF POWER HEAT Thermostat Temperature control options Heating lamp The heating lamp will go out at the set temperature

Remove the protective touch before use

Line drawing of a multi-tiered industrial oven or storage unit with control panel and outlet (no text or symbols)

Use Heat for the first time and open the door to let the smoke out quickly; until the smoke and smell is gone (about 20 minutes); then use!

YH CONSULTING LIMITÉE. C/O YH Consulting Limited Bureau 147, Centurion House, London Road, Staines-upon-Thames, Surrey, TW18 4AX

REPRÉSENTANT CE

E-CrossStu GmbH

Mainzer Landstr.69,

Line drawing of a multi-tiered laboratory or storage unit with control panel and side-mounted dish (no text or symbols)

MODELL:NB-02

Line drawing of a multi-tiered laboratory or storage unit with control panel and side-mounted lid (no text or symbols)

MODELL:NB-03

Operation Panel instructions

Lighting Switch On and off Power lamp Light up after electrification ON OFF POWER HEAT Thermostat Temperature control options Heating lamp The heating lamp will go out at the set temperature

Remove the protective touch before use

Line drawing of a multi-tiered industrial oven or storage unit with control panel and outlet (no text or symbols)

Use Heat for the first time and open the door to let the smoke out quickly; until the smoke and smell is gone (about 20 minutes); then use!

YH CONSULTING LIMITED. C/O YH Consulting Limited Office 147, Centurion House, London Road, Staines-upon-Thames, Surrey, TW18 4AX

www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

Line drawing of a multi-tiered laboratory or storage unit with control panel and side-mounted dish (no text or symbols)

MODELLO:NB-02

Line drawing of a multi-tiered laboratory or storage unit with control panel and side-mounted dish (no text or symbols)

MODELLO:NB-03

HO BISOGNO DI AIUTO? CONTATTACI!

A symbolic description:

1、D1 Power indicator lamp
2、K1 Lighting Switch
3、D2 Lighting

4、T1 Temperature control switch
5、R Heating pipe element
6、D3 Heat indicator lamp

4. PRIMA DELL'USO

Operation Panel instructions

Lighting Switch On and off Power lamp Light up after electrification ON OFF POWER HEAT Thermostat Temperature control options Heating lamp The heating lamp will go out at the set temperature

Remove the protective touch before use

Line drawing of a multi-tiered industrial oven or storage unit with control panel and vent, no text or symbols present

Use Heat for the first time and open the door to let the smoke out quickly; until the smoke and smell is gone (about 20 minutes); then use!

Importato in Australia: SIHAO PTY LTD. 1 ROKEVA STREETEASTWOOD NSW 2122 Australia

YH CONSULENZA LIMITATA. C/O YH Consulting Limited Office 147, Centurion House, London Road, Staines-upon-Thames, Surrey, TW18 4AX

REP.CE

E-CrossStu GmbH Mainzer Landstr.69, 60329 Francoforte sul Meno.

VEVOR®

TOUGH TOOLS, HALF PRICE

elettronica www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

Line drawing of a multi-tiered laboratory or storage unit with control panel and side-mounted dish (no text or symbols)

MODELO:NB-02

Line drawing of a multi-tiered laboratory or storage unit with control panel and side-mounted dish (no text or symbols)

MODELO:NB-03

A symbolic description:

1、D1 Power indicator lamp

4、T1 Temperature control switch

2、K1 Lighting Switch

5、R Heating pipe element

3、D2 Lighting

6、D3 Heat indicator lamp

4.ANTES DE USAR

Operation Panel instructions

Lighting Switch On and off Power lamp Light up after electrification ON OFF POWER HEAT Thermostat Temperature control options Heating lamp The heating lamp will go out at the set temperature

Remove the protective touch before use

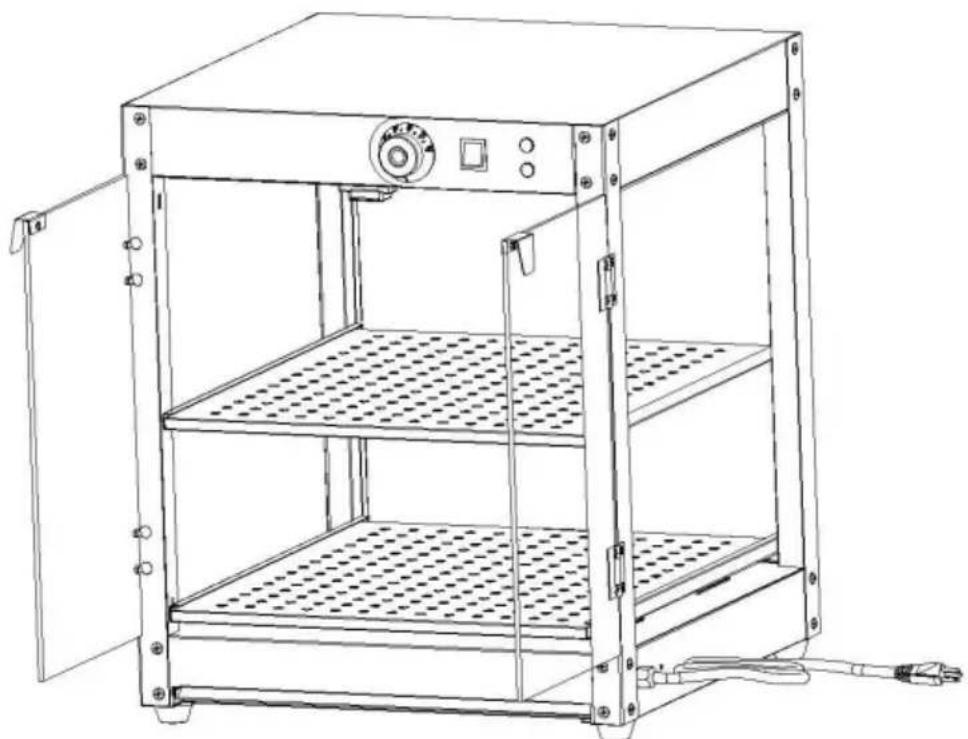

Line drawing of a multi-tiered industrial oven or storage unit with control panel and vent, no text or symbols present

Use Heat for the first time and open the door to let the smoke out quickly; until the smoke and smell is gone (about 20 minutes); then use!

YH CONSULTING LIMITADO. C/O YH Consulting Limited Oficina 147, Centurion House, London Road, Staines-upon-Thames, Surrey, TW18 4AX

REPRESENTANTE DE LA CE

E-CrossStu GmbH

Mainzer Landstr.69,

Line drawing of a multi-tiered laboratory or storage unit with control panel and side-mounted dish (no text or symbols)

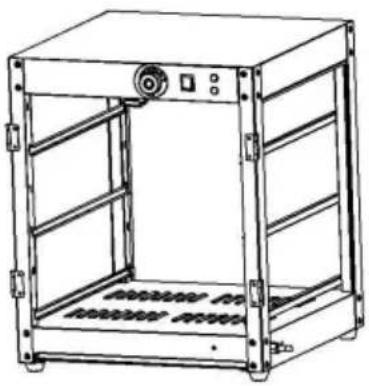

MODEL:NB-02

Line drawing of a multi-tiered laboratory appliance with control panel and side-mounted buttons (no text or symbols)

MODEL:NB-03

POTRZEBUJE POMOCY? SKONTAKTUJ SIĘ Z NAMI!

A symbolic description:

1、D1 Power indicator lamp

4、T1 Temperature control switch

2、K1 Lighting Switch

5、R Heating pipe element

3、D2 Lighting

6、D3 Heat indicator lamp

4. PRZED UŻYCIEM

Operation Panel instructions

Lighting Switch On and off Power lamp Light up after electrification ON OFF POWER HEAT Thermostat Temperature control options Heating lamp The heating lamp will go out at the set temperature

Remove the protective touch before use

Line drawing of a multi-tiered industrial oven or storage unit with control panel and vent, no text or symbols present

Use Heat for the first time and open the door to let the smoke out quickly; until the smoke and smell is gone (about 20 minutes); then use!

8. Tabela rozkładu:

NO	PART	QTY		NO	PART	QTY
1	MODEL:NB-02	1		2		2
				3		1
				4		2
				5		2
				6		2

NO	PART	QTY		NO	PART	QTY
1	MODEL:NB-03	1		2		3
				3		1
				4		2
				5		2
				6		2

Producent: Shanghaimuxinmuyeyouxiangongsi Adres:

Shuangchenglu 803nong11hao1602A-1609shi, baoshanqu, szanghaj 200000 CN.

Import do AUS: SIHAO PTY LTD. 1 ROKEVA STREETEASTWOOD NSW 2122 Australia

Import do USA: Sanven Technology Ltd. Suite 250, 9166 Anaheim Place, Rancho Cucamonga, CA 91730

ODPOWIEDZIALNOŚCIĄ. C/O YH Consulting Limited Office

147, Centurion House, London Road, Staines-upon-Thames, Surrey, TW18 4

E-CrossStu GmbH

Mainzer Landstr.69,

60329 Frankfurt nad Menem.

VEVOR®

TOUGH TOOLS, HALF PRICE

www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

Technische ondersteuning en e-garantiecertificaat www.vevor.com/support

Voedselverwarmer-display

MODEL: NB-02/NB-03

Line drawing of a multi-tiered laboratory or storage unit with control panel and side panels (no text or symbols)

MODEL:NB-02 MODEL:NB-03

Line drawing of a multi-tiered laboratory or storage unit with control panel and side-mounted dish (no text or symbols)

HULP NODIG? NEEM CONTACT MET ONS OP!

A symbolic description:

1、D1 Power indicator lamp
2、K1 Lighting Switch
3、D2 Lighting

4、T1 Temperature control switch
5、R Heating pipe element
6、D3 Heat indicator lamp

4.VÓÓR GEBRUIK

Operation Panel instructions

Lighting Switch On and off Power lamp Light up after electrification ON OFF POWER HEAT Thermostat Temperature control options Heating lamp The heating lamp will go out at the set temperature

Remove the protective touch before use

Line drawing of a multi-tiered industrial oven or storage unit with control panel and outlet (no text or symbols)

Use Heat for the first time and open the door to let the smoke out quickly; until the smoke and smell is gone (about 20 minutes); then use!

8. Ontledingstabel:

NO	PART	QTY		NO	PART	QTY
1	MODEL:NB-02	1		2		2
				3		1
				4		2
				5		2
				6		2

NO	PART	QTY		NO	PART	QTY
1	MODEL:NB-03	1		2		3
				3		1
				4		2
				5		2
				6		2

Fabrikant: Shanghaimuxinmuyeyouxiangongsi Adres:

Shuangchenglu 803nong11hao1602A-1609shi, baoshanqu, shanghai 200000 CN.

YH CONSULTING LIMITED. C/O YH Consulting Limited Office 147, Centurion House, London Road, Staines-upon-Thames, Surrey, TW18 4AX

EG REP

E-CrossStu GmbH

Mainzer Landstr.69,

60329 Frankfurt am Main.

VEVOR®

TOUGH TOOLS, HALF PRICE

garantiecertificaat www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

Line drawing of a multi-tiered laboratory or storage unit with control panel and side panels (no text or symbols)

MODELL:NB-02

Line drawing of a multi-tiered laboratory or storage unit with control panel and side-mounted lid (no text or symbols)

MODELL:NB-03

BEHÖVS HJÄLP? KONTAKTA OSS!

A symbolic description:

1、D1 Power indicator lamp
2、K1 Lighting Switch
3、D2 Lighting

4、T1 Temperature control switch
5、R Heating pipe element
6、D3 Heat indicator lamp

4. INNAN ANVÄNDNING

Operation Panel instructions

Lighting Switch On and off Power lamp Light up after electrification ON OFF POWER HEAT Thermostat Temperature control options Heating lamp The heating lamp will go out at the set temperature

Remove the protective touch before use

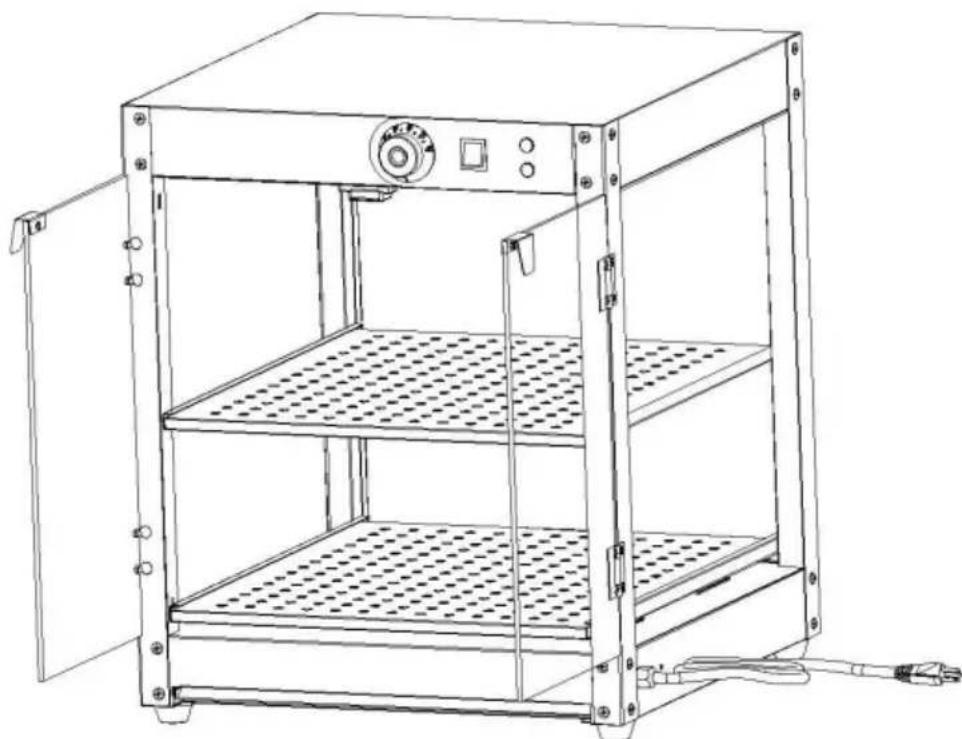

Line drawing of a multi-tiered industrial oven or storage unit with control panel and outlet (no text or symbols)

Use Heat for the first time and open the door to let the smoke out quickly; until the smoke and smell is gone (about 20 minutes); then use!

8. Nedbrytningstabell:

NO	PART	QTY		NO	PART	QTY
1	MODEL:NB-02	1		2		2
				3		1
				4		2
				5		2
				6		2

NO	PART	QTY		NO	PART	QTY
1	MODEL:NB-03	1		2		3
				3		1
				4		2
				5		2
				6		2

Tillverkare: Shanghaimuxinmuyeyouxiangongsi Adress:

Shuangchenglu 803nong11hao1602A-1609shi, baoshanqu, shanghai 200000 CN.

Importerad till AUS: SIHAO PTY LTD. 1 ROKEVA STREETEASTWOOD NSW 2122 Australien

Importerad till USA: Sanven Technology Ltd. Suite 250, 9166 Anaheim Place, Rancho Cucamonga, CA 91730

UK

REP

YH CONSULTING LIMITED. C/O YH Consulting Limited Office 147, Centurion House, London Road, Staines-upon-Thames, Surrey, TW18 4AX

EC

REP

www.vevor.com/support
