NB-02 - Food warmer Vevor - Free user manual and instructions

Product type	Food warmer
Brand	Vevor
Model	NB-02
Voltage	110-120 V / 230 V, 50/60 Hz
Power	800 W
Dimensions (L × P × H)	610 × 380 × 510 mm
Weight	12 kg (estimate)
Material	Stainless steel, glass door
Main functions	Heating and keeping food warm
Safety	Overheat protection, water level protection (automatic shut-off if water is low), mandatory grounding
Usage	Indoor use only
Compliance	FCC Part 15, WEEE directive 2012/19/EU
Maintenance	Unplug, let cool, clean with a damp cloth. Do not immerse.
Storage	Dry and safe location, temperature below 40 °C, do not turn over the appliance
Technical support	www.vevor.com/support
Manufacturer	Shanghaimuxinmuyeyouxiangongsi, Shanghai, China
US Importer	Sanven Technology Ltd, Rancho Cucamonga, CA
Australia Importer	SIHAO PTY LTD, NSW

Frequently Asked Questions - NB-02 Vevor

How to use the food warmer for the first time?

Before first use, heat the empty appliance for about 20 minutes with the door open to eliminate production fumes and odors. Then you can use it normally.

What voltage is required?

The appliance operates on 110-120 V or 230 V depending on the model, at 50/60 Hz. Check the rating plate on the side of the machine for the exact voltage.

Can I use this appliance outdoors?

No, use is strictly for indoor use. The appliance must not be exposed to moisture or water.

How to clean the food warmer?

Unplug the appliance and let it cool completely. Clean the surfaces with a damp cloth. Never immerse the main body or cord in water.

What to do if the appliance suddenly turns off?

This may be due to the water level protection: the tank is empty. Turn off the appliance, fill with water and turn on again. If the problem persists, contact support.

Is it safe to leave the appliance unattended?

It is not recommended to leave the appliance unattended. In case of overheating or malfunction, immediately unplug the power.

How to install the appliance?

Place the appliance on a flat and stable surface with an inclination of less than 3°. Leave a space of at least 20 cm between the ventilation slot and the wall. Use a grounded outlet and a suitable residual current device.

Where to find spare parts?

Contact the manufacturer via the website www.vevor.com/support for spare parts or technical assistance.

What does the 'water level protection' message mean?

This function automatically cuts off the power if the water tank is empty, to prevent overheating. Turn off the appliance, fill with water to the indicated level, then turn on again.

How to store the appliance when not in use?

Unplug, clean, dry and store the appliance in a dry and safe place at a temperature below 40 °C. Do not turn it over or place it near water.

USER MANUAL NB-02 Vevor

Technical Support and E-Warranty Certificate www.vevor.com/support

Food Warmer Display

MODEL: NB-02/NB-03

We continue to be committed to providing you with tools at competitive prices. "Save Half", "Half Price", or any other similar expressions used by us only represent the savings you might benefit from buying certain tools with us compared to top brands, and do not necessarily mean to cover all categories of tools offered. We kindly remind you to verify carefully when placing an order with us that you are actually saving half in comparison with the top major brands.

VEVOR®

TOUGH TOOLS, HALF PRICE

Food Warmer Display

MODEL: NB-02/NB-03

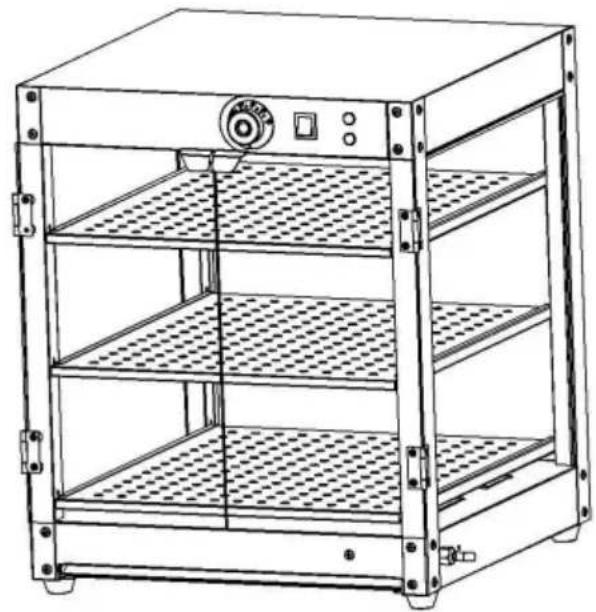

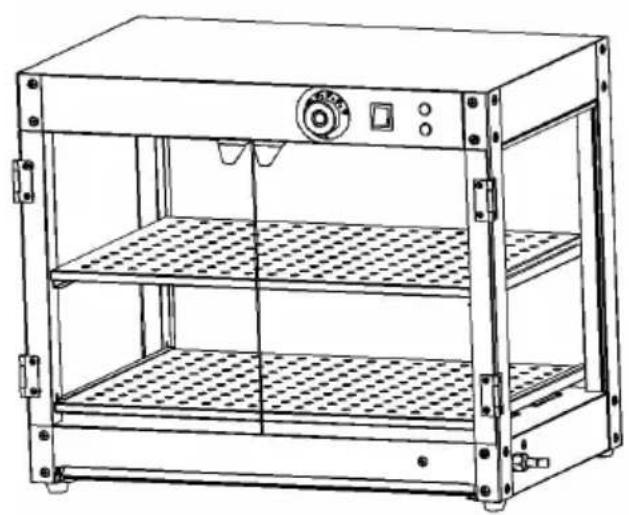

MODEL: NB-02 MODEL: NB-03

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel free to contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction. Please read all manual instructions carefully before operating. VEVOR reserves the right to interpret the user manual. The appearance of the product shall be subject to the product you received. Please forgive us that we won't inform you of any technology or software updates on our product.

	Warning-To reduce the risk of injury, user must read instructions manual carefully.
	CORRECT DISPOSALThis product is subject to the provision of european D 2012/19/EU. The symbol showing a wheelie bin crossed through indicates that the product requires separate refu collection in the European Union. This applies to the p and all accessories marked with this symbol. Products as such may not be discarded with normal domestic w must be taken to a collection point for recycling electrica electronic devices.
	Indoor Use Only

Important Safeguards

When using electrical appliances, basic safety precautions should be followed, including the following.

1. READ ALL INSTRUCTIONS.
2. Unplug from outlet when not in use, before putting on or taking off parts, and before cleaning.
3. Do not operate the appliance with a damaged cord or plug or if the machine is malfunctioning or damaged. Send the unit to the nearest authorized service center for examination and repair.
4. Voltage of this machine is written on the rating plate on the side of the machine.
5. Place machine on a flat and stable surface, connect with DX47-63, C1 Leakage air Switch and three-prong plug.
6. This appliance must be grounded while in use to protect the operator from electrical shock.
7. Unplug main power cord from outlet while not in use and before cleaning. Allow to cool, clean and cover the unit and store in a safe place if not being used for a long time.
8. To avoid any risk of electrical shock, do not immerse cord, plug or machine into water or other liquid.
9. This appliance must be grounded to make sure safe.

Note: Water level protection will shut down machine power, when water may lack. You need to turn off machine and refill water first, then turn on machine.

CAUTION: NEVER immerse in water or near water.

HOT on machine surface, please do not touch, in case of hurt.

1. This appliance can be used by children aged from 8 years and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.
2. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.
3. Do not use outdoors. FOR HOUSEHOLD USE ONLY
4. Do not let the cord hang over the edge of the table or counter hot surfaces.
5. Put this instruction manual in a safe place. Do not discard. If the supply cord is damaged, it must be replaced by the manufacturer, its service agent, or similarly qualified persons in order to avoid a hazard.
6. Electric Shock Danger! Non-professional personnel are forbidden to repair the products, otherwise it may result in electrical shock. When failures happen, it should be repaired by qualified maintenance personnel.
7. WARNING! It is strictly prohibited to put the main body of the machine and the power cord into any liquid. The machine must be fully cool before cleaning.
8. Do not place the product directly on the fire or near the source, otherwise the product will be damaged or even result in danger. Once

the product is on fire, do not directly use water to extinguish the fire; use a wet cloth to cover the fire site.

1. When the plug is plugged into the socket, it must be plugged in properly, otherwise it will cause the components to overheat and burn due to poor contact.
2. Do not leave the product to work with no one watching. If the product is overheating, please stop working immediately and unplug the power.

SAVE THESE INSTRUCTIONS

Chapter One Safety Precaution

Notice

·Prevent water and conductive liquid entering into the machine;·Please do not throw stick and other things into the·When the machine is in moving process, the angle not beyond 45°;·The distance between ventilation slot and wall should less than 20CM, to keep good ventilation, dry and cle

Safety warning

The machine should be operated by professional or of have been trained;·To ensure personal safety, please keep the machine properly grounded;·Ensure that the power supply is the same as the and the working voltage bias between rated voltage is ±10%;·If the power wire is damaged, it should be changed professionals to avoid danger;·When stop using , disassembling or do some clean please cut off the power;·To avoid electric shock, please do not pour water plug, motor and other electrical components.·Foamed material flammable, the user may not arbitradiscarded or dispose, should be in accordance with the relevant provisions of the state by the designated dep recycling.

1. SPECIFICATIONS & FEATURES

Model	voltage V	Frequency Hz	Power kw	Outline dimension mm
NB-02	110~120	50/60	0.8	610×380×510
	230	50/60
NB-03	110~120	50/60		510×510×610
	230	50/60

2. FCC Information

CAUTION: Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment!

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:

1) This product may cause harmful interference. 2) This product must accept any interference received, including interference that may cause undesired operation.

WARNING: Changes or modifications to this product not expressly approved by the party responsible for compliance could void the user's authority to operate the product.

Note: This product has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.

This product generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause

harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this product does cause harmful interference to radio or television reception, which can be determined by turning the product off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.
• Increase the distance between the product and receiver.
• Connect the product to an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for assistance.

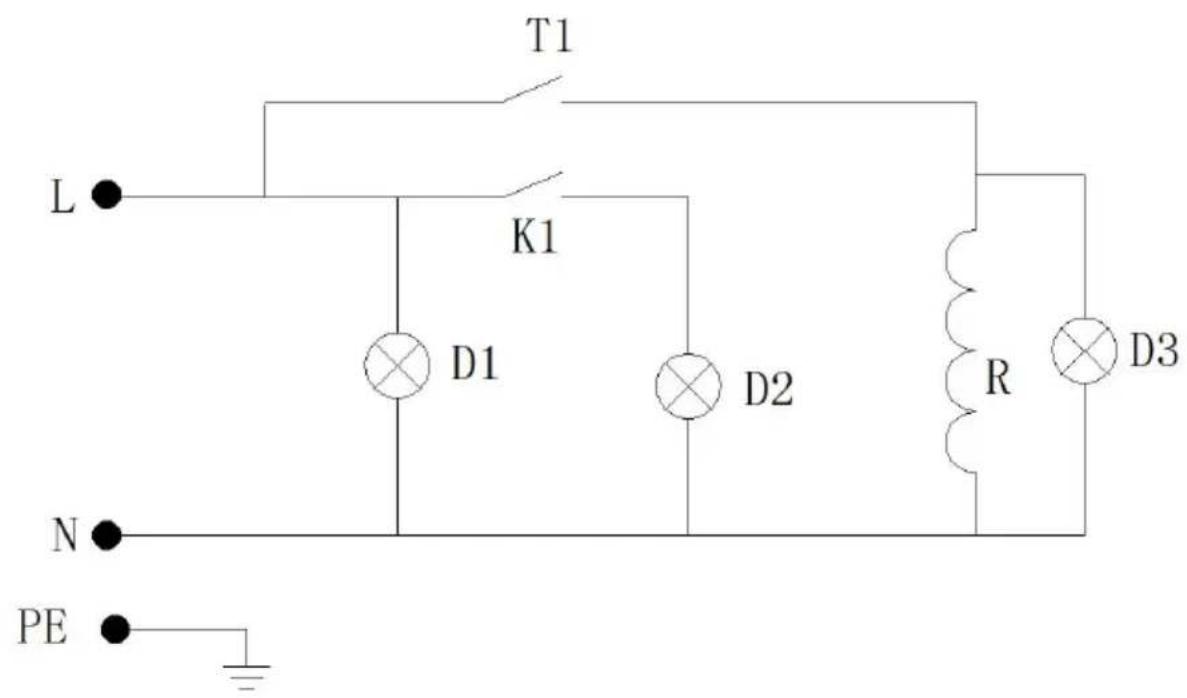

3. ELECTRICAL SCHEMATIC:

A symbolic description:

1. D1 Power indicator lamp 2. K1 Lighting Switch 3. D2 Lighting

4. T1 Temperature control switch 5. R Heating pipe element 6. D3 Heat indicator lamp

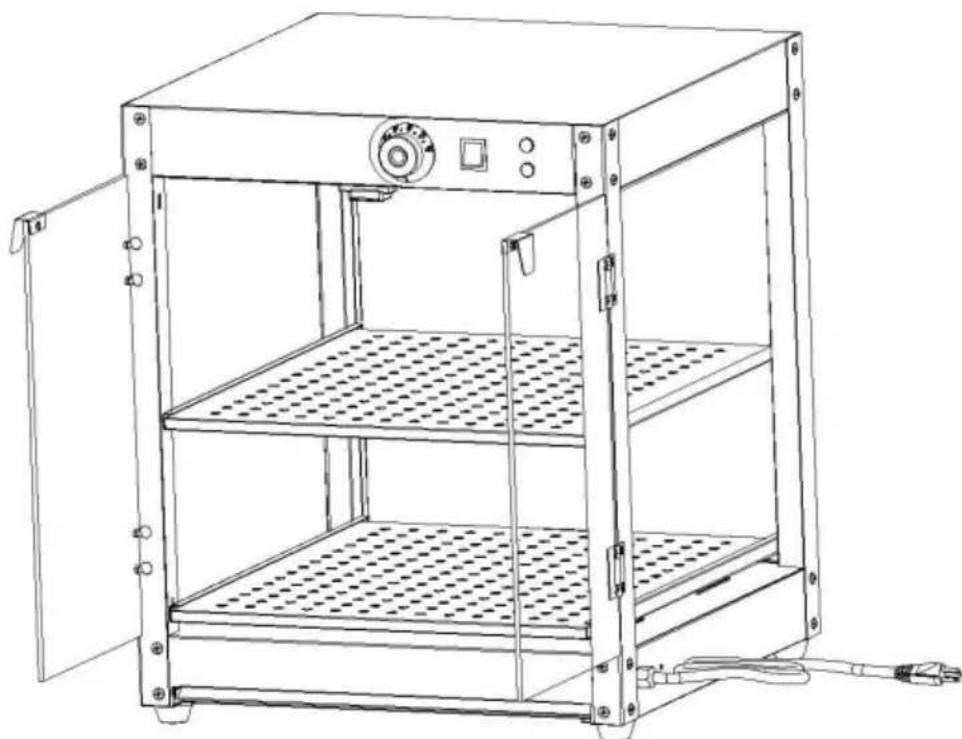

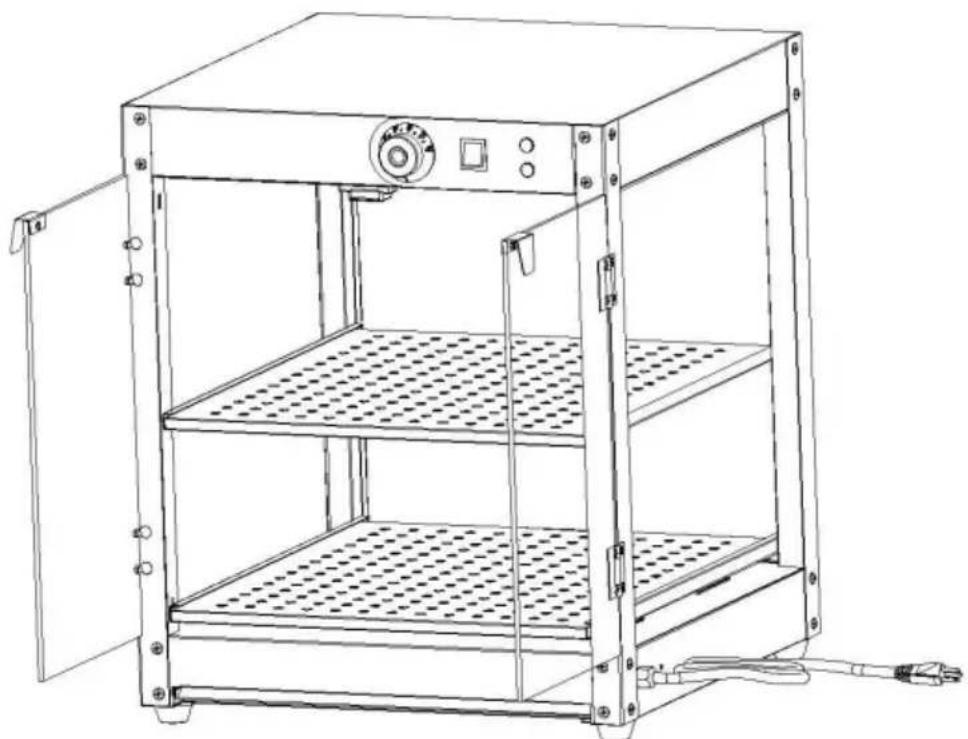

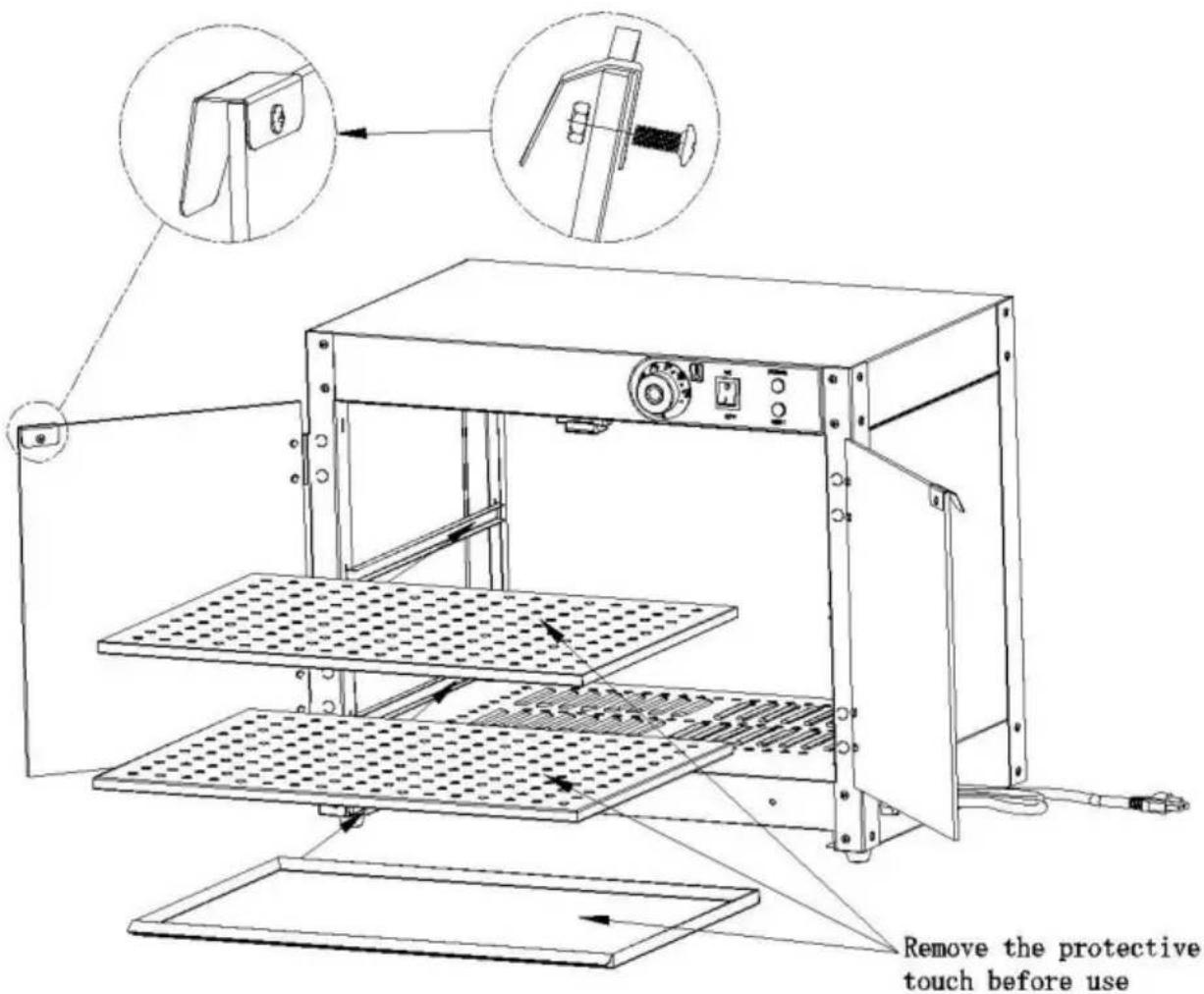

4. BEFORE USE

1. This appliance connects with Leakage DZ121/1N, Leakage current 15mA.
2. Machine should be stored in a dry and safe place, below 40°C.
3. Place machine on a flat and stable surface, tilt less than 3°.

5. TRANSPORTATION AND MAINTENANCE:

Glass inside machine, handle with care during transportation. In case, DO NOT use outdoors. Store in a dry and safe place after use, do not turn the machine upside down. Do not install near pool or water.

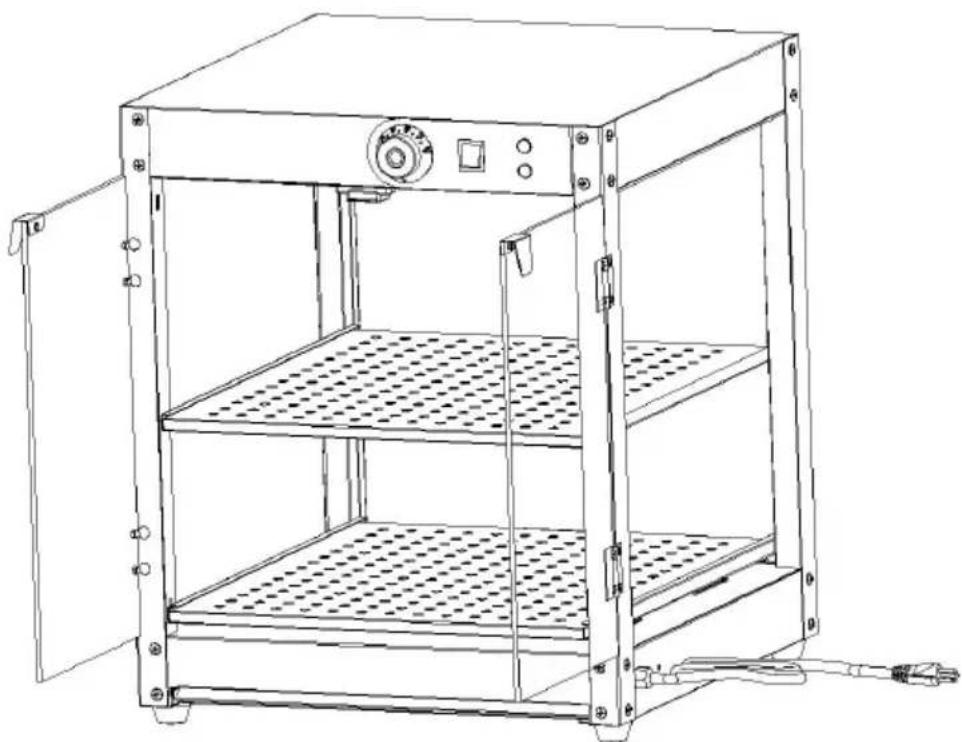

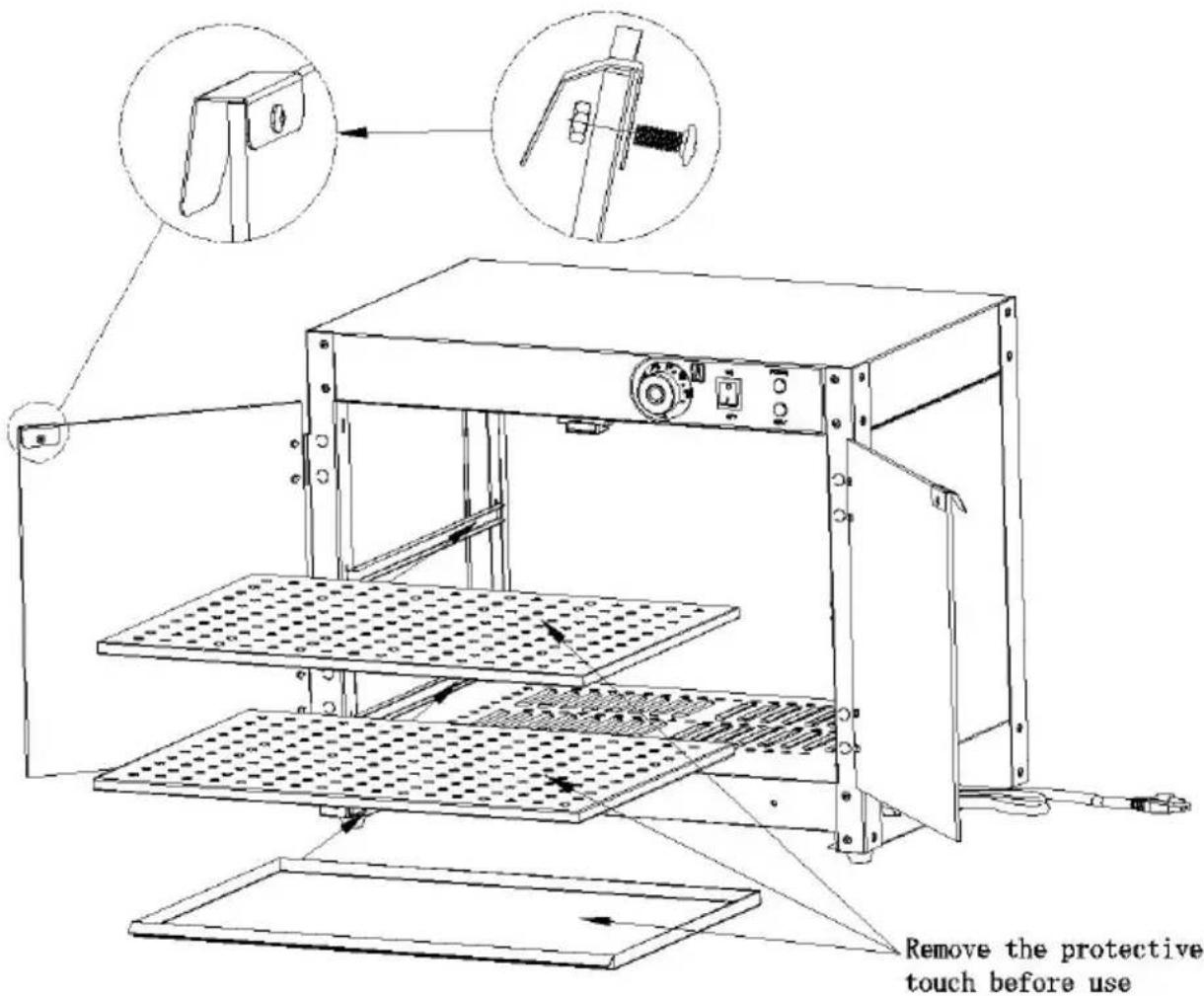

6. OPERATION:

1. Use Heat for the first time and open the door to let the smoke out until the smoke and smell is gone (about 20 minutes); then use!
2. When heating the bottom plate, deformation is a normal phenomenon and does not affect normal use (because it is the whole plate, thermal expansion and contraction).

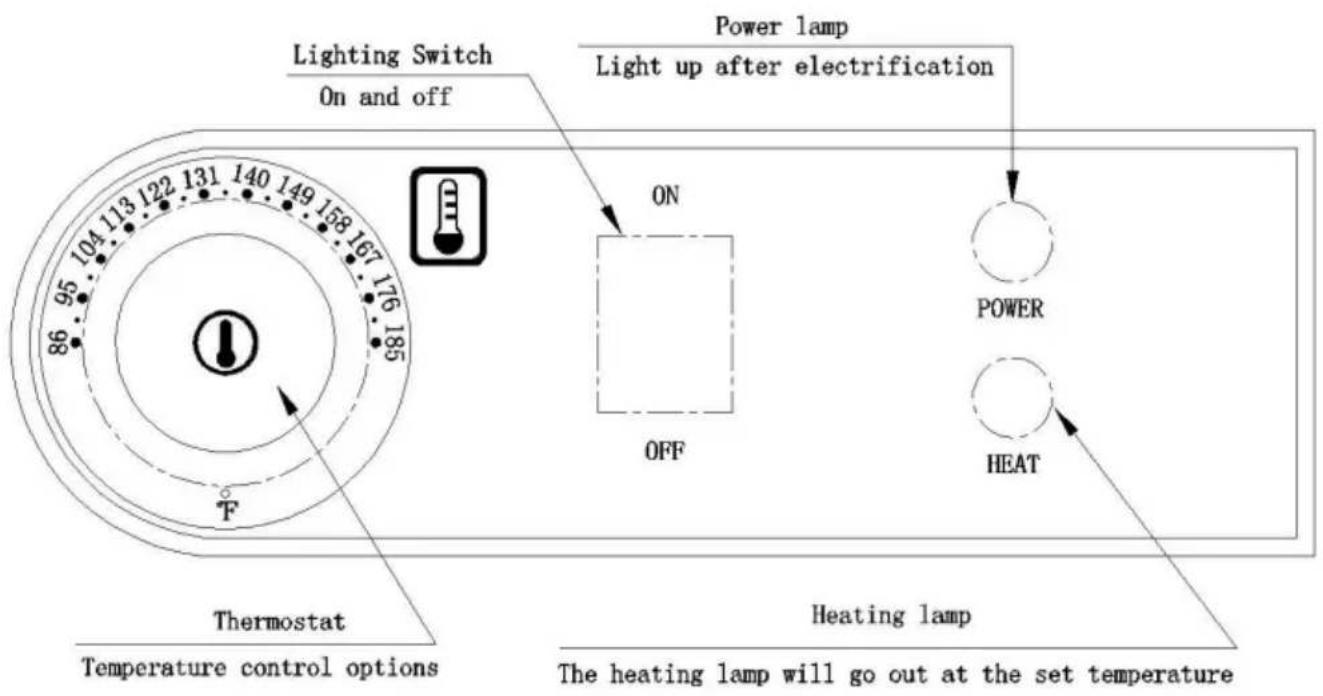

Operation Panel instructions

Use Heat for the first time and open the door to let the smoke out quickly; until the smoke and smell is gone (about 20 minutes); then use!

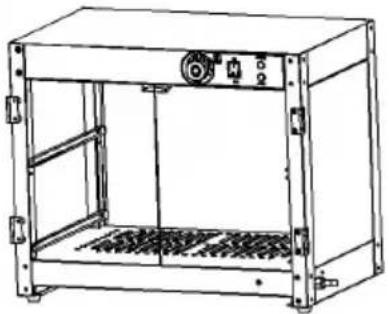

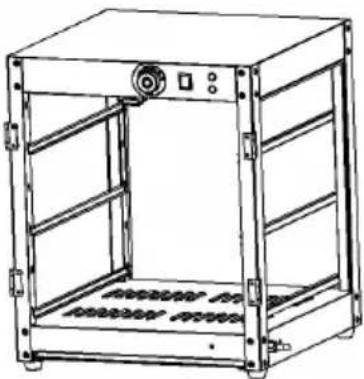

8. Decomposition table:

NO	PART	QTY		NO	PART	QTY
1	MODEL:NB-02	1		2		2
				3		1
				4		2
				5		2
				6		2

NO	PART	QTY		NO	PART	QTY
1	MODEL:NB-03	1		2		3
				3		1
				4		2
				5		2
				6		2

Manufacturer: Shanghaimuxinmuyeyouxiangongsi

Address: Shuangchenglu 803nong11hao1602A-1609shi, baoshanqu, shanghai 200000 CN.

Imported to AUS: SIHAO PTY LTD. 1 ROKEVA STREETEASTWOOD NSW 2122 Australia

Imported to USA: Sanven Technology Ltd. Suite 250, 9166 Anaheim Place, Rancho Cucamonga, CA 91730
