USER MANUAL NB-RGG-001 Vevor

Technical Support and E-Warranty Certificate www.vevor.com/support

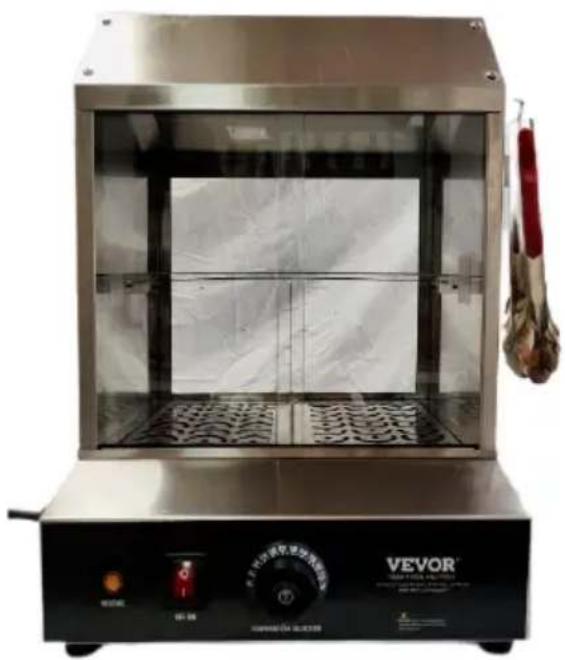

Food Warmer Display

MODEL: NB-RGG-001

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represent of savings you might benefit from buying certain tools with us compared top brands and does not necessarily mean to cover all categories of tools offered are kindly reminded to verify carefully when you are placing an order with us actually saving half in comparison with the top major brands.

MODEL: NB-RGG-001

Exterior view of a stainless steel VEVOR vacuum oven with control panel and hanging dish (no visible text or symbols on main body)

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel fr contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instruction carefully before operating. VEVOR reserves a clear interpretation user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform you there are any technology or software updates on our product.

	Warning-To reduce the risk of injury, user must read instructions manual carefully.
	CORRECT DISPOSALThis product is subject to the provision of european D 2012/19/EU. The symbol showing a wheelie bin crossed through indicates that the product requires separate refu collection in the European Union. This applies to the p and all accessories marked with this symbol. Products as such may not be discarded with normal domestic w must be taken to a collection point for recycling electrica electronic devices.
	Indoor Use Only

Important Safeguards

When using electrical appliances, basic safety precautions should be followed, including the following.

1. READ ALL INSTRUCTIONS.

2. Unplug from outlet when not in use, before putting on or take parts, and before cleaning.

3. Do not operate the appliance with a damaged cord or plug. or if the machine is malfunctioning or damaged. Send the unit to the nearest authorized service center for examination and repair.

4. Voltage of this machine was written on rating plate at side of macl

5. Place machine on a flat and stable surface, connect with DX47-63, C1 Leakage air Switch and three-prong plug

6. This appliance must be grounded while in use to protect the operat from electrical shock

7. Unplug main power cord from outlet from outlet while not in use and before cleaning. Allow to cool, clean and cover the unit and store in a

and safe place if Not being used for a long time.

1. To avoid any risk of electrical shock, do not immerse cord, plug or machine into water or other liquid.
2. This appliance must be grounded to make sure safe.

Note: Water level protection will shut down machine power, when may lack water. You need turn off machine and refill water first, than you turn on machine.

CAUTION: NEVER immerse in water or near water

HOT on machine surface, please do not touch, In case of hurt.

1. This appliance can be used by children aged from 8 years and persons with reduced physical, sensory or mental capabilities or I of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and unders the hazards involved.
2. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.
3. Do not use outdoors. FOR HOUSEHOLD USE ONLY
4. Do not let the cord hang over the edge of the table or counter hot surfaces.
5. Put this instruction manual in a safe place. Do not discard.
   15 If the supply cord is damaged, it must be replaced by the manufacture of its service agent or similarly qualified persons in order to avoid a hazard.
6. Electric Shock Danger! Non-professional personnel are forbidden to repair the products, otherwise it may result in electrical shock. When failures happen, it should be repaired by a qualified maintenance personnel.
7. WARNING! It is strictly prohibited to put the main body of the machine and the power cord into any liquid. The machine must be fully cool cleaning.

8. Do not place the product directly on the fire or near the source otherwise the product will be damaged or even result in danger. Once of the product is on fire, do not directly use water to extinguish the a wet cloth to cover the fire site.

9. When the plug is plugged into the socket, it must be plugged to otherwise it will cause the components overheating and burning due to poor contact.

10. Do not leave the product to work with no one watching. If the I is overheating, please stop working immediately and unplug the power

SAVE THESE INSTRUCTIONS

Chapter One Safety Precaution

Notice

·Prevent water and conductive liquid entering into the machine;·Please do not throw stick and other things into the·When the machine is in moving process, the angle not beyond 45°;·The distance between ventilation slot and wall should less than 20CM, to keep good ventilation, dry and cle

Safety warning

The machine should be operated by professional or of have been trained;·To ensure personal safety, please keep the machine properly grounded;·Ensure that the power supply is the same as the and the working voltage bias between rated voltage is ±10%;·If the power wire is damaged, it should be changed professionals to avoid danger;·When stop using , disassembling or do some clean please cut off the power;·To avoid electric shock, please do not pour water plug, motor and other electrical components.·Foamed material flammable, the user may not arbitra discarded or dispose, should be in accordance with the relevant provisions of the state by the designated dep recycling.

1. INTRODUCTION

This machine was used to warm up hot dog and bun by steaming. H steamer makes you easy to prepare delicious hot dogs . This equipme was easy clean and operate. It will be ideal for use in rental shops, convenience stores, vending carts food restaurants, snack bars or many others.

2.SPECIFICATIONS & FEATURES

Model	voltage V	Frequency Hz	Power kW	Outline dimension mm
RGG-001	110~120	50/60	1.2	345*380*510
	230	50/60

3.FCC Information

CAUTION: Changes or modifications not expressly approved by the pa responsible for compliance could void the user's authority to operate t equipment!

This device complies with Part 15 of the FCC Rules. Operation is such the following two conditions:

1) This product may cause harmful interference.
2) This product must accept any interference received, including interference that may cause undesired operation.

WARNING: Changes or modifications to this product not expressly approved by the party.responsible for compliance could void the user's authority to operate the product.

Note: This product has been tested and found to comply with the lir a Class B digital device pursuant to Part 15 of the FCC Rules, The are designed to provide reasonable protection against harmful interferer in a residential installation.

This product generates, uses and can radiate radio frequency energy, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If product does cause harmful interference to radio or television reception, which can be determined by turning the product off and on, user is encouraged to try to correct the interference by one or more following measures.

• Reorient or relocate the receiving antenna.
• Increase the distance between the product and receiver.
• Connect the product to an outlet on a circuit different from that to the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for assista

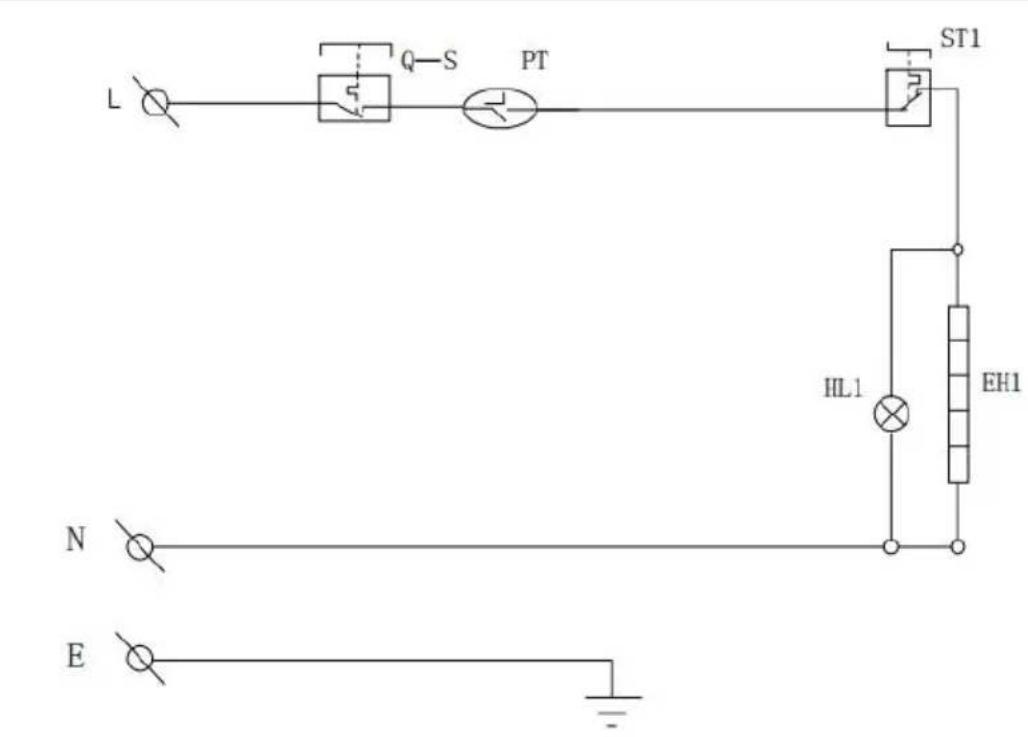

4.ELECTRICAL SCHEMATIC:

L Q-S PT ST1 HL1 EH1 N E

ST1 — The thermostat
HL1—Indicator light
Q-S — Limit the warm
EH1—Electric heat pipe
PT— switch

5. BEFORE USE

1. This appliance connect with Leakage DZ121/1N, Leakage current15mA
2. Machine should store in a dry and safe place, 40^ C below.
3. Place machine on a flat and stable surface, tilt less than 3^
4. Water level must never more than 2/3 height of water box and new than 1/3.

6. TRANSPORTATION AND MAINTENANCE:

Glass inside machine, handle with care during transportation, in case, DONOT use outdoors. Store in a dry and safe place after use, p do not upside down machine. Do not install pool or water.

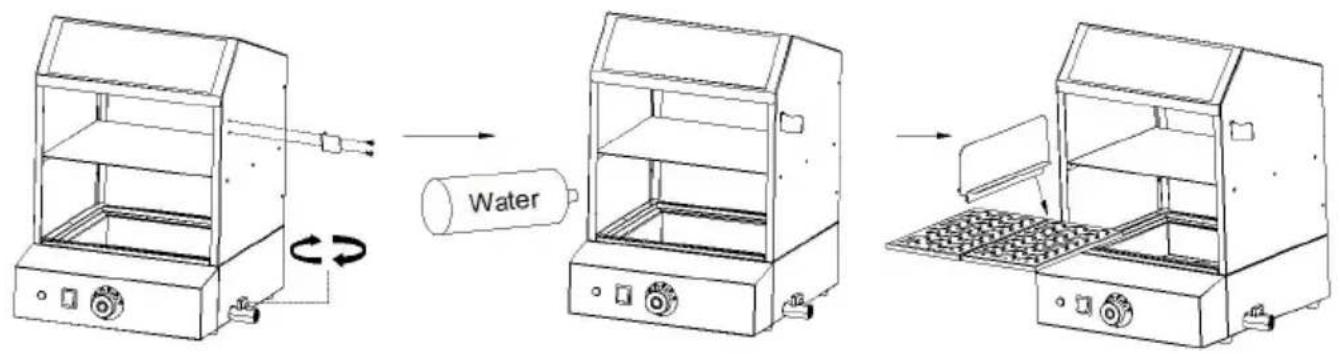

7. OPERATION:

1. Close drain value.
2. Please unplug power cord, When you add water .Turn off drain valve, remove glass door and steam plate. Pour clean water in water water box, water level must never more than 2/3 height of water box never less than1/3.
3. Install steam plate and glass door back.
4. Put hog dog on steam plate and bun on bread plate, Close glass
5. Plug power cord, Turn on power switch, and turn on temperature controller at 50-60°C.
   6.10 minutes later, warm and fresh hot dog ready for your service.

Note: Water level protection will shut down heat power, Please unplug machine and refill water.

1. Machine need be cleaned everyday.
2. Please check water level never less than 1/3, before use
3. Please drop all water, if the equipment not use for a long time In case, water go to bad.
4. When heating the bottom plate, deformation is a normal phenomenon

does not affect the normal use (because it is the whole plate, therm expansion and contraction

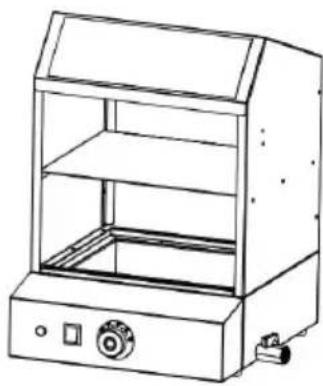

8.Decomposition table:

NO	PART	QTY
1		1
2		2
3		1

NO	PART	QTY
4		2
5		1
6		2
7		1
8		1
9		1

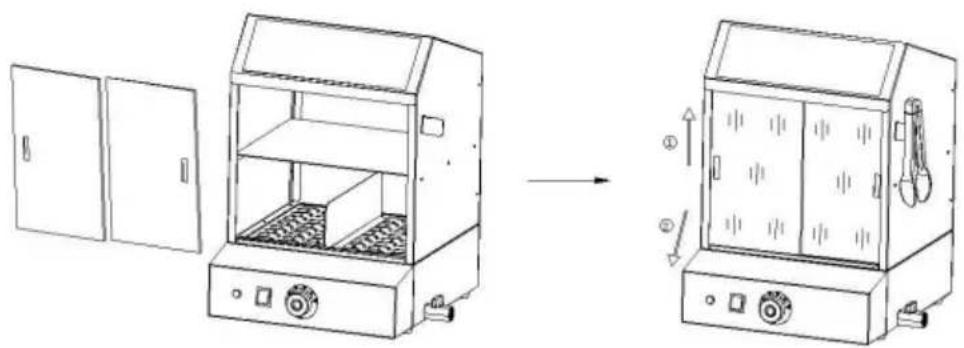

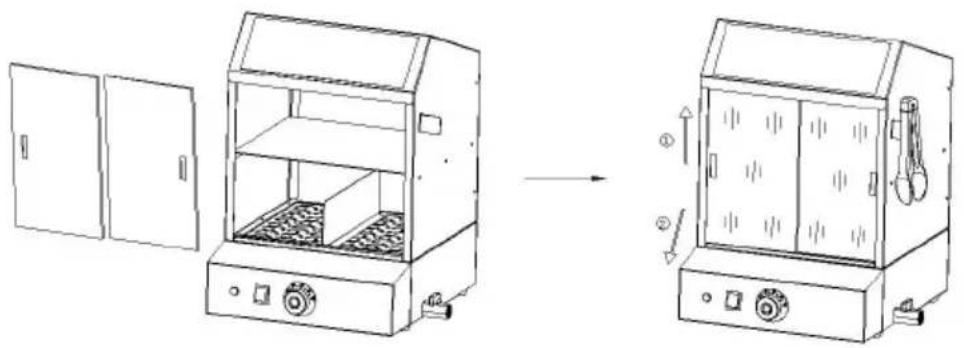

9. Assembly cue:

Line drawing of a two-step industrial oven system with open doors and control panel (no text or labels)

Manufacturer: Shanghaimuxinmuyeyouxiangongsi

Address: Shuangchenglu 803nong11hao1602A-1609shi, baoshanqu, shanghai 200000 CN.

Imported to AUS: SIHAO PTY LTD. 1 ROKEVA STREETEASTWOOD NSW 2122 Australia

Imported to USA: Sanven Technology Ltd. Suite 250, 9166 Anaheim Place, Rancho Cucamonga, CA 91730

UK

REP

YH CONSULTING LIMITED. C/O YH Consultin Limited Office 147, Centurion House, London Road, Staines-upon-Thames, Surrey, TW18 4A>

EC

REP

Technical Support and E-Warranty Certificate

www.vevor.com/support
