HTFD1555 - Vehicle Accessories Vevor - Free user manual and instructions

Product Type	Folding truck bed cover (tonneau cover)
Brand	Vevor
Model	HTFD1555
Compatibility	Ford F-150 (2015-2020 and 2021-2023, short cab)
Material	Vinyl and aluminum
Color	Black
Power Supply	None (manual mechanical)
Number of panels	2 to 3 folding panels (tri-fold)
Compatible bed length	5.5 feet (approx. 1.67 m)
Approximate weight	15 kg
Main functions	Weather and theft protection, aerodynamic improvement, securing cargo
Installation type	No drilling, clamp fastening
Required tools	Phillips screwdriver, Allen key (included)
Security	J-shaped locking clamps, safety straps
Maintenance	Cleaning with soft cloth and soapy water; avoid abrasive products
Spare parts	Clamps, clamping foam, plastic connectors, cross pins
Repairability	Individual parts available (see list in manual)
Warranty	Technical support via www.vevor.com/support

Frequently Asked Questions - HTFD1555 Vevor

Which vehicles are compatible with the HTFD1555 cover?

It is compatible with Ford F-150 models 2015-2020 and 2021-2023, short cab version (short bed).

How to install the cover?

Follow the steps in the manual: clean the bulkhead, place the cover on the rails, fasten the front clamps then rear using the supplied Allen key. Hand tighten only.

Do I need to drill the truck for installation?

No, installation is drill-free. The J-shaped clamps attach under the metal rim of the bed rail.

Is the cover waterproof?

Yes, it is designed to be waterproof thanks to sealing gaskets made of foam and provided adhesive tape.

How to fold the cover?

Open the tailgate, release the rear clamps, then fold the first panel and then the second panel. Secure the safety straps.

What tools are needed for assembly?

A Phillips screwdriver and the supplied Allen key are needed. All mounting parts are included.

How to maintain the cover?

Clean it with a soft cloth and soapy water. Do not use abrasive or chemical products.

Is there a battery in this product?

No, the HTFD1555 cover is fully mechanical: no battery or electrical components.

Where to find spare parts?

Contact Vevor support via www.vevor.com/support or check the parts list in the manual to order specific parts.

How to dispose of the cover at end of life?

In accordance with the WEEE directive (2012/19/EU), do not dispose of it in household waste. Take it to a recycling collection point.

USER MANUAL HTFD1555 Vevor

Technical Support and E-Warranty Certificate www.vevor.com/support

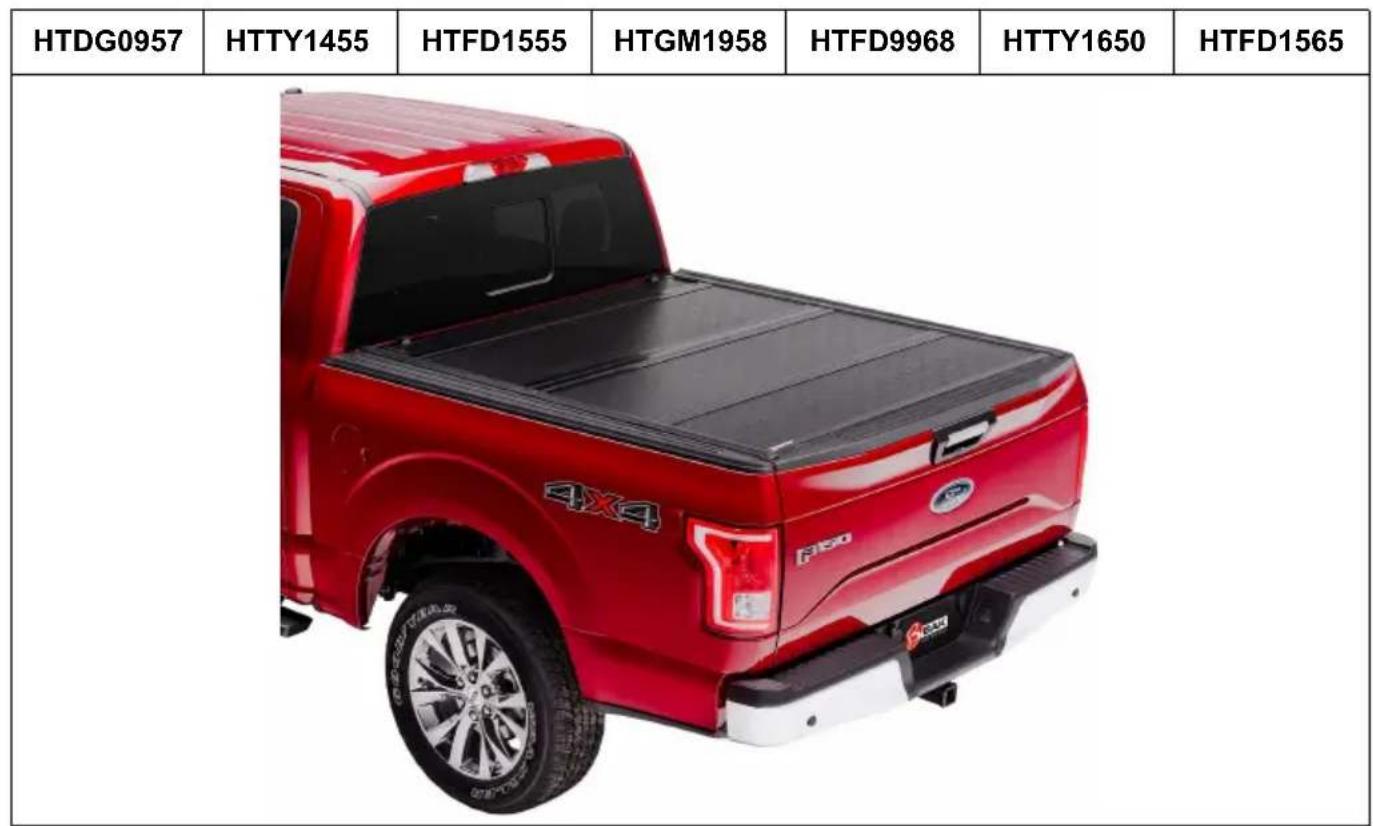

TRUCK TONNEAU COVERS

MODEL:

HTDG0957 HTTY1455 HTFD1555 HTGM1958 HTFD9968 HTTY1650 HTFD1565

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represent the estimate of savings you might benefit from buying certain tools with us compared to top brands and does not necessarily mean to cover all categories of tools offered. Are kindly reminded to verify carefully when you are placing an order with us actually saving half in comparison with the top major brands.

VEVOR®

TOUGH TOOLS, HALF PRICE

TRUCK TONNEAU COVERS

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel free to contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instruction carefully before operating. VEVOR reserves a clear interpretation user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform you there are any technology or software updates on our product.

WARNING:

ASSEMBLY PRECAUTIONS

1. Keep children and pets away during assembly.
2. Please assemble the product in strict accordance with the instructions. Incorrect assembly could be hazardous.
3. Separate and count all parts and hardware.
4. Prepare the following tool: Philips Head Screwdriver.
5. Follow the intended uses only.

BATTERY SAFETY INSTRUCTIONS

1. Because the product contains lithium batteries and this product has a waterproof design, it is prohibited to disassemble the product without permission.
2. As the product contains batteries, burning the product may cause an explosion.
3. Local regulations need to be followed for correct disposal (Refer to relevant chapters for instructions).

Save the instruction.

PRODUCT PARAMETERS

Model	VEHICLE COMPATIBILITY	Color	Material	Voltage
HTDG0957	Dodge Ram 1500, 2019-2023, Sh	Black	Vinyl, Aluminum	DC 3V (Via R2450 Li-ion Battery)
HTTY1455	Toyota Tundra, 2021-2023, Short
HTFD1555	Ford F-150, 2015-2020/2021-2023, Short
HTGM1958	Silverado/Sierra, 2019-2023, Short
HTFD9968	Ford F250 F350, 1999-2023, Standard
HTTY1650	Toyota Tacoma, 2016-2023, Short
HTFD1565	Ford F-150, 2015-2020, Standard

PART LIST

When unpacking this product, check to make sure the parts listed below are included and carefully inspect for any damage that may have occurred during transit. If any part is missing or damaged, do not attempt to assemble or use the product.

NAME	Picture	HTDG 0957	HTTY 1455	HTFD 1555	HTGM 1958	HTFD 9968	HTTY 1650	HTFD 1565
Cover Assembly		1PCS	1PCS	1PCS	1PCS	1PCS	1PCS	1PCS
Plastic Hook		2PCS	2PCS	2PCS	2PCS	2PCS	2PCS	2PCS
Clamp Foam Pad		6PCS	6PCS	6PCS	6PCS	6PCS	6PCS	6PCS
Tailgate Stick Tap		1PCS	1PCS	1PCS	1PCS	1PCS	1PCS	1PCS
Plastic Connector		2PCS	2PCS	2PCS	2PCS	2PCS	2PCS	2PCS
M6 Cross Pir Nut		2PCS	2PCS	2PCS	2PCS	2PCS	2PCS	2PCS
Allen Wrench		/	1PCS	/	/	/	1PCS	/
Mounting Block		/	4PCS	/	/	/	4PCS	/
Front Stick Tape(1.7m)		/	/	1PCS	/	1PCS	1PCS	1PCS
Square Foam		/	/	/	/	/	1PCS	/

INSTALLATION METHODS

Step1: 1.Clean the bulkhead and bed ra before installation. 2.For Ford truck stick the front s strip on the front of bed rail.

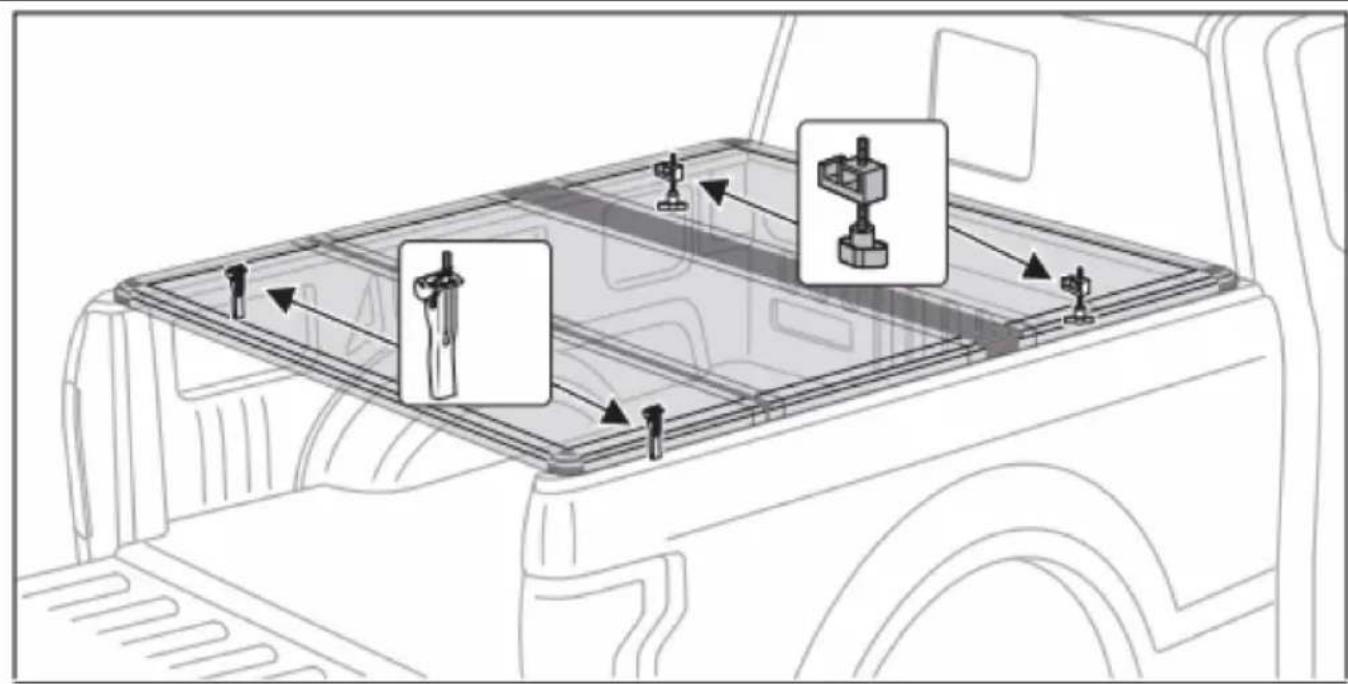

Step 2: 1PLACE cover assembly on both of front truck bed rail again the 2Release safety buckles.

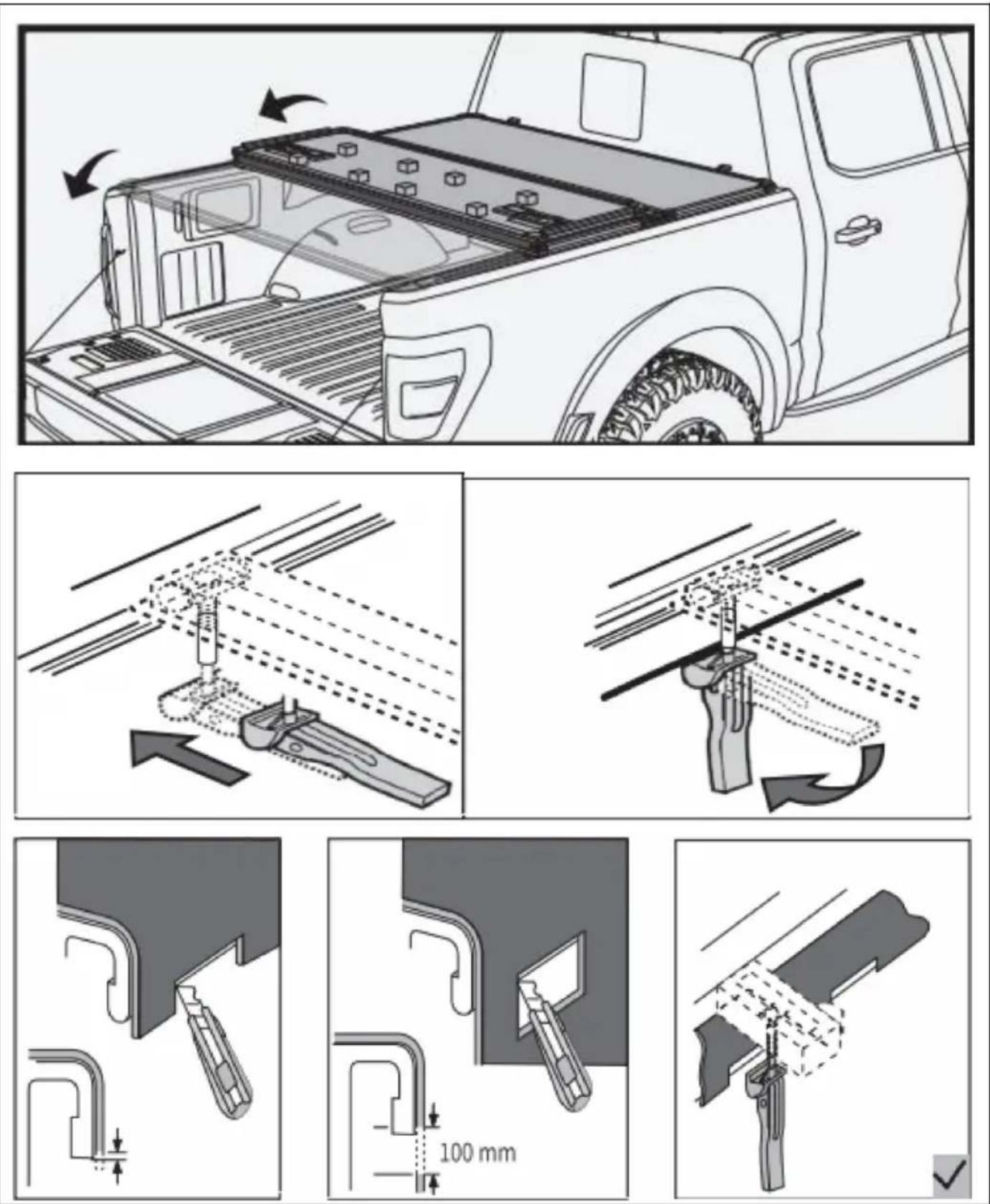

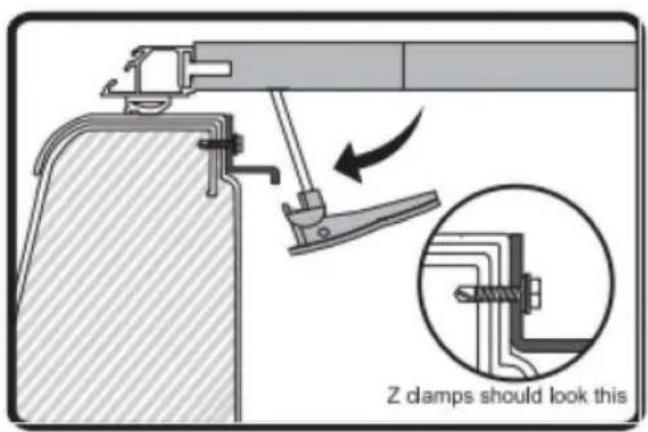

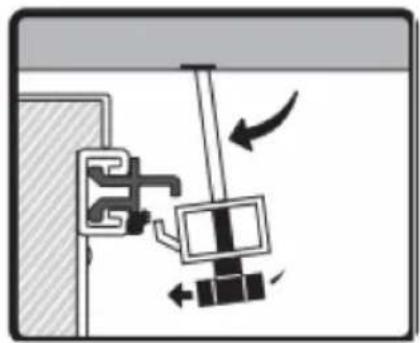

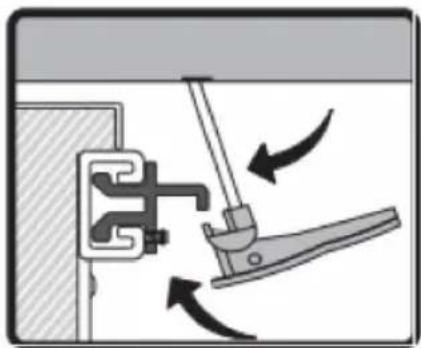

Step 3: 1.Pull down the front clamp to vertical position. 2.Loosen the knob and slide from clamp to bed rail. 3.Stick the clamp pad to mountain position on bed rail. 4.Hook the J-shaped clamp under the metal bed rail lip and tighter knob.	Note: Hand tighten ONLY.DO NOT over tight knob.
Cutting the bed liner is necessary. The clamps may not precisely vertical.

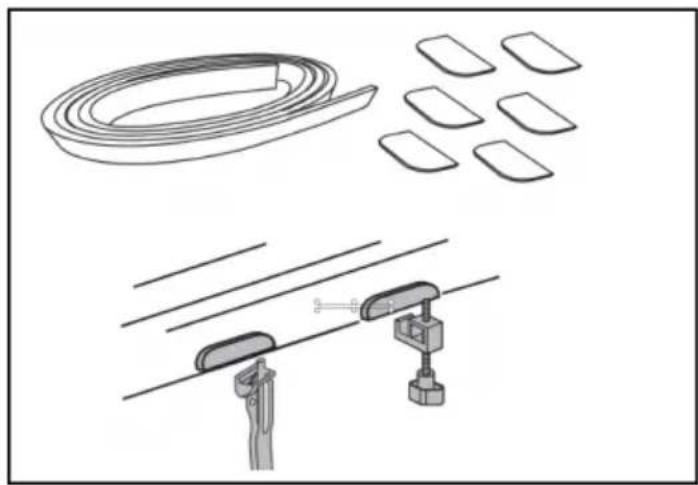

Step 5:

1. Seal the tailgate with seal foam strip.
2. Stick the front seal strip on top of the bed rail.

NOTE

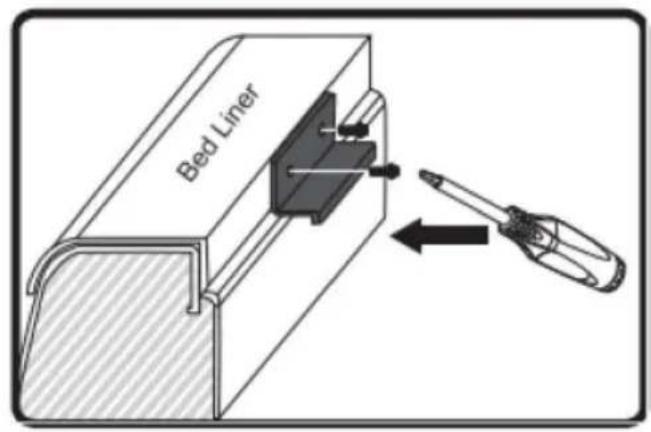

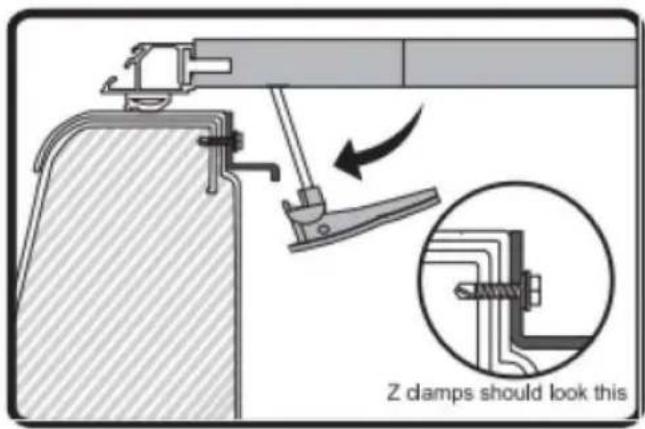

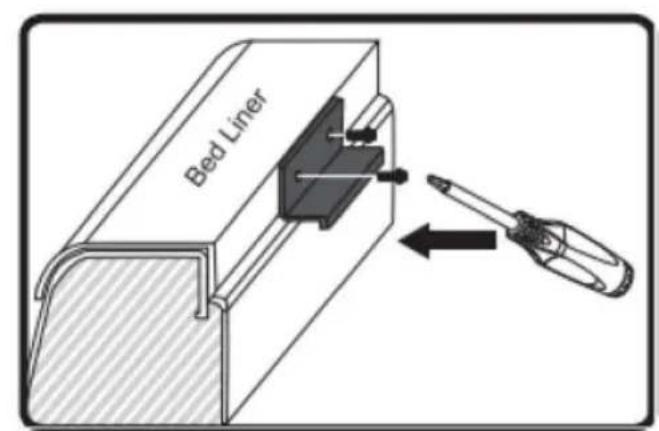

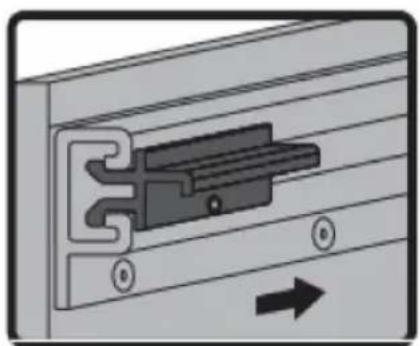

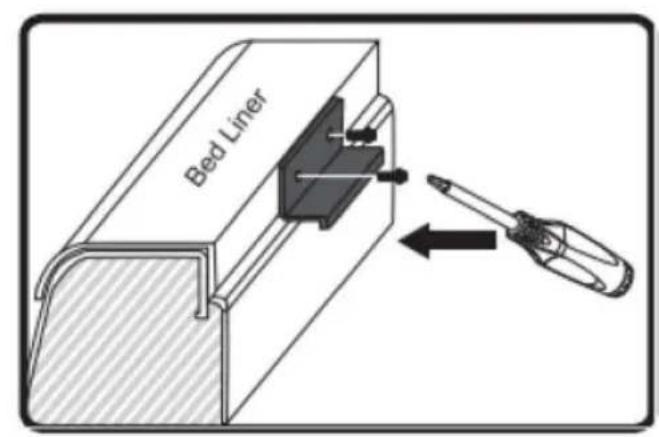

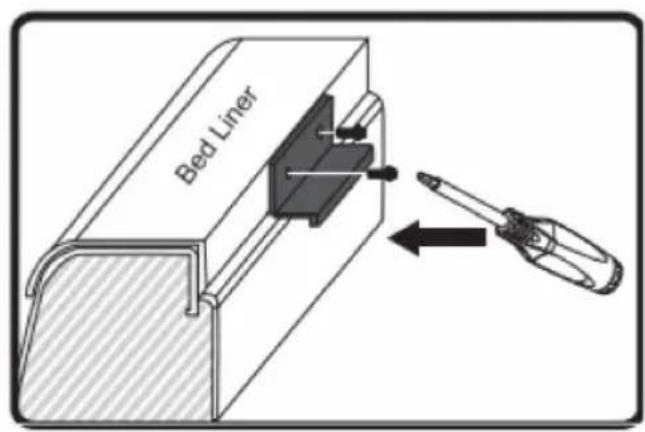

How to install extra bracket for Chevy

SP-BC1003	SP-BC1004	SP-BC1005	SP-BC1006
Fit For Titar	Fit For Frontier	Fit For Tacoma/Tundra/Gladiator	Fit For Silverado

Step 6:

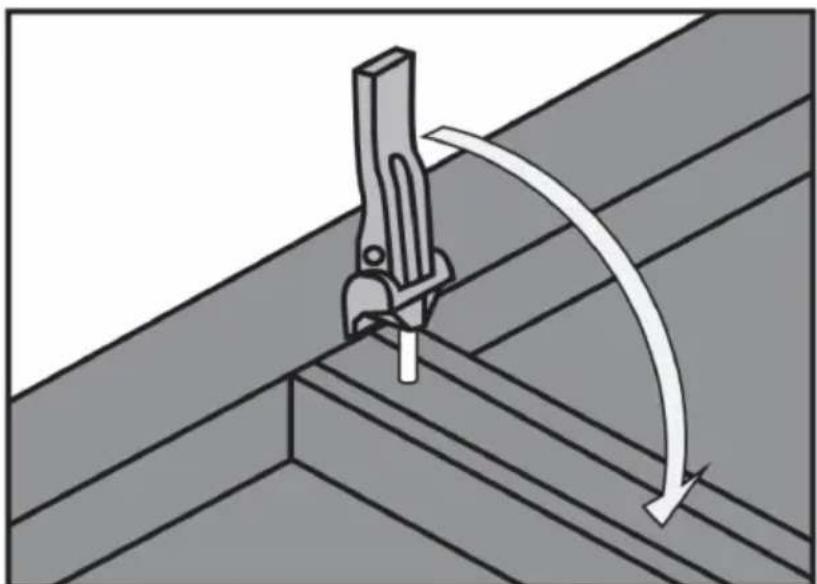

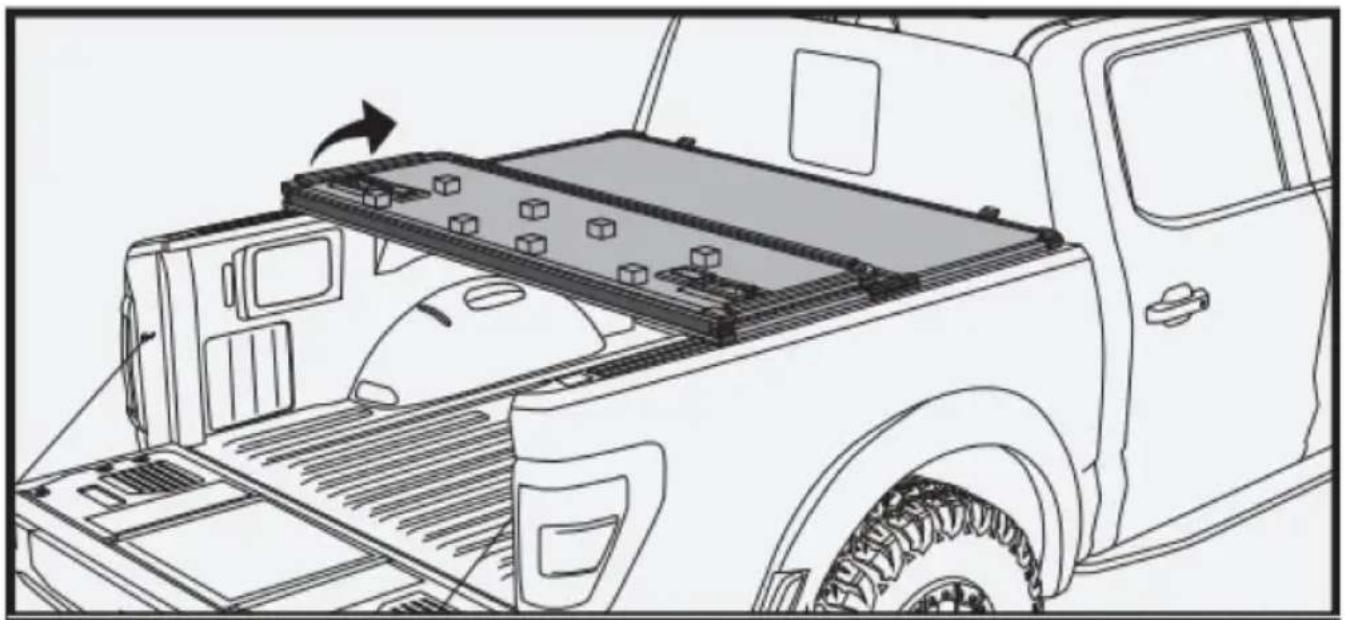

Fold up the cover

1. Open the tailgate and release the rear clamps.
2. Fold up the first panel.
3. Fold and secure the rear clamps back to original position.

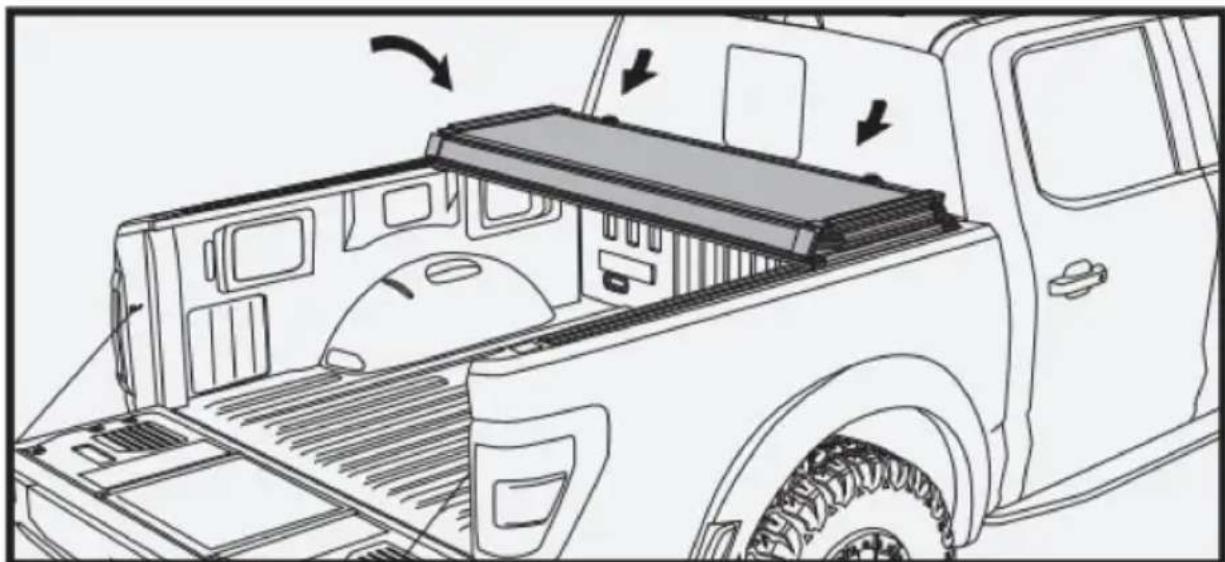

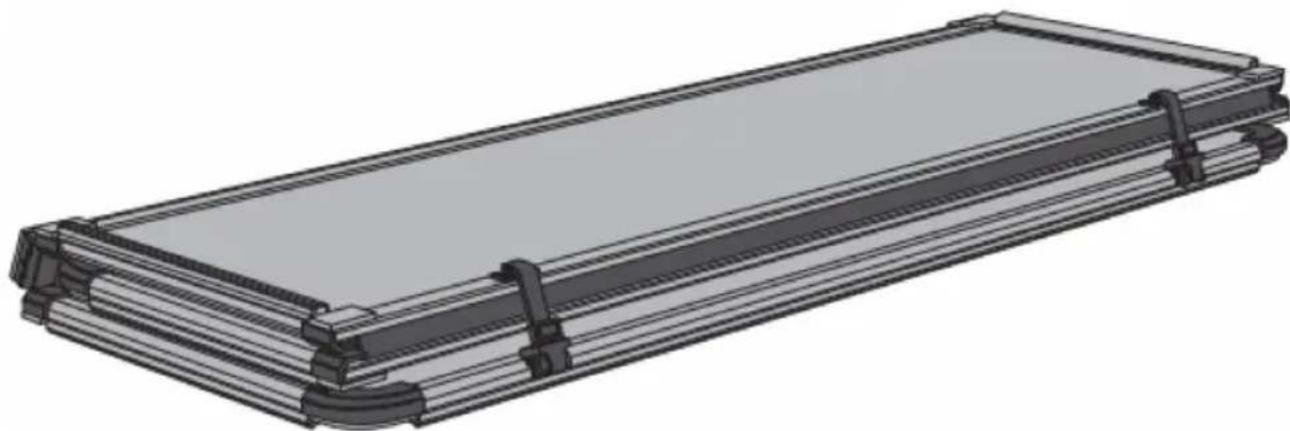

Step 7:

1. Fold up the second panel.
2. Secure safety buckles.

Please check clamps and secure straps are tight.

CORRECT DISPOSAL

This product is subject to the provisions of European Directive 2012/19/EU. The symbol showing a wheelie bin crossed through indicates that the product requires separate refuse collection in the European Union. This applies to the product and all accessories marked

with this symbol. Products marked as such may not be discarded with normal domestic waste, but must be taken to a collection point for recycling electrical and electronic devices.

BATTERY DISPOSAL

To minimize hazards to health and the environment at the end of this product's life,

laws dealing with Waste Electrical and Electronic Equipment (WEEE) and The Waste Battery Directive require you to dispose of this product at a suitable collection facility where it will be sent in order to remove batteries and for appropriate recycling. Please contact your local

authorities for more details on recycling and safe disposal of these in your area.
