USER MANUAL SRFD0955 Vevor

Technical Support and E-Warranty Certificate www.vevor.com/support

TRUCK TONNEAU COVERS

MODEL :

SRFD0955

SRGM1466

SRDG0264

SRGM1958

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represent of savings you might benefit from buying certain tools with us compared top brands and does not necessarily mean to cover all categories of tools offered are kindly reminded to verify carefully when you are placing an order with us actually saving half in comparison with the top major brands.

VEVOR®

TOUGH TOOLS, HALF PRICE

TRUCK TONNEAU COVERS

SRFD0955

SRGM1466

SRDG0264

SRGM1958

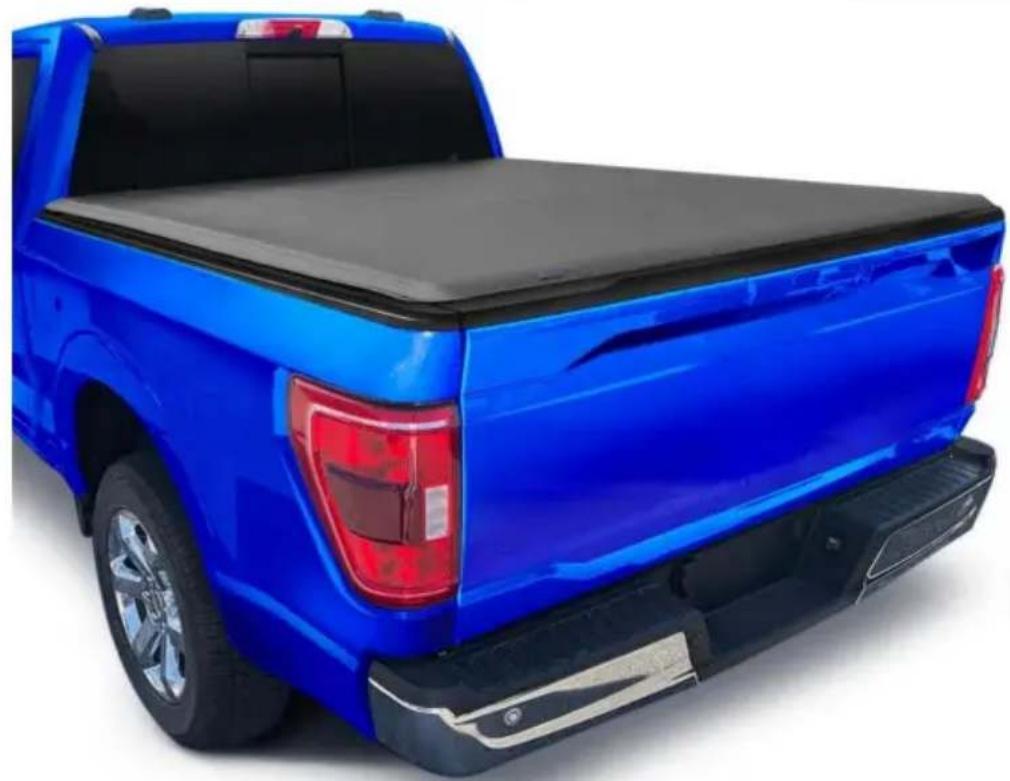

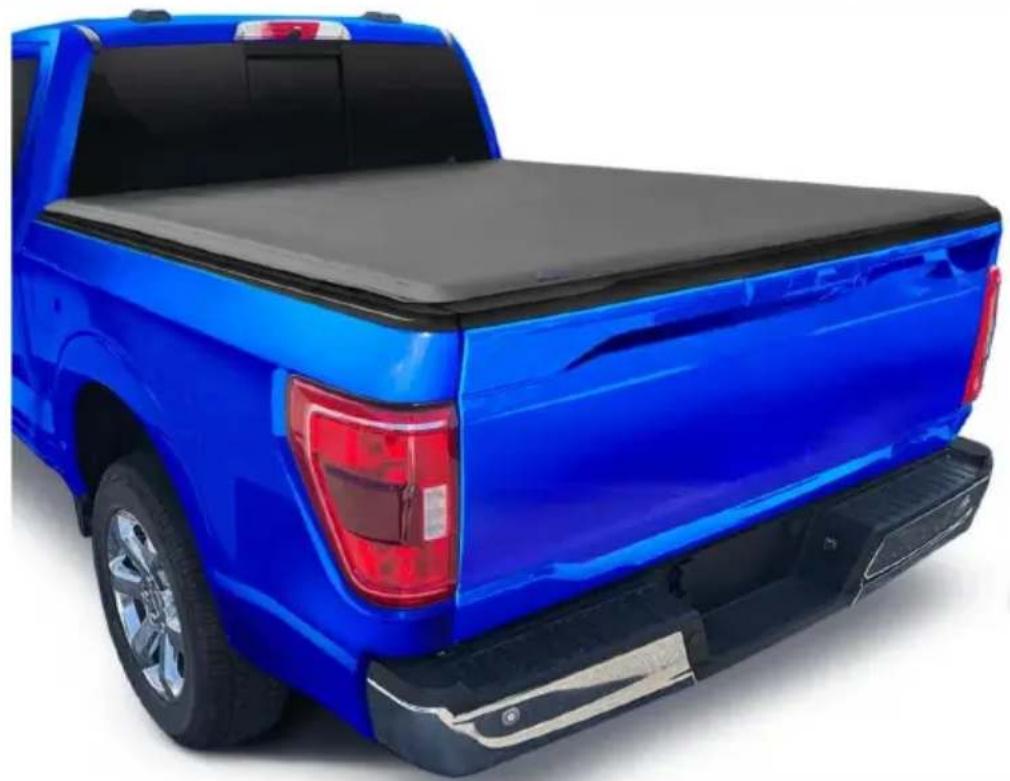

Blue pickup truck back view showing red taillights and black tarp (no text or symbols visible)

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel fr contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instruction carefully before operating. VEVOR reserves a clear interpretation user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform you there are any technology or software updates on our product.

INTRODUCTION

WARNING:

ASSEMBLY PRECAUTIONS

1. Keep children and pets away during assembly.
2. Please assemble the product in strict accordance with the instructions. Incorrect assembly could be hazardous.
3. Separate and count all parts and hardware.
4. Prepare the following tool: Philips Head Screwdriver.
5. Follow the intended uses only.

Save the instruction.

PRODUCT PAREMETERS

Model	VEHICLE COMPATIBILITY	Color	Material
SRFD0955	Ford ,F-150, 2015-2020, Short	Black	Vinyl, Aluminum, Stainless Steel
SRGM1466	Silverado / Sierra, 2014-2018/2019-2023, Standard
SRDG0264	Dodge Ram 1500 2500 3500 2019-2023, Standard
SRGM1958	Silverado/Sierra , 2019-2023, Short

PART LIST

When unpacking this product, check to make sure the parts listed below are included and carefully inspect for any damage that may have occurred during transit. If any part is missing or damaged, do not attempt to assemble or use product.

NAME	Picture	SRFD0955	SRGM1466	SRDG0264	SRGM1958
Cover Assembly		1PCS	1PCS	1PCS	1PCS
Side Rail		2PCS	2PCS	2PCS	2PCS
Allen Wrench		1PCS	1PCS	1PCS	1PCS
Clamp		6PCS	6PCS	6PCS	6PCS
Clamp Foam Pad		6PCS	6PCS	6PCS	6PCS
Tailgate Stick Tap		1PCS	1PCS	1PCS	1PCS
Front Stick Tape(1.7m)		1PCS	1PCS	1PCS	1PCS
Screw M5 ×15		2PCS	2PCS	2PCS	2PCS
Nut M5		2PCS	2PCS	2PCS	2PCS

INSTALLATION METHODS

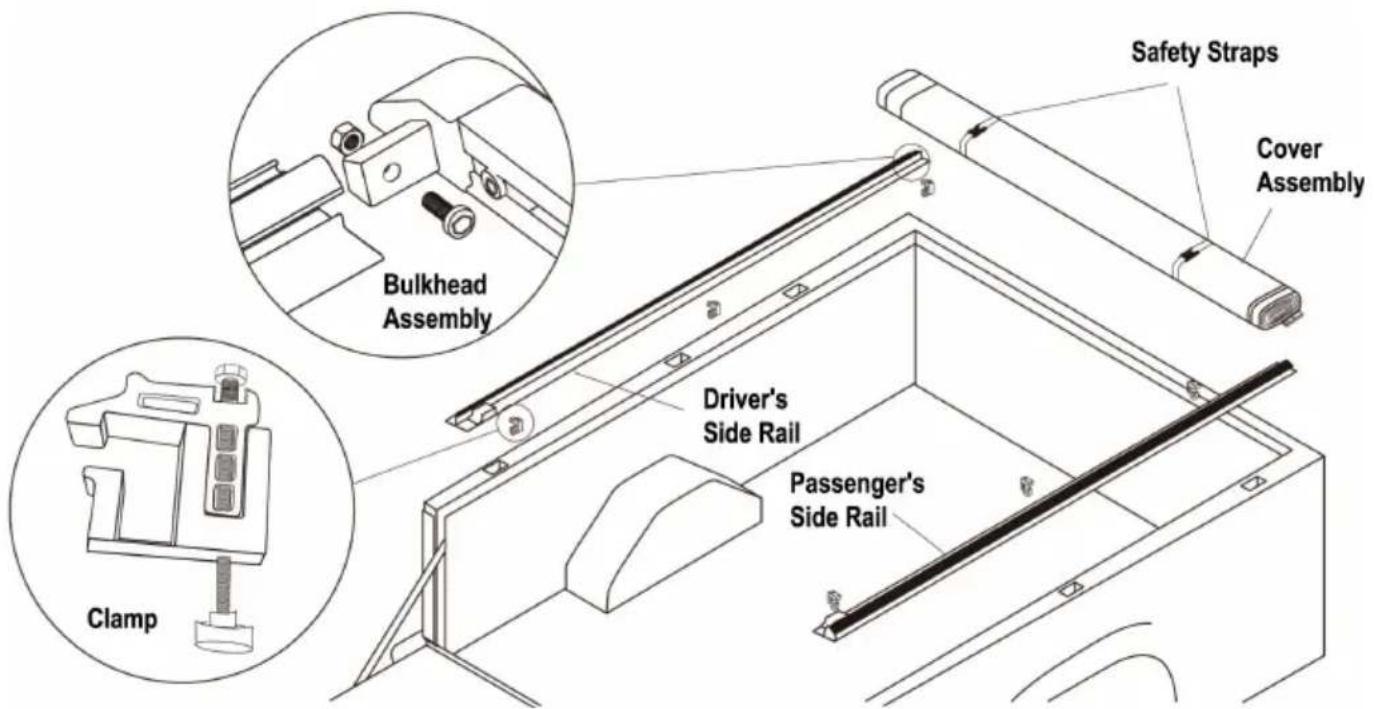

Safety Straps Cover Assembly Bulkhead Assembly Driver's Side Rail Passenger's Side Rail Clamp

1. Wash truck bed.

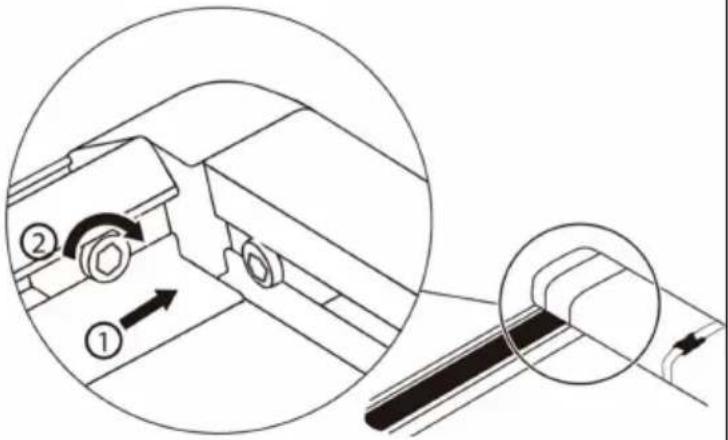

2. Installing the Cover AssemblPlace the cover on the top of tfront rail,slide the driver's side rainto this bulkhead.then tighten thefront bulkhead assembly.Follow thesame procedure to install thepassenger's side rail.
3. Positioning Side RailsPlace the side rail on the top oside rail vertically leveled. Start athe tailgate evenly space 3 clampalong each. Leave approximatelyto 8inches space on each end.

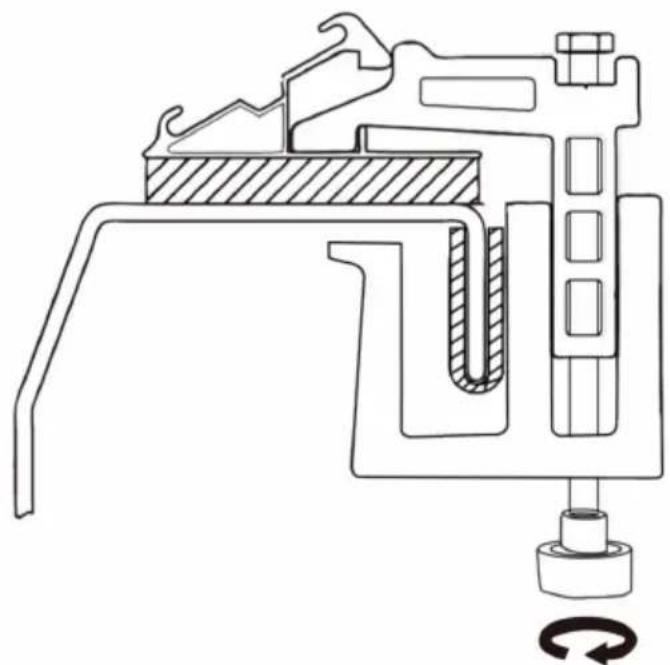

4. Tightening Clamps

Do not tighten clamps until all clamps are in proper position.

Note: Clamps may vary by specific vehicles

Technical line drawing of a mechanical device with no visible text or symbols

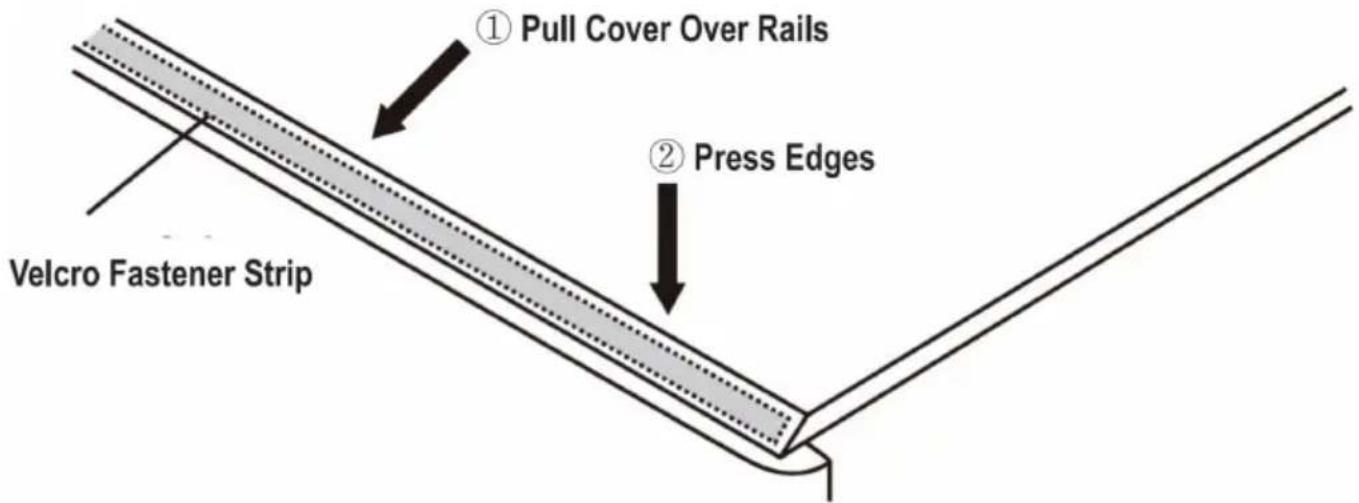

5. Secure Velcro Fastener

Pull the cover over velcro fastener strips on one side of the rail, then dges to fastener. Follow the same procedure on the opposite side.

① Pull Cover Over Rails ② Press Edges Velcro Fastener Strip

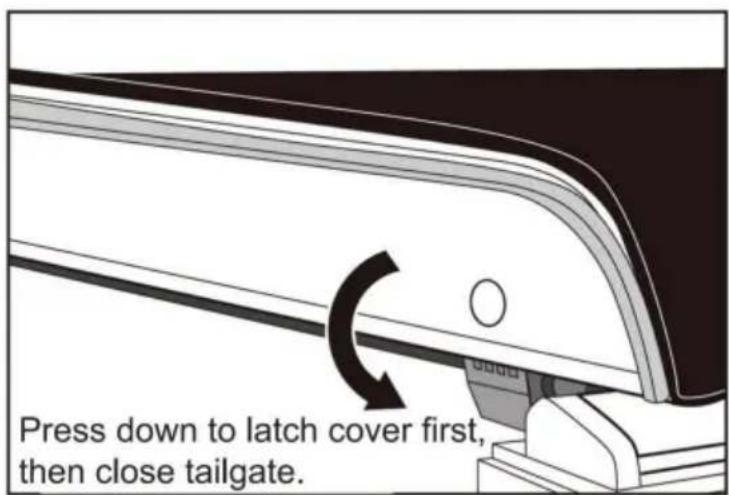

6. Latching and Unlatching your cover

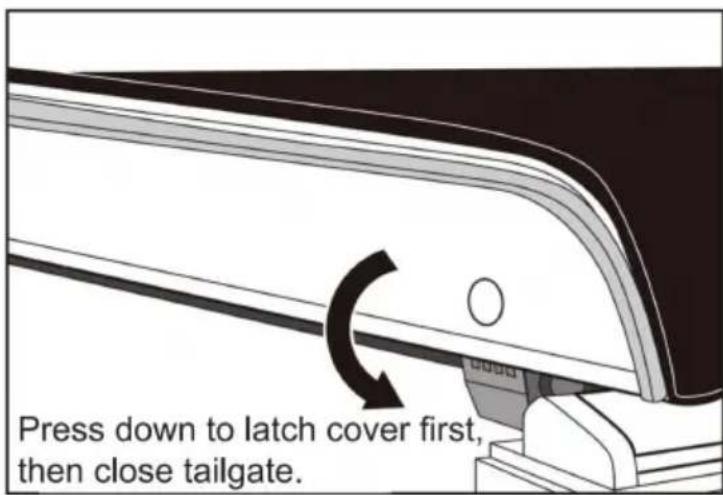

Press down to latch cover first, then close tailgate.

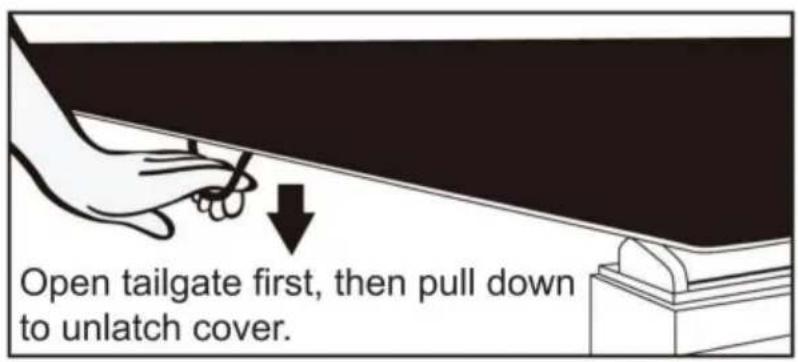

Open tailgate first, then pull down to unlatch cover.

Tension Control System

The cover has been set at the factory for moderate tension to keep your core of wrinkles. Depending on weather conditions it may be necessary for you to adjust the tension control on the cover. To adjust the tension control, simply the screws on the tension plate, then slide the tension plate towards the tailgate a right scale line.

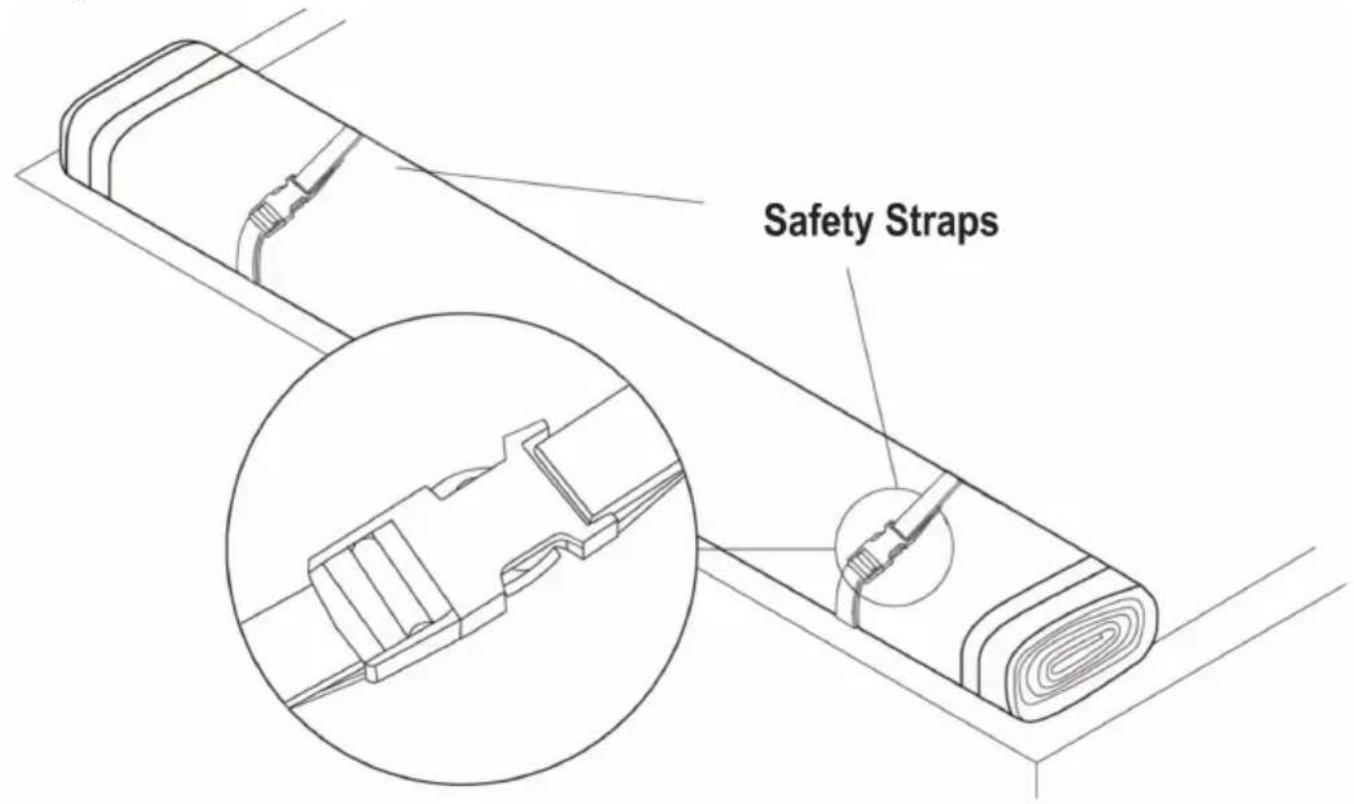

Safety Straps

Open the Cover

Roll the cover toward the cab making sure both sides of cover rolled evenly. Secure the cover open by hooking the safety straps to the front loops.

Tailgate ② Slide the plate ① Loose the plate

Manufacturer: Shanghaimuxinmuyeyouxiangongsi

Address: Baoshanqu Shuangchenglu 803long 11hao 1602A-1609shi Shanghai

Imported to AUS: SIHAO PTY LTD.1 ROKEVA STREETEASTWOOD

NSW 2122 Australia

Imported to USA: Sanven Technology Ltd. Suite 250,9166 Anaheim

Place,Rancho Cucamonga,CA91730

Pooledas Group Ltd

UK

REP

Unit 5 Albert Edward House,

The Pavilions Preston, United Kingdom

[e-mail]

01772418127

EC

REP

SHUNSHUN GmbH

Römeräcker 9 Z2021,76351

Technical Support and E-Warranty Certificate

www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

SRFD0955 SRGM1466 SRGM1958 SRDG0264

Blue pickup truck back view showing red taillights and black roof cover (no text or symbols visible)

BESOIN D'AIDE? CONTACTEZ-NOUS!

PARAMÈTRES DU PRODUIT

Modèle	COMPATIBILITÉ DES VÉHICULES	Couleur	Matériel
SRFD0955	Ford, F-150, 2015-2020, court	Noir	Vinyle, Aluminium, Inoxydable Acier
SRGM1466	Silverado/Sierra, 2014-2018/2019-2023, Norme
SRDG0264	Dodge Ram 1500 2500 3500, 2019-2023, Norme
SRGM1958	Silverado/Sierra, 2019-2023, Court

LISTE DES PIÈCES

Machine Translated by Google

Safety Straps Cover Assembly Bulkhead Assembly Driver's Side Rail Passenger's Side Rail Clamp

Technical line drawing of a mechanical assembly with no visible text or symbols

① Pull Cover Over Rails ② Press Edges Velcro Fastener Strip

Press down to latch cover first, then close tailgate.

Open tailgate first, then pull down to unlatch cover.

Safety Straps

Ouvrez le couvercle

Tailgate ② Slide the plate ① Loose the plate

Fabricant : Shanghaimuxinmuyeyouxiangongsi Adresse :

Baoshanqu Shuangchenglu 803long 11hao 1602A-1609shi Shanghai Importé en Australie :

SIHAO PTY LTD.1 ROKEVA STREETEASTWOOD NSW 2122 Australie

Rancho Cucamonga, CA91730

REPRÉSENTANT

DU ROYAUME-UNI

Groupe Pooledas Ltd

Blue pickup truck back view showing red taillights and black roof (no text or symbols visible)

BRAUCHEN SIE HILFE? KONTAKTIERE UNS!

Machine Translated by Google

NAME	Bild	SRFD0955	SRGM1466	SRDG0264	SRGM1958
AbdeckungMontage		1 STÜCK	1 STÜCK	1 STÜCK	1 STÜCK
Seitenschiene		2 STÜCK	2 STÜCK	2 STÜCK	2 STÜCK
AllenSchlüssel		1 STÜCK	1 STÜCK	1 STÜCK	1 STÜCK
Klemme		6 Stück	6 Stück	6 Stück	6 Stück
KlemmeSchaumkissen		6 Stück	6 Stück	6 Stück	6 Stück
HeckklappeStick-Tap		1 STÜCK	1 STÜCK	1 STÜCK	1 STÜCK
Vorderer StockKlebeband (1,7 m)		1 STÜCK	1 STÜCK	1 STÜCK	1 STÜCK
Schraube M5×15		2 STÜCK	2 STÜCK	2 STÜCK	2 STÜCK
Mutter M5 2 STÜCK		2 STÜCK	2 STÜCK	2 STÜCK

INSTALLATIONSMETHODEN

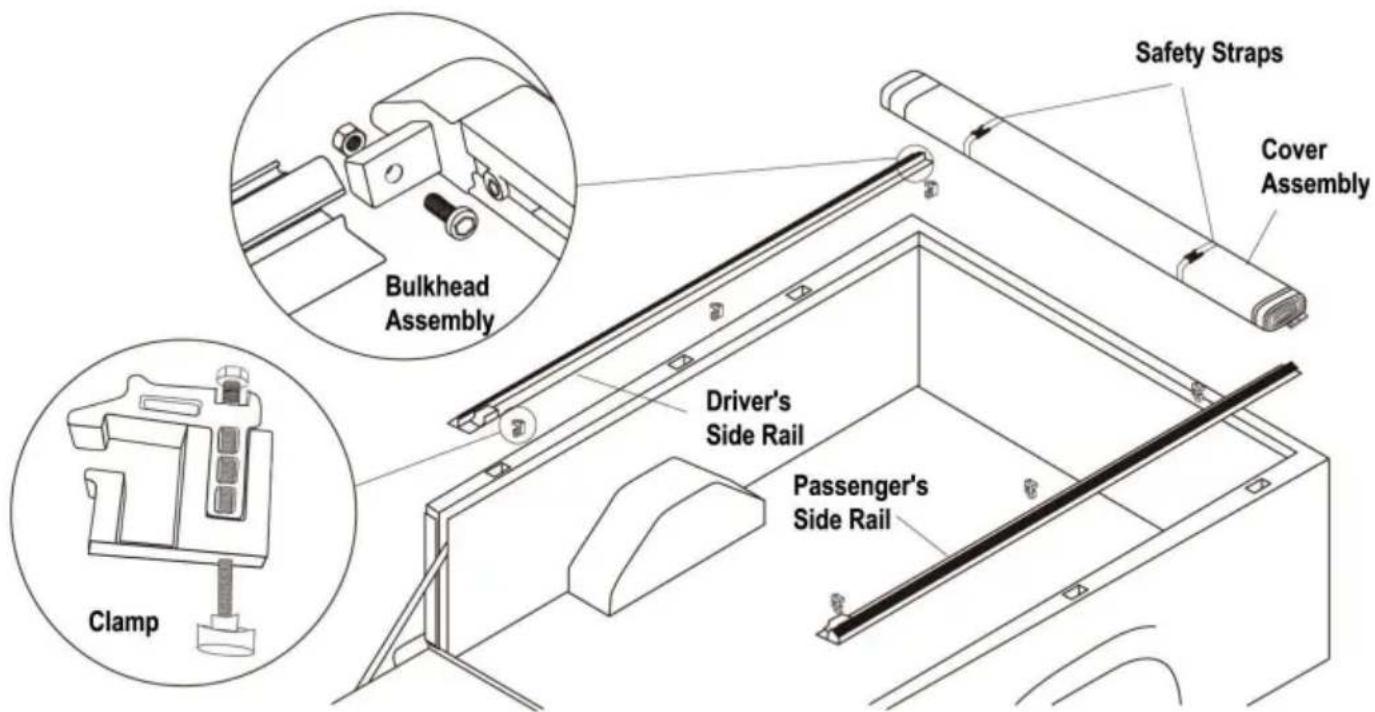

Safety Straps Cover Assembly Bulkhead Assembly Driver's Side Rail Passenger's Side Rail Clamp

Technical line drawing of a mechanical assembly with no visible text or symbols

① Pull Cover Over Rails ② Press Edges Velcro Fastener Strip

Press down to latch cover first, then close tailgate.

Open tailgate first, then pull down to unlatch cover.

Safety Straps

Tailgate ② Slide the plate ① Loose the plate

Hersteller: Shanghaimuxinmuyeyouxiangongsi Adresse:

Place, Rancho Cucamonga, CA91730

UK

REP

Pooledas Group Ltd

Einheit 5 Albert Edward House,

www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

SRFD0955 SRGM1466 SRGM1958SRDG0264

SRDG0264SRFD09SBGM1958SRGM146

Blue pickup truck back view showing red taillights and black roof cover (no text or symbols visible)

HO BISOGNO DI AIUTO? CONTATTACI!

Machine Translated by Google

Safety Straps Cover Assembly Bulkhead Assembly Driver's Side Rail Passenger's Side Rail Clamp

Technical line drawing of a mechanical assembly with no visible text or symbols

① Pull Cover Over Rails ② Press Edges Velcro Fastener Strip

Press down to latch cover first, then close tailgate.

Open tailgate first, then pull down to unlatch cover.

Safety Straps

Apri la copertina

Tailgate ② Slide the plate ① Loose the plate

Importato in AUS: SIHAO PTY LTD.1 ROKEVA STREETEASTWOOD

NSW 2122 Australia

Anaheim Place, Rancho Cucamonga, CA91730

REP. DEL

REGNO UNITO

Gruppo Pooledas Ltd

elettronica www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

SRDG0264 SRGM1958SRGM1466SRFD(

SRGM1466 SRGM1958DG0264SRFD0955

Blue pickup truck back view showing red taillights and black roof cover (no text or symbols visible)

Machine Translated by Google

Safety Straps Cover Assembly Bulkhead Assembly Driver's Side Rail Passenger's Side Rail Clamp

Technical line drawing of a mechanical assembly with no visible text or symbols

① Pull Cover Over Rails ② Press Edges Velcro Fastener Strip

Press down to latch cover first, then close tailgate.

Open tailgate first, then pull down to unlatch cover.

Safety Straps

Abre la tapa

Tailgate ② Slide the plate ① Loose the plate

Fabricante: Shanghaimuxinmuyeyouxiangongsi

Place,Rancho Cucamonga,CA91730

SRDG0264SRFD0955 SRGM1466 SRGM

SRDG0264SRFD0955 SRGM1958SRGM1466

Blue pickup truck back view showing red taillights and black roof cover (no text or symbols visible)

POTRZEBUJE POMOCY? SKONTAKTUJ SIĘ Z NAMI!

Safety Straps Cover Assembly Bulkhead Assembly Driver's Side Rail Passenger's Side Rail Clamp

Technical line drawing of a mechanical assembly with no visible text or symbols

① Pull Cover Over Rails ② Press Edges Velcro Fastener Strip

Press down to latch cover first, then close tailgate.

Open tailgate first, then pull down to unlatch cover.

Safety Straps

Otwórz pokrywę

Tailgate ② Slide the plate ① Loose the plate

Producent: Shanghaimuxinmuyeyouxiangongsi

Adres: Baoshanqu Shuangchenglu 803long 11hao 1602A-1609shi Szanghaj

Import do Australii: SIHAO PTY LTD.1 ROKEVA STREETEASTWOOD NSW

2122 Australia

Import do USA: Sanven Technology Ltd. Suite 250,9166 Anaheim

Place, Rancho Cucamonga, CA91730

Pooledas Group Ltd

www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

Technische ondersteuning en e-garantiecertificaat www.vevor.com/support

TRUCK TONNEAU-HOEZEN

MODEL:

SRDG0264

SRGM1958SRGM146

Blue pickup truck back view showing red taillights and black roof cover (no text or symbols visible)

HULP NODIG? NEEM CONTACT MET ONS OP!

Machine Translated by Google

NAAM	Afbeelding	SRFD0955	SRGM1466	SRDG0264	SRGM1958
OmslagMontage		1 STUK	1 STUK	1 STUK	1 STUK
Zijspoor		2 STUKS	2 STUKS	2 STUKS	2 STUKS
AllenMoersleutel		1 STUK	1 STUK	1 STUK	1 STUK
Klem		6 STUKS	6 STUKS	6 STUKS	6 STUKS
KlemSchuimkussen		6 STUKS	6 STUKS	6 STUKS	6 STUKS
AchterklepStok tik		1 STUK	1 STUK	1 STUK	1 STUK
Voorste stokBand(1,7m)		1 STUK	1 STUK	1 STUK	1 STUK
Schroef M5×15		2 STUKS	2 STUKS	2 STUKS	2 STUKS
Moer M5		2 STUKS	2 STUKS	2 STUKS	2 STUKS

INSTALLATIEMETHODEN

Safety Straps Cover Assembly Bulkhead Assembly Driver's Side Rail Passenger's Side Rail Clamp

Technical line drawing of a mechanical assembly with no visible text or symbols

5. Veilige klittenbandsluiting

① Pull Cover Over Rails ② Press Edges Velcro Fastener Strip

6. Uw hoes vergrendelen en ontgrendelen

Press down to latch cover first, then close tailgate.

Open tailgate first, then pull down to unlatch cover.

Spanningscontrolesysteem De

Safety Straps

Open de klep

Tailgate ② Slide the plate ① Loose the plate

Fabrikant: Shanghaimuxinmuyeyouxiangongsi Adres:

Baoshanqu Shuangchenglu 803long 11hao 1602A-1609shi Shanghai Geïmporteerd

in AUS: SIHAO PTY LTD.1 ROKEVA STREETEASTWOOD NSW 2122

Australië

Anaheim Place, Rancho Cucamonga, CA91730

Britse REP

Pooledas Group Ltd

garantiecertificaat www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

SRFD0955 SRGM1466 SRGM1958 SRDG0264

SRDG0264SRFD0955 SRGM1958SRGM

Blue pickup truck back view showing red taillights and black roof cover (no text or symbols visible)

BEHÖVS HJÄLP? KONTAKTA OSS!

Safety Straps Cover Assembly Bulkhead Assembly Driver's Side Rail Passenger's Side Rail Clamp

Technical line drawing of a mechanical assembly with no visible text or symbols

5. Säkra kardborrefästen

① Pull Cover Over Rails ② Press Edges Velcro Fastener Strip

Press down to latch cover first, then close tailgate.

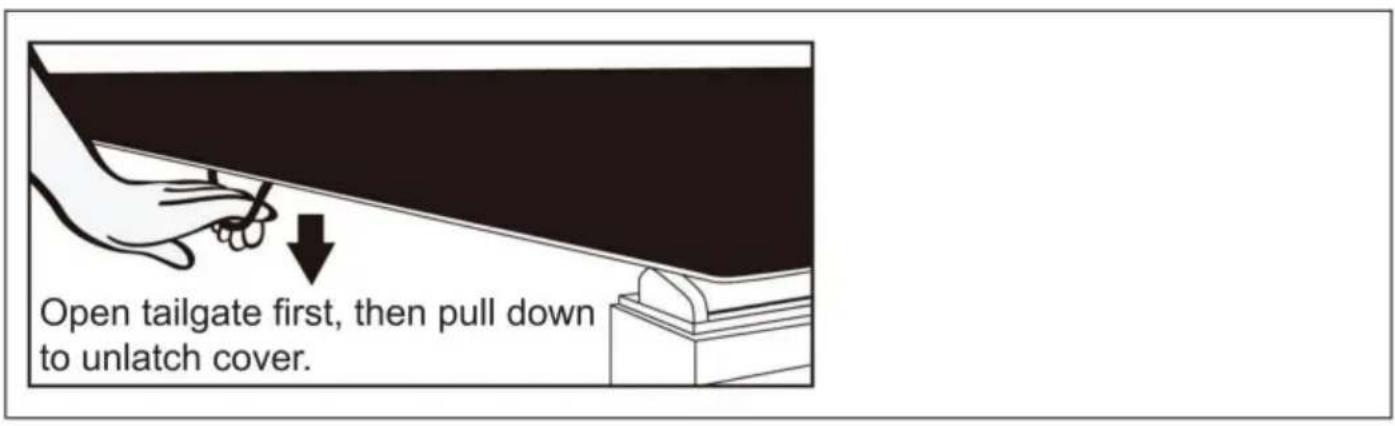

Open tailgate first, then pull down to unlatch cover.

Spänningskontrollsystem

Safety Straps

Öppna locket

Tailgate ② Slide the plate ① Loose the plate

Tillverkare: Shanghaimuxinmuyeyouxiangongsi

Adress: Baoshanqu Shuangchenglu 803long 11hao 1602A-1609shi Shanghai

Importerad till AUS: SIHAO PTY LTD.1 ROKEVA STREETEASTWOOD

NSW 2122 Australien

Importerad till USA: Sanven Technology Ltd. Suite 250,9166 Anaheim

Place, Rancho Cucamonga, CA91730

UK

REP

Pooledas Group Ltd

Enhet 5 Albert Edward House,

The Pavilions Preston, Storbritannien

[e-mail]

01772418127

EC

REP

SHUNSHUN GmbH

Römeräcker 9 Z2021,76351

Linkenheim-Hochstetten, Tyskland

[e-mail] +49

1727041930

Tillverkad i Kina

VEVOR®

TOUGH TOOLS, HALF PRICE

www.vevor.com/support
