KC800 - Manual winch Vevor - Free user manual and instructions

Product Type	Manual Winch
Brand	Vevor
Model	KC800
Maximum Load Capacity	800 lb (approx. 363 kg)
Gear Ratio	3.1:1
Way / Speed	2 ways, 1 speed
Cable Type	Steel Cable
Cable Length	10 m
Base Dimensions (a x b)	44.5 mm x 74 mm
Installation Hole Diameter	Φ 11 mm
Main Functions	Pull, tow, load; Do not use for lifting or transporting people
Maintenance and Cleaning	Lubricate the cable and hook with light grease; grease the gears every 6 months; keep handles clean and dry
Safety	Never overload; wear gloves; keep hands away from gear/rim/cable; do not allow minors to use; do not use under influence
Spare Parts and Repairability	Contact an authorized service center for replacement of damaged parts
Intended Use	Horizontal pulling only, no vertical lifting
Storage	In a dry place, out of reach of children
Color	Black

Frequently Asked Questions - KC800 Vevor

What is the maximum capacity of the Vevor KC800 winch?

The KC800 winch has a maximum load capacity of 800 pounds (approx. 363 kg). Never exceed this limit.

Can I use the KC800 winch for lifting loads?

No, this winch is designed for pulling horizontally, not lifting. Never use it to lift loads or transport people.

How to maintain the steel cable?

Regularly lubricate the cable and hook with light grease to prevent rust and ensure smooth operation.

How often should I grease the gears?

It is recommended to grease the gears every 6 months with good quality waterproof grease.

How to install the winch on a surface?

Drill Φ 11 mm holes in the supports according to the base dimensions (44.5 mm x 74 mm). Secure the winch with at least 3 sets of 3/8 inch bolts and lock nuts in a triangular pattern.

What to do if the cable is damaged?

Inspect the cable periodically. If damaged, have it replaced by an authorized service center. Do not attempt to repair it yourself.

How to wind the cable without load?

Set the ratchet lever to the center position to release the cable. Pull the cable manually, then turn the crank clockwise to wind the excess.

What are the safety precautions?

Always wear gloves, do not place your hands near the gear or cable, do not overload, and do not allow minors to use the device.

How to use the ratchet to unwind the cable under load?

Hold the crank firmly, gently push the ratchet lever to the lower position, then turn the crank counterclockwise to unwind.

Where to store the winch after use?

Store the winch in a dry place, out of reach of children. Keep handles clean and free of oil or grease.

USER MANUAL KC800 Vevor

Technical Support and E-Warranty Certificate www.vevor.com/support

HAND WINCH USER'S MANUAL

Model: KW1200, KW1600, KW2000B, KW3500, KC800, KC3500

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represent of savings you might benefit from buying certain tools with us compared top brands and does not necessarily mean to cover all categories of tools offered are kindly reminded to verify carefully when you are placing an order with us actually saving half in comparison with the top major brands.

VEVOR®

TOUGH TOOLS, HALF PRICE

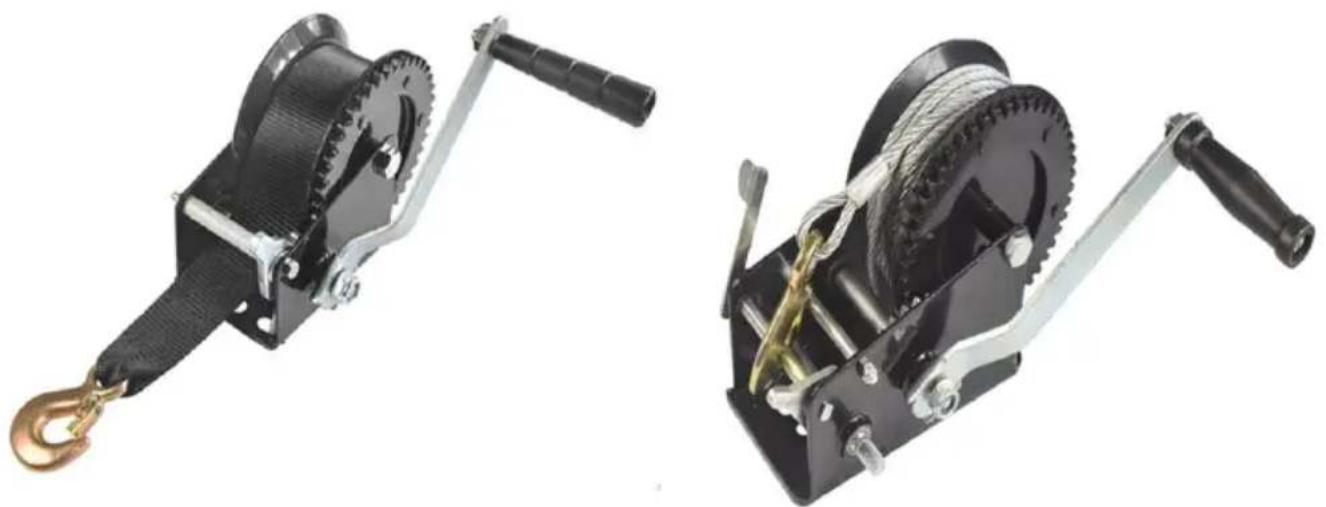

HAND WINCH

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel free to contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instruction carefully before operating. VEVOR reserves a clear interpretation user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform you there are any technology or software updates on our product.

GENERAL SAFETY RULES

WARNING

Please read this user manual carefully!

1. Never overload!
2. This winch is designed for pulling, not for lifting!
3. Never put your hand or anything else near the gear, rim, or cable roll. Always wear gloves when using the winch.
4. Never try to repair or disassemble the winch when it is under load. Ask a machinist or specialist for help.
5. When replacing the cable, make sure that the end of the cable passes through the 4 holes on the side of the rim, and tie a knot or use a cable clamp to prevent the cable from coming out.
6. Use grease for the axle and gears before storing for a long time.
7. Do not allow minors to use or operate this product.
8. Do not use the product when you are tired, or while under the influence of alcohol, prescription medicines, or drugs.
9. Safety at work
10. Use both hands when transporting the product.
11. Use proper protective equipment according to the work environment.
12. Keep proper footing at all times and maintain balance.
13. Do not attempt to pull stationary or fixed loads.
14. Do not apply any side force on the load.
15. Not for lifting loads and never for transporting persons.
16. Avoid starting the product unintentionally. The ratchet switch should always be fully engaged.

CAUTION: Carefully read instructions and procedures for safe operation. SAVE THESE INSTRUCTIONS.

MODEL AND PARAMETERS

Model	KW1200	KW1600	KW2000B	KW3500	KC800	KC3500
Maximum Load Capacity	1200lbs	1600lbs	2000lbs	3500lbs	800lbs	3500lbs
Gear Ratio	4:1	4:1	4:1	4:1 and 8:1	3.1:1	4:1 and 8:1
Way/ Speed	2Way / 1Speed	2Way / 1Speed	2Way / 1Speed	2Way / 2Speed	2Way / 1Speed	2Way / 2Speed
Rope Type	Polyester Strap	Polyester Strap	Polyester Strap	Polyester Strap	Steel Cable	Steel Cable
Rope Length	7M	10M	7M	10M	10M	10M
Color(s)	Black	Black	Black	Black	Black	Black

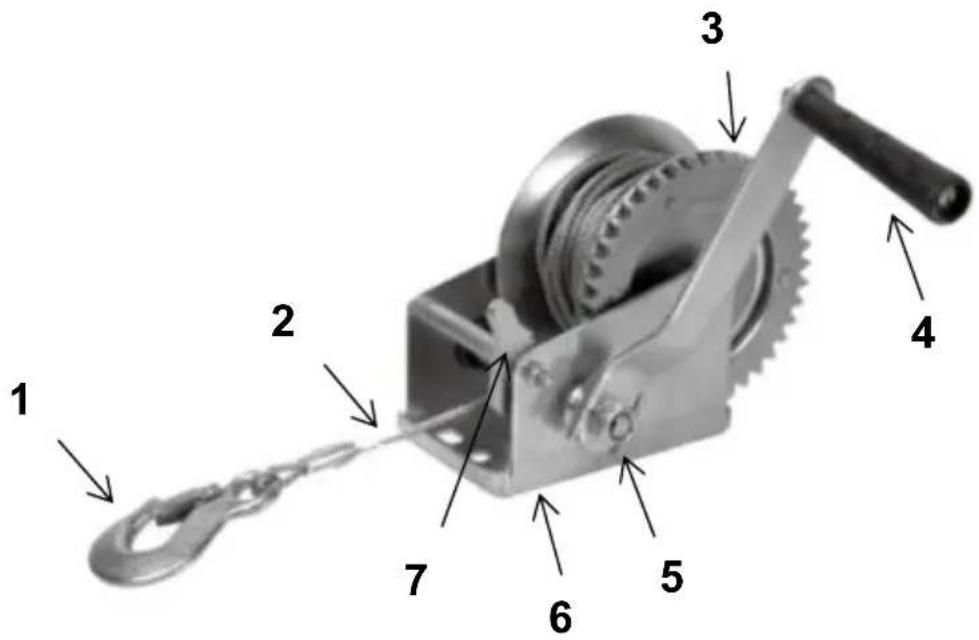

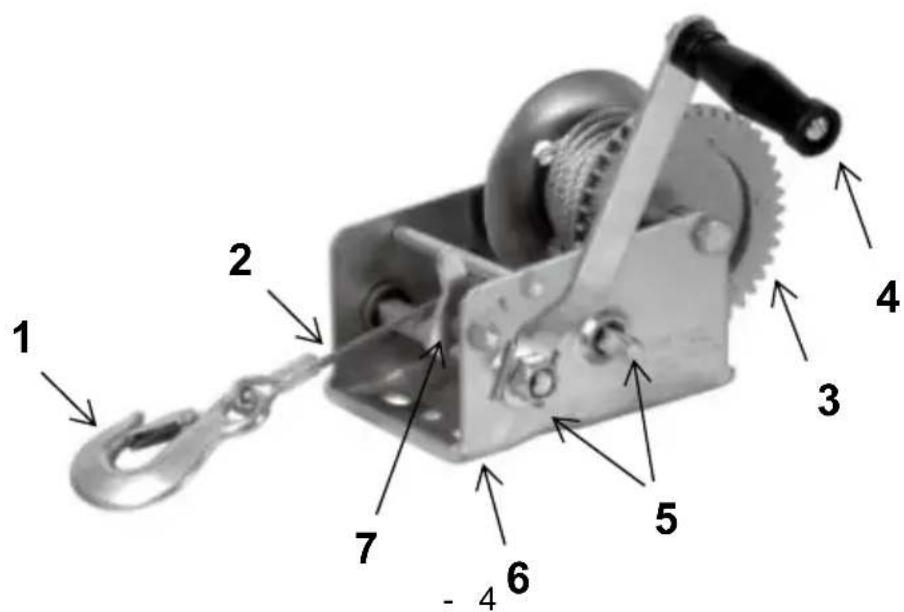

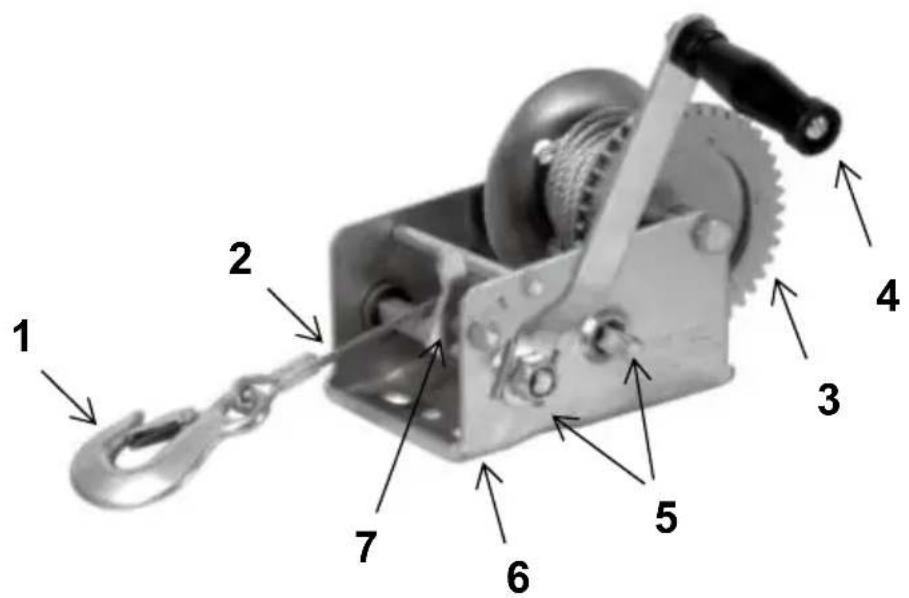

1. Hook 2. Rope 3. Rim 4. Crank 5. Axis Bolt 6. Base 7. Ratchet St

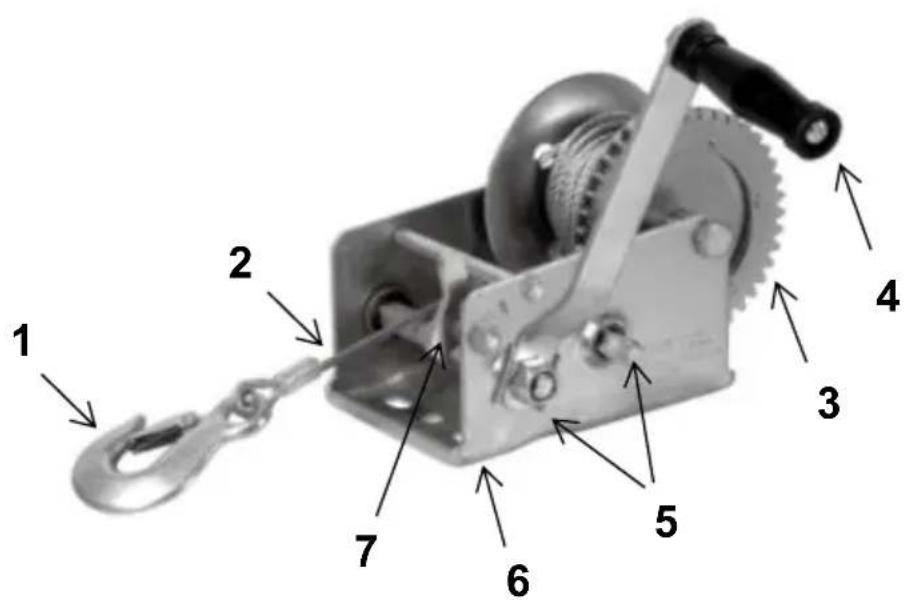

1. Hook 2. Rope 3. Rim 4. Crank 5. Axis Bolt 6. Base 7. Ratchet Swi

Installation Preparation:

1. Please prepare a carpet or mat to protect your floor. You need to take out all the accessories.
2. Please prepare gloves to avoid being scratched by sharp parts that may occur during installation.
3. Please open all the boxes to check that the accessories are complete and in good condition.
4. If you need to use power tools to install this product, please set the speed to low speed in advance.
5. When installing, please align all the holes and do not tighten all screws first; otherwise, it may make the installation difficult.

Installation:

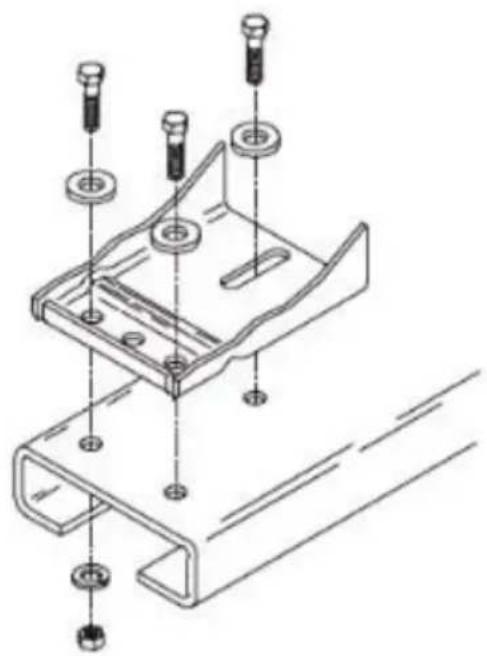

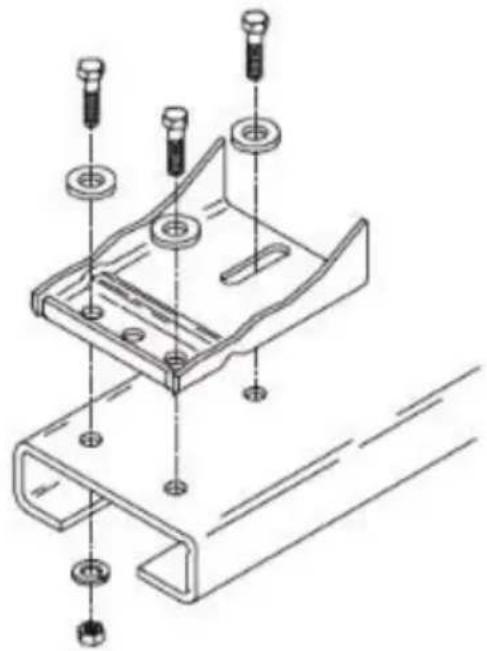

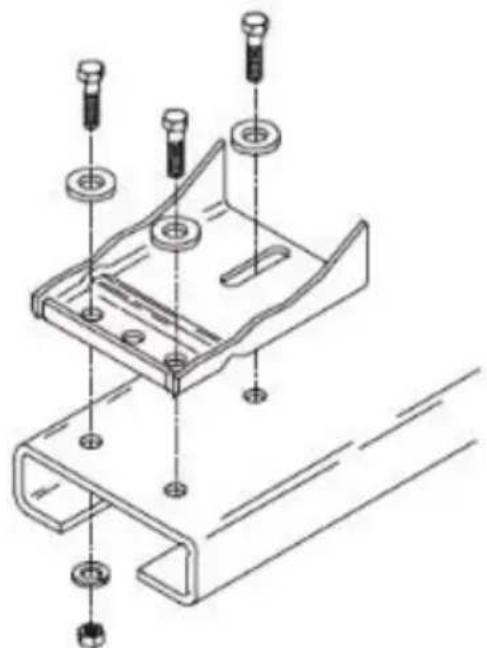

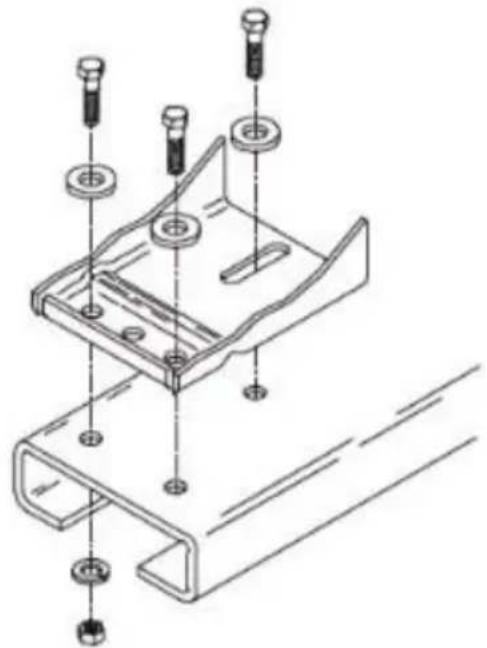

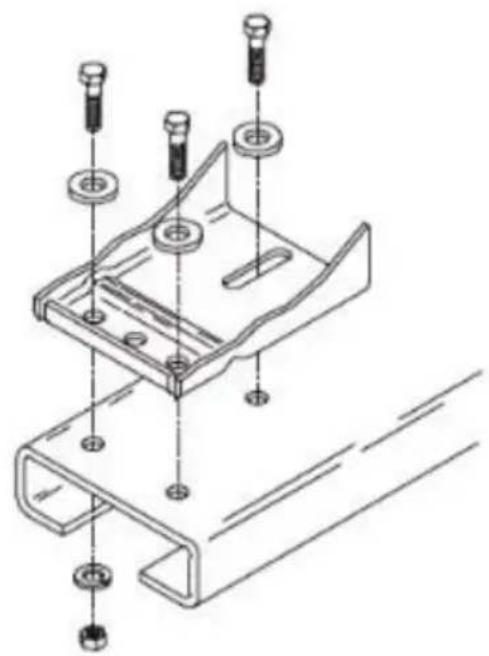

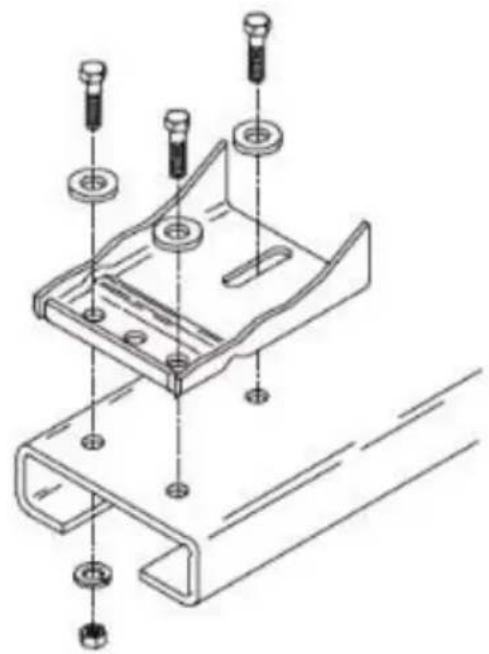

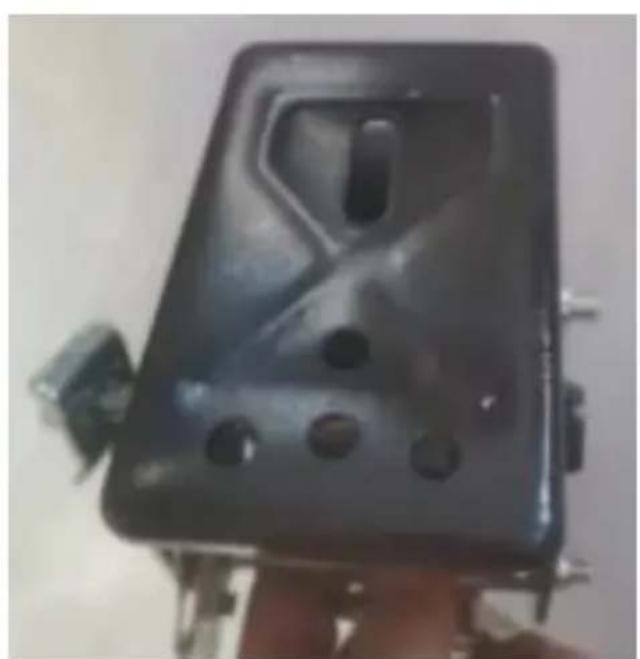

Step 1. Drill holes (Φ11mm) in the brackets to be installed, according to the winch base dimensions.

Install the winch on the brackets and lock it with bolts and nuts.

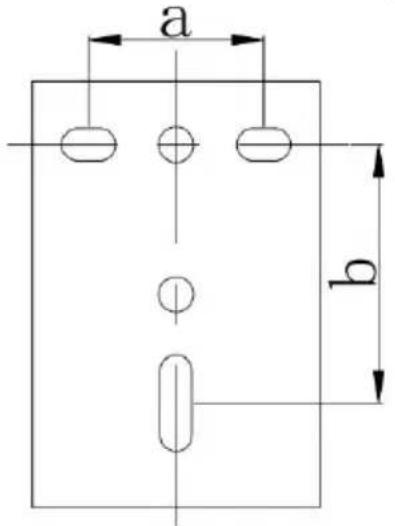

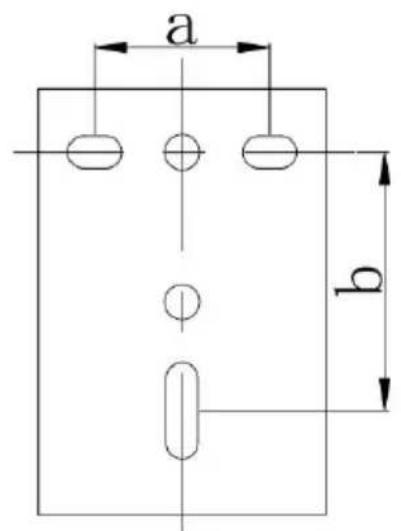

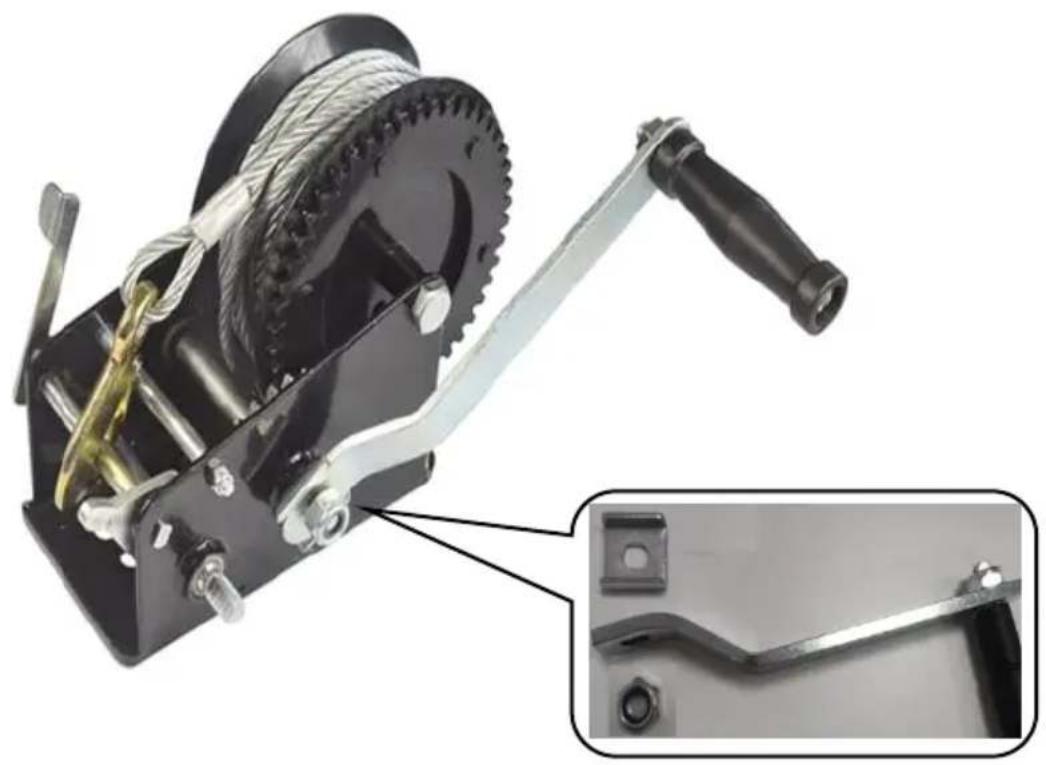

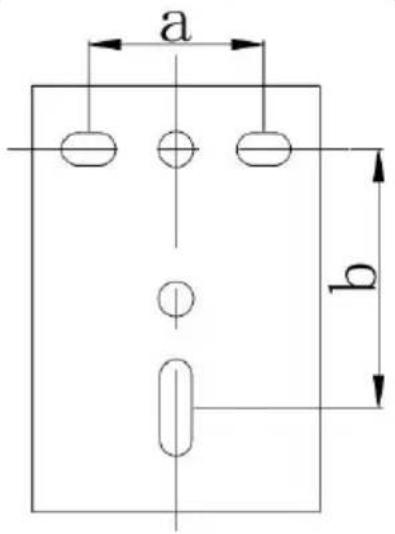

Winch Base Dimension:

Model	KW1200	KW1600	KW2000B	KC800	KW3500/KC3500
a (mm)	50	44	50	44.5	44
b (mm)	85	79	85	74	104

Step 2. Install the handle on the shaft and lock the nut, as shown.

Note: Model KW3500 and KC3500 are fast handles, just plug it in.

Step 3. Set the ratchet switch to the middle position, pull out the cable and catch the weight.

Then turn the ratchet switch to a high position, turn the handle slowly clockwise. Pull the weight to the desired position.

Note: The ratchet switch operation is described below.

Winding/unwinding the cable without load

1. Place the ratchet lever in the center position.
2. The cable reel now moves freely in both directions.
3. Pull the cable at the fixed hook until the hook can be attached to the load to be moved.
4. Wind back the excessive cable by turning the crank clockwise.

Winding up the cable under load (towing, loading)

1. Hold the crank firmly and push gently to relieve the ratchet lever.
2. Place the ratchet lever in position.
3. Turn the crank clockwise to evenly wind up the steel cable.

Unwinding the cable under load (lowering, unloading)

1. Hold the crank firmly and push gently to relieve the ratchet lever.
2. Place the ratchet lever in position.
3. The cable should be fully retracted again after use.

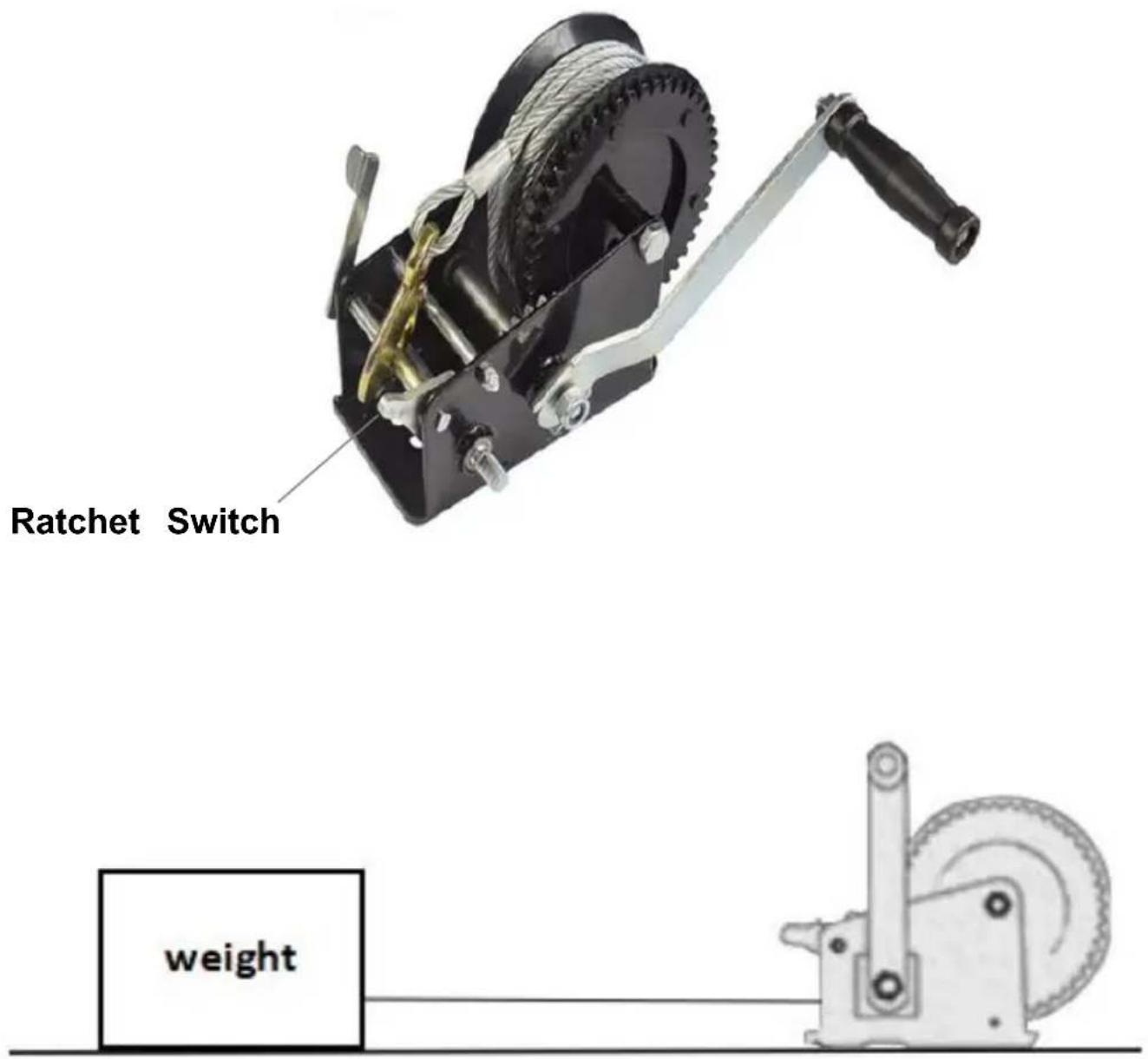

Ratchet switch

1. There are 3 positions for the ratchet switch: The higher position is pulling, the lower position is for releasing, and the middle position is both pulling and releasing, but it can only be used when the winch is loaded. Hold the crank handle tightly if you want to change the switch position.
2. Before using, install the winch on a firm and flat surface. To install, set the ratchet switch in the middle position and pull the cable out until holes on the bottom of the base are visible. Then use at least 3 sec inch bolts and locking nuts, in a triangular pattern, to affix the base surface. Use an extra metal or hardwood board when necessary.
3. Then install the crank handle to the axis bolt with nut.
4. Put the ratchet switch in the higher position and turn the crank handle clockwise to pull. Place the ratchet switch in the lower position and turn the crank handle counterclockwise to release.
5. When finished, attach the hook to the paw bushing.

MAINTENANCE

1. Follow the instructions for lubricating periodically.

Lubricate the cable and hook regularly with a slight grease.

Grease the gears every 6 months. Use any good quality waterproof grease.

1. Inspect periodically all parts, steel cables, and accessories and replace if damaged or used.
2. Have damaged parts replaced by an authorized service center.
3. Check the nuts periodically and tighten them if they are loose.
4. Product must be stored in a dry location. Always lock up product and keep them out of reach of children.
5. Keep the product properly maintained and clean for a better and performance.
6. Keep handles dry, clean and free from oil and grease.
