Product Type	Manual Winch
Brand	Vevor
Model	KW1200
Maximum Load Capacity	1200 lbs (544 kg)
Gear Ratio	4:1
Operating Mode	2-way, 1 speed
Rope Type	Polyester Strap
Rope Length	7 meters
Color	Black
Base Dimensions (a x b)	50 mm x 85 mm
Mounting Hole Diameter	11 mm
Cable Material	Polyester
Intended Use	For pulling loads, not lifting
Safety	3-position ratchet switch, mandatory glove use
Maintenance	Regular lubrication of gears and cable, periodic inspection
Repairability	Do not disassemble yourself, contact an authorized center
Warranty	Electronic warranty certificate available at www.vevor.com/support

Frequently Asked Questions - KW1200 Vevor

What is the maximum load capacity of the Vevor KW1200 winch?

The maximum load capacity is 1200 lbs (approximately 544 kg). Never exceed this limit.

Can this winch be used for lifting loads?

No, this winch is designed only for pulling loads horizontally. Do not use for lifting.

How to install the winch on a surface?

Drill 11 mm holes in the supports according to the base dimensions (50x85 mm), secure the winch with at least 3 sets of 3/8 inch locking bolts and nuts in a triangle pattern.

How to use the ratchet switch?

The switch has 3 positions: top position for pulling, bottom position for releasing, and middle position to move the cable freely without load.

What type of rope is provided with the KW1200?

The winch is equipped with a polyester strap 7 meters long.

How to maintain the winch?

Regularly lubricate the cable and hook with light grease. Grease the gears every 6 months with waterproof grease.

Can I repair the winch myself in case of breakdown?

No, never try to repair or disassemble the winch. Contact an authorized machinist or specialist.

What safety precautions should I take?

Always wear gloves, hold the handle firmly when changing ratchet, and do not allow minors to use the winch.

How to wind the cable under load?

Place the ratchet lever in the top position, then turn the handle clockwise to wind evenly.

Where can I find technical support and warranty?

Visit www.vevor.com/support for technical assistance and the electronic warranty certificate.

USER MANUAL KW1200 Vevor

Technical Support and E-Warranty Certificate www.vevor.com/support

HAND WINCH USER'S MANUAL

Model: KW1200, KW1600, KW2000B, KW3500, KC800, KC3500

We continue to be committed to providing you with tools at competitive prices. "Save Half", "Half Price", or any other similar expressions used by us only represent the savings you might benefit from buying certain tools with us compared to top brands, and do not necessarily mean to cover all categories of tools offered. We kindly remind you to verify carefully when placing an order with us that you are actually saving half in comparison with the top major brands.

VEVOR®

TOUGH TOOLS, HALF PRICE

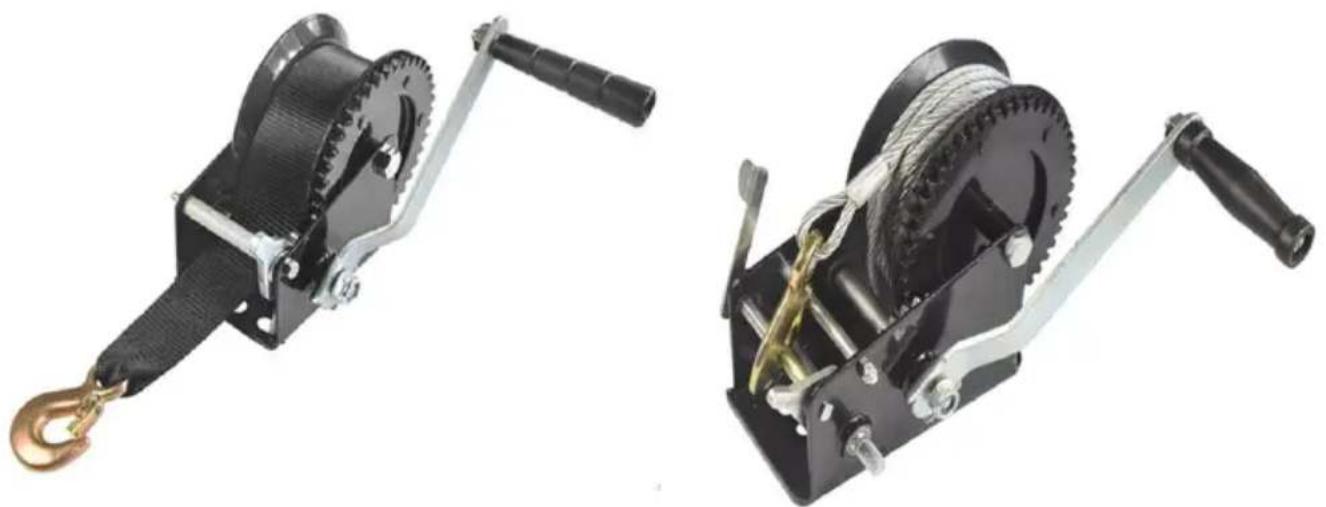

HAND WINCH

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel free to contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction. Please read all manual instructions carefully before operating. VEVOR reserves a clear interpretation of the user manual. The appearance of the product shall be subject to the product you received. Please forgive us that we won't inform you of any technology or software updates on our product.

GENERAL SAFETY RULES

WARNING

Please read this user manual carefully!

1. Never overload!
2. This winch is designed for pulling, not for lifting!
3. Never put your hand or anything else near the gear, rim, or cable roll. Always wear gloves when using the winch.
4. Never try to repair or disassemble the winch when it is under load. Ask a machinist or specialist for help.
5. When replacing the cable, make sure that the end of the cable passes through the 4 holes on the side of the rim, and tie a knot or use a cable stop to prevent the cable from coming out.
6. Use grease on the axle and gears before storing for a long time.
7. Do not allow minors to use or operate this product.
8. Do not use the product when you are tired, or while under the influence of alcohol, prescription medicines, or drugs.
9. Safety at work
10. Use both hands when transporting the product.
11. Use proper protective equipment according to the work environment.
12. Keep proper footing at all times and maintain balance.
13. Do not attempt to pull stationary or fixed loads.
14. Do not apply any side force on the load.
15. Not for lifting loads and never for transporting persons.
16. Avoid starting the product unintentionally. The ratchet switch should always be fully engaged.

CAUTION: Carefully read instructions and procedures for safe operation. SAVE THESE INSTRUCTIONS.

MODEL AND PARAMETERS

Model	KW1200	KW1600	KW2000B	KW3500	KC800	KC3500
Maximum Load Capacity	1200lbs	1600lbs	2000lbs	3500lbs	800lbs	3500lbs
Gear Ratio	4:1	4:1	4:1	4:1 and 8:1	3.1:1	4:1 and 8:1
Way/ Speed	2Way / 1Speed	2Way / 1Speed	2Way / 1Speed	2Way / 2Speed	2Way / 1Speed	2Way / 2Speed
Rope Type	Polyester Strap	Polyester Strap	Polyester Strap	Polyester Strap	Steel Cable	Steel Cable
Rope Length	7M	10M	7M	10M	10M	10M
Color(s)	Black	Black	Black	Black	Black	Black

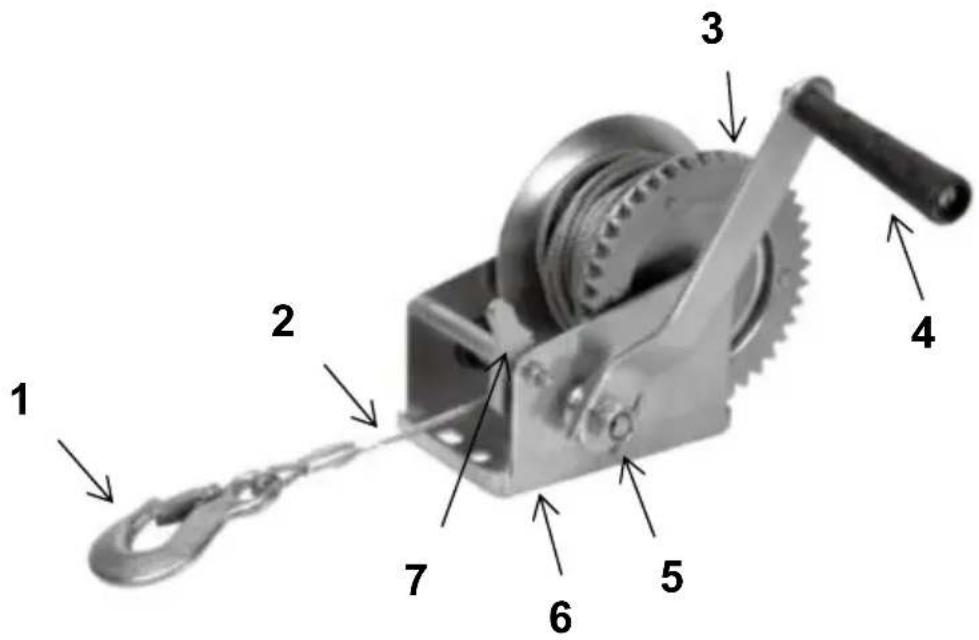

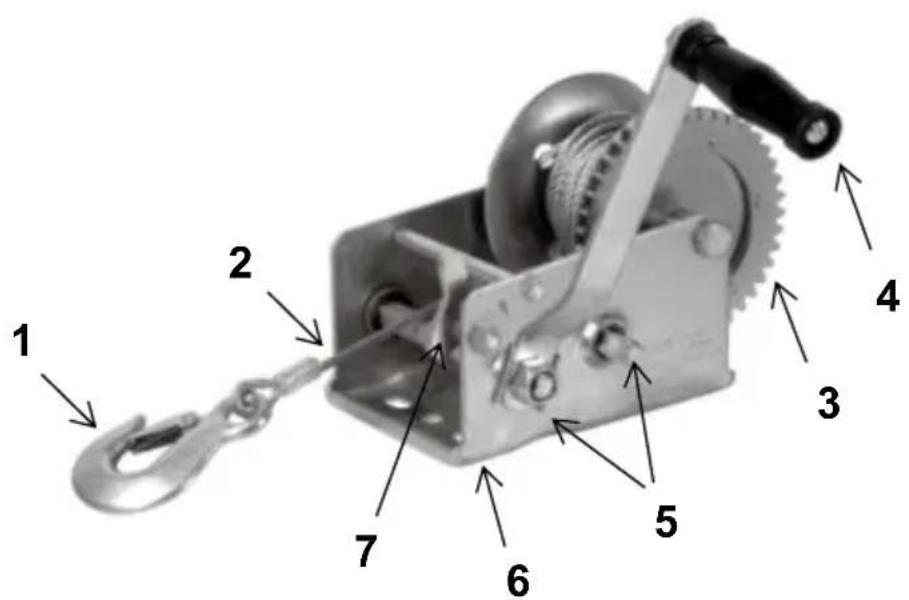

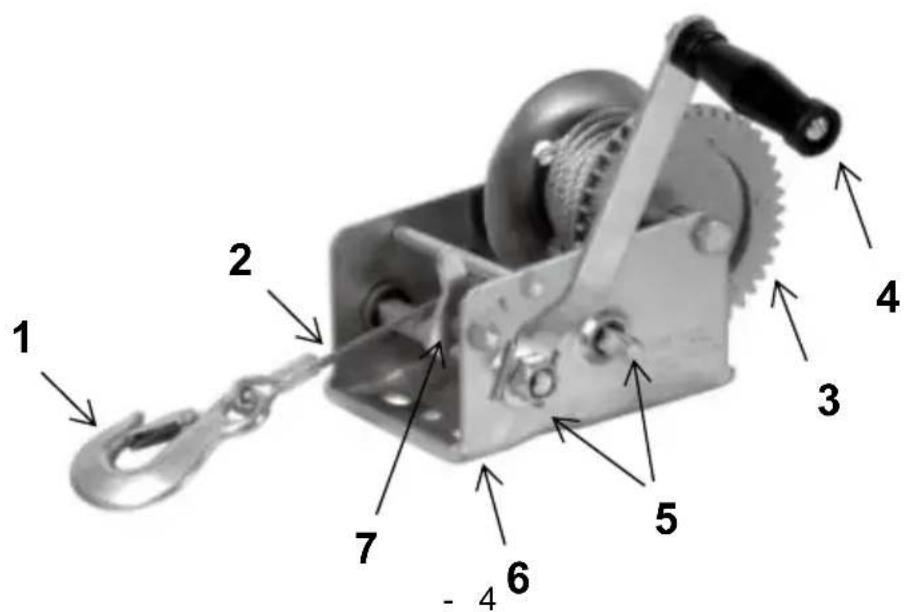

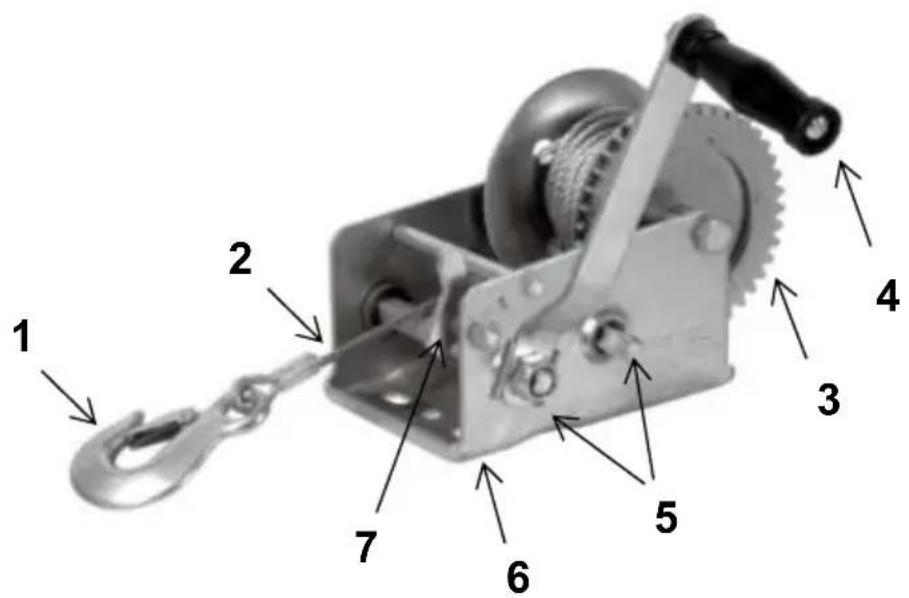

1. Hook 2. Rope 3. Rim 4. Crank 5. Axis Bolt 6. Base 7. Ratchet St

1. Hook 2. Rope 3. Rim 4. Crank 5. Axis Bolt 6. Base 7. Ratchet Swi

Installation Preparation:

1. Please prepare a carpet or mat to protect your floor. You need to take out all the accessories.
2. Please prepare gloves to avoid being scratched by sharp parts that may occur during installation.
3. Please open all the boxes to check that the accessories are complete and in good condition.
4. If you need to use power tools to install this product, please set the speed to low speed in advance.
5. When installing, please align all the holes and do not tighten all screws first; otherwise, it may make the installation difficult.

Installation:

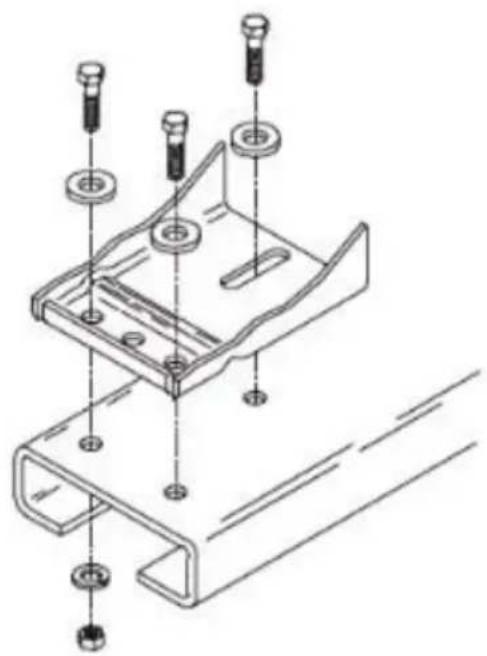

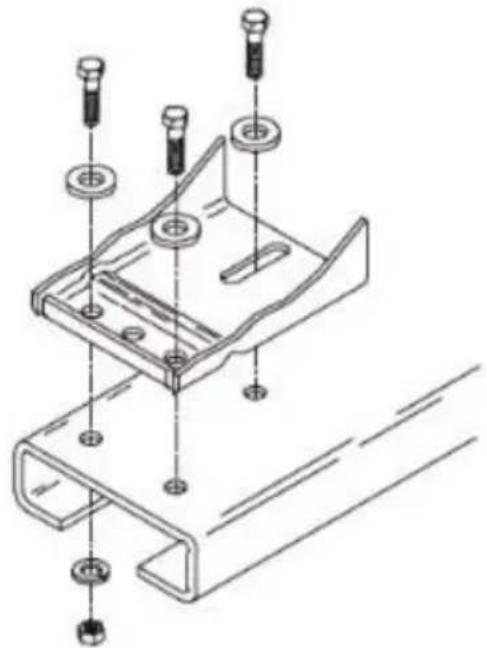

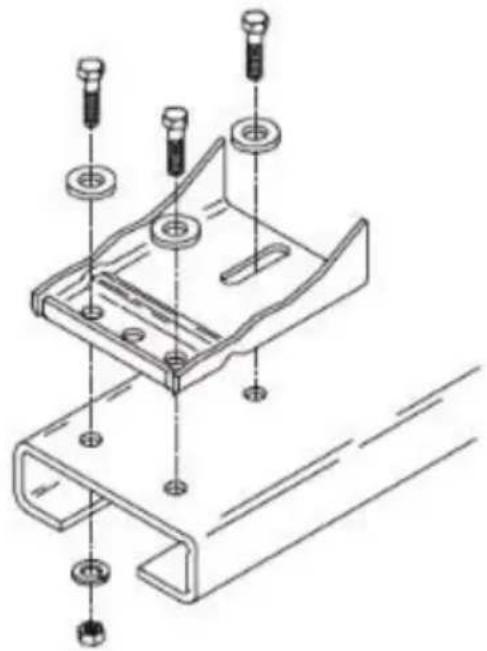

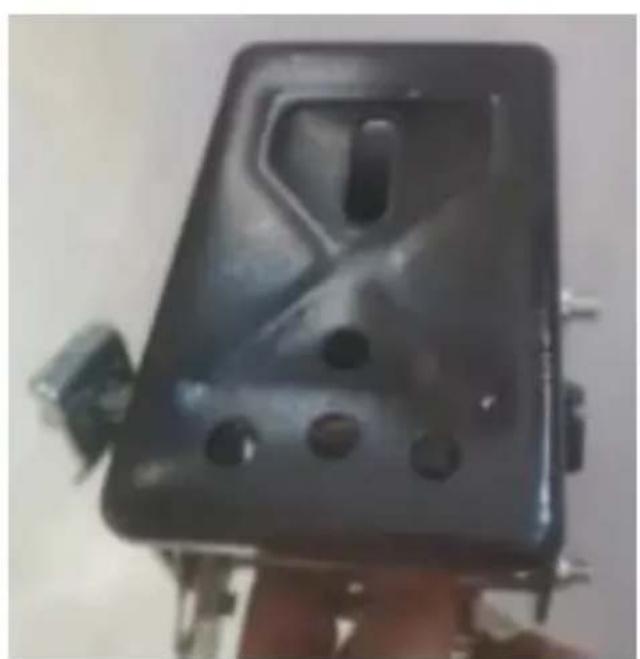

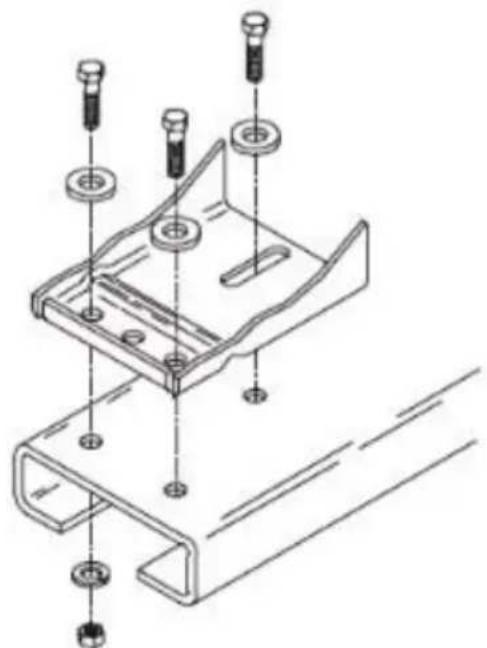

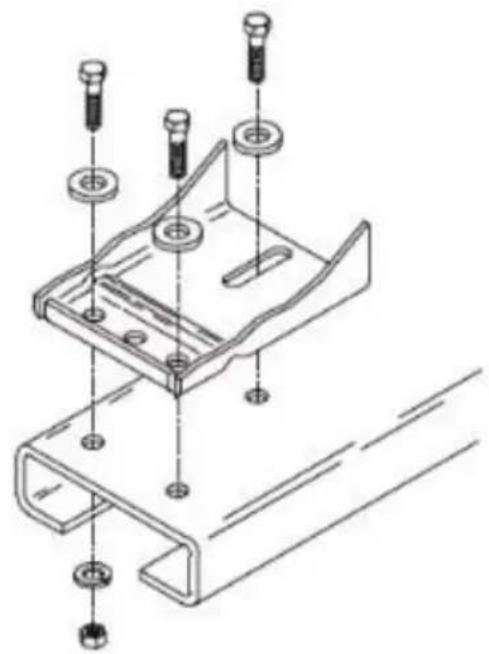

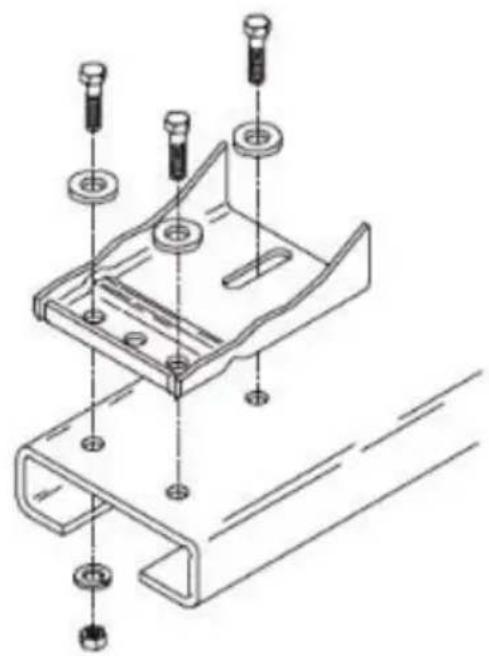

Step 1. Drill holes (Φ11mm) in the brackets to be installed, according to the winch base dimensions.

Install the winch on the brackets and lock it with bolts and nuts.

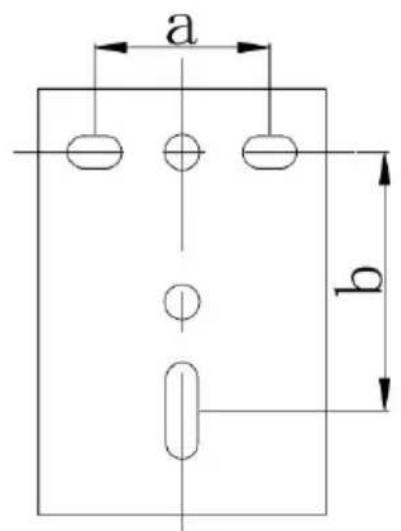

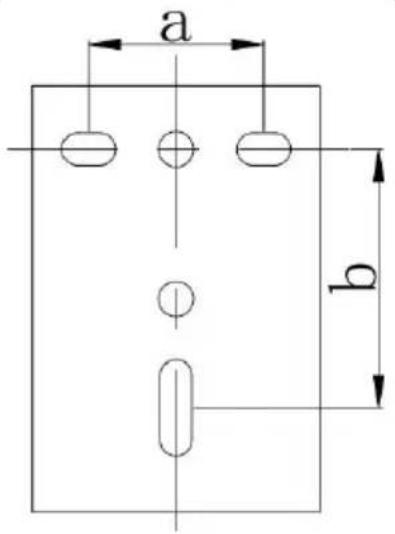

Winch Base Dimension:

Model	KW1200	KW1600	KW2000B	KC800	KW3500/KC3500
a (mm)	50	44	50	44.5	44
b (mm)	85	79	85	74	104

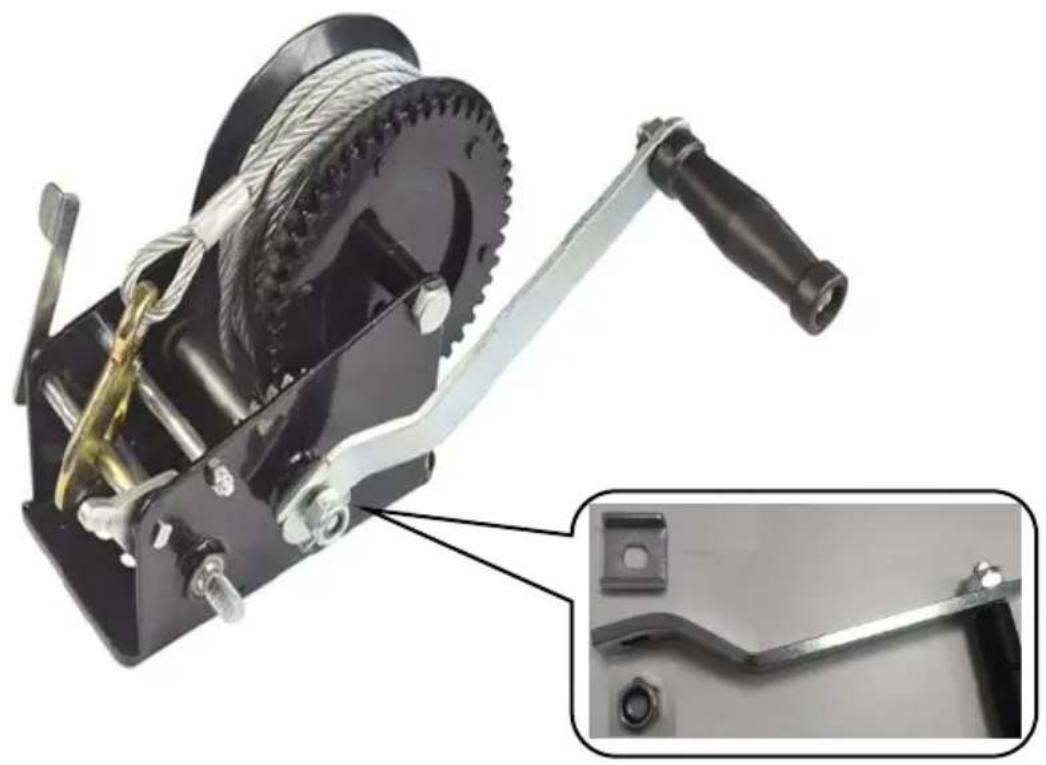

Step 2. Install the handle on the shaft and lock the nut, as shown.

Note: Model KW3500 and KC3500 are fast handles, just plug it in.

Step 3. Set the ratchet switch to the middle position, pull out the cable and catch the weight.

Then turn the ratchet switch to a high position, turn the handle slowly clockwise. Pull the weight to the desired position.

Note: The ratchet switch operation is described below.

Winding/unwinding the cable without load:

1. Place the ratchet lever in the center position.
2. The cable reel now moves freely in both directions.
3. Pull the cable at the fixed hook until the hook can be attached to the load to be moved.
4. Wind back the excessive cable by turning the crank clockwise.

Winding up the cable under load (towing, loading):

1. Hold the crank firmly and push gently to relieve the ratchet lever.
2. Place the ratchet lever in position.
3. Turn the crank clockwise to evenly wind up the steel cable.

Unwinding the cable under load (lowering, unloading)

1. Hold the crank firmly and push gently to relieve the ratchet lever. 2. Place the ratchet lever in position. 3. The cable should be fully retracted again after use.

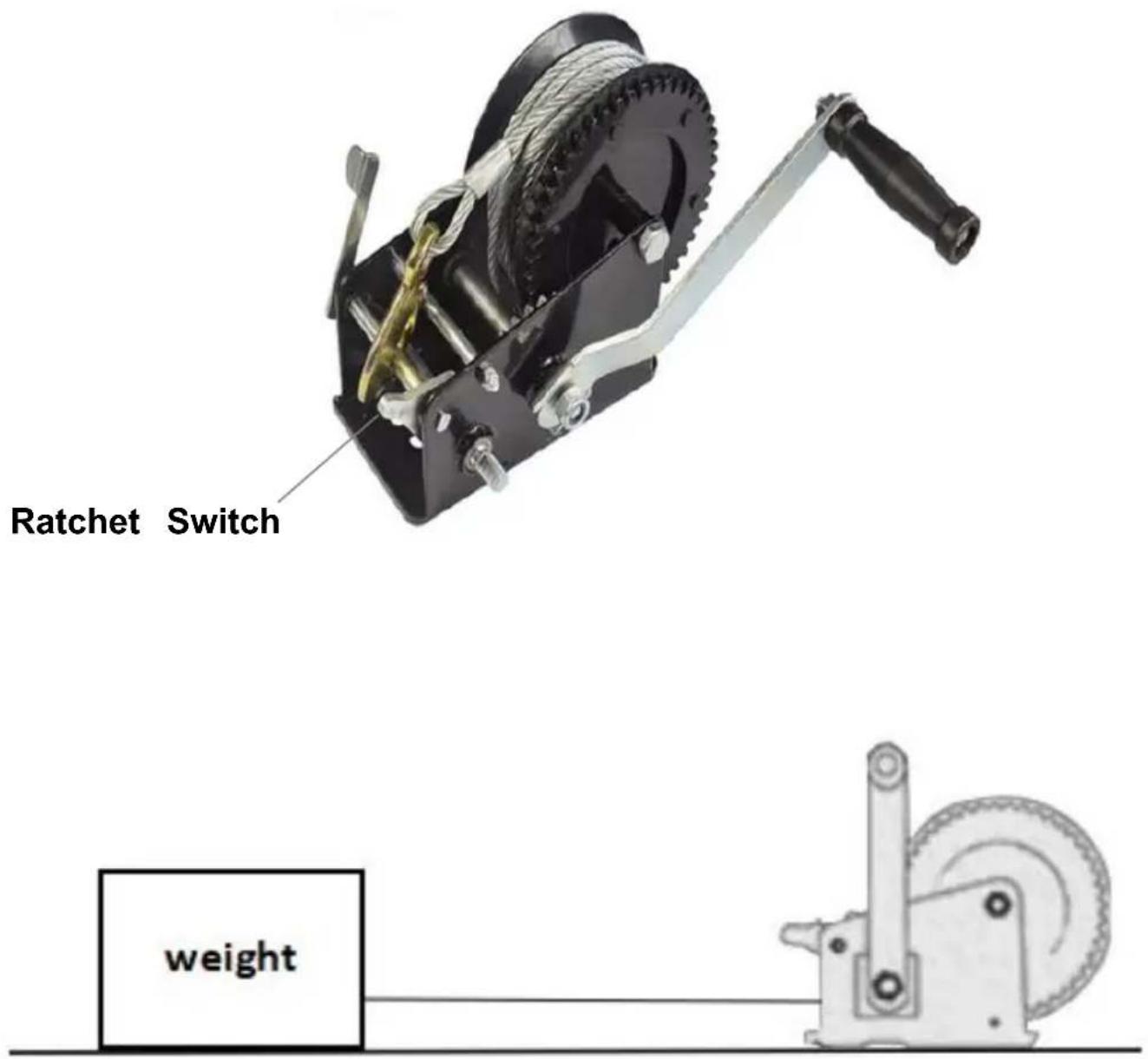

Ratchet switch

1. There are 3 positions for the ratchet switch: The higher position is for pulling, the lower position is for releasing, and the middle position is for both pulling and releasing, but it can only be used when the winch is loaded. Hold the crank handle tightly if you want to change the switch position.
2. Before using, install the winch on a firm and flat surface. To install, set the ratchet switch in the middle position and pull the cable out until holes on the bottom of the base are visible. Then use at least 3 5/16 inch bolts and locking nuts, in a triangular pattern, to affix the base to the surface. Use an extra metal or hardwood board when necessary.
3. Then install the crank handle onto the axis bolt with the nut.
4. Put the ratchet switch in the higher position and turn the crank handle clockwise to pull. Place the ratchet switch in the lower position and turn the crank handle counterclockwise to release.
5. When finished, attach the hook to the pawl bushing.

MAINTENANCE

1. Follow the instructions for lubricating periodically.

Lubricate the cable and hook regularly with a slight grease.

Grease the gears every 6 months. Use any good quality waterproof grease.

1. Inspect periodically all parts, steel cables, and accessories, and replace if damaged or worn.
2. Have damaged parts replaced by an authorized service center.
3. Check the nuts periodically and tighten them if they are loose.
4. Product must be stored in a dry location. Always lock up the product and keep it out of reach of children.
5. Keep the product properly maintained and clean for better performance.
6. Keep handles dry, clean, and free from oil and grease.

Address: Baoshanqu Shuangchenglu 803long 11hao 1602A-1609shi Shanghai

Imported to AUS: SIHAO PTY LTD, 1 ROKEVA STREET EASTWOOD NSW 2122 Australia

Imported to USA: Sanven Technology Ltd, Suite 250, 9166 Anaheim Place, Rancho Cucamonga, CA 91730

EC

REP

UK

REP

SHUNSHUN GmbH

Römeräcker 9 Z2021, 76351

Unit 5 Albert Edward House, The

Pavilions Preston, United Kingdom

Made In China

VEVOR®

TOUGH TOOLS, HALF PRICE

Technical Support and E-Warranty Certificate www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represent savings you might benefit from buying certain tools with us compared to top brands and does not necessarily mean to cover all categories of tools offered. We kindly remind you to verify carefully when placing an order with us to ensure you are actually saving half in comparison with the top major brands.

VEVOR®

TOUGH TOOLS, HALF PRICE

HAND WINCH

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel free to contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction. Please read all manual instructions carefully before operating. VEVOR reserves a clear interpretation of the user manual. The appearance of the product shall be subject to the product you received. Please forgive us that we won't inform you of any technology or software updates on our product.

GENERAL SAFETY RULES

WARNING

Unit 5 Albert Edward House, The

Pavilions Preston, United Kingdom

Made in China

VEVOR®

TOUGH TOOLS, HALF PRICE

We continue to be committed to providing you with tools at competitive prices. "Save Half", "Half Price" or any other similar expressions used by us only represent savings you might benefit from buying certain tools with us compared to top brands and does not necessarily mean to cover all categories of tools offered. We kindly remind you to verify carefully when placing an order with us that you are actually saving half in comparison with the top major brands.

VEVOR®

TOUGH TOOLS, HALF PRICE

HAND WINCH

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel free to contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction. Please read all manual instructions carefully before operating. VEVOR reserves a clear interpretation of the user manual. The appearance of the product shall be subject to the product you received. Please forgive us that we won't inform you of any technology or software updates on our product.

GENERAL SAFETY RULES

WARNING

Place, Rancho Cucamonga, CA 91730

EC

REP

SHUNSHUN GmbH

Römeräcker 9 Z2021, 76351

Unit 5 Albert Edward House, The

Pavilions Preston, United Kingdom

Model: KW1200, KW1600, KW2000B, KW3500, KC800, KC3500

We continue to be committed to providing you with tools at competitive prices. "Save Half", "Half Price", or any other similar expressions used by us only represent savings you might benefit from buying certain tools with us compared to top brands and does not necessarily mean to cover all categories of tools offered. We kindly remind you to verify carefully when placing an order with us that you are actually saving half in comparison with the top major brands.

VEVOR®

TOUGH TOOLS, HALF PRICE

HAND WINCH

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel free to contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction. Please read all manual instructions carefully before operating. VEVOR reserves a clear interpretation of the user manual. The appearance of the product shall be subject to the product you received. Please forgive us that we won't inform you if there are any technology or software updates on our product.

GENERAL SAFETY RULES

WARNING

Imported in AUS: SIHAO PTY LTD, 1 ROKEVA STREET, EASTWOOD NSW 2122 Australia

Unit 5 Albert Edward House, The

Pavilions Preston, United Kingdom

Made in China

VEVOR®

TOUGH TOOLS, HALF PRICE

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represent an estimate of savings you might benefit from buying certain tools with us compared to top brands and does not necessarily mean to cover all categories of tools offered. You are kindly reminded to verify carefully when you are placing an order with us that you are actually saving half in comparison with the top major brands.

VEVOR®

TOUGH TOOLS, HALF PRICE

HAND WINCH

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel free to contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction. Please read all manual instructions carefully before operating. VEVOR reserves a clear interpretation of the user manual. The appearance of the product shall be subject to the product you received. Please forgive us that we won't inform you if there are any technology or software updates on our product.

GENERAL SAFETY RULES

WARNING

1. 1. Hook 2. Rope 3. Edge 4. Crank 5. Axle pin 6. Base 7. Ratchet switch

1. 1. Hook 2. Rope 3. Edge 4. Crank 5. Axle pin 6. Base

7. Ratchet switch

Imported to AUS: SIHAO PTY LTD, 1 ROKEVA STREET, EASTWOOD NSW 2122 Australia

Imported to USA: Sanven Technology Ltd, Suite 250, 9166 Anah Place, Rancho Cucamonga, CA 91730

EC

REP

SHUNSHUN GmbH

Römeräcker 9 Z2021, 76351

Unit 5 Albert Edward House, The

Pavilions Preston, United Kingdom

Made in China

VEVOR®

TOUGH TOOLS, HALF PRICE

Model: KW1200, KW1600, KW2000B, KW3500, KC800, KC3500

We continue to be committed to providing you with tools at competitive prices. "Save Half", "Half Price", or any other similar expressions used by us only represent the savings you might benefit from buying certain tools with us compared to top brands and do not necessarily mean to cover all categories of tools offered. We kindly remind you to verify carefully when placing an order with us to ensure you are actually saving half in comparison with the top major brands.

VEVOR®

TOUGH TOOLS, HALF PRICE

HAND WINCH

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel free to contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction. Please read all manual instructions carefully before operating. VEVOR reserves a clear interpretation of the user manual. The appearance of the product shall be subject to the product you received. Please forgive us that we won't inform you of any technology or software updates on our product.

GENERAL SAFETY RULES

WARNING

Importer for AUS: SIHAO PTY LTD, 1 ROKEVA STREET, EASTWOOD NSW 2122 Australia

Imported by USA: Sanven Technology Ltd, Suite 250, 9166 Anaheim P Rancho Cucamonga, CA 91730

EC

REP

SHUNSHUN GmbH

Römeräcker 9 Z2021, 76351

Unit 5 Albert Edward House, The

Pavilions Preston, United Kingdom

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represent savings you might benefit from buying certain tools with us compared to top brands and does not necessarily mean to cover all categories of tools offered. We kindly remind you to verify carefully when you are placing an order with us that you are actually saving half in comparison with the top major brands.

VEVOR®

TOUGH TOOLS, HALF PRICE

HAND WINCH

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel free to contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction. Please read all manual instructions carefully before operating. VEVOR reserves the right to interpret the user manual. The appearance of the product shall be subject to the product you received. Please forgive us that we won't inform you of any technology or software updates on our product.

GENERAL SAFETY RULES

WARNING

1. 1. Hook 2. Rope 3. Rim 4. Crank 5. Axle bolt 6. Base 7. Ratchet switch

1. Hook 2. Rope 3. Rim 4. Crank 5. Axle bolt 6. Base 7. Ratchet switch

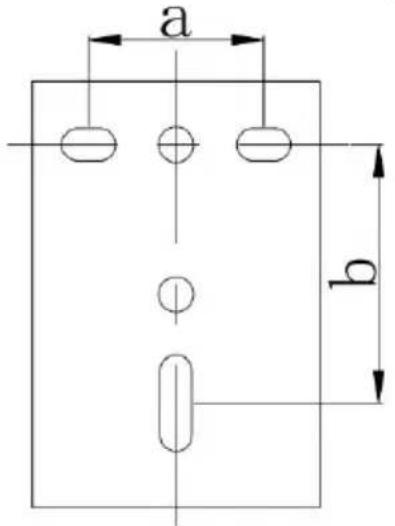

Dimensions of the winch base:

Model	KW1200	KW1600	KW2000B	KC800	KW3500 / KC3500
een (mm)	50	44	50	44,5	44
b (mm)	85	79	85	74	104

Anaheim Place, Rancho Cucamonga, CA 91730

EC

REP

SHUNSHUN GmbH

Römeräcker 9 Z2021, 76351

Unit 5 Albert Edward House, The

Pavilions Preston, United Kingdom

Made in China

VEVOR®

TOUGH TOOLS, HALF PRICE

Technical Support and e-warranty certificate www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

HAND WINCH USER MANUAL

Model: KW1200, KW1600, KW2000B, KW3500, KC800, KC3500

We continue to be committed to providing you with tools at competitive prices. "Save Half," "Half Price," or any other similar expressions used by us only represent the savings you might benefit from when buying certain tools from us compared to top brands, and do not necessarily mean that all categories of tools offered are covered. We kindly remind you to verify carefully when placing an order with us to ensure you are actually saving half in comparison with the top major brands.

VEVOR®

TOUGH TOOLS, HALF PRICE

HAND WINCH

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel free to contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction. Please read all manual instructions carefully before operating. VEVOR reserves the right to interpret the user manual. The appearance of the product shall be subject to the product you received. Please forgive us that we won't inform you of any technology or software updates on our product.

GENERAL SAFETY RULES

WARNING

1. Hook 2. Rope 3. Rim 4. Crank 5. Axle bolt 6. Base 7. Pawl switch

1. Hook 2. Rope 3. Rim 4. Crank 5. Axle bolt 6. Base 7. Pawl switch

Winch base dimensions:

Modell	KW1200	KW1600	KW2000B	KC800	KW3500 / KC3500
a (mm)	50	44	50	44,5	44
b (mm)	85	79	85	74	104

Unit 5 Albert Edward House, The

Pavilions Preston, United Kingdom

Made in China

VEVOR®

TOUGH TOOLS, HALF PRICE

www.vevor.com/support
